9-01 — TOOLS (#39613) — 30 parça
çizim 57024
285 280 284
BalonParca AdiParca NoAdetTipApplied Date A B
280 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97222-496-0 01 1 0701- ● ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M8X25 FLANGE 		0-28650-825-0 04 1 0701- ● ●
285 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> M8 FLANGE 		0-91180-108-0 04 1 0701- ● ●

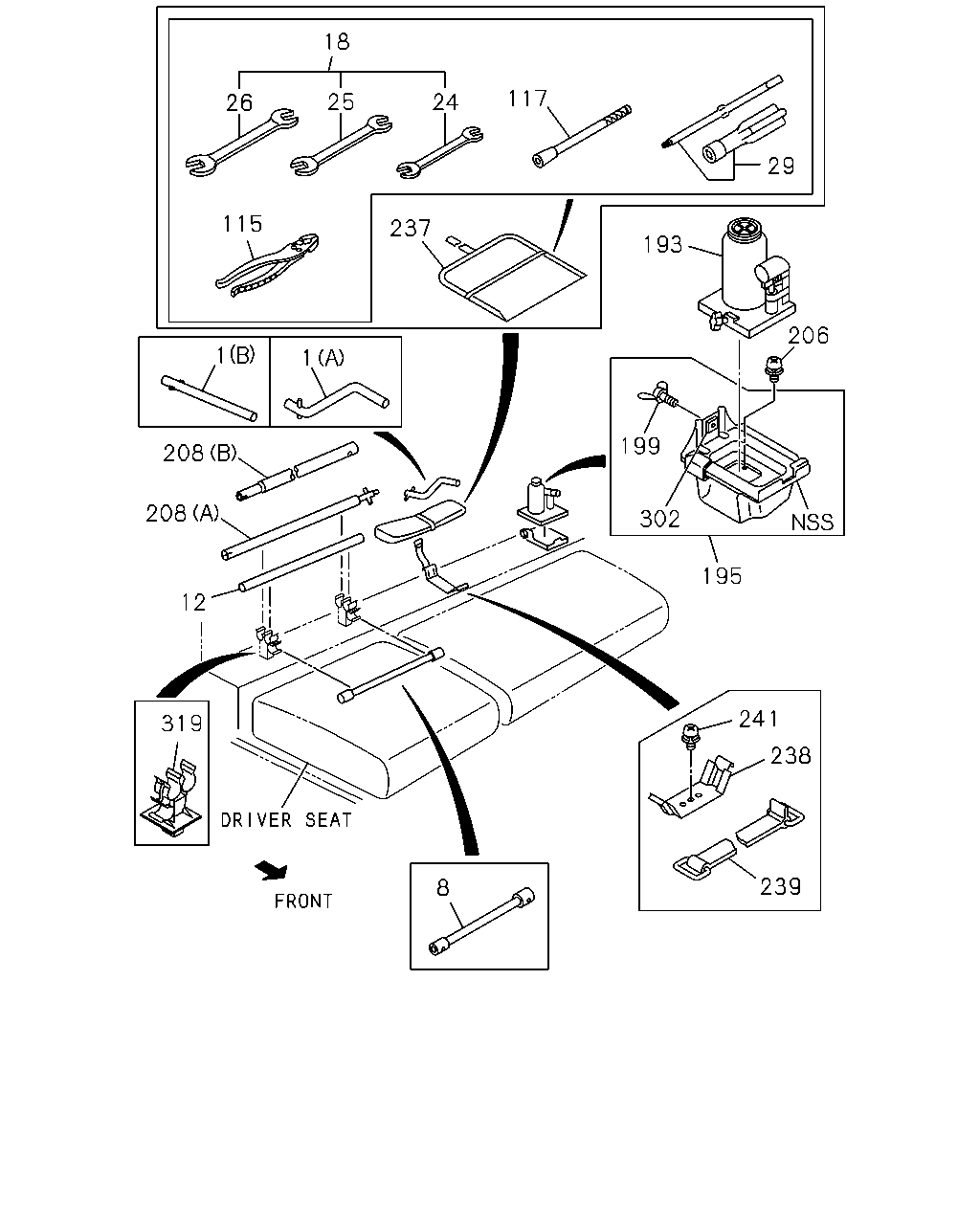

çizim 57435
18 117 25 24 26 29 115 237 193 206 1 1 199 208 208 302 195 12 241 319 238 239 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
(B) 		1-85515-007-0 01 1 0701- ●
1 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 0701- ●
8 WRENCH; WHEEL
THA 		8-97921-326-0 01 1 0701- ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0701-1001 ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 THA 		1-85116-011-0 01 1 1002- ●
18 WRENCH KIT
THA 		8-97916-962-1 01 1 0701- ● ●
24 WRENCH; 8X10
THA 		8-97914-448-0 01 1 0701- ● ●
25 WRENCH; 12X14
THA 		8-97914-701-0 01 1 0701- ● ●
26 WRENCH; 22X17
MIC THA 		8-97911-404-0 01 1 0701- ● ●
29 DRIVER; SCREW
THA 		8-97914-456-1 01 1 0701- ● ●
115 PLIER
THA 		8-97914-452-0 01 1 0701- ● ●
117 WRENCH; VALVE CAP
THA 		8-97914-462-0 01 1 0701- ● ●
193 JACK ASM
5TON 		8-97371-124-0 01 1 0701-0805 ● ●
193 JACK ASM
5TON 		8-98114-047-0 01 1 0806- ● ●
195 BRACKET; JACK 8-94262-068-3 01 1 0701-0805 ● ●
195 BRACKET; JACK 8-94273-287-7 01 1 0806- ● ●
199 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0701-0805 ● ●
199 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 0806- ● ●
206 SCREW; OIL JACK BRKT
M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0701- ● ●
208 HANDLE; JACK
(B) L=580 		1-85515-005-1 01 1 0701- ●
208 HANDLE; JACK
(A) L=642 THA 		8-97921-377-0 01 1 0701- ●
237 BAG; TOOL
THA 		8-97916-549-0 01 1 0701- ● ●
238 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0701- ● ●
239 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0701- ● ●
241 SCREW; TOOL BAG SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0701- ● ●
302 NUT; JACK BRKT 8-94279-522-0 01 1 0701- ● ●
319 CLIP; TOOL BAR 8-97853-077-2 02 1 0701- ● ●
