Isuzu WW
▶
TRUCKS
▶
NQR
▶
51132 - NQR BUS CHAS(THAI)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶
8-80 — WINDSHIELD WIPER AND WASHER
(#39611) — 38 parça
Tümü
A - NPC5SF
B - NPC5SN
◀

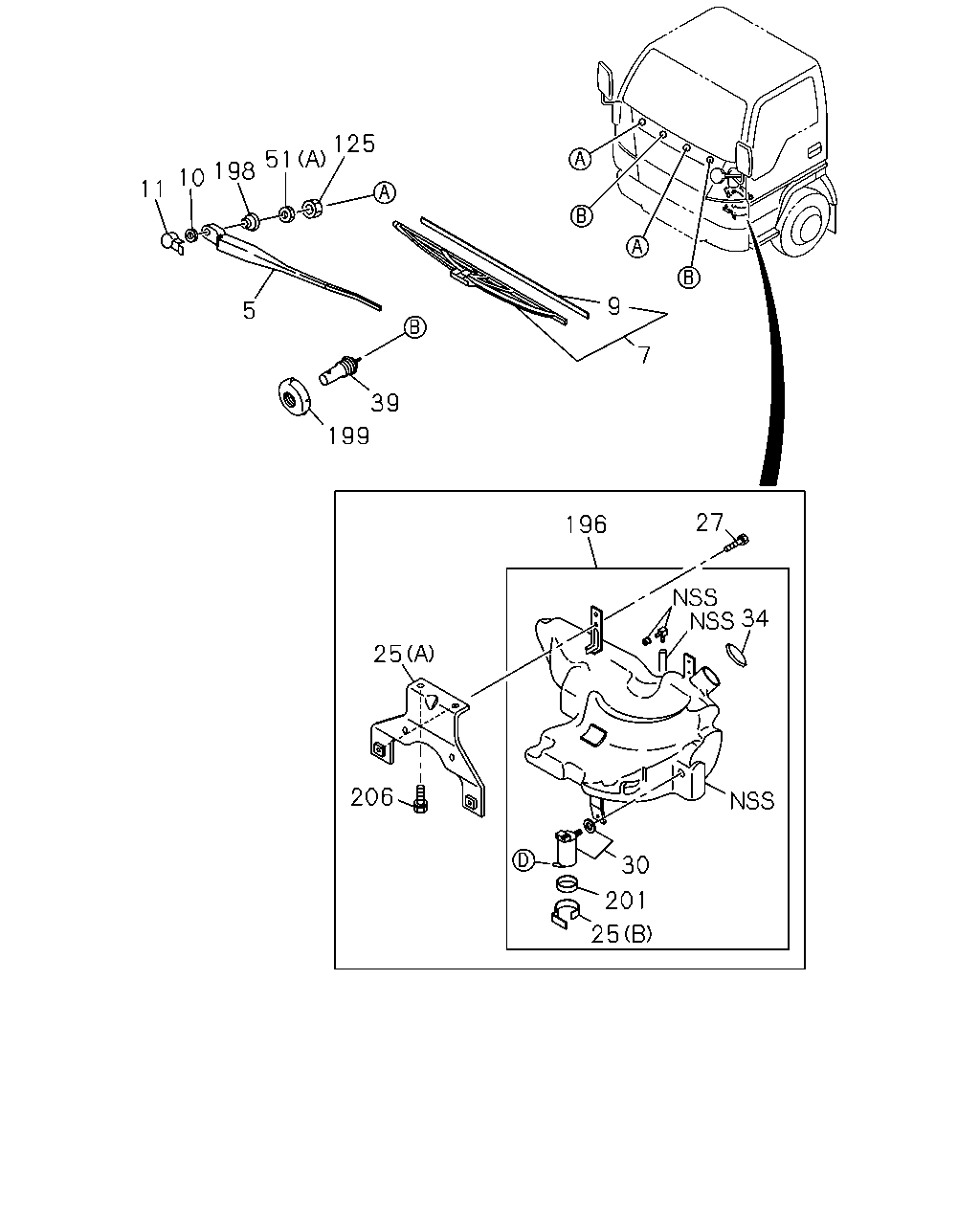

[880A] BLADE,TANK AND OTHER PARTS (20 parça)

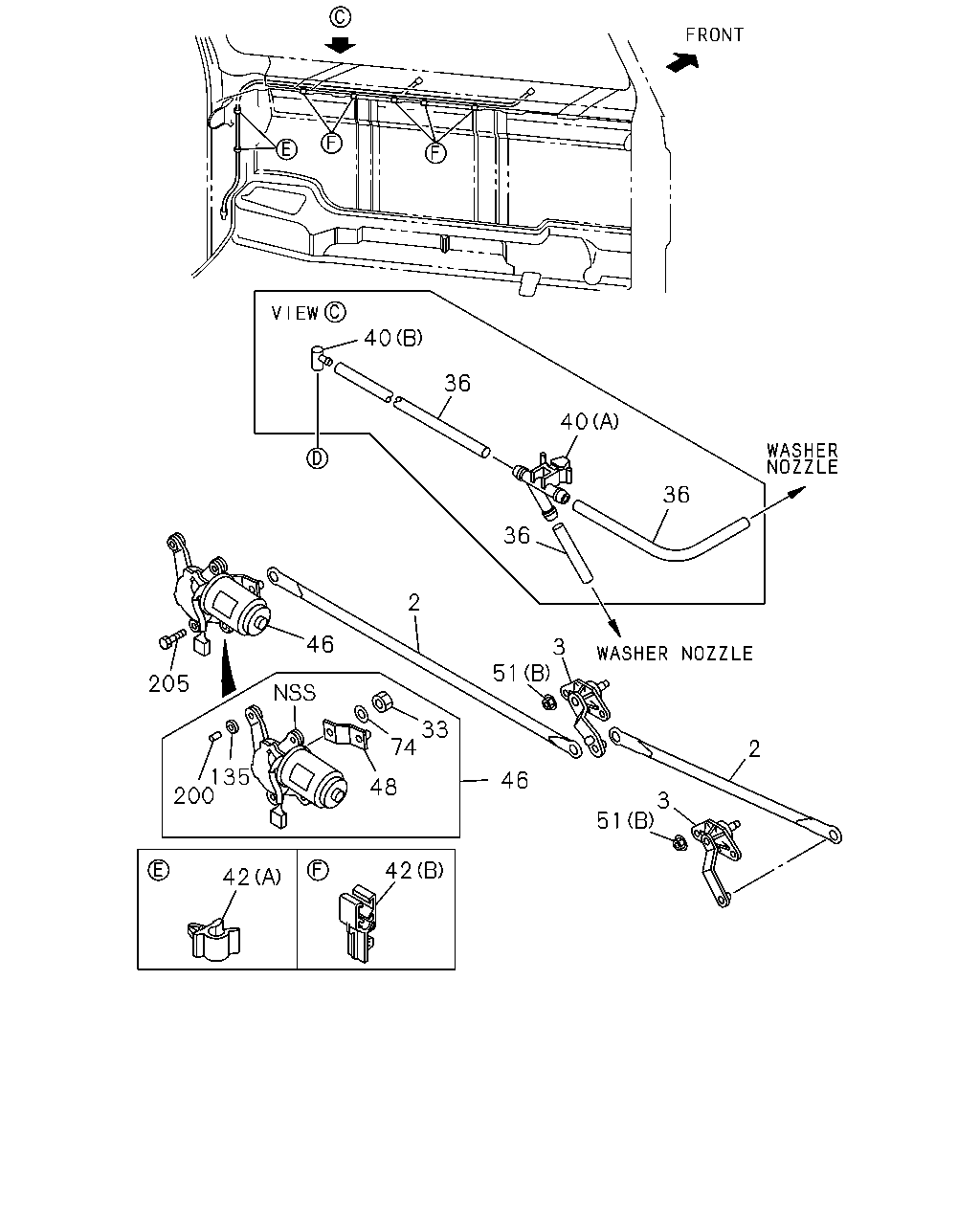

[880A] HOSE,MOTOR AND LINK (18 parça)
▶
125
51
198
10
11
9
5
7
39
199
27
196
34
25
206
30
201
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
ARM; WIPER
8-97223-299-0
01
1
0701-
●
●
5
ARM; WIPER
8-97223-298-0
01
1
0701-
●
●
7
BLADE; WIPER
L=500
8-97134-563-2
02
1
0701-
●
●
9
RUBBER; FRT WIPER BLADE
8-97804-040-1
02
1
0701-
●
●
10
NUT; WIPER ARM TO WIPER PIVOT
M8
9-09110-408-0
02
1
0701-
●
●
11
COVER; WIPER ARM
BLACK
8-94282-851-0
02
1
0701-
●
●
25
BRACKET; WASHER TANK
(A)
8-97855-023-2
01
1
0701-
●
●
25
BRACKET; WASHER TANK
(B)
8-97855-226-0
01
1
0701-
●
●
27
BOLT; WASHER TANK
M8X16 W/LK&PL WASHER
8-94310-730-0
03
1
0701-
●
●
30
MOTOR ASM; FRT WASHER TANK
8-97855-139-0
01
1
0701-
●
●
34
CAP; WASHER TANK
8-97855-140-0
01
1
0701-
●
●
39
NOZZLE; WINDSHIELD WASHER
8-98010-172-0
02
1
0701-
●
●
51
NUT; WIPER MOTOR LINK
(A)
8-97135-435-0
02
1
0701-
●
●
51
NUT; WIPER MOTOR LINK
(B) M8 FLANGE THA
8-97581-233-0
04
1
0701-
●
●
125
SPACER; WIPER PIVOT
8-97135-434-0
02
1
0701-
●
●
196
TANK; WASHER
8-97855-017-8
01
1
0701-
●
●
198
COVER; PIVOT,WIPER
8-97359-329-0
02
1
0701-
●
●
199
COVER; NOZZLE,WIPER
8-97855-022-1
02
1
0701-
●
●
201
LINING; WIPER MOTOR
8-97352-826-0
01
1
0701-
●
●
206
BOLT; BRKT,WASHER TANK
M6X16 FLANGE
0-28650-616-0
02
1
0701-
●
●
40
36
40
36
36
2
46
3
51
205
33
74
2
135
200
46
48
3
51
42
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
LINK; FRT WIPER
L=511 W/CAP
8-97855-151-0
01
1
0701-
●
●
2
LINK; FRT WIPER
L=791 W/CAP
8-97855-154-0
01
1
0701-
●
●
3
PIVOT ASM; FRT WIPER
8-97855-146-2
01
1
0701-
●
●
3
PIVOT ASM; FRT WIPER
8-97855-148-2
01
1
0701-
●
●
33
NUT; MOTOR TO ARM
M8 THA
8-97855-157-0
01
1
0701-
●
●
36
HOSE; WASHER
SERVICED BY L=10000 THA
8-94389-303-0
01
1
0701-
●
●
40
JOINT; WASHER HOSE
(A)
5-83363-006-0
01
1
0701-
●
●
40
JOINT; WASHER HOSE
(B)
8-97855-163-0
01
1
0701-
●
●
42
CLIP; WASHER HOSE
(A)
8-94144-956-0
02
1
0701-
●
●
42
CLIP; WASHER HOSE
(B)
8-94279-819-0
07
1
0701-
●
●
46
MOTOR ASM; FRT WINDSHIELD WIPER
THA
8-97915-717-0
01
1
0701-
●
●
48
ARM; WIPER MOTOR
THA
8-97218-924-0
01
1
0701-
●
●
51
NUT; WIPER MOTOR LINK
(A)
8-97135-435-0
02
1
0701-
●
●
51
NUT; WIPER MOTOR LINK
(B) M8 FLANGE THA
8-97581-233-0
04
1
0701-
●
●
74
WASHER; ARM TO MOTOR
ID=8 THA
8-97855-158-0
01
1
0701-
●
●
135
RUBBER; CUSHION,WIPER MOTOR
THA
8-97855-159-0
03
1
0701-
●
●
200
COLLAR; WIPER MOTOR
THA
8-97855-160-0
03
1
0701-
●
●
205
BOLT; WIPER MOTOR
THA
8-97922-739-0
03
1
0701-
●
●
