◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#3961) — 37 parça

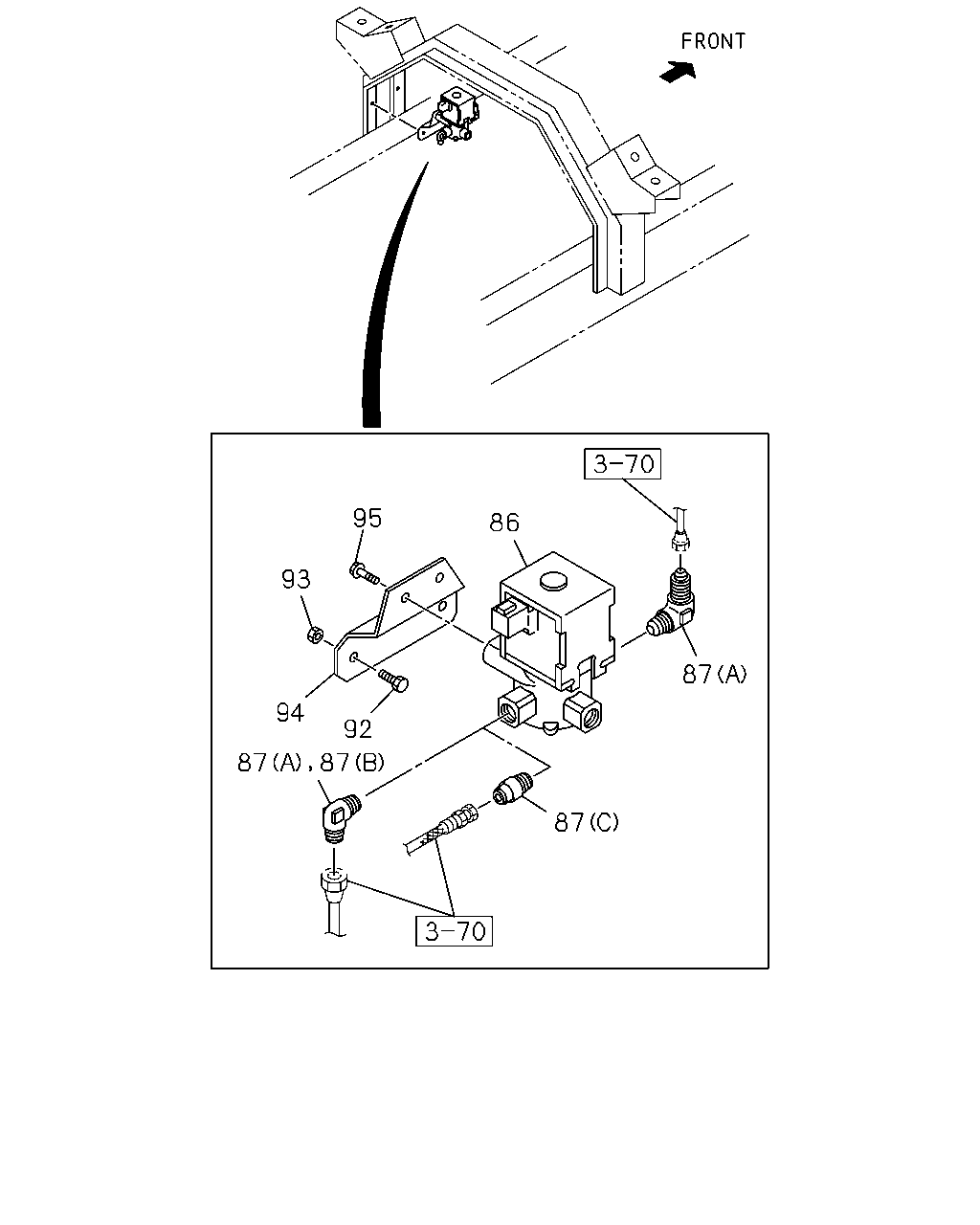

çizim 115976
95 86 93 87 94 92 87 87 87
BalonParca AdiParca NoAdetTipApplied Date A B C D E
86 VALVE; MAG,EXH BRK 1-82563-602-2 01 1 9510-9510 ●
86 VALVE; MAG,EXH BRK 1-82563-602-4 01 1 9511-0004 ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-6 01 1 0005-0607 ● ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-6 01 1 0608- ● ● ● ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0608- ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9510-9510 ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9511-9802 ● ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9803-0004 ● ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0005-0607 ● ● ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0608- ● ● ● ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9803-9804 ● ● ●
87 CONNECTOR
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 9805-0004 ● ● ●
87 CONNECTOR
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0005- ● ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9510 ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28080-820-0 02 1 9511-9606 ● ●
92 BOLT; MAG VLV
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9712 ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 9801-0004 ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ● ●
93 NUT; MAG VLV
M8 		9-09110-408-0 02 1 9510-9510 ●
93 NUT; MAG VLV
M8 		9-09110-408-0 02 1 9511-9606 ● ●
93 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ●
93 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ● ●
93 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47477-266-0 01 1 9510-9510 ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47477-266-0 01 1 9511-0004 ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47477-266-0 01 1 0005-0607 ● ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47477-266-0 01 1 0608- ● ● ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9510 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28080-820-0 02 1 9511-9512 ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 02 1 9601-9802 ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28080-820-0 02 1 9803-9810 ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 02 1 9811-0004 ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0601-0607 ● ● ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0608-0608 ● ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0608- ● ● ● ● ●
