8-21 — METER ASM (#39603) — 27 parça

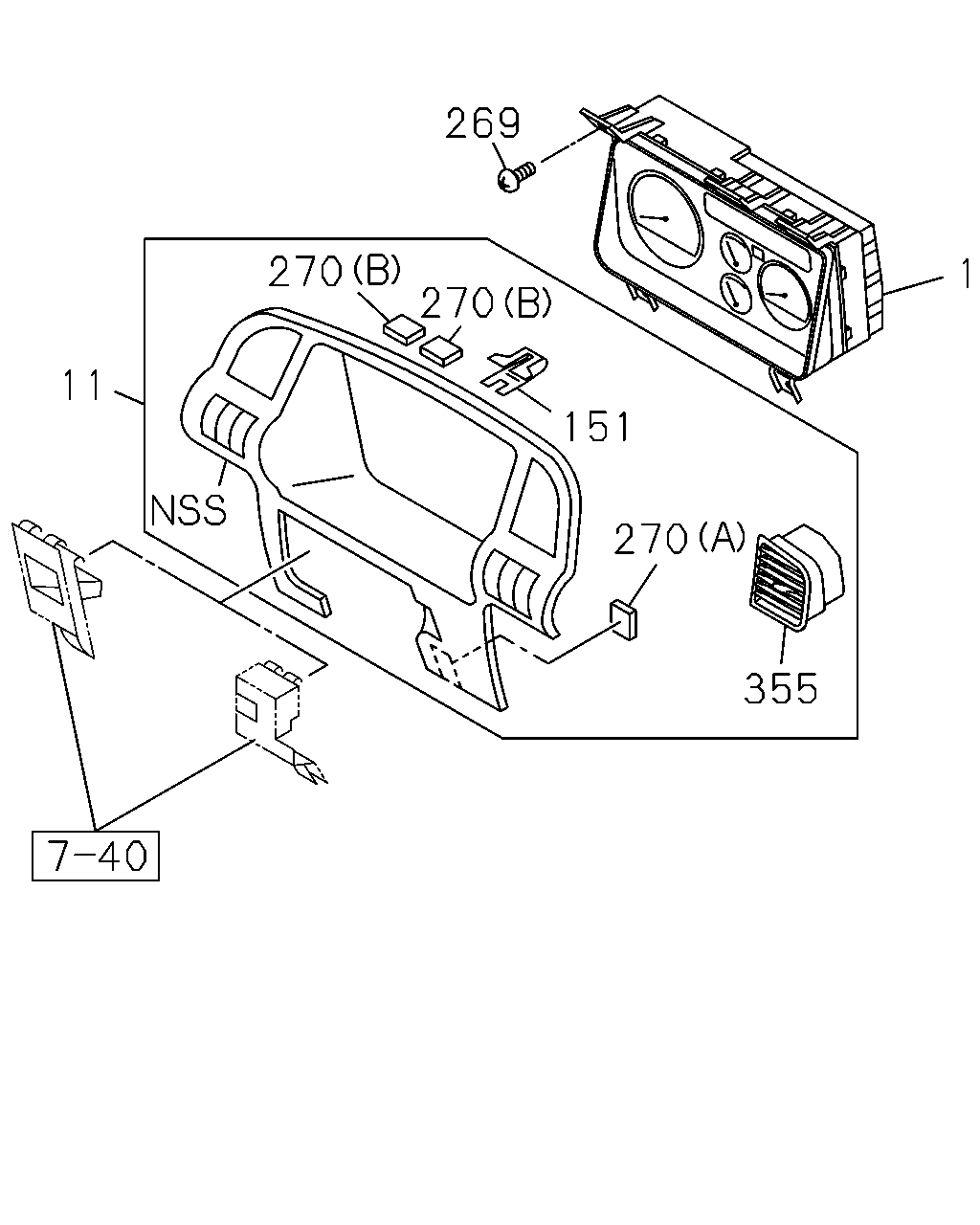

çizim 57461
269 270 1 11 151 355 270 270
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-98000-527-4 01 1 0701- ● ●
5 NUT; CLUSTER PANEL
M6 FLANGE 		0-91180-106-0 04 1 0702- ●
11 CLUSTER ASM; METER
BLACK 		8-97195-965-2 01 1 0701- ● ●
138 BOLT
M6X20 FLANGE 		0-28650-620-0 04 1 0702- ●
151 CLIP; METER CLUSTER 8-97217-066-0 07 1 0701- ● ●
269 SCREW; METER CLUSTER
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 05 1 0701- ● ●
270 CUSHION; METER CLUSTER
(A) 15X30 T=5 		8-94270-366-2 01 1 0701- ● ●
270 CUSHION; METER CLUSTER
(B) 6X30 T=2 		8-94270-378-1 02 1 0701- ● ●
355 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 0701- ● ●
355 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 0701- ● ●

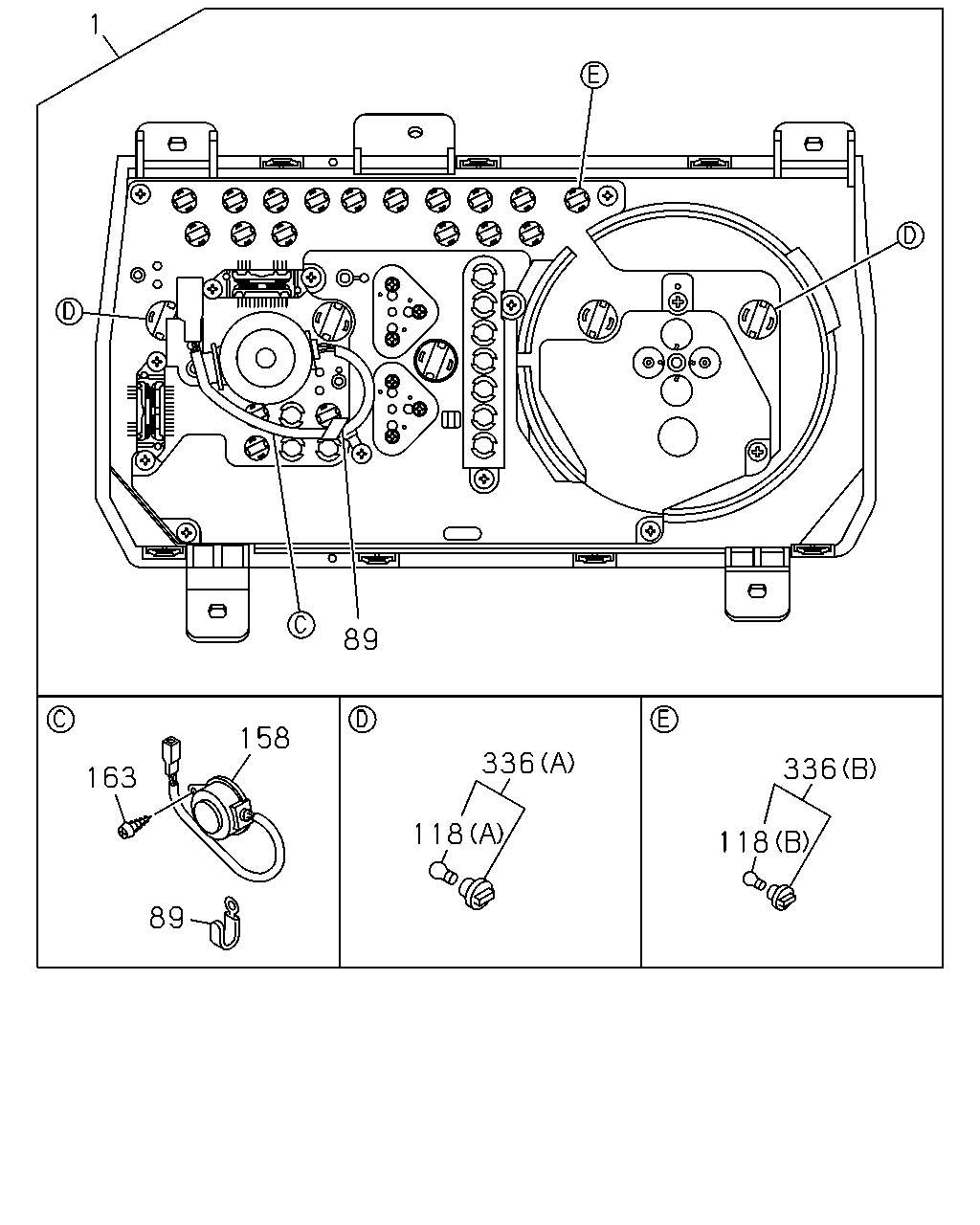

çizim 58012
1 89 158 336 336 163 118 118 89
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-98000-527-4 01 1 0701- ● ●
5 NUT; CLUSTER PANEL
M6 FLANGE 		0-91180-106-0 04 1 0702- ●
89 CLIP; HARNESS 8-97253-928-0 01 1 0701- ● ●
118 BULB; CLUSTER METER
(B) 28V 1.8W 		8-97305-177-0 14 1 0701- ● ●
118 BULB; CLUSTER METER
(A) 28V 3W 		8-97305-178-0 05 1 0701- ● ●
138 BOLT
M6X20 FLANGE 		0-28650-620-0 04 1 0702- ●
158 BUZZER; VAC WARNING 8-98003-830-0 01 1 0701- ● ●
163 SCREW; BUZZER 8-97185-099-0 02 1 0701- ● ●
336 LAMP ASM; WARNING
(B) 		8-97185-091-0 14 1 0701- ● ●
336 LAMP ASM; WARNING
(A) 		8-97185-093-0 05 1 0701- ● ●

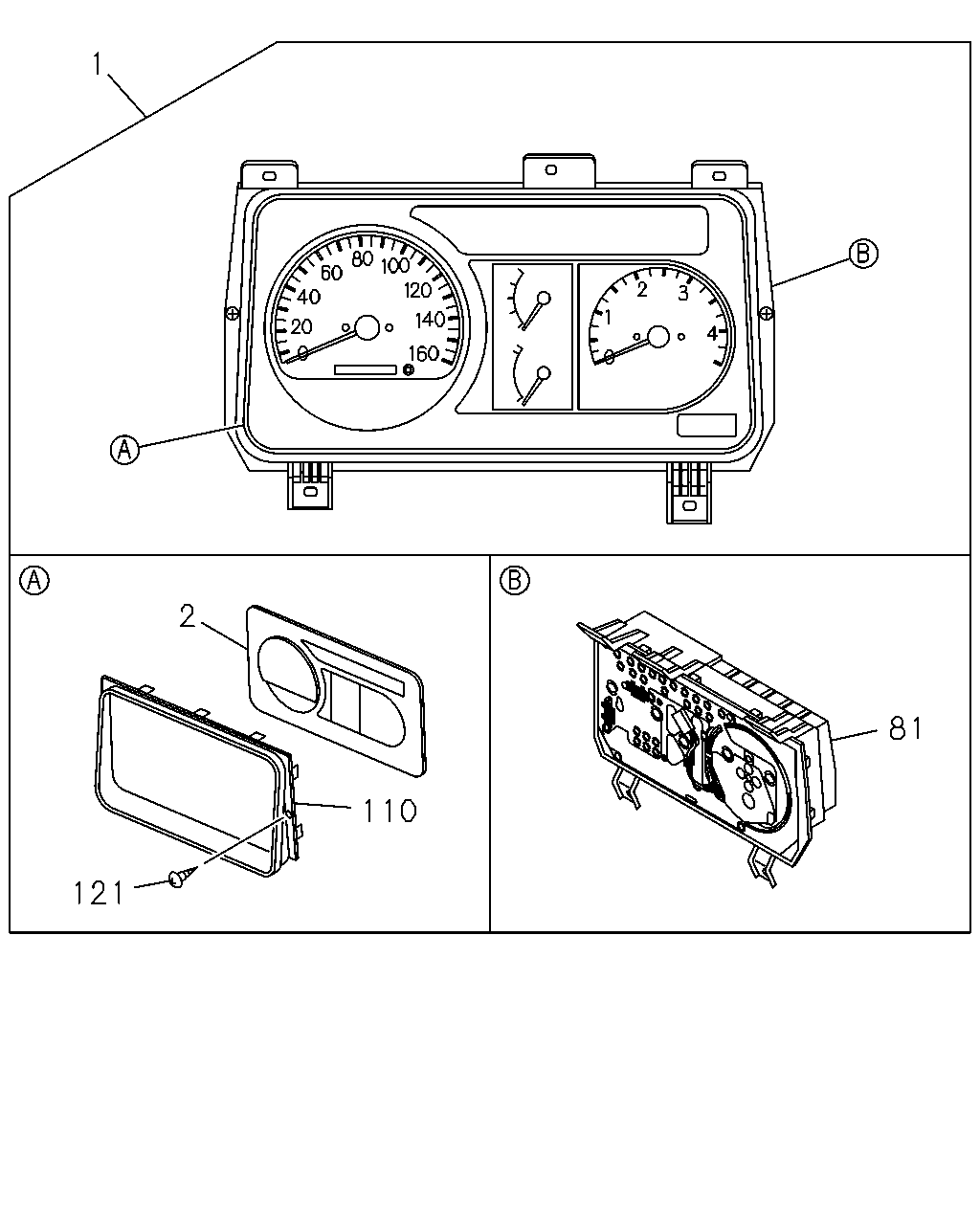

çizim 58310
1 2 81 110 121
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-98000-527-4 01 1 0701- ● ●
2 PANEL; CLUSTER 8-97185-047-0 01 1 0701- ● ●
5 NUT; CLUSTER PANEL
M6 FLANGE 		0-91180-106-0 04 1 0702- ●
81 METER SUB ASM 8-98003-843-0 01 1 0701- ● ●
110 GLASS; CLUSTER METER 8-97185-045-0 01 1 0701- ● ●
121 SCREW; PANEL FIX,CLUSTER METER 8-97185-100-0 02 1 0701- ● ●
138 BOLT
M6X20 FLANGE 		0-28650-620-0 04 1 0702- ●
