◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51132 - NQR BUS CHAS(THAI) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#39602) — 153 parça

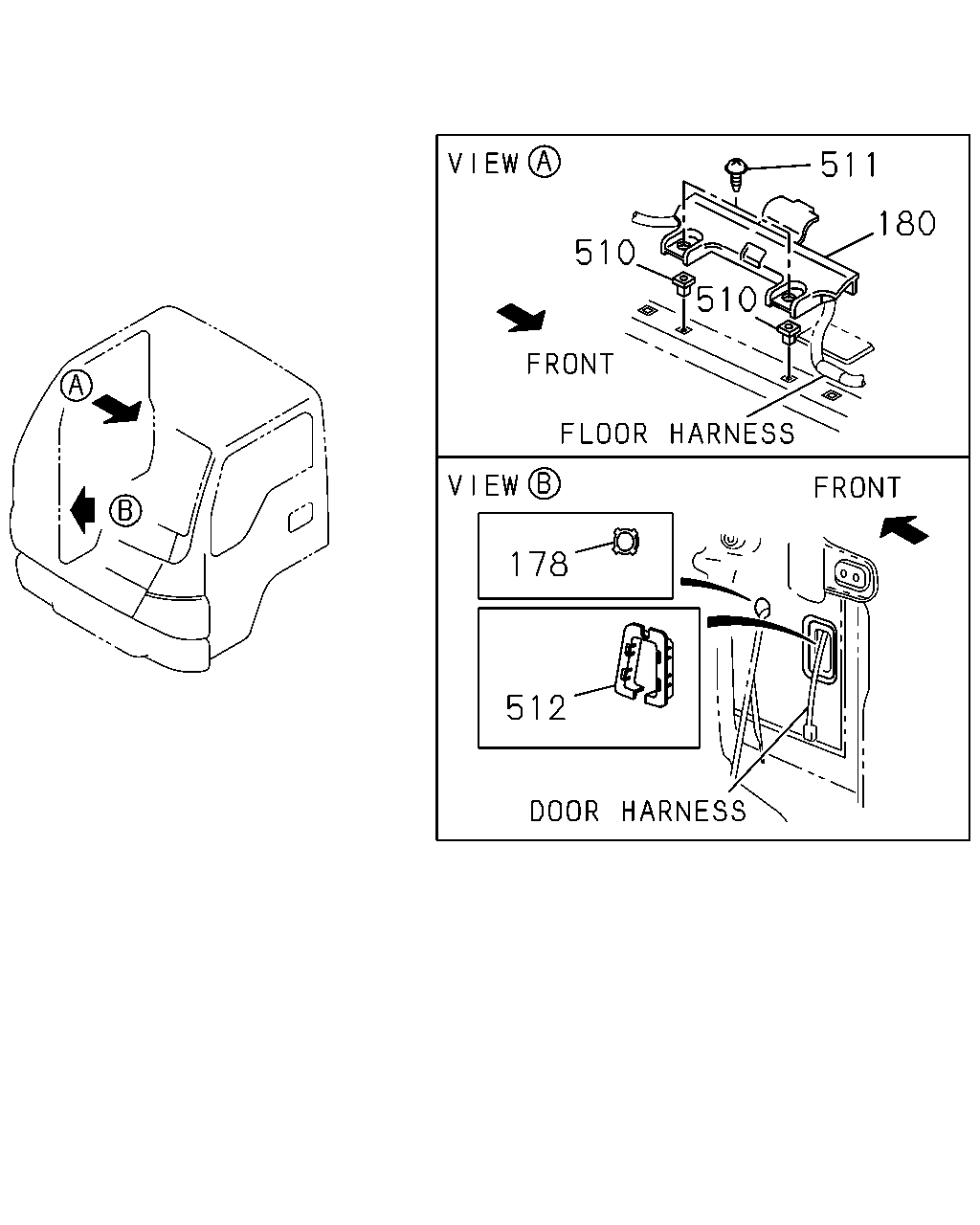

çizim 14092
511 180 510 510 178 512
BalonParca AdiParca NoAdetTipApplied Date A B
178 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 0701- ● ●
180 COVER; HARNESS 8-97856-130-4 02 1 0701- ● ●
510 GROMMET; SCREW
H=15 		8-94463-268-1 04 1 0701- ● ●
511 SCREW; HARNESS COVER
M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0701- ● ●
512 PROTECTOR; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0701- ● ●
512 PROTECTOR; HARNESS
POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0701- ● ●
512 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> 		8-97072-950-0 02 1 0701- ● ●
512 PROTECTOR; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0701- ● ●
çizim 57113
150 139 150 38 19 386 377 239 219 294 219 294 515 294 469 519
BalonParca AdiParca NoAdetTipApplied Date A B
19 BOLT; PROTECTOR
M10X35 FLANGE 		0-28651-035-0 01 1 0701- ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28650-825-0 01 1 0701- ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28650-825-0 01 1 0701- ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28650-825-0 01 1 0701- ● ●
139 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 03 1 0701- ● ●
150 BOLT; CLIP
KD PREPARATORY PACK<6HF> (A) M8X12 FLANGE 		0-28050-812-0 01 1 0701- ● ●
150 BOLT; CLIP
KD PREPARATORY PACK<6HF> (B) M8X16 FLANGE 		0-28050-816-0 01 1 0701- ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0701- ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0701- ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0701- ● ●
219 NUT
(A) M6 FLANGE 		0-91180-106-0 04 1 0701- ● ●
239 BOLT; GRAND
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0701- ● ●
294 NUT
(C) M8 FLANGE 		0-91150-108-0 01 1 0701- ● ●
294 NUT
(C) M8 FLANGE 		0-91150-108-0 02 1 0701- ● ●
294 NUT
(A) M6 FLANGE 		0-91180-106-0 01 1 0701- ● ●
294 NUT
(A) M6 FLANGE 		0-91180-106-0 01 1 0701- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-110-0 01 1 0701- ● ●
377 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0701- ● ●
386 BOLT; GRAND HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0701- ● ●
469 NUT; PROTECTOR
M10 FLANGE 		0-91180-110-0 01 1 0701- ● ●
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0701- ● ●
519 NUT; EARTH CABLE
M10 FLANGE 		0-91180-110-0 01 1 0701- ● ●
çizim 57552
16 22 48 102 22 102 22 220 488 102 16 205 142 14 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
L=200 		8-94464-835-0 01 1 0701- ● ●
16 CLIP; HARNESS
(A) ID=14 L=47 		5-09700-319-0 10 1 0701- ●
16 CLIP; HARNESS
(D) L=135 		1-09987-143-1 02 1 0701- ● ●
16 CLIP; HARNESS
(B) 1 SET=5 PIECE 		1-09987-214-0 02 1 0701- ● ●
16 CLIP; HARNESS
(I) ID=10 & 16.5 		8-94360-745-0 01 1 0701- ● ●
16 CLIP; HARNESS
(E) ID=16 		8-94413-325-0 02 1 0701- ● ●
16 CLIP; HARNESS
(F) ID=15-32 		8-97174-404-0 05 1 0701- ● ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT<C60> (G) L=140 		5-09707-031-1 05 1 0701- ● ●
16 CLIP; HARNESS
EXC. AIR CONDITIONER MANUAL CONT<C60> (G) L=140 		5-09707-031-1 01 1 0701- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (H) L=100 THA 		8-94327-067-1 04 1 0701- ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> (H) L=100 THA 		8-94327-067-1 04 1 0701- ● ●
16 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (H) L=100 THA 		8-94327-067-1 04 1 0701- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155 THA 		8-97173-307-0 04 1 0701-1009 ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> (J) L=155 THA 		8-97173-307-0 04 1 0701-1009 ● ●
16 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155 THA 		8-97173-307-0 04 1 0701-1009 ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155 THA 		8-97173-307-0 05 1 1010- ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> (J) L=155 THA 		8-97173-307-0 05 1 1010- ● ●
16 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155 THA 		8-97173-307-0 05 1 1010- ● ●
16 CLIP; HARNESS
POWER ASSIST CLUTCH<S2T> (C) ID=22 & 22 		8-94464-837-0 01 1 0701- ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (J) L=155 THA 		8-97173-307-0 10 1 0701-1009 ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (J) L=155 THA 		8-97173-307-0 11 1 1010- ● ●
16 CLIP; HARNESS
(A) ID=14 L=47 		5-09700-319-0 13 1 0701- ●
22 CLIP; ENG HARNESS
(A) L=250 THA 		5-09707-030-1 01 1 0701- ● ●
22 CLIP; ENG HARNESS
KD PREPARATORY PACK<6HF> (A) L=250 THA 		5-09707-030-1 01 1 0701- ● ●
22 CLIP; ENG HARNESS
KD PREPARATORY PACK<6HF> (B) L=140 		5-09707-031-1 03 1 0701- ● ●
22 CLIP; ENG HARNESS
KD PREPARATORY PACK<6HF> (C) L=170 		5-09707-054-0 02 1 0701- ● ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=75 		1-09700-702-0 01 1 0701- ● ●
48 CLIP; FRAME HARNESS
(G) ID=14 L=47 		5-09700-319-0 01 1 0701- ● ●
48 CLIP; FRAME HARNESS
(G) ID=14 L=47 		5-09700-319-0 01 1 0701- ● ●
48 CLIP; FRAME HARNESS
(D) ID=27 		5-09700-323-0 01 1 0701- ● ●
48 CLIP; FRAME HARNESS
(C) ID=9 		8-97063-874-0 01 1 0701- ● ●
48 CLIP; FRAME HARNESS
(B) ID=33 L=63 		1-09700-807-0 05 1 0701- ● ●
48 CLIP; FRAME HARNESS
(E) ID=30 W/STUD 		8-97078-642-2 04 1 0701- ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=50 		0-95235-085-0 01 1 0701- ● ●
48 CLIP; FRAME HARNESS
(G) ID=14 L=47 		5-09700-319-0 03 1 0701- ● ●
48 CLIP; FRAME HARNESS
(I) T=6.0 		5-09709-024-0 04 1 0701- ● ●
48 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT<C60> (A) L=140 		5-09707-031-1 02 1 0701- ● ●
102 CLIP; BAND
(C) THA 		8-97923-647-0 20 1 0702- ●
102 CLIP; BAND
KD PREPARATORY PACK<6HF> (A) L=140 		5-09707-031-1 01 1 0701- ● ●
102 CLIP; BAND
KD PREPARATORY PACK<6HF> (B) L=170 		5-09707-054-0 01 1 0701- ● ●
142 CLIP; HARNESS,ENG
(A) L=170.3 THA 		1-09987-182-0 01 1 0701- ● ●
142 CLIP; HARNESS,ENG
(B) THA 		8-97101-436-0 01 1 0701- ● ●
205 CLIP; BACK LAMP HARNESS
L=135 		1-09987-143-1 01 1 0701- ● ●
220 CLIP; HARNESS TO CABLE
L=250 THA 		5-09707-030-1 01 1 0701- ● ●
488 CLIP; CABLE,TRAILER
L=250 THA 		5-09707-030-1 01 1 0701- ● ●
çizim 58048
142 48 48 53 31 53 7 312 412 504 514 16 264
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98003-671-1 01 1 0701- ● ●
16 CLIP; HARNESS
(A) ID=14 L=47 		5-09700-319-0 10 1 0701- ●
16 CLIP; HARNESS
(D) L=135 		1-09987-143-1 02 1 0701- ● ●
16 CLIP; HARNESS
(B) 1 SET=5 PIECE 		1-09987-214-0 02 1 0701- ● ●
16 CLIP; HARNESS
(I) ID=10 & 16.5 		8-94360-745-0 01 1 0701- ● ●
16 CLIP; HARNESS
(E) ID=16 		8-94413-325-0 02 1 0701- ● ●
16 CLIP; HARNESS
(F) ID=15-32 		8-97174-404-0 05 1 0701- ● ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT<C60> (G) L=140 		5-09707-031-1 05 1 0701- ● ●
16 CLIP; HARNESS
EXC. AIR CONDITIONER MANUAL CONT<C60> (G) L=140 		5-09707-031-1 01 1 0701- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (H) L=100 THA 		8-94327-067-1 04 1 0701- ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> (H) L=100 THA 		8-94327-067-1 04 1 0701- ● ●
16 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (H) L=100 THA 		8-94327-067-1 04 1 0701- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155 THA 		8-97173-307-0 04 1 0701-1009 ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> (J) L=155 THA 		8-97173-307-0 04 1 0701-1009 ● ●
16 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155 THA 		8-97173-307-0 04 1 0701-1009 ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155 THA 		8-97173-307-0 05 1 1010- ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> (J) L=155 THA 		8-97173-307-0 05 1 1010- ● ●
16 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155 THA 		8-97173-307-0 05 1 1010- ● ●
16 CLIP; HARNESS
POWER ASSIST CLUTCH<S2T> (C) ID=22 & 22 		8-94464-837-0 01 1 0701- ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (J) L=155 THA 		8-97173-307-0 10 1 0701-1009 ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (J) L=155 THA 		8-97173-307-0 11 1 1010- ● ●
16 CLIP; HARNESS
(A) ID=14 L=47 		5-09700-319-0 13 1 0701- ●
31 BRACKET; HARNESS CLIP,PIPE
L=47 		8-97042-635-0 01 1 0701- ● ●
31 BRACKET; HARNESS CLIP,PIPE
L=73 		8-97077-845-0 02 1 0701- ● ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=75 		1-09700-702-0 01 1 0701- ● ●
48 CLIP; FRAME HARNESS
(G) ID=14 L=47 		5-09700-319-0 01 1 0701- ● ●
48 CLIP; FRAME HARNESS
(G) ID=14 L=47 		5-09700-319-0 01 1 0701- ● ●
48 CLIP; FRAME HARNESS
(D) ID=27 		5-09700-323-0 01 1 0701- ● ●
48 CLIP; FRAME HARNESS
(C) ID=9 		8-97063-874-0 01 1 0701- ● ●
48 CLIP; FRAME HARNESS
(B) ID=33 L=63 		1-09700-807-0 05 1 0701- ● ●
48 CLIP; FRAME HARNESS
(E) ID=30 W/STUD 		8-97078-642-2 04 1 0701- ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=50 		0-95235-085-0 01 1 0701- ● ●
48 CLIP; FRAME HARNESS
(G) ID=14 L=47 		5-09700-319-0 03 1 0701- ● ●
48 CLIP; FRAME HARNESS
(I) T=6.0 		5-09709-024-0 04 1 0701- ● ●
48 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT<C60> (A) L=140 		5-09707-031-1 02 1 0701- ● ●
53 BRACKET; HARNESS
(A) 		8-97352-527-0 01 1 0701- ● ●
53 BRACKET; HARNESS
(B) 		8-98011-924-0 01 1 0701- ● ●
142 CLIP; HARNESS,ENG
(A) L=170.3 THA 		1-09987-182-0 01 1 0701- ● ●
142 CLIP; HARNESS,ENG
(B) THA 		8-97101-436-0 01 1 0701- ● ●
264 CLIP; HARNESS,HEADLAMP
ID=16 		8-94413-325-0 01 1 0701- ● ●
312 BRACKET; CLIP HARNESS 8-97017-072-2 01 1 0701- ● ●
412 BRACKET; HARNESS,TRANS 8-97324-451-1 01 1 0701- ● ●
504 PROTECTOR; HARNESS
L=80 THA 		5-22439-006-0 01 1 0701- ● ●
504 PROTECTOR; HARNESS
L=200 		8-97096-423-0 01 1 0701- ● ●
514 FINISHER; HARNESS
L=120 SERVICED BY L=2040 		1-71997-513-1 03 1 0701- ● ●
514 FINISHER; HARNESS
L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0701- ● ●
çizim 58345
16 16 48 48 48 48 16 48 48 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(A) ID=14 L=47 		5-09700-319-0 10 1 0701- ●
16 CLIP; HARNESS
(D) L=135 		1-09987-143-1 02 1 0701- ● ●
16 CLIP; HARNESS
(B) 1 SET=5 PIECE 		1-09987-214-0 02 1 0701- ● ●
16 CLIP; HARNESS
(I) ID=10 & 16.5 		8-94360-745-0 01 1 0701- ● ●
16 CLIP; HARNESS
(E) ID=16 		8-94413-325-0 02 1 0701- ● ●
16 CLIP; HARNESS
(F) ID=15-32 		8-97174-404-0 05 1 0701- ● ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT<C60> (G) L=140 		5-09707-031-1 05 1 0701- ● ●
16 CLIP; HARNESS
EXC. AIR CONDITIONER MANUAL CONT<C60> (G) L=140 		5-09707-031-1 01 1 0701- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (H) L=100 THA 		8-94327-067-1 04 1 0701- ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> (H) L=100 THA 		8-94327-067-1 04 1 0701- ● ●
16 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (H) L=100 THA 		8-94327-067-1 04 1 0701- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155 THA 		8-97173-307-0 04 1 0701-1009 ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> (J) L=155 THA 		8-97173-307-0 04 1 0701-1009 ● ●
16 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155 THA 		8-97173-307-0 04 1 0701-1009 ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155 THA 		8-97173-307-0 05 1 1010- ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> (J) L=155 THA 		8-97173-307-0 05 1 1010- ● ●
16 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155 THA 		8-97173-307-0 05 1 1010- ● ●
16 CLIP; HARNESS
POWER ASSIST CLUTCH<S2T> (C) ID=22 & 22 		8-94464-837-0 01 1 0701- ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (J) L=155 THA 		8-97173-307-0 10 1 0701-1009 ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (J) L=155 THA 		8-97173-307-0 11 1 1010- ● ●
16 CLIP; HARNESS
(A) ID=14 L=47 		5-09700-319-0 13 1 0701- ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=75 		1-09700-702-0 01 1 0701- ● ●
48 CLIP; FRAME HARNESS
(G) ID=14 L=47 		5-09700-319-0 01 1 0701- ● ●
48 CLIP; FRAME HARNESS
(G) ID=14 L=47 		5-09700-319-0 01 1 0701- ● ●
48 CLIP; FRAME HARNESS
(D) ID=27 		5-09700-323-0 01 1 0701- ● ●
48 CLIP; FRAME HARNESS
(C) ID=9 		8-97063-874-0 01 1 0701- ● ●
48 CLIP; FRAME HARNESS
(B) ID=33 L=63 		1-09700-807-0 05 1 0701- ● ●
48 CLIP; FRAME HARNESS
(E) ID=30 W/STUD 		8-97078-642-2 04 1 0701- ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=50 		0-95235-085-0 01 1 0701- ● ●
48 CLIP; FRAME HARNESS
(G) ID=14 L=47 		5-09700-319-0 03 1 0701- ● ●
48 CLIP; FRAME HARNESS
(I) T=6.0 		5-09709-024-0 04 1 0701- ● ●
48 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT<C60> (A) L=140 		5-09707-031-1 02 1 0701- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
