◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51132 - NQR BUS CHAS(THAI) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#39601) — 71 parça

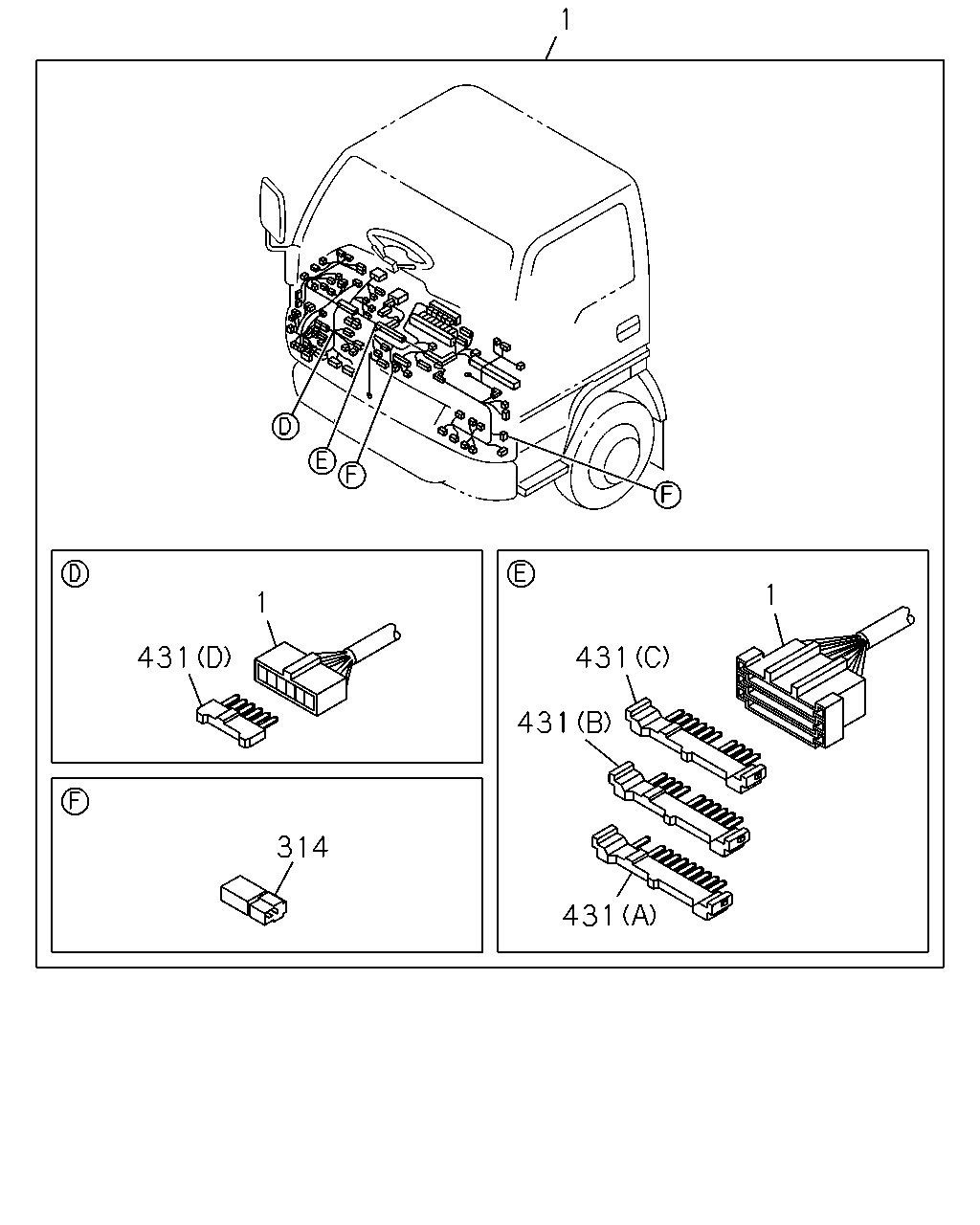

çizim 14091
1 1 1 431 431 431 314 431
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
THA 		8-97923-588-2 01 1 0701- ● ●
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 02 1 0701- ● ●
431 CONNECTOR; JOINT
(D) 6P 		1-82691-206-0 02 1 0701- ● ●
431 CONNECTOR; JOINT
(B) BLUE 10P 		1-82699-598-0 01 1 0701- ● ●
431 CONNECTOR; JOINT
(C) GREEN 10P 		1-82699-599-0 02 1 0701- ● ●
431 CONNECTOR; JOINT
(A) BROWN 10P THA 		1-82699-601-0 01 1 0701- ● ●
431 CONNECTOR; JOINT
(E) 6P 		8-97381-428-0 01 1 0701- ● ●

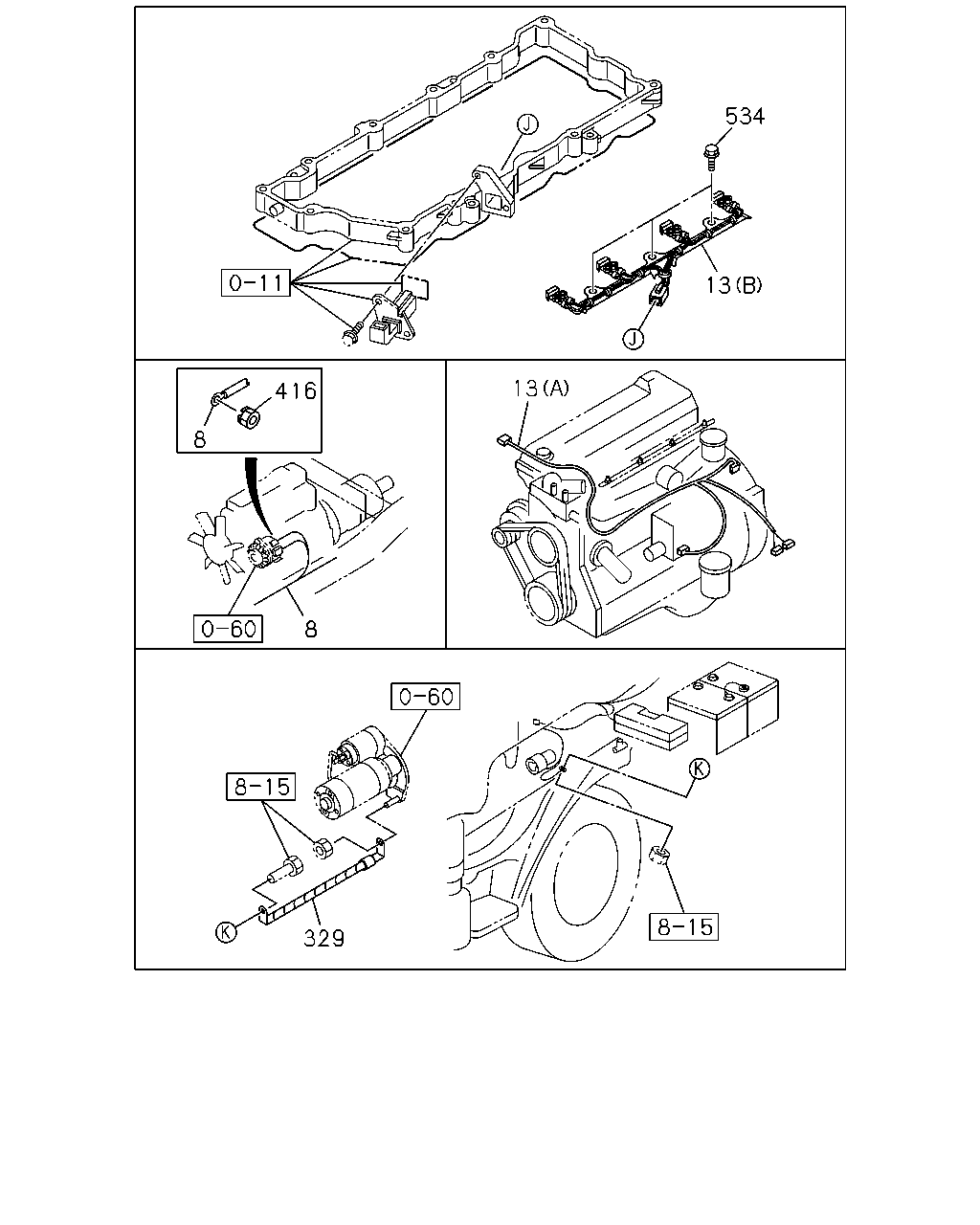

çizim 58358
534 13 13 416 8 8 329
BalonParca AdiParca NoAdetTipApplied Date A B
8 HARNESS; FRAME,FRT
THA 		8-97923-593-0 01 1 0701-0707 ●
8 HARNESS; FRAME,FRT
THA 		8-97924-178-0 01 1 0708- ●
8 HARNESS; FRAME,FRT
THA 		8-97923-589-0 01 1 0701-0707 ●
8 HARNESS; FRAME,FRT
THA 		8-97924-179-0 01 1 0708- ●
13 HARNESS; ENG
KD PREPARATORY PACK<6HF> (B) 		8-97332-133-3 01 1 0701- ● ●
13 HARNESS; ENG
KD PREPARATORY PACK<6HF> (A) 		8-98023-708-0 01 1 0701- ● ●
329 CABLE; ENG TO FRAME
THA 		8-97920-957-0 01 1 0701- ● ●
416 NUT; TERMINAL
M6 W/LK WASHER 		8-94424-179-0 01 1 0701- ● ●
534 BOLT
KD PREPARATORY PACK<6HF> M10X55 FLANGE THA 		8-94399-863-1 03 1 0701-0805 ● ●
534 BOLT
KD PREPARATORY PACK<6HF> M10X55 FLANGE 		8-97365-449-0 03 1 0806- ● ●

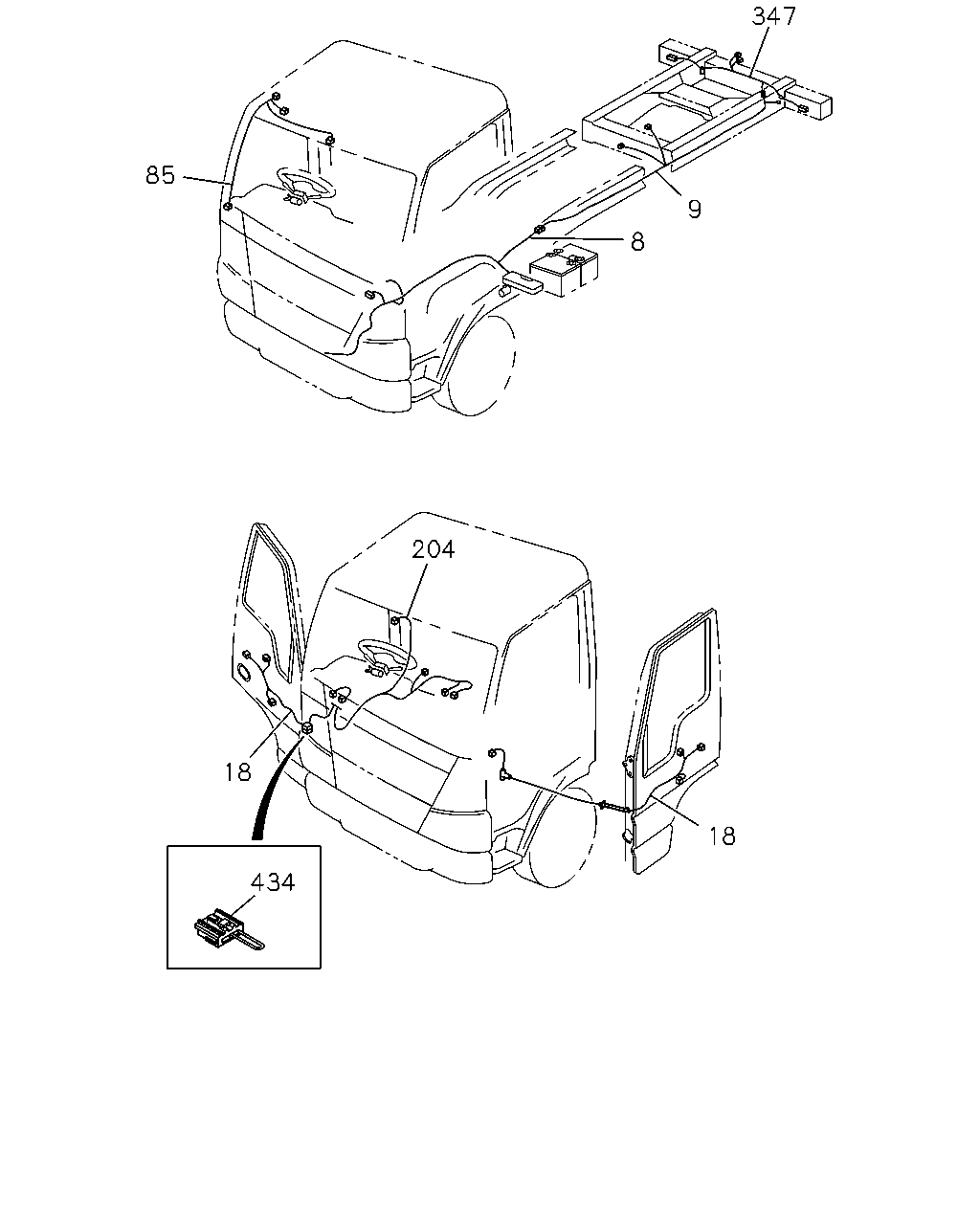

çizim 58361
347 85 9 8 204 18 8 434
BalonParca AdiParca NoAdetTipApplied Date A B
8 HARNESS; FRAME,FRT
THA 		8-97923-593-0 01 1 0701-0707 ●
8 HARNESS; FRAME,FRT
THA 		8-97924-178-0 01 1 0708- ●
8 HARNESS; FRAME,FRT
THA 		8-97923-589-0 01 1 0701-0707 ●
8 HARNESS; FRAME,FRT
THA 		8-97924-179-0 01 1 0708- ●
9 HARNESS; FRAME,RR 8-97377-066-1 01 1 0701- ●
9 HARNESS; FRAME,RR 8-97377-068-1 01 1 0701- ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> THA 		8-97917-005-0 02 1 0701- ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> THA 		8-97917-005-0 02 1 0701- ● ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> THA 		8-97917-005-0 02 1 0701- ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 0701-1009 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98166-820-0 01 1 1010- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-98166-819-0 01 1 1010- ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> 		8-98166-819-0 01 1 1010- ● ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98166-819-0 01 1 1010- ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97185-142-1 01 1 0701- ● ●
85 HARNESS; ROOM LAMP
THA 		8-97917-004-0 01 1 0701- ● ●
204 HARNESS; CABLE,FLOOR
THA 		8-97917-002-1 01 1 0701- ● ●
347 HARNESS; CABLE,RR BODY
THA 		8-97916-999-1 01 1 0701- ● ●
434 CONNECTOR; SHORT CIRCUIT 8-97388-449-0 01 1 0701- ● ●

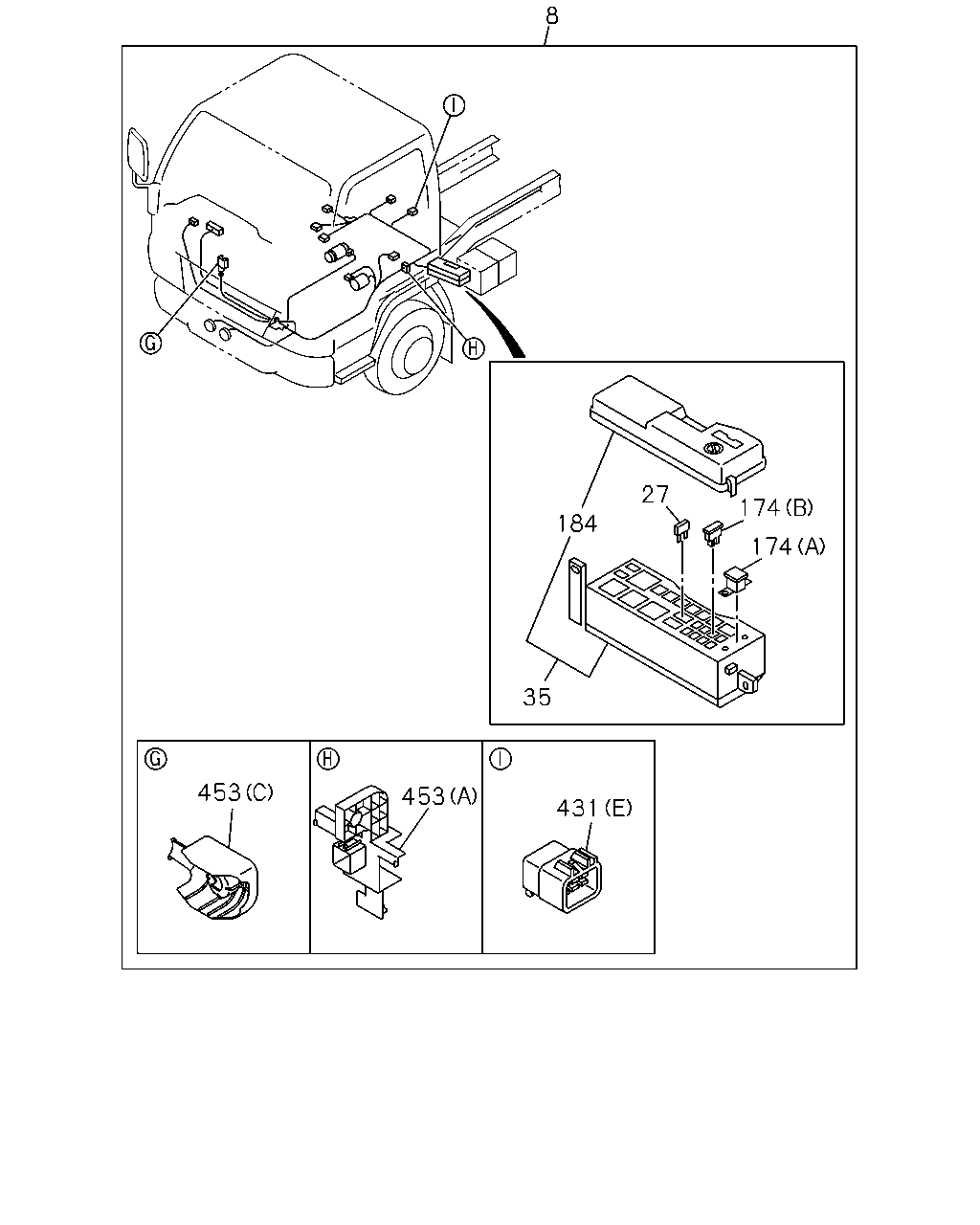

çizim 58389
8 27 174 184 174 35 453 453 431
BalonParca AdiParca NoAdetTipApplied Date A B
8 HARNESS; FRAME,FRT
THA 		8-97923-593-0 01 1 0701-0707 ●
8 HARNESS; FRAME,FRT
THA 		8-97924-178-0 01 1 0708- ●
8 HARNESS; FRAME,FRT
THA 		8-97923-589-0 01 1 0701-0707 ●
8 HARNESS; FRAME,FRT
THA 		8-97924-179-0 01 1 0708- ●
27 FUSE UNIT
10A MINI RED 		8-97062-022-0 01 1 0701- ● ●
35 BOX; RELAY & FUSE 8-97381-429-0 01 1 0701- ● ●
174 FUSE; SLOW BLOW
(A) 120A WHITE 		1-82516-028-1 01 1 0701- ● ●
174 FUSE; SLOW BLOW
(B) 30A PINK THA 		8-97183-643-0 01 1 0701- ● ●
174 FUSE; SLOW BLOW
(B) 40A GREEN THA 		8-97183-644-0 02 1 0701- ● ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 02 1 0701- ● ●
184 COVER; RELAY & FUSE BOX 8-97377-741-0 01 1 0701- ● ●
431 CONNECTOR; JOINT
(D) 6P 		1-82691-206-0 02 1 0701- ● ●
431 CONNECTOR; JOINT
(B) BLUE 10P 		1-82699-598-0 01 1 0701- ● ●
431 CONNECTOR; JOINT
(C) GREEN 10P 		1-82699-599-0 02 1 0701- ● ●
431 CONNECTOR; JOINT
(A) BROWN 10P THA 		1-82699-601-0 01 1 0701- ● ●
431 CONNECTOR; JOINT
(E) 6P 		8-97381-428-0 01 1 0701- ● ●
453 PROTECTOR; HARNESS
(B) 		8-97088-615-0 01 1 0701- ● ●
453 PROTECTOR; HARNESS
(A) THA 		8-97120-591-1 01 1 0701- ● ●
453 PROTECTOR; HARNESS
(C) 		8-97062-169-0 01 1 0701-0707 ●

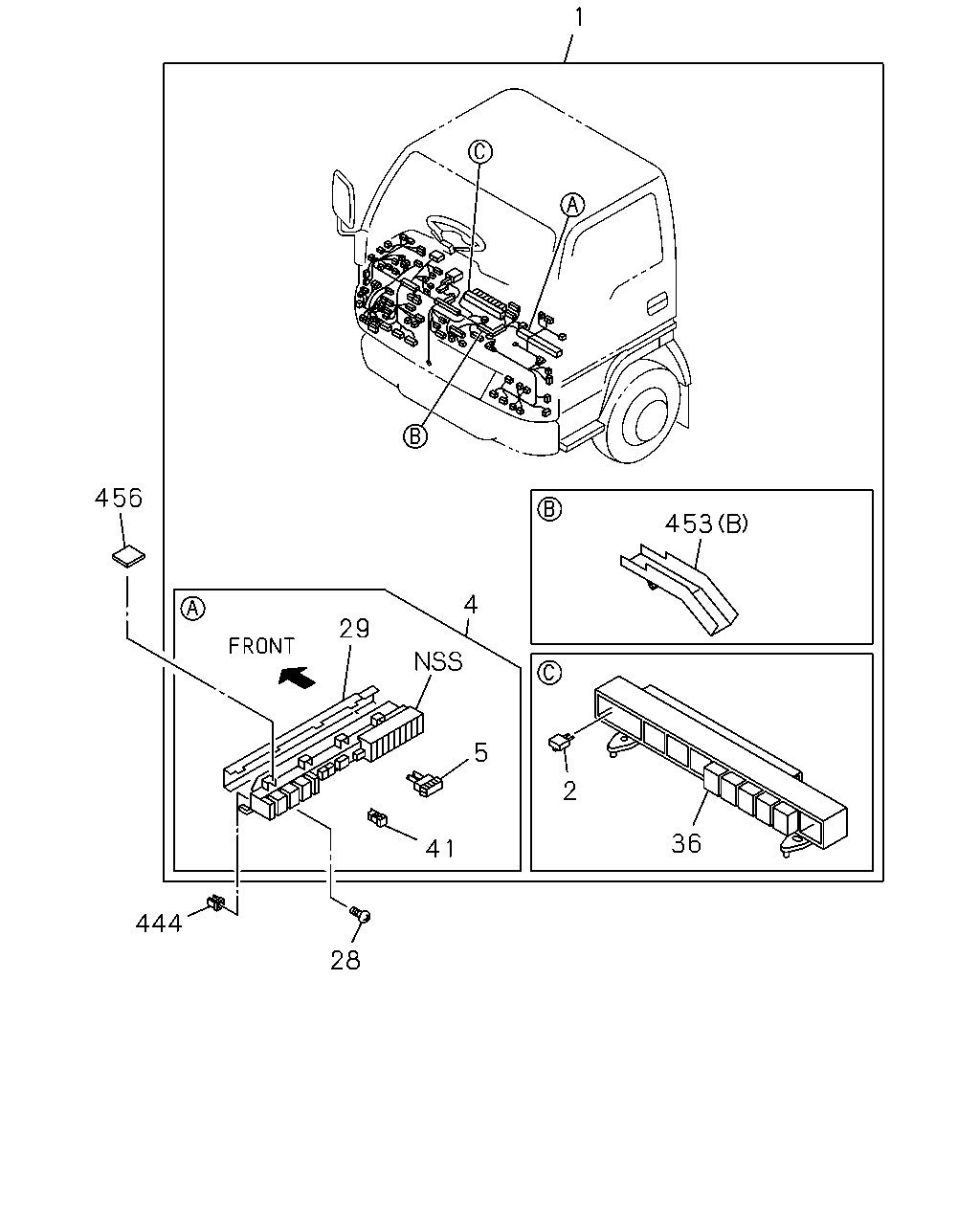

çizim 58408
1 456 453 4 29 5 2 36 41 444 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
THA 		8-97923-588-2 01 1 0701- ● ●
2 DIODE; CABLE HARNESS
BLACK 3P-1.5A THA 		8-94416-438-1 01 1 0701- ● ●
2 DIODE; CABLE HARNESS
BLACK 3P-1.5A THA 		8-94422-640-1 02 1 0701- ● ●
4 BOX ASM; FUSE,HARNESS 8-97187-921-1 01 1 0701- ● ●
5 FUSE; FACIA HARNESS
10A MINI RED 		8-97062-022-0 11 1 0701- ● ●
5 FUSE; FACIA HARNESS
15A MINI BLUE 		8-97062-023-0 06 1 0701- ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0701-0701 ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING 		0-72180-516-0 02 1 0701- ● ●
29 COVER; FUSE BOX
THA 		8-97074-955-0 01 1 0701- ● ●
36 BOX; RELAY 8-97187-918-1 01 1 0701- ● ●
41 PULLER; FUSE 8-97103-388-0 01 1 0701- ● ●
444 GROMMET; SCREW,FUSE BOX
D=8.5X8.5 L=7.5 THA 		8-94279-078-0 02 1 0701- ● ●
453 PROTECTOR; HARNESS
(B) 		8-97088-615-0 01 1 0701- ● ●
453 PROTECTOR; HARNESS
(A) THA 		8-97120-591-1 01 1 0701- ● ●
453 PROTECTOR; HARNESS
(C) 		8-97062-169-0 01 1 0701-0707 ●
456 CUSHION; FUSE BOX
15X30 T=5 		8-94270-366-2 01 1 0701- ● ●
