◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10626 - FTR-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#396) — 71 parça

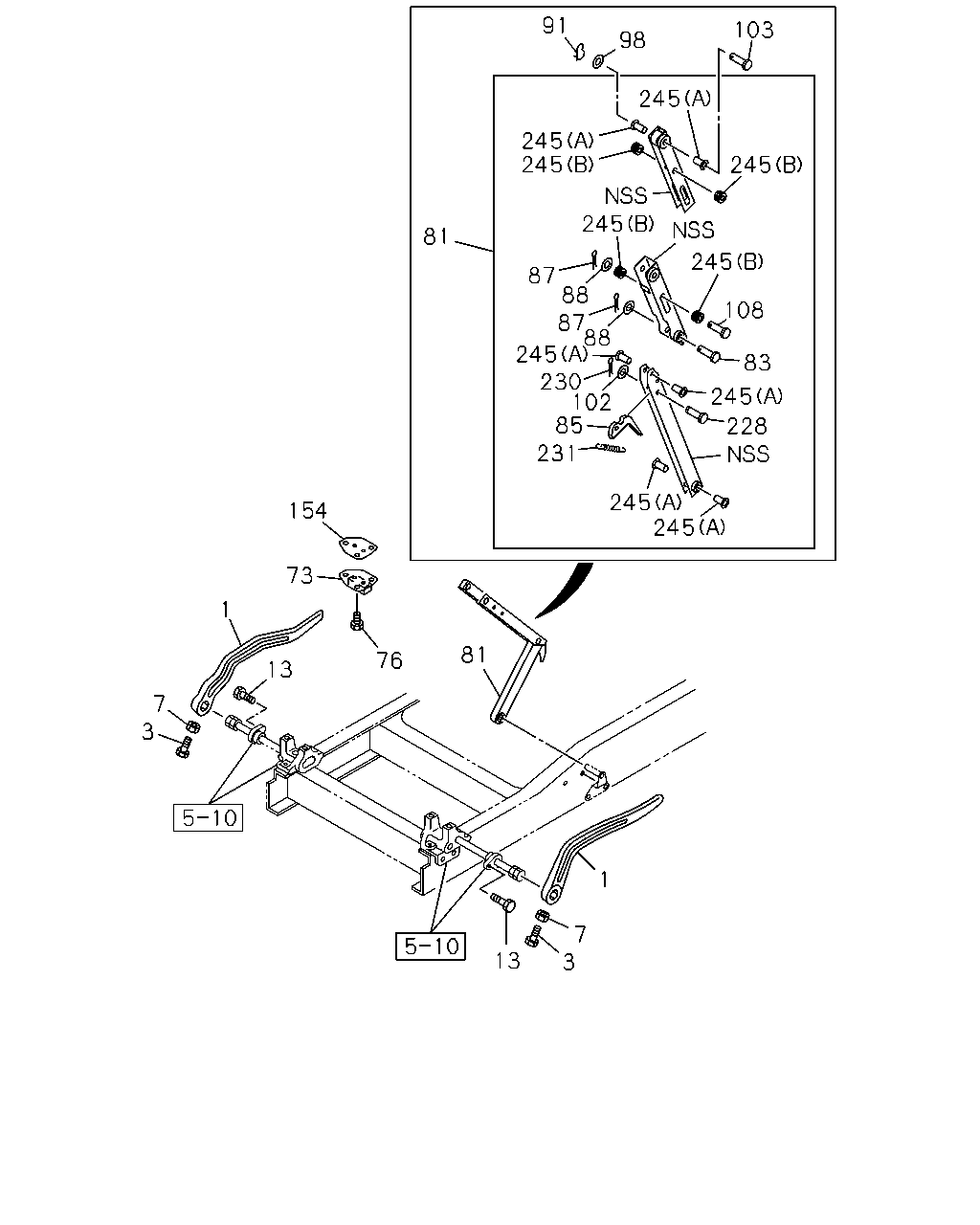

çizim 27918
91 103 98 245 245 245 245 245 81 245 87 88 87 88 245 230 102 85 231 108 83 245 228 245 245 154 73 1 81 76 13 7 3 1 7 3 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER; TORSION BAR 1-53459-768-2 01 1 9202- ● ●
1 LEVER; TORSION BAR 1-53459-767-2 01 1 9202- ● ●
3 BOLT; LEVER
M10X32 		1-09000-435-0 04 1 9202- ● ●
7 NUT; LK,LEVER
M10 		9-09110-510-0 04 1 9202- ● ●
13 BOLT; BUSHING,TORSION BAR
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9202- ● ●
73 PAD; TORSION BAR 1-53459-790-1 02 1 9202- ● ●
76 BOLT; PAD
M10X30 		1-09980-517-0 06 1 9202- ● ●
81 STAY ASM; CAB TILT
CAB SUSPENSION SEMI FLORTING<SDK> 		1-62500-577-4 01 1 9202- ● ●
81 STAY ASM; CAB TILT
EXC. CAB SUSPENSION SEMI FLORTING<SDK> 		1-62500-579-4 01 1 9202- ● ●
83 PIN; JOINT,CAB STAY
OD=10 L=42 		1-09744-106-0 01 1 9202- ● ●
85 LEVER; LOCK,CAB STAY 1-62500-503-0 01 1 9202- ● ●
87 PIN; SPLIT,CAB STAY PIN 1-09746-021-0 02 1 9202- ● ●
88 WASHER; PL,CAB STAY PIN
ID=10.5 T=2.0 		1-09985-183-0 02 1 9202- ● ●
91 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 9202- ● ●
98 WASHER; CAB STAY
ID=10.5 T=2.0 		1-09985-183-0 01 1 9202- ● ●
102 WASHER; PL,CAB STAY
ID=8.4 OD=16 		1-09985-174-0 01 1 9202- ● ●
103 PIN; JOINT,CAB STAY 1-09744-108-1 01 1 9202- ● ●
108 PIN; ADJ,CAB STAY
OD=10 L=42 		1-09744-106-0 01 1 9202- ● ●
154 PLATE; LEVER PAD
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-71238-021-0 06 1 9202- ● ●
228 PIN; SAFETY LOCK SPRING,CAB STAY 1-09744-086-2 01 1 9202- ● ●
230 PIN; SPLIT CAB STAY 1-09746-019-0 01 1 9202- ● ●
231 SPRING; RETURN,LOCK LEVER,CAB STAY 1-09583-244-0 01 1 9202- ● ●
245 BUSHING; CAB STAY
(A) 		1-62500-587-0 06 1 9202- ● ●
245 BUSHING; CAB STAY
(B) 		1-62500-588-0 04 1 9202- ● ●

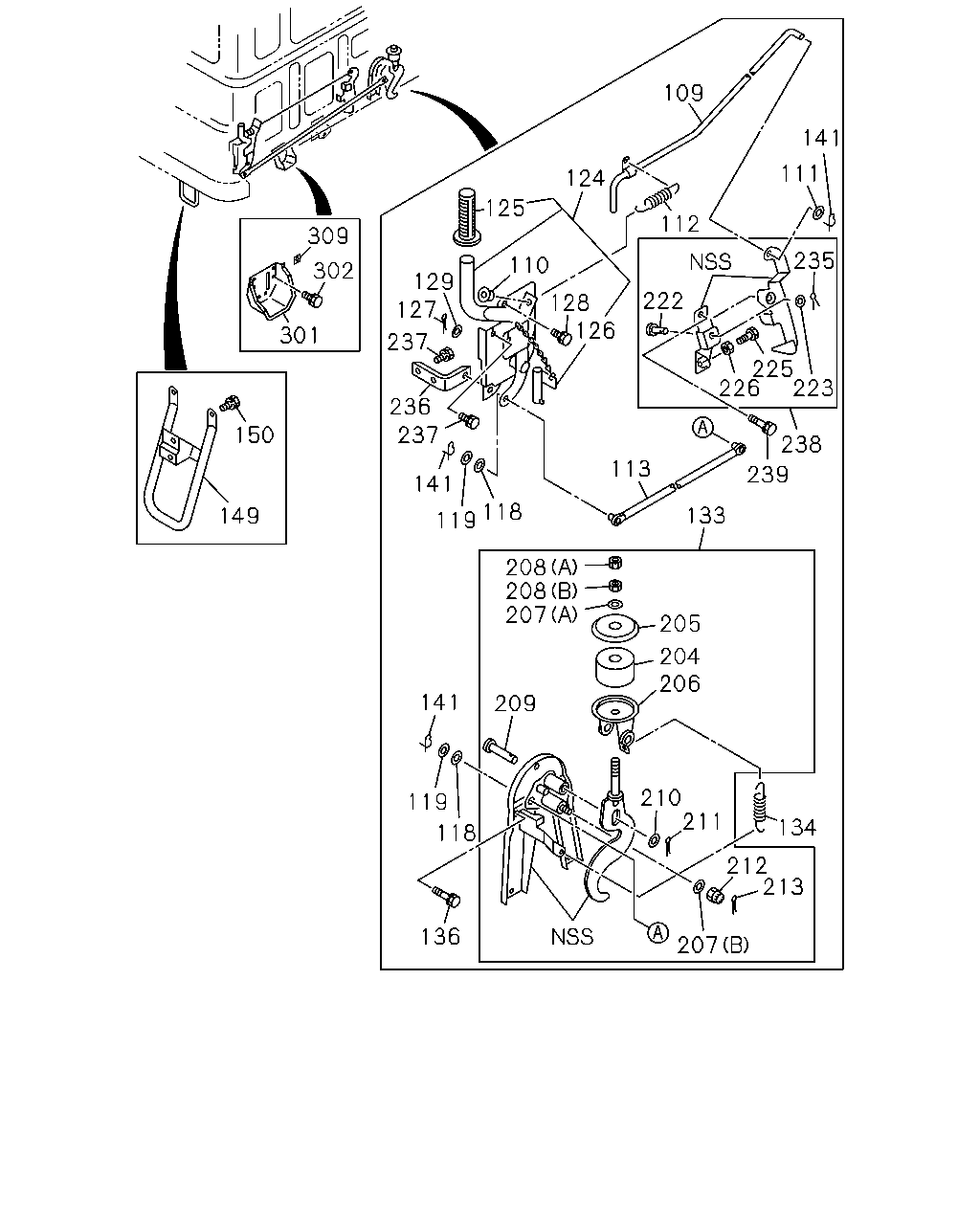

çizim 27921
109 141 111 124 112 125 309 235 110 302 129 127 222 128 126 301 237 225 236 150 237 238 113 239 141 118 119 133 149 208 208 207 205 204 206 141 209 210 211 119 134 118 212 213 136 207 226 223
BalonParca AdiParca NoAdetTipApplied Date A B
109 ROD; SAFETY,CAB LK 1-79718-276-8 01 1 9202- ● ●
110 BUSHING; SAFETY ROD,CAB LOCK 1-79718-319-1 01 1 9202- ● ●
111 WASHER; PL,SAFETY ROD 1-09985-137-0 01 1 9202- ● ●
112 SPRING; RETURN,SAFETY ROD 1-79718-285-1 01 1 9202- ● ●
113 ROD; CONN,CAB LK 1-79718-267-1 01 1 9202- ● ●
118 WASHER; PL,CONNROD
ID=10.5 		1-09985-107-0 02 1 9202- ● ●
119 WASHER; WAVE,CAB LOCK ROD 1-09985-045-0 02 1 9202- ● ●
124 LEVER ASM; HAND,CAB LK 1-79718-477-1 01 1 9202- ● ●
125 GRIP; HAND LEVER,CAB LOCK 1-79718-303-2 01 1 9202- ● ●
126 PIN; LK,HAND LEVER 1-79718-479-0 01 1 9202- ● ●
127 PIN; SPLIT,BRKT
L=30 		1-09987-080-0 01 1 9202-9508 ● ●
128 BOLT; BRKT
M8X25 W/LK&PL WASHER 		1-09980-548-0 03 1 9202- ● ●
129 WASHER; PL,BRKT
ID=17 		1-09985-109-0 01 1 9202-9508 ● ●
133 LOCK ASM; CAB 1-79718-426-4 01 1 9202-9311 ● ●
133 LOCK ASM; CAB 1-79718-550-2 01 1 9312- ● ●
134 SPRING; CAB LK LEVER 1-09985-044-0 01 1 9202- ● ●
136 BOLT; CAB LK
M10X25 W/LK&PL WASHER 		1-09980-488-0 05 1 9202- ● ●
141 PIN; SNAP,CAB LOCK ROD
L=27.7 		1-09987-141-0 01 1 9202- ● ●
141 PIN; SNAP,CAB LOCK ROD
L=32.6 		1-09987-142-0 02 1 9202- ● ●
149 HANDLE; TILT 1-71998-522-0 01 1 9202- ● ●
150 BOLT; TILT HANDLE
M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 9202- ● ●
204 RUBBER; REBOUND,CAB LK 1-79718-429-1 01 1 9202- ● ●
205 PLATE; SUPPORT,REBOUND RUBBER 1-79718-129-1 01 1 9202- ● ●
206 SUPPORT; REBOUND RUBBER 1-79718-434-0 01 1 9202- ● ●
207 WASHER; PL,SUPPORT PLATE
(A) ID=15 OD=36 		1-09985-112-0 01 1 9202- ● ●
207 WASHER; PL,SUPPORT PLATE
(B) ID=19 OD=44 		1-09985-113-0 01 1 9202- ● ●
208 NUT; SUPPORT PLATE
(A) M14 		1-09984-066-0 01 1 9202- ● ●
208 NUT; SUPPORT PLATE
(B) M14 		1-09984-067-0 01 1 9202- ● ●
209 PIN; JOINT,SUPPORT 1-09987-083-0 01 1 9202- ● ●
210 WASHER; PL,SUPPORT
ID=17 		1-09985-109-0 01 1 9202- ● ●
211 PIN; SPLIT,SUPPORT
L=30 		1-09987-080-0 01 1 9202- ● ●
212 NUT; BRKT,CAB LOCK
M18 SLOTTED 		1-09984-079-0 01 1 9202- ● ●
213 PIN; SPLIT,BRKT,CAB LK
L=30 		1-09987-080-0 01 1 9202- ● ●
222 PIN; JOINT,SAFETY LK 1-09987-159-0 01 1 9202- ● ●
223 WASHER; PL,SAFETY LK
ID=12.5 OD=22 T=1.6 		1-09985-108-0 01 1 9202- ● ●
225 BOLT; SAFETY LK
M8X30 		1-09980-277-0 01 1 9202- ● ●
226 NUT; SAFETY LK
M8 		1-09984-065-0 01 1 9202- ● ●
235 PIN; SNAP 1-09987-158-1 01 1 9202- ● ●
236 SUPPORT ASM; HAND LEVER,CAB LOCK 1-79718-286-3 01 1 9202- ● ●
237 BOLT; HAND LEVER SUPPORT,CAB LOCK
M8X25 		1-09980-491-0 02 1 9202- ● ●
238 LOCK ASM; SAFETY,CAB TILT 1-79718-307-9 01 1 9202-9507 ● ●
238 LOCK ASM; SAFETY,CAB TILT 1-79718-602-1 01 1 9508- ● ●
239 BOLT; SAFETY LK 1-09980-487-0 02 1 9202- ● ●
301 BRACKET; RR MTG,CAB 1-62580-165-0 01 1 9202- ● ●
301 BRACKET; RR MTG,CAB 1-62580-053-2 01 1 9202- ● ●
302 BOLT; BRKT,CAB
M8X25 W/LK&PL WASHER 		1-09980-526-0 12 1 9202- ● ●
309 SEAL; WATER
25X25 		8-94272-533-0 08 1 9202- ● ●
