◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51132 - NQR BUS CHAS(THAI) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#39598) — 38 parça

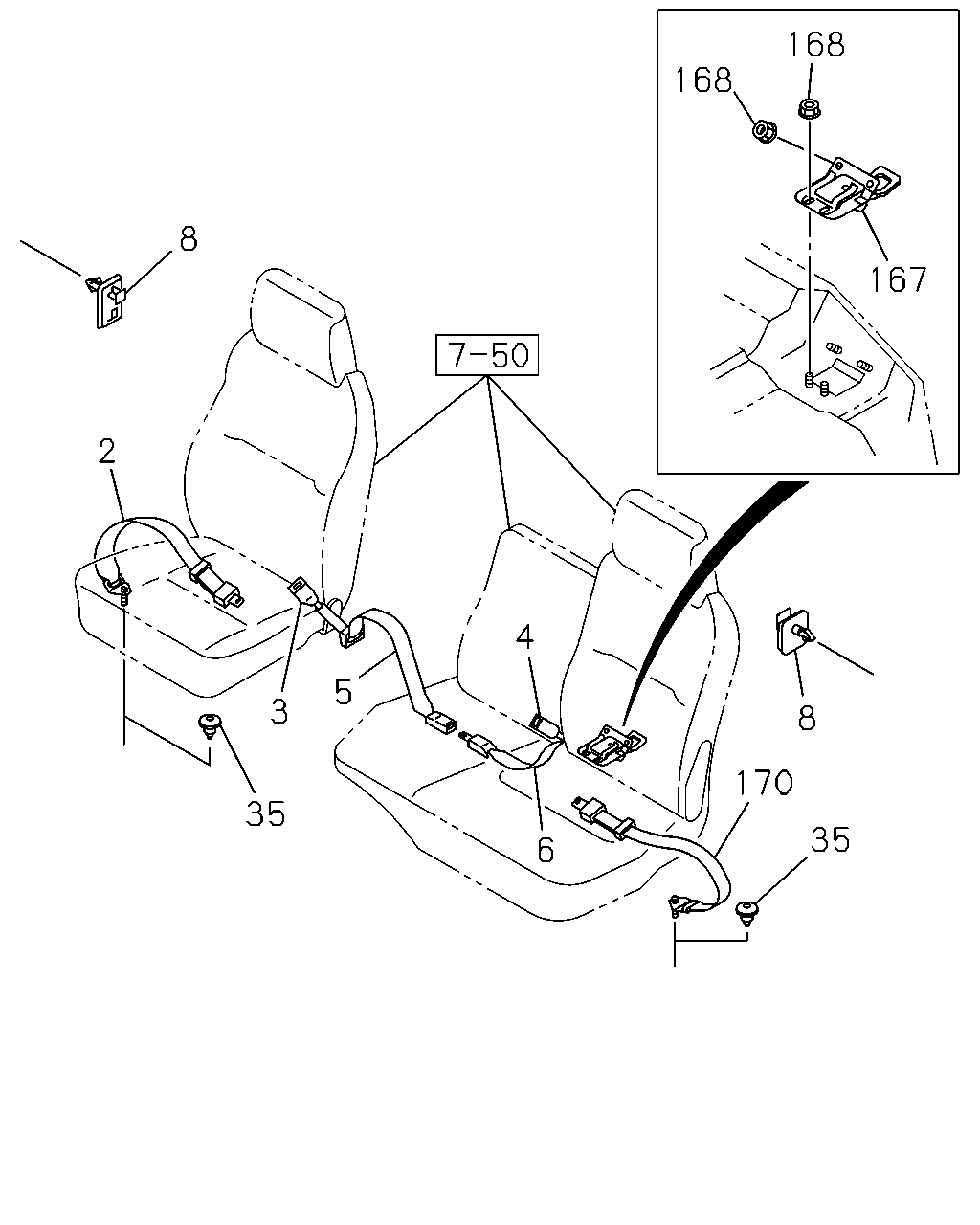

çizim 14201
168 168 8 167 2 4 5 3 8 170 35 35 6
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0701- ● ●
2 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> THA 		8-97922-806-0 01 1 0701- ● ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> THA 		8-97922-799-0 01 1 0701- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97396-952-0 01 1 0701- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> THA 		8-97922-802-0 01 1 0701- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97404-304-0 01 1 0701- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-451-1 01 1 0701- ● ●
8 HOOK; SEAT BELT
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> 		8-94276-268-1 02 1 0701- ● ●
35 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 0701- ● ●
35 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 0701- ● ●
167 PLATE; ANCHOR 8-97869-412-2 01 1 0701- ● ●
168 NUT; ANCHOR PLATE
M8 FLANGE THA 		5-09440-005-0 04 1 0701-0712 ● ●
168 NUT; ANCHOR PLATE
M8 FLANGE 		0-91180-108-0 04 1 0801- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0701- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> THA 		8-97922-805-0 01 1 0701- ● ●

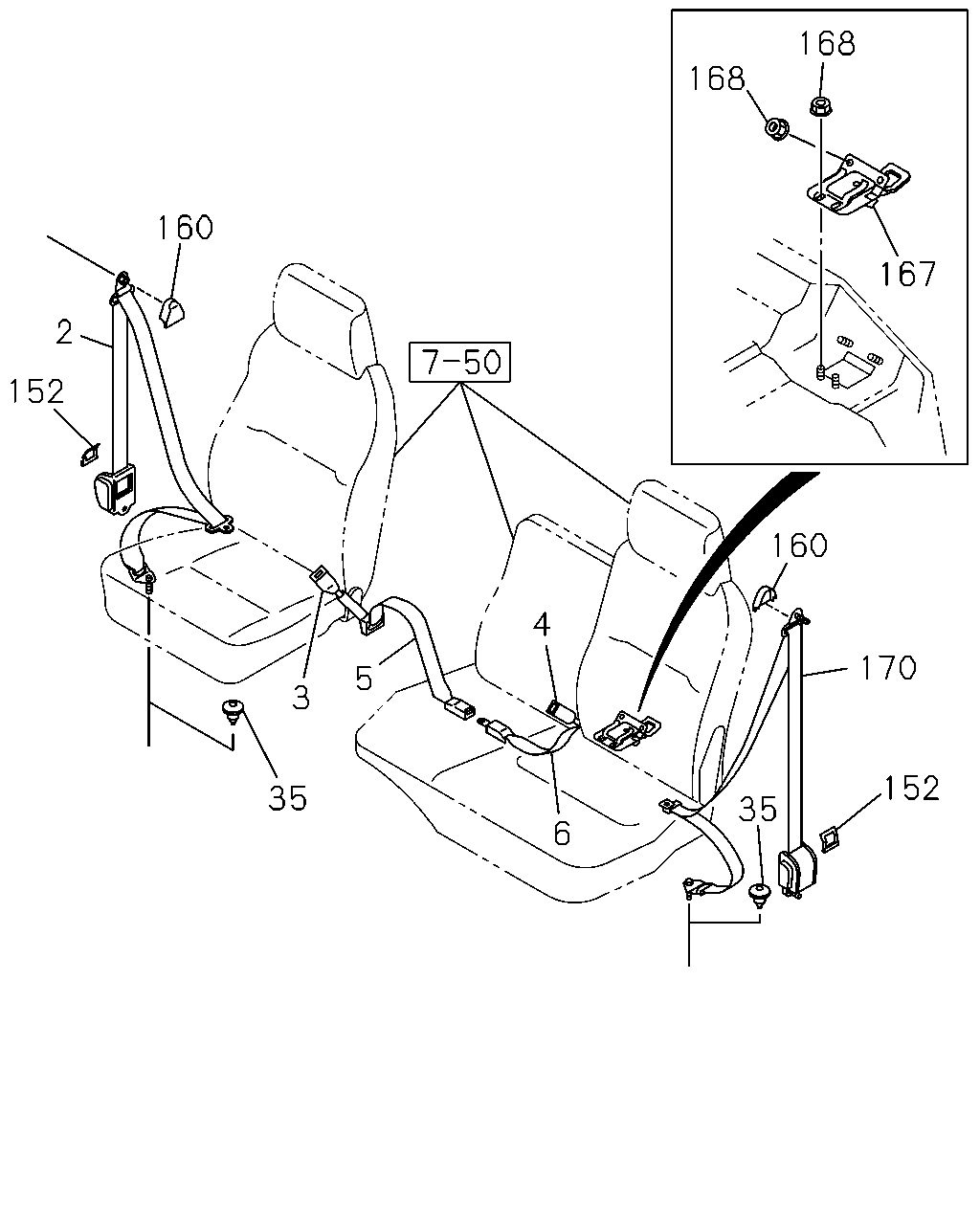

çizim 57744
168 168 160 167 2 152 160 4 170 5 3 152 35 35 6
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0701- ● ●
2 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> THA 		8-97922-806-0 01 1 0701- ● ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> THA 		8-97922-799-0 01 1 0701- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97396-952-0 01 1 0701- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> THA 		8-97922-802-0 01 1 0701- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97404-304-0 01 1 0701- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-451-1 01 1 0701- ● ●
35 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 0701- ● ●
35 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 0701- ● ●
152 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97287-563-0 02 1 0701- ● ●
160 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> THA 		8-97922-907-0 01 1 0701- ● ●
167 PLATE; ANCHOR 8-97869-412-2 01 1 0701- ● ●
168 NUT; ANCHOR PLATE
M8 FLANGE THA 		5-09440-005-0 04 1 0701-0712 ● ●
168 NUT; ANCHOR PLATE
M8 FLANGE 		0-91180-108-0 04 1 0801- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0701- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> THA 		8-97922-805-0 01 1 0701- ● ●
çizim 58369
37 177 161 166 165 161 166 166
BalonParca AdiParca NoAdetTipApplied Date A B
37 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0701- ● ●
161 REINFORCEMENT; SEAT BELT ANCHOR
(B) 		8-97850-329-4 01 1 0701- ● ●
161 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-286-5 01 1 0701- ● ●
165 HOOK; SEAT BELT ANCHOR
THA 		8-97917-395-0 01 1 0701- ● ●
166 BOLT; SEAT BELT ANCHOR
M8X25 FLANGE 		0-28650-825-0 06 1 0701- ● ●
177 NUT
M8 W/LK WASHER 		8-94327-073-0 02 1 0701-0805 ● ●
177 NUT
M8 W/LK WASHER 		8-97581-234-0 02 1 0806- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
