7-50 — FRONT SEAT (#39597) — 60 parça
çizim 57853
1 18 228 24 2 16 99 17 19 12 13 69 382 67 71 63
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97400-474-3 01 1 0701- ● ●
1 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> THA 		8-97922-833-0 01 1 0701- ● ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97400-475-2 01 1 0701- ● ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> THA 		8-97922-835-0 01 1 0701- ● ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97397-972-1 01 1 0701- ● ●
12 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> THA 		8-97922-418-0 01 1 0701- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97397-982-1 01 1 0701- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> THA 		8-97922-836-0 01 1 0701- ● ●
16 ADJUSTER ASM; RECLINING
(A) THA 		8-97854-057-3 01 1 0701- ● ●
16 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> (B) BLACK THA 		8-97859-273-3 01 1 0701- ● ●
16 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> (C) BLACK THA 		8-97859-274-3 01 1 0701- ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT CLOTH<7FL> (B) THA 		8-97917-120-0 01 1 0701- ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT CLOTH<7FL> (C) THA 		8-97917-199-0 01 1 0701- ● ●
17 BOLT; RECLINING
M8X20 THA 		8-97255-906-0 02 1 0701- ● ●
18 COVER; RECLINING
SEAT CLOTH<7FL> GRAY 		8-97398-249-0 01 1 0701- ● ●
18 COVER; RECLINING
EXC. SEAT CLOTH<7FL> THA 		8-97922-837-0 01 1 0701- ● ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0701- ● ●
24 KNOB; RECLINING,FRT,SEAT
SEAT CLOTH<7FL> GRAY 		8-97398-250-0 01 1 0701-0804 ● ●
24 KNOB; RECLINING,FRT,SEAT
SEAT CLOTH<7FL> GRAY 		8-97415-445-0 01 1 0805- ● ●
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT CLOTH<7FL> THA 		8-97922-838-0 01 1 0701- ● ●
63 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> THA 		8-97854-059-3 01 1 0701- ● ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT CLOTH<7FL> THA 		8-97916-796-0 01 1 0701- ● ●
67 BOLT; FRT SEAT TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0701- ● ●
69 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 0701- ● ●
71 BOLT; ADJ TO SEAT
M8X20 THA 		8-97255-906-0 02 1 0701- ● ●
99 BUSHING; SEAT BACK
SEAT CLOTH<7FL> THA 		8-97854-087-0 01 1 0701- ● ●
99 BUSHING; SEAT BACK
EXC. SEAT CLOTH<7FL> THA 		8-97916-793-0 01 1 0701- ● ●
228 SCREW; KNOB
M4X6 THA 		8-97042-273-0 01 1 0701- ● ●
382 WASHER; PL,DRIVER SEAT
ID=8.4 OD=22 		8-94127-883-1 01 1 0701- ● ●

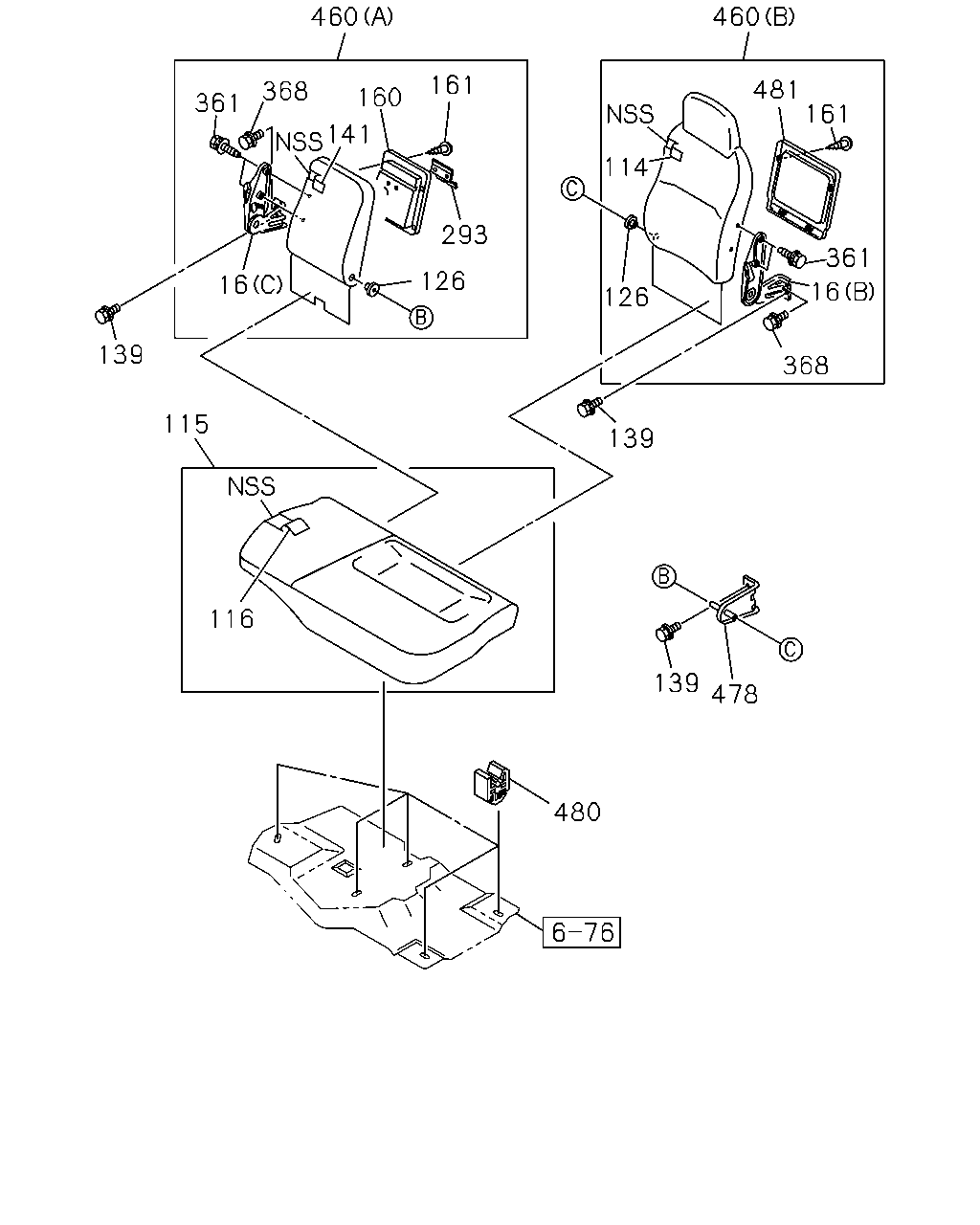

çizim 58660
460 460 161 481 368 160 361 161 141 114 293 361 126 16 16 126 139 368 115 139 116 139 478 480
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
(A) THA 		8-97854-057-3 01 1 0701- ● ●
16 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> (B) BLACK THA 		8-97859-273-3 01 1 0701- ● ●
16 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> (C) BLACK THA 		8-97859-274-3 01 1 0701- ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT CLOTH<7FL> (B) THA 		8-97917-120-0 01 1 0701- ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT CLOTH<7FL> (C) THA 		8-97917-199-0 01 1 0701- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97400-690-2 01 1 0701- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> THA 		8-97922-845-0 01 1 0701- ● ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97400-660-2 01 1 0701- ● ●
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> THA 		8-97922-847-0 01 1 0701- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97400-700-1 01 1 0701- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT CLOTH<7FL> THA 		8-97922-849-0 01 1 0701- ● ●
126 BUSHING; HINGE,RECLINING
SEAT CLOTH<7FL> THA 		8-97854-900-0 02 1 0701-0804 ● ●
126 BUSHING; HINGE,RECLINING
SEAT CLOTH<7FL> 		8-98069-558-0 02 1 0805- ● ●
126 BUSHING; HINGE,RECLINING
EXC. SEAT CLOTH<7FL> THA 		8-97917-184-0 02 1 0701- ● ●
139 BOLT; PASSENGER SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0701- ● ●
141 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97400-697-2 01 1 0701- ● ●
141 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> THA 		8-97922-852-0 01 1 0701- ● ●
160 CONSOLE; UPR,BACK CENTER
SEAT CLOTH<7FL> GRAY 		8-97398-252-1 01 1 0701- ● ●
160 CONSOLE; UPR,BACK CENTER
EXC. SEAT CLOTH<7FL> THA 		8-97922-853-0 01 1 0701- ● ●
161 SCREW; CONSOLE
SEAT CLOTH<7FL> M4X12 THA 		8-94279-351-0 04 1 0701- ● ●
161 SCREW; CONSOLE
EXC. SEAT CLOTH<7FL> THA 		8-97917-195-0 08 1 0701- ● ●
293 BINDER; CENTER CONSOLE
EXC. SEAT CLOTH<7FL> THA 		8-97917-194-0 01 1 0701- ● ●
361 BOLT; ADJ,RECLINING
M8X18 THA 		8-94279-109-1 04 1 0701- ● ●
368 BOLT; SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0701- ● ●
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY 		8-97400-651-2 01 1 0701- ● ●
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97400-657-3 01 1 0701- ● ●
460 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) THA 		8-97922-840-0 01 1 0701- ● ●
460 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) THA 		8-97922-850-0 01 1 0701- ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT
THA 		8-97916-789-0 01 1 0701- ● ●
480 CLIP; CUSHION 8-94279-977-0 05 1 0701- ● ●
481 TRAY; SEAT BACK
EXC. SEAT CLOTH<7FL> THA 		8-97922-871-0 01 1 0701- ● ●
