◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51132 - NQR BUS CHAS(THAI) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#39592) — 69 parça

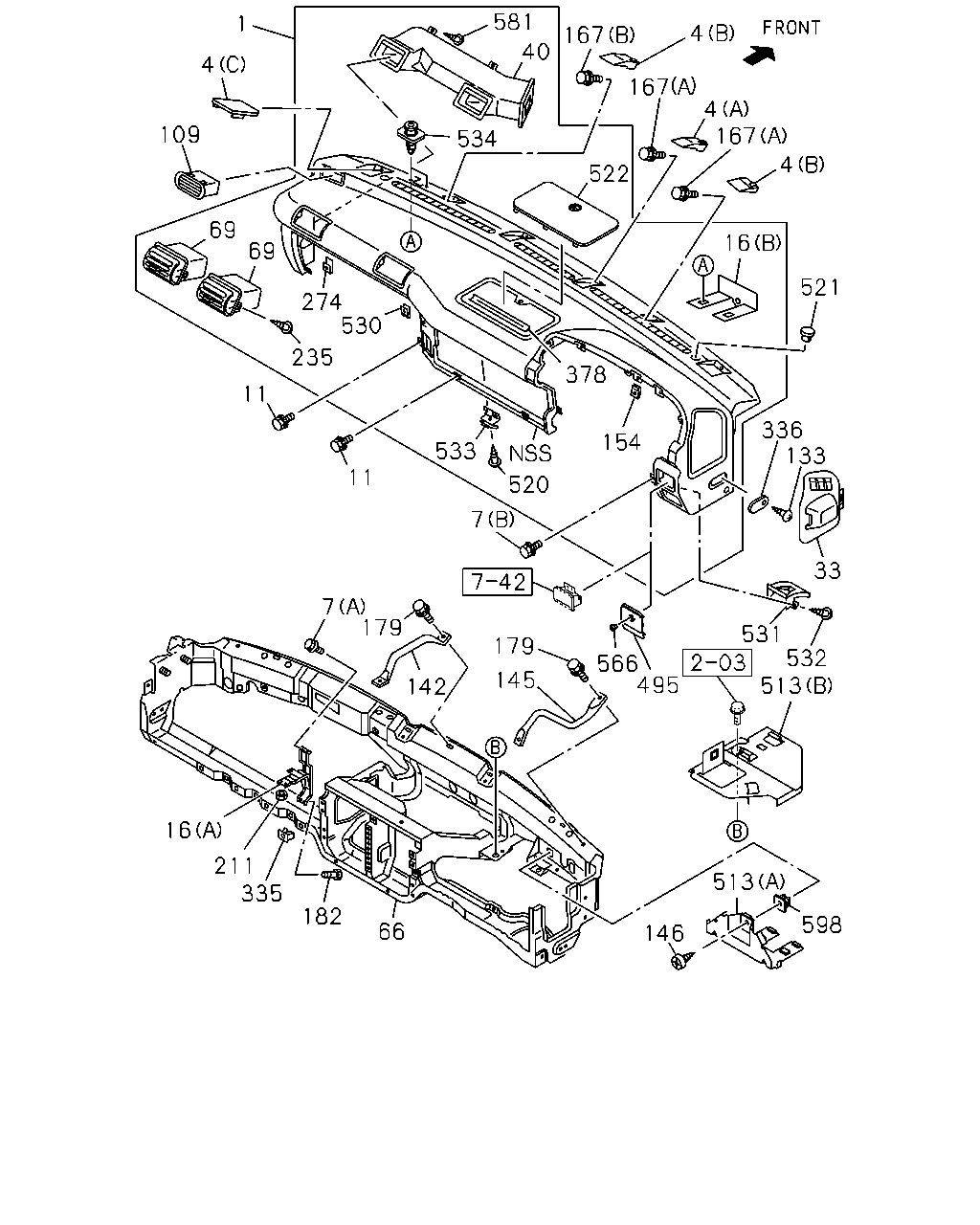

çizim 14211
581 1 4 167 40 4 167 4 167 109 534 4 522 69 16 69 521 274 530 235 378 11 336 133 154 533 11 520 7 33 7 179 531 532 513 179 566 495 145 142 16 211 335 513 182 598 66 146
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
DARK GRAY 		8-97582-810-1 01 1 0701- ● ●
4 COVER; INST PNL
(A) DARK GRAY 		8-97582-215-3 02 1 0701- ● ●
4 COVER; INST PNL
(B) DARK GRAY 		8-97582-217-3 01 1 0701- ● ●
4 COVER; INST PNL
(C) DARK GRAY 		8-97582-813-1 01 1 0701- ● ●
4 COVER; INST PNL
(B) DARK GRAY 		8-97582-216-3 01 1 0701- ● ●
4 COVER; INST PNL
(C) DARK GRAY 		8-97582-812-1 01 1 0701- ● ●
7 BOLT; SUPPORT,INST PNL
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0701- ● ●
7 BOLT; SUPPORT,INST PNL
(B) M8X23 FLANGE 		8-97264-766-0 04 1 0701- ● ●
11 BOLT; INST PNL
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 06 1 0701- ● ●
16 BRACKET; INST PNL
(A) 		8-98012-980-1 01 1 0701- ● ●
16 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0701- ● ●
16 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0701- ● ●
33 LID; CHECK HOLE,CLU FLUID
DARK GRAY 		8-97582-488-5 01 1 0701- ● ●
40 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-692-0 01 1 0701- ● ●
66 REINFORCEMENT; INST PANEL 8-98013-757-1 01 1 0701- ● ●
69 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97582-612-0 02 1 0701- ● ●
109 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97582-222-0 01 1 0701- ● ●
133 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74160-520-0 02 1 0701- ● ●
142 STAY; INST PANEL 8-97853-624-4 01 1 0701- ● ●
145 STAY; INST PANEL SIDE 8-97853-625-2 01 1 0701- ● ●
146 SCREW; TAP
AIR CONDITIONER MANUAL CONT<C60> M5X16 TAPPING 		0-72180-516-0 01 1 0701- ● ●
154 NUT
M6 SPIRE NUT 		8-97210-973-1 01 1 0701- ● ●
154 NUT
M6 SPIRE NUT 		8-97210-973-1 03 1 0701- ● ●
167 BOLT; REINF TO INST
(A) M6X25 		8-94279-204-0 04 1 0701- ● ●
167 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 0701- ● ●
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50640-612-0 02 1 0701- ● ●
182 BOLT; BRKT,INST PANEL
M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0701- ● ●
211 NUT; BRKT TO INST
M6 FLANGE 		0-91180-106-0 02 1 0701- ● ●
235 SCREW; GRILLE
M5X14 THA 		8-94279-325-0 04 1 0701- ● ●
274 NUT; GLOVE BOX
M5 SPIRE NUT 		8-94279-051-0 02 1 0701- ● ●
335 GROMMET; GLOVE BOX LK
D=8.5X8.5 L=7.5 THA 		8-94279-078-0 02 1 0701- ● ●
336 COVER; INST PANEL SIDE
DARK GRAY 		8-97582-218-4 02 1 0701- ● ●
378 SEAL; INST PANEL 8-97209-399-0 01 1 0701- ● ●
495 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97582-214-4 01 1 0701- ● ●
513 BRACKET; RELAY
(B) 		8-97410-713-2 01 1 0701- ● ●
513 BRACKET; RELAY
AIR CONDITIONER MANUAL CONT<C60> (A) 		8-97859-391-2 01 1 0701- ● ●
520 SCREW; CLIP,SPRING
M5X14 THA 		8-94279-325-0 02 1 0701- ● ●
521 COVER; SUN SENSOR
DARK GRAY 		8-97582-334-2 01 1 0701- ● ●
522 LID; RELAY BOX
DARK GRAY 		8-97582-494-6 01 1 0701- ● ●
530 CLIP; GLOVE BOX 8-97856-135-0 01 1 0701- ● ●
531 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 		8-97853-130-0 01 1 0701- ● ●
532 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> M5X14 THA 		8-94279-325-0 02 1 0701- ● ●
533 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 0701- ● ●
534 CLIP; BRKT 8-97856-276-0 04 1 0701- ● ●
566 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97582-247-0 01 1 0701- ● ●
581 SCREW
M5X14 THA 		8-94279-325-0 03 1 0701- ● ●
598 GROMMET; SCREW
AIR CONDITIONER MANUAL CONT<C60> D=8.5X8.5 L=7.5 THA 		8-94279-078-0 01 1 0701- ● ●

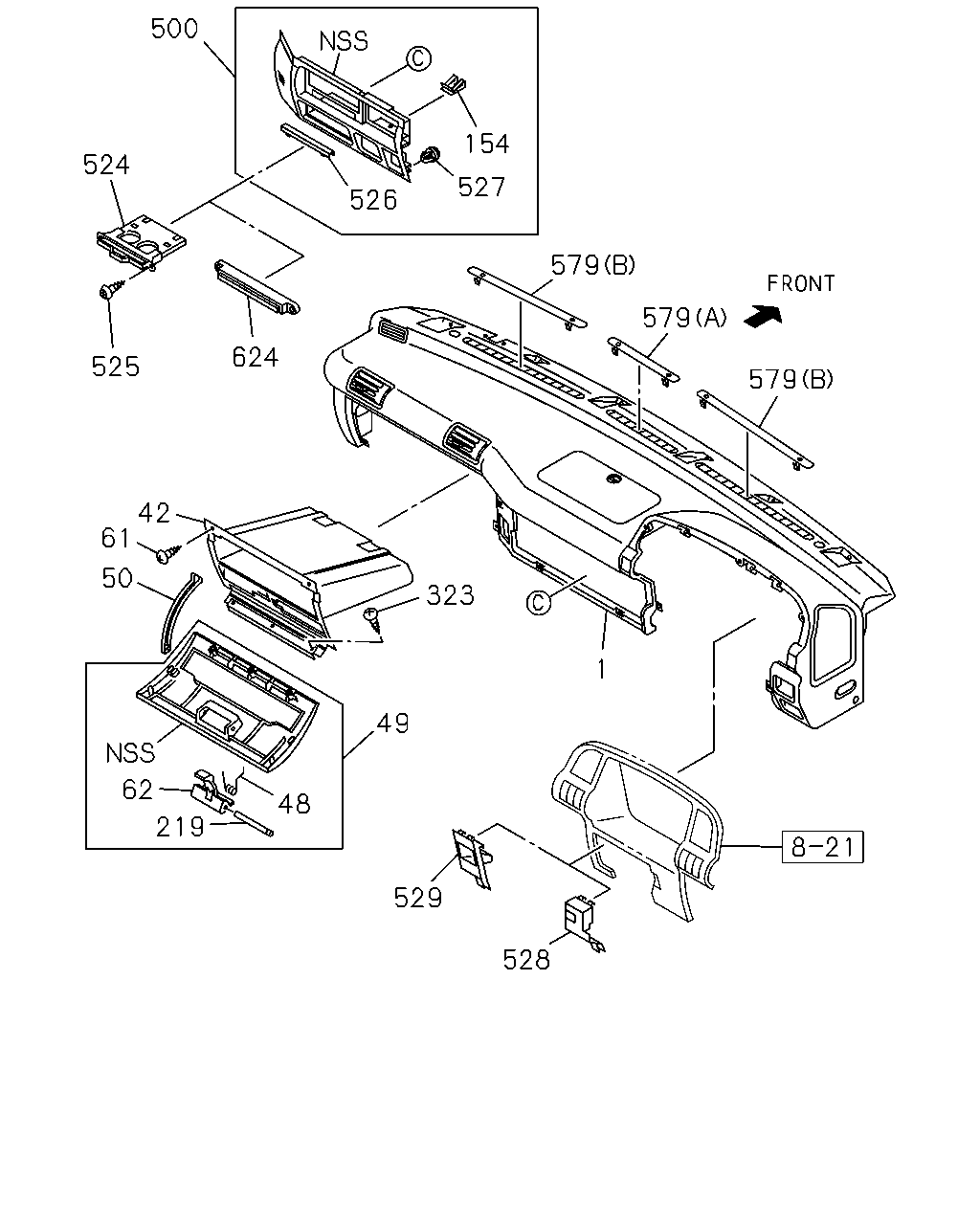

çizim 58643
500 154 524 527 526 579 579 624 525 579 42 61 50 323 1 49 62 48 219 529 528
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
DARK GRAY 		8-97582-810-1 01 1 0701- ● ●
42 BOX; GLOVE,INST PNL 8-97853-281-6 01 1 0701- ● ●
48 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 0701- ● ●
49 LID; GLOVE BOX
DARK GRAY 		8-97582-808-4 01 1 0701- ● ●
50 STOPPER; LID,GLOVE BOX,INST CLUSTER 8-97853-152-0 02 1 0701- ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0701- ● ●
62 KNOB; GLOVE BOX LID
DARK GRAY 		8-97582-487-1 01 1 0701- ● ●
154 NUT
M6 SPIRE NUT 		8-97210-973-1 01 1 0701- ● ●
154 NUT
M6 SPIRE NUT 		8-97210-973-1 03 1 0701- ● ●
219 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 0701- ● ●
323 SCREW; GLOVE BOX LK
M5X14 THA 		8-94279-325-0 03 1 0701- ● ●
500 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> DARK GRAY 		8-97588-804-1 01 1 0701- ● ●
500 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> DARK GRAY 		8-97582-809-1 01 1 0701- ● ●
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-8 01 1 0701- ● ●
525 SCREW; CUP STAND
M5X14 THA 		8-94279-325-0 02 1 0701- ● ●
526 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> DARK GRAY 		8-97582-490-1 01 1 0701- ● ●
527 CLIP; INST CLUSTER 8-97853-169-0 04 1 0701- ● ●
528 COVER; PTO LEVER
PTO TRANSMISSION SIDE<V66> BLACK 		8-97867-544-5 01 1 0701- ● ●
529 POCKET; COIN
EXC. PTO TRANSMISSION SIDE<V66> BLACK 		8-97867-543-5 01 1 0701- ● ●
579 COVER; INST PNL
(A) THA 		8-97922-868-0 01 1 0701- ● ●
579 COVER; INST PNL
(B) THA 		8-97922-870-0 02 1 0701- ● ●
624 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-1 01 1 0701- ● ●
