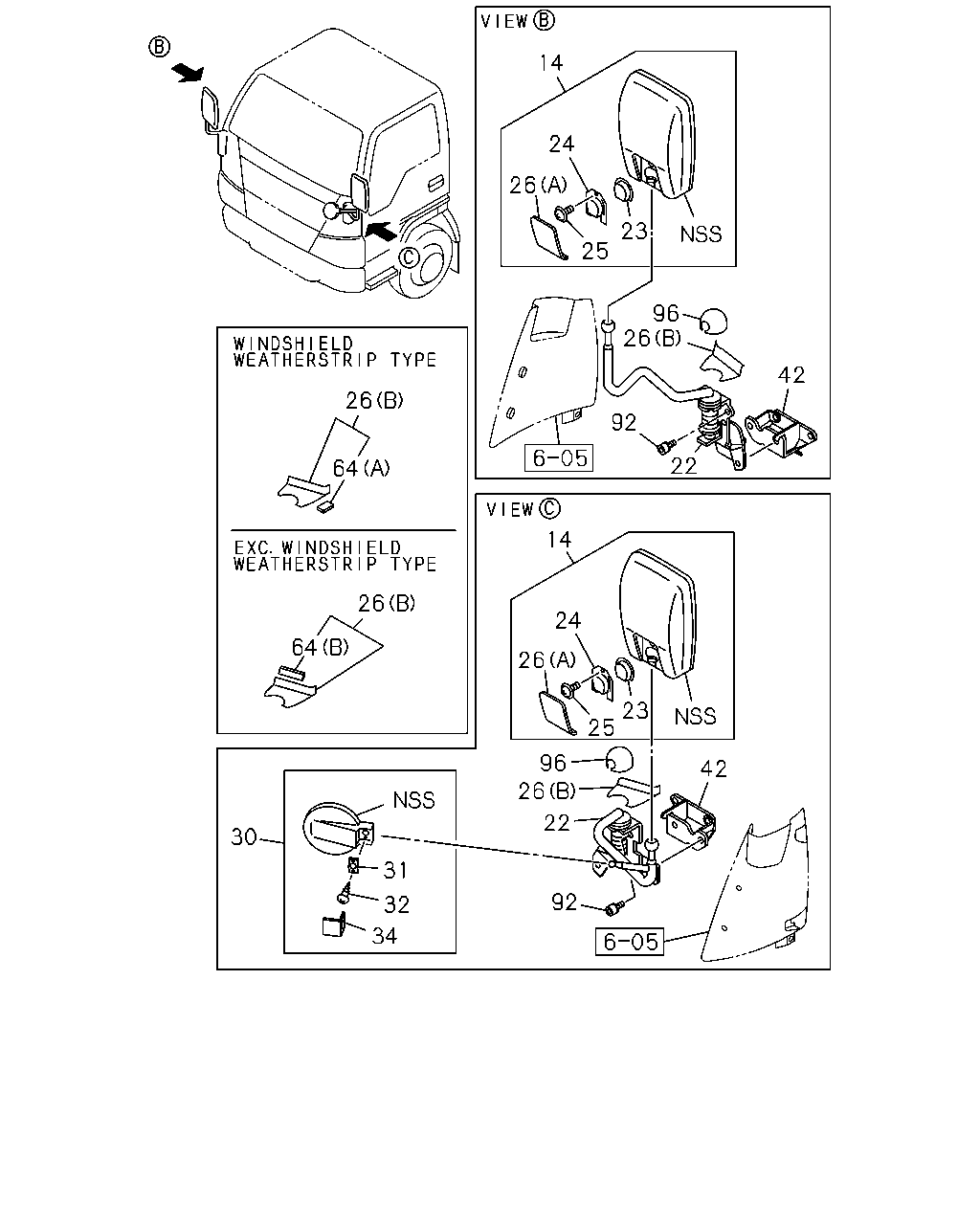

7-20 — MIRROR AND MIRROR STAY (#39590) — 40 parça

14 24 26 23 25 96 26 42 26 92 22 64 14 26 24 64 26 23 25 96 42 26 22 30 31 92 32 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	MIRROR ASM; OUTSIDE THA	8-94262-543-3	02	1	0702-	●	●
22	STAY; OUTSIDE MIRROR	8-98039-587-0	01	1	0702-0704	●	●
22	STAY; OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-98083-670-0	01	1	0705-	●	●
22	STAY; OUTSIDE MIRROR	8-98039-584-1	01	1	0702-	●	●
23	WASHER; OUTSIDE MIRROR T=2.0 THA	8-94262-545-0	02	1	0702-	●	●
24	HOLDER; OUTSIDE MIRROR T=1.6 THA	8-94262-546-1	02	1	0702-	●	●
25	SCREW; OUTSIDE MIRROR M6X30 THA	8-94279-365-0	02	1	0702-	●	●
26	COVER; OUTSIDE MIRROR (A) T=2.3 THA	8-94262-547-2	02	1	0702-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE<951> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97404-565-0	01	1	0701-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE<951> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97404-568-1	01	1	0701-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE<951> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97404-567-4	01	1	0701-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE<951> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97404-566-5	01	1	0701-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE<890> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-168-0	01	1	0701-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE<890> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-161-1	01	1	0701-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE<890> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-844-4	01	1	0701-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE<890> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-835-5	01	1	0701-	●	●
30	MIRROR; UNDER	8-94262-625-2	01	1	0702-	●	●
31	PLATE; MIRROR	8-94262-631-0	01	1	0702-	●	●
32	SCREW; UNDER MIRROR M5X18	8-94279-372-0	02	1	0702-	●	●
34	CAP; MIRROR	8-94262-629-0	01	1	0702-	●	●
42	ATTACHMENT; OUTSIDE MIRROR	8-97581-755-2	01	1	0701-	●	●
42	ATTACHMENT; OUTSIDE MIRROR	8-97581-625-2	01	1	0701-	●	●
64	SEAL; MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-98015-058-0	04	1	0701-	●	●
64	SEAL; MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-98015-057-0	02	1	0701-	●	●
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	10	1	0701-	●	●
96	CAP; MIRROR STAY	8-97581-631-2	02	1	0701-	●	●

4 162 2 159 3 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM TRAY ROOF HEAD<7EJ> THA	8-97922-804-0	01	1	0701-	●	●
1	MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97582-242-2	01	1	0701-	●	●
2	SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> M5X20	5-09981-059-0	02	1	0701-	●	●
2	SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> M5X16	8-94279-341-0	02	1	0701-	●	●
3	STOPPER; RR VIEW MIRROR TRAY ROOF HEAD<7EJ> WINDSHIELD WEATHERSTRIP TYPE<7EL> L=35	8-97867-849-0	01	1	0701-	●	●
3	STOPPER; RR VIEW MIRROR TRAY ROOF HEAD<7EJ> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=26 THA	8-97916-546-1	01	1	0701-	●	●
3	STOPPER; RR VIEW MIRROR EXC. TRAY ROOF HEAD<7EJ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31	8-97859-098-2	01	1	0701-	●	●
3	STOPPER; RR VIEW MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. TRAY ROOF HEAD<7EJ> L=40	8-94273-036-3	01	1	0701-	●	●
4	GROMMET; SCREW,ROOM MIRROR TRAY ROOF HEAD<7EJ> THA	8-94279-039-0	01	1	0701-	●	●
158	LENS; ROOM LAMP TRAY ROOF HEAD<7EJ> THA	8-97917-211-0	01	1	0701-	●	●
158	LENS; ROOM LAMP EXC. TRAY ROOF HEAD<7EJ> THA	5-73117-108-1	01	1	0701-	●	●
159	BULB; ROOM LAMP TRAY ROOF HEAD<7EJ> 24V 10W THA	8-97917-213-0	01	1	0701-	●	●
159	BULB; ROOM LAMP EXC. TRAY ROOF HEAD<7EJ> 24V 10W THA	5-82194-030-0	01	1	0701-	●	●
162	SEAL; ROOM LAMP TRAY ROOF HEAD<7EJ> THA	8-97856-532-0	01	1	0701-	●	●
