◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51132 - NQR BUS CHAS(THAI) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#39580) — 36 parça

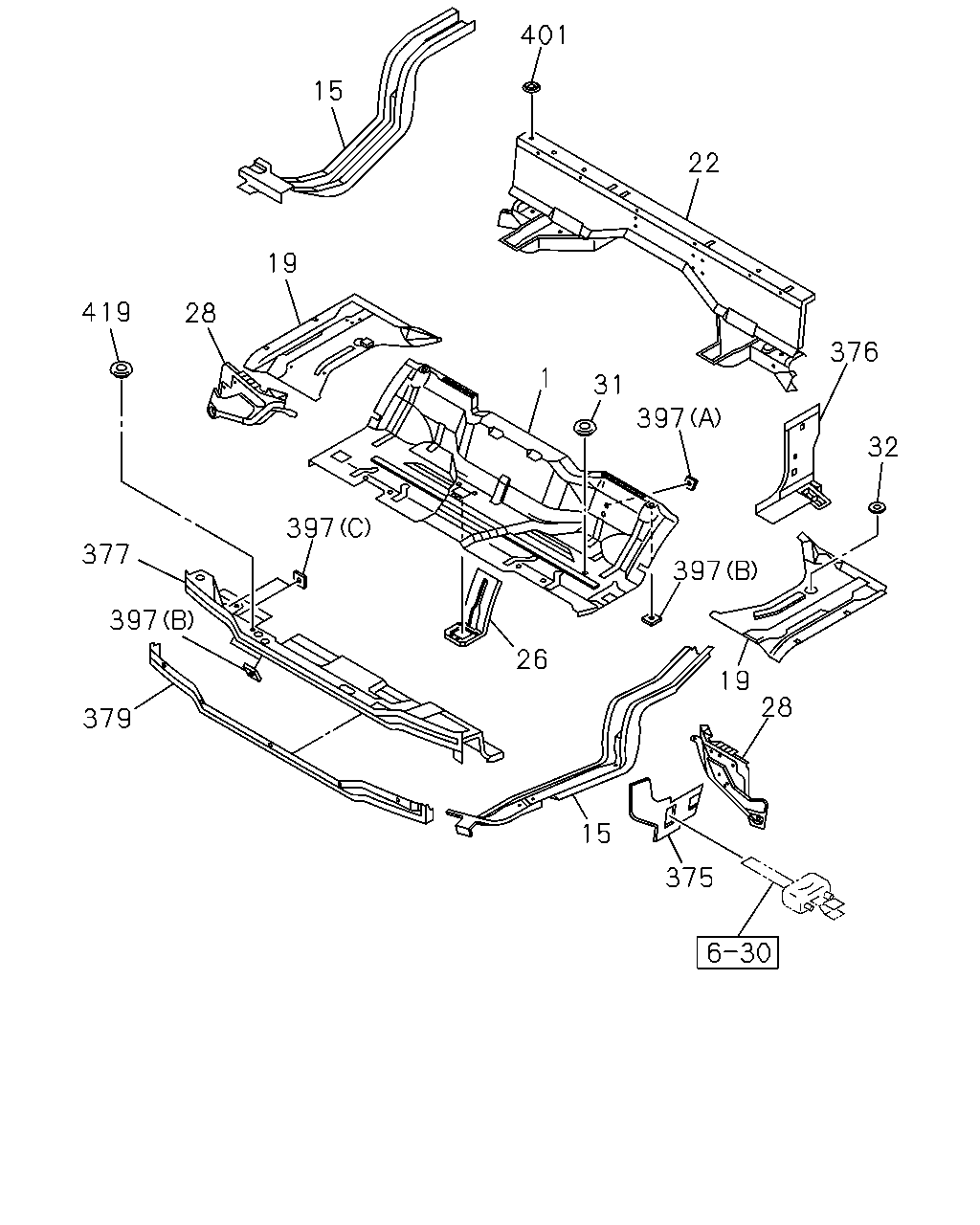

çizim 57300
401 15 22 19 419 28 376 1 31 397 32 397 377 397 397 26 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 8-97581-801-0 01 1 0701- ● ●
15 FRAME; UNDER
THA 		8-97850-060-9 01 1 0701- ● ●
15 FRAME; UNDER 8-98013-405-0 01 1 0701- ● ●
19 PANEL; FLOOR SIDE,REAR 8-97850-008-4 01 1 0701- ● ●
19 PANEL; FLOOR SIDE,REAR 8-97850-118-6 01 1 0701- ● ●
22 FRAME; FLOOR REAR 8-97850-657-6 01 1 0701- ● ●
26 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 0701- ● ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0701- ● ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0701- ● ●
31 GROMMET; LOCATION HOLE,CAB FLOOR
OD=28.5 		8-94279-711-0 02 1 0701- ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
OD=53.5 		8-94356-253-0 02 1 0701- ● ●
375 CLOSING; PILLAR 8-97850-087-4 01 1 0701- ● ●
375 CLOSING; PILLAR 8-97850-086-5 01 1 0701- ● ●
376 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 0701- ● ●
376 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 0701- ● ●
377 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0701- ● ●
379 PANEL 8-97581-640-0 01 1 0701- ● ●
397 NUT; PIERCE
(C) M10 		9-09114-030-0 03 1 0701- ● ●
397 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0701- ● ●
397 NUT; PIERCE
(B) M8 		9-09114-048-0 04 1 0701- ● ●
397 NUT; PIERCE
(B) M8 		9-09114-048-0 06 1 0701- ● ●
401 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 0701- ● ●
401 GROMMET; HOLE
OD=12.1 		8-97898-423-0 01 1 0701- ● ●
419 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE<V66> OD=36 		1-09983-092-0 01 1 0701- ● ●

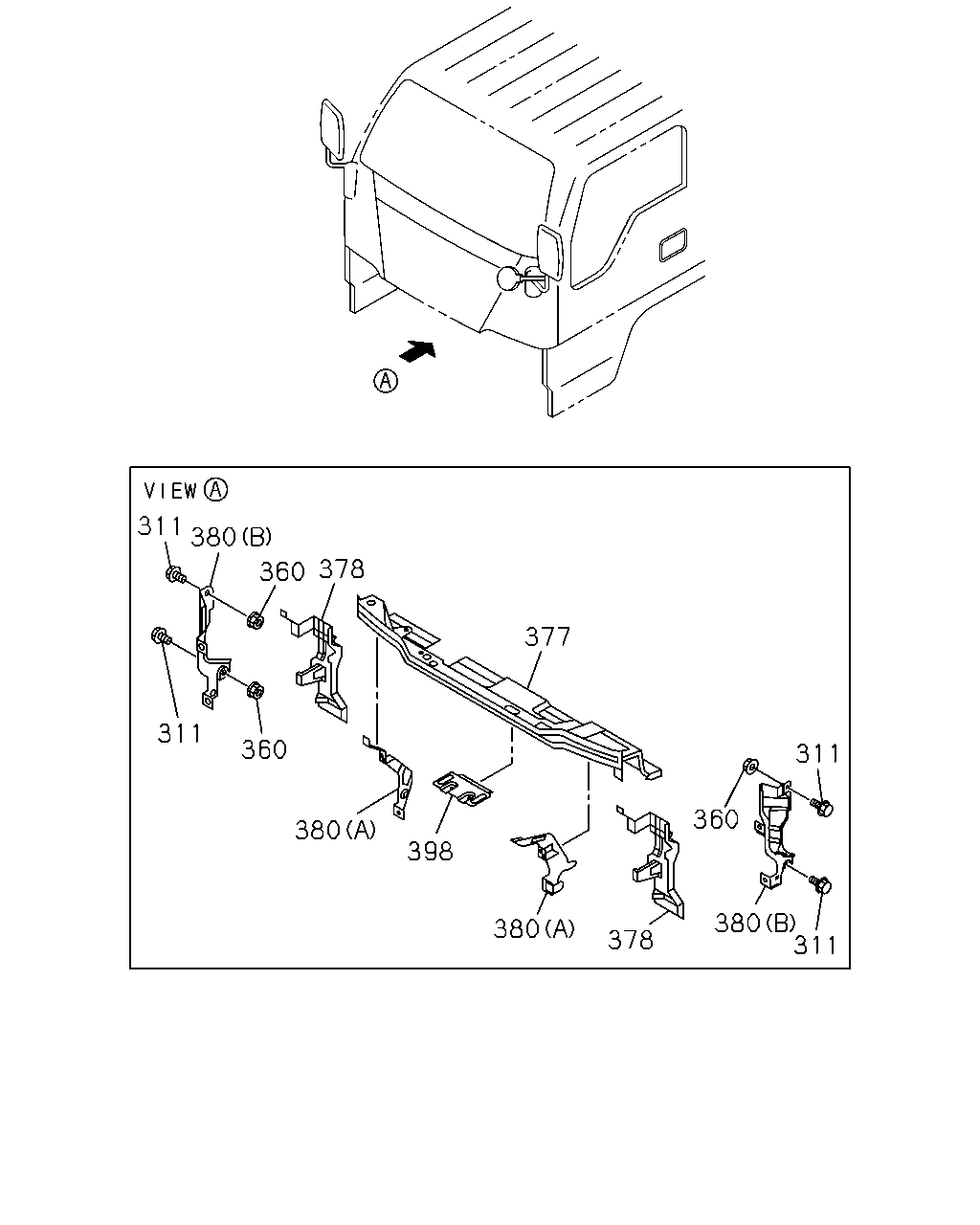

çizim 58306
311 380 378 360 377 311 360 311 360 380 398 380 311 380 378
BalonParca AdiParca NoAdetTipApplied Date A B
311 BOLT; BRKT
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 04 1 0701-0804 ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0805- ● ●
360 NUT; BRKT
M6 POP NUT 		8-94279-537-0 02 1 0701-0805 ● ●
360 NUT; BRKT
M6 POP NUT 		8-98013-752-0 02 1 0806- ● ●
377 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0701- ● ●
378 GASSET; LWR 8-97581-828-2 01 1 0701- ● ●
378 GASSET; LWR 8-97581-827-2 01 1 0701- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97850-767-0 01 1 0701- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98006-088-0 01 1 0701- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97850-090-2 01 1 0701- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98006-087-0 01 1 0701- ● ●
398 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0701- ● ●
