◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51132 - NQR BUS CHAS(THAI) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#39575) — 13 parça

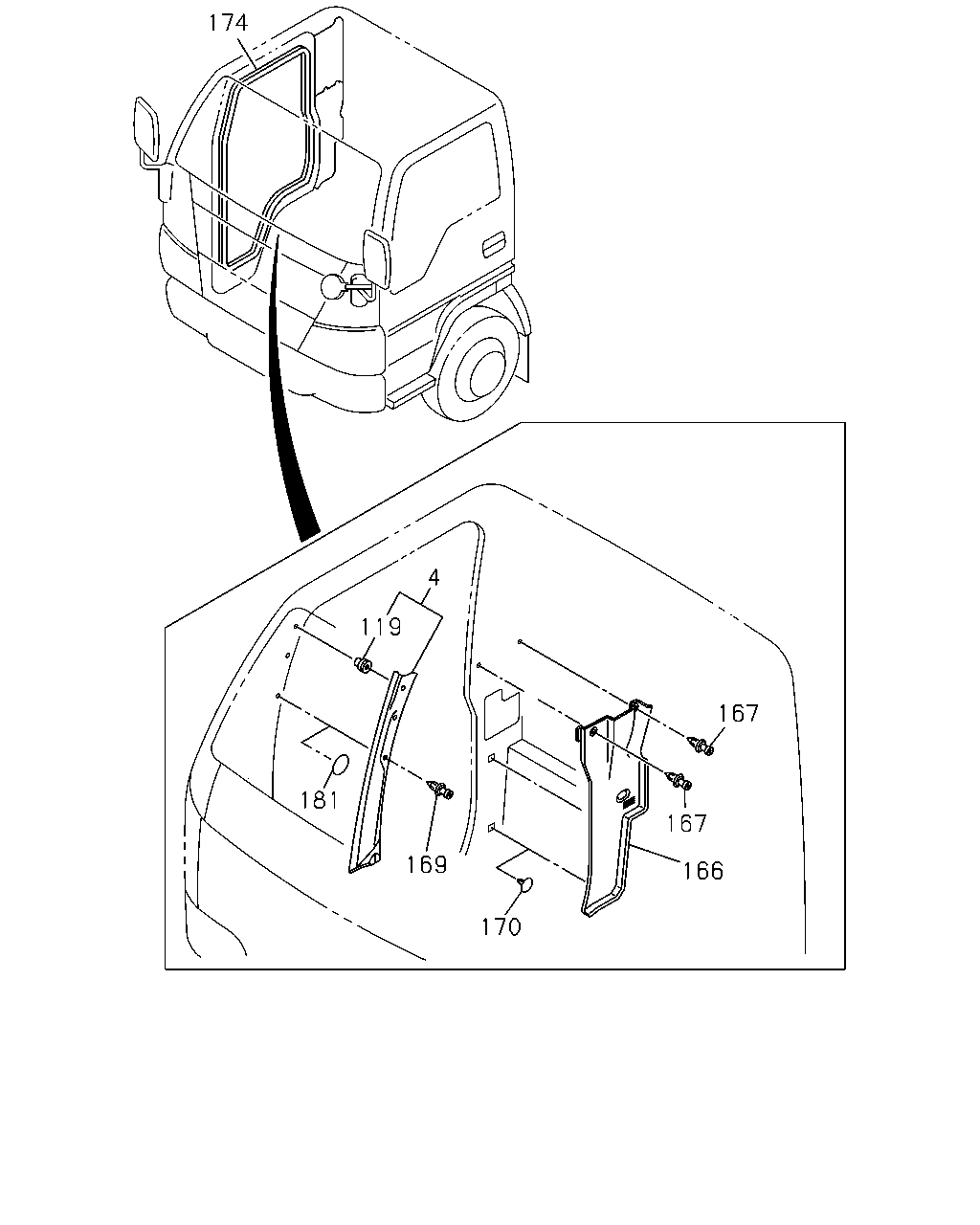

çizim 57217
174 119 167 181 167 169 166 170 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> THA 		8-97922-817-0 01 1 0701- ● ●
4 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> THA 		8-97922-818-0 01 1 0701- ● ●
119 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> THA 		1-73318-278-0 04 1 0701- ● ●
119 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> THA 		8-97914-979-0 02 1 0701- ● ●
166 TRIM; RR PILLAR
GRAY 		8-97582-260-5 01 1 0701- ● ●
166 TRIM; RR PILLAR
GRAY 		8-97582-262-3 01 1 0701- ● ●
167 CLIP; TRIM,RR PILLAR
GRAY 		8-97406-439-0 04 1 0701- ● ●
169 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X16 PUSH RIVET 		8-97582-245-0 02 1 0701- ● ●
170 CLIP; HOLE
EXC. TRAY ROOF HEAD<7EJ> 		8-94244-922-0 02 1 0701- ● ●
174 FINISHER; BODY SIDE
L=2982 GRAY 		8-97582-256-5 01 1 0701- ● ●
174 FINISHER; BODY SIDE
L=2982 GRAY 		8-97582-255-5 01 1 0701- ● ●
181 SEAL; FRT PILLAR
BODY COLOR ARC WHITE<951> EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0701- ● ●
181 SEAL; FRT PILLAR
BODY COLOR MARINE BLUE<890> EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0701- ● ●
