◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51132 - NQR BUS CHAS(THAI) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#39574) — 57 parça
çizim 14059
162 162
BalonParca AdiParca NoAdetTipApplied Date A B
162 PROTECTOR; DOOR
FENDER COVER<6FZ> (A) 		8-98056-386-0 02 1 0701- ● ●
162 PROTECTOR; DOOR
PROTECTOR-BODY SIDE MOLDING<B84> (B) 		8-97856-390-2 02 1 0701- ● ●
183 SEAL; LOCATION HOLE
POWER WINDOW FRT DOOR<A32> OD=25 BLACK THA 		1-76798-019-0 02 1 0804- ● ●

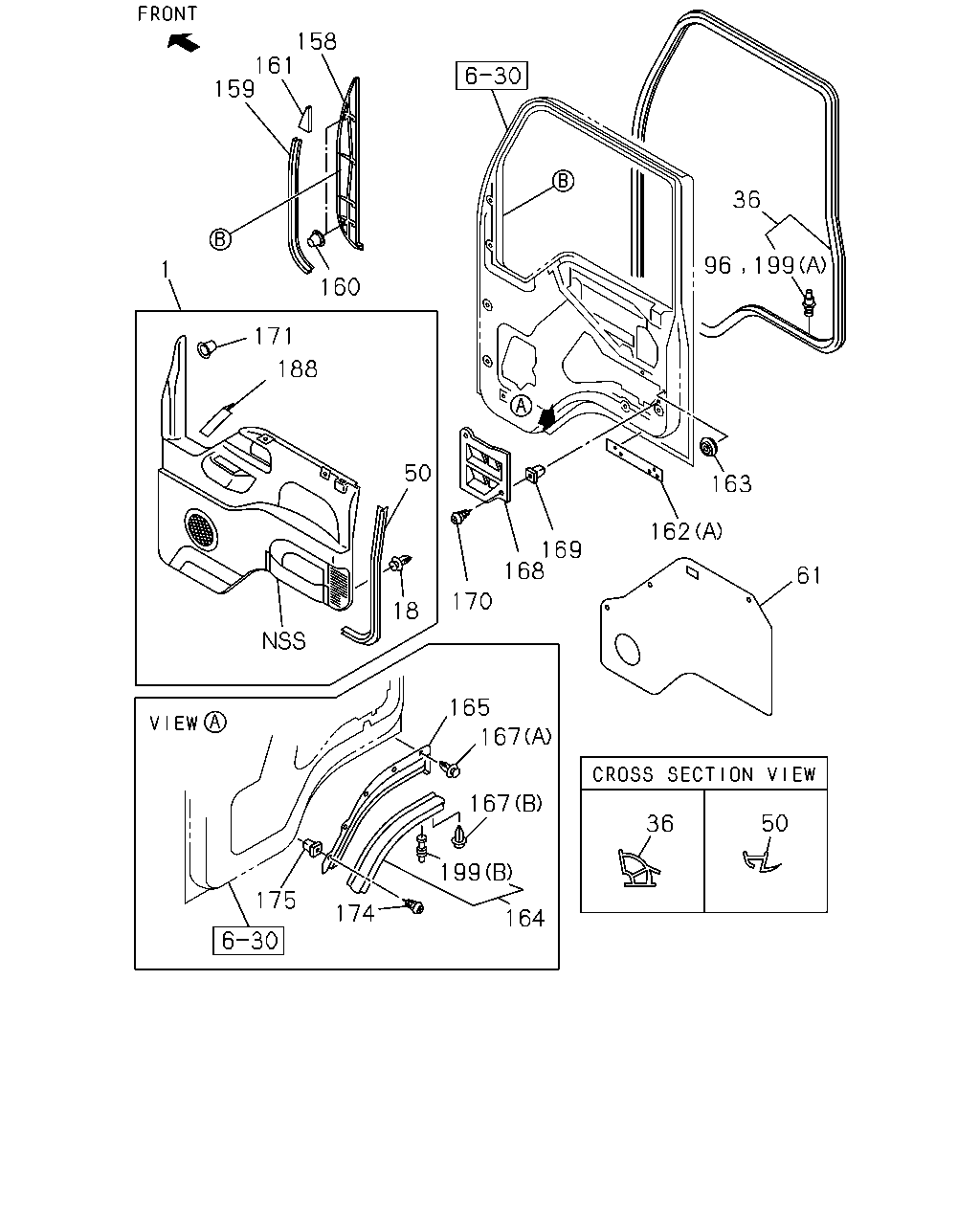

çizim 57130
158 161 159 36 96 199 1 160 171 188 50 163 162 169 168 61 170 18 165 167 167 50 36 199 175 174 164
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-288-7 01 1 0701- ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-282-6 01 1 0701- ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> THA 		8-97922-825-0 01 1 0701- ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> THA 		8-97922-821-0 01 1 0701- ● ●
18 CLIP; DOOR PAD
POWER WINDOW FRT DOOR<A32> OD=7.9 BLACK THA 		8-94279-974-1 24 1 0701- ● ●
18 CLIP; DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32> D7.9X8.9 BLACK THA 		8-97914-992-0 24 1 0701- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE
THA 		8-97919-610-0 01 1 0701- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE
THA 		8-97919-609-0 01 1 0701- ● ●
50 FINISHER; DOOR PAD
POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-685-0 02 1 0701- ● ●
50 FINISHER; DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32> THA 		8-97914-993-0 02 1 0701- ● ●
61 SEAL; WATER,DOOR PAD
ANTENNA<U73> EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-308-1 02 1 0701- ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> ANTENNA<U73> 		8-97852-328-3 02 1 0701- ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> EXC. ANTENNA<U73> 		8-97852-329-2 02 1 0701- ● ●
61 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32>,ANTENNA<U73> 		8-97852-307-1 02 1 0701- ● ●
96 CLIP; SEAL
POWER WINDOW FRT DOOR<A32> FRONT NATURAL THA 		1-09987-253-1 09 1 0701-1007 ● ●
96 CLIP; SEAL
POWER WINDOW FRT DOOR<A32> FRONT YELLOW THA 		1-09987-254-1 09 1 0701-1007 ● ●
96 CLIP; SEAL
POWER WINDOW FRT DOOR<A32> LOWER & BACK PINK THA 		1-09987-256-0 32 1 0701-1007 ● ●
158 GARNISH; DOOR 8-97852-129-2 01 1 0701- ● ●
158 GARNISH; DOOR 8-97852-128-2 01 1 0701- ● ●
159 FINISHER; GARNISH 8-97852-257-4 02 1 0701- ● ●
160 CLIP; GARNISH 8-97852-058-0 04 1 0701- ● ●
161 FASTENER; GARNISH 8-97134-313-1 01 1 0701- ● ●
161 FASTENER; GARNISH 8-97134-312-1 01 1 0701- ● ●
162 PROTECTOR; DOOR
FENDER COVER<6FZ> (A) 		8-98056-386-0 02 1 0701- ● ●
162 PROTECTOR; DOOR
PROTECTOR-BODY SIDE MOLDING<B84> (B) 		8-97856-390-2 02 1 0701- ● ●
163 GROMMET; LOCATION HOLE,DOOR 8-94279-738-0 02 1 0701-0803 ● ●
164 SEAL; SUB,SILL SIDE 8-97852-320-4 01 1 0701- ● ●
164 SEAL; SUB,SILL SIDE 8-97852-319-4 01 1 0701- ● ●
165 LINER; DOOR LWR
FENDER COVER<6FZ> 		8-97581-079-0 01 1 0701- ● ●
165 LINER; DOOR LWR
FENDER COVER<6FZ> 		8-97581-078-0 01 1 0701- ● ●
165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ> 		8-97581-081-0 01 1 0701- ● ●
165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ> 		8-97581-080-0 01 1 0701- ● ●
167 CLIP; LINER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0701- ● ●
167 CLIP; LINER
(B) D6X20 PUSH RIVET 		8-97859-673-0 02 1 0701- ● ●
168 VALVE; DOOR OUTLET 8-97855-413-0 01 1 0701- ● ●
168 VALVE; DOOR OUTLET 8-97855-412-0 01 1 0701- ● ●
169 GROMMET; SCREW,VALVE
D=8.5X8.5 L=7.5 THA 		8-94279-078-0 04 1 0701- ● ●
170 SCREW; VALVE
M5X12 TAPPING W/PL WASHER 		0-74160-512-0 04 1 0701- ● ●
171 RETAINER; DOOR PAD
POWER WINDOW FRT DOOR<A32> THA 		5-09709-049-0 02 1 0701- ● ●
171 RETAINER; DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32> THA 		8-97914-991-0 02 1 0701- ● ●
174 SCREW; LINER
M5X12 W/PL WASHER 		8-94385-565-0 04 1 0701- ● ●
175 GROMMET; SCREW,LINER
D=8.5X8.5 L=7.5 THA 		8-94279-078-0 04 1 0701- ● ●
183 SEAL; LOCATION HOLE
POWER WINDOW FRT DOOR<A32> OD=25 BLACK THA 		1-76798-019-0 02 1 0804- ● ●
188 CASE; DOOR
GRAY 		8-97582-693-3 01 1 0701- ● ●
188 CASE; DOOR
GRAY 		8-97582-684-3 01 1 0701- ● ●
188 CASE; DOOR
EXC. POWER WINDOW FRT DOOR<A32> THA 		8-97922-828-0 01 1 0701- ● ●
188 CASE; DOOR
EXC. POWER WINDOW FRT DOOR<A32> THA 		8-97922-824-0 01 1 0701- ● ●
199 CLIP; SEAL
POWER WINDOW FRT DOOR<A32> (A) NATURAL THA 		1-09987-253-1 09 1 1008- ● ●
199 CLIP; SEAL
POWER WINDOW FRT DOOR<A32> (A) YELLOW THA 		1-09987-254-1 09 1 1008- ● ●
199 CLIP; SEAL
POWER WINDOW FRT DOOR<A32> (A) PINK THA 		1-09987-256-0 32 1 1008- ● ●
199 CLIP; SEAL
(B) PINK 		8-97852-456-0 07 1 0701- ● ●
199 CLIP; SEAL
(A) THA 		8-97915-373-0 22 1 0701- ● ●
199 CLIP; SEAL
(B) NATURAL 		8-97852-455-0 07 1 0701- ● ●
199 CLIP; SEAL
(A) THA 		8-97915-372-0 22 1 0701- ● ●
