0-31 — THERMOSTAT AND HOUSING (#39571) — 57 parça

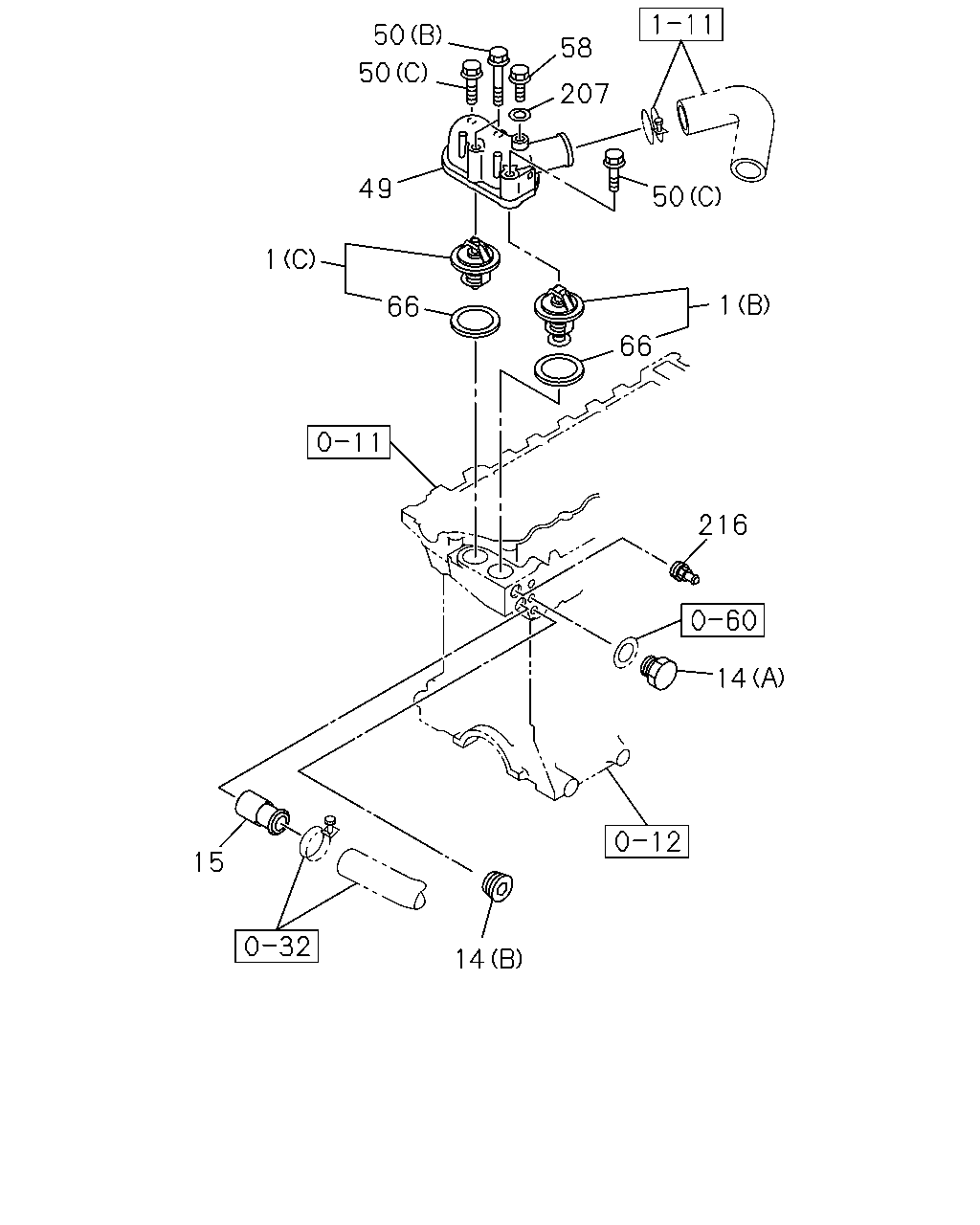

58 50 50 49 1 66 15 14 14 216 1 66 50 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.246 THERMOSTAT (B) 82 CELSIUS	8-97300-789-3	01	1	1012-	●	●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 85 CELSIUS	8-97300-792-2	01	1	1012-	●	●
1	01.246 THERMOSTAT (A) 85 CELSIUS	8-98017-027-2	01	1	1012-			●	●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 85 CELSIUS	8-97300-787-3	01	1	1012-	●	●
1	01.246 THERMOSTAT (C) 85 CELSIUS	8-97300-787-3	01	1	1012-					●	●
1	01.246 THERMOSTAT (B) 82 CELSIUS	8-97300-790-3	01	1	1012-					●	●
14	01.252 PLUG; SW 01.073 (B) PT3/8	5-09605-005-0	01	1	1012-	●				●	●
14	01.252 PLUG; SW 04.520 (A) M16X8 PLUG	9-09661-005-0	01	1	1012-	●				●	●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	1012-			●	●
15	01.251 PIPE; BYPASS 01.153	8-94342-574-0	01	1	1012-	●	●			●	●
49	01.153 PIPE; WATER OUTLET	8-97372-769-1	01	1	1012-	●	●
49	01.153 PIPE; WATER OUTLET	8-98028-252-1	01	1	1012-			●	●
49	01.153 PIPE; WATER OUTLET	8-97329-914-0	01	1	1012-					●	●
50	01.252 BOLT; OUTLET PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	1012-			●	●
50	01.252 BOLT; OUTLET PIPE 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●			●	●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	1012-	●	●			●	●
58	00.073 PLUG; WATER OUTLET PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-			●	●
58	00.073 PLUG; WATER OUTLET PIPE M8X16	8-97021-211-1	01	1	1012-	●	●			●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=49.5 OD=56.5	8-97300-793-0	01	1	1012-1501	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=49.5 OD=56.5	8-97300-793-0	01	1	1012-1501	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=49.5 OD=56.5	8-98280-281-0	01	1	1502-	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=49.5 OD=56.5	8-98280-281-0	01	1	1502-	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98114-587-0	01	1	1012-			●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=49.5 OD=56.5	8-97300-793-0	02	1	1012-1501					●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=49.5 OD=56.5	8-98280-281-0	02	1	1502-					●	●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	1012-	●	●	●	●	●	●
216	01.153 PIPE ASM; WATER,TURBOCHARGER RET	8-97358-699-0	01	1	1012-	●				●	●

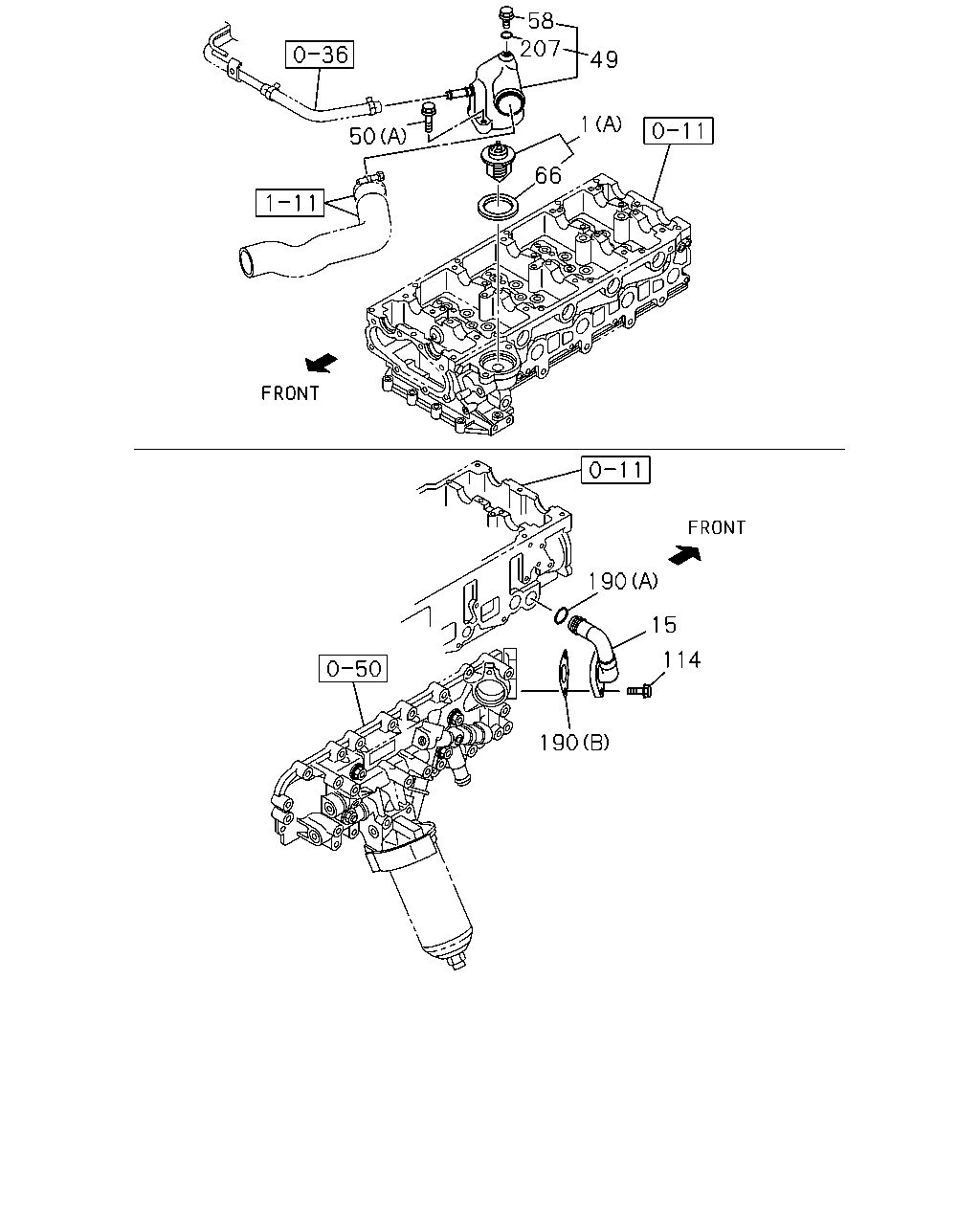

58 207 49 1 50 66 190 15 114 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.246 THERMOSTAT (B) 82 CELSIUS	8-97300-789-3	01	1	1012-	●	●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 85 CELSIUS	8-97300-792-2	01	1	1012-	●	●
1	01.246 THERMOSTAT (A) 85 CELSIUS	8-98017-027-2	01	1	1012-			●	●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 85 CELSIUS	8-97300-787-3	01	1	1012-	●	●
1	01.246 THERMOSTAT (C) 85 CELSIUS	8-97300-787-3	01	1	1012-					●	●
1	01.246 THERMOSTAT (B) 82 CELSIUS	8-97300-790-3	01	1	1012-					●	●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	1012-			●	●
15	01.251 PIPE; BYPASS 01.153	8-94342-574-0	01	1	1012-	●	●			●	●
49	01.153 PIPE; WATER OUTLET	8-97372-769-1	01	1	1012-	●	●
49	01.153 PIPE; WATER OUTLET	8-98028-252-1	01	1	1012-			●	●
49	01.153 PIPE; WATER OUTLET	8-97329-914-0	01	1	1012-					●	●
50	01.252 BOLT; OUTLET PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	1012-			●	●
50	01.252 BOLT; OUTLET PIPE 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●			●	●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	1012-	●	●			●	●
58	00.073 PLUG; WATER OUTLET PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-			●	●
58	00.073 PLUG; WATER OUTLET PIPE M8X16	8-97021-211-1	01	1	1012-	●	●			●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=49.5 OD=56.5	8-97300-793-0	01	1	1012-1501	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=49.5 OD=56.5	8-97300-793-0	01	1	1012-1501	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=49.5 OD=56.5	8-98280-281-0	01	1	1502-	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=49.5 OD=56.5	8-98280-281-0	01	1	1502-	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98114-587-0	01	1	1012-			●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=49.5 OD=56.5	8-97300-793-0	02	1	1012-1501					●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=49.5 OD=56.5	8-98280-281-0	02	1	1502-					●	●
114	01.097 BOLT; BYPASS PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-			●	●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT<CL0> (B)	8-97318-494-2	01	1	1105-				●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	0-95690-226-0	01	1	1012-			●	●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98009-322-0	01	1	1012-1104			●	●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-98009-322-0	01	1	1105-			●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT<CL0> (B)	8-98009-322-0	01	1	1105-				●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	1012-	●	●	●	●	●	●
