1-41 — FUEL PIPING; CHASSIS (#3957) — 95 parça

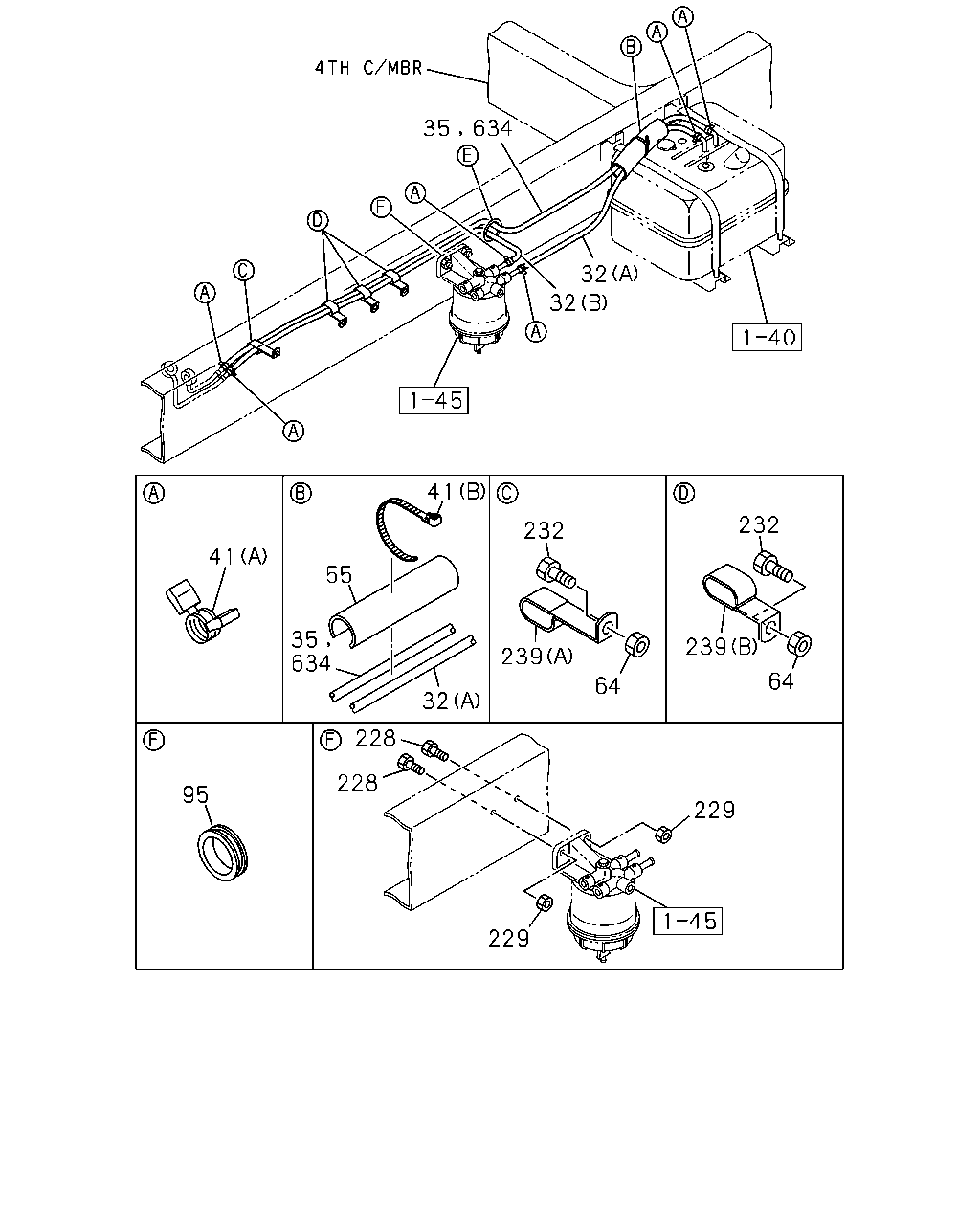

çizim 115966
35 634 32 32 41 55 35 634 41 232 232 239 239 64 64 32 95 228 228 229 229
BalonParca AdiParca NoAdetTipApplied Date A B C D E
32 PIPE; DELIVERY,FUEL TANK
MIDDLE CHASSIS(FT***F) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. EURO2 SPECIFICATION<THN> (B) L=1850 SERVICED BY L=3000 		0-01260-300-0 01 1 0107- ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9709 ● ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 9710-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. EURO2 SPECIFICATION<THN> (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 9710-0004 ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0106 ●
32 PIPE; DELIVERY,FUEL TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN> (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0106 ●
32 PIPE; DELIVERY,FUEL TANK
EXC. EURO2 SPECIFICATION<THN> (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0106 ● ●
32 PIPE; DELIVERY,FUEL TANK
SHORT CHASSIS(FT***C) (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-0401 ● ●
32 PIPE; DELIVERY,FUEL TANK
MIDDLE CHASSIS(FT***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN> (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-0401 ● ●
32 PIPE; DELIVERY,FUEL TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN> (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-0401 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
SHORT CHASSIS(FT***C) (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0402- ● ●
32 PIPE; DELIVERY,FUEL TANK
MIDDLE CHASSIS(FT***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN> (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0402- ● ●
32 PIPE; DELIVERY,FUEL TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN> (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0402- ● ●
32 PIPE; DELIVERY,FUEL TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0402- ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=760 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=760 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0607 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=760 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0607 ●
32 PIPE; DELIVERY,FUEL TANK
SHORT CHASSIS(FT***C) (A) L=760 SERVICED BY L=3000 		0-01260-300-0 01 1 0608- ● ●
32 PIPE; DELIVERY,FUEL TANK
MIDDLE CHASSIS(FT***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=760 SERVICED BY L=3000 		0-01260-300-0 01 1 0608- ● ●
32 PIPE; DELIVERY,FUEL TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=760 SERVICED BY L=3000 		0-01260-300-0 01 1 0608- ● ● ●
32 PIPE; DELIVERY,FUEL TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=560 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ●
32 PIPE; DELIVERY,FUEL TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0106 ●
32 PIPE; DELIVERY,FUEL TANK
MIDDLE CHASSIS(FT***F) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> (B) L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0107- ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (B) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 9710-0004 ●
32 PIPE; DELIVERY,FUEL TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> (B) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0401 ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (B) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0401 ● ●
32 PIPE; DELIVERY,FUEL TANK
MIDDLE CHASSIS(FT***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> (B) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 0402- ●
32 PIPE; DELIVERY,FUEL TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> (B) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 0402- ●
35 PIPE; FUEL TANK,RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 9510-0004 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 0005-0607 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 0608- ● ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 9510-0004 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 0005-0607 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 0608- ● ● ● ● ●
55 COVER; PIPE,FUEL TANK
L=1300 		1-09360-677-1 01 1 9510-0004 ● ● ●
55 COVER; PIPE,FUEL TANK
L=1300 		1-09360-677-1 01 1 0005-0607 ● ● ● ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0608- ● ● ● ● ●
64 NUT; CLIP
M8 		9-09110-408-0 03 1 9510-9606 ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9607-0004 ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0005-0602 ● ● ●
64 NUT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91150-108-0 03 1 0005-0602 ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603-0607 ● ● ●
64 NUT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91180-108-0 03 1 0603-0607 ●
64 NUT; CLIP
SHORT CHASSIS(FT***C) M8 FLANGE 		0-91180-108-0 03 1 0608- ● ●
64 NUT; CLIP
MIDDLE CHASSIS(FT***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91180-108-0 03 1 0608- ● ●
64 NUT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91180-108-0 03 1 0608- ● ● ●
64 NUT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91150-108-0 04 1 0005-0602 ●
64 NUT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25 		1-09332-011-1 01 1 9510-0004 ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25 		1-09332-011-1 01 1 0005-0009 ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
FRAME EQUIPMENT HEAVY DUTY(F03) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0010-0106 ● ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
MIDDLE CHASSIS(FT***F) FRAME EQUIPMENT HEAVY DUTY(F03) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0107-0410 ● ●
95 BUSHING; PIPE,FUEL TANK
FRAME EQUIPMENT HEAVY DUTY(F03) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0107-0410 ● ● ●
95 BUSHING; PIPE,FUEL TANK
FRAME EQUIPMENT HEAVY DUTY(F03) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0411- ● ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0010-0106 ● ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
SHORT CHASSIS(FT***C) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0107-0410 ● ●
95 BUSHING; PIPE,FUEL TANK
MIDDLE CHASSIS(FT***F) EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0107-0410 ● ●
95 BUSHING; PIPE,FUEL TANK
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0107-0410 ● ● ●
95 BUSHING; PIPE,FUEL TANK
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0411- ● ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28081-035-0 02 1 9510-9606 ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 9607-0004 ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 0005-0512 ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28651-040-0 02 1 0601-0607 ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28651-040-0 02 1 0608- ● ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 		9-09110-510-0 02 1 9510-9606 ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9607-0004 ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0603-0607 ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0608- ● ● ● ● ●
232 BOLT; CLIP,PIPE
M8X25 FLANGE 		0-28080-825-0 03 1 9510-9606 ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 03 1 9607-0004 ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 03 1 0005-0512 ● ● ●
232 BOLT; CLIP,PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28680-830-0 03 1 0005-0512 ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28650-830-0 03 1 0601-0607 ● ● ●
232 BOLT; CLIP,PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28650-830-0 03 1 0601-0607 ●
232 BOLT; CLIP,PIPE
SHORT CHASSIS(FT***C) M8X30 FLANGE 		0-28650-830-0 03 1 0608- ● ●
232 BOLT; CLIP,PIPE
MIDDLE CHASSIS(FT***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28650-830-0 03 1 0608- ● ●
232 BOLT; CLIP,PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28650-830-0 03 1 0608- ● ● ●
232 BOLT; CLIP,PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE 		0-28680-830-0 04 1 0005-0512 ●
232 BOLT; CLIP,PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE 		0-28650-830-0 04 1 0601- ●
239 CLIP; FUEL PIPE
(A) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9510-9907 ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 9908-0004 ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 0005-0607 ● ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 0608- ● ● ● ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 9510-0004 ● ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 0005-0607 ● ● ●
239 CLIP; FUEL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 0005-0607 ●
239 CLIP; FUEL PIPE
SHORT CHASSIS(FT***C) (B) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 0608- ● ●
239 CLIP; FUEL PIPE
MIDDLE CHASSIS(FT***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 0608- ● ●
239 CLIP; FUEL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 0608- ● ● ●
239 CLIP; FUEL PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14X29 H=30 L=25 		1-09701-101-0 03 1 0005- ●
634 HOSE; RUBBER RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ● ●
634 HOSE; RUBBER RETURN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ●
634 HOSE; RUBBER RETURN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1450 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ●
