Isuzu WW
▶
TRUCKS
▶
NNR
▶
51293 - NNR/NPR/NQR(LHD)
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶
0-28 — VENTILATION SYSTEM
(#39569) — 72 parça
Tümü
A - 4HK1-TCN ENG
B - 4HK1-TCS ENG
C - 4HG1-T ENG
D - 4HG1 ENG
◀

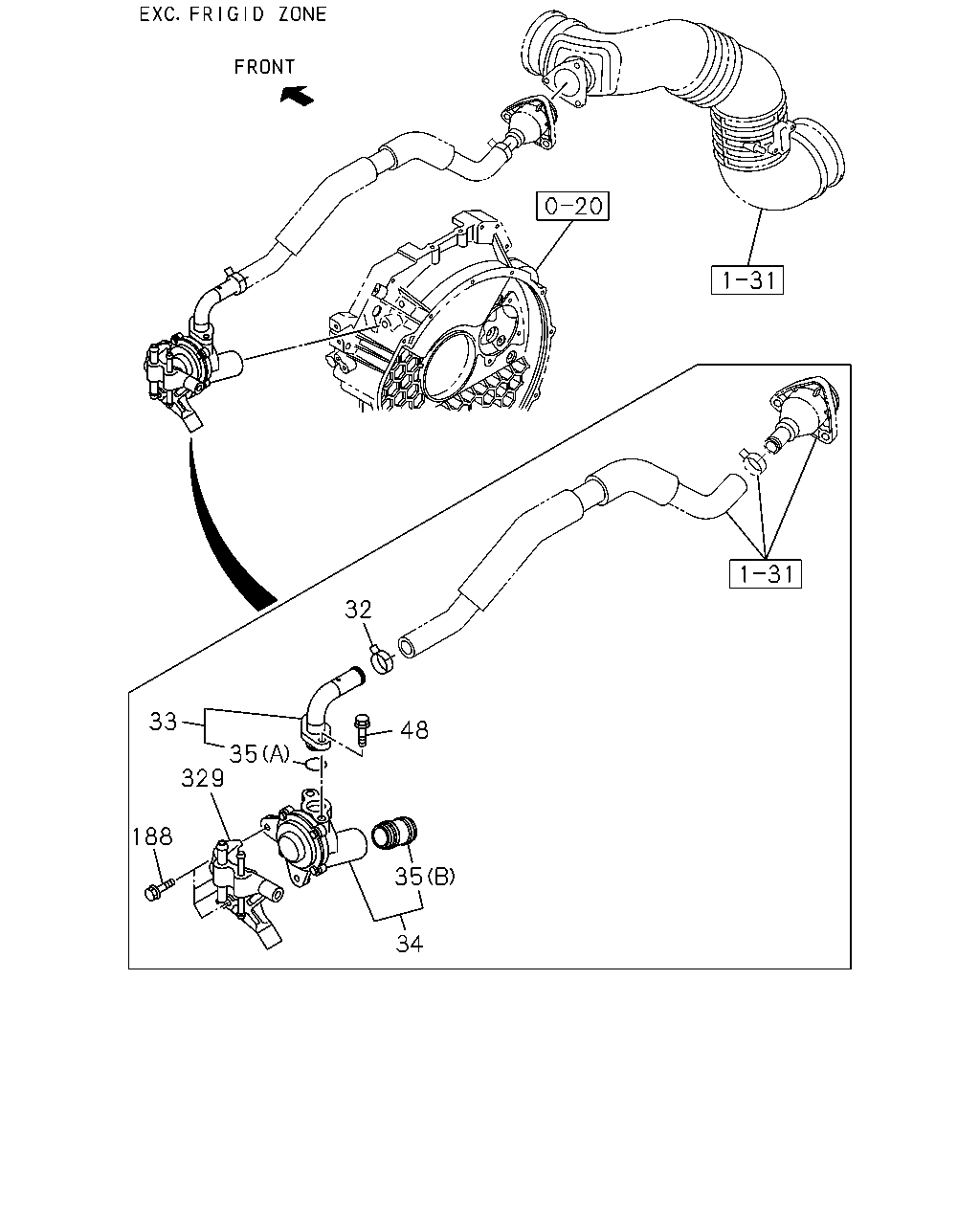

[028A] EURO3 SPECIFICATION;4HK1(NO.1) (12 parça)

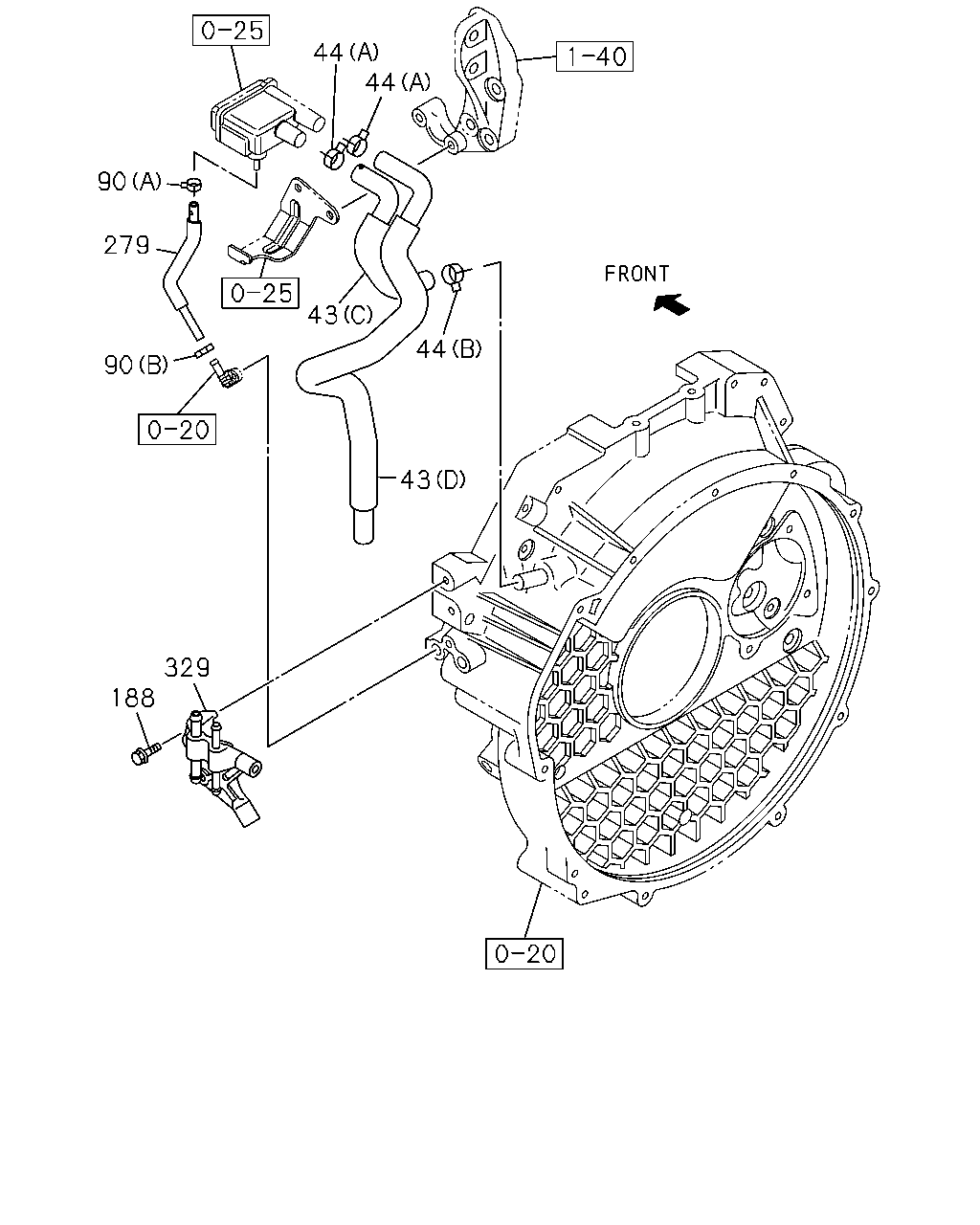

[028A] EURO2 SPECIFICATION;4HK1 (15 parça)

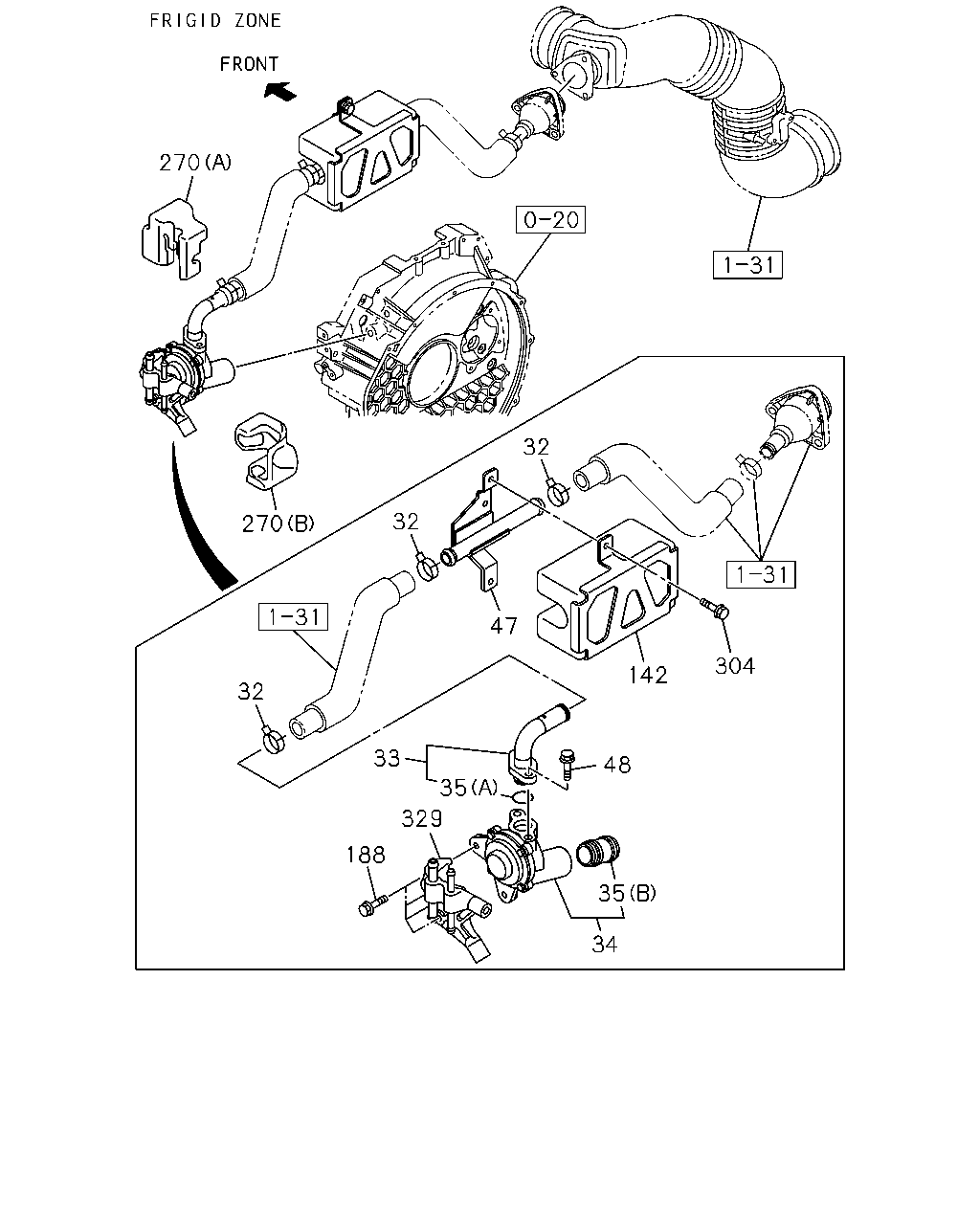

[028A] EURO3 SPECIFICATION;4HK1(NO.2) (17 parça)

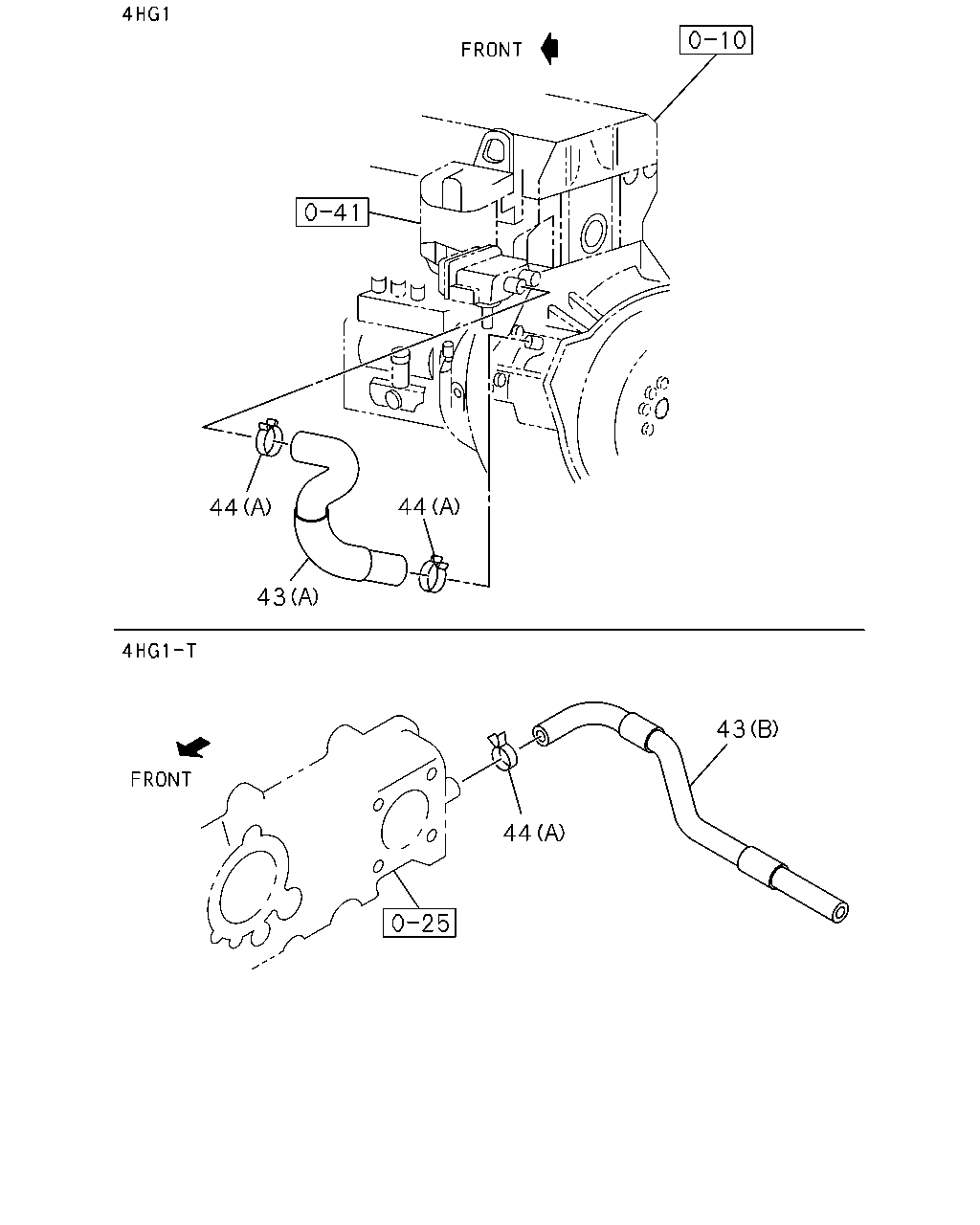

[028A] 4HG1 (9 parça)

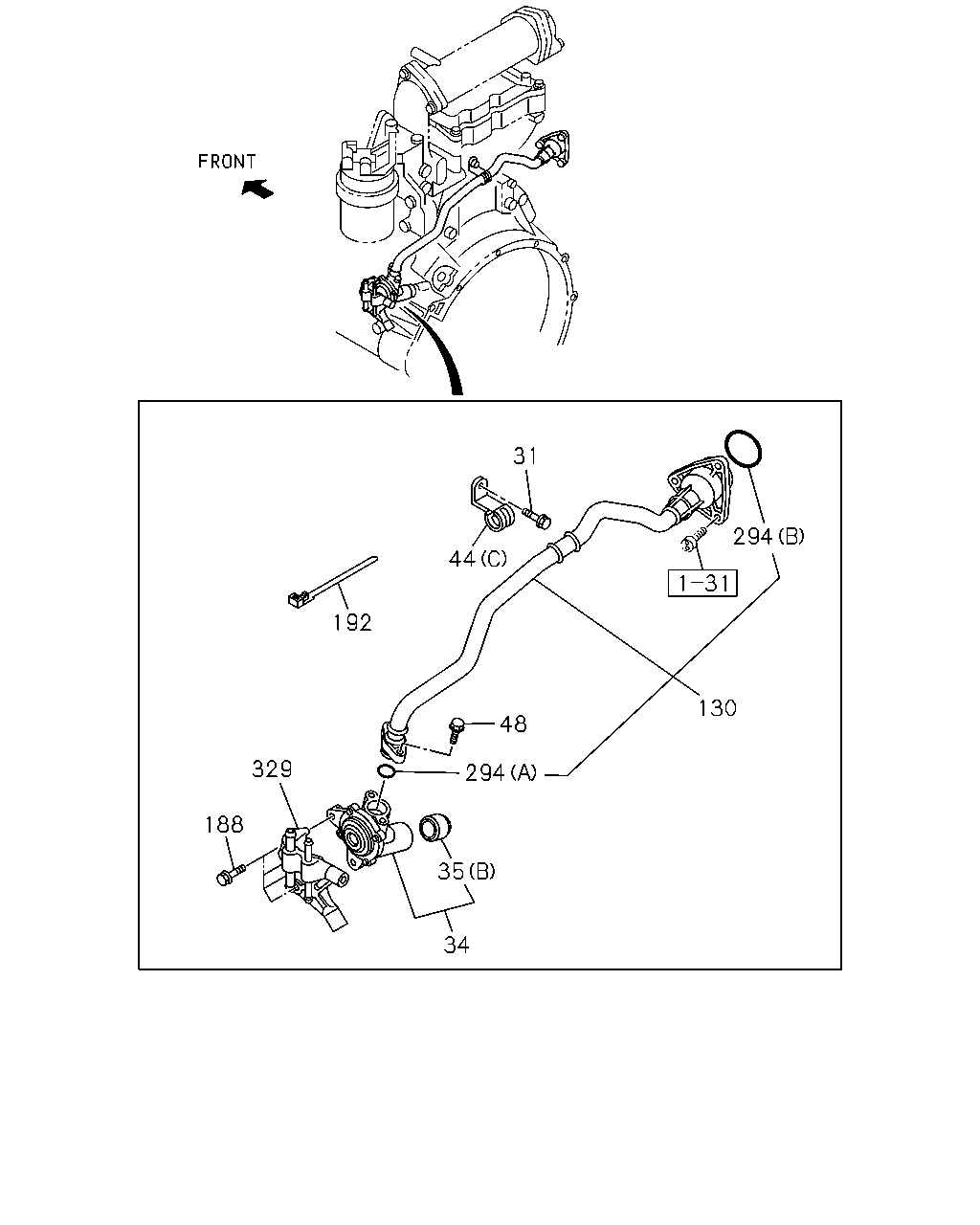

[028A] EURO4 SPECIFICATION;4HK1 (19 parça)
▶
32
33
48
35
329
188
35
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
32
03.417 CLIP; VENT HOSE
EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) 08.846 ID=21.7
8-97203-074-0
01
1
1012-
●
●
32
03.417 CLIP; VENT HOSE
EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) 08.846 ID=21.7
8-97203-074-0
03
1
1012-
●
●
33
03.278 PIPE; VENTILATOR
EURO3 SPECIFICATION(NT3)
8-98075-640-1
01
1
1012-
●
●
34
03.415 VENTILATOR
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)
8-98036-808-1
01
1
1012-1310
●
●
34
03.415 VENTILATOR
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)
8-98245-392-0
01
1
1311-
●
●
35
03.415 GASKET; VENTILATOR
EURO3 SPECIFICATION(NT3) 01.550 (A) ID=17.8
1-09623-588-0
01
1
1012-
●
●
35
03.415 GASKET; VENTILATOR
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (B)
8-98038-692-0
01
1
1012-
●
●
48
03.278 BOLT; PIPE
EURO3 SPECIFICATION(NT3) 09.242 M6X16 FLANGE
0-28050-616-0
02
1
1012-
●
●
48
03.278 BOLT; PIPE
EURO4 SPECIFICATION(NT4) 00.386 M6X20 FLANGE
0-28050-620-0
02
1
1012-
●
●
188
01.780 BOLT; BRKT
00.206 M8X30 FLANGE
0-28050-830-0
02
1
1012-
●
●
188
01.780 BOLT; BRKT
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 00.206 M8X30 FLANGE
0-28050-830-0
02
1
1012-
●
●
329
01.750 BRACKET; VENTILATOR
8-98171-059-0
01
1
1012-
●
●
44
44
90
279
43
44
90
43
329
188
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
43
03.278 HOSE; PCV
(B)
8-97375-134-0
01
1
1012-
●
43
03.278 HOSE; PCV
(A)
8-97375-924-0
01
1
1012-
●
43
03.278 HOSE; PCV
EURO2 SPECIFICATION(NT2) (C)
8-98075-187-2
01
1
1012-
●
●
43
03.278 HOSE; PCV
EURO2 SPECIFICATION(NT2) (D)
8-98089-567-2
01
1
1012-
●
●
44
03.278 CLIP; HOSE,PCV
01.252 (A) ID=22.7
8-94466-382-0
01
1
1012-
●
44
03.278 CLIP; HOSE,PCV
EURO2 SPECIFICATION(NT2) 06.672 (B) ID=21
8-94242-034-0
01
1
1012-
●
●
44
03.278 CLIP; HOSE,PCV
01.252 (A) ID=22.7
8-94466-382-0
02
1
1012-
●
44
03.278 CLIP; HOSE,PCV
EURO2 SPECIFICATION(NT2) 01.252 (A) ID=22.7
8-94466-382-0
02
1
1012-
●
●
44
03.278 CLIP; HOSE,PCV
EURO4 SPECIFICATION(NT4) 02.483 (C) ID=20 H=23 L=27
1-09700-861-0
01
1
1012-
●
●
90
03.358 CLIP; RUBBER HOSE
EURO2 SPECIFICATION(NT2) 03.163 (A) ID=11
8-94238-570-0
01
1
1012-
●
●
90
03.358 CLIP; RUBBER HOSE
EURO2 SPECIFICATION(NT2) 03.162 (B) ID=11.5
8-97138-011-0
01
1
1012-
●
●
188
01.780 BOLT; BRKT
00.206 M8X30 FLANGE
0-28050-830-0
02
1
1012-
●
●
188
01.780 BOLT; BRKT
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 00.206 M8X30 FLANGE
0-28050-830-0
02
1
1012-
●
●
279
03.278 HOSE; RUBBER,OIL DRAIN
EURO2 SPECIFICATION(NT2)
8-98075-190-1
01
1
1012-
●
●
329
01.750 BRACKET; VENTILATOR
8-98171-059-0
01
1
1012-
●
●
270
32
32
270
47
304
142
32
33
48
35
329
188
35
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
32
03.417 CLIP; VENT HOSE
EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) 08.846 ID=21.7
8-97203-074-0
01
1
1012-
●
●
32
03.417 CLIP; VENT HOSE
EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) 08.846 ID=21.7
8-97203-074-0
03
1
1012-
●
●
33
03.278 PIPE; VENTILATOR
EURO3 SPECIFICATION(NT3)
8-98075-640-1
01
1
1012-
●
●
34
03.415 VENTILATOR
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)
8-98036-808-1
01
1
1012-1310
●
●
34
03.415 VENTILATOR
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)
8-98245-392-0
01
1
1311-
●
●
35
03.415 GASKET; VENTILATOR
EURO3 SPECIFICATION(NT3) 01.550 (A) ID=17.8
1-09623-588-0
01
1
1012-
●
●
35
03.415 GASKET; VENTILATOR
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (B)
8-98038-692-0
01
1
1012-
●
●
47
03.278 PIPE ASM; PCV
EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3)
8-98153-108-0
01
1
1012-
●
●
48
03.278 BOLT; PIPE
EURO3 SPECIFICATION(NT3) 09.242 M6X16 FLANGE
0-28050-616-0
02
1
1012-
●
●
48
03.278 BOLT; PIPE
EURO4 SPECIFICATION(NT4) 00.386 M6X20 FLANGE
0-28050-620-0
02
1
1012-
●
●
142
01.745 COVER; PCV
EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3)
8-98153-109-0
01
1
1012-
●
●
188
01.780 BOLT; BRKT
00.206 M8X30 FLANGE
0-28050-830-0
02
1
1012-
●
●
188
01.780 BOLT; BRKT
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 00.206 M8X30 FLANGE
0-28050-830-0
02
1
1012-
●
●
270
01.750 COVER; VENTILATOR
EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) (A)
8-98152-829-0
01
1
1012-
●
●
270
01.750 COVER; VENTILATOR
EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) (B)
8-98152-830-0
01
1
1012-
●
●
304
03.275 BOLT; COVER
EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) 02.343 M8X12 FLANGE
0-28050-812-0
03
1
1012-
●
●
329
01.750 BRACKET; VENTILATOR
8-98171-059-0
01
1
1012-
●
●
44
44
43
43
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
43
03.278 HOSE; PCV
(B)
8-97375-134-0
01
1
1012-
●
43
03.278 HOSE; PCV
(A)
8-97375-924-0
01
1
1012-
●
43
03.278 HOSE; PCV
EURO2 SPECIFICATION(NT2) (C)
8-98075-187-2
01
1
1012-
●
●
43
03.278 HOSE; PCV
EURO2 SPECIFICATION(NT2) (D)
8-98089-567-2
01
1
1012-
●
●
44
03.278 CLIP; HOSE,PCV
01.252 (A) ID=22.7
8-94466-382-0
01
1
1012-
●
44
03.278 CLIP; HOSE,PCV
EURO2 SPECIFICATION(NT2) 06.672 (B) ID=21
8-94242-034-0
01
1
1012-
●
●
44
03.278 CLIP; HOSE,PCV
01.252 (A) ID=22.7
8-94466-382-0
02
1
1012-
●
44
03.278 CLIP; HOSE,PCV
EURO2 SPECIFICATION(NT2) 01.252 (A) ID=22.7
8-94466-382-0
02
1
1012-
●
●
44
03.278 CLIP; HOSE,PCV
EURO4 SPECIFICATION(NT4) 02.483 (C) ID=20 H=23 L=27
1-09700-861-0
01
1
1012-
●
●
31
294
44
192
130
48
329
294
188
35
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
31
03.417 BOLT; HOSE CLIP
EURO4 SPECIFICATION(NT4) 02.343 M8X12 FLANGE
0-28050-812-0
01
1
1012-
●
●
34
03.415 VENTILATOR
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)
8-98036-808-1
01
1
1012-1310
●
●
34
03.415 VENTILATOR
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)
8-98245-392-0
01
1
1311-
●
●
35
03.415 GASKET; VENTILATOR
EURO3 SPECIFICATION(NT3) 01.550 (A) ID=17.8
1-09623-588-0
01
1
1012-
●
●
35
03.415 GASKET; VENTILATOR
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (B)
8-98038-692-0
01
1
1012-
●
●
44
03.278 CLIP; HOSE,PCV
01.252 (A) ID=22.7
8-94466-382-0
01
1
1012-
●
44
03.278 CLIP; HOSE,PCV
EURO2 SPECIFICATION(NT2) 06.672 (B) ID=21
8-94242-034-0
01
1
1012-
●
●
44
03.278 CLIP; HOSE,PCV
01.252 (A) ID=22.7
8-94466-382-0
02
1
1012-
●
44
03.278 CLIP; HOSE,PCV
EURO2 SPECIFICATION(NT2) 01.252 (A) ID=22.7
8-94466-382-0
02
1
1012-
●
●
44
03.278 CLIP; HOSE,PCV
EURO4 SPECIFICATION(NT4) 02.483 (C) ID=20 H=23 L=27
1-09700-861-0
01
1
1012-
●
●
48
03.278 BOLT; PIPE
EURO3 SPECIFICATION(NT3) 09.242 M6X16 FLANGE
0-28050-616-0
02
1
1012-
●
●
48
03.278 BOLT; PIPE
EURO4 SPECIFICATION(NT4) 00.386 M6X20 FLANGE
0-28050-620-0
02
1
1012-
●
●
130
03.278 PIPE; PCV
EURO4 SPECIFICATION(NT4)
8-98036-533-1
01
1
1012-
●
●
188
01.780 BOLT; BRKT
00.206 M8X30 FLANGE
0-28050-830-0
02
1
1012-
●
●
188
01.780 BOLT; BRKT
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 00.206 M8X30 FLANGE
0-28050-830-0
02
1
1012-
●
●
192
03.280 CLIP; BAND
EURO4 SPECIFICATION(NT4) 03.162 L=140
5-09707-031-1
01
1
1012-
●
●
294
03.278 GASKET; PCV
EURO4 SPECIFICATION(NT4) 01.550 (A) ID=17.8
1-09623-588-0
01
1
1012-
●
●
294
03.278 GASKET; PCV
EURO4 SPECIFICATION(NT4) 01.097 (B) ID=43.7
9-09561-344-0
01
1
1012-
●
●
329
01.750 BRACKET; VENTILATOR
8-98171-059-0
01
1
1012-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
