0-27 — EXHAUST MANIFOLD (#39568) — 134 parça

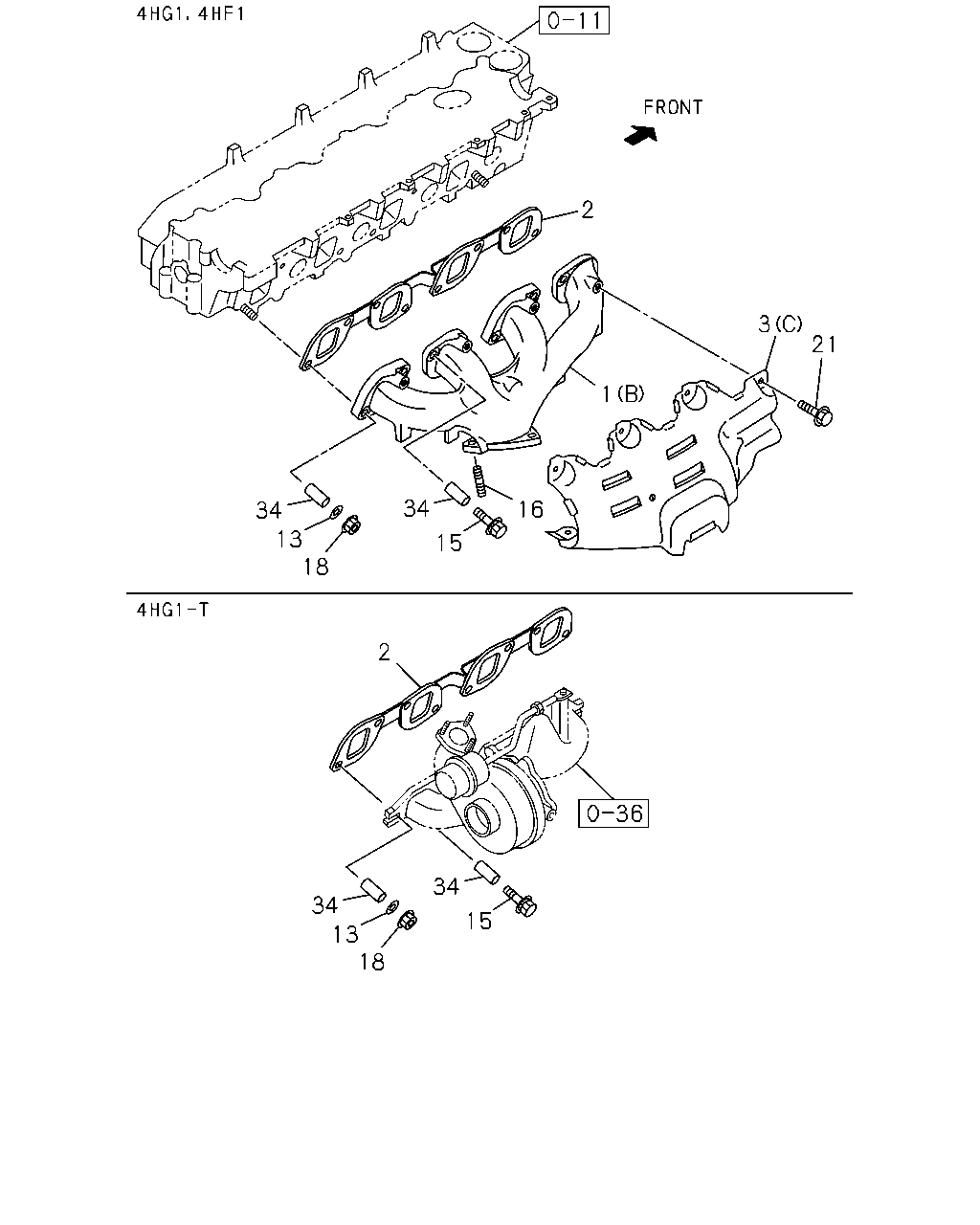

çizim 76232
2 3 21 1 34 16 34 13 18 15 2 34 34 15 13 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.601 MANIFOLD; EXHAUST
(B) 		8-97163-079-1 01 1 1012- ●
1 03.601 MANIFOLD; EXHAUST
(A) 		8-98033-941-1 01 1 1012- ● ●
1 03.601 MANIFOLD; EXHAUST
EURO4 SPECIFICATION(NT4) (D) 		8-97387-873-4 01 1 1012-1405 ● ●
1 03.601 MANIFOLD; EXHAUST
EURO4 SPECIFICATION(NT4) (D) 		8-98271-447-0 01 1 1406- ● ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98027-968-1 01 1 1012- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98215-752-0 01 1 1205-1312 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0> 		8-98215-752-0 01 1 1205-1312 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98229-782-0 01 1 1401-1404 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0> 		8-98229-782-0 01 1 1401-1404 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98229-782-0 01 1 1405- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97356-028-2 01 1 1012-1204 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT<CL0> 		8-97356-028-2 01 1 1205-1404 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97146-499-2 01 1 1012- ● ● ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-97096-424-1 01 1 1012- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-98011-523-0 01 1 1012-1111 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-98011-523-0 01 1 1112- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EURO3 SPECIFICATION(NT3) (B) 		8-98011-523-0 01 1 1112- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97381-503-4 01 1 1012- ● ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 1012- ● ● ● ●
15 03.604 BOLT; EXH MANIF
M10X30 FLANGE 		8-98032-158-0 04 1 1304- ●
15 03.604 BOLT; EXH MANIF
EXC. VIETNAM EQUIPMENT<CL0> M10X30 FLANGE 		8-98032-158-0 04 1 1304- ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 1012- ● ● ● ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 1012- ●
16 03.604 STUD; EXH PIPE TO MANIF
EURO4 SPECIFICATION(NT4) 03.342 M10X30 L=45 		1-09302-106-0 02 1 1012- ● ●
16 03.604 STUD; EXH PIPE TO MANIF
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.981 M10X25 L=40 		9-04731-025-0 02 1 1012- ● ●
18 03.604 NUT; EXH MANIF
VIETNAM EQUIPMENT<CL0> M10 FLANGE 		8-97381-617-0 08 1 1304- ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 1012-1303 ● ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 04 1 1304- ●
18 03.604 NUT; EXH MANIF
EXC. VIETNAM EQUIPMENT<CL0> M10 FLANGE 		8-97381-617-0 04 1 1304- ●
18 03.604 NUT; EXH MANIF
00.833 M10 		0-91110-510-0 02 1 1012- ● ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 1012- ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 07 1 1012-1111 ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 07 1 1112- ●
21 03.604 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION(NT3) 02.343 M8X12 FLANGE 		0-28050-812-0 07 1 1112- ●
21 03.604 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION(NT2) 02.343 M8X12 FLANGE 		0-28050-812-0 04 1 1012- ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 1012- ● ● ● ●

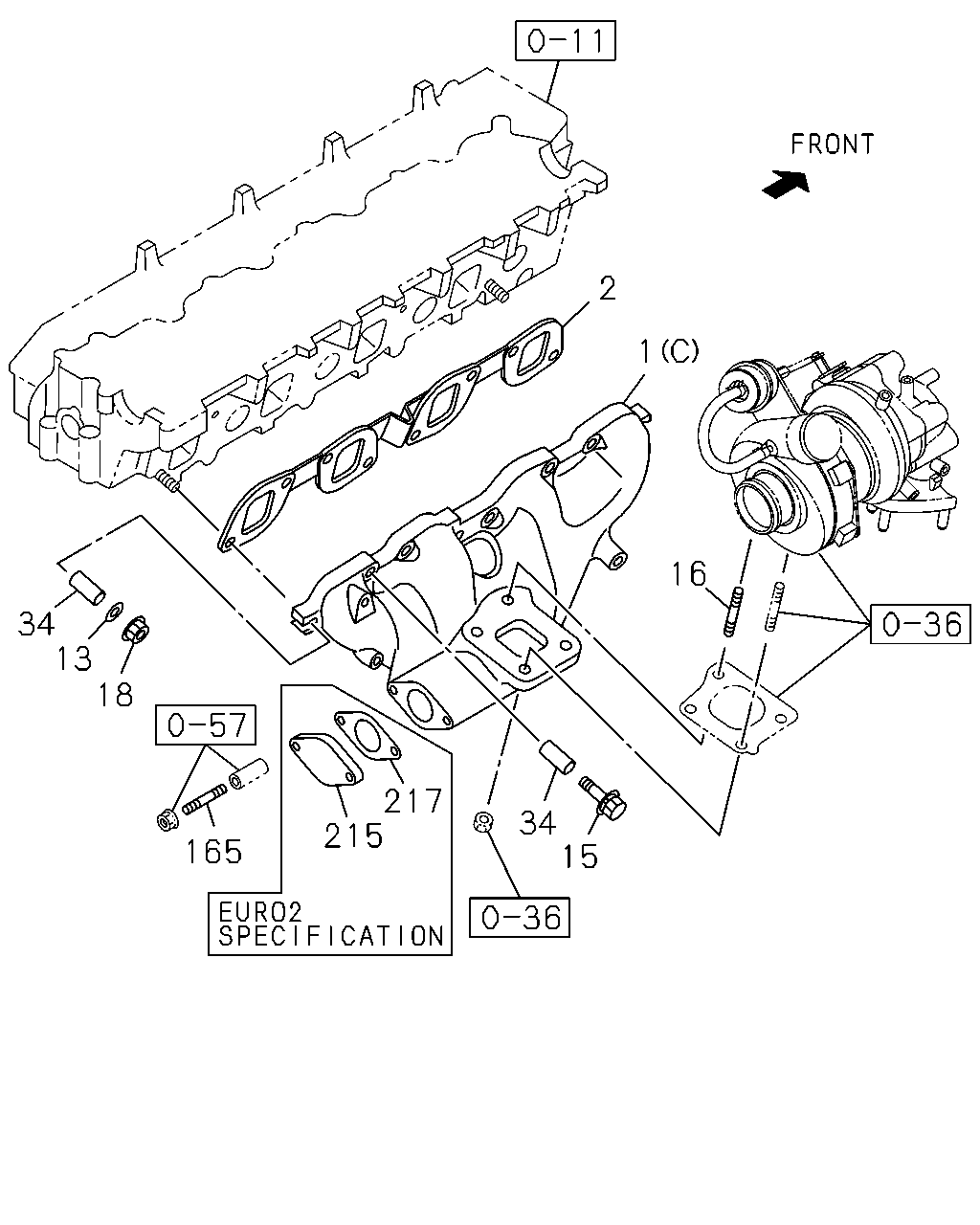

çizim 76728
2 1 16 34 15 217 215 165 18 13 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.601 MANIFOLD; EXHAUST
(B) 		8-97163-079-1 01 1 1012- ●
1 03.601 MANIFOLD; EXHAUST
(A) 		8-98033-941-1 01 1 1012- ● ●
1 03.601 MANIFOLD; EXHAUST
EURO4 SPECIFICATION(NT4) (D) 		8-97387-873-4 01 1 1012-1405 ● ●
1 03.601 MANIFOLD; EXHAUST
EURO4 SPECIFICATION(NT4) (D) 		8-98271-447-0 01 1 1406- ● ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98027-968-1 01 1 1012- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98215-752-0 01 1 1205-1312 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0> 		8-98215-752-0 01 1 1205-1312 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98229-782-0 01 1 1401-1404 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0> 		8-98229-782-0 01 1 1401-1404 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98229-782-0 01 1 1405- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97356-028-2 01 1 1012-1204 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT<CL0> 		8-97356-028-2 01 1 1205-1404 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97146-499-2 01 1 1012- ● ● ● ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 1012- ● ● ● ●
15 03.604 BOLT; EXH MANIF
M10X30 FLANGE 		8-98032-158-0 04 1 1304- ●
15 03.604 BOLT; EXH MANIF
EXC. VIETNAM EQUIPMENT<CL0> M10X30 FLANGE 		8-98032-158-0 04 1 1304- ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 1012- ● ● ● ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 1012- ●
16 03.604 STUD; EXH PIPE TO MANIF
EURO4 SPECIFICATION(NT4) 03.342 M10X30 L=45 		1-09302-106-0 02 1 1012- ● ●
16 03.604 STUD; EXH PIPE TO MANIF
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.981 M10X25 L=40 		9-04731-025-0 02 1 1012- ● ●
18 03.604 NUT; EXH MANIF
VIETNAM EQUIPMENT<CL0> M10 FLANGE 		8-97381-617-0 08 1 1304- ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 1012-1303 ● ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 04 1 1304- ●
18 03.604 NUT; EXH MANIF
EXC. VIETNAM EQUIPMENT<CL0> M10 FLANGE 		8-97381-617-0 04 1 1304- ●
18 03.604 NUT; EXH MANIF
00.833 M10 		0-91110-510-0 02 1 1012- ● ● ● ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 1012- ● ● ● ●
165 03.417 STUD; EGR PIPE
EURO4 SPECIFICATION(NT4) 03.342 M8X25 L=36 		8-94476-282-0 03 1 1012- ● ●
165 03.417 STUD; EGR PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.613 M8X45 L=57 		8-94105-162-1 02 1 1012- ● ●
215 03.601 PLATE; BOSS,EXH MANIF
EURO2 SPECIFICATION(NT2) 		8-98170-965-0 01 1 1012- ● ●
217 03.601 GASKET; EXH MANIF TO PLATE
EURO2 SPECIFICATION(NT2) 03.665 		8-94340-670-0 01 1 1012- ● ●

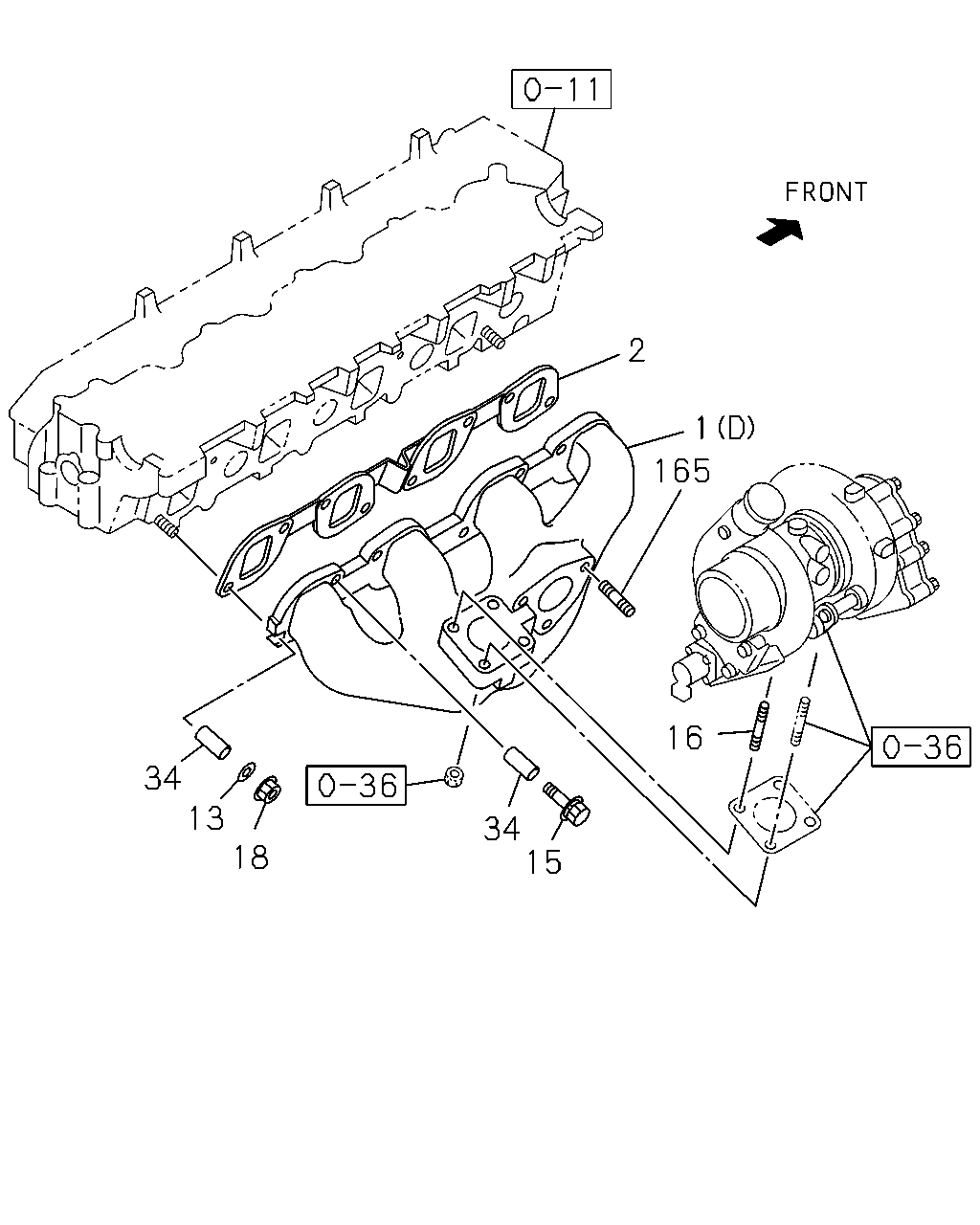

çizim 76729
2 1 165 16 15 34 18 13 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.601 MANIFOLD; EXHAUST
(B) 		8-97163-079-1 01 1 1012- ●
1 03.601 MANIFOLD; EXHAUST
(A) 		8-98033-941-1 01 1 1012- ● ●
1 03.601 MANIFOLD; EXHAUST
EURO4 SPECIFICATION(NT4) (D) 		8-97387-873-4 01 1 1012-1405 ● ●
1 03.601 MANIFOLD; EXHAUST
EURO4 SPECIFICATION(NT4) (D) 		8-98271-447-0 01 1 1406- ● ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98027-968-1 01 1 1012- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98215-752-0 01 1 1205-1312 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0> 		8-98215-752-0 01 1 1205-1312 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98229-782-0 01 1 1401-1404 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0> 		8-98229-782-0 01 1 1401-1404 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98229-782-0 01 1 1405- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97356-028-2 01 1 1012-1204 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT<CL0> 		8-97356-028-2 01 1 1205-1404 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97146-499-2 01 1 1012- ● ● ● ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 1012- ● ● ● ●
15 03.604 BOLT; EXH MANIF
M10X30 FLANGE 		8-98032-158-0 04 1 1304- ●
15 03.604 BOLT; EXH MANIF
EXC. VIETNAM EQUIPMENT<CL0> M10X30 FLANGE 		8-98032-158-0 04 1 1304- ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 1012- ● ● ● ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 1012- ●
16 03.604 STUD; EXH PIPE TO MANIF
EURO4 SPECIFICATION(NT4) 03.342 M10X30 L=45 		1-09302-106-0 02 1 1012- ● ●
16 03.604 STUD; EXH PIPE TO MANIF
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.981 M10X25 L=40 		9-04731-025-0 02 1 1012- ● ●
18 03.604 NUT; EXH MANIF
VIETNAM EQUIPMENT<CL0> M10 FLANGE 		8-97381-617-0 08 1 1304- ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 1012-1303 ● ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 04 1 1304- ●
18 03.604 NUT; EXH MANIF
EXC. VIETNAM EQUIPMENT<CL0> M10 FLANGE 		8-97381-617-0 04 1 1304- ●
18 03.604 NUT; EXH MANIF
00.833 M10 		0-91110-510-0 02 1 1012- ● ● ● ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 1012- ● ● ● ●
165 03.417 STUD; EGR PIPE
EURO4 SPECIFICATION(NT4) 03.342 M8X25 L=36 		8-94476-282-0 03 1 1012- ● ●
165 03.417 STUD; EGR PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.613 M8X45 L=57 		8-94105-162-1 02 1 1012- ● ●

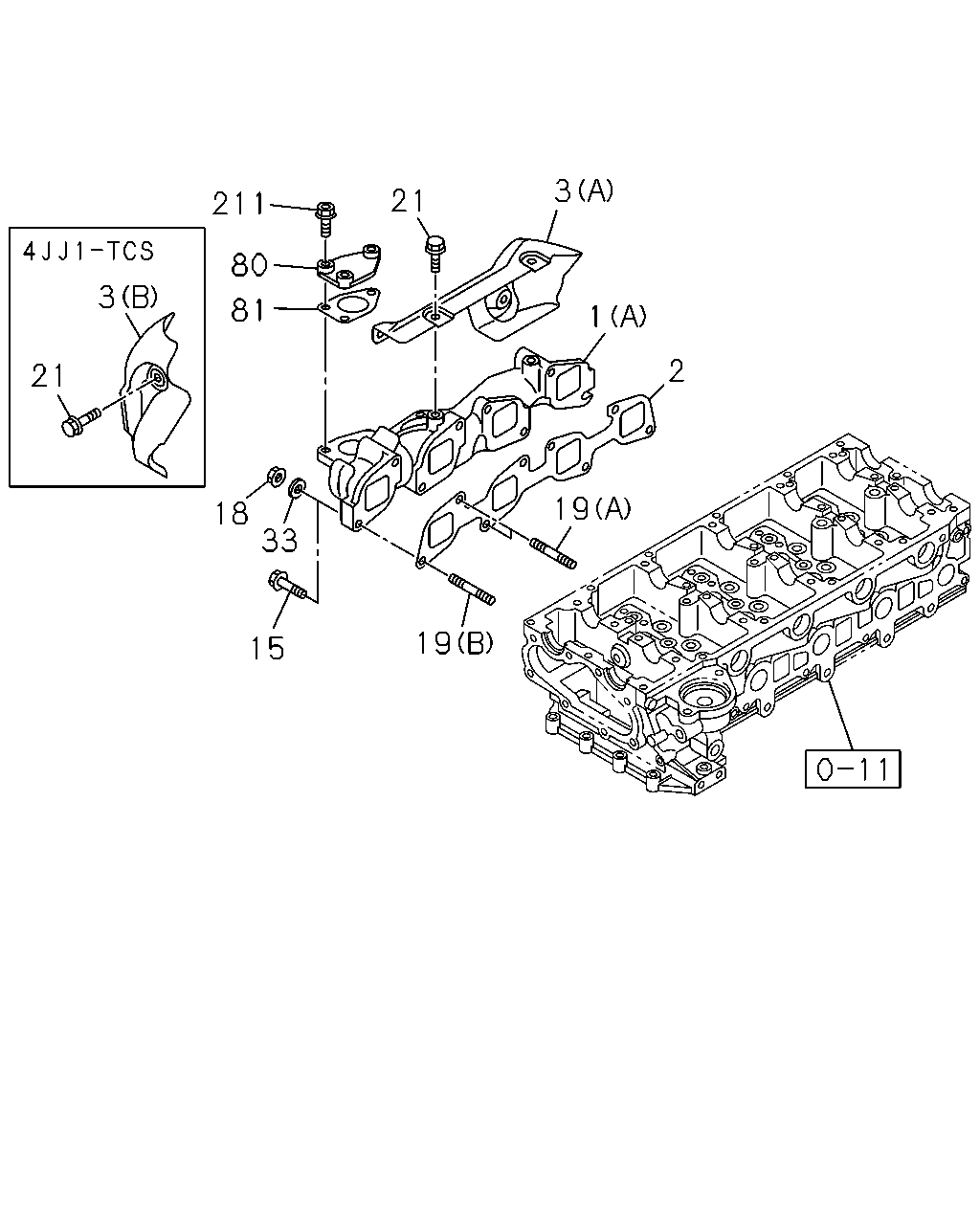

çizim 103386
15 19 19 33 18 2 1 81 3 80 21 211 21 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.601 MANIFOLD; EXHAUST
(B) 		8-97163-079-1 01 1 1012- ●
1 03.601 MANIFOLD; EXHAUST
(A) 		8-98033-941-1 01 1 1012- ● ●
1 03.601 MANIFOLD; EXHAUST
EURO4 SPECIFICATION(NT4) (D) 		8-97387-873-4 01 1 1012-1405 ● ●
1 03.601 MANIFOLD; EXHAUST
EURO4 SPECIFICATION(NT4) (D) 		8-98271-447-0 01 1 1406- ● ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98027-968-1 01 1 1012- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98215-752-0 01 1 1205-1312 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0> 		8-98215-752-0 01 1 1205-1312 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98229-782-0 01 1 1401-1404 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0> 		8-98229-782-0 01 1 1401-1404 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-98229-782-0 01 1 1405- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97356-028-2 01 1 1012-1204 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT<CL0> 		8-97356-028-2 01 1 1205-1404 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97146-499-2 01 1 1012- ● ● ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-97096-424-1 01 1 1012- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-98011-523-0 01 1 1012-1111 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-98011-523-0 01 1 1112- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EURO3 SPECIFICATION(NT3) (B) 		8-98011-523-0 01 1 1112- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97381-503-4 01 1 1012- ● ●
15 03.604 BOLT; EXH MANIF
M10X30 FLANGE 		8-98032-158-0 04 1 1304- ●
15 03.604 BOLT; EXH MANIF
EXC. VIETNAM EQUIPMENT<CL0> M10X30 FLANGE 		8-98032-158-0 04 1 1304- ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 1012- ● ● ● ●
18 03.604 NUT; EXH MANIF
VIETNAM EQUIPMENT<CL0> M10 FLANGE 		8-97381-617-0 08 1 1304- ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 08 1 1012-1303 ● ●
18 03.604 NUT; EXH MANIF
M10 FLANGE 		8-97381-617-0 04 1 1304- ●
18 03.604 NUT; EXH MANIF
EXC. VIETNAM EQUIPMENT<CL0> M10 FLANGE 		8-97381-617-0 04 1 1304- ●
18 03.604 NUT; EXH MANIF
00.833 M10 		0-91110-510-0 02 1 1012- ● ● ● ●
19 03.604 STUD; MANIF TO CYL HD
VIETNAM EQUIPMENT<CL0> (B) M10X33 L=48 		8-97379-383-0 04 1 1105- ●
19 03.604 STUD; MANIF TO CYL HD
03.275 (B) M10X33 L=48 		8-97307-075-2 04 1 1012-1104 ● ●
19 03.604 STUD; MANIF TO CYL HD
03.275 (B) M10X33 L=48 		8-97307-075-2 04 1 1105-1303 ●
19 03.604 STUD; MANIF TO CYL HD
EXC. VIETNAM EQUIPMENT<CL0> 03.275 (B) M10X33 L=48 		8-97307-075-2 04 1 1105-1303 ●
19 03.604 STUD; MANIF TO CYL HD
(A) M10X70 L=83 		8-98048-446-0 04 1 1012- ● ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 1012- ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 07 1 1012-1111 ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 07 1 1112- ●
21 03.604 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION(NT3) 02.343 M8X12 FLANGE 		0-28050-812-0 07 1 1112- ●
21 03.604 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION(NT2) 02.343 M8X12 FLANGE 		0-28050-812-0 04 1 1012- ●
33 03.604 WASHER; EXH MANIF
03.613 ID=10.5 		5-09500-013-0 08 1 1012- ● ●
80 03.417 COVER; EXH MANIF
EURO2 SPECIFICATION(NT2) 		8-98056-984-0 01 1 1012- ●
81 03.270 GASKET; COVER
EURO2 SPECIFICATION(NT2) 03.665 		8-98017-551-0 01 1 1012- ●
211 03.604 BOLT; COVER
EURO2 SPECIFICATION(NT2) 03.417 M8X23 FLANGE 		8-97378-077-0 03 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
