Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#39567) — 408 parça

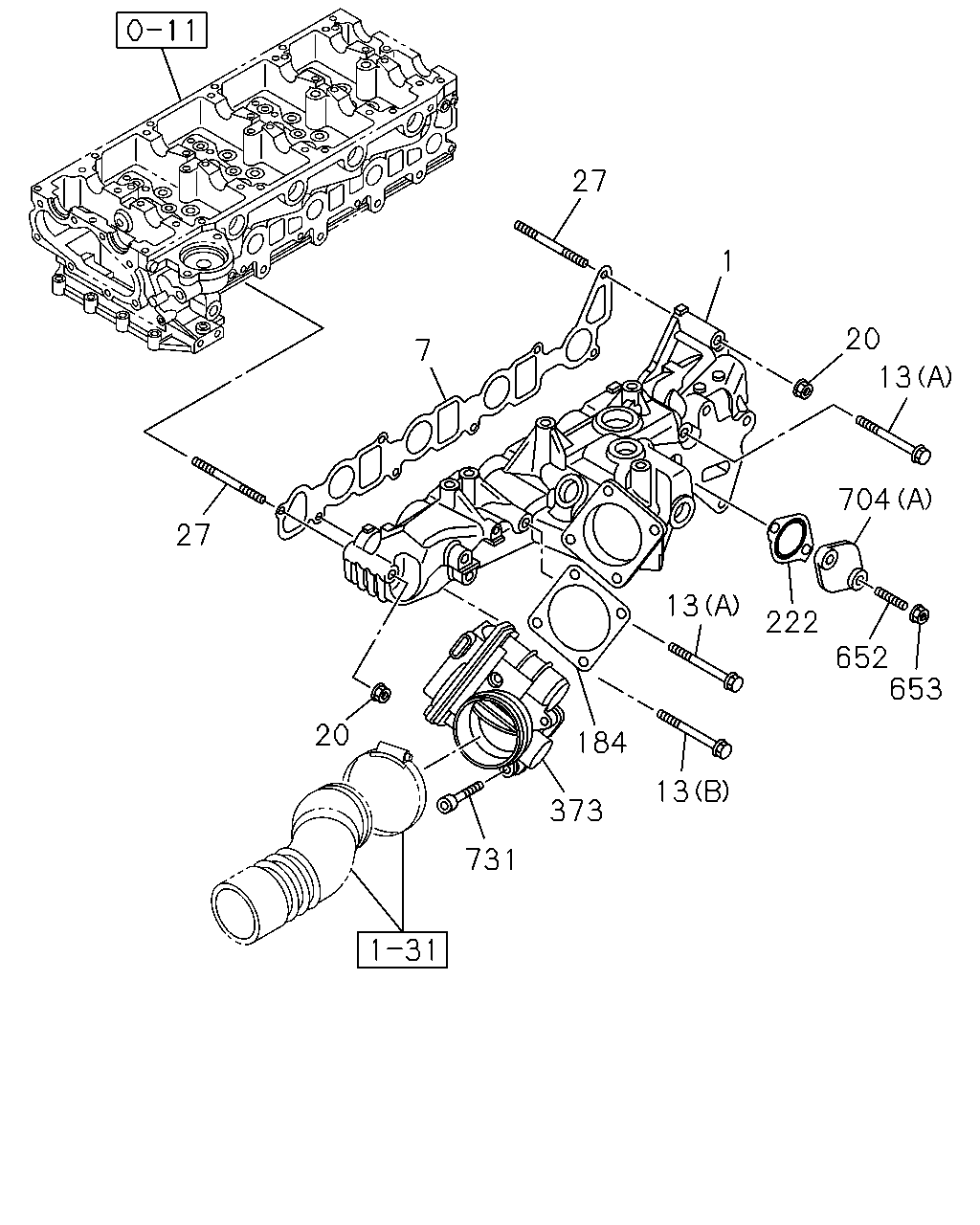

27 1 20 7 13 704 27 13 222 652 653 20 184 13 373 731

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.265 MANIFOLD; INL	8-98024-411-1	01	1	1012-	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT<CL0>	8-97312-067-1	01	1	1105-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98063-396-0	01	1	1012-1104	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98063-396-0	01	1	1105-1211	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0>	8-98063-396-0	01	1	1105-1211		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98212-999-0	01	1	1212-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0>	8-98212-999-0	01	1	1212-		●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	07	1	1012-			●
13	03.275 BOLT; INL MANIF (D) M8X52 L=68	8-98048-395-0	01	1	1012-			●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	08	1	1012-				●
13	03.275 BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	1012-	●	●
13	03.275 BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1012-	●	●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	09	1	1012-					●	●
13	03.275 BOLT; INL MANIF 01.252 (E) M8X80 FLANGE	0-28050-880-0	01	1	1012-					●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-	●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-			●	●	●	●
27	03.275 STUD; INL MANIF VIETNAM EQUIPMENT<CL0> M8X71 L=83	8-97367-083-0	02	1	1105-		●
27	03.275 STUD; INL MANIF M8X71 L=83	8-98017-063-0	02	1	1012-1104	●	●
27	03.275 STUD; INL MANIF M8X71 L=83	8-98017-063-0	02	1	1105-	●
27	03.275 STUD; INL MANIF EXC. VIETNAM EQUIPMENT<CL0> M8X71 L=83	8-98017-063-0	02	1	1105-		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT<CL0>	8-97366-784-1	01	1	1105-		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98096-968-0	01	1	1012-1104	●	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98096-968-0	01	1	1105-	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0>	8-98096-968-0	01	1	1105-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97084-938-2	01	1	1012-			●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2) 03.665	8-97357-684-3	01	1	1012-		●
373	03.265 THROTTLE ASM; INT	8-98040-003-4	01	1	1012-	●	●
652	03.275 STUD; DUCT,AIR INLET EURO2 SPECIFICATION(NT2) M8X25 L=41	0-40210-825-0	02	1	1012-		●
653	03.265 NUT; DUCT,AIR INLET EURO2 SPECIFICATION(NT2) 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-		●
704	03.270 COVER EURO2 SPECIFICATION(NT2) 03.407 (B)	8-98062-651-1	01	1	1012-1408					●	●
704	03.270 COVER EURO2 SPECIFICATION(NT2) (C)	8-98260-138-0	01	1	1409-					●	●
704	03.270 COVER EURO2 SPECIFICATION(NT2) (A)	8-98056-986-0	01	1	1012-		●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	1012-	●	●

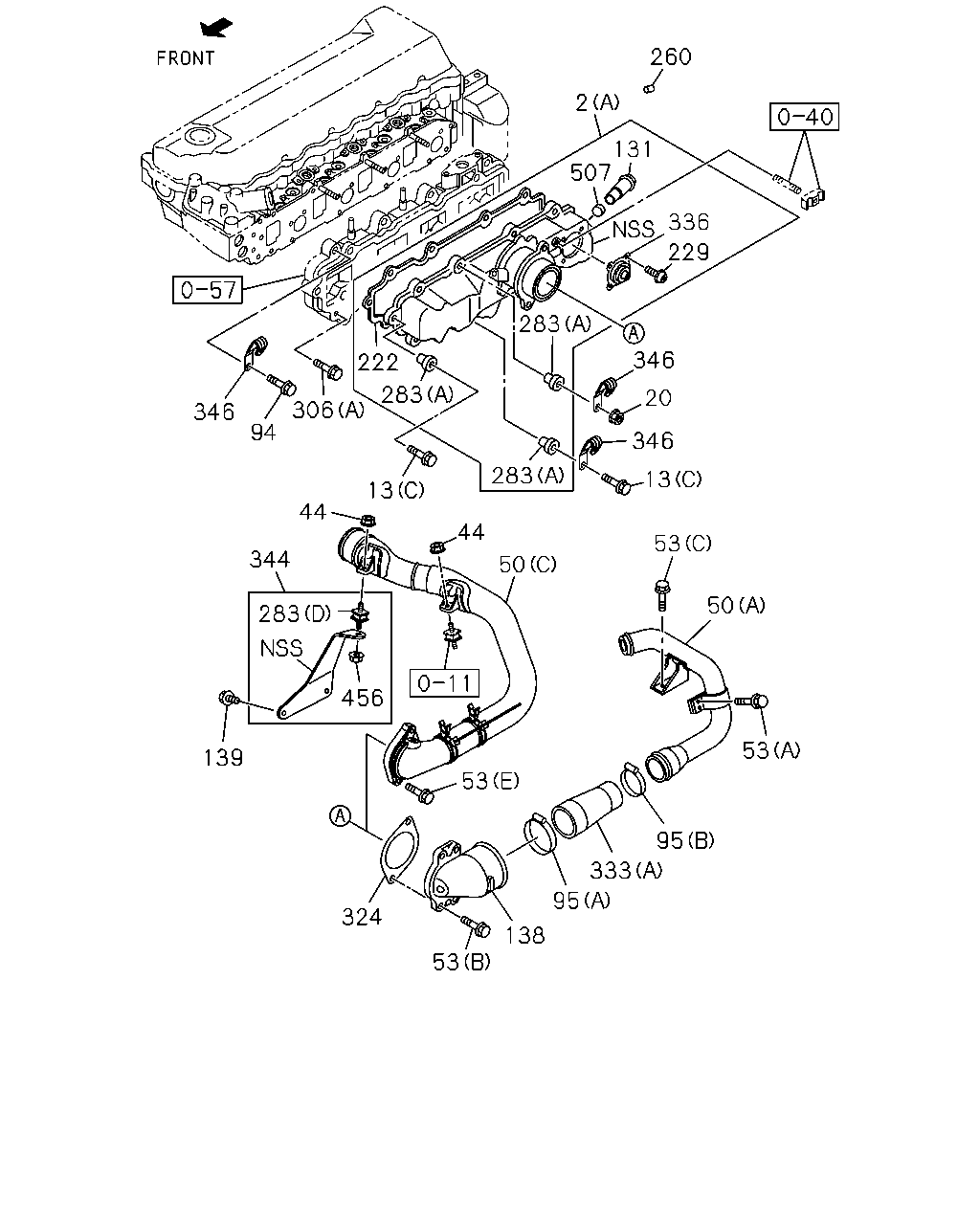

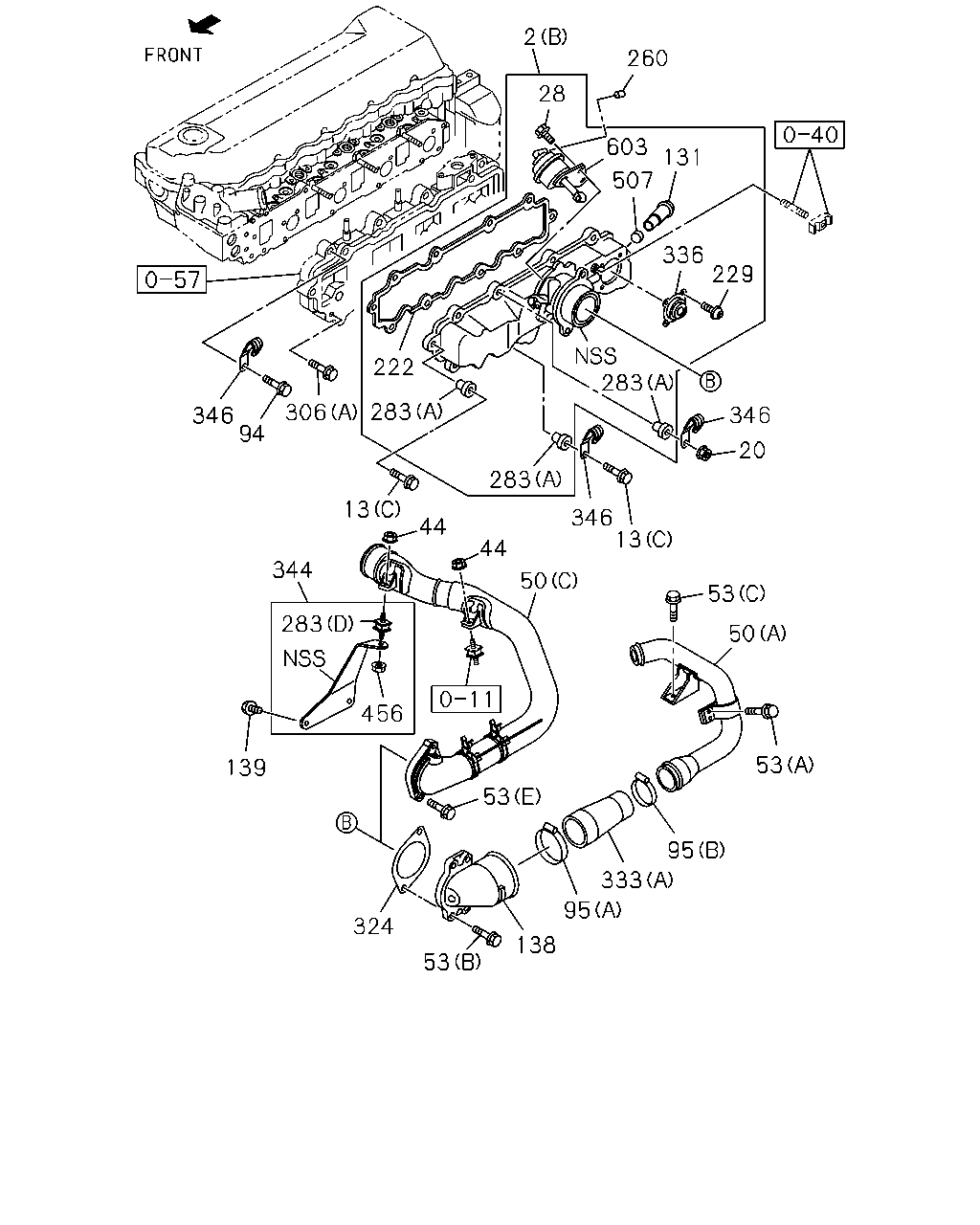

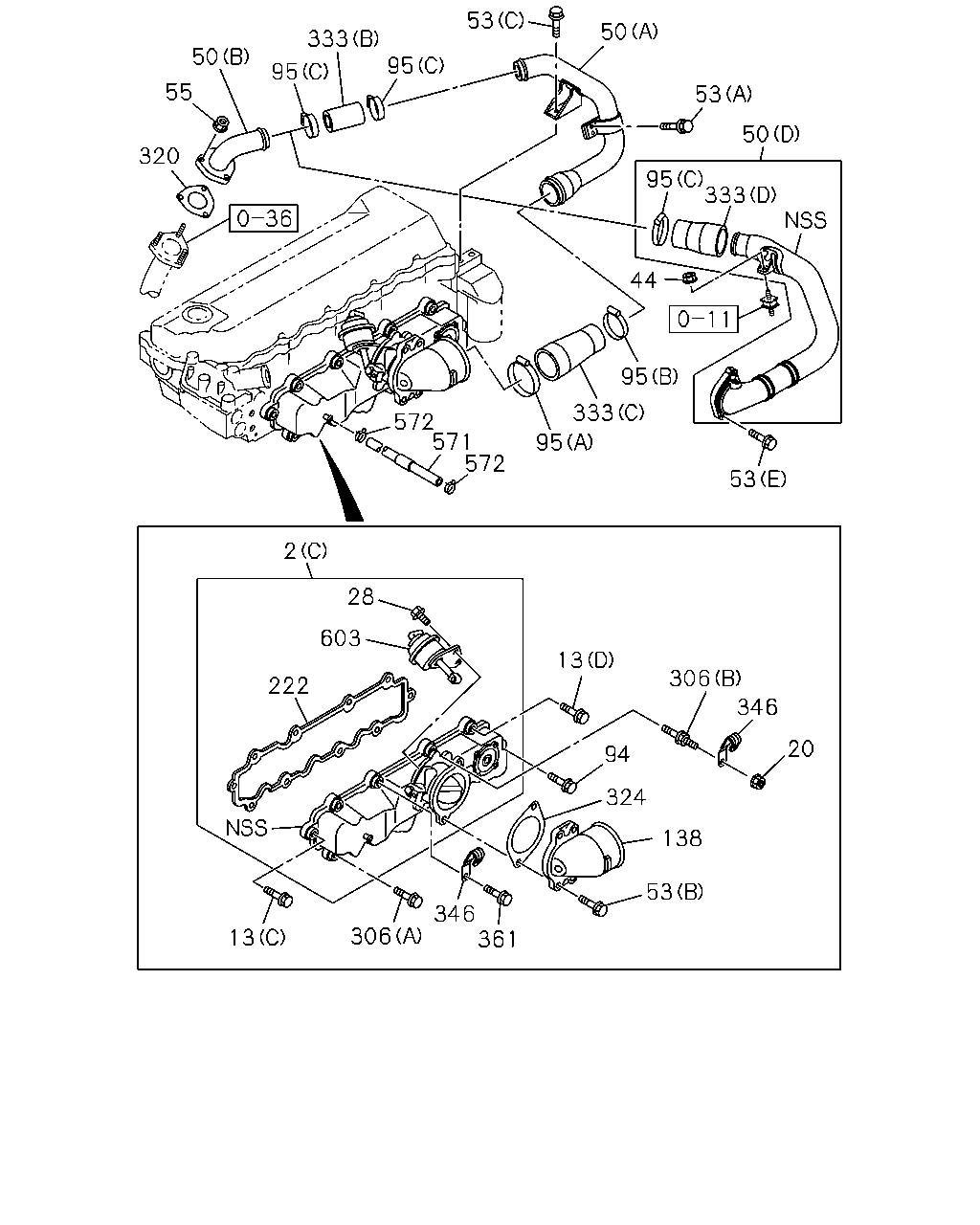

50 55 320 333 95 95 53 50 95 53 333 44 95 333 95 53 2 572 572 571 28 603 222 13 306 361 346 138 53 94 324 306 346 20 13 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	03.407 COVER; INL (C)	8-97212-454-3	01	1	1012-			●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (A)	8-97222-239-0	01	1	1012-1106				●
2	03.407 COVER; INL FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97222-239-0	01	1	1012-1106				●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (A)	8-97222-239-0	01	1	1107-1310				●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (A)	8-98245-386-0	01	1	1311-				●
2	03.407 COVER; INL GLOW SYSTEM DELETE<7RK> (B)	8-97146-866-2	01	1	1012-1106				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106				●
2	03.407 COVER; INL HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> (B)	8-97146-866-2	01	1	1012-1106				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> (B)	8-97146-866-2	01	1	1107-1310				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> (B)	8-98245-383-0	01	1	1311-				●
2	03.407 COVER; INL (D)	8-97387-038-0	01	1	1012-1409					●	●
2	03.407 COVER; INL EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (D)	8-97387-038-0	01	1	1410-					●	●
2	03.407 COVER; INL EURO2 SPECIFICATION(NT2) (E)	8-97387-039-0	01	1	1410-					●	●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	07	1	1012-			●
13	03.275 BOLT; INL MANIF (D) M8X52 L=68	8-98048-395-0	01	1	1012-			●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	08	1	1012-				●
13	03.275 BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	1012-	●	●
13	03.275 BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1012-	●	●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	09	1	1012-					●	●
13	03.275 BOLT; INL MANIF 01.252 (E) M8X80 FLANGE	0-28050-880-0	01	1	1012-					●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-	●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-			●	●	●	●
28	03.278 BOLT; CHAMBER EXHAUST BRAKE<NF8> 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1012-				●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1012-			●
44	03.407 NUT; PIPE BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1406-			●
44	03.407 NUT; PIPE BRKT EXC. SAUDI ARABIA EQUIPMENT(GH3) 01.062 M8 FLANGE	0-91180-108-0	02	1	1406-				●
50	03.265 PIPE; INL (D)	8-98254-369-0	01	1	1406-			●
50	03.265 PIPE; INL EXC. SAUDI ARABIA EQUIPMENT(GH3) (C)	8-98219-782-0	01	1	1406-				●
50	03.265 PIPE; INL (B)	8-97202-327-2	01	1	1012-			●
50	03.265 PIPE; INL (A)	8-97178-735-5	01	1	1012-1405			●	●
50	03.265 PIPE; INL SAUDI ARABIA EQUIPMENT(GH3) (A)	8-97178-735-5	01	1	1406-			●	●
53	03.602 BOLT; INL PIPE EXC. SAUDI ARABIA EQUIPMENT(GH3) 00.206 (E) M8X30 FLANGE	0-28050-830-0	02	1	1406-			●	●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-1405			●	●
53	03.602 BOLT; INL PIPE SAUDI ARABIA EQUIPMENT(GH3) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1406-			●	●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1012-1405			●	●
53	03.602 BOLT; INL PIPE SAUDI ARABIA EQUIPMENT(GH3) 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1406-			●	●
53	03.602 BOLT; INL PIPE EURO4 SPECIFICATION(NT4) 00.206 (D) M8X70 FLANGE	0-28050-870-0	01	1	1012-					●	●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1012-1405			●	●	●	●
53	03.602 BOLT; INL PIPE SAUDI ARABIA EQUIPMENT(GH3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-				●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-					●	●
53	03.602 BOLT; INL PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	1012-					●	●
55	03.407 NUT; INL PIPE 01.540 M6 FLANGE	0-91180-206-0	03	1	1012-			●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	01	1	1012-			●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1012-				●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=50-69	8-94316-991-0	01	1	1012-1209			●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=50-69	8-94316-991-0	02	1	1210-			●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	1012-1405			●	●
95	03.278 CLIP; RUBBER HOSE SAUDI ARABIA EQUIPMENT(GH3) 03.407 (A) ID=77-95	1-09707-114-0	01	1	1406-			●	●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=68-85	8-94320-428-0	01	1	1012-1405			●	●
95	03.278 CLIP; RUBBER HOSE SAUDI ARABIA EQUIPMENT(GH3) 03.407 (B) ID=68-85	8-94320-428-0	01	1	1406-			●	●
138	03.265 PIPE; INL	8-97180-566-2	01	1	1012-1405			●	●
138	03.265 PIPE; INL SAUDI ARABIA EQUIPMENT(GH3)	8-97180-566-2	01	1	1406-			●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97084-938-2	01	1	1012-			●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2) 03.665	8-97357-684-3	01	1	1012-		●
306	03.265 BOLT; VLV (B) M8X85 L=101	8-98048-394-0	01	1	1012-			●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	1012-			●	●
320	03.270 GASKET; PIPE ID=47	8-97202-328-1	01	1	1012-			●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97180-546-1	01	1	1012-1405			●	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HE AD) SAUDI ARABIA EQUIPMENT(GH3)	8-97180-546-1	01	1	1406-			●	●
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-97201-103-2	01	1	1012-1405			●
333	03.278 HOSE; RUBBER,INL PIPE (D)	8-98219-796-0	01	1	1406-			●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-3	01	1	1012-1405			●
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-98157-877-0	01	1	1012-1405				●
333	03.278 HOSE; RUBBER,INL PIPE SAUDI ARABIA EQUIPMENT(GH3) (A)	8-98157-877-0	01	1	1406-			●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1012-			●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-					●	●
361	03.278 BOLT; CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1012-			●
571	03.265 HOSE; AIR BOOST 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	1012-			●
572	03.407 CLIP; BOOST HOSE 03.145 ID=8	8-94107-762-0	02	1	1012-			●
603	03.278 CHAMBER; THROTTLE EXHAUST BRAKE<NF8>	8-97204-780-0	01	1	1012-				●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	1012-			●

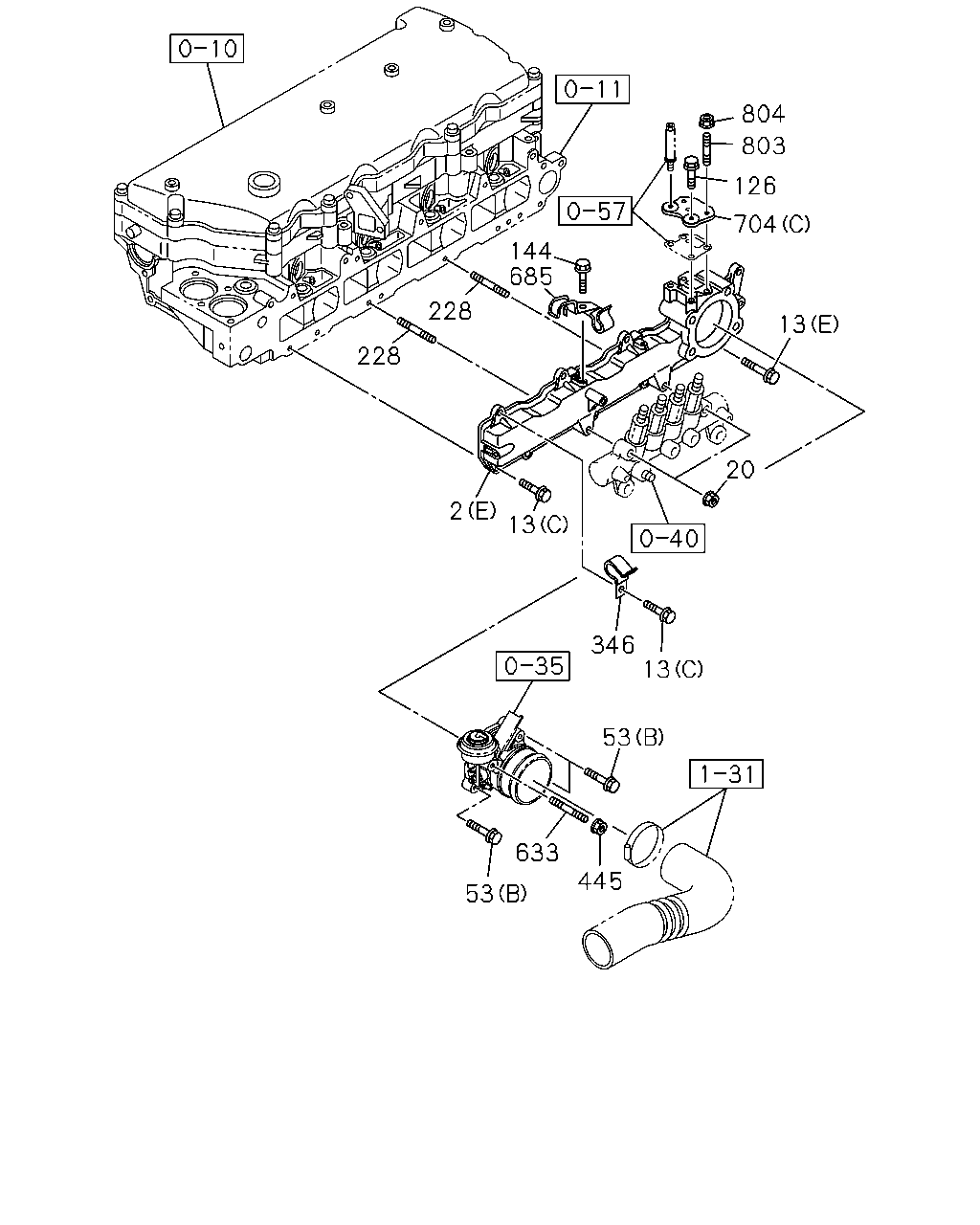

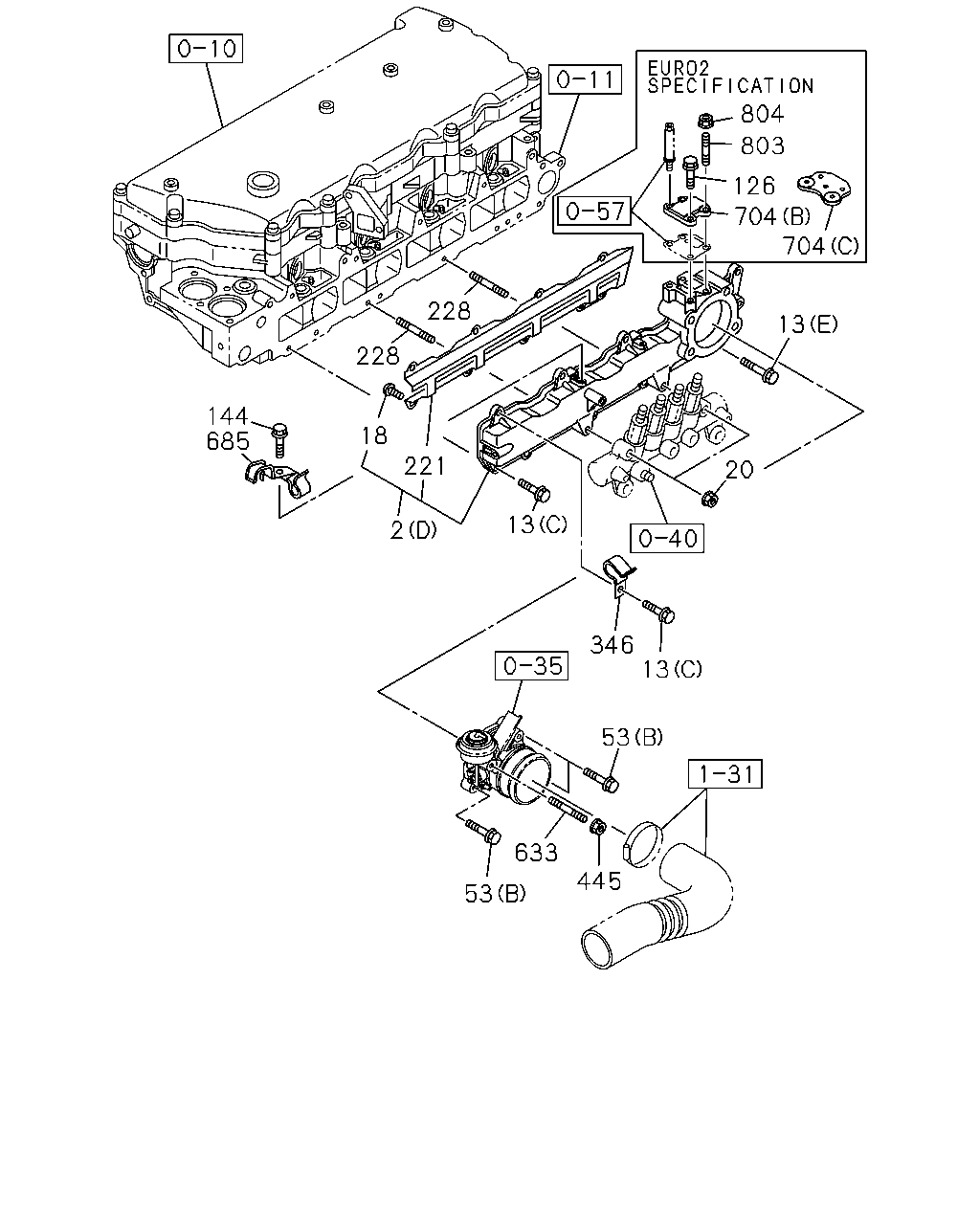

804 126 803 704 13 228 228 144 685 2 221 18 13 346 53 13 633 53 445 20 704

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	03.407 COVER; INL (C)	8-97212-454-3	01	1	1012-			●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (A)	8-97222-239-0	01	1	1012-1106				●
2	03.407 COVER; INL FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97222-239-0	01	1	1012-1106				●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (A)	8-97222-239-0	01	1	1107-1310				●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (A)	8-98245-386-0	01	1	1311-				●
2	03.407 COVER; INL GLOW SYSTEM DELETE<7RK> (B)	8-97146-866-2	01	1	1012-1106				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106				●
2	03.407 COVER; INL HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> (B)	8-97146-866-2	01	1	1012-1106				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> (B)	8-97146-866-2	01	1	1107-1310				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> (B)	8-98245-383-0	01	1	1311-				●
2	03.407 COVER; INL (D)	8-97387-038-0	01	1	1012-1409					●	●
2	03.407 COVER; INL EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (D)	8-97387-038-0	01	1	1410-					●	●
2	03.407 COVER; INL EURO2 SPECIFICATION(NT2) (E)	8-97387-039-0	01	1	1410-					●	●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	07	1	1012-			●
13	03.275 BOLT; INL MANIF (D) M8X52 L=68	8-98048-395-0	01	1	1012-			●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	08	1	1012-				●
13	03.275 BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	1012-	●	●
13	03.275 BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1012-	●	●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	09	1	1012-					●	●
13	03.275 BOLT; INL MANIF 01.252 (E) M8X80 FLANGE	0-28050-880-0	01	1	1012-					●	●
18	03.403 SCREW; PLATE,INL CVR 02.525 M6X10	9-03490-610-0	09	1	1012-1409					●	●
18	03.403 SCREW; PLATE,INL CVR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.525 M6X10	9-03490-610-0	09	1	1410-					●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-	●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-			●	●	●	●
53	03.602 BOLT; INL PIPE EXC. SAUDI ARABIA EQUIPMENT(GH3) 00.206 (E) M8X30 FLANGE	0-28050-830-0	02	1	1406-			●	●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-1405			●	●
53	03.602 BOLT; INL PIPE SAUDI ARABIA EQUIPMENT(GH3) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1406-			●	●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1012-1405			●	●
53	03.602 BOLT; INL PIPE SAUDI ARABIA EQUIPMENT(GH3) 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1406-			●	●
53	03.602 BOLT; INL PIPE EURO4 SPECIFICATION(NT4) 00.206 (D) M8X70 FLANGE	0-28050-870-0	01	1	1012-					●	●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1012-1405			●	●	●	●
53	03.602 BOLT; INL PIPE SAUDI ARABIA EQUIPMENT(GH3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-				●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-					●	●
53	03.602 BOLT; INL PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	1012-					●	●
126	03.275 BOLT; COVER EURO2 SPECIFICATION(NT2) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-					●	●
144	03.275 BOLT; BRKT FIX 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-					●	●
221	03.403 PLATE; INL COVER	8-97379-202-0	01	1	1012-1409					●	●
221	03.403 PLATE; INL COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97379-202-0	01	1	1410-					●	●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	1012-					●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1012-			●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-					●	●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-					●	●
633	03.275 STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	1012-					●	●
685	03.265 BRACKET; HARNESS	8-97331-921-1	01	1	1012-					●	●
704	03.270 COVER EURO2 SPECIFICATION(NT2) 03.407 (B)	8-98062-651-1	01	1	1012-1408					●	●
704	03.270 COVER EURO2 SPECIFICATION(NT2) (C)	8-98260-138-0	01	1	1409-					●	●
704	03.270 COVER EURO2 SPECIFICATION(NT2) (A)	8-98056-986-0	01	1	1012-		●
803	03.275 STUD; COVER EURO2 SPECIFICATION(NT2) 02.510 M8X20 L=32	0-41010-820-0	02	1	1012-					●	●
804	03.275 NUT; COVER EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-					●	●

260 2 507 131 336 229 346 346 20 283 13 53 50 53 95 333 95 138 53 324 53 139 456 283 344 44 13 50 44 283 283 222 306 94 346

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	03.407 COVER; INL (C)	8-97212-454-3	01	1	1012-			●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (A)	8-97222-239-0	01	1	1012-1106				●
2	03.407 COVER; INL FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97222-239-0	01	1	1012-1106				●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (A)	8-97222-239-0	01	1	1107-1310				●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (A)	8-98245-386-0	01	1	1311-				●
2	03.407 COVER; INL GLOW SYSTEM DELETE<7RK> (B)	8-97146-866-2	01	1	1012-1106				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106				●
2	03.407 COVER; INL HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> (B)	8-97146-866-2	01	1	1012-1106				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> (B)	8-97146-866-2	01	1	1107-1310				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> (B)	8-98245-383-0	01	1	1311-				●
2	03.407 COVER; INL (D)	8-97387-038-0	01	1	1012-1409					●	●
2	03.407 COVER; INL EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (D)	8-97387-038-0	01	1	1410-					●	●
2	03.407 COVER; INL EURO2 SPECIFICATION(NT2) (E)	8-97387-039-0	01	1	1410-					●	●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	07	1	1012-			●
13	03.275 BOLT; INL MANIF (D) M8X52 L=68	8-98048-395-0	01	1	1012-			●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	08	1	1012-				●
13	03.275 BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	1012-	●	●
13	03.275 BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1012-	●	●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	09	1	1012-					●	●
13	03.275 BOLT; INL MANIF 01.252 (E) M8X80 FLANGE	0-28050-880-0	01	1	1012-					●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-	●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-			●	●	●	●
44	03.407 NUT; PIPE BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1406-			●
44	03.407 NUT; PIPE BRKT EXC. SAUDI ARABIA EQUIPMENT(GH3) 01.062 M8 FLANGE	0-91180-108-0	02	1	1406-				●
50	03.265 PIPE; INL (D)	8-98254-369-0	01	1	1406-			●
50	03.265 PIPE; INL EXC. SAUDI ARABIA EQUIPMENT(GH3) (C)	8-98219-782-0	01	1	1406-				●
50	03.265 PIPE; INL (B)	8-97202-327-2	01	1	1012-			●
50	03.265 PIPE; INL (A)	8-97178-735-5	01	1	1012-1405			●	●
50	03.265 PIPE; INL SAUDI ARABIA EQUIPMENT(GH3) (A)	8-97178-735-5	01	1	1406-			●	●
53	03.602 BOLT; INL PIPE EXC. SAUDI ARABIA EQUIPMENT(GH3) 00.206 (E) M8X30 FLANGE	0-28050-830-0	02	1	1406-			●	●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-1405			●	●
53	03.602 BOLT; INL PIPE SAUDI ARABIA EQUIPMENT(GH3) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1406-			●	●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1012-1405			●	●
53	03.602 BOLT; INL PIPE SAUDI ARABIA EQUIPMENT(GH3) 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1406-			●	●
53	03.602 BOLT; INL PIPE EURO4 SPECIFICATION(NT4) 00.206 (D) M8X70 FLANGE	0-28050-870-0	01	1	1012-					●	●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1012-1405			●	●	●	●
53	03.602 BOLT; INL PIPE SAUDI ARABIA EQUIPMENT(GH3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-				●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-					●	●
53	03.602 BOLT; INL PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	1012-					●	●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	01	1	1012-			●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1012-				●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=50-69	8-94316-991-0	01	1	1012-1209			●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=50-69	8-94316-991-0	02	1	1210-			●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	1012-1405			●	●
95	03.278 CLIP; RUBBER HOSE SAUDI ARABIA EQUIPMENT(GH3) 03.407 (A) ID=77-95	1-09707-114-0	01	1	1406-			●	●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=68-85	8-94320-428-0	01	1	1012-1405			●	●
95	03.278 CLIP; RUBBER HOSE SAUDI ARABIA EQUIPMENT(GH3) 03.407 (B) ID=68-85	8-94320-428-0	01	1	1406-			●	●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	1012-				●
138	03.265 PIPE; INL	8-97180-566-2	01	1	1012-1405			●	●
138	03.265 PIPE; INL SAUDI ARABIA EQUIPMENT(GH3)	8-97180-566-2	01	1	1406-			●	●
139	03.162 BOLT; BRKT FIX EXC. SAUDI ARABIA EQUIPMENT(GH3) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1406-				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97084-938-2	01	1	1012-			●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2) 03.665	8-97357-684-3	01	1	1012-		●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	1012-				●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	1012-				●
283	03.265 RUBBER EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.463 (D)	8-98219-799-0	01	1	1406-				●
283	03.265 RUBBER (A) OD=23	8-97105-689-6	10	1	1012-				●
283	03.265 RUBBER EURO4 SPECIFICATION(NT4) (B) L=18	8-97219-650-0	02	1	1012-					●	●
283	03.265 RUBBER EURO4 SPECIFICATION(NT4) (C) L=58	8-97387-995-1	02	1	1012-					●	●
306	03.265 BOLT; VLV (B) M8X85 L=101	8-98048-394-0	01	1	1012-			●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	1012-			●	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97180-546-1	01	1	1012-1405			●	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HE AD) SAUDI ARABIA EQUIPMENT(GH3)	8-97180-546-1	01	1	1406-			●	●
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-97201-103-2	01	1	1012-1405			●
333	03.278 HOSE; RUBBER,INL PIPE (D)	8-98219-796-0	01	1	1406-			●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-3	01	1	1012-1405			●
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-98157-877-0	01	1	1012-1405				●
333	03.278 HOSE; RUBBER,INL PIPE SAUDI ARABIA EQUIPMENT(GH3) (A)	8-98157-877-0	01	1	1406-			●	●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	1012-1310				●
336	03.415 VALVE; VENTILATION	8-98245-399-0	01	1	1311-				●
344	03.407 BRACKET; INL PIPE EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98219-794-0	01	1	1406-				●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1012-			●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-					●	●
456	03.275 NUT; BRKT EXC. SAUDI ARABIA EQUIPMENT(GH3) 01.062 M8 FLANGE	0-91180-108-0	01	1	1406-				●
507	03.415 ORIFICE	8-97088-649-0	01	1	1012-				●

2 28 260 131 336 229 283 346 20 507 603 222 283 306 94 346 13 283 13 346 50 44 44 283 344 139 456 53 324 53 138 333 95 53 95 50 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	03.407 COVER; INL (C)	8-97212-454-3	01	1	1012-			●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (A)	8-97222-239-0	01	1	1012-1106				●
2	03.407 COVER; INL FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97222-239-0	01	1	1012-1106				●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (A)	8-97222-239-0	01	1	1107-1310				●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (A)	8-98245-386-0	01	1	1311-				●
2	03.407 COVER; INL GLOW SYSTEM DELETE<7RK> (B)	8-97146-866-2	01	1	1012-1106				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106				●
2	03.407 COVER; INL HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> (B)	8-97146-866-2	01	1	1012-1106				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> (B)	8-97146-866-2	01	1	1107-1310				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> (B)	8-98245-383-0	01	1	1311-				●
2	03.407 COVER; INL (D)	8-97387-038-0	01	1	1012-1409					●	●
2	03.407 COVER; INL EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (D)	8-97387-038-0	01	1	1410-					●	●
2	03.407 COVER; INL EURO2 SPECIFICATION(NT2) (E)	8-97387-039-0	01	1	1410-					●	●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	07	1	1012-			●
13	03.275 BOLT; INL MANIF (D) M8X52 L=68	8-98048-395-0	01	1	1012-			●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	08	1	1012-				●
13	03.275 BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	1012-	●	●
13	03.275 BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1012-	●	●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	09	1	1012-					●	●
13	03.275 BOLT; INL MANIF 01.252 (E) M8X80 FLANGE	0-28050-880-0	01	1	1012-					●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-	●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-			●	●	●	●
28	03.278 BOLT; CHAMBER EXHAUST BRAKE<NF8> 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1012-				●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1012-			●
44	03.407 NUT; PIPE BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1406-			●
44	03.407 NUT; PIPE BRKT EXC. SAUDI ARABIA EQUIPMENT(GH3) 01.062 M8 FLANGE	0-91180-108-0	02	1	1406-				●
50	03.265 PIPE; INL (D)	8-98254-369-0	01	1	1406-			●
50	03.265 PIPE; INL EXC. SAUDI ARABIA EQUIPMENT(GH3) (C)	8-98219-782-0	01	1	1406-				●
50	03.265 PIPE; INL (B)	8-97202-327-2	01	1	1012-			●
50	03.265 PIPE; INL (A)	8-97178-735-5	01	1	1012-1405			●	●
50	03.265 PIPE; INL SAUDI ARABIA EQUIPMENT(GH3) (A)	8-97178-735-5	01	1	1406-			●	●
53	03.602 BOLT; INL PIPE EXC. SAUDI ARABIA EQUIPMENT(GH3) 00.206 (E) M8X30 FLANGE	0-28050-830-0	02	1	1406-			●	●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-1405			●	●
53	03.602 BOLT; INL PIPE SAUDI ARABIA EQUIPMENT(GH3) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1406-			●	●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1012-1405			●	●
53	03.602 BOLT; INL PIPE SAUDI ARABIA EQUIPMENT(GH3) 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1406-			●	●
53	03.602 BOLT; INL PIPE EURO4 SPECIFICATION(NT4) 00.206 (D) M8X70 FLANGE	0-28050-870-0	01	1	1012-					●	●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1012-1405			●	●	●	●
53	03.602 BOLT; INL PIPE SAUDI ARABIA EQUIPMENT(GH3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-				●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-					●	●
53	03.602 BOLT; INL PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	1012-					●	●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	01	1	1012-			●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1012-				●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=50-69	8-94316-991-0	01	1	1012-1209			●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=50-69	8-94316-991-0	02	1	1210-			●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	1012-1405			●	●
95	03.278 CLIP; RUBBER HOSE SAUDI ARABIA EQUIPMENT(GH3) 03.407 (A) ID=77-95	1-09707-114-0	01	1	1406-			●	●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=68-85	8-94320-428-0	01	1	1012-1405			●	●
95	03.278 CLIP; RUBBER HOSE SAUDI ARABIA EQUIPMENT(GH3) 03.407 (B) ID=68-85	8-94320-428-0	01	1	1406-			●	●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	1012-				●
138	03.265 PIPE; INL	8-97180-566-2	01	1	1012-1405			●	●
138	03.265 PIPE; INL SAUDI ARABIA EQUIPMENT(GH3)	8-97180-566-2	01	1	1406-			●	●
139	03.162 BOLT; BRKT FIX EXC. SAUDI ARABIA EQUIPMENT(GH3) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1406-				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97084-938-2	01	1	1012-			●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2) 03.665	8-97357-684-3	01	1	1012-		●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	1012-				●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	1012-				●
283	03.265 RUBBER EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.463 (D)	8-98219-799-0	01	1	1406-				●
283	03.265 RUBBER (A) OD=23	8-97105-689-6	10	1	1012-				●
283	03.265 RUBBER EURO4 SPECIFICATION(NT4) (B) L=18	8-97219-650-0	02	1	1012-					●	●
283	03.265 RUBBER EURO4 SPECIFICATION(NT4) (C) L=58	8-97387-995-1	02	1	1012-					●	●
306	03.265 BOLT; VLV (B) M8X85 L=101	8-98048-394-0	01	1	1012-			●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	1012-			●	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97180-546-1	01	1	1012-1405			●	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HE AD) SAUDI ARABIA EQUIPMENT(GH3)	8-97180-546-1	01	1	1406-			●	●
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-97201-103-2	01	1	1012-1405			●
333	03.278 HOSE; RUBBER,INL PIPE (D)	8-98219-796-0	01	1	1406-			●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-3	01	1	1012-1405			●
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-98157-877-0	01	1	1012-1405				●
333	03.278 HOSE; RUBBER,INL PIPE SAUDI ARABIA EQUIPMENT(GH3) (A)	8-98157-877-0	01	1	1406-			●	●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	1012-1310				●
336	03.415 VALVE; VENTILATION	8-98245-399-0	01	1	1311-				●
344	03.407 BRACKET; INL PIPE EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98219-794-0	01	1	1406-				●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1012-			●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-					●	●
456	03.275 NUT; BRKT EXC. SAUDI ARABIA EQUIPMENT(GH3) 01.062 M8 FLANGE	0-91180-108-0	01	1	1406-				●
507	03.415 ORIFICE	8-97088-649-0	01	1	1012-				●
603	03.278 CHAMBER; THROTTLE EXHAUST BRAKE<NF8>	8-97204-780-0	01	1	1012-				●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	1012-			●

804 803 126 704 13 144 685 228 228 2 13 20 346 13 53 633 53 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	03.407 COVER; INL (C)	8-97212-454-3	01	1	1012-			●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (A)	8-97222-239-0	01	1	1012-1106				●
2	03.407 COVER; INL FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97222-239-0	01	1	1012-1106				●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (A)	8-97222-239-0	01	1	1107-1310				●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (A)	8-98245-386-0	01	1	1311-				●
2	03.407 COVER; INL GLOW SYSTEM DELETE<7RK> (B)	8-97146-866-2	01	1	1012-1106				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106				●
2	03.407 COVER; INL HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> (B)	8-97146-866-2	01	1	1012-1106				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> (B)	8-97146-866-2	01	1	1107-1310				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> (B)	8-98245-383-0	01	1	1311-				●
2	03.407 COVER; INL (D)	8-97387-038-0	01	1	1012-1409					●	●
2	03.407 COVER; INL EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (D)	8-97387-038-0	01	1	1410-					●	●
2	03.407 COVER; INL EURO2 SPECIFICATION(NT2) (E)	8-97387-039-0	01	1	1410-					●	●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	07	1	1012-			●
13	03.275 BOLT; INL MANIF (D) M8X52 L=68	8-98048-395-0	01	1	1012-			●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	08	1	1012-				●
13	03.275 BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	1012-	●	●
13	03.275 BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1012-	●	●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	09	1	1012-					●	●
13	03.275 BOLT; INL MANIF 01.252 (E) M8X80 FLANGE	0-28050-880-0	01	1	1012-					●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-	●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-			●	●	●	●
53	03.602 BOLT; INL PIPE EXC. SAUDI ARABIA EQUIPMENT(GH3) 00.206 (E) M8X30 FLANGE	0-28050-830-0	02	1	1406-			●	●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-1405			●	●
53	03.602 BOLT; INL PIPE SAUDI ARABIA EQUIPMENT(GH3) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1406-			●	●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1012-1405			●	●
53	03.602 BOLT; INL PIPE SAUDI ARABIA EQUIPMENT(GH3) 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1406-			●	●
53	03.602 BOLT; INL PIPE EURO4 SPECIFICATION(NT4) 00.206 (D) M8X70 FLANGE	0-28050-870-0	01	1	1012-					●	●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1012-1405			●	●	●	●
53	03.602 BOLT; INL PIPE SAUDI ARABIA EQUIPMENT(GH3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-				●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-					●	●
53	03.602 BOLT; INL PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	1012-					●	●
126	03.275 BOLT; COVER EURO2 SPECIFICATION(NT2) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-					●	●
144	03.275 BOLT; BRKT FIX 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-					●	●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	1012-					●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1012-			●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-					●	●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-					●	●
633	03.275 STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	1012-					●	●
685	03.265 BRACKET; HARNESS	8-97331-921-1	01	1	1012-					●	●
704	03.270 COVER EURO2 SPECIFICATION(NT2) 03.407 (B)	8-98062-651-1	01	1	1012-1408					●	●
704	03.270 COVER EURO2 SPECIFICATION(NT2) (C)	8-98260-138-0	01	1	1409-					●	●
704	03.270 COVER EURO2 SPECIFICATION(NT2) (A)	8-98056-986-0	01	1	1012-		●
803	03.275 STUD; COVER EURO2 SPECIFICATION(NT2) 02.510 M8X20 L=32	0-41010-820-0	02	1	1012-					●	●
804	03.275 NUT; COVER EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-					●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

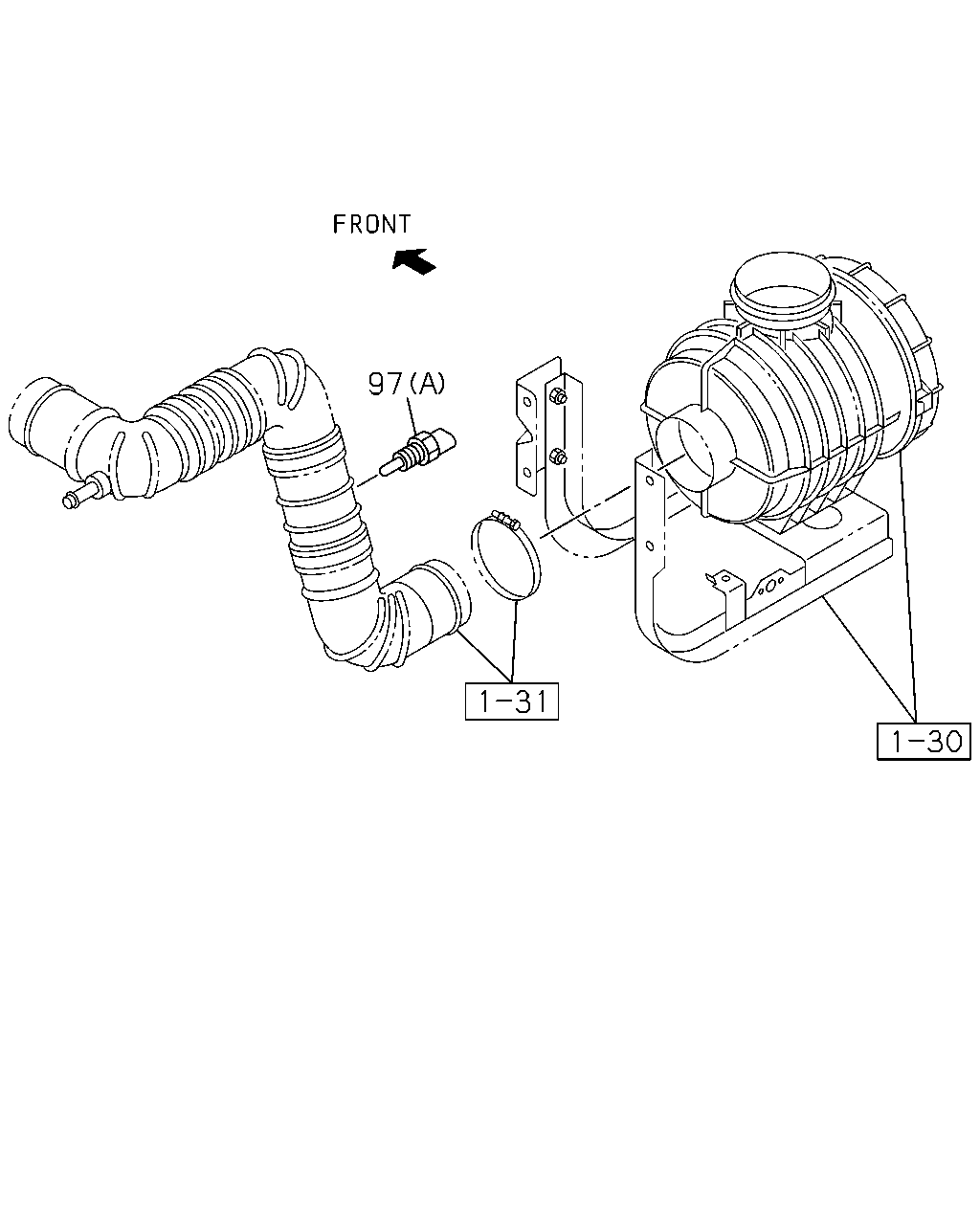

	97	03.682 SENSOR; INTAKE,AIR TEMPERATURE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98065-377-0	01	1	1012-					●	●
	97	03.682 SENSOR; INTAKE,AIR TEMPERATURE 01.150 (A)	8-12146-830-0	01	1	1012-		●

2 144 685 221 18 228 228 13 20 346 13 283 53 53 283 633 283 445 195 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	03.407 COVER; INL (C)	8-97212-454-3	01	1	1012-			●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (A)	8-97222-239-0	01	1	1012-1106				●
2	03.407 COVER; INL FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97222-239-0	01	1	1012-1106				●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (A)	8-97222-239-0	01	1	1107-1310				●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (A)	8-98245-386-0	01	1	1311-				●
2	03.407 COVER; INL GLOW SYSTEM DELETE<7RK> (B)	8-97146-866-2	01	1	1012-1106				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106				●
2	03.407 COVER; INL HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> (B)	8-97146-866-2	01	1	1012-1106				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> (B)	8-97146-866-2	01	1	1107-1310				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> (B)	8-98245-383-0	01	1	1311-				●
2	03.407 COVER; INL (D)	8-97387-038-0	01	1	1012-1409					●	●
2	03.407 COVER; INL EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (D)	8-97387-038-0	01	1	1410-					●	●
2	03.407 COVER; INL EURO2 SPECIFICATION(NT2) (E)	8-97387-039-0	01	1	1410-					●	●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	07	1	1012-			●
13	03.275 BOLT; INL MANIF (D) M8X52 L=68	8-98048-395-0	01	1	1012-			●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	08	1	1012-				●
13	03.275 BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	1012-	●	●
13	03.275 BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1012-	●	●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	09	1	1012-					●	●
13	03.275 BOLT; INL MANIF 01.252 (E) M8X80 FLANGE	0-28050-880-0	01	1	1012-					●	●
18	03.403 SCREW; PLATE,INL CVR 02.525 M6X10	9-03490-610-0	09	1	1012-1409					●	●
18	03.403 SCREW; PLATE,INL CVR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.525 M6X10	9-03490-610-0	09	1	1410-					●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-	●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-			●	●	●	●
53	03.602 BOLT; INL PIPE EXC. SAUDI ARABIA EQUIPMENT(GH3) 00.206 (E) M8X30 FLANGE	0-28050-830-0	02	1	1406-			●	●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-1405			●	●
53	03.602 BOLT; INL PIPE SAUDI ARABIA EQUIPMENT(GH3) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1406-			●	●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1012-1405			●	●
53	03.602 BOLT; INL PIPE SAUDI ARABIA EQUIPMENT(GH3) 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1406-			●	●
53	03.602 BOLT; INL PIPE EURO4 SPECIFICATION(NT4) 00.206 (D) M8X70 FLANGE	0-28050-870-0	01	1	1012-					●	●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1012-1405			●	●	●	●
53	03.602 BOLT; INL PIPE SAUDI ARABIA EQUIPMENT(GH3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-				●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-					●	●
53	03.602 BOLT; INL PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	1012-					●	●
144	03.275 BOLT; BRKT FIX 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-					●	●
195	03.729 GASKET; THROTTLE BODY INJECTOR ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) ID=88	8-97387-009-0	01	1	1012-					●	●
221	03.403 PLATE; INL COVER	8-97379-202-0	01	1	1012-1409					●	●
221	03.403 PLATE; INL COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97379-202-0	01	1	1410-					●	●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	1012-					●	●
283	03.265 RUBBER EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.463 (D)	8-98219-799-0	01	1	1406-				●
283	03.265 RUBBER (A) OD=23	8-97105-689-6	10	1	1012-				●
283	03.265 RUBBER EURO4 SPECIFICATION(NT4) (B) L=18	8-97219-650-0	02	1	1012-					●	●
283	03.265 RUBBER EURO4 SPECIFICATION(NT4) (C) L=58	8-97387-995-1	02	1	1012-					●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1012-			●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-					●	●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-					●	●
633	03.275 STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	1012-					●	●
685	03.265 BRACKET; HARNESS	8-97331-921-1	01	1	1012-					●	●

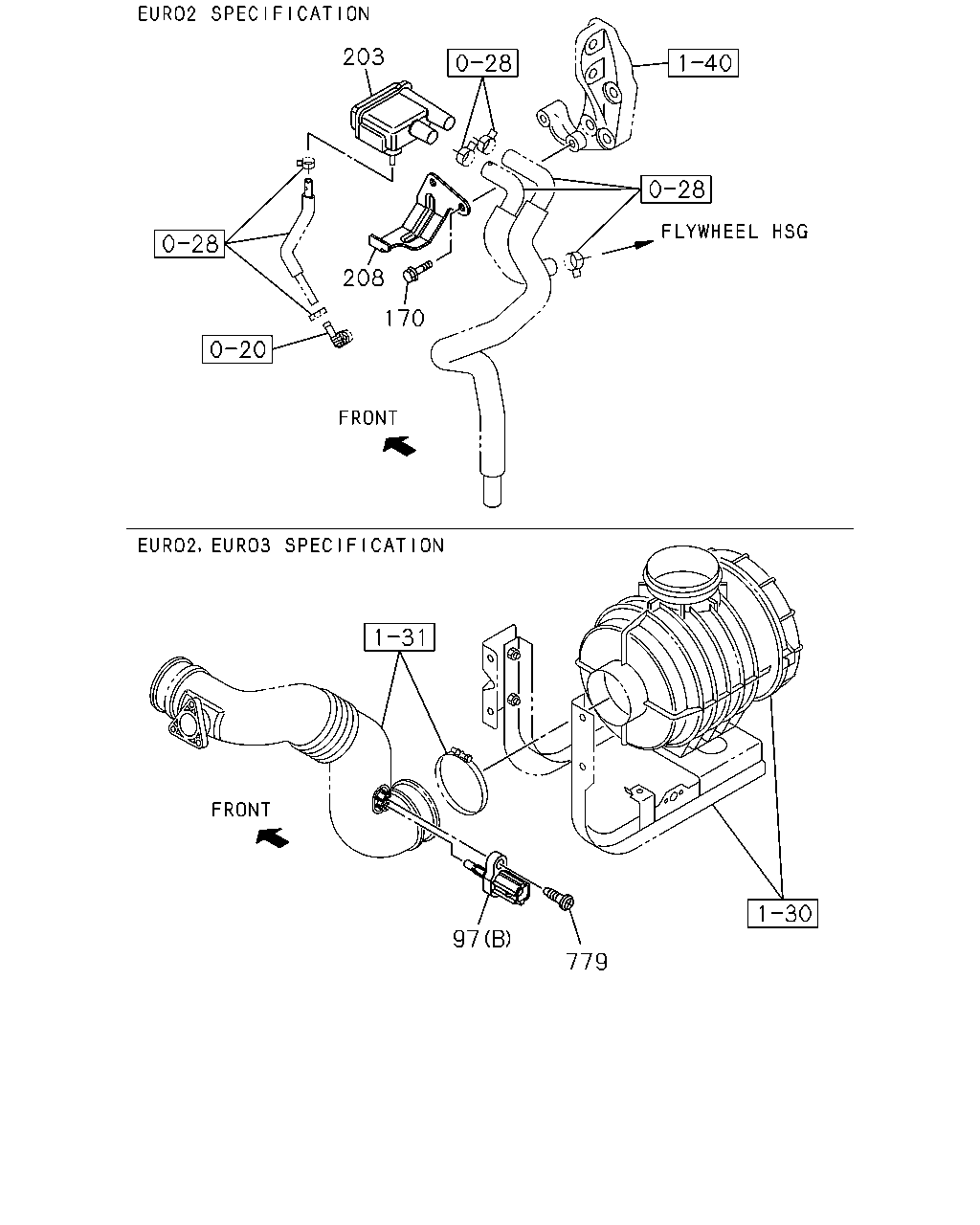

203 208 170 97 779

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	E	F
97	03.682 SENSOR; INTAKE,AIR TEMPERATURE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98065-377-0	01	1	1012-		●	●
97	03.682 SENSOR; INTAKE,AIR TEMPERATURE 01.150 (A)	8-12146-830-0	01	1	1012-	●
170	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-		●	●
203	01.780 TANK; CATCH,PRESSURE CONT VLV EURO2 SPECIFICATION(NT2)	8-97088-685-1	01	1	1012-		●	●
208	01.750 BRACKET; CATCH TANK,OIL EURO2 SPECIFICATION(NT2)	8-98074-130-0	01	1	1012-		●	●
779	03.682 BOLT; SENSOR EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.164 M5X14 W/LK WASHER	0-36220-514-0	01	1	1012-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
