◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51293 - NNR/NPR/NQR(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#39565) — 396 parça

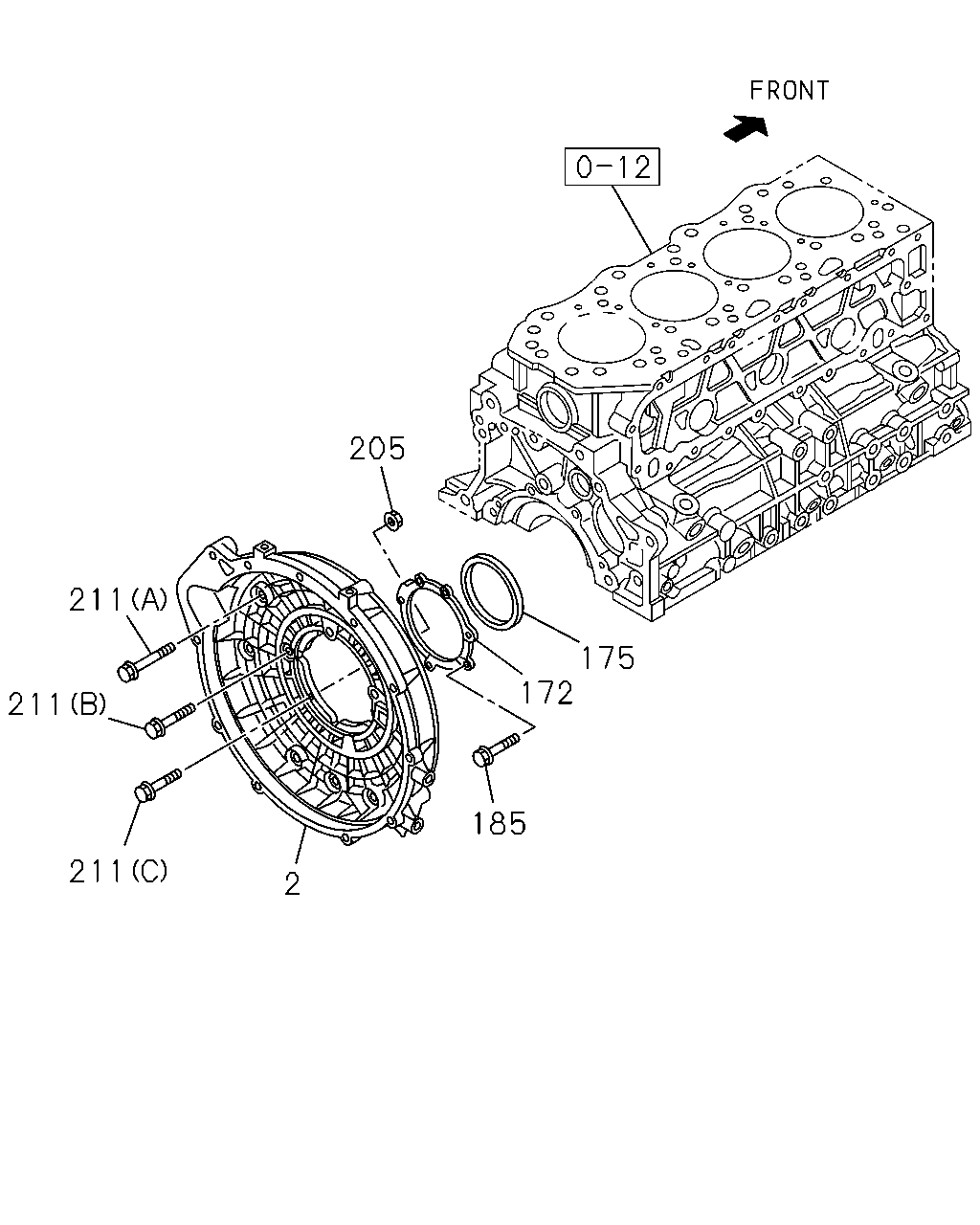

çizim 76293
205 211 175 172 211 185 211 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.683 HOUSING; FLYWHEEL 8-97364-899-6 01 1 1012- ● ●
2 00.683 HOUSING; FLYWHEEL 8-97381-492-3 01 1 1012-1310 ● ●
2 00.683 HOUSING; FLYWHEEL 8-98252-203-0 01 1 1311- ● ●
2 00.683 HOUSING; FLYWHEEL 8-97364-901-5 01 1 1012- ● ●
172 00.137 RETAINER; CR/SHF 8-97175-986-3 01 1 1012-1012 ● ●
172 00.137 RETAINER; CR/SHF 8-97379-826-0 01 1 1101- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 1012- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1012- ● ● ● ●
185 00.727 BOLT; RET TO C/BL
06.216 M8X25 FLANGE 		0-28650-825-0 05 1 1012- ● ●
205 00.669 NUT; HSG
04.085 M10 FLANGE 		0-91180-210-0 01 1 1012- ● ●
211 00.669 BOLT; HSG
VIETNAM EQUIPMENT<CL0> 00.683 (B) M12X25 		8-97916-324-1 03 1 1201- ●
211 00.669 BOLT; HSG
HYDRO BRAKE BOOSTER(7QQ) (D) M8X20,M8X65 L=90 		8-97200-622-1 02 1 1012-1101 ● ●
211 00.669 BOLT; HSG
HYDRO BRAKE BOOSTER(7QQ) (D) M8X20,M8X65 L=90 		8-97200-622-1 02 1 1102- ●
211 00.669 BOLT; HSG
(D) M8X20,M8X65 L=90 		8-97200-622-1 02 1 1102- ●
211 00.669 BOLT; HSG
(F) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 09 1 1012-1102 ● ●
211 00.669 BOLT; HSG
(F) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 09 1 1103- ● ●
211 00.669 BOLT; HSG
(E) M12X30 FLANGE 		8-97135-419-0 01 1 1012- ● ●
211 00.669 BOLT; HSG
EXC. HYDRO BRAKE BOOSTER(7QQ) (D) M8X65 W/PL WASHER 		8-94388-781-0 02 1 1012-1405 ● ●
211 00.669 BOLT; HSG
EXC. HYDRO BRAKE BOOSTER(7QQ) (D) M8X65 W/PL WASHER 		8-94388-781-0 02 1 1406- ●
211 00.669 BOLT; HSG
09.003 (A) M12X35 FLANGE 		0-28651-235-0 06 1 1012- ● ●
211 00.669 BOLT; HSG
00.683 (B) M12X25 		5-09000-227-0 03 1 1012-1112 ● ●
211 00.669 BOLT; HSG
00.683 (B) M12X25 		5-09000-227-0 03 1 1201- ●
211 00.669 BOLT; HSG
EXC. VIETNAM EQUIPMENT<CL0> 00.683 (B) M12X25 		5-09000-227-0 03 1 1201- ●
211 00.669 BOLT; HSG
00.862 (C) M10X43 		9-09606-535-0 01 1 1012- ● ●
211 00.669 BOLT; HSG
00.029 (G) M10X40 FLANGE 		0-28751-040-0 01 1 1012- ● ● ● ●
211 00.669 BOLT; HSG
(F) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 1012-1102 ● ●
211 00.669 BOLT; HSG
(F) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1103- ● ●
211 00.669 BOLT; HSG
(E) M12X30 FLANGE 		8-97135-419-0 02 1 1012- ● ●

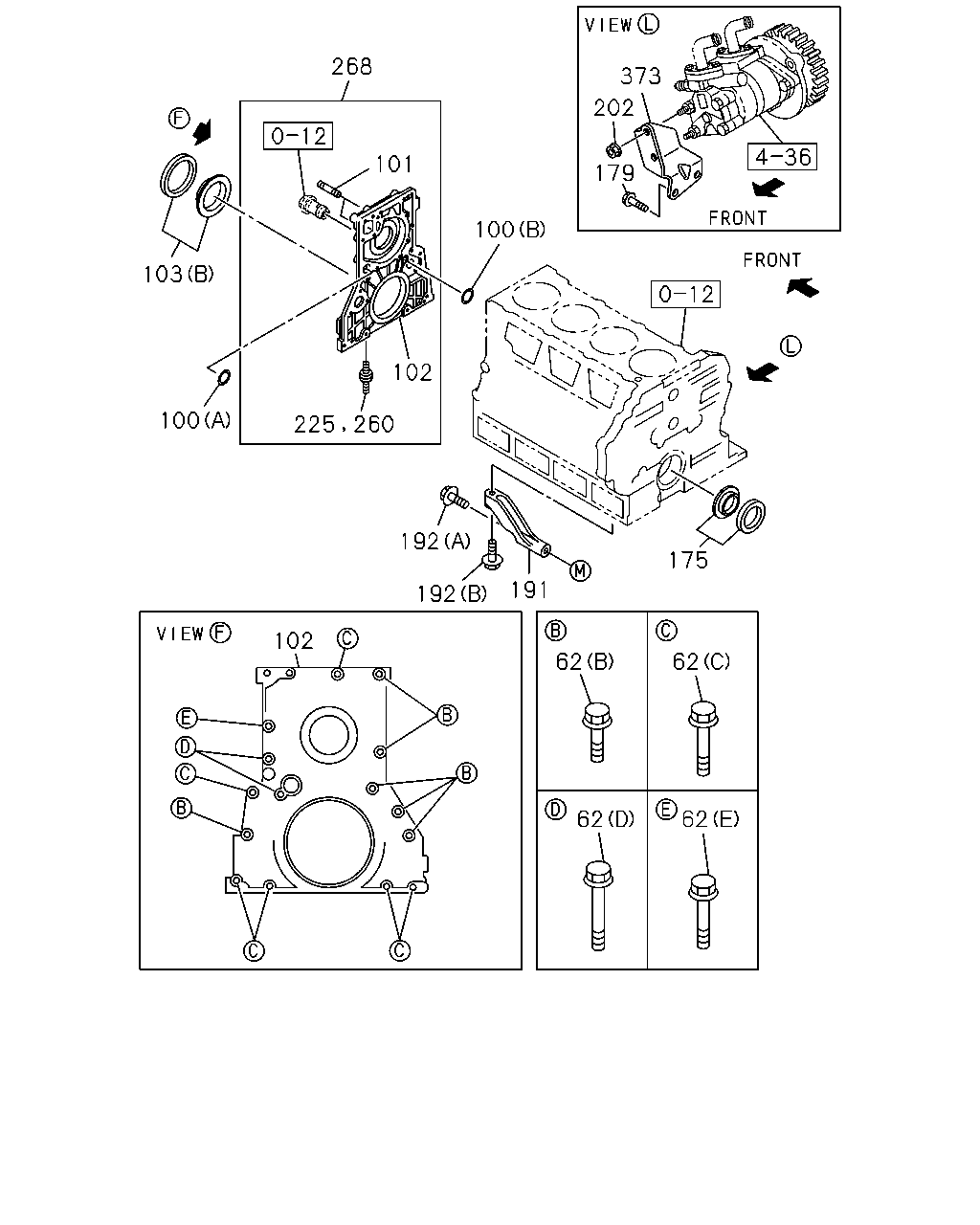

çizim 76294
373 202 179 100 101 268 102 260 225 100 103 192 192 191 175 62 62 62 62 102
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
62 00.206 BOLT; COVER
03.162 (A) M6X20 FLANGE 		0-28650-620-0 04 1 1012- ●
62 00.206 BOLT; COVER
06.216 (B) M8X25 FLANGE 		0-28650-825-0 06 1 1012- ● ● ● ●
62 00.206 BOLT; COVER
03.403 (E) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ● ● ● ●
62 00.206 BOLT; COVER
01.060 (C) M8X35 FLANGE 		0-28650-835-0 06 1 1012- ● ● ● ●
62 00.206 BOLT; COVER
01.097 (D) M8X65 FLANGE 		1-09044-072-1 02 1 1012- ● ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 1012- ● ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 1012- ● ● ● ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 1201-1501 ● ●
101 01.073 STUD; WATER PUMP
EURO4 SPECIFICATION(NT4) 01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 1201-1501 ● ●
101 01.073 STUD; WATER PUMP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUD I ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 1201-1501 ● ●
101 01.073 STUD; WATER PUMP
EURO3 SPECIFICATION(NT3) ANTI EROSION SPEC<7XK> 01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 1201-1501 ● ●
101 01.073 STUD; WATER PUMP
01.428 M8X18 L=30 		0-41010-818-0 01 1 1502- ● ●
101 01.073 STUD; WATER PUMP
EURO4 SPECIFICATION(NT4) 01.428 M8X18 L=30 		0-41010-818-0 01 1 1502- ● ●
101 01.073 STUD; WATER PUMP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EGYPT EQUIPMENT(B09),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUDI ARABIA EQUIPMENT(GH3),UZBEKISTAN EQUIP MENT(JCW),CHILE EQUIPMENT(KE1) 01.428 M8X18 L=30 		0-41010-818-0 01 1 1502- ● ●
101 01.073 STUD; WATER PUMP
EURO3 SPECIFICATION(NT3) ANTI EROSION SPEC<7XK> 01.428 M8X18 L=30 		0-41010-818-0 01 1 1502- ● ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 1201-1501 ● ●
101 01.073 STUD; WATER PUMP
EURO4 SPECIFICATION(NT4) 00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 1201-1501 ● ●
101 01.073 STUD; WATER PUMP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUD I ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 1201-1501 ● ●
101 01.073 STUD; WATER PUMP
EURO3 SPECIFICATION(NT3) ANTI EROSION SPEC<7XK> 00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 1201-1501 ● ●
101 01.073 STUD; WATER PUMP
00.206 M8X18 L=29 		8-97028-541-0 01 1 1502- ● ●
101 01.073 STUD; WATER PUMP
EURO4 SPECIFICATION(NT4) 00.206 M8X18 L=29 		8-97028-541-0 01 1 1502- ● ●
101 01.073 STUD; WATER PUMP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EGYPT EQUIPMENT(B09),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUDI ARABIA EQUIPMENT(GH3),UZBEKISTAN EQUIP MENT(JCW),CHILE EQUIPMENT(KE1) 00.206 M8X18 L=29 		8-97028-541-0 01 1 1502- ● ●
101 01.073 STUD; WATER PUMP
EURO3 SPECIFICATION(NT3) ANTI EROSION SPEC<7XK> 00.206 M8X18 L=29 		8-97028-541-0 01 1 1502- ● ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 1012-1112 ● ● ● ●
101 01.073 STUD; WATER PUMP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. ANTI EROSION SPEC<7XK> 01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 1201-1501 ● ●
101 01.073 STUD; WATER PUMP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. EGYPT EQUIPMENT(B09),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SA UDI ARABIA EQUIPMENT(GH3),UZBEKISTAN EQUIPMENT(JCW),CHILE EQUIPMENT(KE1) 01.428 M8X18 L=30 		0-41010-818-0 02 1 1502- ● ●
101 01.073 STUD; WATER PUMP
EURO3 SPECIFICATION(NT3) EXC. ANTI EROSION SPEC<7XK> 01.428 M8X18 L=30 		0-41010-818-0 02 1 1502- ● ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 1012-1112 ● ● ● ●
101 01.073 STUD; WATER PUMP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. ANTI EROSION SPEC<7XK> 00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 1201-1501 ● ●
101 01.073 STUD; WATER PUMP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. EGYPT EQUIPMENT(B09),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SA UDI ARABIA EQUIPMENT(GH3),UZBEKISTAN EQUIPMENT(JCW),CHILE EQUIPMENT(KE1) 00.206 M8X18 L=29 		8-97028-541-0 02 1 1502- ● ●
101 01.073 STUD; WATER PUMP
EURO3 SPECIFICATION(NT3) EXC. ANTI EROSION SPEC<7XK> 00.206 M8X18 L=29 		8-97028-541-0 02 1 1502- ● ●
102 00.137 RETAINER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-2 01 1 1201- ●
102 00.137 RETAINER; FRT 8-98039-932-2 01 1 1201- ●
102 00.137 RETAINER; FRT
EURO4 SPECIFICATION(NT4) 		8-98039-932-2 01 1 1201- ● ●
102 00.137 RETAINER; FRT
ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 1012-1111 ●
102 00.137 RETAINER; FRT
EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14), SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPME NT(KE1) 		8-98081-351-1 01 1 1012-1111 ● ●
102 00.137 RETAINER; FRT
ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 1112- ●
102 00.137 RETAINER; FRT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 1112- ● ●
102 00.137 RETAINER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-1 01 1 1012-1112 ● ● ●
102 00.137 RETAINER; FRT 8-98039-932-1 01 1 1012-1112 ●
102 00.137 RETAINER; FRT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-2 01 1 1201-1501 ● ●
102 00.137 RETAINER; FRT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. EGYPT EQUIPMENT(B09),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SA UDI ARABIA EQUIPMENT(GH3),UZBEKISTAN EQUIPMENT(JCW),CHILE EQUIPMENT(KE1) 		8-98039-932-2 02 1 1502- ● ●
102 00.137 RETAINER; FRT
EURO3 SPECIFICATION(NT3) EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-2 02 1 1502- ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-98158-110-0 01 1 1012- ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=109 OD=137 		8-97329-780-0 01 1 1012- ● ● ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 1012- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1012- ● ● ● ●
179 00.206 BOLT; BRKT
SAUDI ARABIA EQUIPMENT(GH3) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 00.004 M10X18 FLANGE 		0-28181-018-0 02 1 1012- ● ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.417 M10X20 FLANGE 		0-28151-020-0 02 1 1012- ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 1012- ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 1012-1106 ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 1107- ● ● ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28151-250-0 01 1 1107- ●
192 00.206 BOLT; STAY TO HSG
09.171 (C) M10X40 FLANGE 		0-28151-040-0 02 1 1012- ● ●
192 00.206 BOLT; STAY TO HSG
02.510 (B) M12X100 FLANGE 		0-28151-200-0 01 1 1012-1106 ● ●
192 00.206 BOLT; STAY TO HSG
02.510 (B) M12X100 FLANGE 		0-28151-200-0 01 1 1107- ● ● ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28151-250-0 02 1 1012- ● ●
202 00.206 NUT; BRKT
01.540 M8 FLANGE 		0-91180-208-0 01 1 1204- ● ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1012-1012 ● ● ● ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1101- ● ●
225 01.428 STUD; OIL PAN
EURO4 SPECIFICATION(NT4) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1101- ● ●
260 01.428 STUD; OIL PAN
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUD I ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 02.510 M8X20 L=32 		0-41010-820-0 04 1 1101-1111 ● ●
260 01.428 STUD; OIL PAN
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUD I ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 02.510 M8X20 L=32 		0-41010-820-0 04 1 1112-1501 ● ●
260 01.428 STUD; OIL PAN
ANTI EROSION SPEC<7XK> 02.510 M8X20 L=32 		0-41010-820-0 04 1 1112-1501 ● ●
260 01.428 STUD; OIL PAN
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EGYPT EQUIPMENT(B09),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUDI ARABIA EQUIPMENT(GH3),UZBEKISTAN EQUIP MENT(JCW),CHILE EQUIPMENT(KE1) 02.510 M8X20 L=32 		0-41010-820-0 04 1 1502- ● ●
260 01.428 STUD; OIL PAN
ANTI EROSION SPEC<7XK> 02.510 M8X20 L=32 		0-41010-820-0 04 1 1502- ● ●
268 00.206 COVER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-931-1 01 1 1108-1112 ●
268 00.206 COVER; FRT 8-98039-931-1 01 1 1108-1112 ●
268 00.206 COVER; FRT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUD I ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 		8-98096-851-1 01 1 1101-1111 ● ●
268 00.206 COVER; FRT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUD I ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 		8-98096-851-1 01 1 1112-1501 ● ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98096-851-1 01 1 1112-1501 ● ●
268 00.206 COVER; FRT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EGYPT EQUIPMENT(B09),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUDI ARABIA EQUIPMENT(GH3),UZBEKISTAN EQUIP MENT(JCW),CHILE EQUIPMENT(KE1) 		8-98096-851-1 01 1 1502- ● ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98096-851-1 01 1 1502- ● ●
268 00.206 COVER; FRT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14) ,SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 		8-97148-937-2 01 1 1101-1106 ● ●
268 00.206 COVER; FRT 8-97148-937-2 01 1 1107-1111 ● ● ● ●
268 00.206 COVER; FRT 8-97148-937-3 01 1 1112-1501 ● ●
268 00.206 COVER; FRT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) ANTI EROSION SPEC<7XK> 		8-97148-937-3 01 1 1112-1501 ● ●
268 00.206 COVER; FRT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. EGYPT EQUIPMENT(B09),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SA UDI ARABIA EQUIPMENT(GH3),UZBEKISTAN EQUIPMENT(JCW),CHILE EQUIPMENT(KE1) 		8-97148-937-3 02 1 1502- ● ●
268 00.206 COVER; FRT
EURO3 SPECIFICATION(NT3) EXC. ANTI EROSION SPEC<7XK> 		8-97148-937-3 02 1 1502- ● ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98079-080-1 01 1 1012-1012 ●
268 00.206 COVER; FRT
EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14), SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPME NT(KE1) 		8-98079-080-1 01 1 1012-1012 ● ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98079-080-1 01 1 1101- ●
268 00.206 COVER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-931-1 01 1 1012-1012 ● ● ●
268 00.206 COVER; FRT 8-98039-931-1 01 1 1012-1012 ●
268 00.206 COVER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-931-1 01 1 1101-1107 ●
268 00.206 COVER; FRT 8-98039-931-1 01 1 1101-1107 ●
268 00.206 COVER; FRT
EURO4 SPECIFICATION(NT4) 		8-98039-931-1 01 1 1101-1107 ● ●
268 00.206 COVER; FRT
EURO4 SPECIFICATION(NT4) 		8-98039-931-1 01 1 1108-1112 ● ●
268 00.206 COVER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-931-2 01 1 1201- ●
268 00.206 COVER; FRT 8-98039-931-2 01 1 1201- ●
268 00.206 COVER; FRT
EURO4 SPECIFICATION(NT4) 		8-98039-931-2 01 1 1201- ● ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER(7QQ) 		8-97149-333-0 01 1 1012- ● ● ● ●

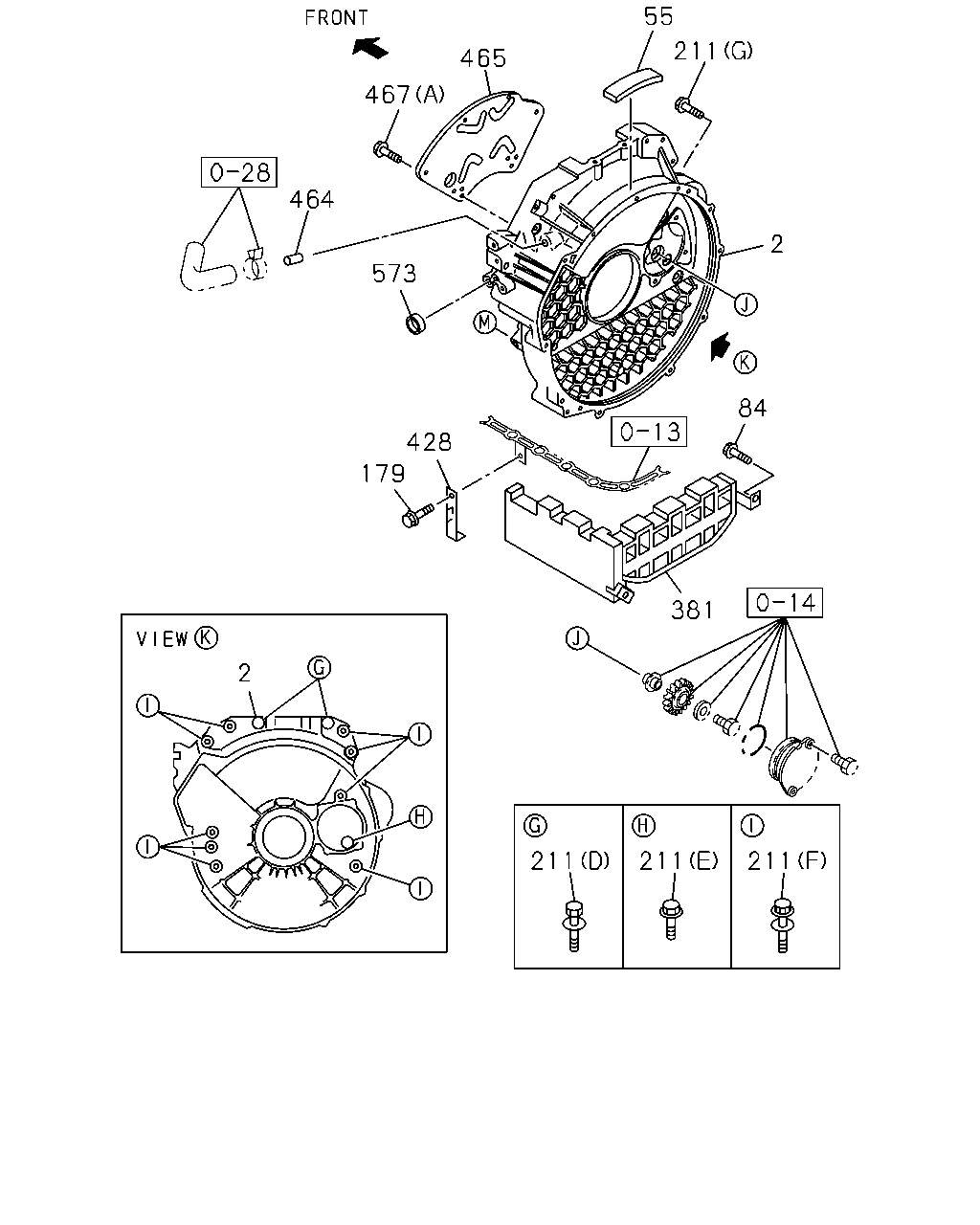

çizim 76295
55 211 465 467 464 2 573 84 428 179 381 2 211 211 211
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.683 HOUSING; FLYWHEEL 8-97364-899-6 01 1 1012- ● ●
2 00.683 HOUSING; FLYWHEEL 8-97381-492-3 01 1 1012-1310 ● ●
2 00.683 HOUSING; FLYWHEEL 8-98252-203-0 01 1 1311- ● ●
2 00.683 HOUSING; FLYWHEEL 8-97364-901-5 01 1 1012- ● ●
55 00.206 COVER; NOISE SHIELD
EGYPT EQUIPMENT(B09),SAUDI ARABIA EQUIPMENT(GH3) 		8-97215-618-0 01 1 1012-1405 ●
55 00.206 COVER; NOISE SHIELD
SAUDI ARABIA EQUIPMENT(GH3) 		8-97215-618-0 01 1 1406- ● ●
84 00.206 BOLT; SPACER
SAUDI ARABIA EQUIPMENT(GH3) 03.162 M12X20 FLANGE 		0-28151-220-0 02 1 1012- ●
179 00.206 BOLT; BRKT
SAUDI ARABIA EQUIPMENT(GH3) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 00.004 M10X18 FLANGE 		0-28181-018-0 02 1 1012- ● ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.417 M10X20 FLANGE 		0-28151-020-0 02 1 1012- ● ●
211 00.669 BOLT; HSG
VIETNAM EQUIPMENT<CL0> 00.683 (B) M12X25 		8-97916-324-1 03 1 1201- ●
211 00.669 BOLT; HSG
HYDRO BRAKE BOOSTER(7QQ) (D) M8X20,M8X65 L=90 		8-97200-622-1 02 1 1012-1101 ● ●
211 00.669 BOLT; HSG
HYDRO BRAKE BOOSTER(7QQ) (D) M8X20,M8X65 L=90 		8-97200-622-1 02 1 1102- ●
211 00.669 BOLT; HSG
(D) M8X20,M8X65 L=90 		8-97200-622-1 02 1 1102- ●
211 00.669 BOLT; HSG
(F) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 09 1 1012-1102 ● ●
211 00.669 BOLT; HSG
(F) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 09 1 1103- ● ●
211 00.669 BOLT; HSG
(E) M12X30 FLANGE 		8-97135-419-0 01 1 1012- ● ●
211 00.669 BOLT; HSG
EXC. HYDRO BRAKE BOOSTER(7QQ) (D) M8X65 W/PL WASHER 		8-94388-781-0 02 1 1012-1405 ● ●
211 00.669 BOLT; HSG
EXC. HYDRO BRAKE BOOSTER(7QQ) (D) M8X65 W/PL WASHER 		8-94388-781-0 02 1 1406- ●
211 00.669 BOLT; HSG
09.003 (A) M12X35 FLANGE 		0-28651-235-0 06 1 1012- ● ●
211 00.669 BOLT; HSG
00.683 (B) M12X25 		5-09000-227-0 03 1 1012-1112 ● ●
211 00.669 BOLT; HSG
00.683 (B) M12X25 		5-09000-227-0 03 1 1201- ●
211 00.669 BOLT; HSG
EXC. VIETNAM EQUIPMENT<CL0> 00.683 (B) M12X25 		5-09000-227-0 03 1 1201- ●
211 00.669 BOLT; HSG
00.862 (C) M10X43 		9-09606-535-0 01 1 1012- ● ●
211 00.669 BOLT; HSG
00.029 (G) M10X40 FLANGE 		0-28751-040-0 01 1 1012- ● ● ● ●
211 00.669 BOLT; HSG
(F) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 1012-1102 ● ●
211 00.669 BOLT; HSG
(F) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1103- ● ●
211 00.669 BOLT; HSG
(E) M12X30 FLANGE 		8-97135-419-0 02 1 1012- ● ●
381 00.685 SPACER; FLYWHEEL HSG
SAUDI ARABIA EQUIPMENT(GH3) 01.428 		8-97224-867-2 01 1 1012- ●
428 00.206 BRACKET; SPACER
SAUDI ARABIA EQUIPMENT(GH3) 		8-97215-647-0 01 1 1012- ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 1012- ● ● ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-824-1 01 1 1012- ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 1012- ● ●
467 00.686 BOLT; PLATE
06.321 (A) M6X10 		8-98030-649-0 06 1 1012- ● ● ● ●
467 00.686 BOLT; PLATE
04.895 (B) 		8-98049-523-0 02 1 1012- ● ●
573 00.206 CUP; SEALING
00.034 OD=19 		8-94150-231-0 01 1 1012- ● ●

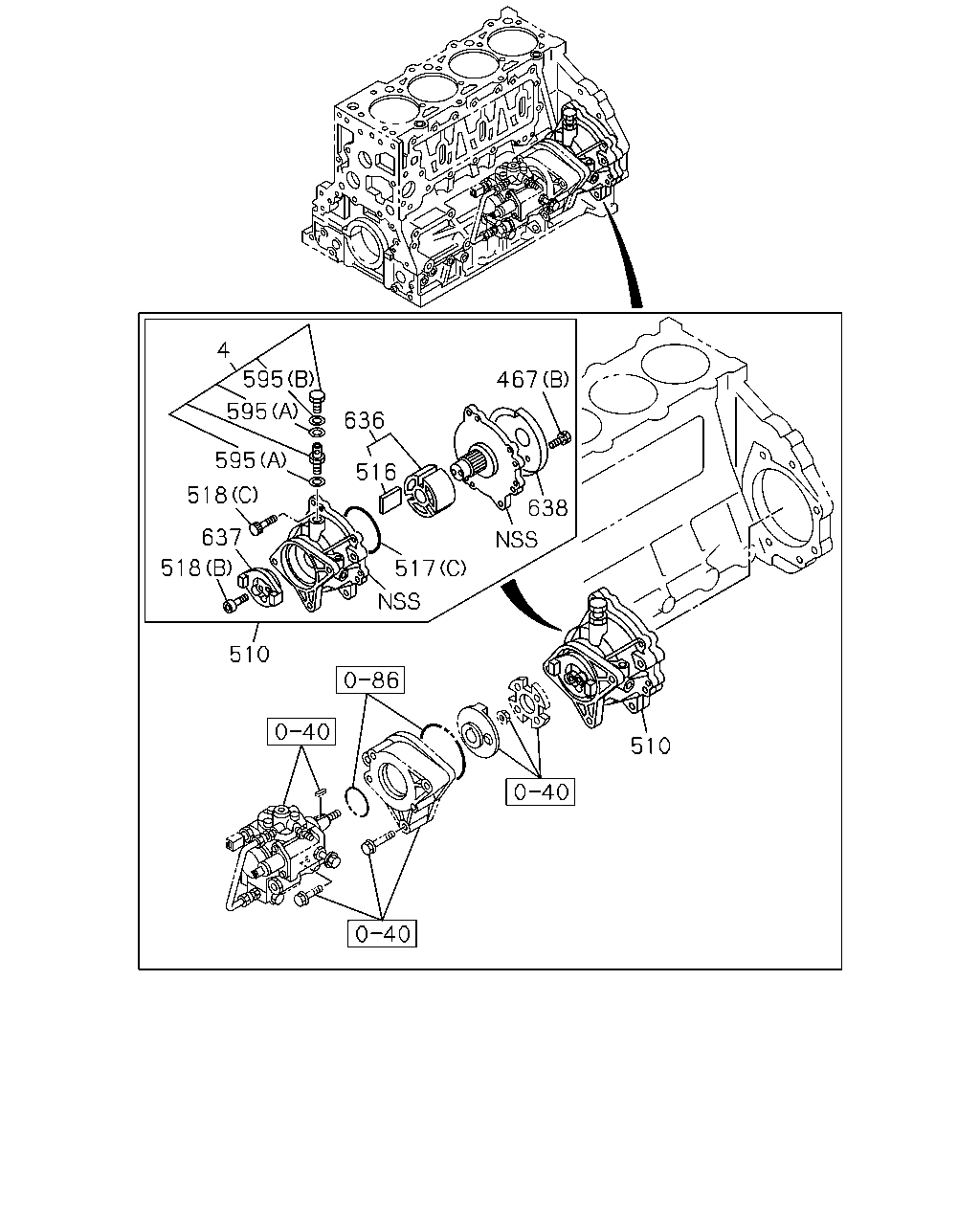

çizim 76296
4 595 467 595 636 595 516 518 638 637 518 517 510 510
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 00.213 VALVE ASM; CHECK 8-98049-521-0 01 1 1012- ● ● ● ●
467 00.686 BOLT; PLATE
06.321 (A) M6X10 		8-98030-649-0 06 1 1012- ● ● ● ●
467 00.686 BOLT; PLATE
04.895 (B) 		8-98049-523-0 02 1 1012- ● ●
510 04.895 PUMP ASM; VACUUM 8-98241-234-0 01 1 1306-1311 ●
510 04.895 PUMP ASM; VACUUM 8-98251-764-0 01 1 1312- ● ●
510 04.895 PUMP ASM; VACUUM 8-98162-748-0 01 1 1012-1305 ● ●
510 04.895 PUMP ASM; VACUUM 8-98162-748-0 01 1 1306-1311 ●
510 04.895 PUMP ASM; VACUUM
03.306 		8-97388-589-6 01 1 1012- ● ●
516 04.895 VANE; VAC PUMP 8-98051-275-0 03 1 1012- ● ●
516 04.895 VANE; VAC PUMP 8-98051-279-0 03 1 1012- ● ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98244-022-0 01 1 1306-1311 ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98251-769-0 01 1 1312- ● ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98049-522-0 01 1 1012-1305 ● ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98049-522-0 01 1 1306-1311 ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) 		9-09566-271-0 01 1 1012- ● ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		8-98051-280-0 01 1 1012- ● ●
518 04.895 BOLT; VAC PUMP
(A) 		8-98049-523-0 03 1 1012- ● ●
518 04.895 BOLT; VAC PUMP
01.531 (C) M6X25 W/LK&PL WASHER 		0-50640-625-0 03 1 1012- ● ●
518 04.895 BOLT; VAC PUMP
(B) M8X20 		8-98051-277-0 02 1 1012- ● ●
595 00.213 GASKET; VLV
(B) ID=12 		8-98018-518-0 01 1 1012- ● ● ● ●
595 00.213 GASKET; VLV
(A) ID=18 		8-98018-519-0 02 1 1012- ● ● ● ●
636 00.206 ROTOR & VANE ASM; VAC PUMP 8-98049-520-0 01 1 1012- ● ●
636 00.206 ROTOR & VANE ASM; VAC PUMP 8-98051-281-0 01 1 1012- ● ●
637 00.206 COUPLING; VAC PUMP 8-98051-278-0 01 1 1012- ● ●
638 00.206 PLATE KIT; VAC PUMP 8-98051-276-0 01 1 1012- ● ●

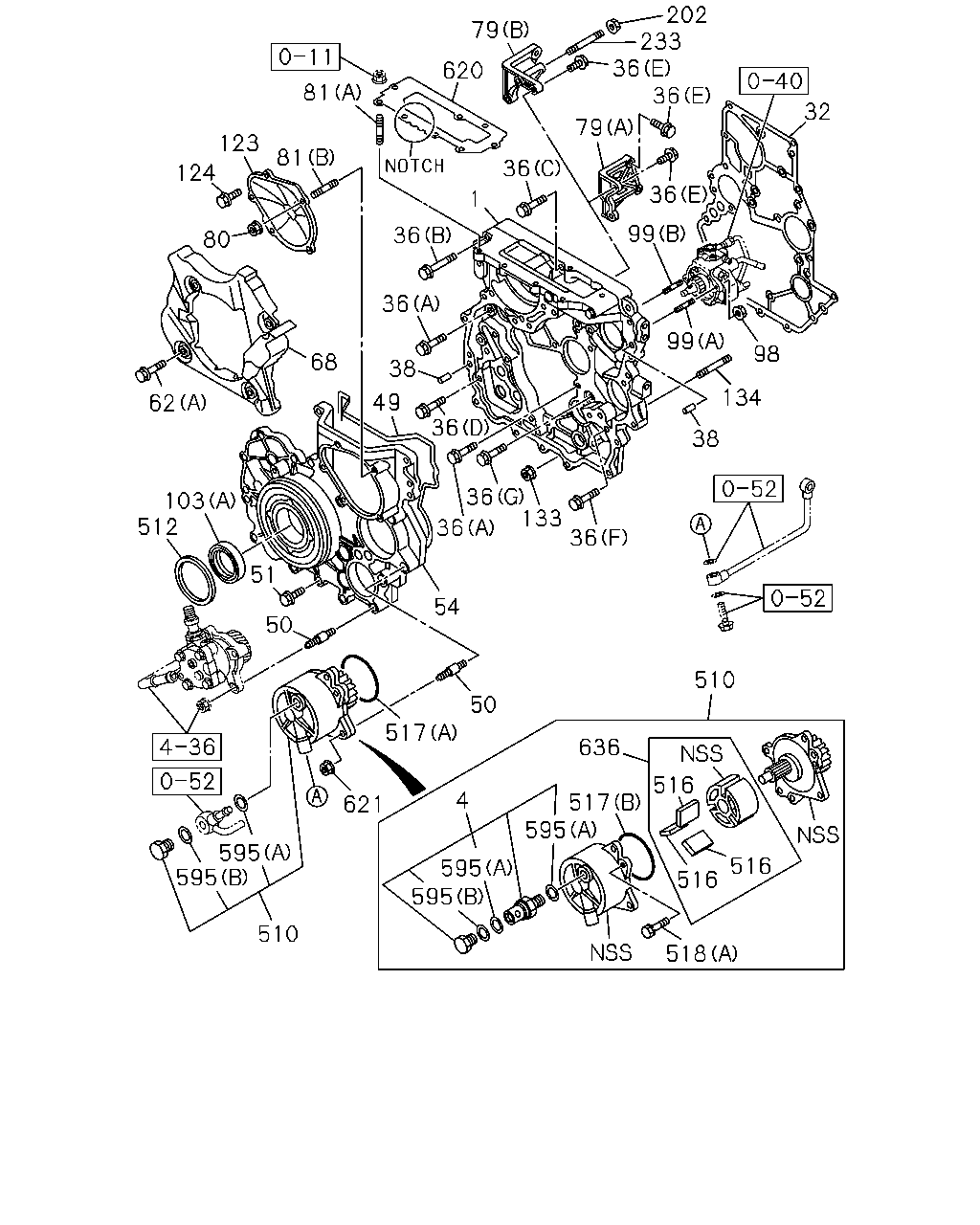

çizim 103382
49 68 123 124 81 81 620 79 202 233 36 79 32 36 36 99 99 98 134 38 36 36 1 36 38 36 62 80 103 512 36 36 133 36 510 54 51 50 517 621 50 516 636 517 4 516 516 595 595 595 510 595 595 518
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.206 CASE; TIMING GEAR 8-97945-261-2 01 1 1012-1203 ● ●
1 00.206 CASE; TIMING GEAR 8-98074-747-1 01 1 1204- ● ●
4 00.213 VALVE ASM; CHECK 8-98049-521-0 01 1 1012- ● ● ● ●
32 00.207 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97312-221-2 01 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
EXC. SAUDI ARABIA EQUIPMENT(GH3) 04.338 (A) M8X20 FLANGE 		0-28050-820-0 13 1 1012-1502 ●
36 00.206 BOLT; GEAR CASE
COLOMBIA EQUIPMENT(CB7) 04.338 (A) M8X20 FLANGE 		0-28050-820-0 13 1 1012-1502 ●
36 00.206 BOLT; GEAR CASE
EURO2 SPECIFICATION(NT2) EXC. COUNTRY ALGERIA<D2G>,SAUDI ARABIA EQUIPMENT(GH3) 04.338 (A) M8X20 FLANGE 		0-28050-820-0 13 1 1503- ●
36 00.206 BOLT; GEAR CASE
02.343 (G) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
04.338 (A) M8X20 FLANGE 		0-28050-820-0 12 1 1012-1111 ●
36 00.206 BOLT; GEAR CASE
SAUDI ARABIA EQUIPMENT(GH3) 04.338 (A) M8X20 FLANGE 		0-28050-820-0 12 1 1012-1111 ●
36 00.206 BOLT; GEAR CASE
04.338 (A) M8X20 FLANGE 		0-28050-820-0 12 1 1112-1306 ●
36 00.206 BOLT; GEAR CASE
EURO2 SPECIFICATION(NT2) SAUDI ARABIA EQUIPMENT(GH3) 04.338 (A) M8X20 FLANGE 		0-28050-820-0 12 1 1112-1306 ●
36 00.206 BOLT; GEAR CASE
EURO3 SPECIFICATION(NT3) 04.338 (A) M8X20 FLANGE 		0-28050-820-0 12 1 1112-1306 ●
36 00.206 BOLT; GEAR CASE
04.338 (A) M8X20 FLANGE 		0-28050-820-0 12 1 1307- ●
36 00.206 BOLT; GEAR CASE
EURO2 SPECIFICATION(NT2) SAUDI ARABIA EQUIPMENT(GH3) 04.338 (A) M8X20 FLANGE 		0-28050-820-0 12 1 1307- ●
36 00.206 BOLT; GEAR CASE
EURO2 SPECIFICATION(NT2) COUNTRY ALGERIA<D2G> 04.338 (A) M8X20 FLANGE 		0-28050-820-0 12 1 1307- ●
36 00.206 BOLT; GEAR CASE
EURO3 SPECIFICATION(NT3) 04.338 (A) M8X20 FLANGE 		0-28050-820-0 12 1 1307- ●
36 00.206 BOLT; GEAR CASE
03.162 (C) M8X35 FLANGE 		0-28050-835-0 01 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
09.173 (F) M8X45 FLANGE 		0-28050-845-0 02 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
04.686 (B) M8X60 FLANGE 		0-28050-860-0 01 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
03.403 (E) M8X30 FLANGE 		0-28650-830-0 03 1 1012- ● ●
38 00.685 PIN; GEAR CASE COVER
VIETNAM EQUIPMENT<CL0> 00.669 OD=10 L=20 		9-08151-020-0 02 1 1105- ●
38 00.685 PIN; GEAR CASE COVER
04.510 OD=10 L=20 		8-97135-423-0 02 1 1012-1104 ● ●
38 00.685 PIN; GEAR CASE COVER
04.510 OD=10 L=20 		8-97135-423-0 02 1 1105- ●
38 00.685 PIN; GEAR CASE COVER
EXC. VIETNAM EQUIPMENT<CL0> 04.510 OD=10 L=20 		8-97135-423-0 02 1 1105- ●
49 00.206 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97945-298-0 01 1 1012- ● ●
50 00.206 STUD
M8X27,M8X14 L=64.5 		8-97354-808-2 06 1 1012- ● ●
51 00.206 BOLT; GEAR CASE COVER 8-97354-697-1 14 1 1012- ● ●
54 00.206 COVER; GEAR CASE 8-98165-119-1 01 1 1012-1405 ● ●
54 00.206 COVER; GEAR CASE 8-98253-700-1 01 1 1406- ● ●
62 00.206 BOLT; COVER
03.162 (A) M6X20 FLANGE 		0-28650-620-0 04 1 1012- ●
62 00.206 BOLT; COVER
06.216 (B) M8X25 FLANGE 		0-28650-825-0 06 1 1012- ● ● ● ●
62 00.206 BOLT; COVER
03.403 (E) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ● ● ● ●
62 00.206 BOLT; COVER
01.060 (C) M8X35 FLANGE 		0-28650-835-0 06 1 1012- ● ● ● ●
62 00.206 BOLT; COVER
01.097 (D) M8X65 FLANGE 		1-09044-072-1 02 1 1012- ● ● ● ●
68 00.206 COVER ASM; GEAR CASE COVER 8-98009-466-3 01 1 1012-1409 ●
68 00.206 COVER ASM; GEAR CASE COVER 8-98245-226-0 01 1 1410- ●
79 00.219 BRACKET; GEAR CASE COVER
(A) 		8-97370-390-2 01 1 1012-1203 ● ●
79 00.219 BRACKET; GEAR CASE COVER
(B) 		8-98107-106-0 01 1 1204- ● ●
80 00.206 NUT; COVER
01.540 M6 FLANGE 		0-91180-206-0 02 1 1012- ● ●
81 00.206 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 		0-41010-616-0 02 1 1012- ● ●
81 00.206 STUD; GEAR CASE COVER FIX
00.413 (A) M8X30 L=48 		0-49140-830-0 02 1 1012- ● ●
98 00.206 NUT; STUD,INJ PUMP
01.540 M8 FLANGE 		0-91180-208-0 02 1 1012- ● ●
99 00.206 STUD; INJ PUMP
VIETNAM EQUIPMENT<CL0> 00.413 (A) M8X30 L=48 		0-49140-830-0 01 1 1105-1203 ●
99 00.206 STUD; INJ PUMP
VIETNAM EQUIPMENT<CL0> 00.413 (A) M8X30 L=48 		0-49140-830-0 02 1 1204- ●
99 00.206 STUD; INJ PUMP
VIETNAM EQUIPMENT<CL0> (B) M8X45 L=63 		0-49140-845-0 01 1 1105-1203 ●
99 00.206 STUD; INJ PUMP
(A) M8X30 L=41 		8-97369-449-0 01 1 1012-1104 ● ●
99 00.206 STUD; INJ PUMP
(A) M8X30 L=41 		8-97369-449-0 01 1 1105-1203 ●
99 00.206 STUD; INJ PUMP
EXC. VIETNAM EQUIPMENT<CL0> (A) M8X30 L=41 		8-97369-449-0 01 1 1105-1203 ●
99 00.206 STUD; INJ PUMP
(A) M8X30 L=41 		8-97369-449-0 02 1 1204-1510 ●
99 00.206 STUD; INJ PUMP
EXC. VIETNAM EQUIPMENT<CL0> (A) M8X30 L=41 		8-97369-449-0 02 1 1204-1510 ●
99 00.206 STUD; INJ PUMP
(A) M8X30 L=41 		8-98336-983-0 02 1 1511- ●
99 00.206 STUD; INJ PUMP
EXC. VIETNAM EQUIPMENT<CL0> (A) M8X30 L=41 		8-98336-983-0 02 1 1511- ●
99 00.206 STUD; INJ PUMP
(B) M8X45 L=56 		8-97369-450-0 01 1 1012-1104 ● ●
99 00.206 STUD; INJ PUMP
(B) M8X45 L=56 		8-97369-450-0 01 1 1105-1203 ●
99 00.206 STUD; INJ PUMP
EXC. VIETNAM EQUIPMENT<CL0> (B) M8X45 L=56 		8-97369-450-0 01 1 1105-1203 ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-98158-110-0 01 1 1012- ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=109 OD=137 		8-97329-780-0 01 1 1012- ● ● ● ●
123 00.206 COVER; TIMING,LWR 8-98158-145-0 01 1 1012- ● ●
124 00.206 BOLT; TIMING COVER
09.242 M6X16 FLANGE 		0-28050-616-0 03 1 1012- ● ●
133 00.206 NUT; TIMING GEAR CASE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1012- ● ●
134 00.669 STUD; TIMING GEAR CASE
02.510 M8X20 L=32 		0-41010-820-0 02 1 1012- ● ●
202 00.206 NUT; BRKT
01.540 M8 FLANGE 		0-91180-208-0 01 1 1204- ● ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ●
233 00.669 STUD; BRKT
03.275 M8X71 L=83 		8-98017-063-0 01 1 1204- ●
233 00.669 STUD; BRKT
EXC. VIETNAM EQUIPMENT<CL0> 03.275 M8X71 L=83 		8-98017-063-0 01 1 1204- ●
233 00.669 STUD; BRKT
VIETNAM EQUIPMENT<CL0> 03.275 M8X71 L=83 		8-97367-083-0 01 1 1204- ●
510 04.895 PUMP ASM; VACUUM 8-98241-234-0 01 1 1306-1311 ●
510 04.895 PUMP ASM; VACUUM 8-98251-764-0 01 1 1312- ● ●
510 04.895 PUMP ASM; VACUUM 8-98162-748-0 01 1 1012-1305 ● ●
510 04.895 PUMP ASM; VACUUM 8-98162-748-0 01 1 1306-1311 ●
510 04.895 PUMP ASM; VACUUM
03.306 		8-97388-589-6 01 1 1012- ● ●
512 04.895 RUBBER; SPACE 8-98165-120-0 01 1 1012-1012 ●
516 04.895 VANE; VAC PUMP 8-98051-275-0 03 1 1012- ● ●
516 04.895 VANE; VAC PUMP 8-98051-279-0 03 1 1012- ● ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98244-022-0 01 1 1306-1311 ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98251-769-0 01 1 1312- ● ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98049-522-0 01 1 1012-1305 ● ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98049-522-0 01 1 1306-1311 ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) 		9-09566-271-0 01 1 1012- ● ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		8-98051-280-0 01 1 1012- ● ●
518 04.895 BOLT; VAC PUMP
(A) 		8-98049-523-0 03 1 1012- ● ●
518 04.895 BOLT; VAC PUMP
01.531 (C) M6X25 W/LK&PL WASHER 		0-50640-625-0 03 1 1012- ● ●
518 04.895 BOLT; VAC PUMP
(B) M8X20 		8-98051-277-0 02 1 1012- ● ●
595 00.213 GASKET; VLV
(B) ID=12 		8-98018-518-0 01 1 1012- ● ● ● ●
595 00.213 GASKET; VLV
(A) ID=18 		8-98018-519-0 02 1 1012- ● ● ● ●
620 00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.40 1-NOTCH 		8-97328-828-2 01 1 1012- ● ●
620 00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.45 2-NOTCH 		8-97331-631-2 01 1 1012- ● ●
620 00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.50 3-NOTCH 		8-97331-632-2 01 1 1012- ● ●
621 00.207 NUT; VAC PUMP
01.540 M8 FLANGE 		0-91180-208-0 03 1 1012- ● ●
636 00.206 ROTOR & VANE ASM; VAC PUMP 8-98049-520-0 01 1 1012- ● ●
636 00.206 ROTOR & VANE ASM; VAC PUMP 8-98051-281-0 01 1 1012- ● ●

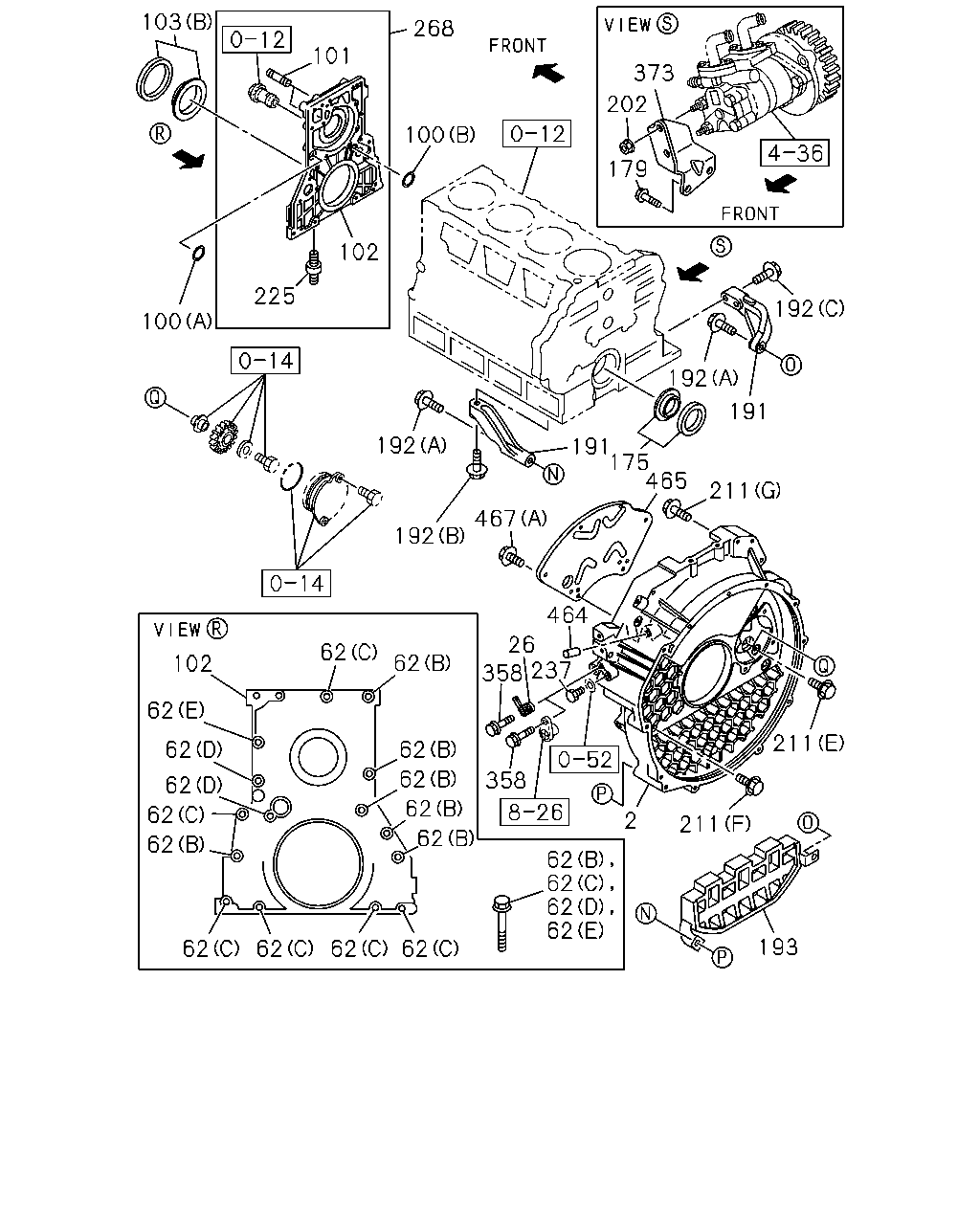

çizim 103383
103 101 268 100 102 225 100 192 192 467 464 26 358 237 358 211 62 62 62 62 62 62 62 62 102 62 62 62 62 62 62 62 62 62 62 62 2 211 193 211 465 175 191 192 191 192 179 202 373
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.683 HOUSING; FLYWHEEL 8-97364-899-6 01 1 1012- ● ●
2 00.683 HOUSING; FLYWHEEL 8-97381-492-3 01 1 1012-1310 ● ●
2 00.683 HOUSING; FLYWHEEL 8-98252-203-0 01 1 1311- ● ●
2 00.683 HOUSING; FLYWHEEL 8-97364-901-5 01 1 1012- ● ●
26 03.306 ADAPTER
EURO2 SPECIFICATION(NT2) 		8-97354-819-0 01 1 1012- ● ●
62 00.206 BOLT; COVER
03.162 (A) M6X20 FLANGE 		0-28650-620-0 04 1 1012- ●
62 00.206 BOLT; COVER
06.216 (B) M8X25 FLANGE 		0-28650-825-0 06 1 1012- ● ● ● ●
62 00.206 BOLT; COVER
03.403 (E) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ● ● ● ●
62 00.206 BOLT; COVER
01.060 (C) M8X35 FLANGE 		0-28650-835-0 06 1 1012- ● ● ● ●
62 00.206 BOLT; COVER
01.097 (D) M8X65 FLANGE 		1-09044-072-1 02 1 1012- ● ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 1012- ● ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 1012- ● ● ● ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 1201-1501 ● ●
101 01.073 STUD; WATER PUMP
EURO4 SPECIFICATION(NT4) 01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 1201-1501 ● ●
101 01.073 STUD; WATER PUMP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUD I ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 1201-1501 ● ●
101 01.073 STUD; WATER PUMP
EURO3 SPECIFICATION(NT3) ANTI EROSION SPEC<7XK> 01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 1201-1501 ● ●
101 01.073 STUD; WATER PUMP
01.428 M8X18 L=30 		0-41010-818-0 01 1 1502- ● ●
101 01.073 STUD; WATER PUMP
EURO4 SPECIFICATION(NT4) 01.428 M8X18 L=30 		0-41010-818-0 01 1 1502- ● ●
101 01.073 STUD; WATER PUMP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EGYPT EQUIPMENT(B09),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUDI ARABIA EQUIPMENT(GH3),UZBEKISTAN EQUIP MENT(JCW),CHILE EQUIPMENT(KE1) 01.428 M8X18 L=30 		0-41010-818-0 01 1 1502- ● ●
101 01.073 STUD; WATER PUMP
EURO3 SPECIFICATION(NT3) ANTI EROSION SPEC<7XK> 01.428 M8X18 L=30 		0-41010-818-0 01 1 1502- ● ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 1201-1501 ● ●
101 01.073 STUD; WATER PUMP
EURO4 SPECIFICATION(NT4) 00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 1201-1501 ● ●
101 01.073 STUD; WATER PUMP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUD I ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 1201-1501 ● ●
101 01.073 STUD; WATER PUMP
EURO3 SPECIFICATION(NT3) ANTI EROSION SPEC<7XK> 00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 1201-1501 ● ●
101 01.073 STUD; WATER PUMP
00.206 M8X18 L=29 		8-97028-541-0 01 1 1502- ● ●
101 01.073 STUD; WATER PUMP
EURO4 SPECIFICATION(NT4) 00.206 M8X18 L=29 		8-97028-541-0 01 1 1502- ● ●
101 01.073 STUD; WATER PUMP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EGYPT EQUIPMENT(B09),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUDI ARABIA EQUIPMENT(GH3),UZBEKISTAN EQUIP MENT(JCW),CHILE EQUIPMENT(KE1) 00.206 M8X18 L=29 		8-97028-541-0 01 1 1502- ● ●
101 01.073 STUD; WATER PUMP
EURO3 SPECIFICATION(NT3) ANTI EROSION SPEC<7XK> 00.206 M8X18 L=29 		8-97028-541-0 01 1 1502- ● ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 1012-1112 ● ● ● ●
101 01.073 STUD; WATER PUMP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. ANTI EROSION SPEC<7XK> 01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 1201-1501 ● ●
101 01.073 STUD; WATER PUMP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. EGYPT EQUIPMENT(B09),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SA UDI ARABIA EQUIPMENT(GH3),UZBEKISTAN EQUIPMENT(JCW),CHILE EQUIPMENT(KE1) 01.428 M8X18 L=30 		0-41010-818-0 02 1 1502- ● ●
101 01.073 STUD; WATER PUMP
EURO3 SPECIFICATION(NT3) EXC. ANTI EROSION SPEC<7XK> 01.428 M8X18 L=30 		0-41010-818-0 02 1 1502- ● ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 1012-1112 ● ● ● ●
101 01.073 STUD; WATER PUMP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. ANTI EROSION SPEC<7XK> 00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 1201-1501 ● ●
101 01.073 STUD; WATER PUMP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. EGYPT EQUIPMENT(B09),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SA UDI ARABIA EQUIPMENT(GH3),UZBEKISTAN EQUIPMENT(JCW),CHILE EQUIPMENT(KE1) 00.206 M8X18 L=29 		8-97028-541-0 02 1 1502- ● ●
101 01.073 STUD; WATER PUMP
EURO3 SPECIFICATION(NT3) EXC. ANTI EROSION SPEC<7XK> 00.206 M8X18 L=29 		8-97028-541-0 02 1 1502- ● ●
102 00.137 RETAINER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-2 01 1 1201- ●
102 00.137 RETAINER; FRT 8-98039-932-2 01 1 1201- ●
102 00.137 RETAINER; FRT
EURO4 SPECIFICATION(NT4) 		8-98039-932-2 01 1 1201- ● ●
102 00.137 RETAINER; FRT
ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 1012-1111 ●
102 00.137 RETAINER; FRT
EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14), SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPME NT(KE1) 		8-98081-351-1 01 1 1012-1111 ● ●
102 00.137 RETAINER; FRT
ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 1112- ●
102 00.137 RETAINER; FRT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 1112- ● ●
102 00.137 RETAINER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-1 01 1 1012-1112 ● ● ●
102 00.137 RETAINER; FRT 8-98039-932-1 01 1 1012-1112 ●
102 00.137 RETAINER; FRT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-2 01 1 1201-1501 ● ●
102 00.137 RETAINER; FRT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. EGYPT EQUIPMENT(B09),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SA UDI ARABIA EQUIPMENT(GH3),UZBEKISTAN EQUIPMENT(JCW),CHILE EQUIPMENT(KE1) 		8-98039-932-2 02 1 1502- ● ●
102 00.137 RETAINER; FRT
EURO3 SPECIFICATION(NT3) EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-2 02 1 1502- ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-98158-110-0 01 1 1012- ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=109 OD=137 		8-97329-780-0 01 1 1012- ● ● ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 1012- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1012- ● ● ● ●
179 00.206 BOLT; BRKT
SAUDI ARABIA EQUIPMENT(GH3) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 00.004 M10X18 FLANGE 		0-28181-018-0 02 1 1012- ● ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.417 M10X20 FLANGE 		0-28151-020-0 02 1 1012- ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 1012- ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 1012-1106 ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 1107- ● ● ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28151-250-0 01 1 1107- ●
192 00.206 BOLT; STAY TO HSG
09.171 (C) M10X40 FLANGE 		0-28151-040-0 02 1 1012- ● ●
192 00.206 BOLT; STAY TO HSG
02.510 (B) M12X100 FLANGE 		0-28151-200-0 01 1 1012-1106 ● ●
192 00.206 BOLT; STAY TO HSG
02.510 (B) M12X100 FLANGE 		0-28151-200-0 01 1 1107- ● ● ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28151-250-0 02 1 1012- ● ●
193 01.428 SPACER; STAY TO OIL,PAN 8-97259-536-0 01 1 1012- ● ●
202 00.206 NUT; BRKT
01.540 M8 FLANGE 		0-91180-208-0 01 1 1204- ● ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ●
211 00.669 BOLT; HSG
VIETNAM EQUIPMENT<CL0> 00.683 (B) M12X25 		8-97916-324-1 03 1 1201- ●
211 00.669 BOLT; HSG
HYDRO BRAKE BOOSTER(7QQ) (D) M8X20,M8X65 L=90 		8-97200-622-1 02 1 1012-1101 ● ●
211 00.669 BOLT; HSG
HYDRO BRAKE BOOSTER(7QQ) (D) M8X20,M8X65 L=90 		8-97200-622-1 02 1 1102- ●
211 00.669 BOLT; HSG
(D) M8X20,M8X65 L=90 		8-97200-622-1 02 1 1102- ●
211 00.669 BOLT; HSG
(F) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 09 1 1012-1102 ● ●
211 00.669 BOLT; HSG
(F) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 09 1 1103- ● ●
211 00.669 BOLT; HSG
(E) M12X30 FLANGE 		8-97135-419-0 01 1 1012- ● ●
211 00.669 BOLT; HSG
EXC. HYDRO BRAKE BOOSTER(7QQ) (D) M8X65 W/PL WASHER 		8-94388-781-0 02 1 1012-1405 ● ●
211 00.669 BOLT; HSG
EXC. HYDRO BRAKE BOOSTER(7QQ) (D) M8X65 W/PL WASHER 		8-94388-781-0 02 1 1406- ●
211 00.669 BOLT; HSG
09.003 (A) M12X35 FLANGE 		0-28651-235-0 06 1 1012- ● ●
211 00.669 BOLT; HSG
00.683 (B) M12X25 		5-09000-227-0 03 1 1012-1112 ● ●
211 00.669 BOLT; HSG
00.683 (B) M12X25 		5-09000-227-0 03 1 1201- ●
211 00.669 BOLT; HSG
EXC. VIETNAM EQUIPMENT<CL0> 00.683 (B) M12X25 		5-09000-227-0 03 1 1201- ●
211 00.669 BOLT; HSG
00.862 (C) M10X43 		9-09606-535-0 01 1 1012- ● ●
211 00.669 BOLT; HSG
00.029 (G) M10X40 FLANGE 		0-28751-040-0 01 1 1012- ● ● ● ●
211 00.669 BOLT; HSG
(F) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 1012-1102 ● ●
211 00.669 BOLT; HSG
(F) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1103- ● ●
211 00.669 BOLT; HSG
(E) M12X30 FLANGE 		8-97135-419-0 02 1 1012- ● ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1012-1012 ● ● ● ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1101- ● ●
225 01.428 STUD; OIL PAN
EURO4 SPECIFICATION(NT4) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1101- ● ●
237 00.686 PLUG; FLYWHEEL HSG
06.225 M10X12 FLANGE 		0-28051-012-0 01 1 1012- ● ●
268 00.206 COVER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-931-1 01 1 1108-1112 ●
268 00.206 COVER; FRT 8-98039-931-1 01 1 1108-1112 ●
268 00.206 COVER; FRT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUD I ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 		8-98096-851-1 01 1 1101-1111 ● ●
268 00.206 COVER; FRT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUD I ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 		8-98096-851-1 01 1 1112-1501 ● ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98096-851-1 01 1 1112-1501 ● ●
268 00.206 COVER; FRT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EGYPT EQUIPMENT(B09),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUDI ARABIA EQUIPMENT(GH3),UZBEKISTAN EQUIP MENT(JCW),CHILE EQUIPMENT(KE1) 		8-98096-851-1 01 1 1502- ● ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98096-851-1 01 1 1502- ● ●
268 00.206 COVER; FRT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14) ,SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 		8-97148-937-2 01 1 1101-1106 ● ●
268 00.206 COVER; FRT 8-97148-937-2 01 1 1107-1111 ● ● ● ●
268 00.206 COVER; FRT 8-97148-937-3 01 1 1112-1501 ● ●
268 00.206 COVER; FRT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) ANTI EROSION SPEC<7XK> 		8-97148-937-3 01 1 1112-1501 ● ●
268 00.206 COVER; FRT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. EGYPT EQUIPMENT(B09),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SA UDI ARABIA EQUIPMENT(GH3),UZBEKISTAN EQUIPMENT(JCW),CHILE EQUIPMENT(KE1) 		8-97148-937-3 02 1 1502- ● ●
268 00.206 COVER; FRT
EURO3 SPECIFICATION(NT3) EXC. ANTI EROSION SPEC<7XK> 		8-97148-937-3 02 1 1502- ● ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98079-080-1 01 1 1012-1012 ●
268 00.206 COVER; FRT
EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14), SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPME NT(KE1) 		8-98079-080-1 01 1 1012-1012 ● ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98079-080-1 01 1 1101- ●
268 00.206 COVER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-931-1 01 1 1012-1012 ● ● ●
268 00.206 COVER; FRT 8-98039-931-1 01 1 1012-1012 ●
268 00.206 COVER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-931-1 01 1 1101-1107 ●
268 00.206 COVER; FRT 8-98039-931-1 01 1 1101-1107 ●
268 00.206 COVER; FRT
EURO4 SPECIFICATION(NT4) 		8-98039-931-1 01 1 1101-1107 ● ●
268 00.206 COVER; FRT
EURO4 SPECIFICATION(NT4) 		8-98039-931-1 01 1 1108-1112 ● ●
268 00.206 COVER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-931-2 01 1 1201- ●
268 00.206 COVER; FRT 8-98039-931-2 01 1 1201- ●
268 00.206 COVER; FRT
EURO4 SPECIFICATION(NT4) 		8-98039-931-2 01 1 1201- ● ●
358 00.206 BOLT; ADAPTER
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1012- ● ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER(7QQ) 		8-97149-333-0 01 1 1012- ● ● ● ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 1012- ● ● ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-824-1 01 1 1012- ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 1012- ● ●
467 00.686 BOLT; PLATE
06.321 (A) M6X10 		8-98030-649-0 06 1 1012- ● ● ● ●
467 00.686 BOLT; PLATE
04.895 (B) 		8-98049-523-0 02 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
