Sayfa 0-15 - Isuzu EPC

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#39564) — 205 parça

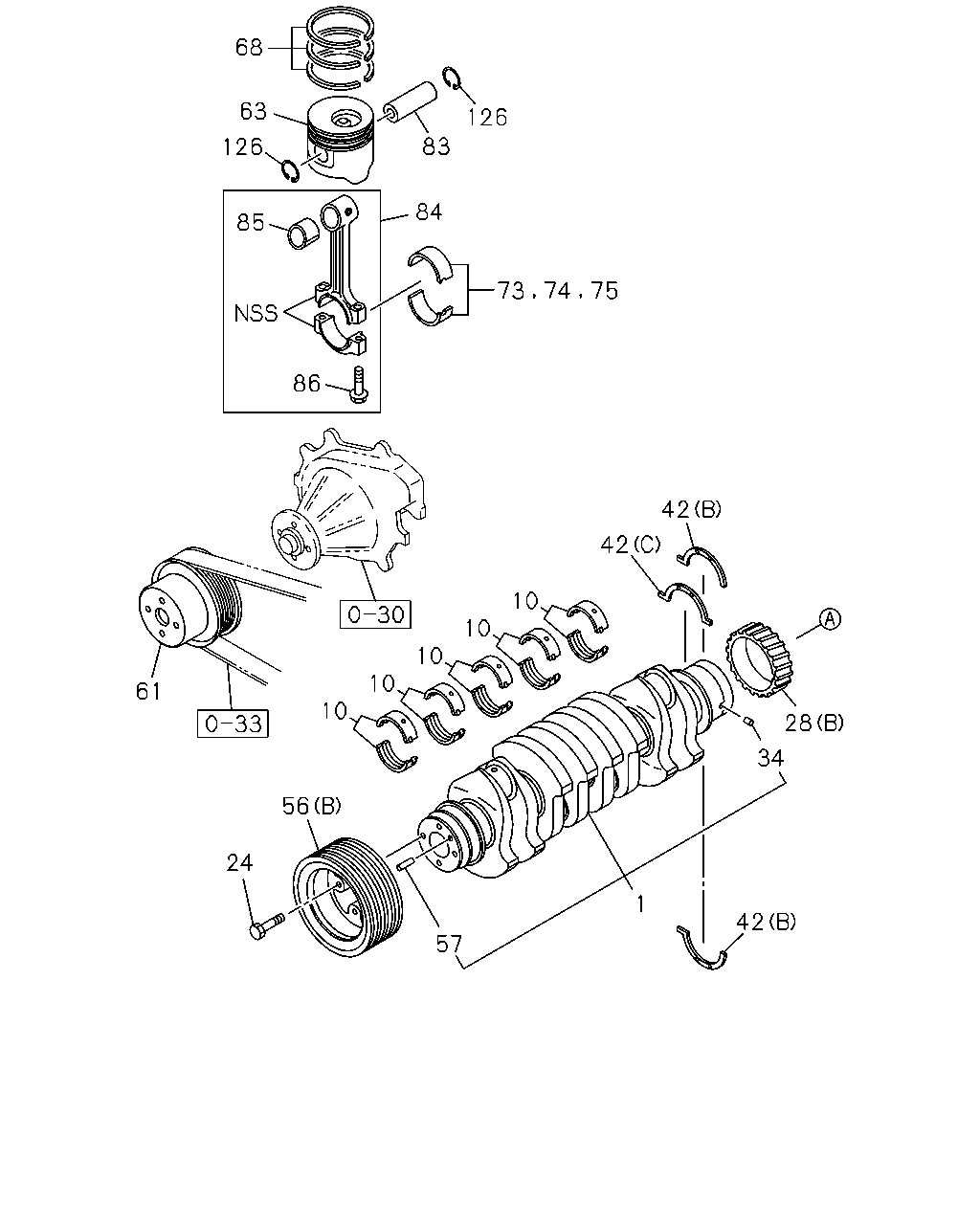

68 63 126 83 126 84 85 73 74 75 86 10 10 10 10 10 61 56 24 57 1 42 34 28 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.646 CRANKSHAFT VIETNAM EQUIPMENT<CL0>	8-98182-878-1	01	1	1105-	●
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	1012-		●	●
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1012-1104	●			●
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1105-1409				●
1	00.646 CRANKSHAFT EXC. VIETNAM EQUIPMENT<CL0>	8-98154-950-2	01	1	1105-1409	●
1	00.646 CRANKSHAFT	8-98273-590-0	01	1	1410-				●
1	00.646 CRANKSHAFT EXC. VIETNAM EQUIPMENT<CL0>	8-98273-590-0	01	1	1410-	●
1	00.646 CRANKSHAFT	8-98029-270-0	01	1	1012-					●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	1012-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	1012-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	1012-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	1012-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	1012-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	1012-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	1012-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1012-		●	●		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1012-		●	●		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1012-		●	●		●	●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	1012-		●	●		●	●
28	00.728 GEAR; CR/SHF (B) Z=42	8-97109-626-1	01	1	1012-		●	●
28	00.728 GEAR; CR/SHF (A) Z=44	8-98154-945-1	01	1	1012-	●			●
28	00.728 GEAR; CR/SHF (B) Z=42	8-94394-342-4	01	1	1012-					●	●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	02	1	1012-		●	●
34	00.738 PIN; GEAR SETTING OD=5 L=10	9-08160-510-0	01	1	1012-	●			●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1012-					●	●
42	00.095 WASHER; THRUST,CR/SHF VIETNAM EQUIPMENT<CL0> (A)	8-97354-055-1	02	1	1105-	●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-98040-704-0	02	1	1012-1104	●			●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-98040-704-0	02	1	1105-				●
42	00.095 WASHER; THRUST,CR/SHF EXC. VIETNAM EQUIPMENT<CL0> (A)	8-98040-704-0	02	1	1105-	●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-97386-548-0	01	1	1012-		●	●		●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1012-		●	●		●	●
56	00.659 PULLEY; CR/SHF DAMPER (B) 4-GROOVE	8-97222-031-3	01	1	1012-		●	●
56	00.659 PULLEY; CR/SHF DAMPER (A) 2-GROOVE	8-98154-943-1	01	1	1012-	●			●
56	00.659 PULLEY; CR/SHF DAMPER (B) 3-GROOVE	8-98004-024-3	01	1	1012-					●	●
57	00.662 PIN; PULLEY 00.862 OD=8 L=20	9-08150-820-0	04	1	1012-		●	●
57	00.662 PIN; PULLEY 00.862 OD=8 L=20	9-08150-820-0	02	1	1012-					●	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	1012-		●	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	1012-	●			●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	1012-					●	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97219-032-1	04	1	1012-1112		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-745-0	04	1	1201-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-1	04	1	1012-1112			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-746-0	04	1	1201-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-98043-703-0	04	1	1012-	●			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-98043-704-0	04	1	1012-	●			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-98043-705-0	04	1	1012-	●			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	04	1	1012-1501					●	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	08	1	1502-					●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	1012-		●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98053-579-0	04	1	1012-1105	●			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98185-780-0	04	1	1106-	●			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1012-					●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	1012-		●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	1012-		●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1012-	●			●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1012-					●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1012-					●	●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	1012-1405		●	●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	08	1	1406-		●	●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	1012-1405		●	●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	08	1	1406-		●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. VIETNAM EQUIPMENT<CL0>	8-98150-333-0	04	1	1105-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	1012-		●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1012-1104	●			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1105-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. VIETNAM EQUIPMENT<CL0>	8-98015-193-1	04	1	1105-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1012-					●	●
84	00.603 ROD ASM; CONN VIETNAM EQUIPMENT<CL0>	8-97357-716-3	04	1	1105-	●
84	00.603 ROD ASM; CONN	8-97135-032-6	04	1	1012-		●	●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	1012-1104	●			●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	1105-				●
84	00.603 ROD ASM; CONN EXC. VIETNAM EQUIPMENT<CL0>	8-97388-921-2	04	1	1105-	●
84	00.603 ROD ASM; CONN	8-98018-425-3	04	1	1012-					●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	04	1	1012-		●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1012-	●			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1012-					●	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1012-	●			●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1012-		●	●		●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	08	1	1012-		●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1012-	●			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1012-					●	●

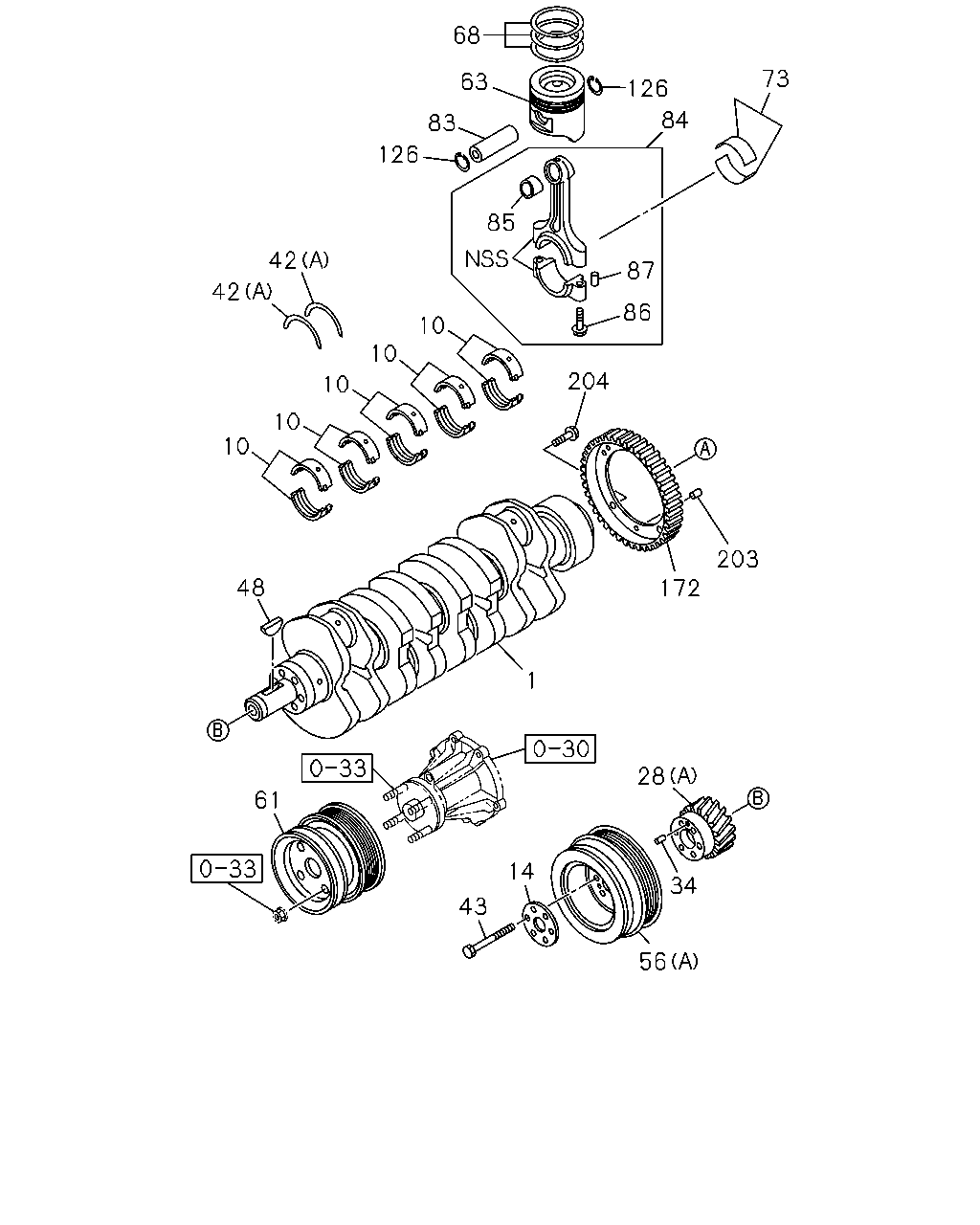

203 172 1 34 28 14 43 56 61 48 10 10 10 10 10 204 87 86 84 73 126 68 63 83 126 42 42 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.646 CRANKSHAFT VIETNAM EQUIPMENT<CL0>	8-98182-878-1	01	1	1105-	●
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	1012-		●	●
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1012-1104	●			●
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1105-1409				●
1	00.646 CRANKSHAFT EXC. VIETNAM EQUIPMENT<CL0>	8-98154-950-2	01	1	1105-1409	●
1	00.646 CRANKSHAFT	8-98273-590-0	01	1	1410-				●
1	00.646 CRANKSHAFT EXC. VIETNAM EQUIPMENT<CL0>	8-98273-590-0	01	1	1410-	●
1	00.646 CRANKSHAFT	8-98029-270-0	01	1	1012-					●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	1012-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	1012-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	1012-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	1012-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	1012-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	1012-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	1012-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1012-		●	●		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1012-		●	●		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1012-		●	●		●	●
14	00.662 WASHER; PULLEY DAMPER ID=23 OD=72 T=3	8-98165-125-0	01	1	1012-	●			●
28	00.728 GEAR; CR/SHF (B) Z=42	8-97109-626-1	01	1	1012-		●	●
28	00.728 GEAR; CR/SHF (A) Z=44	8-98154-945-1	01	1	1012-	●			●
28	00.728 GEAR; CR/SHF (B) Z=42	8-94394-342-4	01	1	1012-					●	●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	02	1	1012-		●	●
34	00.738 PIN; GEAR SETTING OD=5 L=10	9-08160-510-0	01	1	1012-	●			●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1012-					●	●
42	00.095 WASHER; THRUST,CR/SHF VIETNAM EQUIPMENT<CL0> (A)	8-97354-055-1	02	1	1105-	●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-98040-704-0	02	1	1012-1104	●			●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-98040-704-0	02	1	1105-				●
42	00.095 WASHER; THRUST,CR/SHF EXC. VIETNAM EQUIPMENT<CL0> (A)	8-98040-704-0	02	1	1105-	●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-97386-548-0	01	1	1012-		●	●		●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1012-		●	●		●	●
43	00.662 BOLT; CR/SHF PULLEY M10X90	8-98165-234-1	06	1	1012-	●			●
48	00.662 KEY; WOODRUFF,CR/SHF 00.729	8-94201-641-0	01	1	1012-	●			●
56	00.659 PULLEY; CR/SHF DAMPER (B) 4-GROOVE	8-97222-031-3	01	1	1012-		●	●
56	00.659 PULLEY; CR/SHF DAMPER (A) 2-GROOVE	8-98154-943-1	01	1	1012-	●			●
56	00.659 PULLEY; CR/SHF DAMPER (B) 3-GROOVE	8-98004-024-3	01	1	1012-					●	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	1012-		●	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	1012-	●			●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	1012-					●	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97219-032-1	04	1	1012-1112		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-745-0	04	1	1201-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-1	04	1	1012-1112			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-746-0	04	1	1201-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-98043-703-0	04	1	1012-	●			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-98043-704-0	04	1	1012-	●			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-98043-705-0	04	1	1012-	●			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	04	1	1012-1501					●	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	08	1	1502-					●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	1012-		●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98053-579-0	04	1	1012-1105	●			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98185-780-0	04	1	1106-	●			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1012-					●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	1012-		●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	1012-		●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1012-	●			●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1012-					●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1012-					●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. VIETNAM EQUIPMENT<CL0>	8-98150-333-0	04	1	1105-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	1012-		●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1012-1104	●			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1105-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. VIETNAM EQUIPMENT<CL0>	8-98015-193-1	04	1	1105-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1012-					●	●
84	00.603 ROD ASM; CONN VIETNAM EQUIPMENT<CL0>	8-97357-716-3	04	1	1105-	●
84	00.603 ROD ASM; CONN	8-97135-032-6	04	1	1012-		●	●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	1012-1104	●			●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	1105-				●
84	00.603 ROD ASM; CONN EXC. VIETNAM EQUIPMENT<CL0>	8-97388-921-2	04	1	1105-	●
84	00.603 ROD ASM; CONN	8-98018-425-3	04	1	1012-					●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	04	1	1012-		●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1012-	●			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1012-					●	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1012-	●			●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1012-		●	●		●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	1012-	●			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	08	1	1012-		●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1012-	●			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1012-					●	●
172	02.383 ROTOR; CRANK SENSOR VIETNAM EQUIPMENT<CL0>	8-97312-337-0	01	1	1105-	●
172	02.383 ROTOR; CRANK SENSOR	8-97312-337-0	01	1	1012-1101	●			●
172	02.383 ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1102-1104	●			●
172	02.383 ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1105-				●
172	02.383 ROTOR; CRANK SENSOR EXC. VIETNAM EQUIPMENT<CL0>	8-98163-693-0	01	1	1105-	●
203	01.150 PIN; ROTOR 00.613 OD=5 L=8	9-08160-508-0	01	1	1012-	●			●
204	01.150 BOLT; ROTOR VIETNAM EQUIPMENT<CL0>	8-97944-142-1	03	1	1105-	●
204	01.150 BOLT; ROTOR 02.383 M6X10	8-98038-343-0	03	1	1012-1104	●			●
204	01.150 BOLT; ROTOR 02.383 M6X10	8-98038-343-0	03	1	1105-				●
204	01.150 BOLT; ROTOR EXC. VIETNAM EQUIPMENT<CL0> 02.383 M6X10	8-98038-343-0	03	1	1105-	●

218 100 38 40 12 100 38 40 12 35 38 49 40

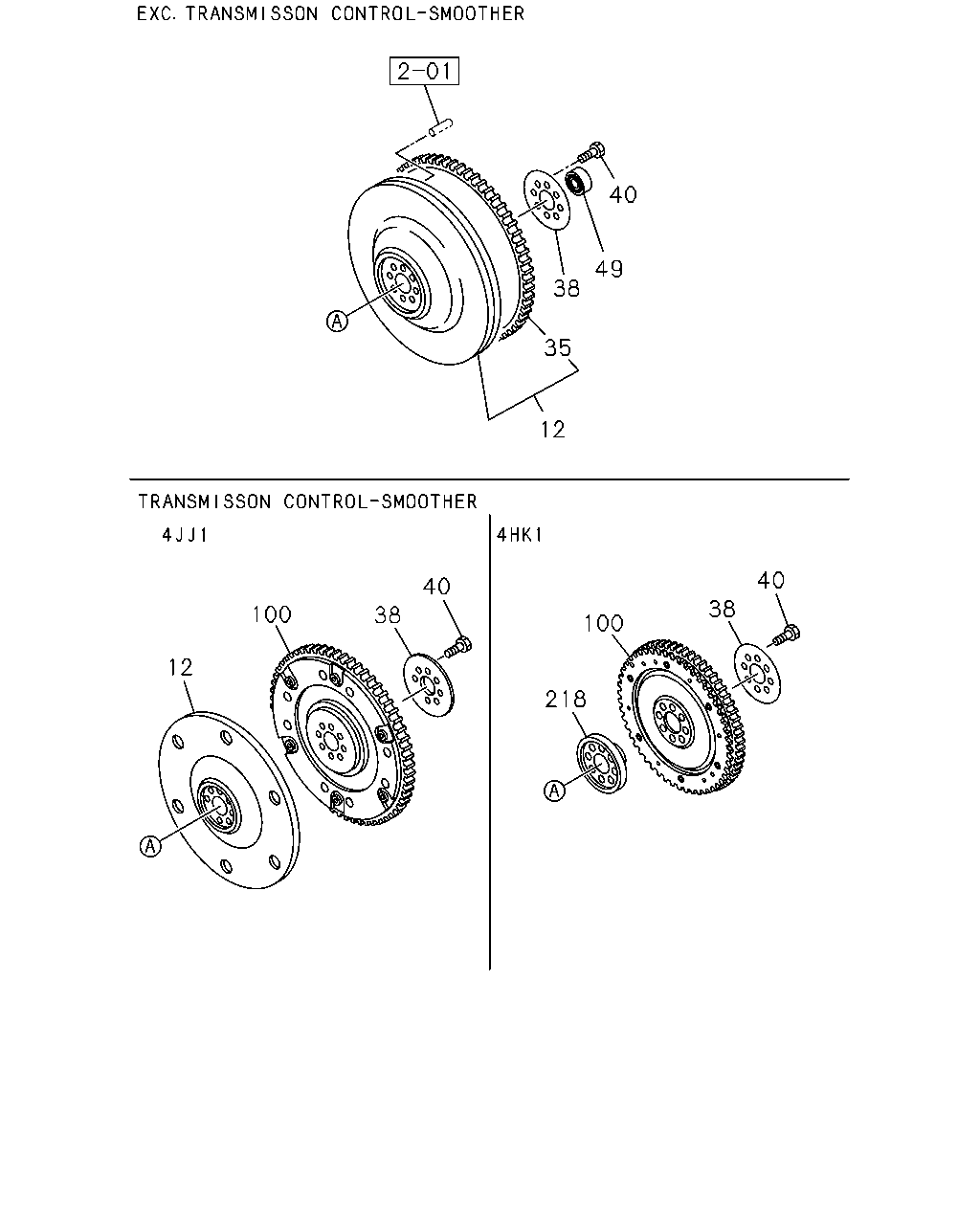

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	00.666 FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-611-0	01	1	1303-	●
12	00.666 FLYWHEEL	8-97330-892-1	01	1	1012-		●	●
12	00.666 FLYWHEEL	8-98148-063-1	01	1	1012-1306	●			●
12	00.666 FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98148-063-1	01	1	1307-	●			●
12	00.666 FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97326-227-2	01	1	1012-					●	●
35	00.673 GEAR; RING Z=138	8-97046-366-1	01	1	1012-1306	●	●	●	●
35	00.673 GEAR; RING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=138	8-97046-366-1	01	1	1012-1306					●	●
35	00.673 GEAR; RING Z=138	8-97046-366-1	01	1	1307-		●	●	●
35	00.673 GEAR; RING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=138	8-97046-366-1	01	1	1307-	●				●	●
38	00.862 WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97386-162-2	01	1	1303-	●
38	00.862 WASHER; FLYWHEEL VIETNAM EQUIPMENT<CL0> 00.669	8-94133-970-1	01	1	1105-	●
38	00.862 WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) ID=50 OD=140	8-98176-366-0	01	1	1012-					●	●
38	00.862 WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1012-1104	●			●
38	00.862 WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1105-1306				●
38	00.862 WASHER; FLYWHEEL EXC. VIETNAM EQUIPMENT<CL0> ID=50.5 OD=97	8-98171-700-0	01	1	1105-1306	●
38	00.862 WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1307-				●
38	00.862 WASHER; FLYWHEEL EXC. VIETNAM EQUIPMENT<CL0>, TRANSMISSION CONTROL-SMOOTHER(8GF) ID=50.5 OD=97	8-98171-700-0	01	1	1307-	●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1012-		●	●
38	00.862 WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=55 OD=110	8-94397-496-1	01	1	1012-					●	●
40	00.669 BOLT; FLYWHEEL VIETNAM EQUIPMENT<CL0> M13X36	8-97941-069-0	08	1	1105-1202	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	1012-1104	●			●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	1105-1202				●
40	00.669 BOLT; FLYWHEEL EXC. VIETNAM EQUIPMENT<CL0> M13X45	8-94418-050-0	08	1	1105-1202	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	1203-	●			●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	1012-		●	●		●	●
49	00.669 BEARING; PILOT	8-97325-153-0	01	1	1012-1306	●			●
49	00.669 BEARING; PILOT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97325-153-0	01	1	1307-	●			●
49	00.669 BEARING; PILOT	8-97258-239-0	01	1	1012-		●	●
49	00.669 BEARING; PILOT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97258-239-0	01	1	1012-					●	●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-166-0	01	1	1012-1306	●			●
49	00.669 BEARING; PILOT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS	5-87610-166-0	01	1	1307-	●			●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	1012-		●	●
49	00.669 BEARING; PILOT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-164-0	01	1	1012-					●	●
100	00.666 PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-612-1	01	1	1303-	●
100	00.666 PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97362-336-3	01	1	1012-					●	●
218	00.662 SPACER; CRANK END TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97332-858-1	01	1	1012-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
