Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#39563) — 466 parça

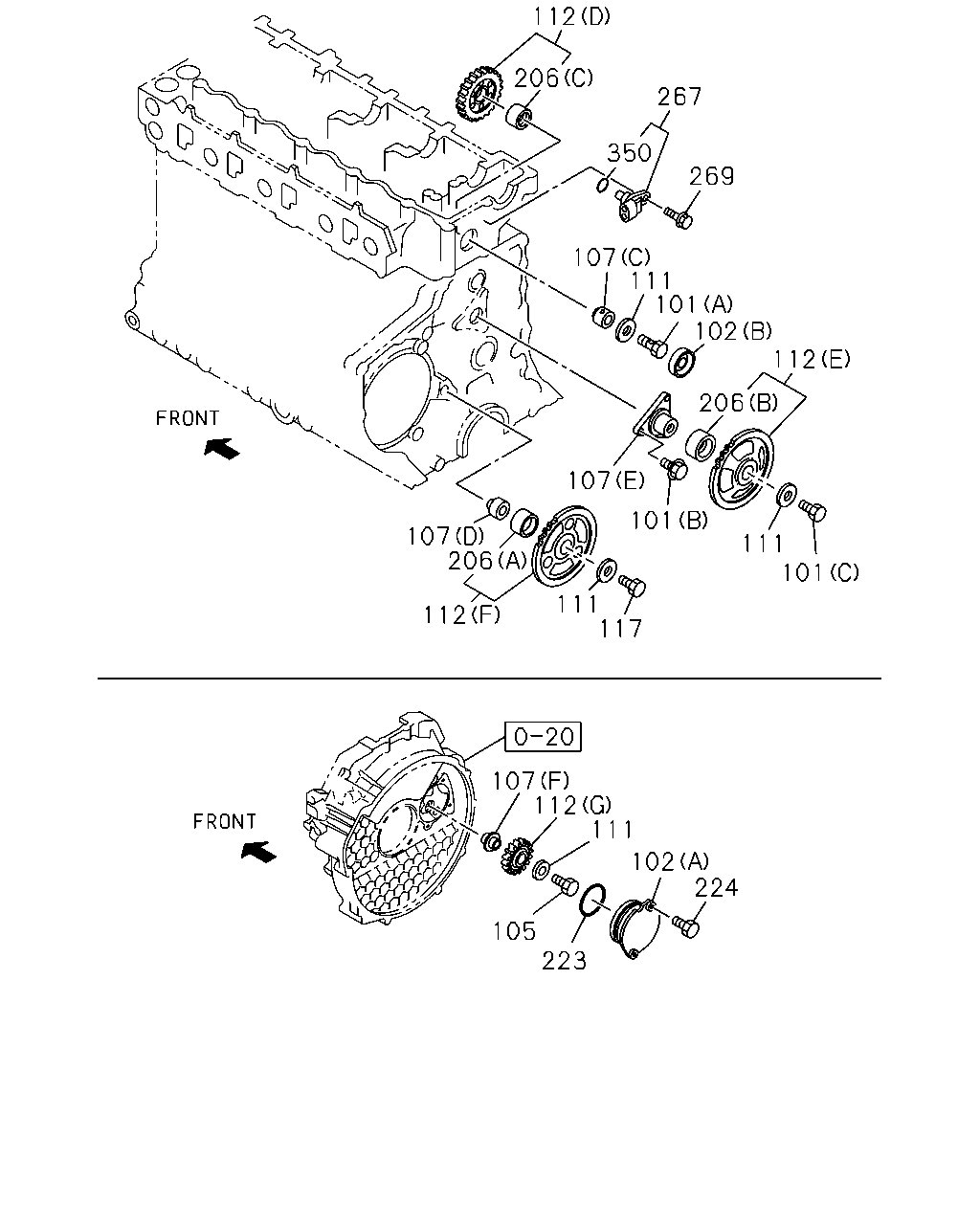

112 206 267 350 269 107 111 101 102 112 206 107 101 107 206 111 101 111 117 112 107 112 111 102 224 105 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1012-	●	●	●	●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	1012-	●	●	●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	1012-1310	●	●	●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-	●	●	●	●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	1012-	●	●	●	●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	1012-	●	●	●	●
105	00.724 BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	1012-	●	●	●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-97312-315-2	01	1	1012-					●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-322-1	01	1	1012-					●	●
107	00.724 SHAFT; IDLE GEAR EURO4 SPECIFICATION(NT4) (C)	8-97606-990-1	01	1	1012-		●		●
107	00.724 SHAFT; IDLE GEAR (F)	8-94334-682-1	01	1	1012-	●	●	●	●
107	00.724 SHAFT; IDLE GEAR (E)	8-97350-021-0	01	1	1012-	●	●	●	●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	1012-	●	●	●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97186-398-1	01	1	1012-	●		●
107	00.724 SHAFT; IDLE GEAR EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-97186-398-1	01	1	1012-		●		●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	1012-	●	●	●	●
112	00.724 GEAR; IDLE VIETNAM EQUIPMENT<CL0> (A) Z=80	8-98021-050-2	01	1	1105-						●
112	00.724 GEAR; IDLE VIETNAM EQUIPMENT<CL0> (B) Z=34	8-98021-052-1	01	1	1105-						●
112	00.724 GEAR; IDLE (E) Z=61	8-97094-546-2	01	1	1012-	●
112	00.724 GEAR; IDLE (D) Z=41	8-97112-607-1	01	1	1012-	●
112	00.724 GEAR; IDLE (F) Z=72-30	8-97227-074-0	01	1	1012-	●
112	00.724 GEAR; IDLE (E) Z=122	8-97088-053-2	01	1	1012-			●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-2	01	1	1012-			●
112	00.724 GEAR; IDLE (F) Z=72-60	8-97227-213-0	01	1	1012-			●
112	00.724 GEAR; IDLE (A) Z=80	8-97381-516-1	01	1	1012-1104					●	●
112	00.724 GEAR; IDLE (A) Z=80	8-97381-516-1	01	1	1105-1311					●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT<CL0> (A) Z=80	8-97381-516-1	01	1	1105-1311						●
112	00.724 GEAR; IDLE (A) Z=80	8-98232-105-1	01	1	1312-					●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT<CL0> (A) Z=80	8-98232-105-1	01	1	1312-						●
112	00.724 GEAR; IDLE (B) Z=34	8-97381-518-0	01	1	1012-1104					●	●
112	00.724 GEAR; IDLE (B) Z=34	8-97381-518-0	01	1	1105-					●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT<CL0> (B) Z=34	8-97381-518-0	01	1	1105-						●
112	00.724 GEAR; IDLE (C) Z=35	8-97381-520-3	01	1	1012-					●	●
112	00.724 GEAR; IDLE EURO4 SPECIFICATION(NT4) (D) Z=41	8-98058-320-1	01	1	1012-		●		●
112	00.724 GEAR; IDLE (G) Z=34	8-97120-005-1	01	1	1012-	●	●	●	●
112	00.724 GEAR; IDLE (F) Z=72-60-30	8-97600-586-1	01	1	1012-1402		●		●
112	00.724 GEAR; IDLE (F) Z=72-60-30	8-98254-970-0	01	1	1403-		●		●
112	00.724 GEAR; IDLE (E) Z=61	8-97606-767-0	01	1	1012-		●		●
112	00.724 GEAR; IDLE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) Z=41	8-97606-929-0	01	1	1012-		●		●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	1012-	●	●	●	●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	1012-	●		●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-028-0	01	1	1012-1402		●		●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1403-		●		●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	1012-	●	●	●	●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	1012-	●	●	●	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	1012-	●	●	●	●
224	00.724 BOLT; COVER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-	●	●	●	●
267	00.724 SENSOR; CAM ANGLE	8-98019-024-0	01	1	1012-		●		●
269	00.685 BOLT; SENSOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-		●		●
350	00.724 GASKET; SENSOR,CAM ANGLE ID=14.2 OD=18.8	8-97369-404-0	01	1	1012-		●		●

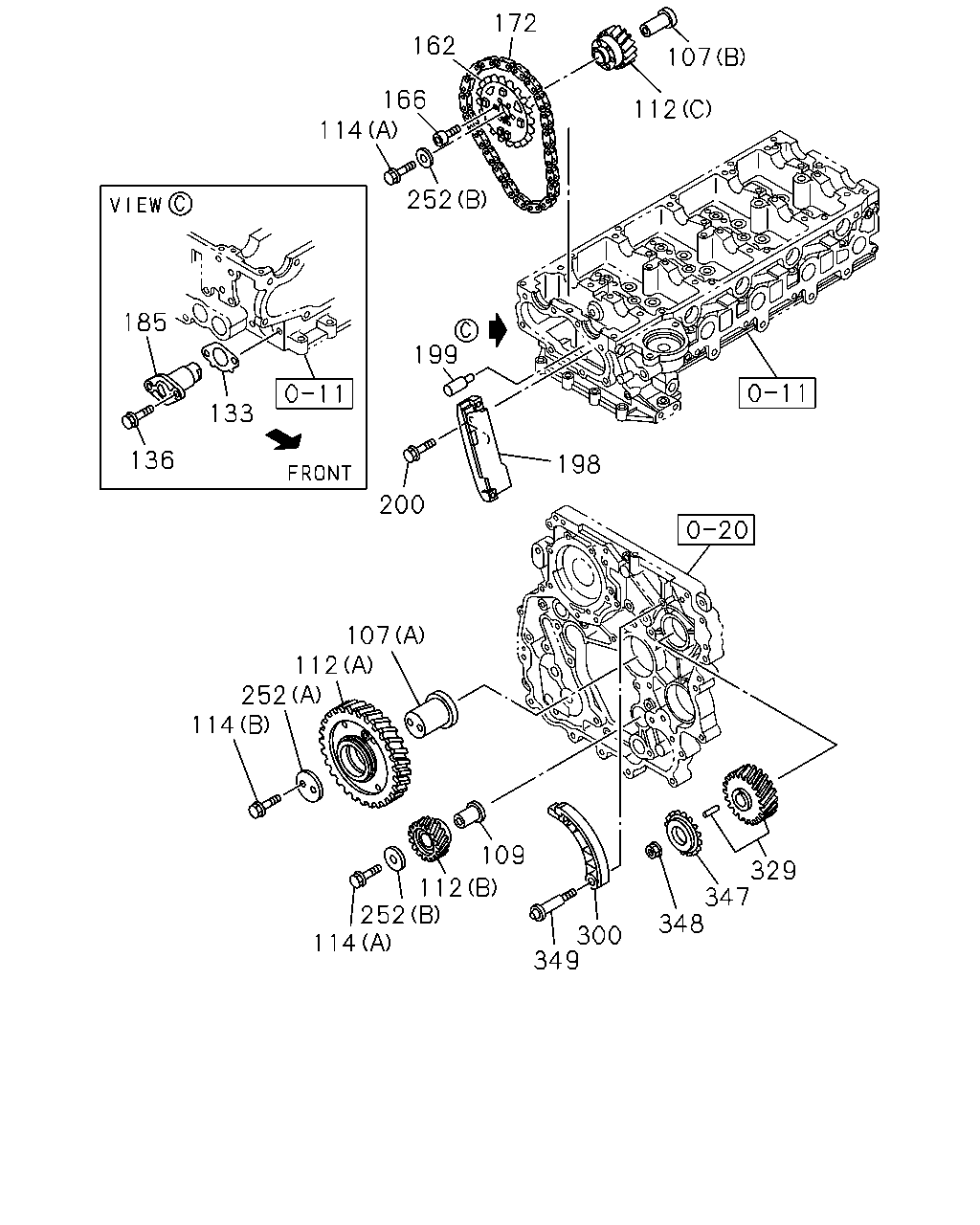

198 200 199 252 166 114 162 172 107 112 329 347 348 300 349 112 252 114 109 107 112 252 114 133 136 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
107	00.724 SHAFT; IDLE GEAR (A)	8-97312-315-2	01	1	1012-					●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-322-1	01	1	1012-					●	●
107	00.724 SHAFT; IDLE GEAR EURO4 SPECIFICATION(NT4) (C)	8-97606-990-1	01	1	1012-		●		●
107	00.724 SHAFT; IDLE GEAR (F)	8-94334-682-1	01	1	1012-	●	●	●	●
107	00.724 SHAFT; IDLE GEAR (E)	8-97350-021-0	01	1	1012-	●	●	●	●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	1012-	●	●	●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97186-398-1	01	1	1012-	●		●
107	00.724 SHAFT; IDLE GEAR EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-97186-398-1	01	1	1012-		●		●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	1012-					●	●
112	00.724 GEAR; IDLE VIETNAM EQUIPMENT<CL0> (A) Z=80	8-98021-050-2	01	1	1105-						●
112	00.724 GEAR; IDLE VIETNAM EQUIPMENT<CL0> (B) Z=34	8-98021-052-1	01	1	1105-						●
112	00.724 GEAR; IDLE (E) Z=61	8-97094-546-2	01	1	1012-	●
112	00.724 GEAR; IDLE (D) Z=41	8-97112-607-1	01	1	1012-	●
112	00.724 GEAR; IDLE (F) Z=72-30	8-97227-074-0	01	1	1012-	●
112	00.724 GEAR; IDLE (E) Z=122	8-97088-053-2	01	1	1012-			●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-2	01	1	1012-			●
112	00.724 GEAR; IDLE (F) Z=72-60	8-97227-213-0	01	1	1012-			●
112	00.724 GEAR; IDLE (A) Z=80	8-97381-516-1	01	1	1012-1104					●	●
112	00.724 GEAR; IDLE (A) Z=80	8-97381-516-1	01	1	1105-1311					●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT<CL0> (A) Z=80	8-97381-516-1	01	1	1105-1311						●
112	00.724 GEAR; IDLE (A) Z=80	8-98232-105-1	01	1	1312-					●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT<CL0> (A) Z=80	8-98232-105-1	01	1	1312-						●
112	00.724 GEAR; IDLE (B) Z=34	8-97381-518-0	01	1	1012-1104					●	●
112	00.724 GEAR; IDLE (B) Z=34	8-97381-518-0	01	1	1105-					●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT<CL0> (B) Z=34	8-97381-518-0	01	1	1105-						●
112	00.724 GEAR; IDLE (C) Z=35	8-97381-520-3	01	1	1012-					●	●
112	00.724 GEAR; IDLE EURO4 SPECIFICATION(NT4) (D) Z=41	8-98058-320-1	01	1	1012-		●		●
112	00.724 GEAR; IDLE (G) Z=34	8-97120-005-1	01	1	1012-	●	●	●	●
112	00.724 GEAR; IDLE (F) Z=72-60-30	8-97600-586-1	01	1	1012-1402		●		●
112	00.724 GEAR; IDLE (F) Z=72-60-30	8-98254-970-0	01	1	1403-		●		●
112	00.724 GEAR; IDLE (E) Z=61	8-97606-767-0	01	1	1012-		●		●
112	00.724 GEAR; IDLE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) Z=41	8-97606-929-0	01	1	1012-		●		●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	1012-					●	●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	02	1	1012-					●	●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97312-336-0	01	1	1012-					●	●
136	00.724 BOLT; TENSIONER 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1012-					●	●
162	00.736 SPROCKET; IDLE	8-98193-179-0	01	1	1110-					●
162	00.736 SPROCKET; IDLE EXC. VIETNAM EQUIPMENT<CL0>	8-98193-179-0	01	1	1110-						●
162	00.736 SPROCKET; IDLE	8-97312-331-1	01	1	1012-1109					●	●
162	00.736 SPROCKET; IDLE VIETNAM EQUIPMENT<CL0>	8-97312-331-1	01	1	1110-						●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	1012-					●	●
172	00.724 CHAIN; TIMING,CM/SHF VIETNAM EQUIPMENT<CL0>	8-98119-279-1	01	1	1105-						●
172	00.724 CHAIN; TIMING,CM/SHF	8-97945-067-0	01	1	1012-1104					●	●
172	00.724 CHAIN; TIMING,CM/SHF	8-97945-067-0	01	1	1105-					●
172	00.724 CHAIN; TIMING,CM/SHF EXC. VIETNAM EQUIPMENT<CL0>	8-97945-067-0	01	1	1105-						●
185	00.724 TENSIONER; CHAIN	8-98039-754-1	01	1	1012-					●	●
198	00.724 GUIDE; TIMING CHAIN VIETNAM EQUIPMENT<CL0>	8-98173-188-0	01	1	1201-						●
198	00.724 GUIDE; TIMING CHAIN	8-97945-069-0	01	1	1012-1112					●	●
198	00.724 GUIDE; TIMING CHAIN	8-97945-069-0	01	1	1201-					●
198	00.724 GUIDE; TIMING CHAIN EXC. VIETNAM EQUIPMENT<CL0>	8-97945-069-0	01	1	1201-						●
199	00.724 JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	1012-					●	●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-1	02	1	1012-					●	●
252	00.724 FLANGE; IDLE SHAFT VIETNAM EQUIPMENT<CL0> (A)	8-97312-316-1	01	1	1105-						●
252	00.724 FLANGE; IDLE SHAFT VIETNAM EQUIPMENT<CL0> (B)	8-97312-323-1	02	1	1105-						●
252	00.724 FLANGE; IDLE SHAFT (A)	8-98016-892-0	01	1	1012-1104					●	●
252	00.724 FLANGE; IDLE SHAFT (A)	8-98016-892-0	01	1	1105-					●
252	00.724 FLANGE; IDLE SHAFT EXC. VIETNAM EQUIPMENT<CL0> (A)	8-98016-892-0	01	1	1105-						●
252	00.724 FLANGE; IDLE SHAFT (B)	8-98016-893-0	02	1	1012-1104					●	●
252	00.724 FLANGE; IDLE SHAFT (B)	8-98016-893-0	02	1	1105-					●
252	00.724 FLANGE; IDLE SHAFT EXC. VIETNAM EQUIPMENT<CL0> (B)	8-98016-893-0	02	1	1105-						●
300	00.724 LEVER; TENSION,TIMING CHAIN VIETNAM EQUIPMENT<CL0>	8-98119-278-1	01	1	1105-						●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-97945-070-0	01	1	1012-1104					●	●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-97945-070-0	01	1	1105-					●
300	00.724 LEVER; TENSION,TIMING CHAIN EXC. VIETNAM EQUIPMENT<CL0>	8-97945-070-0	01	1	1105-						●
329	00.724 GEAR; INJ PUMP VIETNAM EQUIPMENT<CL0> Z=44	8-97312-298-3	01	1	1105-						●
329	00.724 GEAR; INJ PUMP Z=44	8-98017-539-1	01	1	1012-1104					●	●
329	00.724 GEAR; INJ PUMP Z=44	8-98017-539-1	01	1	1105-					●
329	00.724 GEAR; INJ PUMP EXC. VIETNAM EQUIPMENT<CL0> Z=44	8-98017-539-1	01	1	1105-						●
347	00.429 SPROCKET; I/PUMP	8-98210-266-0	01	1	1208-					●
347	00.429 SPROCKET; I/PUMP EXC. VIETNAM EQUIPMENT<CL0>	8-98210-266-0	01	1	1208-						●
347	00.429 SPROCKET; I/PUMP	8-97312-330-1	01	1	1012-1207					●	●
347	00.429 SPROCKET; I/PUMP VIETNAM EQUIPMENT<CL0>	8-97312-330-1	01	1	1208-						●
348	00.429 NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	1012-					●	●
349	00.429 PIVOT; CHAIN LEVER	8-97312-328-0	01	1	1012-					●	●

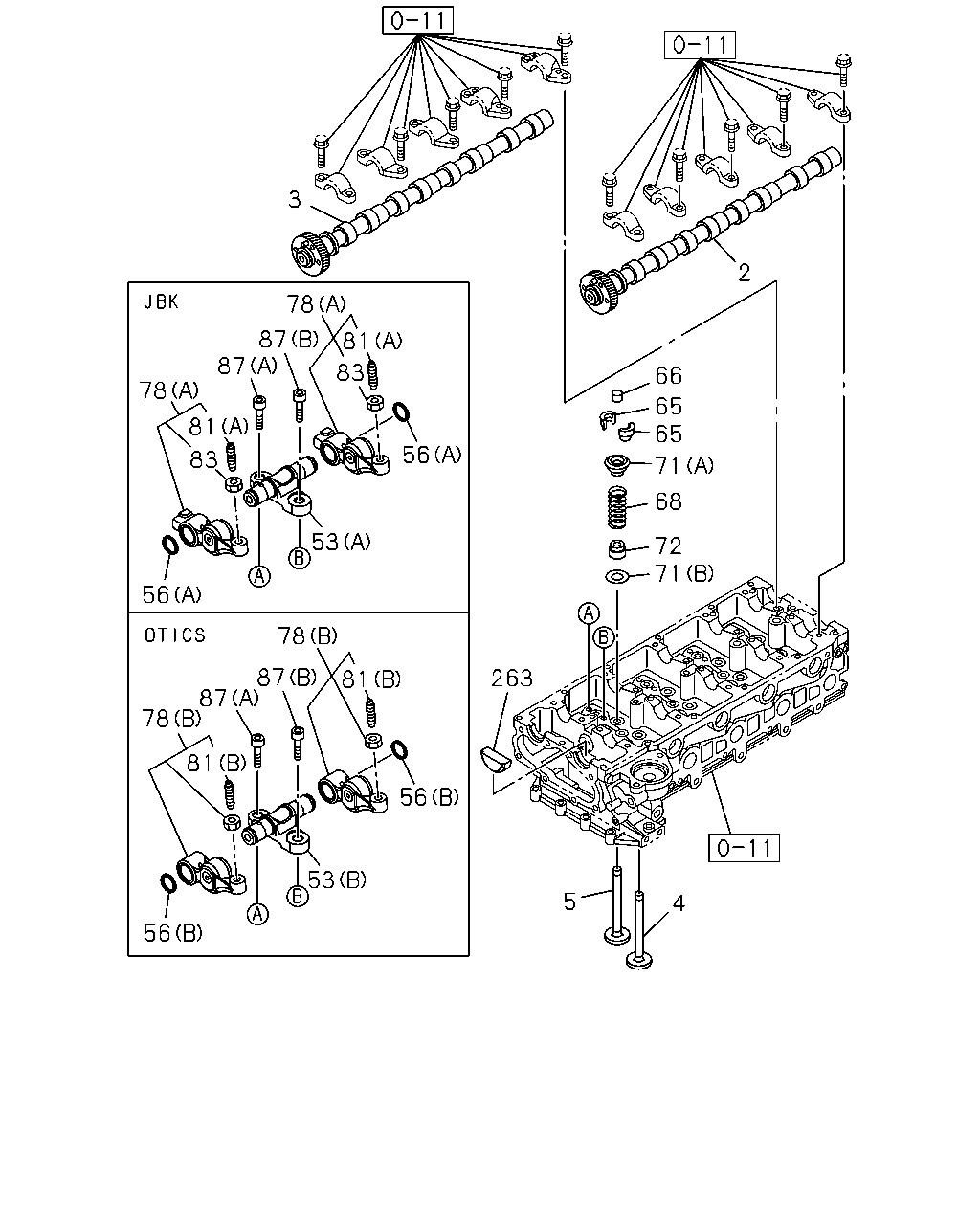

4 5 263 71 72 68 71 65 65 66 2 3 78 87 81 87 78 81 83 56 53 56 78 81 87 87 78 81 56 53 56 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	00.519 CAMSHAFT; INL VIETNAM EQUIPMENT<CL0> TBKK	8-98182-902-1	01	1	1105-						●
2	00.519 CAMSHAFT; INL VIETNAM EQUIPMENT<CL0> IEMT	8-98186-004-1	01	1	1105-						●
2	00.519 CAMSHAFT; INL	8-98003-129-3	01	1	1012-1104					●	●
2	00.519 CAMSHAFT; INL	8-98003-129-4	01	1	1105-					●
2	00.519 CAMSHAFT; INL EXC. VIETNAM EQUIPMENT<CL0>	8-98003-129-4	01	1	1105-						●
3	00.519 CAMSHAFT; EXH VIETNAM EQUIPMENT<CL0> TBKK	8-98182-903-1	01	1	1105-						●
3	00.519 CAMSHAFT; EXH VIETNAM EQUIPMENT<CL0> IEMT	8-98186-005-1	01	1	1105-						●
3	00.519 CAMSHAFT; EXH	8-98003-130-3	01	1	1012-1104					●	●
3	00.519 CAMSHAFT; EXH	8-98003-130-4	01	1	1105-					●
3	00.519 CAMSHAFT; EXH EXC. VIETNAM EQUIPMENT<CL0>	8-98003-130-4	01	1	1105-						●
4	00.296 VALVE; INL VIETNAM EQUIPMENT<CL0>	8-97309-675-1	08	1	1105-						●
4	00.296 VALVE; INL	8-97171-398-0	04	1	1012-	●		●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1012-1104					●	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1105-1501					●
4	00.296 VALVE; INL EXC. VIETNAM EQUIPMENT<CL0>	8-98016-973-0	08	1	1105-1501						●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1502-					●	●
4	00.296 VALVE; INL	8-94395-882-2	08	1	1012-		●		●
5	00.297 VALVE; EXH VIETNAM EQUIPMENT<CL0>	8-97309-677-1	08	1	1105-						●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	1012-	●		●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1012-1104					●	●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1105-					●
5	00.297 VALVE; EXH EXC. VIETNAM EQUIPMENT<CL0>	8-98016-974-1	08	1	1105-						●
5	00.297 VALVE; EXH	8-97209-876-4	08	1	1012-		●		●
53	00.353 SHAFT; ROCKER ARM (C) JBK	8-97074-617-1	01	1	1012-	●		●
53	00.353 SHAFT; ROCKER ARM (C) KEIHIN SEIMITSU	8-97174-567-0	01	1	1012-	●		●
53	00.353 SHAFT; ROCKER ARM (B) INLET OTICS	8-97364-809-2	04	1	1012-1309					●	●
53	00.353 SHAFT; ROCKER ARM (B) INLET OTICS	8-97364-809-2	04	1	1310-1310					●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT<CL0> (B) INLET OTICS	8-97364-809-2	04	1	1310-1310						●
53	00.353 SHAFT; ROCKER ARM (B) INLET OTICS	8-97364-809-2	04	1	1310-					●	●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST OTICS	8-97364-811-2	04	1	1012-1309					●	●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST OTICS	8-97364-811-2	04	1	1310-1310					●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT<CL0> (B) EXHAUST OTICS	8-97364-811-2	04	1	1310-1310						●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST OTICS	8-97364-811-2	04	1	1310-					●	●
53	00.353 SHAFT; ROCKER ARM (A) INLET JBK	8-98025-071-1	04	1	1012-1104					●	●
53	00.353 SHAFT; ROCKER ARM (A) INLET JBK	8-98025-071-1	04	1	1105-					●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT<CL0> (A) INLET JBK	8-98025-071-1	04	1	1105-						●
53	00.353 SHAFT; ROCKER ARM (A) EXHAUST JBK	8-98025-074-1	04	1	1012-1104					●	●
53	00.353 SHAFT; ROCKER ARM (A) EXHAUST JBK	8-98025-074-1	04	1	1105-					●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT<CL0> (A) EXHAUST JBK	8-98025-074-1	04	1	1105-						●
53	00.353 SHAFT; ROCKER ARM (D)	8-97389-921-0	01	1	1012-		●		●
56	00.349 RING; SNAP,ROCKER ARM 00.353 (A)	8-98025-496-0	16	1	1012-1104					●	●
56	00.349 RING; SNAP,ROCKER ARM 00.353 (A)	8-98025-496-0	16	1	1105-					●
56	00.349 RING; SNAP,ROCKER ARM EXC. VIETNAM EQUIPMENT<CL0> 00.353 (A)	8-98025-496-0	16	1	1105-						●
56	00.349 RING; SNAP,ROCKER ARM (B)	8-98109-470-0	16	1	1012-1309					●	●
56	00.349 RING; SNAP,ROCKER ARM (B)	8-98109-470-0	16	1	1310-1310					●
56	00.349 RING; SNAP,ROCKER ARM EXC. VIETNAM EQUIPMENT<CL0> (B)	8-98109-470-0	16	1	1310-1310						●
56	00.349 RING; SNAP,ROCKER ARM (B)	8-98109-470-0	16	1	1310-					●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	1012-	●		●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1012-					●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	32	1	1012-		●		●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	1012-	●		●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	1012-					●	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	1012-	●		●
68	00.303 SPRING; VLV INLET H=49 NATURAL	8-97311-669-0	08	1	1012-					●	●
68	00.303 SPRING; VLV EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	1012-					●	●
68	00.303 SPRING; VLV EXHAUST MARK RED	8-97210-682-0	08	1	1012-		●		●
68	00.303 SPRING; VLV INLET MARK BLUE	8-97352-888-0	08	1	1012-		●		●
71	00.309 SEAT; SPR VIETNAM EQUIPMENT<CL0> (A) OD=29.5	8-97311-668-0	16	1	1105-						●
71	00.309 SEAT; SPR (C) OD=38	8-94385-029-2	08	1	1012-	●		●
71	00.309 SEAT; SPR (D) ID=14.3 OD=40	8-94399-526-1	08	1	1012-	●		●
71	00.309 SEAT; SPR (B) OD=31	8-97144-584-0	16	1	1012-1502					●	●
71	00.309 SEAT; SPR NNR(NP***E) (B) OD=31	8-97144-584-0	16	1	1503-					●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) VIETNAM EQUIPMENT<CL0> EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),TRANSMISSION CONT ROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NNR/NPR/NQR DBL CAB(NP*W) EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3),KD PREPARATORY PAC K<6HF> (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NNR/NPR/NQR DBL CAB(NP*W) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NNR/NPR/NQR DBL CAB(NP*W) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) COUNTRY ALGERIA<D2G> EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3), ALGERIA EQUIPMENT(WN1),KD PREPARATORY PAC K<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQUIPMENT(WN1) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT<CL0>,COUNTRY ALGERIA<D2G>, SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQ UIPMENT(WN1),TRANSMISSION CONTROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR (A)	8-98017-067-0	16	1	1012-1104					●	●
71	00.309 SEAT; SPR (A)	8-98017-067-0	16	1	1105-					●
71	00.309 SEAT; SPR EXC. VIETNAM EQUIPMENT<CL0> (A)	8-98017-067-0	16	1	1105-						●
71	00.309 SEAT; SPR (E) OD=32.8 T=12.75	8-94390-783-2	16	1	1012-		●		●
71	00.309 SEAT; SPR (F) ID=14.3 T=1.0	8-94391-468-0	16	1	1012-		●		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94396-609-2	08	1	1012-	●		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97328-647-0	16	1	1012-					●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97376-720-0	16	1	1012-		●		●
78	00.333 ARM; ROCKER (D) JBK	8-97014-258-2	04	1	1012-	●		●
78	00.333 ARM; ROCKER (C) JBK	8-97074-614-1	04	1	1012-	●		●
78	00.333 ARM; ROCKER (C) KEIHIN SEIMITSU	8-97174-562-0	04	1	1012-	●		●
78	00.333 ARM; ROCKER (D) KEIHIN SEIMITSU	8-97174-565-0	04	1	1012-	●		●
78	00.333 ARM; ROCKER 00.353 (A) JBK	8-98025-059-3	16	1	1012-1104					●	●
78	00.333 ARM; ROCKER 00.353 (A) JBK	8-98025-059-4	16	1	1105-					●
78	00.333 ARM; ROCKER EXC. VIETNAM EQUIPMENT<CL0> 00.353 (A) JBK	8-98025-059-4	16	1	1105-						●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-5	16	1	1012-1309					●	●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-6	16	1	1310-1310					●
78	00.333 ARM; ROCKER EXC. VIETNAM EQUIPMENT<CL0> (B) OTICS	8-98029-537-6	16	1	1310-1310						●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-6	16	1	1310-					●	●
78	00.333 ARM; ROCKER (E) INLET	8-97306-421-3	04	1	1012-		●		●
78	00.333 ARM; ROCKER (E) EXHAUST	8-97306-424-3	04	1	1012-		●		●
81	00.429 SCREW; ADJ,ROCKER ARM (C)	8-94367-526-2	08	1	1012-	●		●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M8 L=22	8-98025-497-0	16	1	1012-1104					●	●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M8 L=22	8-98025-497-0	16	1	1105-					●
81	00.429 SCREW; ADJ,ROCKER ARM EXC. VIETNAM EQUIPMENT<CL0> (A) M8 L=22	8-98025-497-0	16	1	1105-						●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1012-1309					●	●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1310-1310					●
81	00.429 SCREW; ADJ,ROCKER ARM EXC. VIETNAM EQUIPMENT<CL0> (B) M8 L=22	8-98029-893-0	16	1	1310-1310						●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1310-					●	●
81	00.429 SCREW; ADJ,ROCKER ARM (D) M10 L=32	8-94395-024-0	08	1	1012-		●		●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1012-1405	●		●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	16	1	1406-	●		●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1012-1104					●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1105-					●
83	00.787 NUT; ADJ SCREW,LK EXC. VIETNAM EQUIPMENT<CL0> 00.429 M8 FLANGE	9-09844-574-0	16	1	1105-						●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1012-		●		●
87	00.349 BOLT; ROCKER SHAFT 03.162 (C) M8X35 FLANGE	0-28050-835-0	02	1	1012-	●		●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	1012-					●	●
87	00.349 BOLT; ROCKER SHAFT (A) M8X40 HEX SOCKET	0-58330-840-0	08	1	1012-					●	●
87	00.349 BOLT; ROCKER SHAFT 02.277 (D) M8X40 FLANGE	0-28050-840-0	02	1	1012-		●		●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT<CL0>	8-97947-079-0	04	1	1105-						●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98101-472-0	04	1	1012-1104					●	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98101-472-0	04	1	1105-1204					●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0>	8-98101-472-0	04	1	1105-1204						●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98216-269-0	04	1	1205-					●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0>	8-98216-269-0	04	1	1205-						●

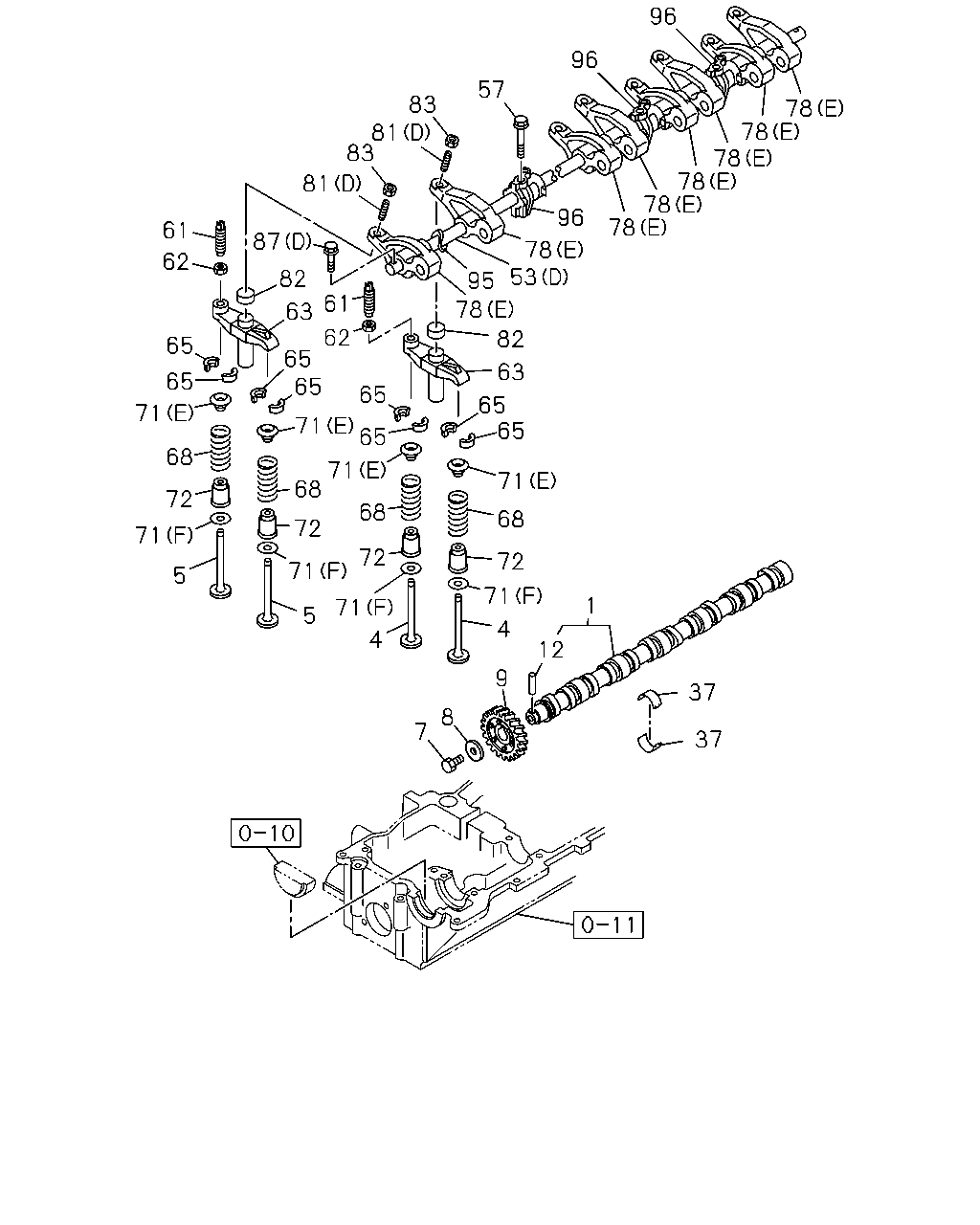

96 96 57 83 81 83 78 78 78 78 78 78 81 96 87 61 78 53 62 82 95 61 78 63 62 82 65 65 65 63 65 65 65 65 71 71 65 68 71 68 71 72 68 68 72 71 72 72 71 5 71 1 71 5 4 4 12 9 37 8 7 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-97077-829-0	01	1	1012-	●		●
1	00.519 CAMSHAFT	8-97262-166-0	01	1	1012-		●		●
4	00.296 VALVE; INL VIETNAM EQUIPMENT<CL0>	8-97309-675-1	08	1	1105-						●
4	00.296 VALVE; INL	8-97171-398-0	04	1	1012-	●		●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1012-1104					●	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1105-1501					●
4	00.296 VALVE; INL EXC. VIETNAM EQUIPMENT<CL0>	8-98016-973-0	08	1	1105-1501						●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1502-					●	●
4	00.296 VALVE; INL	8-94395-882-2	08	1	1012-		●		●
5	00.297 VALVE; EXH VIETNAM EQUIPMENT<CL0>	8-97309-677-1	08	1	1105-						●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	1012-	●		●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1012-1104					●	●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1105-					●
5	00.297 VALVE; EXH EXC. VIETNAM EQUIPMENT<CL0>	8-98016-974-1	08	1	1105-						●
5	00.297 VALVE; EXH	8-97209-876-4	08	1	1012-		●		●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1012-	●	●	●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	1012-	●	●	●	●
9	00.736 GEAR; CM/SHF Z=35	8-97094-440-2	01	1	1012-	●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	1012-			●
9	00.736 GEAR; CM/SHF Z=35	8-98018-935-3	01	1	1012-		●		●
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	1012-	●		●
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	02	1	1012-		●		●
37	00.539 METAL; CM/SHF B=16	8-97386-189-0	10	1	1012-	●	●	●	●
53	00.353 SHAFT; ROCKER ARM (C) JBK	8-97074-617-1	01	1	1012-	●		●
53	00.353 SHAFT; ROCKER ARM (C) KEIHIN SEIMITSU	8-97174-567-0	01	1	1012-	●		●
53	00.353 SHAFT; ROCKER ARM (B) INLET OTICS	8-97364-809-2	04	1	1012-1309					●	●
53	00.353 SHAFT; ROCKER ARM (B) INLET OTICS	8-97364-809-2	04	1	1310-1310					●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT<CL0> (B) INLET OTICS	8-97364-809-2	04	1	1310-1310						●
53	00.353 SHAFT; ROCKER ARM (B) INLET OTICS	8-97364-809-2	04	1	1310-					●	●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST OTICS	8-97364-811-2	04	1	1012-1309					●	●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST OTICS	8-97364-811-2	04	1	1310-1310					●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT<CL0> (B) EXHAUST OTICS	8-97364-811-2	04	1	1310-1310						●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST OTICS	8-97364-811-2	04	1	1310-					●	●
53	00.353 SHAFT; ROCKER ARM (A) INLET JBK	8-98025-071-1	04	1	1012-1104					●	●
53	00.353 SHAFT; ROCKER ARM (A) INLET JBK	8-98025-071-1	04	1	1105-					●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT<CL0> (A) INLET JBK	8-98025-071-1	04	1	1105-						●
53	00.353 SHAFT; ROCKER ARM (A) EXHAUST JBK	8-98025-074-1	04	1	1012-1104					●	●
53	00.353 SHAFT; ROCKER ARM (A) EXHAUST JBK	8-98025-074-1	04	1	1105-					●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT<CL0> (A) EXHAUST JBK	8-98025-074-1	04	1	1105-						●
53	00.353 SHAFT; ROCKER ARM (D)	8-97389-921-0	01	1	1012-		●		●
57	00.349 BOLT; ROCKER ARM BRKT M10X62 FLANGE	8-94393-131-0	03	1	1012-		●		●
61	00.349 SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	1012-		●		●
62	00.349 NUT; ADJ SCREW LK BRIDGE 00.429 M8 FLANGE	9-09844-574-0	08	1	1012-		●		●
63	00.349 BRIDGE	8-94392-002-3	08	1	1012-		●		●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	1012-	●		●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1012-					●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	32	1	1012-		●		●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	1012-	●		●
68	00.303 SPRING; VLV INLET H=49 NATURAL	8-97311-669-0	08	1	1012-					●	●
68	00.303 SPRING; VLV EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	1012-					●	●
68	00.303 SPRING; VLV EXHAUST MARK RED	8-97210-682-0	08	1	1012-		●		●
68	00.303 SPRING; VLV INLET MARK BLUE	8-97352-888-0	08	1	1012-		●		●
71	00.309 SEAT; SPR VIETNAM EQUIPMENT<CL0> (A) OD=29.5	8-97311-668-0	16	1	1105-						●
71	00.309 SEAT; SPR (C) OD=38	8-94385-029-2	08	1	1012-	●		●
71	00.309 SEAT; SPR (D) ID=14.3 OD=40	8-94399-526-1	08	1	1012-	●		●
71	00.309 SEAT; SPR (B) OD=31	8-97144-584-0	16	1	1012-1502					●	●
71	00.309 SEAT; SPR NNR(NP***E) (B) OD=31	8-97144-584-0	16	1	1503-					●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) VIETNAM EQUIPMENT<CL0> EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),TRANSMISSION CONT ROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NNR/NPR/NQR DBL CAB(NP*W) EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3),KD PREPARATORY PAC K<6HF> (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NNR/NPR/NQR DBL CAB(NP*W) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NNR/NPR/NQR DBL CAB(NP*W) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) COUNTRY ALGERIA<D2G> EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3), ALGERIA EQUIPMENT(WN1),KD PREPARATORY PAC K<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQUIPMENT(WN1) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT<CL0>,COUNTRY ALGERIA<D2G>, SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQ UIPMENT(WN1),TRANSMISSION CONTROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR (A)	8-98017-067-0	16	1	1012-1104					●	●
71	00.309 SEAT; SPR (A)	8-98017-067-0	16	1	1105-					●
71	00.309 SEAT; SPR EXC. VIETNAM EQUIPMENT<CL0> (A)	8-98017-067-0	16	1	1105-						●
71	00.309 SEAT; SPR (E) OD=32.8 T=12.75	8-94390-783-2	16	1	1012-		●		●
71	00.309 SEAT; SPR (F) ID=14.3 T=1.0	8-94391-468-0	16	1	1012-		●		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94396-609-2	08	1	1012-	●		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97328-647-0	16	1	1012-					●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97376-720-0	16	1	1012-		●		●
78	00.333 ARM; ROCKER (D) JBK	8-97014-258-2	04	1	1012-	●		●
78	00.333 ARM; ROCKER (C) JBK	8-97074-614-1	04	1	1012-	●		●
78	00.333 ARM; ROCKER (C) KEIHIN SEIMITSU	8-97174-562-0	04	1	1012-	●		●
78	00.333 ARM; ROCKER (D) KEIHIN SEIMITSU	8-97174-565-0	04	1	1012-	●		●
78	00.333 ARM; ROCKER 00.353 (A) JBK	8-98025-059-3	16	1	1012-1104					●	●
78	00.333 ARM; ROCKER 00.353 (A) JBK	8-98025-059-4	16	1	1105-					●
78	00.333 ARM; ROCKER EXC. VIETNAM EQUIPMENT<CL0> 00.353 (A) JBK	8-98025-059-4	16	1	1105-						●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-5	16	1	1012-1309					●	●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-6	16	1	1310-1310					●
78	00.333 ARM; ROCKER EXC. VIETNAM EQUIPMENT<CL0> (B) OTICS	8-98029-537-6	16	1	1310-1310						●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-6	16	1	1310-					●	●
78	00.333 ARM; ROCKER (E) INLET	8-97306-421-3	04	1	1012-		●		●
78	00.333 ARM; ROCKER (E) EXHAUST	8-97306-424-3	04	1	1012-		●		●
81	00.429 SCREW; ADJ,ROCKER ARM (C)	8-94367-526-2	08	1	1012-	●		●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M8 L=22	8-98025-497-0	16	1	1012-1104					●	●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M8 L=22	8-98025-497-0	16	1	1105-					●
81	00.429 SCREW; ADJ,ROCKER ARM EXC. VIETNAM EQUIPMENT<CL0> (A) M8 L=22	8-98025-497-0	16	1	1105-						●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1012-1309					●	●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1310-1310					●
81	00.429 SCREW; ADJ,ROCKER ARM EXC. VIETNAM EQUIPMENT<CL0> (B) M8 L=22	8-98029-893-0	16	1	1310-1310						●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1310-					●	●
81	00.429 SCREW; ADJ,ROCKER ARM (D) M10 L=32	8-94395-024-0	08	1	1012-		●		●
82	00.356 CAP; ROCKER SHAFT 00.303	8-94396-015-2	08	1	1012-		●		●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1012-1405	●		●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	16	1	1406-	●		●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1012-1104					●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1105-					●
83	00.787 NUT; ADJ SCREW,LK EXC. VIETNAM EQUIPMENT<CL0> 00.429 M8 FLANGE	9-09844-574-0	16	1	1105-						●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1012-		●		●
87	00.349 BOLT; ROCKER SHAFT 03.162 (C) M8X35 FLANGE	0-28050-835-0	02	1	1012-	●		●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	1012-					●	●
87	00.349 BOLT; ROCKER SHAFT (A) M8X40 HEX SOCKET	0-58330-840-0	08	1	1012-					●	●
87	00.349 BOLT; ROCKER SHAFT 02.277 (D) M8X40 FLANGE	0-28050-840-0	02	1	1012-		●		●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	1012-	●		●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	1012-	●		●
95	00.376 SPRING; ROCKER SHAFT	8-94392-999-0	04	1	1012-		●		●
96	00.349 BRACKET; ROCKER ARM SHAFT	8-97334-414-0	03	1	1012-		●		●

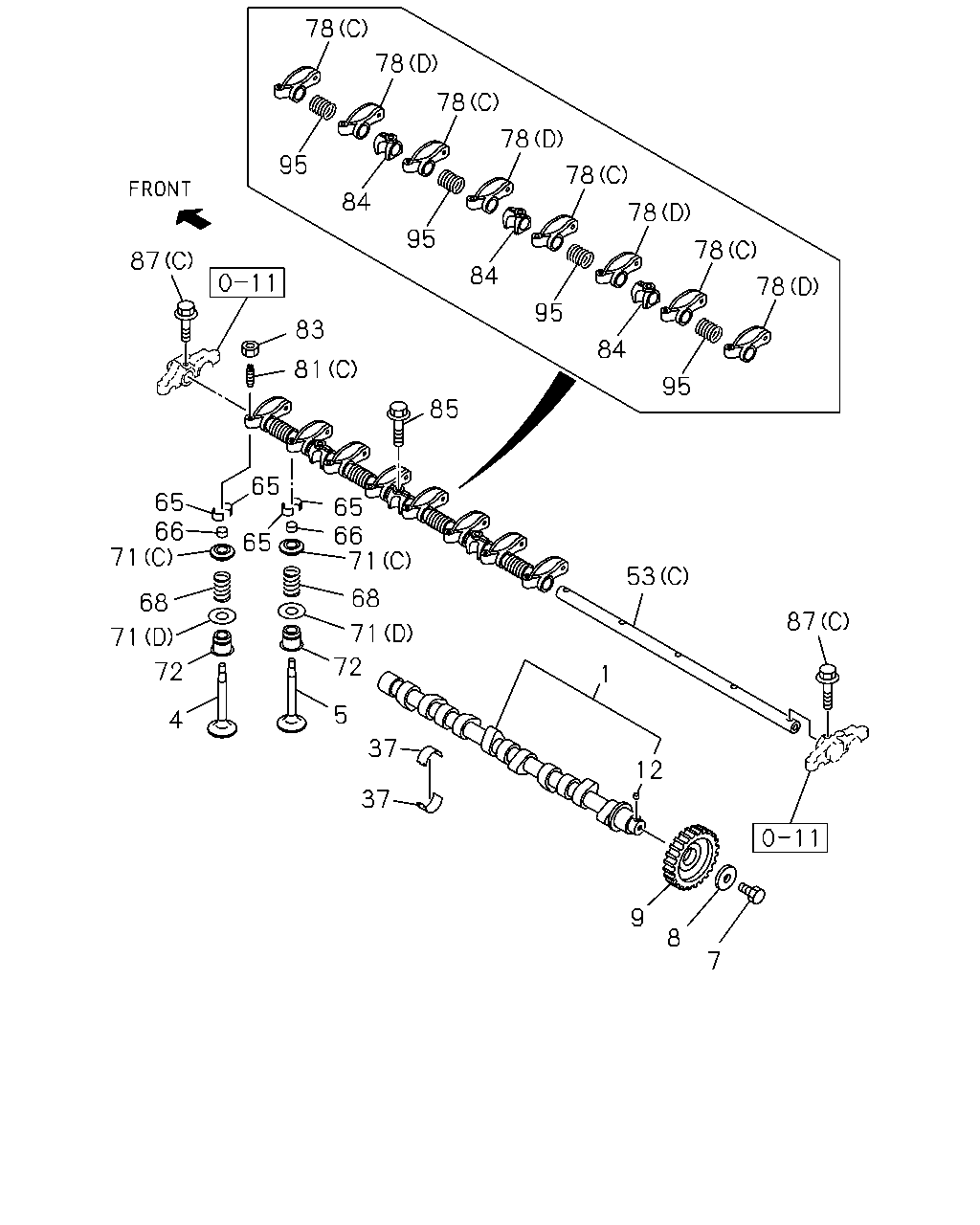

78 78 78 78 95 78 84 78 95 78 87 84 78 95 83 84 81 95 85 65 66 71 65 65 66 71 65 53 68 68 87 71 71 72 72 1 5 4 37 12 37 9 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-97077-829-0	01	1	1012-	●		●
1	00.519 CAMSHAFT	8-97262-166-0	01	1	1012-		●		●
4	00.296 VALVE; INL VIETNAM EQUIPMENT<CL0>	8-97309-675-1	08	1	1105-						●
4	00.296 VALVE; INL	8-97171-398-0	04	1	1012-	●		●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1012-1104					●	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1105-1501					●
4	00.296 VALVE; INL EXC. VIETNAM EQUIPMENT<CL0>	8-98016-973-0	08	1	1105-1501						●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1502-					●	●
4	00.296 VALVE; INL	8-94395-882-2	08	1	1012-		●		●
5	00.297 VALVE; EXH VIETNAM EQUIPMENT<CL0>	8-97309-677-1	08	1	1105-						●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	1012-	●		●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1012-1104					●	●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1105-					●
5	00.297 VALVE; EXH EXC. VIETNAM EQUIPMENT<CL0>	8-98016-974-1	08	1	1105-						●
5	00.297 VALVE; EXH	8-97209-876-4	08	1	1012-		●		●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1012-	●	●	●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	1012-	●	●	●	●
9	00.736 GEAR; CM/SHF Z=35	8-97094-440-2	01	1	1012-	●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	1012-			●
9	00.736 GEAR; CM/SHF Z=35	8-98018-935-3	01	1	1012-		●		●
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	1012-	●		●
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	02	1	1012-		●		●
37	00.539 METAL; CM/SHF B=16	8-97386-189-0	10	1	1012-	●	●	●	●
53	00.353 SHAFT; ROCKER ARM (C) JBK	8-97074-617-1	01	1	1012-	●		●
53	00.353 SHAFT; ROCKER ARM (C) KEIHIN SEIMITSU	8-97174-567-0	01	1	1012-	●		●
53	00.353 SHAFT; ROCKER ARM (B) INLET OTICS	8-97364-809-2	04	1	1012-1309					●	●
53	00.353 SHAFT; ROCKER ARM (B) INLET OTICS	8-97364-809-2	04	1	1310-1310					●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT<CL0> (B) INLET OTICS	8-97364-809-2	04	1	1310-1310						●
53	00.353 SHAFT; ROCKER ARM (B) INLET OTICS	8-97364-809-2	04	1	1310-					●	●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST OTICS	8-97364-811-2	04	1	1012-1309					●	●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST OTICS	8-97364-811-2	04	1	1310-1310					●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT<CL0> (B) EXHAUST OTICS	8-97364-811-2	04	1	1310-1310						●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST OTICS	8-97364-811-2	04	1	1310-					●	●
53	00.353 SHAFT; ROCKER ARM (A) INLET JBK	8-98025-071-1	04	1	1012-1104					●	●
53	00.353 SHAFT; ROCKER ARM (A) INLET JBK	8-98025-071-1	04	1	1105-					●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT<CL0> (A) INLET JBK	8-98025-071-1	04	1	1105-						●
53	00.353 SHAFT; ROCKER ARM (A) EXHAUST JBK	8-98025-074-1	04	1	1012-1104					●	●
53	00.353 SHAFT; ROCKER ARM (A) EXHAUST JBK	8-98025-074-1	04	1	1105-					●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT<CL0> (A) EXHAUST JBK	8-98025-074-1	04	1	1105-						●
53	00.353 SHAFT; ROCKER ARM (D)	8-97389-921-0	01	1	1012-		●		●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	1012-	●		●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1012-					●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	32	1	1012-		●		●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	1012-	●		●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	1012-					●	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	1012-	●		●
68	00.303 SPRING; VLV INLET H=49 NATURAL	8-97311-669-0	08	1	1012-					●	●
68	00.303 SPRING; VLV EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	1012-					●	●
68	00.303 SPRING; VLV EXHAUST MARK RED	8-97210-682-0	08	1	1012-		●		●
68	00.303 SPRING; VLV INLET MARK BLUE	8-97352-888-0	08	1	1012-		●		●
71	00.309 SEAT; SPR VIETNAM EQUIPMENT<CL0> (A) OD=29.5	8-97311-668-0	16	1	1105-						●
71	00.309 SEAT; SPR (C) OD=38	8-94385-029-2	08	1	1012-	●		●
71	00.309 SEAT; SPR (D) ID=14.3 OD=40	8-94399-526-1	08	1	1012-	●		●
71	00.309 SEAT; SPR (B) OD=31	8-97144-584-0	16	1	1012-1502					●	●
71	00.309 SEAT; SPR NNR(NP***E) (B) OD=31	8-97144-584-0	16	1	1503-					●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) VIETNAM EQUIPMENT<CL0> EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),TRANSMISSION CONT ROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NNR/NPR/NQR DBL CAB(NP*W) EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3),KD PREPARATORY PAC K<6HF> (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NNR/NPR/NQR DBL CAB(NP*W) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NNR/NPR/NQR DBL CAB(NP*W) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) COUNTRY ALGERIA<D2G> EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3), ALGERIA EQUIPMENT(WN1),KD PREPARATORY PAC K<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQUIPMENT(WN1) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT<CL0>,COUNTRY ALGERIA<D2G>, SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQ UIPMENT(WN1),TRANSMISSION CONTROL-SMOOTHER(8GF) (B) OD=31	8-97144-584-0	16	1	1503-						●
71	00.309 SEAT; SPR (A)	8-98017-067-0	16	1	1012-1104					●	●
71	00.309 SEAT; SPR (A)	8-98017-067-0	16	1	1105-					●
71	00.309 SEAT; SPR EXC. VIETNAM EQUIPMENT<CL0> (A)	8-98017-067-0	16	1	1105-						●
71	00.309 SEAT; SPR (E) OD=32.8 T=12.75	8-94390-783-2	16	1	1012-		●		●
71	00.309 SEAT; SPR (F) ID=14.3 T=1.0	8-94391-468-0	16	1	1012-		●		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94396-609-2	08	1	1012-	●		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97328-647-0	16	1	1012-					●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97376-720-0	16	1	1012-		●		●
78	00.333 ARM; ROCKER (D) JBK	8-97014-258-2	04	1	1012-	●		●
78	00.333 ARM; ROCKER (C) JBK	8-97074-614-1	04	1	1012-	●		●
78	00.333 ARM; ROCKER (C) KEIHIN SEIMITSU	8-97174-562-0	04	1	1012-	●		●
78	00.333 ARM; ROCKER (D) KEIHIN SEIMITSU	8-97174-565-0	04	1	1012-	●		●
78	00.333 ARM; ROCKER 00.353 (A) JBK	8-98025-059-3	16	1	1012-1104					●	●
78	00.333 ARM; ROCKER 00.353 (A) JBK	8-98025-059-4	16	1	1105-					●
78	00.333 ARM; ROCKER EXC. VIETNAM EQUIPMENT<CL0> 00.353 (A) JBK	8-98025-059-4	16	1	1105-						●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-5	16	1	1012-1309					●	●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-6	16	1	1310-1310					●
78	00.333 ARM; ROCKER EXC. VIETNAM EQUIPMENT<CL0> (B) OTICS	8-98029-537-6	16	1	1310-1310						●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-6	16	1	1310-					●	●
78	00.333 ARM; ROCKER (E) INLET	8-97306-421-3	04	1	1012-		●		●
78	00.333 ARM; ROCKER (E) EXHAUST	8-97306-424-3	04	1	1012-		●		●
81	00.429 SCREW; ADJ,ROCKER ARM (C)	8-94367-526-2	08	1	1012-	●		●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M8 L=22	8-98025-497-0	16	1	1012-1104					●	●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M8 L=22	8-98025-497-0	16	1	1105-					●
81	00.429 SCREW; ADJ,ROCKER ARM EXC. VIETNAM EQUIPMENT<CL0> (A) M8 L=22	8-98025-497-0	16	1	1105-						●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1012-1309					●	●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1310-1310					●
81	00.429 SCREW; ADJ,ROCKER ARM EXC. VIETNAM EQUIPMENT<CL0> (B) M8 L=22	8-98029-893-0	16	1	1310-1310						●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1310-					●	●
81	00.429 SCREW; ADJ,ROCKER ARM (D) M10 L=32	8-94395-024-0	08	1	1012-		●		●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1012-1405	●		●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	16	1	1406-	●		●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1012-1104					●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1105-					●
83	00.787 NUT; ADJ SCREW,LK EXC. VIETNAM EQUIPMENT<CL0> 00.429 M8 FLANGE	9-09844-574-0	16	1	1105-						●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1012-		●		●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	1012-	●		●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	1012-	●		●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	1012-	●		●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	1012-	●		●
87	00.349 BOLT; ROCKER SHAFT 03.162 (C) M8X35 FLANGE	0-28050-835-0	02	1	1012-	●		●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	1012-					●	●
87	00.349 BOLT; ROCKER SHAFT (A) M8X40 HEX SOCKET	0-58330-840-0	08	1	1012-					●	●
87	00.349 BOLT; ROCKER SHAFT 02.277 (D) M8X40 FLANGE	0-28050-840-0	02	1	1012-		●		●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	1012-	●		●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	1012-	●		●
95	00.376 SPRING; ROCKER SHAFT	8-94392-999-0	04	1	1012-		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
