◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#3956) — 118 parça

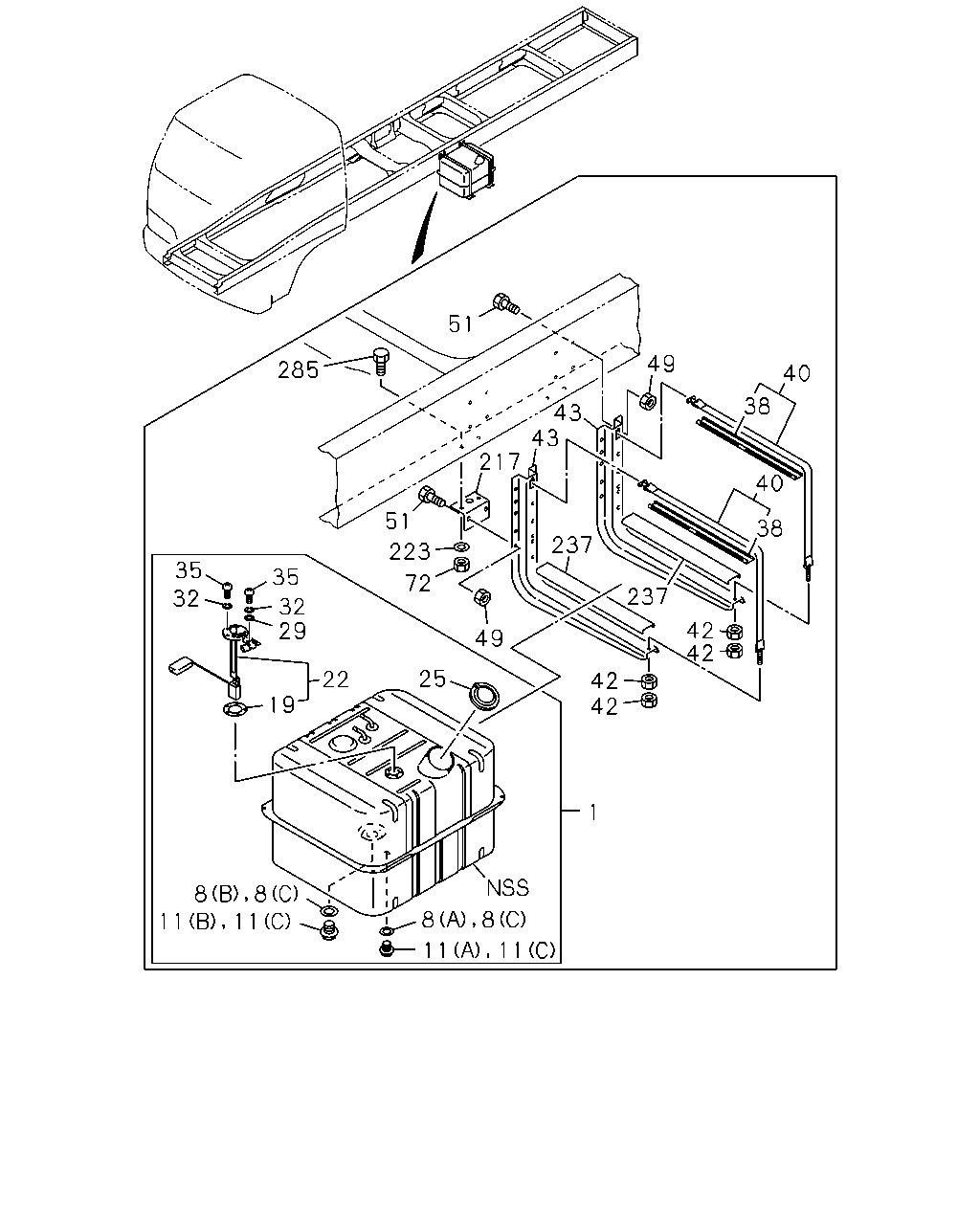

çizim 116030
51 43 43 49 285 40 38 217 40 51 38 237 223 35 32 35 72 237 32 29 42 42 49 25 22 42 42 19 1 11 11 8 8 11 11 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 TANK; FUEL
720X610X496 200L 		1-22400-996-0 01 1 9510-0003 ● ● ●
1 TANK; FUEL
720X610X496 200L 		1-22401-120-0 01 1 0004-0004 ● ● ●
1 TANK; FUEL
720X610X496 200L 		1-22401-120-1 01 1 0005-0112 ● ● ● ●
1 TANK; FUEL
720X610X496 200L 		1-22401-192-2 01 1 0201-0607 ● ● ● ●
1 TANK; FUEL
720X610X496 200L 		1-22401-192-2 01 1 0608-1505 ● ● ● ● ●
1 TANK; FUEL
720X610X496 200L 		8-98299-274-0 01 1 1506- ● ● ● ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(A) T=1.60 		1-22416-001-0 01 1 9510-0004 ● ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(A) T=1.60 		1-22416-001-0 01 1 0005-0112 ● ● ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(B) T=2.0 		9-09923-030-0 01 1 9510-0004 ● ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(B) T=2.0 		9-09923-030-0 01 1 0005-0106 ● ● ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0107-0112 ● ● ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(C) ID=14.2 OD=23.0 		9-09572-014-0 02 1 0201-0607 ● ● ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(C) ID=14.2 OD=23.0 		9-09572-014-0 02 1 0608- ● ● ● ● ●
11 PLUG; DRAIN,FUEL TANK
(B) M36 		1-09604-052-0 01 1 9510-0003 ● ● ●
11 PLUG; DRAIN,FUEL TANK
(B) M36 		1-09604-052-0 01 1 0004-0004 ● ● ●
11 PLUG; DRAIN,FUEL TANK
(B) M36 		1-09604-052-0 01 1 0005-0106 ● ● ● ●
11 PLUG; DRAIN,FUEL TANK
(B) M14X14 		9-09862-156-0 01 1 0107-0112 ● ● ● ●
11 PLUG; DRAIN,FUEL TANK
(C) M14X14 		9-09862-156-0 02 1 0201-0607 ● ● ● ●
11 PLUG; DRAIN,FUEL TANK
(C) M14X14 		9-09862-156-0 02 1 0608- ● ● ● ● ●
11 PLUG; DRAIN,FUEL TANK
(A) M18X12 		1-09604-081-0 01 1 9510-0004 ● ● ●
11 PLUG; DRAIN,FUEL TANK
(A) M18X12 		1-09604-081-0 01 1 0005-0112 ● ● ● ●
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0005-0607 ● ● ● ●
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0608- ● ● ● ● ●
19 GASKET; FUEL TANK UNIT 9-83135-003-0 01 1 9510-0004 ● ● ●
22 UNIT; FUEL TANK 1-83141-124-0 01 1 9510-0004 ● ● ●
22 UNIT; FUEL TANK 1-83141-124-0 01 1 0005-0607 ● ● ● ●
22 UNIT; FUEL TANK 1-83141-124-0 01 1 0608-1505 ● ● ● ● ●
22 UNIT; FUEL TANK 8-98296-671-0 01 1 1506- ● ● ● ● ●
25 CAP; FILLER,FUEL TANK 1-22440-033-2 01 1 9510-0003 ● ● ●
25 CAP; FILLER,FUEL TANK 1-22440-067-0 01 1 0004-0004 ● ● ●
25 CAP; FILLER,FUEL TANK 1-22440-067-0 01 1 0005-0109 ● ● ● ●
25 CAP; FILLER,FUEL TANK 1-22440-069-0 01 1 0110-0112 ● ● ● ●
25 CAP; FILLER,FUEL TANK 1-22440-067-0 01 1 0201-0309 ● ● ● ●
25 CAP; FILLER,FUEL TANK 1-22440-070-0 01 1 0310-0404 ● ● ● ●
25 CAP; FILLER,FUEL TANK 1-22440-046-1 01 1 0405-0607 ● ● ● ●
25 CAP; FILLER,FUEL TANK 1-22440-046-1 01 1 0608- ● ● ● ● ●
29 WASHER; PL,FUEL TANK UNIT
ID=5.3 		9-09160-505-0 01 1 9510-0004 ● ● ●
29 WASHER; PL,FUEL TANK UNIT
ID=5.3 		9-09160-505-0 01 1 0005-0605 ● ● ● ●
29 WASHER; PL,FUEL TANK UNIT
ID=5.3 		0-91610-505-0 01 1 0606-0607 ● ● ● ●
29 WASHER; PL,FUEL TANK UNIT
ID=5.3 		0-91610-505-0 01 1 0608- ● ● ● ● ●
32 WASHER; LK,FUEL TANK UNIT
ID=5.1 		9-09150-505-0 05 1 9510-0004 ● ● ●
32 WASHER; LK,FUEL TANK UNIT
ID=5.1 		9-09150-505-0 05 1 0005-0603 ● ● ● ●
32 WASHER; LK,FUEL TANK UNIT
ID=5.1 		0-91510-505-0 05 1 0604-0607 ● ● ● ●
32 WASHER; LK,FUEL TANK UNIT
ID=5.1 		0-91510-505-0 05 1 0608- ● ● ● ● ●
35 SCREW; FUEL TANK UNIT
M5X10 		9-93497-510-0 05 1 9510-0004 ● ● ●
35 SCREW; FUEL TANK UNIT
M5X10 		9-93497-510-0 05 1 0005-0604 ● ● ● ●
35 SCREW; FUEL TANK UNIT
M5X10 		0-34218-510-0 05 1 0605-0607 ● ● ● ●
35 SCREW; FUEL TANK UNIT
M5X10 		0-34218-510-0 05 1 0608- ● ● ● ● ●
38 INSULATION; SUPPORT BELT
L=650 		1-22553-022-1 02 1 9510-0004 ● ● ●
38 INSULATION; SUPPORT BELT
L=650 		1-22553-022-1 02 1 0005-0607 ● ● ● ●
38 INSULATION; SUPPORT BELT
L=650 		1-22553-022-1 02 1 0608- ● ● ● ● ●
40 BELT; SUPPORT,FUEL TANK
L=1030 		1-22550-204-1 02 1 9510-0004 ● ● ●
40 BELT; SUPPORT,FUEL TANK
L=1030 		1-22550-204-2 02 1 0005-0607 ● ● ● ●
40 BELT; SUPPORT,FUEL TANK
L=1030 		1-22550-204-2 02 1 0608- ● ● ● ● ●
42 NUT; SUPPORT BELT
M10 		9-09110-510-0 04 1 9510-0004 ● ● ●
42 NUT; SUPPORT BELT
M10 		9-09110-510-0 04 1 0005-0512 ● ● ● ●
42 NUT; SUPPORT BELT
M10 		0-91110-510-0 04 1 0601-0607 ● ● ● ●
42 NUT; SUPPORT BELT
M10 		0-91110-510-0 04 1 0608- ● ● ● ● ●
43 BRACKET; FUEL TANK 1-53461-279-4 02 1 9510-0004 ● ● ●
43 BRACKET; FUEL TANK 1-53461-279-4 02 1 0005-0607 ● ● ● ●
43 BRACKET; FUEL TANK 1-53461-279-4 02 1 0608- ● ● ● ● ●
49 NUT; BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12 		9-99110-512-0 11 1 9510-9702 ● ●
49 NUT; BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12 FLANGE 		0-91150-212-0 11 1 9703-0004 ● ● ●
49 NUT; BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12 FLANGE 		0-91150-212-0 11 1 0005-0204 ●
49 NUT; BRKT
WHEEL BASE 3600MM(36W) M12 FLANGE 		0-91150-212-0 11 1 0005-0204 ●
49 NUT; BRKT
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE 		0-91150-212-0 11 1 0005-0204 ●
49 NUT; BRKT
WHEEL BASE 5000MM(50W) M12 FLANGE 		0-91150-212-0 11 1 0005-0204 ● ●
49 NUT; BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE 		0-91150-212-0 11 1 0205-0602 ● ● ● ●
49 NUT; BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE 		0-91180-212-0 11 1 0603-0607 ● ● ● ●
49 NUT; BRKT
SHORT CHASSIS(FT***C) WHEEL BASE 3600MM(36W) M12 FLANGE 		0-91180-212-0 11 1 0608- ● ●
49 NUT; BRKT
MIDDLE CHASSIS(FT***F) WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE 		0-91180-212-0 11 1 0608- ● ●
49 NUT; BRKT
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE 		0-91180-212-0 11 1 0608- ● ● ●
49 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) M12 		9-99110-512-0 12 1 9510-9702 ● ●
49 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12 FLANGE 		0-91150-212-0 12 1 9703-0004 ● ● ●
49 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12 FLANGE 		0-91150-212-0 12 1 0005-0204 ● ● ●
49 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE 		0-91150-212-0 12 1 0005-0204 ●
49 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE 		0-91150-212-0 12 1 0005-0204 ●
49 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE 		0-91150-212-0 12 1 0205-0602 ● ● ● ●
49 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE 		0-91150-212-0 12 1 0205-0602 ● ● ● ●
49 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE 		0-91180-212-0 12 1 0603- ● ● ● ●
49 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE 		0-91180-212-0 12 1 0603- ● ● ● ●
51 BOLT; BRKT TO FRAME
M12X30 FLANGE 		0-28081-230-0 12 1 9510-9606 ● ●
51 BOLT; BRKT TO FRAME
M12X35 FLANGE 		0-28681-235-0 12 1 9607-0004 ● ● ●
51 BOLT; BRKT TO FRAME
M12X35 FLANGE 		0-28681-235-0 12 1 0005-0512 ● ● ● ●
51 BOLT; BRKT TO FRAME
M12X35 FLANGE 		0-28651-235-0 12 1 0601-0607 ● ● ● ●
51 BOLT; BRKT TO FRAME
M12X35 FLANGE 		0-28651-235-0 12 1 0608- ● ● ● ● ●
72 NUT; BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12 		9-99110-512-0 03 1 9510-9702 ● ●
72 NUT; BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12 FLANGE 		0-91150-212-0 03 1 9703-0004 ● ● ●
72 NUT; BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12 FLANGE 		0-91150-212-0 03 1 0005-0204 ●
72 NUT; BRKT
WHEEL BASE 3600MM(36W) M12 FLANGE 		0-91150-212-0 03 1 0005-0204 ●
72 NUT; BRKT
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE 		0-91150-212-0 03 1 0005-0204 ●
72 NUT; BRKT
WHEEL BASE 5000MM(50W) M12 FLANGE 		0-91150-212-0 03 1 0005-0204 ● ●
72 NUT; BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE 		0-91150-212-0 03 1 0205-0602 ● ● ● ●
72 NUT; BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE 		0-91180-212-0 03 1 0603-0607 ● ● ● ●
72 NUT; BRKT
SHORT CHASSIS(FT***C) WHEEL BASE 3600MM(36W) M12 FLANGE 		0-91180-212-0 03 1 0608- ● ●
72 NUT; BRKT
MIDDLE CHASSIS(FT***F) WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE 		0-91180-212-0 03 1 0608- ● ●
72 NUT; BRKT
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE 		0-91180-212-0 03 1 0608- ● ● ●
72 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) M12 		9-99110-512-0 04 1 9510-9702 ● ●
72 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12 FLANGE 		0-91150-212-0 04 1 9703-0004 ● ● ●
72 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12 FLANGE 		0-91150-212-0 04 1 0005-0204 ● ● ●
72 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE 		0-91150-212-0 04 1 0005-0204 ●
72 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE 		0-91150-212-0 04 1 0005-0204 ●
72 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE 		0-91150-212-0 04 1 0205-0602 ● ● ● ●
72 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE 		0-91150-212-0 04 1 0205-0602 ● ● ● ●
72 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ● ● ●
72 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ● ● ●
217 BRACKET; FUEL TANK,LOW 1-53461-283-2 02 1 9510-0004 ● ● ●
217 BRACKET; FUEL TANK,LOW 1-53461-283-2 02 1 0005-0607 ● ● ● ●
217 BRACKET; FUEL TANK,LOW 1-53461-283-2 02 1 0608- ● ● ● ● ●
223 WASHER; PL,LWR BRKT FIX
ID=12.5 OD=26 		9-09160-612-0 04 1 9510-9702 ● ●
237 GASKET; BRKT TO FUEL TANK
L=580 		1-22553-003-0 02 1 9510-0004 ● ● ●
237 GASKET; BRKT TO FUEL TANK
L=580 		1-22553-003-0 02 1 0005-0607 ● ● ● ●
237 GASKET; BRKT TO FUEL TANK
L=580 		1-22553-003-0 02 1 0608- ● ● ● ● ●
285 BOLT; BRKT
M12X35 FLANGE 		0-28081-235-0 04 1 9510-9606 ● ●
285 BOLT; BRKT
M12X40 FLANGE 		0-28681-240-0 04 1 9607-0004 ● ● ●
285 BOLT; BRKT
M12X40 FLANGE 		0-28681-240-0 04 1 0005-0512 ● ● ● ●
285 BOLT; BRKT
M12X40 FLANGE 		0-28651-240-0 04 1 0601-0607 ● ● ● ●
285 BOLT; BRKT
M12X40 FLANGE 		0-28651-240-0 04 1 0608- ● ● ● ● ●
