◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51293 - NNR/NPR/NQR(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶

0-10 — CYLINDER HEAD COVER (#39559) — 140 parça

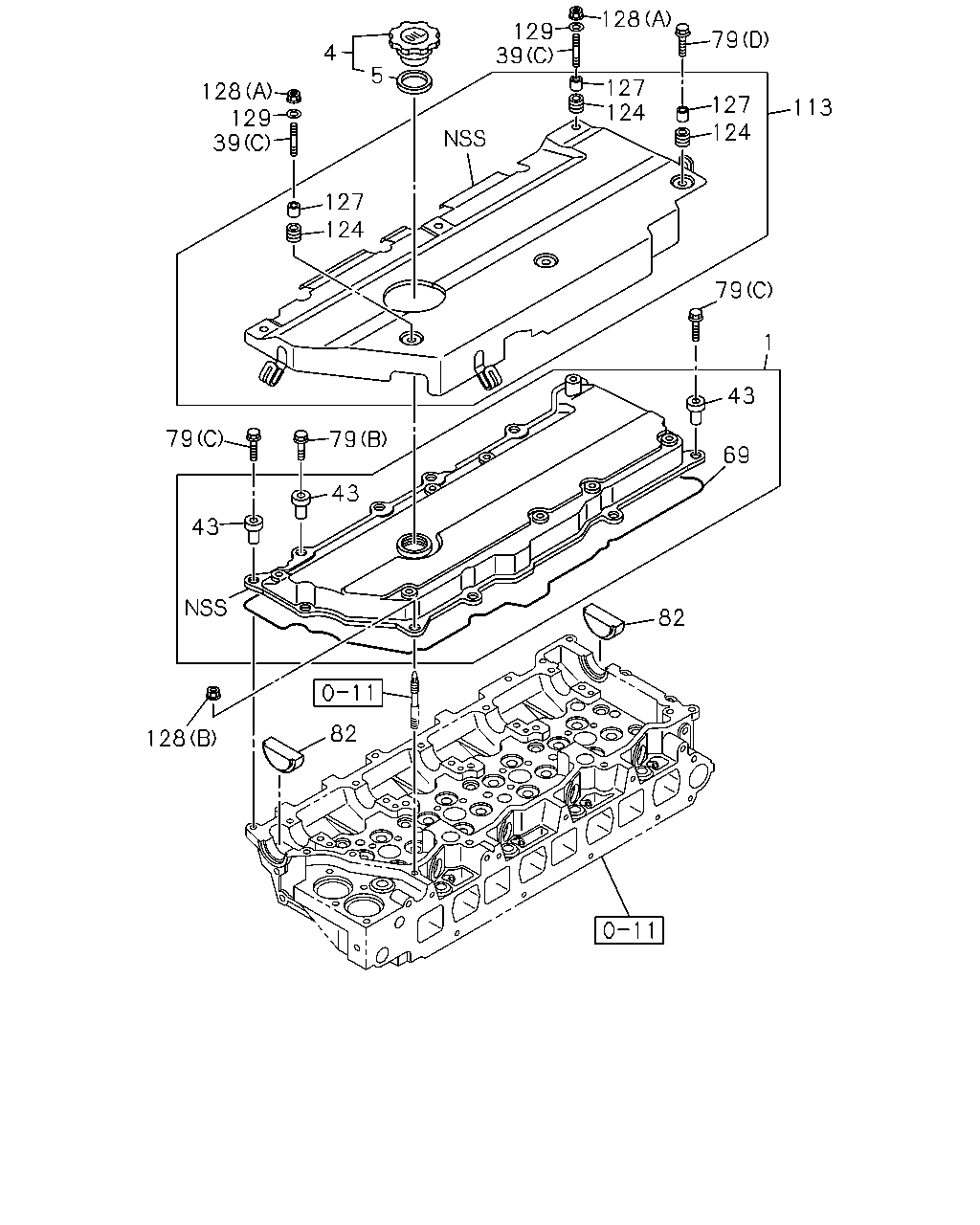

4 5 128 39 127 124 79 79 43 43 128 82 82 69 43 79 1 124 127 113 79 128 127 124 129 39 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1012-	●	●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1012-1204			●	●
1	00.386 COVER; CYL HD	8-98209-078-0	01	1	1205-1205			●	●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1205-1305			●	●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1306-1505			●	●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1506-			●	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	1012-					●	●
4	01.758 CAP; OIL FILLER VIETNAM EQUIPMENT<CL0>	8-97912-543-0	01	1	1201-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1012-1112	●	●	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1201-	●	●	●		●	●
4	01.758 CAP; OIL FILLER EXC. VIETNAM EQUIPMENT<CL0>	8-94133-207-5	01	1	1201-				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT<CL0> ID=32 OD=40	8-97918-298-0	01	1	1201-				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1012-1112	●	●	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94123-623-1	01	1	1201-	●	●	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT<CL0> 00.413 ID=32 OD=40	8-94123-623-1	01	1	1201-				●
39	00.413 STUD; COVER,HD VIETNAM EQUIPMENT<CL0> (A) M6X30 L=38	0-41010-630-0	01	1	1105-				●
39	00.413 STUD; COVER,HD (A) M6X30 L=38	8-97372-795-0	01	1	1012-1104			●	●
39	00.413 STUD; COVER,HD (A) M6X30 L=38	8-97372-795-0	01	1	1105-			●
39	00.413 STUD; COVER,HD EXC. VIETNAM EQUIPMENT<CL0> (A) M6X30 L=38	8-97372-795-0	01	1	1105-				●
39	00.413 STUD; COVER,HD EURO2 SPECIFICATION(NT2) 03.403 (B) M8X11,M8X25 L=45	8-97220-552-2	01	1	1012-				●
39	00.413 STUD; COVER,HD EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.275 (C) M6X25 L=34	0-41010-625-0	02	1	1012-					●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	1012-	●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=22	8-94395-684-0	11	1	1012-					●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97105-690-2	01	1	1012-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97945-338-0	01	1	1012-			●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97331-359-1	01	1	1012-					●	●
79	00.293 BOLT; COVER EURO4 SPECIFICATION(NT4) 00.413 (D) M6X20	8-97127-607-0	03	1	1111-					●	●
79	00.293 BOLT; COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	1012-1111			●
79	00.293 BOLT; COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	1112-			●
79	00.293 BOLT; COVER EURO3 SPECIFICATION(NT3) 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	1112-				●
79	00.293 BOLT; COVER EURO2 SPECIFICATION(NT2) 04.338 (A) M8X20 FLANGE	0-28050-820-0	04	1	1012-				●
79	00.293 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1012-					●	●
79	00.293 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	07	1	1012-					●	●
79	00.293 BOLT; COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 00.413 (D) M6X20	8-97127-607-0	04	1	1012-1110					●	●
79	00.293 BOLT; COVER EURO3 SPECIFICATION(NT3) 00.413 (D) M6X20	8-97127-607-0	04	1	1111-					●	●
82	00.386 PLUG; CYL HD COVER	8-98163-813-0	02	1	1012-	●	●			●	●
113	00.386 COVER; CYL HEAD COVER EURO4 SPECIFICATION(NT4)	8-98115-676-0	01	1	1111-					●	●
113	00.386 COVER; CYL HEAD COVER	8-98039-090-4	01	1	1012-1104			●	●
113	00.386 COVER; CYL HEAD COVER	8-98158-904-1	01	1	1105-			●	●
113	00.386 COVER; CYL HEAD COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97354-803-3	01	1	1012-1110					●	●
113	00.386 COVER; CYL HEAD COVER EURO3 SPECIFICATION(NT3)	8-97354-803-3	01	1	1111-					●	●
124	00.413 RUBBER; MTG,COVER EURO4 SPECIFICATION(NT4)	8-97226-908-0	05	1	1111-					●	●
124	00.413 RUBBER; MTG,COVER	8-98036-119-0	05	1	1012-			●	●
124	00.413 RUBBER; MTG,COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97226-908-0	06	1	1012-1110					●	●
124	00.413 RUBBER; MTG,COVER EURO3 SPECIFICATION(NT3)	8-97226-908-0	06	1	1111-					●	●
127	00.386 RETAINER; COVER EURO4 SPECIFICATION(NT4)	8-97092-314-0	05	1	1111-					●	●
127	00.386 RETAINER; COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97092-314-0	06	1	1012-1110					●	●
127	00.386 RETAINER; COVER EURO3 SPECIFICATION(NT3)	8-97092-314-0	06	1	1111-					●	●
128	00.413 NUT; COVER,CYL HEAD COVER 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-					●	●
128	00.413 NUT; COVER,CYL HEAD COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1012-					●	●
129	00.413 WASHER; COVER,CYL HEAD COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) ID=6.4 OD=18	0-91610-706-0	02	1	1012-					●	●

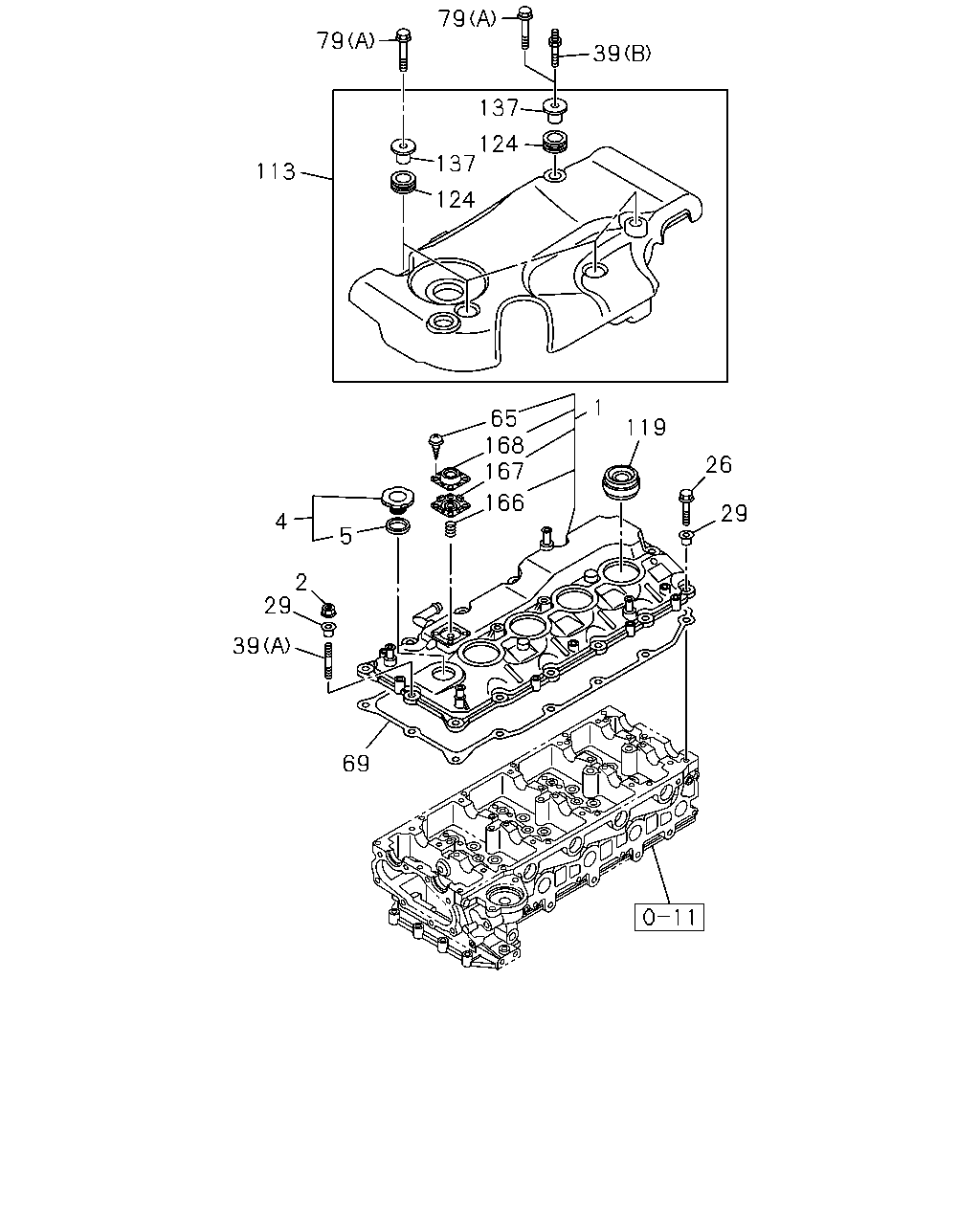

79 79 39 137 124 137 124 113 4 5 65 168 167 166 1 119 26 29 2 29 39 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1012-	●	●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1012-1204			●	●
1	00.386 COVER; CYL HD	8-98209-078-0	01	1	1205-1205			●	●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1205-1305			●	●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1306-1505			●	●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1506-			●	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	1012-					●	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	01	1	1102-	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	1012-			●	●
4	01.758 CAP; OIL FILLER VIETNAM EQUIPMENT<CL0>	8-97912-543-0	01	1	1201-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1012-1112	●	●	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1201-	●	●	●		●	●
4	01.758 CAP; OIL FILLER EXC. VIETNAM EQUIPMENT<CL0>	8-94133-207-5	01	1	1201-				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT<CL0> ID=32 OD=40	8-97918-298-0	01	1	1201-				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1012-1112	●	●	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94123-623-1	01	1	1201-	●	●	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT<CL0> 00.413 ID=32 OD=40	8-94123-623-1	01	1	1201-				●
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE	0-28650-630-0	13	1	1012-			●	●
29	00.413 RUBBER; MTG,HD COVER VIETNAM EQUIPMENT<CL0>	8-97361-811-1	14	1	1105-				●
29	00.413 RUBBER; MTG,HD COVER	8-97381-524-0	14	1	1012-1104			●	●
29	00.413 RUBBER; MTG,HD COVER	8-97381-524-0	14	1	1105-1408			●
29	00.413 RUBBER; MTG,HD COVER EXC. VIETNAM EQUIPMENT<CL0>	8-97381-524-0	14	1	1105-1408				●
29	00.413 RUBBER; MTG,HD COVER 00.206	8-97168-200-1	14	1	1409-			●
29	00.413 RUBBER; MTG,HD COVER EXC. VIETNAM EQUIPMENT<CL0> 00.206	8-97168-200-1	14	1	1409-				●
39	00.413 STUD; COVER,HD VIETNAM EQUIPMENT<CL0> (A) M6X30 L=38	0-41010-630-0	01	1	1105-				●
39	00.413 STUD; COVER,HD (A) M6X30 L=38	8-97372-795-0	01	1	1012-1104			●	●
39	00.413 STUD; COVER,HD (A) M6X30 L=38	8-97372-795-0	01	1	1105-			●
39	00.413 STUD; COVER,HD EXC. VIETNAM EQUIPMENT<CL0> (A) M6X30 L=38	8-97372-795-0	01	1	1105-				●
39	00.413 STUD; COVER,HD EURO2 SPECIFICATION(NT2) 03.403 (B) M8X11,M8X25 L=45	8-97220-552-2	01	1	1012-				●
39	00.413 STUD; COVER,HD EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.275 (C) M6X25 L=34	0-41010-625-0	02	1	1012-					●	●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER	8-97366-592-0	04	1	1012-			●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97105-690-2	01	1	1012-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97945-338-0	01	1	1012-			●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97331-359-1	01	1	1012-					●	●
79	00.293 BOLT; COVER EURO4 SPECIFICATION(NT4) 00.413 (D) M6X20	8-97127-607-0	03	1	1111-					●	●
79	00.293 BOLT; COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	1012-1111			●
79	00.293 BOLT; COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	1112-			●
79	00.293 BOLT; COVER EURO3 SPECIFICATION(NT3) 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	1112-				●
79	00.293 BOLT; COVER EURO2 SPECIFICATION(NT2) 04.338 (A) M8X20 FLANGE	0-28050-820-0	04	1	1012-				●
79	00.293 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1012-					●	●
79	00.293 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	07	1	1012-					●	●
79	00.293 BOLT; COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 00.413 (D) M6X20	8-97127-607-0	04	1	1012-1110					●	●
79	00.293 BOLT; COVER EURO3 SPECIFICATION(NT3) 00.413 (D) M6X20	8-97127-607-0	04	1	1111-					●	●
113	00.386 COVER; CYL HEAD COVER EURO4 SPECIFICATION(NT4)	8-98115-676-0	01	1	1111-					●	●
113	00.386 COVER; CYL HEAD COVER	8-98039-090-4	01	1	1012-1104			●	●
113	00.386 COVER; CYL HEAD COVER	8-98158-904-1	01	1	1105-			●	●
113	00.386 COVER; CYL HEAD COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97354-803-3	01	1	1012-1110					●	●
113	00.386 COVER; CYL HEAD COVER EURO3 SPECIFICATION(NT3)	8-97354-803-3	01	1	1111-					●	●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	1012-			●	●
124	00.413 RUBBER; MTG,COVER EURO4 SPECIFICATION(NT4)	8-97226-908-0	05	1	1111-					●	●
124	00.413 RUBBER; MTG,COVER	8-98036-119-0	05	1	1012-			●	●
124	00.413 RUBBER; MTG,COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97226-908-0	06	1	1012-1110					●	●
124	00.413 RUBBER; MTG,COVER EURO3 SPECIFICATION(NT3)	8-97226-908-0	06	1	1111-					●	●
137	00.413 BUSHING; MTG RUBBER,COVER	8-98036-120-0	05	1	1012-			●	●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	1012-1204			●	●
166	00.283 SPRING; VENTILATOR	8-98209-384-0	01	1	1205-1205			●	●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	1205-			●	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1012-1305			●	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98226-101-0	01	1	1306-1505			●	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1506-			●	●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	1012-			●	●

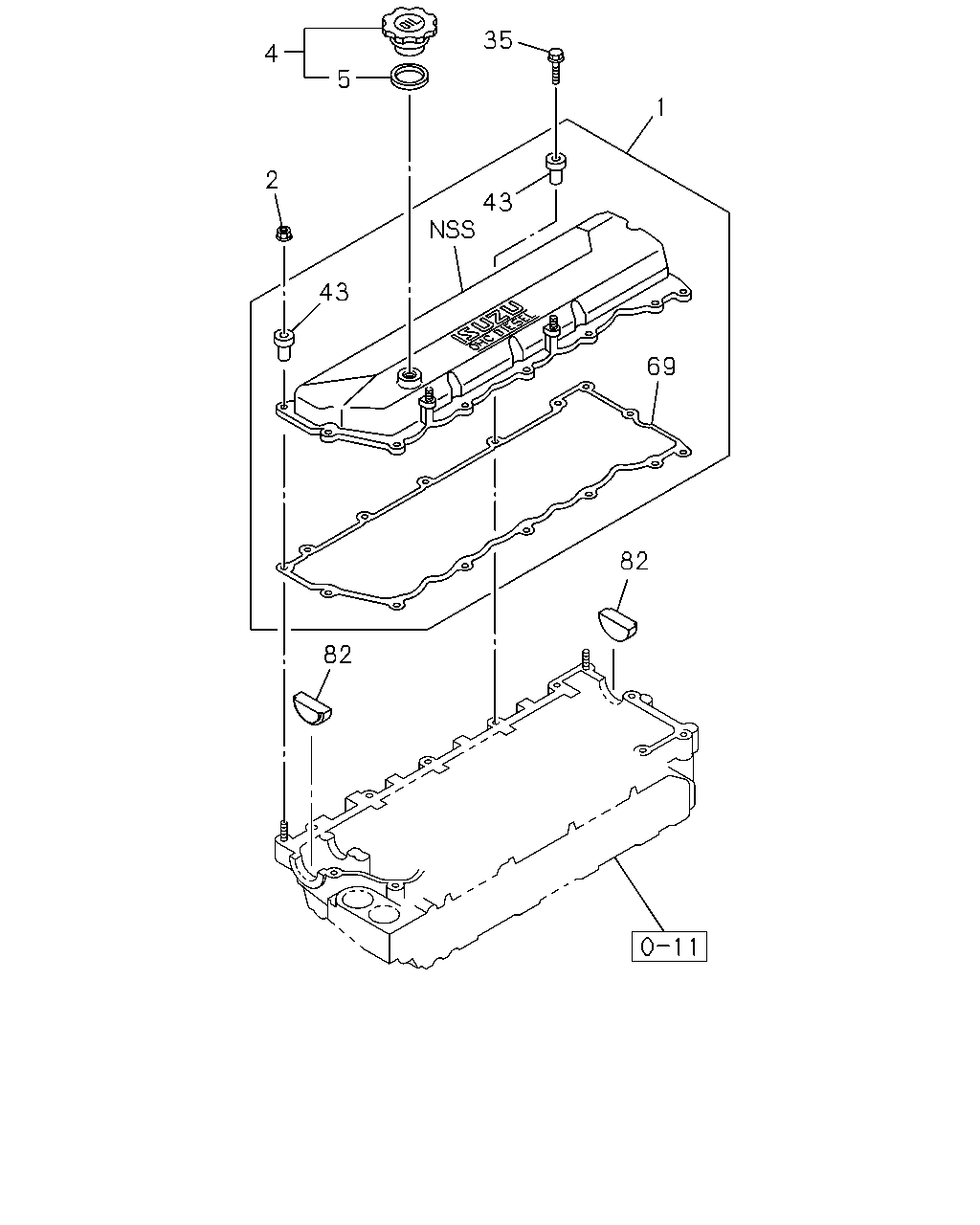

35 4 5 1 2 43 43 69 82 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1012-	●	●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1012-1204			●	●
1	00.386 COVER; CYL HD	8-98209-078-0	01	1	1205-1205			●	●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1205-1305			●	●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1306-1505			●	●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1506-			●	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	1012-					●	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	01	1	1102-	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	1012-			●	●
4	01.758 CAP; OIL FILLER VIETNAM EQUIPMENT<CL0>	8-97912-543-0	01	1	1201-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1012-1112	●	●	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1201-	●	●	●		●	●
4	01.758 CAP; OIL FILLER EXC. VIETNAM EQUIPMENT<CL0>	8-94133-207-5	01	1	1201-				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT<CL0> ID=32 OD=40	8-97918-298-0	01	1	1201-				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1012-1112	●	●	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94123-623-1	01	1	1201-	●	●	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT<CL0> 00.413 ID=32 OD=40	8-94123-623-1	01	1	1201-				●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	13	1	1102-		●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	13	1	1012-1101	●	●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	12	1	1102-	●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	1012-	●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=22	8-94395-684-0	11	1	1012-					●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97105-690-2	01	1	1012-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97945-338-0	01	1	1012-			●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97331-359-1	01	1	1012-					●	●
82	00.386 PLUG; CYL HD COVER	8-98163-813-0	02	1	1012-	●	●			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
