◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51293 - NNR/NPR/NQR(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#39558) — 744 parça

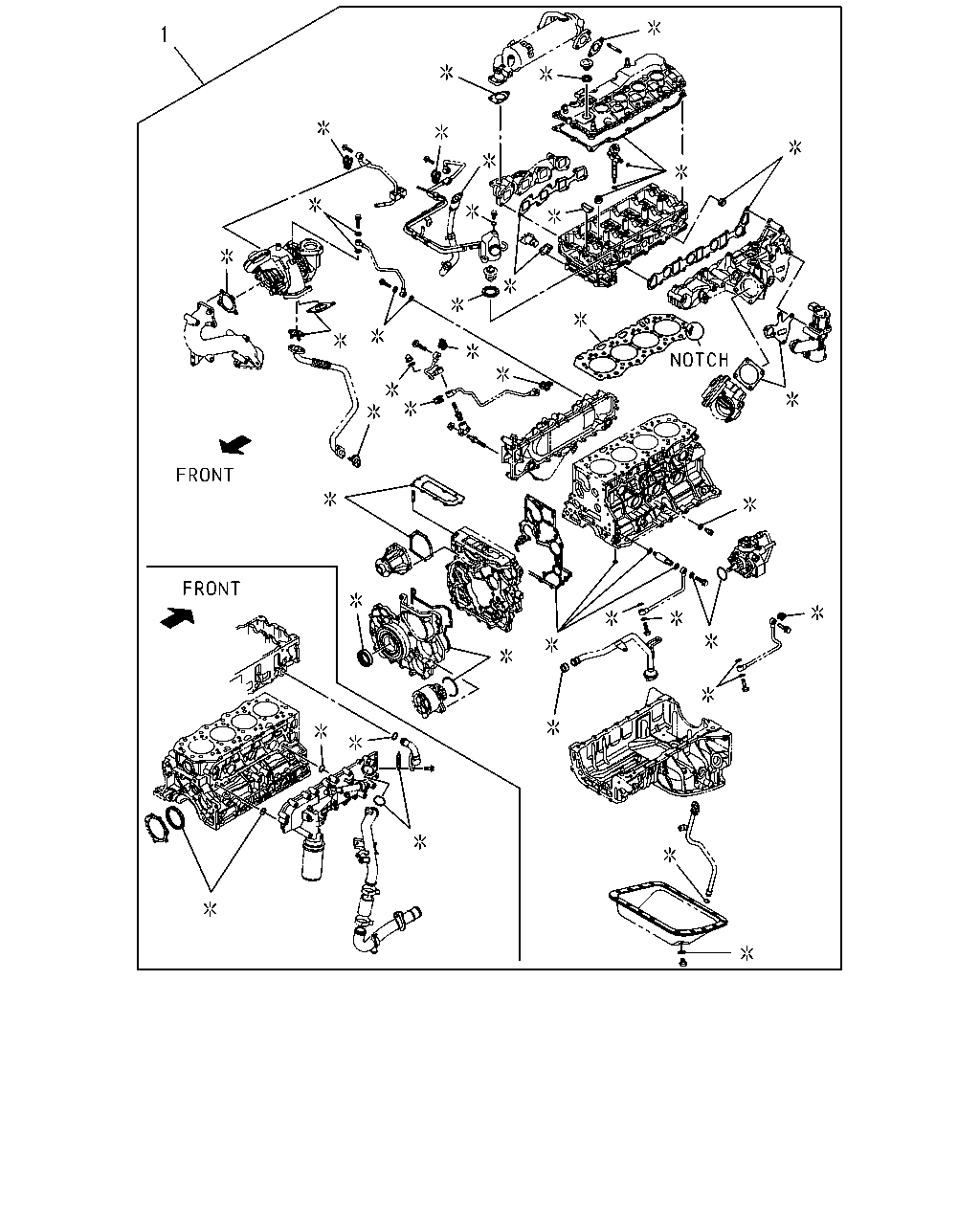

çizim 75757
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-032-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-033-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-034-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-653-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-029-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-654-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-030-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-655-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-031-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-779-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-924-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-114-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-358-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-540-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-580-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-785-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-883-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-680-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-780-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-925-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-115-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-359-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-541-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-581-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-786-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-884-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-681-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-781-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-926-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-116-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-360-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-542-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-582-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-787-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-885-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-682-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87815-807-2 01 1 1012-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-041-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-759-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-954-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87815-808-2 01 1 1012-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-042-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-760-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-955-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87815-809-2 01 1 1012-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-043-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-761-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-956-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.05 1-NOTCH 		5-87815-776-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.05 1-NOTCH 		5-87815-921-0 01 1 1101-1104 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87815-921-1 01 1 1105-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-108-0 01 1 1109-1111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-108-0 01 1 1112-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-352-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-534-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-574-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-779-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-877-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87817-674-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.10 2-NOTCH 		5-87815-777-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.10 2-NOTCH 		5-87815-922-0 01 1 1101-1104 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87815-922-1 01 1 1105-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-109-0 01 1 1109-1111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-109-0 01 1 1112-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-353-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-535-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-575-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-780-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-878-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87817-675-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.15 3-NOTCH 		5-87815-778-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.15 3-NOTCH 		5-87815-923-0 01 1 1101-1104 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87815-923-1 01 1 1105-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-110-0 01 1 1109-1111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-110-0 01 1 1112-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-354-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-536-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-576-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-781-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-879-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87817-676-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87815-810-0 01 1 1012-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87815-952-2 01 1 1102-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-044-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-762-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-957-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87815-811-0 01 1 1012-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87815-953-2 01 1 1102-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-045-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-763-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-958-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87815-812-0 01 1 1012-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87815-954-2 01 1 1102-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-046-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-764-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-959-0 01 1 1506- ● ●

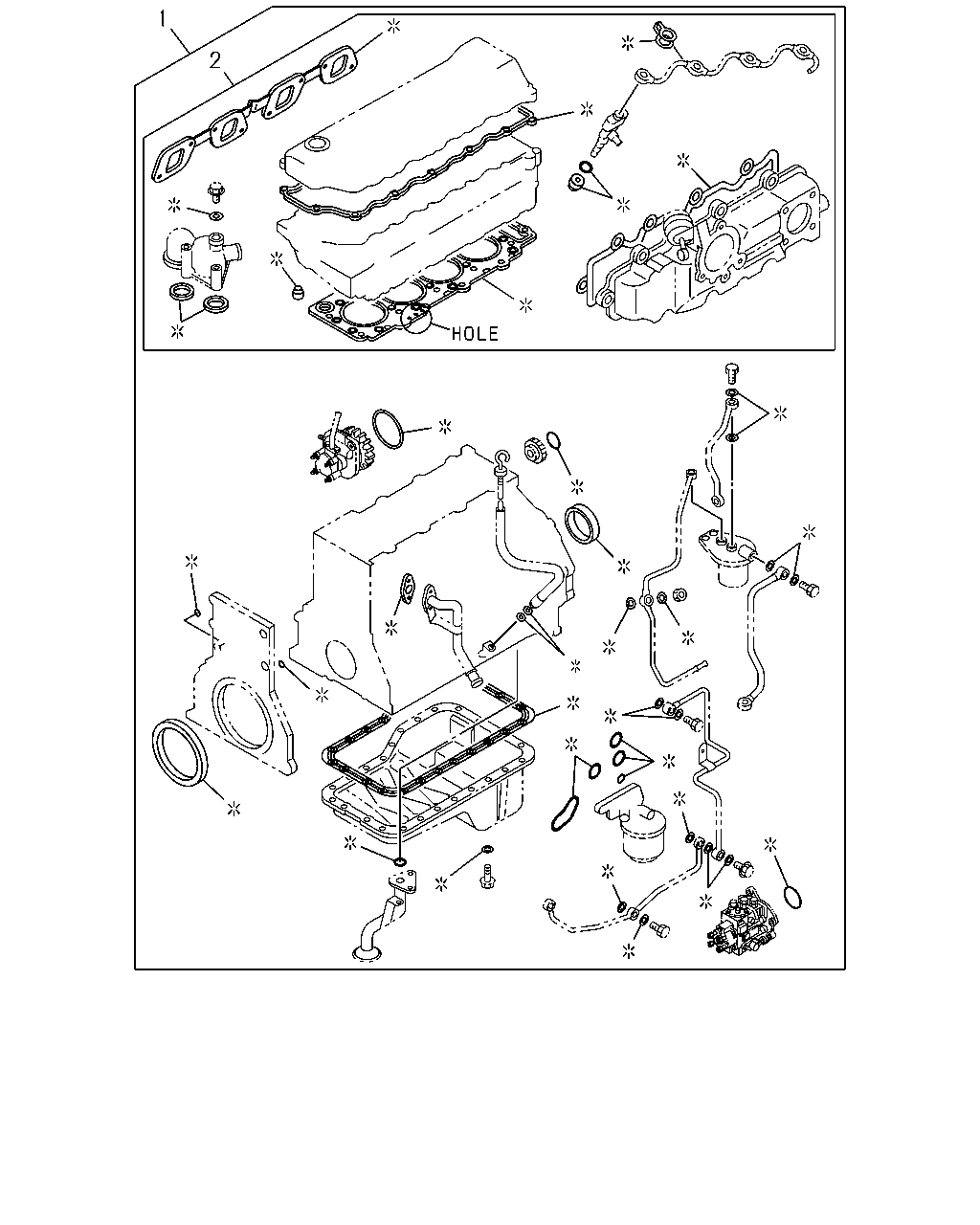

çizim 75784
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-032-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-033-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-034-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-653-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-029-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-654-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-030-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-655-2 01 1 1012-1312 ●

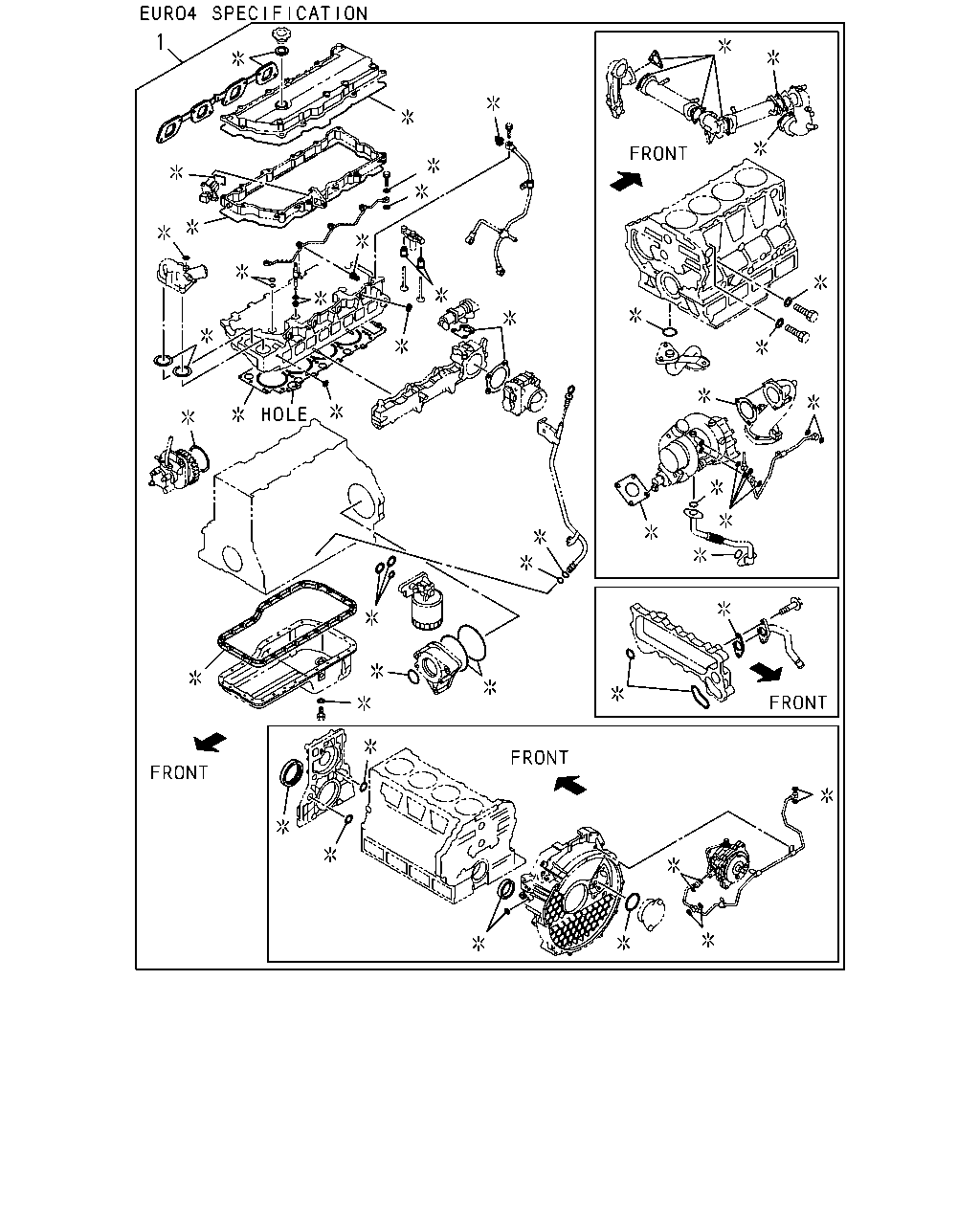

1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-031-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-779-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-924-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-114-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-358-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-540-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-580-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-785-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-883-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-680-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-780-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-925-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-115-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-359-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-541-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-581-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-786-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-884-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-681-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-781-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-926-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-116-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-360-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-542-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-582-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-787-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-885-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-682-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87815-807-2 01 1 1012-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-041-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-759-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-954-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87815-808-2 01 1 1012-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-042-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-760-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-955-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87815-809-2 01 1 1012-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-043-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-761-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-956-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.05 1-NOTCH 		5-87815-776-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.05 1-NOTCH 		5-87815-921-0 01 1 1101-1104 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87815-921-1 01 1 1105-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-108-0 01 1 1109-1111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-108-0 01 1 1112-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-352-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-534-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-574-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-779-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-877-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87817-674-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.10 2-NOTCH 		5-87815-777-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.10 2-NOTCH 		5-87815-922-0 01 1 1101-1104 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87815-922-1 01 1 1105-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-109-0 01 1 1109-1111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-109-0 01 1 1112-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-353-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-535-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-575-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-780-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-878-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87817-675-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.15 3-NOTCH 		5-87815-778-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.15 3-NOTCH 		5-87815-923-0 01 1 1101-1104 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87815-923-1 01 1 1105-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-110-0 01 1 1109-1111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-110-0 01 1 1112-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-354-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-536-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-576-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-781-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-879-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87817-676-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL

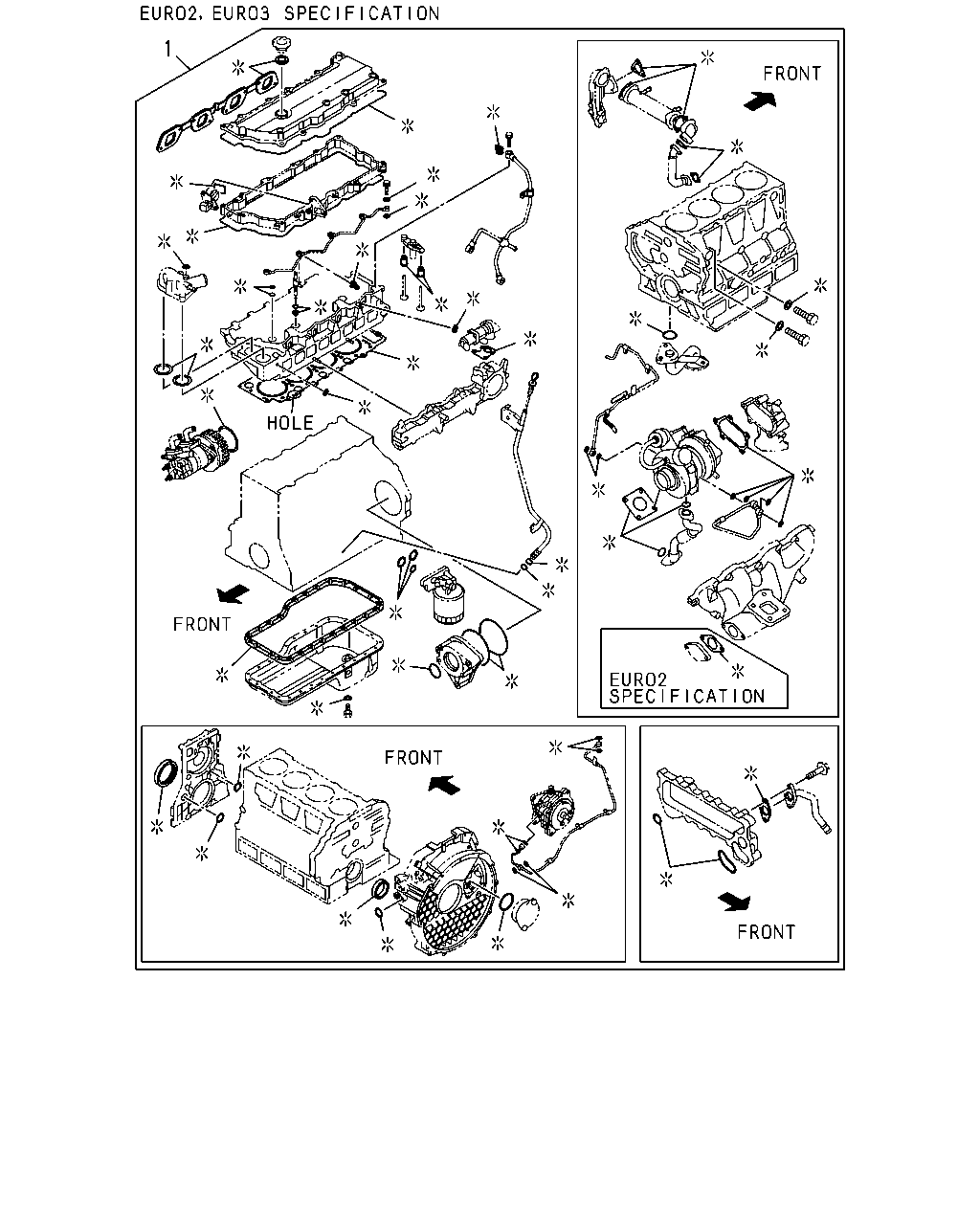

EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87815-810-0 01 1 1012-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87815-952-2 01 1 1102-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-044-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-762-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-957-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87815-811-0 01 1 1012-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87815-953-2 01 1 1102-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-045-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-763-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-958-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87815-812-0 01 1 1012-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87815-954-2 01 1 1102-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-046-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-764-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-959-0 01 1 1506- ● ●

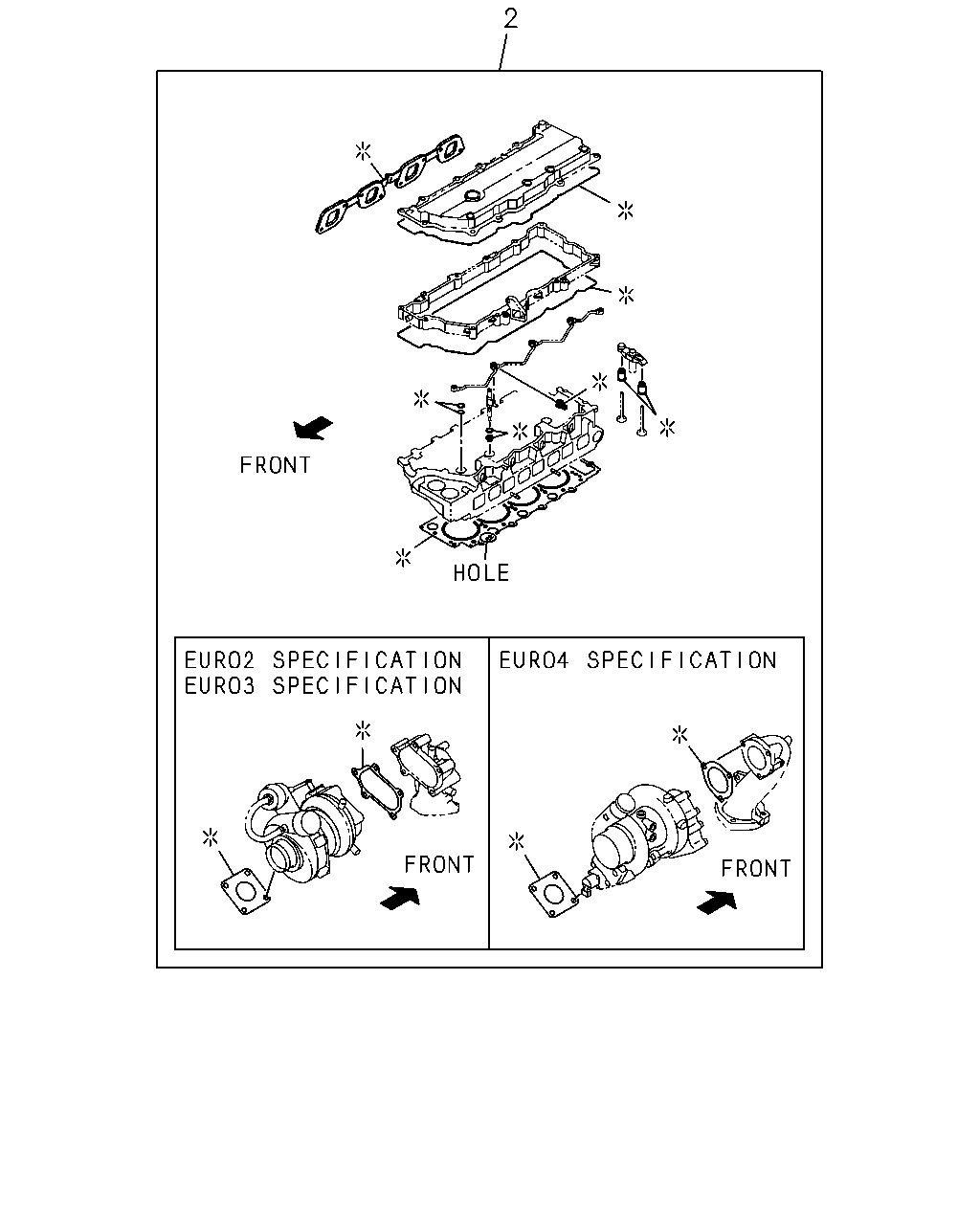

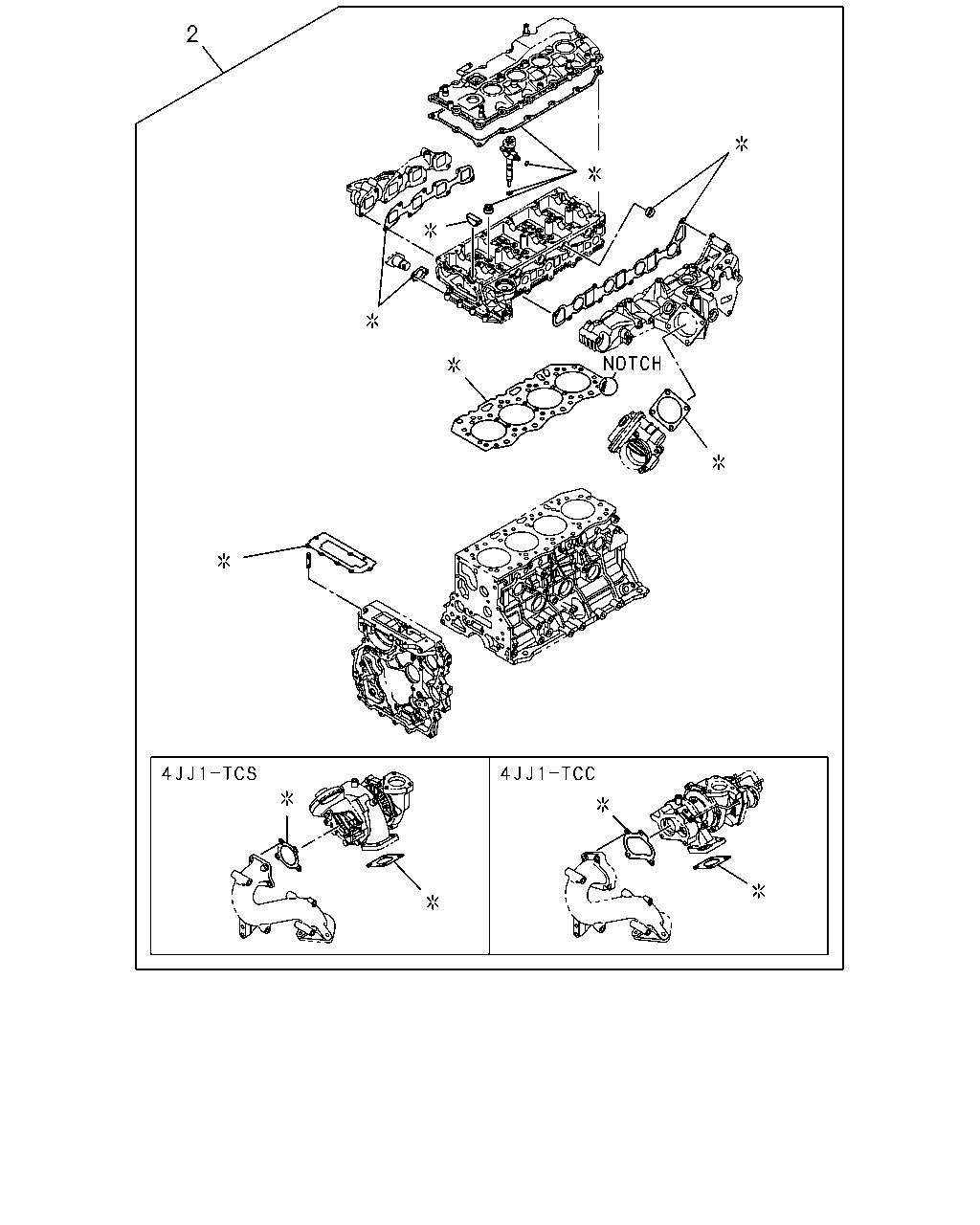

2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-038-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-039-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-040-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-656-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-035-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-657-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-036-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-658-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-037-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-370-1 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-888-0 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-120-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-340-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-507-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-826-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-NOTCH 		5-87817-647-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-371-1 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-889-0 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-121-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-341-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-508-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-827-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-NOTCH 		5-87817-648-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-372-1 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-890-0 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-122-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-342-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-509-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-828-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-NOTCH 		5-87817-649-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87815-529-3 01 1 1012-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) 		5-87817-990-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87815-530-3 01 1 1012-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) 		5-87817-991-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87815-531-3 01 1 1012-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) 		5-87817-992-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.05 1-NOTCH 		5-87815-373-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.05 1-NOTCH 		5-87815-912-0 01 1 1101-1104 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87815-912-1 01 1 1105-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-117-0 01 1 1109-1111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-117-0 01 1 1112-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-361-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3) T=1.05 1-NOTCH 		5-87816-543-0 01 1 1212-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
COLOMBIA EQUIPMENT(CB7) T=1.05 1-NOTCH 		5-87816-543-0 01 1 1212-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-543-0 01 1 1303-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-886-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87817-668-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.10 2-NOTCH 		5-87815-374-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.10 2-NOTCH 		5-87815-913-0 01 1 1101-1104 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87815-913-1 01 1 1105-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-118-0 01 1 1109-1111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-118-0 01 1 1112-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-362-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3) T=1.10 2-NOTCH 		5-87816-544-0 01 1 1212-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
COLOMBIA EQUIPMENT(CB7) T=1.10 2-NOTCH 		5-87816-544-0 01 1 1212-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-544-0 01 1 1303-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-887-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87817-669-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.15 3-NOTCH 		5-87815-375-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.15 3-NOTCH 		5-87815-914-0 01 1 1101-1104 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87815-914-1 01 1 1105-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-119-0 01 1 1109-1111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-119-0 01 1 1112-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-363-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3) T=1.15 3-NOTCH 		5-87816-545-0 01 1 1212-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
COLOMBIA EQUIPMENT(CB7) T=1.15 3-NOTCH 		5-87816-545-0 01 1 1212-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-545-0 01 1 1303-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-888-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87817-670-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87815-532-3 01 1 1012-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-993-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87815-533-3 01 1 1012-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-994-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87815-534-3 01 1 1012-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-995-0 01 1 1506- ● ●
çizim 76198
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-032-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-033-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-034-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-653-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-029-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-654-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-030-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-655-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-031-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-779-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-924-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-114-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-358-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-540-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-580-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-785-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-883-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-680-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-780-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-925-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-115-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-359-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-541-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-581-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-786-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-884-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-681-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-781-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-926-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-116-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-360-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-542-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-582-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-787-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-885-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-682-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87815-807-2 01 1 1012-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-041-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-759-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-954-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87815-808-2 01 1 1012-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-042-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-760-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-955-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87815-809-2 01 1 1012-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-043-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-761-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-956-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.05 1-NOTCH 		5-87815-776-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.05 1-NOTCH 		5-87815-921-0 01 1 1101-1104 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87815-921-1 01 1 1105-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-108-0 01 1 1109-1111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-108-0 01 1 1112-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-352-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-534-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-574-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-779-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-877-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87817-674-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.10 2-NOTCH 		5-87815-777-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.10 2-NOTCH 		5-87815-922-0 01 1 1101-1104 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87815-922-1 01 1 1105-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-109-0 01 1 1109-1111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-109-0 01 1 1112-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-353-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-535-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-575-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-780-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-878-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87817-675-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.15 3-NOTCH 		5-87815-778-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.15 3-NOTCH 		5-87815-923-0 01 1 1101-1104 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87815-923-1 01 1 1105-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-110-0 01 1 1109-1111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-110-0 01 1 1112-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-354-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-536-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-576-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-781-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-879-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87817-676-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87815-810-0 01 1 1012-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87815-952-2 01 1 1102-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-044-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-762-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-957-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87815-811-0 01 1 1012-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87815-953-2 01 1 1102-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-045-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-763-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-958-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87815-812-0 01 1 1012-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87815-954-2 01 1 1102-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-046-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-764-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-959-0 01 1 1506- ● ●
çizim 103278
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-032-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-033-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-034-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-653-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-029-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-654-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-030-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-655-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-031-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-779-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-924-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-114-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-358-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-540-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-580-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-785-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-883-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-680-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-780-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-925-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-115-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-359-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-541-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-581-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-786-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-884-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-681-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-781-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-926-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-116-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-360-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-542-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-582-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-787-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-885-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-682-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87815-807-2 01 1 1012-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-041-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-759-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-954-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87815-808-2 01 1 1012-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-042-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-760-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-955-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87815-809-2 01 1 1012-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-043-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-761-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-956-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.05 1-NOTCH 		5-87815-776-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.05 1-NOTCH 		5-87815-921-0 01 1 1101-1104 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87815-921-1 01 1 1105-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-108-0 01 1 1109-1111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-108-0 01 1 1112-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-352-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-534-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-574-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-779-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-877-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87817-674-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.10 2-NOTCH 		5-87815-777-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.10 2-NOTCH 		5-87815-922-0 01 1 1101-1104 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87815-922-1 01 1 1105-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-109-0 01 1 1109-1111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-109-0 01 1 1112-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-353-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-535-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-575-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-780-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-878-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87817-675-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.15 3-NOTCH 		5-87815-778-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.15 3-NOTCH 		5-87815-923-0 01 1 1101-1104 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87815-923-1 01 1 1105-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-110-0 01 1 1109-1111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-110-0 01 1 1112-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-354-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-536-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-576-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-781-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-879-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87817-676-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87815-810-0 01 1 1012-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87815-952-2 01 1 1102-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-044-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-762-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-957-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87815-811-0 01 1 1012-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87815-953-2 01 1 1102-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-045-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-763-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-958-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87815-812-0 01 1 1012-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87815-954-2 01 1 1102-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-046-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-764-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-959-0 01 1 1506- ● ●
çizim 103330
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-032-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-033-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-034-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-653-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-029-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-654-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-030-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-655-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-031-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-779-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-924-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-114-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-358-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-540-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-580-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-785-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-883-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-680-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-780-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-925-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-115-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-359-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-541-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-581-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-786-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-884-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-681-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-781-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-926-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-116-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-360-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-542-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-582-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-787-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-885-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-682-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87815-807-2 01 1 1012-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-041-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-759-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-954-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87815-808-2 01 1 1012-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-042-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-760-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-955-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87815-809-2 01 1 1012-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-043-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-761-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-956-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.05 1-NOTCH 		5-87815-776-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.05 1-NOTCH 		5-87815-921-0 01 1 1101-1104 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87815-921-1 01 1 1105-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-108-0 01 1 1109-1111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-108-0 01 1 1112-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-352-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-534-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-574-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-779-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-877-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87817-674-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.10 2-NOTCH 		5-87815-777-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.10 2-NOTCH 		5-87815-922-0 01 1 1101-1104 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87815-922-1 01 1 1105-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-109-0 01 1 1109-1111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-109-0 01 1 1112-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-353-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-535-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-575-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-780-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-878-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87817-675-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.15 3-NOTCH 		5-87815-778-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.15 3-NOTCH 		5-87815-923-0 01 1 1101-1104 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87815-923-1 01 1 1105-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-110-0 01 1 1109-1111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-110-0 01 1 1112-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-354-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-536-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-576-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-781-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-879-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87817-676-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87815-810-0 01 1 1012-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87815-952-2 01 1 1102-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-044-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-762-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-957-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87815-811-0 01 1 1012-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87815-953-2 01 1 1102-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-045-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-763-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-958-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87815-812-0 01 1 1012-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87815-954-2 01 1 1102-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-046-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-764-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-959-0 01 1 1506- ● ●
çizim 103333
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-038-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-039-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-040-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-656-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-035-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-657-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-036-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-658-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-037-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-370-1 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-888-0 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-120-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-340-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-507-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-826-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-NOTCH 		5-87817-647-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-371-1 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-889-0 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-121-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-341-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-508-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-827-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-NOTCH 		5-87817-648-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-372-1 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-890-0 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-122-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-342-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-509-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-828-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-NOTCH 		5-87817-649-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87815-529-3 01 1 1012-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) 		5-87817-990-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87815-530-3 01 1 1012-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) 		5-87817-991-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87815-531-3 01 1 1012-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) 		5-87817-992-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.05 1-NOTCH 		5-87815-373-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.05 1-NOTCH 		5-87815-912-0 01 1 1101-1104 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87815-912-1 01 1 1105-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-117-0 01 1 1109-1111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-117-0 01 1 1112-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-361-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3) T=1.05 1-NOTCH 		5-87816-543-0 01 1 1212-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
COLOMBIA EQUIPMENT(CB7) T=1.05 1-NOTCH 		5-87816-543-0 01 1 1212-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-543-0 01 1 1303-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-886-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87817-668-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.10 2-NOTCH 		5-87815-374-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.10 2-NOTCH 		5-87815-913-0 01 1 1101-1104 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87815-913-1 01 1 1105-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-118-0 01 1 1109-1111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-118-0 01 1 1112-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-362-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3) T=1.10 2-NOTCH 		5-87816-544-0 01 1 1212-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
COLOMBIA EQUIPMENT(CB7) T=1.10 2-NOTCH 		5-87816-544-0 01 1 1212-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-544-0 01 1 1303-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-887-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87817-669-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.15 3-NOTCH 		5-87815-375-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.15 3-NOTCH 		5-87815-914-0 01 1 1101-1104 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87815-914-1 01 1 1105-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-119-0 01 1 1109-1111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-119-0 01 1 1112-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-363-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3) T=1.15 3-NOTCH 		5-87816-545-0 01 1 1212-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
COLOMBIA EQUIPMENT(CB7) T=1.15 3-NOTCH 		5-87816-545-0 01 1 1212-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-545-0 01 1 1303-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-888-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87817-670-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87815-532-3 01 1 1012-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-993-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87815-533-3 01 1 1012-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-994-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87815-534-3 01 1 1012-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-995-0 01 1 1506- ● ●
çizim 103337
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-038-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-039-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-040-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-656-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-035-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-657-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-036-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-658-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-037-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-370-1 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-888-0 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-120-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-340-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-507-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-826-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-NOTCH 		5-87817-647-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-371-1 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-889-0 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-121-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-341-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-508-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-827-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-NOTCH 		5-87817-648-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-372-1 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-890-0 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-122-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-342-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-509-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-828-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-NOTCH 		5-87817-649-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87815-529-3 01 1 1012-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) 		5-87817-990-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87815-530-3 01 1 1012-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) 		5-87817-991-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87815-531-3 01 1 1012-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) 		5-87817-992-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.05 1-NOTCH 		5-87815-373-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.05 1-NOTCH 		5-87815-912-0 01 1 1101-1104 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87815-912-1 01 1 1105-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-117-0 01 1 1109-1111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-117-0 01 1 1112-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-361-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3) T=1.05 1-NOTCH 		5-87816-543-0 01 1 1212-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
COLOMBIA EQUIPMENT(CB7) T=1.05 1-NOTCH 		5-87816-543-0 01 1 1212-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-543-0 01 1 1303-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87816-886-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.05 1-NOTCH 		5-87817-668-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.10 2-NOTCH 		5-87815-374-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.10 2-NOTCH 		5-87815-913-0 01 1 1101-1104 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87815-913-1 01 1 1105-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-118-0 01 1 1109-1111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-118-0 01 1 1112-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-362-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3) T=1.10 2-NOTCH 		5-87816-544-0 01 1 1212-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
COLOMBIA EQUIPMENT(CB7) T=1.10 2-NOTCH 		5-87816-544-0 01 1 1212-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-544-0 01 1 1303-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87816-887-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.10 2-NOTCH 		5-87817-669-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.15 3-NOTCH 		5-87815-375-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.15 3-NOTCH 		5-87815-914-0 01 1 1101-1104 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87815-914-1 01 1 1105-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-119-0 01 1 1109-1111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-119-0 01 1 1112-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-363-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3) T=1.15 3-NOTCH 		5-87816-545-0 01 1 1212-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
COLOMBIA EQUIPMENT(CB7) T=1.15 3-NOTCH 		5-87816-545-0 01 1 1212-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-545-0 01 1 1303-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87816-888-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIETNAM EQUIPMENT<CL0> T=1.15 3-NOTCH 		5-87817-670-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87815-532-3 01 1 1012-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-993-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87815-533-3 01 1 1012-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-994-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87815-534-3 01 1 1012-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-995-0 01 1 1506- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
