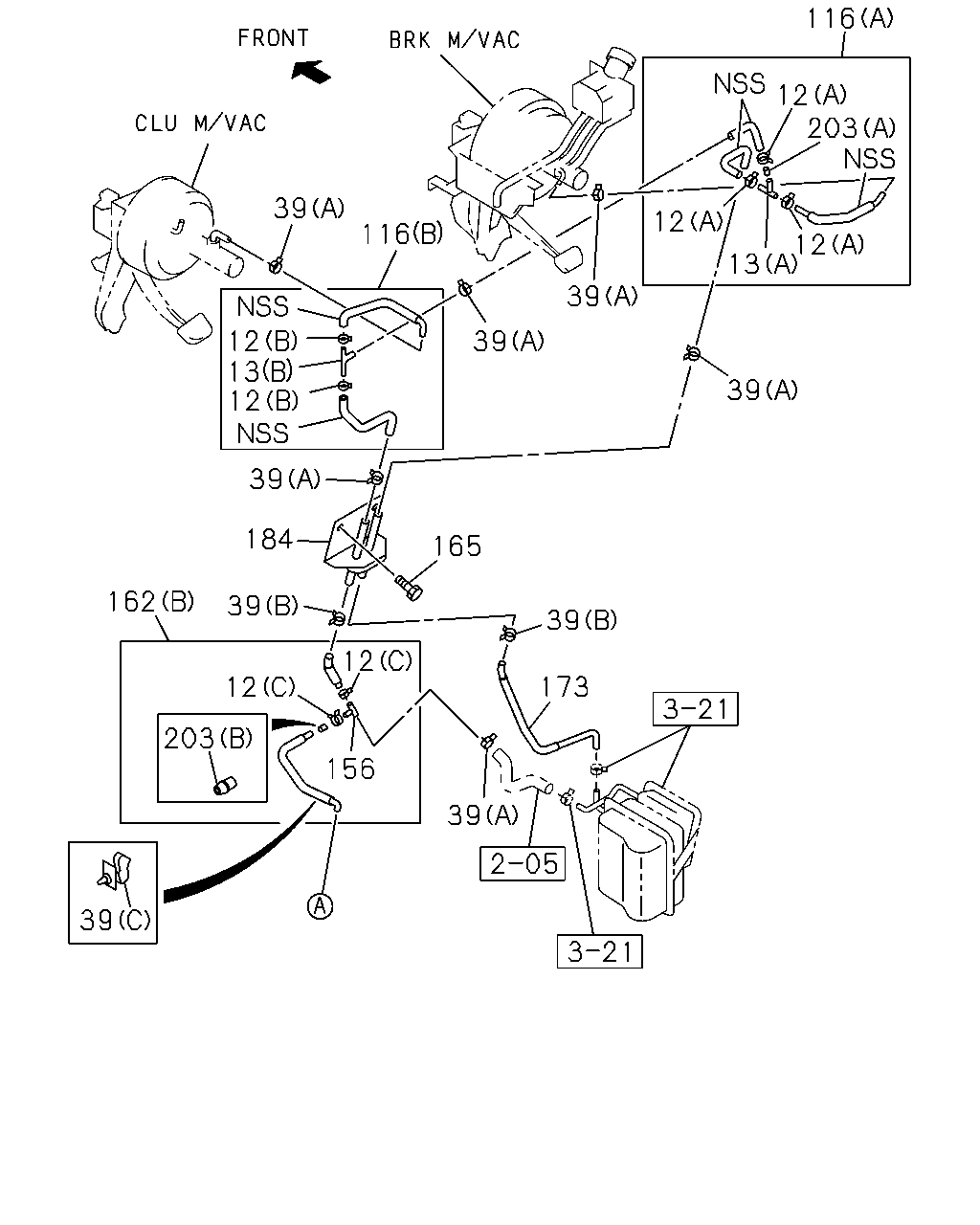

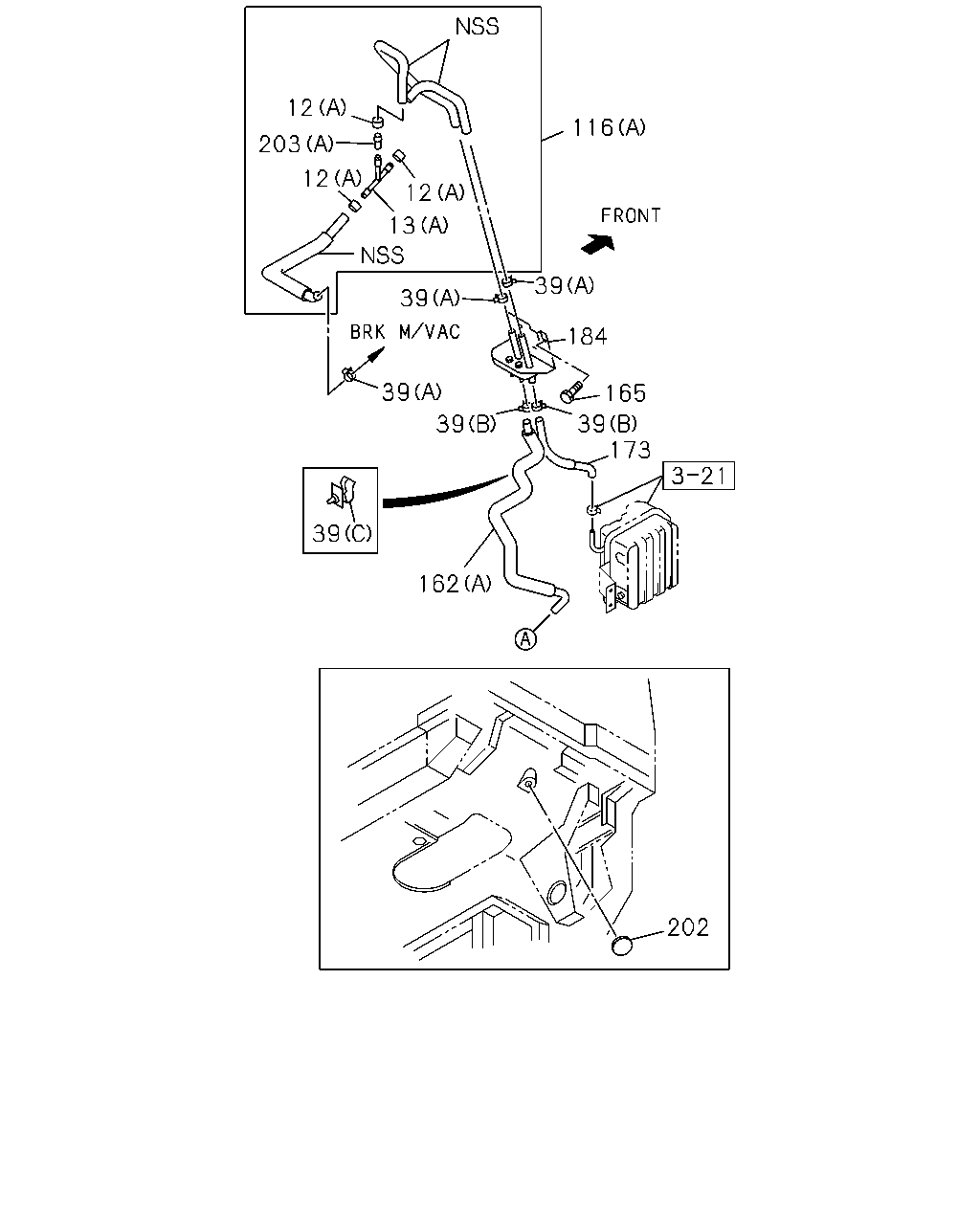

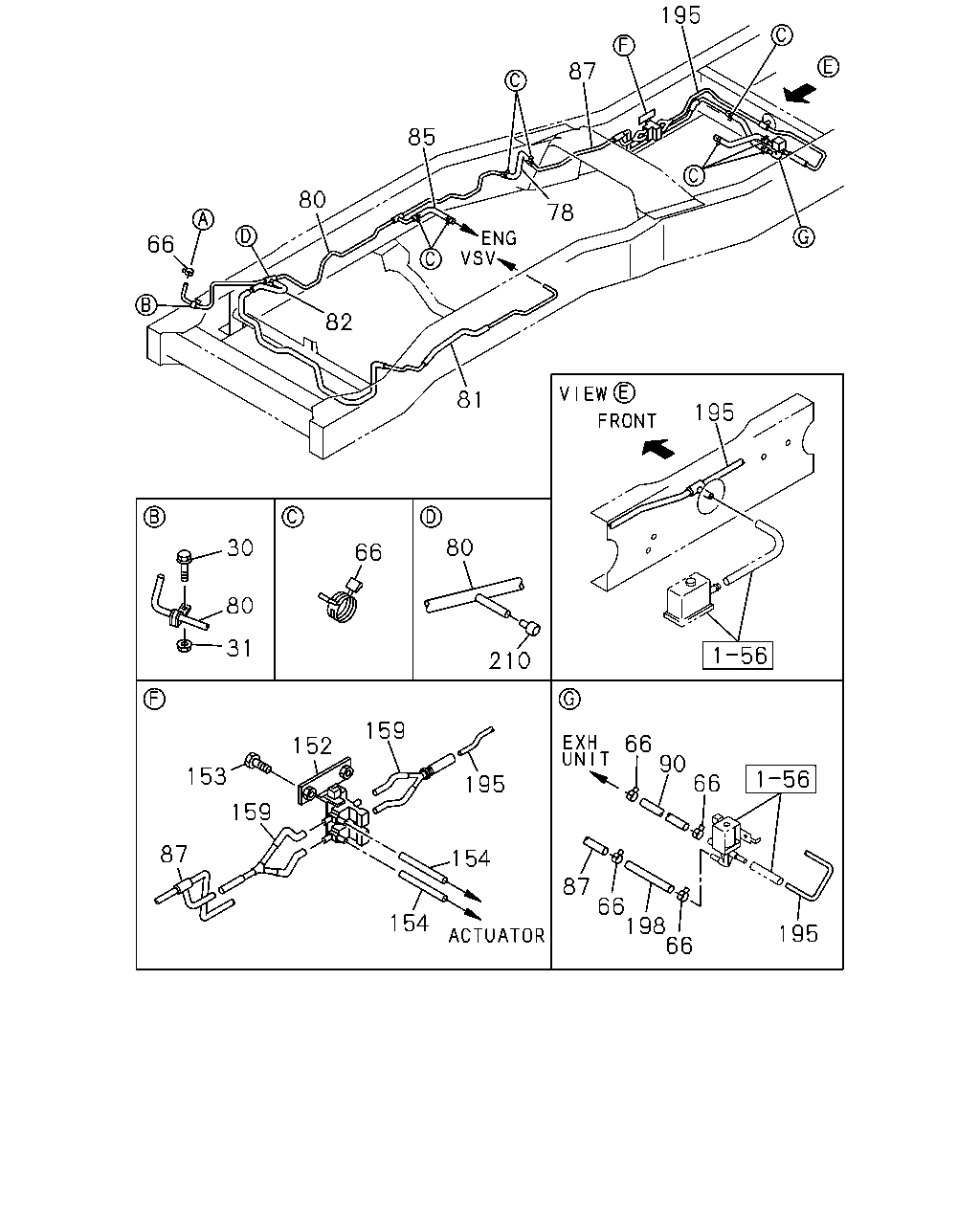

3-60 — BRAKE PIPING; VACUUM (#39556) — 85 parça

12 116 203 12 12 13 39 39 184 39 165 39 173 39 39 162 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=14.5	8-94167-480-0	02	1	0301-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (C) ID=15.5	8-94367-944-0	02	1	0301-
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0301-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	0301-
13	04.681 JOINT; HOSE,VAC 04.686 (A) 3WAY	8-94441-184-0	01	1	0301-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	06	1	0301-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	0301-
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0301-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	03	1	0301-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97314-596-1	01	1	0301-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97314-597-1	01	1	0301-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97035-968-0	01	1	0301-0403
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97379-286-1	01	1	0404-
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97091-963-0	01	1	0301-0501
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97040-991-2	01	1	0502-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (B)	8-97178-658-0	01	1	0301-0501
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (B)	8-98000-392-0	01	1	0502-
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0301-0512
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0301-
184	04.685 BRACKET; UNION FIX	8-97035-967-3	01	1	0301-
202	04.686 SEAL EXC. POWER ASSIST CLUTCH(S2T) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0301-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0301-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (A)	8-94386-540-0	01	1	0301-0412
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0501-

116 12 203 39 12 116 12 13 39 12 13 12 39 39 39 184 165 162 39 39 12 173 12 203 156 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=14.5	8-94167-480-0	02	1	0301-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (C) ID=15.5	8-94367-944-0	02	1	0301-
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0301-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	0301-
13	04.681 JOINT; HOSE,VAC 04.686 (A) 3WAY	8-94441-184-0	01	1	0301-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	06	1	0301-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	0301-
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0301-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	03	1	0301-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97314-596-1	01	1	0301-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97314-597-1	01	1	0301-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97035-968-0	01	1	0301-0403
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97379-286-1	01	1	0404-
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 3WAY	8-94167-478-0	01	1	0301-
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97091-963-0	01	1	0301-0501
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97040-991-2	01	1	0502-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (B)	8-97178-658-0	01	1	0301-0501
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (B)	8-98000-392-0	01	1	0502-
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0301-0512
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0301-
184	04.685 BRACKET; UNION FIX	8-97035-967-3	01	1	0301-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0301-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (A)	8-94386-540-0	01	1	0301-0412
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0501-

195 87 85 80 78 66 82 81 195 80 30 66 80 31 210 159 66 90 66 152 153 195 159 87 154 87 66 198 66 154 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0301-0512
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0301-0602
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	11	1	0301-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	11	1	0912-
78	04.931 HOSE; VAC,PIPE TO PIPE L=140 SERVICED BY L=3000	0-08358-300-0	01	1	0301-0501
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
80	04.930 PIPE; VAC,ENG SIDE	8-97325-798-2	01	1	0301-
81	04.930 PIPE; VAC,VSV 4HE1 ENG(RLY)	8-97325-813-4	01	1	0301-0501
81	04.930 PIPE; VAC,VSV	8-98011-469-0	01	1	0502-0504
82	04.931 HOSE; VAC,VSV 4HE1 ENG(RLY) 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0301-0501
82	04.931 HOSE; VAC,VSV 4HK1-TCN ENG(RDQ) 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0502-0504
85	04.931 HOSE; VAC,ENG SIDE 4HE1 ENG(RLY)	8-97239-327-0	01	1	0301-0501
85	04.931 HOSE; VAC,ENG SIDE	8-97239-327-0	01	1	0502-
87	04.930 PIPE; VAC,ENG TO MAG VLV	8-97325-805-2	01	1	0301-
90	04.931 HOSE; VAC,MAG VLV L=350 SERVICED BY L=3000	0-08358-300-0	01	1	0301-0501
90	04.931 HOSE; VAC,MAG VLV 03.630 L=360 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO	8-94481-999-4	01	1	0301-
153	04.686 BOLT; VSV 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0301-0512
153	04.686 BOLT; VSV 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0601-
154	04.931 HOSE; VSV TO ACTUATOR 08.962 L=150 SERVICED BY L=3000	0-04840-300-0	01	1	0301-
154	04.931 HOSE; VSV TO ACTUATOR 08.962 L=250 SERVICED BY L=3000	0-04840-300-0	01	1	0301-
159	04.931 HOSE ASM; VAC	8-94481-279-1	02	1	0301-
195	04.685 PIPE; VAC,UNION TO VSV	8-97325-809-2	01	1	0301-
198	04.931 HOSE; VAC,PIPE TO MAG VLV L=300 SERVICED BY L=3000	0-08358-300-0	01	1	0301-0501
198	04.931 HOSE; VAC,PIPE TO MAG VLV 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
210	04.931 RUBBER; CAP	8-97108-680-0	01	1	0505-

33 33 33 136 136 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.930 CLIP; VAC PIPE (A) ID=10 H=40	8-94462-219-0	02	1	0301-
33	04.930 CLIP; VAC PIPE (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0301-
33	04.930 CLIP; VAC PIPE (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0301-
33	04.930 CLIP; VAC PIPE (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0301-
84	04.931 PROTECTOR; EDGE,VAC HOSE 03.008 L=80	5-22439-006-0	01	1	0310-
136	04.681 CLIP; VAC HOSE 03.162 (A) L=140	5-09707-031-1	01	1	0301-
136	04.681 CLIP; VAC HOSE (B) ID=8.3 & 8.3	8-94426-175-0	01	1	0301-
