Isuzu WW
▶
TRUCKS
▶
NPS
▶
51409 - NPS(AUSTRALIA)
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶

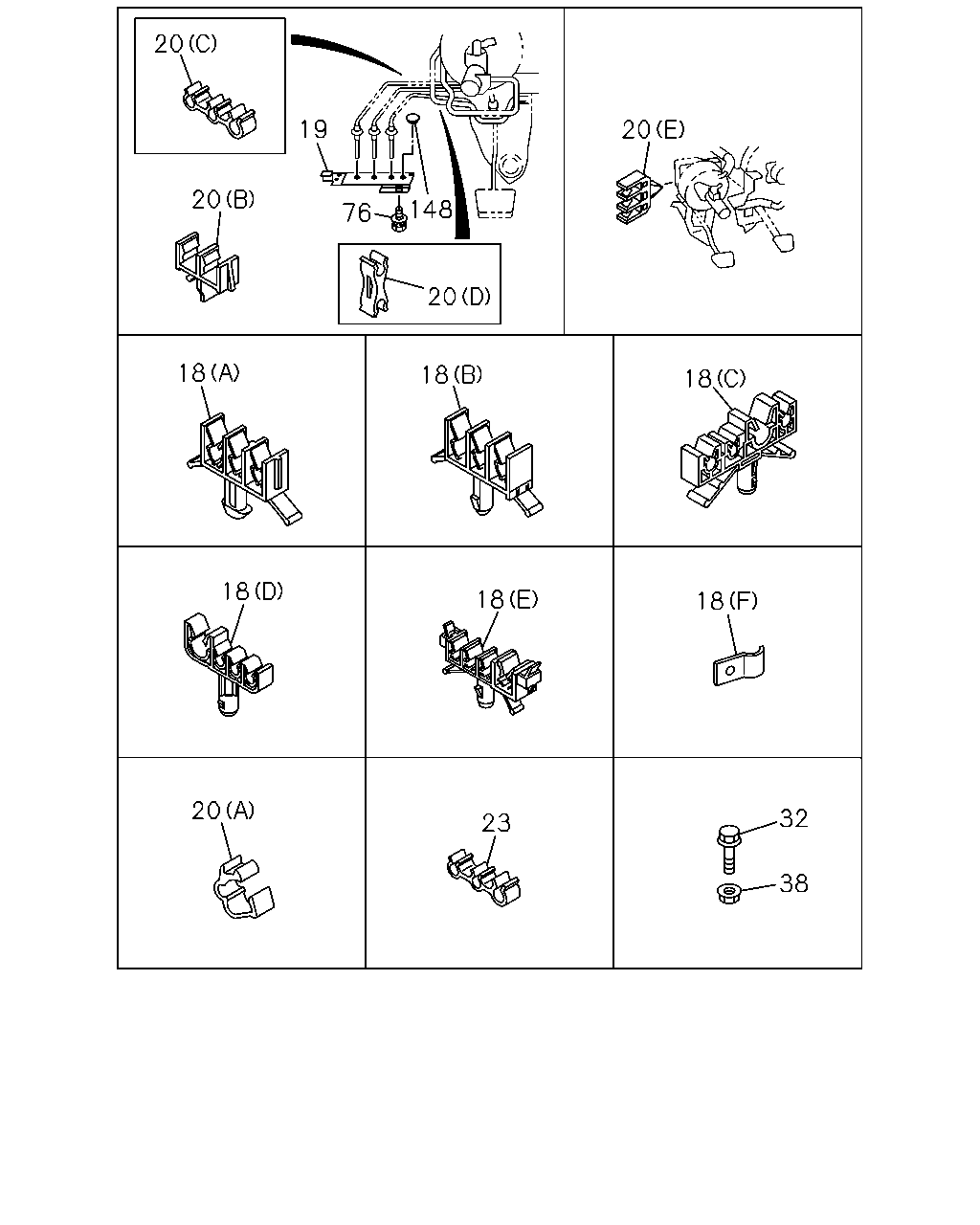

3-58 — FIXING PARTS; OIL PIPING
(#39555) — 26 parça
20
19
20
20
148
76
20
18
18
18
18
18
18
20
32
23
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3
8-97326-158-1
03
1
0310-
18
04.686 CLIP; BRK PIPE
(F) B=18 L=20
1-09700-372-0
02
1
0301-
18
04.686 CLIP; BRK PIPE
(B) ID=6.5 & 4.8X2
8-94131-710-2
01
1
0301-
18
04.686 CLIP; BRK PIPE
(A) ID=6.5 & 4.8X2 H=29
8-94249-689-2
03
1
0301-
18
04.686 CLIP; BRK PIPE
(D) ID=10 & 4.76X3
8-97168-819-0
02
1
0301-
18
04.686 CLIP; BRK PIPE
4HE1 ENG(RLY) 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76
8-97326-156-2
02
1
0301-0501
18
04.686 CLIP; BRK PIPE
03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76
8-97326-156-2
02
1
0301-0501
18
04.686 CLIP; BRK PIPE
03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76
8-97326-156-2
05
1
0502-
18
04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3
8-97326-158-1
09
1
0301-0309
18
04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3
8-97326-158-1
06
1
0310-
19
04.686 BRACKET; OIL PIPE
8-97149-718-2
01
1
0301-
20
04.686 CLIP; BRK PIPE
(A) ID=6.35 & 4.76X2
8-94107-732-1
01
1
0301-0501
20
04.686 CLIP; BRK PIPE
(B) ID=4.8X2
8-94113-470-0
01
1
0301-
20
04.686 CLIP; BRK PIPE
(C) ID=6.4 & 4.8X2
8-94146-043-0
01
1
0301-
20
04.686 CLIP; BRK PIPE
04.868 (D) ID=4.6X2
8-94241-454-0
01
1
0301-
20
04.686 CLIP; BRK PIPE
(E) ID=6.35 & 4.76X2
8-94250-923-2
01
1
0301-
23
04.686 CLAMP; PIPE
ID=6.4 & 4.8X2
8-94146-043-0
02
1
0301-
32
04.686 BOLT; CLIP,OIL PIPE
4HE1 ENG(RLY) 02.664 M8X20 FLANGE
0-28680-820-0
02
1
0301-0309
32
04.686 BOLT; CLIP,OIL PIPE
02.664 M8X20 FLANGE
0-28680-820-0
02
1
0310-0512
32
04.686 BOLT; CLIP,OIL PIPE
01.531 M8X20 FLANGE
0-28650-820-0
02
1
0601-0612
32
04.686 BOLT; CLIP,OIL PIPE
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0701-
38
04.686 NUT; CLIP FIX
07.633 M8 FLANGE
0-91150-108-0
02
1
0301-0602
38
04.686 NUT; CLIP FIX
01.062 M8 FLANGE
0-91180-108-0
02
1
0603-
76
04.686 BOLT; BRKT,OIL PIPE
02.559 M8X25 FLANGE
0-28680-825-0
02
1
0301-0512
76
04.686 BOLT; BRKT,OIL PIPE
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0601-
148
04.686 GROMMET
03.483
8-94294-358-0
01
1
0301-
