Isuzu WW
▶
TRUCKS
▶
NPS
▶
51409 - NPS(AUSTRALIA)
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶

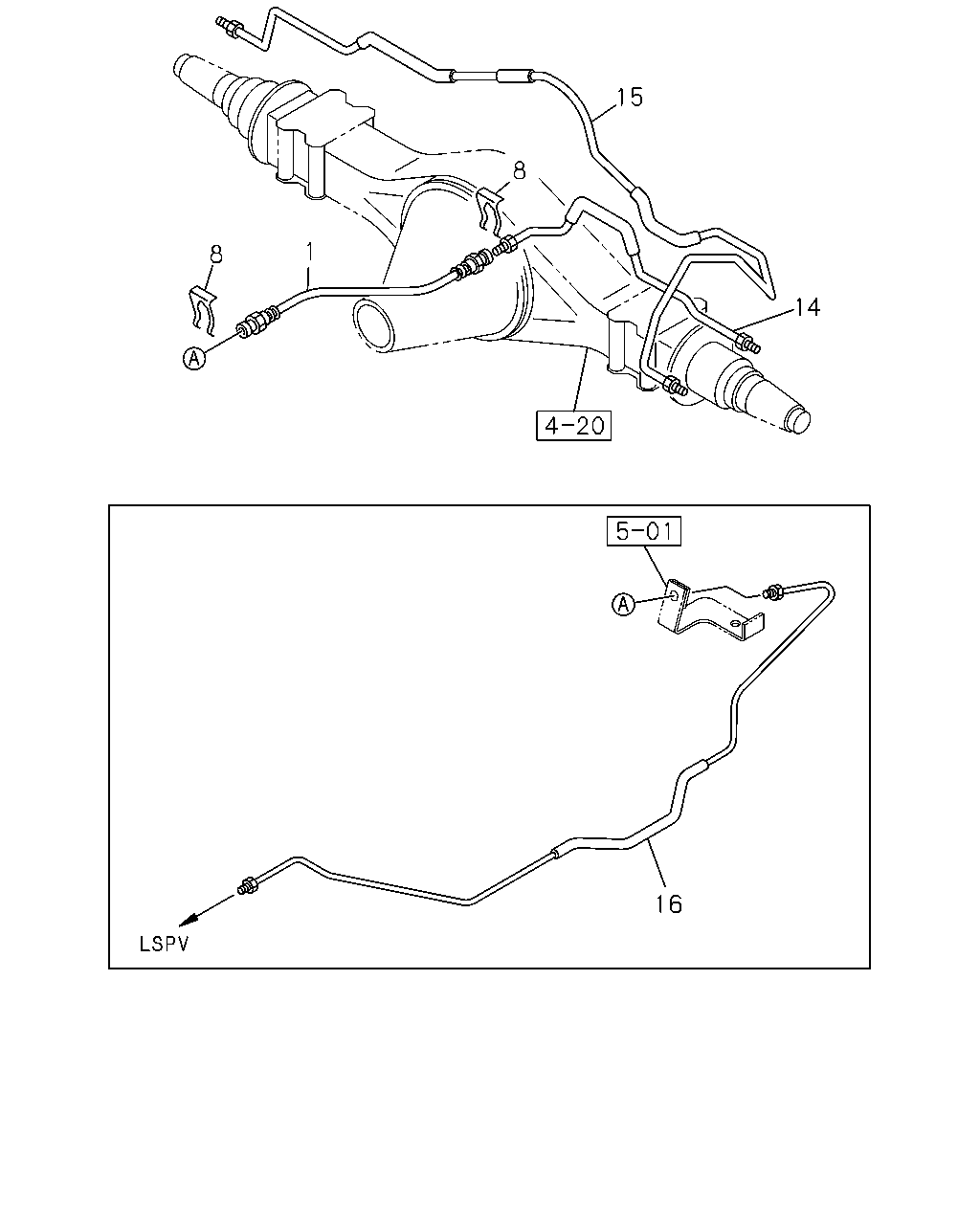

3-55 — BRAKE PIPING; OIL,REAR
(#39554) — 10 parça
15
8
1
8
14
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.680 HOSE; FLEX,RR BRK
L=405
8-97089-061-0
01
1
0301-
8
04.686 CLIP; RR BRK
04.681
8-94137-662-0
02
1
0301-0610
8
04.686 CLIP; RR BRK
8-97360-054-0
02
1
0611-
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-97088-703-0
01
1
0301-0501
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-97064-733-0
01
1
0502-0610
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-98026-051-0
01
1
0611-
15
04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
8-97079-905-1
01
1
0301-0501
15
04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
8-97064-738-0
01
1
0502-0610
15
04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
8-98026-052-0
01
1
0611-
16
08.964 PIPE; OIL,VLV TO RR FLEX HOSE
8-97325-792-2
01
1
0301-
