Isuzu WW
▶
TRUCKS
▶
NPS
▶
51409 - NPS(AUSTRALIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-66 - MANUAL TRANSFER GEAR; OUTPUT
▶

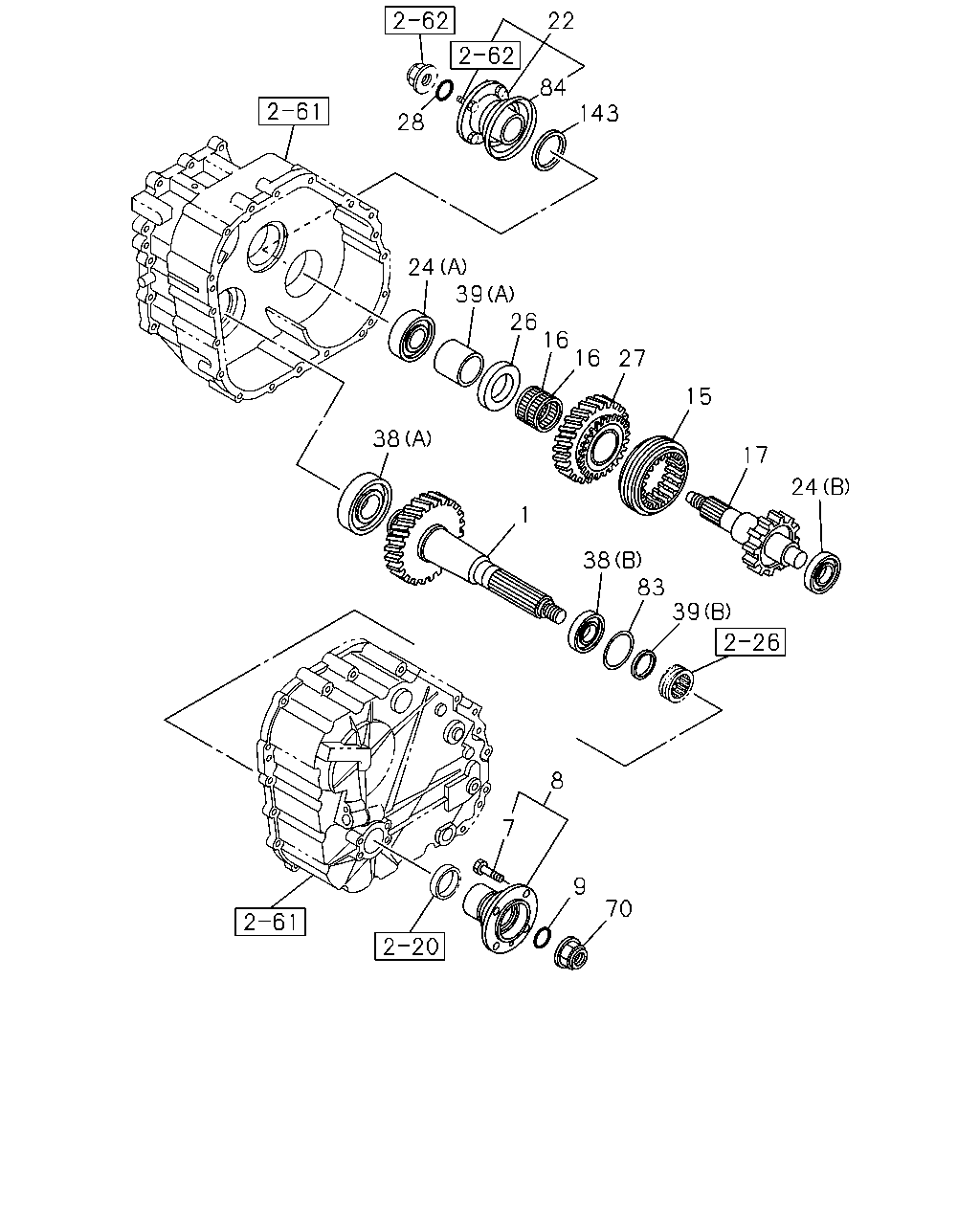

2-66 — MANUAL TRANSFER GEAR; OUTPUT
(#39541) — 31 parça
22
84
143
28
24
39
26
16
16
27
15
38
17
24
1
38
83
39
8
7
9
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.555 SHAFT; GEAR,OUTPUT,RR
8-97326-911-1
01
1
0301-
7
04.525 BOLT; COUPLING DRIVER
8-97319-458-0
04
1
0301-0701
7
04.525 BOLT; COUPLING DRIVER
8-98031-764-0
04
1
0702-
8
04.535 FLANGE; OUTPUT
8-97318-444-1
01
1
0301-0501
8
04.535 FLANGE; OUTPUT
8-98000-408-0
01
1
0502-0701
8
04.535 FLANGE; OUTPUT
8-98079-515-0
01
1
0702-
9
04.164 GASKET; SHAFT
ID=30.6 T=5.7
8-94481-411-0
01
1
0301-0507
9
04.164 GASKET; SHAFT
04.412 ID=30.6 T=5.7
8-98028-226-0
01
1
0508-
15
04.540 SLEEVE; NEUTRAL & FRT
04.419
1-33262-175-1
01
1
0301-
16
04.520 BEARING; OUTPUT GEAR
8-97326-898-0
02
1
0301-
17
04.555 SHAFT; OUTPUT
8-97326-900-0
01
1
0301-
22
04.535 FLANGE; OUTPUT,FRT
8-97328-676-0
01
1
0301-
24
04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA
(B)
8-97326-893-0
01
1
0301-
24
04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA
(A)
8-97326-894-0
01
1
0301-
26
04.533 WASHER; THRUST
8-97326-896-0
01
1
0301-
27
04.532 GEAR; OUTPUT,FRT
8-97326-899-0
01
1
0301-
28
04.573 GASKET; SHAFT
8-97326-890-0
01
1
0301-
38
04.520 BEARING; RR DRIVE SHAFT,RR,TRANS
(B)
8-97326-909-0
01
1
0301-
38
04.520 BEARING; RR DRIVE SHAFT,RR,TRANS
(A)
8-97326-910-0
01
1
0301-
39
04.520 COLLAR; DIST,OUTPUT
(A)
8-97326-895-0
01
1
0301-
39
04.520 COLLAR; DIST,OUTPUT
(B)
8-97326-901-0
01
1
0301-
70
04.164 NUT; RR OUTPUT SHAFT,TRANSFER
04.412 M27 H=25
8-97253-126-0
01
1
0301-0604
70
04.164 NUT; RR OUTPUT SHAFT,TRANSFER
04.525 M27 H=25
8-97360-410-0
01
1
0605-
83
04.520 SHIM; OUTPUT SHAFT
T=0.18
8-97326-902-0
01
1
0301-
83
04.520 SHIM; OUTPUT SHAFT
T=0.50
8-97326-903-0
02
1
0301-
83
04.520 SHIM; OUTPUT SHAFT
T=0.40
8-97326-904-0
01
1
0301-
83
04.520 SHIM; OUTPUT SHAFT
T=0.35
8-97326-905-0
01
1
0301-
83
04.520 SHIM; OUTPUT SHAFT
T=0.30
8-97326-906-0
01
1
0301-
83
04.520 SHIM; OUTPUT SHAFT
T=0.25
8-97326-907-0
01
1
0301-
84
04.520 COVER; DUST
8-97326-891-0
01
1
0301-
143
04.520 SEAL; OIL
8-97326-889-0
01
1
0301-
