◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#3953) — 423 parça

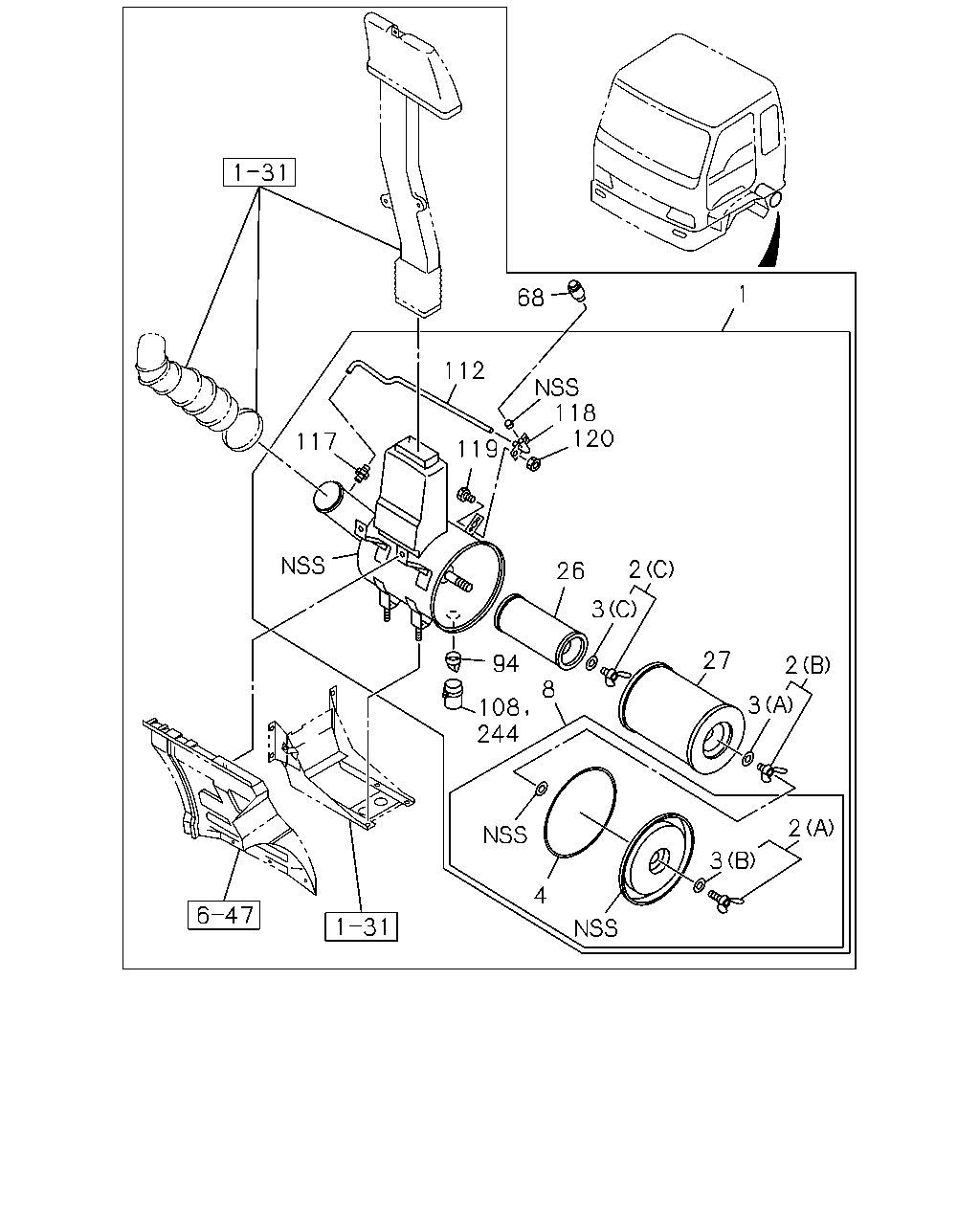

çizim 115952
1 68 112 118 120 117 119 2 26 3 27 94 2 8 3 108 244 2 3 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CLEANER ASM; AIR 1-14210-807-1 01 1 0608- ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-777-3 01 1 9510-9802 ●
1 CLEANER ASM; AIR 1-14210-777-3 01 1 9803-0004 ●
1 CLEANER ASM; AIR 1-14210-777-4 01 1 0005- ● ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-772-2 01 1 9510-9802 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-779-0 01 1 9511-9606 ●
1 CLEANER ASM; AIR 1-14210-794-0 01 1 9607-9703 ●
1 CLEANER ASM; AIR 1-14210-805-0 01 1 9704-9802 ● ●
1 CLEANER ASM; AIR 1-14210-815-0 01 1 9803-9803 ● ●
1 CLEANER ASM; AIR 1-14210-830-1 01 1 9804- ● ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-14210-770-1 01 1 9511-9606 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9510-9510 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9511-9606 ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 13"(E6U) (A) 		1-14217-049-0 01 1 9511-9606 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9607-0004 ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0607 ● ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0608- ● ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9510-9510 ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9511-0004 ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0607 ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0608- ● ● ● ● ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 9510-9802 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 9803-0004 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0005- ● ●
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14217-003-0 01 1 9511-9606 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 9607-0607 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0608- ● ● ●
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (A) 		1-14217-049-0 01 1 9511-9606 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9510-9510 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9511-0004 ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0607 ● ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0608- ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9510-9510 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9511-9606 ●
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 13"(E6U) (B) 		1-14219-156-0 01 1 9511-9606 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9607-0004 ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0607 ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0608- ● ● ● ● ●
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 9510-9802 ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 9803-0004 ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 0005- ● ●
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14219-032-0 01 1 9511-9606 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 9607-0607 ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0608- ● ● ●
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (B) 		1-14219-156-0 03 1 9511-9606 ●
4 GASKET; COVER TO BODY 1-14219-266-0 01 1 0608- ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9510-0004 ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0005- ● ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-128-0 01 1 9511-9606 ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9607- ● ●
4 GASKET; COVER TO BODY
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-14218-128-0 01 1 9511-9606 ●
8 COVER ASM; ACL 1-14212-084-0 01 1 9510-0004 ●
8 COVER ASM; ACL 1-14212-084-0 01 1 0005- ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9511-0607 ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0608- ● ● ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 9510-0004 ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 0005- ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14215-151-0 01 1 9511-9606 ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 9607-0607 ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0608- ● ● ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-118-0 01 1 0005- ● ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-118-0 01 1 9510-0004 ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 9510-0004 ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 0005- ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14215-181-0 01 1 9511-9606 ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 9607-0607 ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0608- ● ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 9607-0607 ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 0608- ● ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-117-0 01 1 0005- ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-117-0 01 1 9510-0004 ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) BEST VALUE PARTS 		1-87610-058-0 01 1 9511-9606 ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9510-0004 ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005- ● ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9510-9510 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9511-9802 ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9803-0004 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0005-0607 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0608- ● ● ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 9803- ● ●
108 COVER; ACL 1-14219-270-0 01 1 9803-9803 ●
112 HOSE; INDICATOR 1-14219-259-0 01 1 0608- ●
112 HOSE; INDICATOR 1-09360-879-0 01 1 9510-9607 ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 9608-0004 ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 0005- ● ●
112 HOSE; INDICATOR 1-14219-255-0 01 1 9511-9607 ●
112 HOSE; INDICATOR 1-14219-259-0 01 1 9608-9703 ● ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 9803- ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9510-9510 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9511-0004 ● ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0005-0607 ● ● ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0608- ● ● ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9510-9510 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9511-0004 ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0005-0607 ● ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0608- ● ● ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 03 1 9510-9510 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 03 1 9511-9606 ●
119 BOLT; INDICATOR BRKT
AIR CLEANER DRY DONALDSON 13"(E6U) M6X16 		9-02040-616-0 03 1 9511-9606 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 03 1 9607-9607 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9608-0004 ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0005-0607 ● ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0608- ● ● ● ● ●
119 BOLT; INDICATOR BRKT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) M6X16 		9-02040-616-0 04 1 9511-9606 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9607-9607 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9510-9510 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9511-0004 ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0005-0607 ● ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0608- ● ● ● ● ●
244 COVER ASM; VALVE 1-14219-281-0 01 1 0608- ●

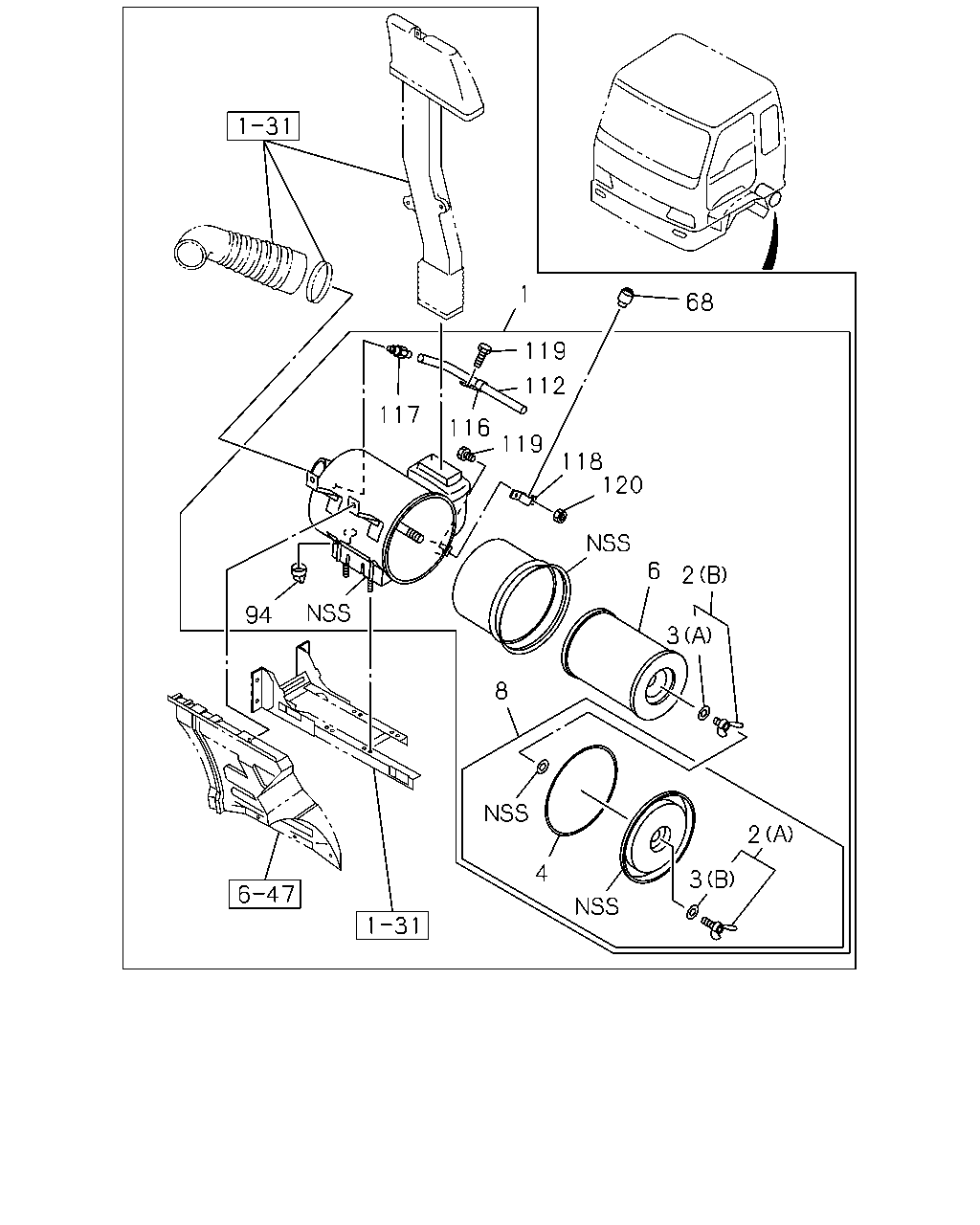

çizim 115954
1 68 119 112 117 116 119 118 120 6 2 94 3 8 2 4 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CLEANER ASM; AIR 1-14210-807-1 01 1 0608- ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-777-3 01 1 9510-9802 ●
1 CLEANER ASM; AIR 1-14210-777-3 01 1 9803-0004 ●
1 CLEANER ASM; AIR 1-14210-777-4 01 1 0005- ● ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-772-2 01 1 9510-9802 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-779-0 01 1 9511-9606 ●
1 CLEANER ASM; AIR 1-14210-794-0 01 1 9607-9703 ●
1 CLEANER ASM; AIR 1-14210-805-0 01 1 9704-9802 ● ●
1 CLEANER ASM; AIR 1-14210-815-0 01 1 9803-9803 ● ●
1 CLEANER ASM; AIR 1-14210-830-1 01 1 9804- ● ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-14210-770-1 01 1 9511-9606 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9510-9510 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9511-9606 ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 13"(E6U) (A) 		1-14217-049-0 01 1 9511-9606 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9607-0004 ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0607 ● ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0608- ● ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9510-9510 ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9511-0004 ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0607 ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0608- ● ● ● ● ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 9510-9802 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 9803-0004 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0005- ● ●
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14217-003-0 01 1 9511-9606 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 9607-0607 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0608- ● ● ●
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (A) 		1-14217-049-0 01 1 9511-9606 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9510-9510 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9511-0004 ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0607 ● ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0608- ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9510-9510 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9511-9606 ●
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 13"(E6U) (B) 		1-14219-156-0 01 1 9511-9606 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9607-0004 ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0607 ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0608- ● ● ● ● ●
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 9510-9802 ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 9803-0004 ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 0005- ● ●
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14219-032-0 01 1 9511-9606 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 9607-0607 ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0608- ● ● ●
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (B) 		1-14219-156-0 03 1 9511-9606 ●
4 GASKET; COVER TO BODY 1-14219-266-0 01 1 0608- ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9510-0004 ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0005- ● ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-128-0 01 1 9511-9606 ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9607- ● ●
4 GASKET; COVER TO BODY
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-14218-128-0 01 1 9511-9606 ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14215-172-0 01 1 9510-9802 ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-14215-181-0 01 1 9511-9606 ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 11"(WG8) BEST VALUE PARTS 		1-87610-117-0 01 1 9510-9802 ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 13"(E6U) BEST VALUE PARTS 		1-87610-058-0 01 1 9511-9606 ●
8 COVER ASM; ACL 1-14212-084-0 01 1 9510-0004 ●
8 COVER ASM; ACL 1-14212-084-0 01 1 0005- ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9511-0607 ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0608- ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9510-0004 ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005- ● ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9510-9510 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9511-9802 ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9803-0004 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0005-0607 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0608- ● ● ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 9803- ● ●
112 HOSE; INDICATOR 1-14219-259-0 01 1 0608- ●
112 HOSE; INDICATOR 1-09360-879-0 01 1 9510-9607 ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 9608-0004 ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 0005- ● ●
112 HOSE; INDICATOR 1-14219-255-0 01 1 9511-9607 ●
112 HOSE; INDICATOR 1-14219-259-0 01 1 9608-9703 ● ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 9803- ● ●
116 CLIP; INDICATOR HOSE 1-09701-145-0 01 1 9510-9510 ●
116 CLIP; INDICATOR HOSE 1-09701-145-0 01 1 9511-9606 ●
116 CLIP; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-09701-145-0 01 1 9511-9606 ●
116 CLIP; INDICATOR HOSE 1-09701-145-0 01 1 9607-9607 ●
116 CLIP; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-09701-145-0 02 1 9511-9606 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9510-9510 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9511-0004 ● ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0005-0607 ● ● ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0608- ● ● ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9510-9510 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9511-0004 ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0005-0607 ● ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0608- ● ● ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 03 1 9510-9510 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 03 1 9511-9606 ●
119 BOLT; INDICATOR BRKT
AIR CLEANER DRY DONALDSON 13"(E6U) M6X16 		9-02040-616-0 03 1 9511-9606 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 03 1 9607-9607 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9608-0004 ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0005-0607 ● ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0608- ● ● ● ● ●
119 BOLT; INDICATOR BRKT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) M6X16 		9-02040-616-0 04 1 9511-9606 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9607-9607 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9510-9510 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9511-0004 ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0005-0607 ● ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0608- ● ● ● ● ●

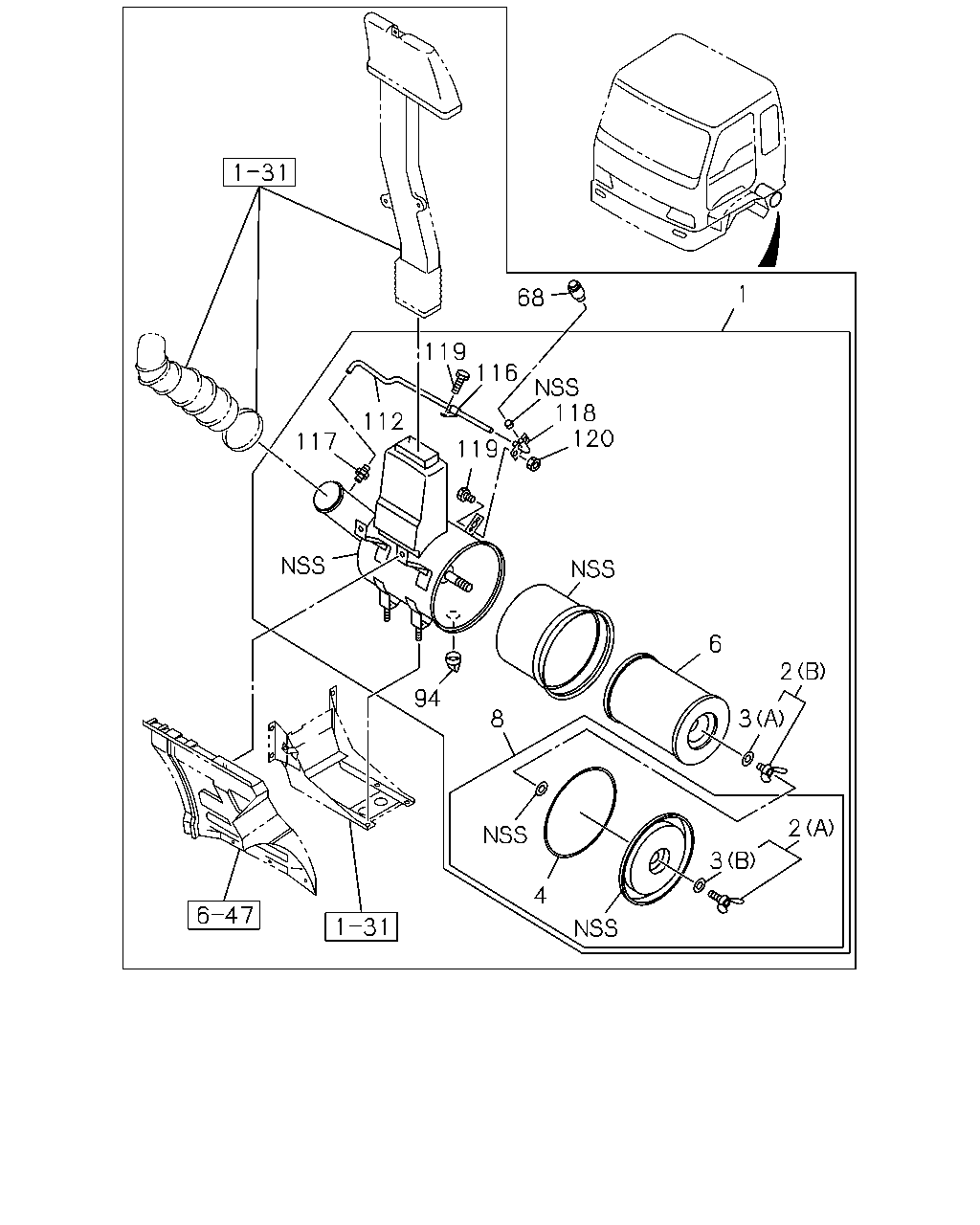

çizim 115959
1 68 119 116 118 120 112 117 119 6 2 94 3 8 2 3 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CLEANER ASM; AIR 1-14210-807-1 01 1 0608- ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-777-3 01 1 9510-9802 ●
1 CLEANER ASM; AIR 1-14210-777-3 01 1 9803-0004 ●
1 CLEANER ASM; AIR 1-14210-777-4 01 1 0005- ● ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-772-2 01 1 9510-9802 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-779-0 01 1 9511-9606 ●
1 CLEANER ASM; AIR 1-14210-794-0 01 1 9607-9703 ●
1 CLEANER ASM; AIR 1-14210-805-0 01 1 9704-9802 ● ●
1 CLEANER ASM; AIR 1-14210-815-0 01 1 9803-9803 ● ●
1 CLEANER ASM; AIR 1-14210-830-1 01 1 9804- ● ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-14210-770-1 01 1 9511-9606 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9510-9510 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9511-9606 ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 13"(E6U) (A) 		1-14217-049-0 01 1 9511-9606 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9607-0004 ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0607 ● ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0608- ● ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9510-9510 ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9511-0004 ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0607 ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0608- ● ● ● ● ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 9510-9802 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 9803-0004 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0005- ● ●
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14217-003-0 01 1 9511-9606 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 9607-0607 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0608- ● ● ●
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (A) 		1-14217-049-0 01 1 9511-9606 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9510-9510 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9511-0004 ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0607 ● ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0608- ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9510-9510 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9511-9606 ●
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 13"(E6U) (B) 		1-14219-156-0 01 1 9511-9606 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9607-0004 ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0607 ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0608- ● ● ● ● ●
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 9510-9802 ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 9803-0004 ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 0005- ● ●
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14219-032-0 01 1 9511-9606 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 9607-0607 ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0608- ● ● ●
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (B) 		1-14219-156-0 03 1 9511-9606 ●
4 GASKET; COVER TO BODY 1-14219-266-0 01 1 0608- ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9510-0004 ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0005- ● ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-128-0 01 1 9511-9606 ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9607- ● ●
4 GASKET; COVER TO BODY
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-14218-128-0 01 1 9511-9606 ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14215-172-0 01 1 9510-9802 ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-14215-181-0 01 1 9511-9606 ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 11"(WG8) BEST VALUE PARTS 		1-87610-117-0 01 1 9510-9802 ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 13"(E6U) BEST VALUE PARTS 		1-87610-058-0 01 1 9511-9606 ●
8 COVER ASM; ACL 1-14212-084-0 01 1 9510-0004 ●
8 COVER ASM; ACL 1-14212-084-0 01 1 0005- ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9511-0607 ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0608- ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9510-0004 ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005- ● ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9510-9510 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9511-9802 ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9803-0004 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0005-0607 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0608- ● ● ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 9803- ● ●
112 HOSE; INDICATOR 1-14219-259-0 01 1 0608- ●
112 HOSE; INDICATOR 1-09360-879-0 01 1 9510-9607 ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 9608-0004 ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 0005- ● ●
112 HOSE; INDICATOR 1-14219-255-0 01 1 9511-9607 ●
112 HOSE; INDICATOR 1-14219-259-0 01 1 9608-9703 ● ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 9803- ● ●
116 CLIP; INDICATOR HOSE 1-09701-145-0 01 1 9510-9510 ●
116 CLIP; INDICATOR HOSE 1-09701-145-0 01 1 9511-9606 ●
116 CLIP; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-09701-145-0 01 1 9511-9606 ●
116 CLIP; INDICATOR HOSE 1-09701-145-0 01 1 9607-9607 ●
116 CLIP; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-09701-145-0 02 1 9511-9606 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9510-9510 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9511-0004 ● ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0005-0607 ● ● ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0608- ● ● ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9510-9510 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9511-0004 ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0005-0607 ● ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0608- ● ● ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 03 1 9510-9510 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 03 1 9511-9606 ●
119 BOLT; INDICATOR BRKT
AIR CLEANER DRY DONALDSON 13"(E6U) M6X16 		9-02040-616-0 03 1 9511-9606 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 03 1 9607-9607 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9608-0004 ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0005-0607 ● ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0608- ● ● ● ● ●
119 BOLT; INDICATOR BRKT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) M6X16 		9-02040-616-0 04 1 9511-9606 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9607-9607 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9510-9510 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9511-0004 ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0005-0607 ● ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0608- ● ● ● ● ●

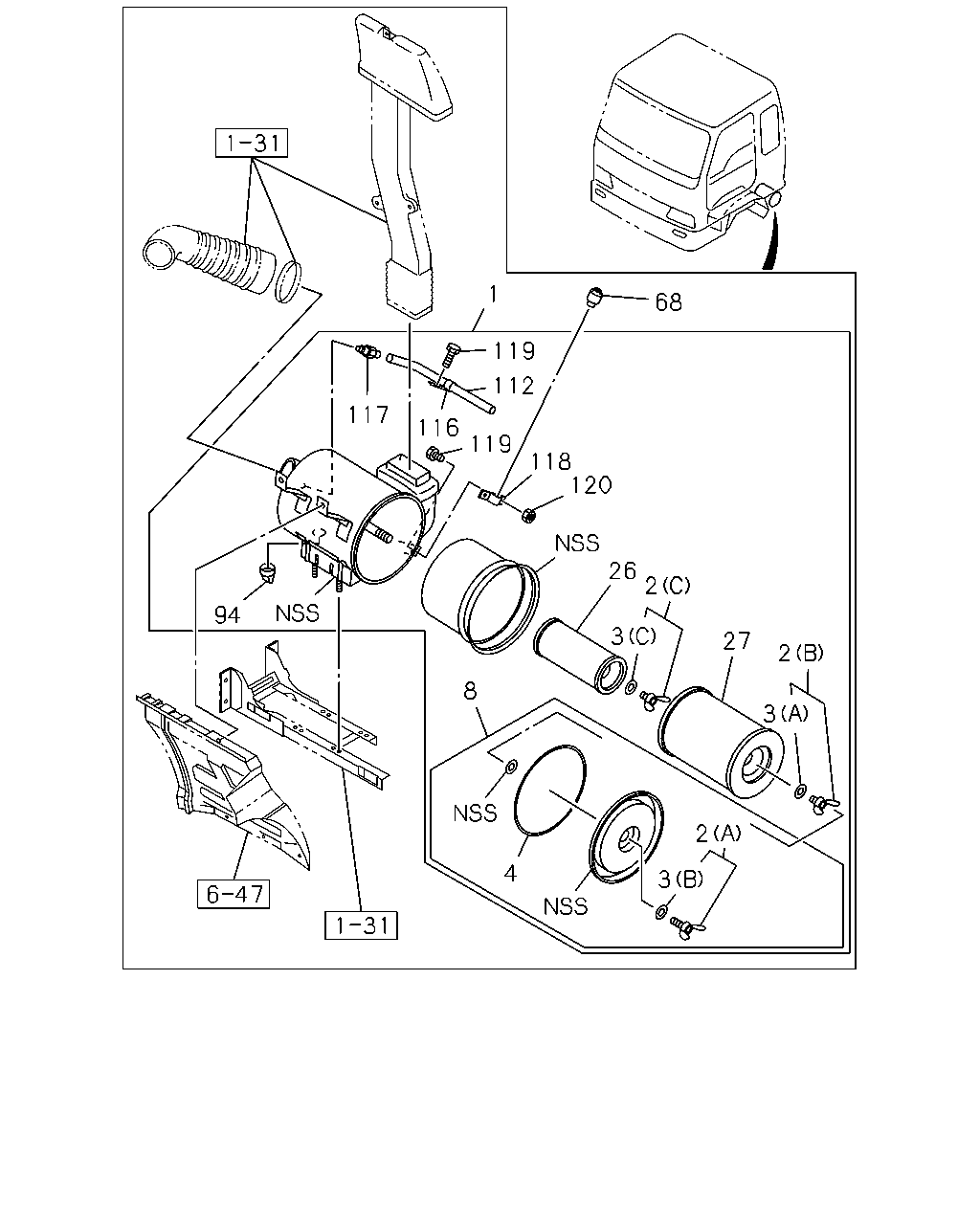

çizim 115970
1 68 119 112 117 116 119 118 120 26 2 94 3 27 2 8 3 2 4 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CLEANER ASM; AIR 1-14210-807-1 01 1 0608- ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-777-3 01 1 9510-9802 ●
1 CLEANER ASM; AIR 1-14210-777-3 01 1 9803-0004 ●
1 CLEANER ASM; AIR 1-14210-777-4 01 1 0005- ● ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-772-2 01 1 9510-9802 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-779-0 01 1 9511-9606 ●
1 CLEANER ASM; AIR 1-14210-794-0 01 1 9607-9703 ●
1 CLEANER ASM; AIR 1-14210-805-0 01 1 9704-9802 ● ●
1 CLEANER ASM; AIR 1-14210-815-0 01 1 9803-9803 ● ●
1 CLEANER ASM; AIR 1-14210-830-1 01 1 9804- ● ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-14210-770-1 01 1 9511-9606 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9510-9510 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9511-9606 ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 13"(E6U) (A) 		1-14217-049-0 01 1 9511-9606 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9607-0004 ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0607 ● ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0608- ● ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9510-9510 ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9511-0004 ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0607 ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0608- ● ● ● ● ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 9510-9802 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 9803-0004 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0005- ● ●
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14217-003-0 01 1 9511-9606 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 9607-0607 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0608- ● ● ●
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (A) 		1-14217-049-0 01 1 9511-9606 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9510-9510 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9511-0004 ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0607 ● ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0608- ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9510-9510 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9511-9606 ●
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 13"(E6U) (B) 		1-14219-156-0 01 1 9511-9606 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9607-0004 ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0607 ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0608- ● ● ● ● ●
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 9510-9802 ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 9803-0004 ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 0005- ● ●
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14219-032-0 01 1 9511-9606 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 9607-0607 ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0608- ● ● ●
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (B) 		1-14219-156-0 03 1 9511-9606 ●
4 GASKET; COVER TO BODY 1-14219-266-0 01 1 0608- ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9510-0004 ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0005- ● ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-128-0 01 1 9511-9606 ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9607- ● ●
4 GASKET; COVER TO BODY
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-14218-128-0 01 1 9511-9606 ●
8 COVER ASM; ACL 1-14212-084-0 01 1 9510-0004 ●
8 COVER ASM; ACL 1-14212-084-0 01 1 0005- ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9511-0607 ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0608- ● ● ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 9510-0004 ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 0005- ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14215-151-0 01 1 9511-9606 ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 9607-0607 ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0608- ● ● ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-118-0 01 1 0005- ● ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-118-0 01 1 9510-0004 ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 9510-0004 ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 0005- ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14215-181-0 01 1 9511-9606 ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 9607-0607 ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0608- ● ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 9607-0607 ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 0608- ● ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-117-0 01 1 0005- ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-117-0 01 1 9510-0004 ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) BEST VALUE PARTS 		1-87610-058-0 01 1 9511-9606 ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9510-0004 ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005- ● ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9510-9510 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9511-9802 ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9803-0004 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0005-0607 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0608- ● ● ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 9803- ● ●
112 HOSE; INDICATOR 1-14219-259-0 01 1 0608- ●
112 HOSE; INDICATOR 1-09360-879-0 01 1 9510-9607 ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 9608-0004 ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 0005- ● ●
112 HOSE; INDICATOR 1-14219-255-0 01 1 9511-9607 ●
112 HOSE; INDICATOR 1-14219-259-0 01 1 9608-9703 ● ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 9803- ● ●
116 CLIP; INDICATOR HOSE 1-09701-145-0 01 1 9510-9510 ●
116 CLIP; INDICATOR HOSE 1-09701-145-0 01 1 9511-9606 ●
116 CLIP; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-09701-145-0 01 1 9511-9606 ●
116 CLIP; INDICATOR HOSE 1-09701-145-0 01 1 9607-9607 ●
116 CLIP; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-09701-145-0 02 1 9511-9606 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9510-9510 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9511-0004 ● ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0005-0607 ● ● ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0608- ● ● ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9510-9510 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9511-0004 ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0005-0607 ● ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0608- ● ● ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 03 1 9510-9510 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 03 1 9511-9606 ●
119 BOLT; INDICATOR BRKT
AIR CLEANER DRY DONALDSON 13"(E6U) M6X16 		9-02040-616-0 03 1 9511-9606 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 03 1 9607-9607 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9608-0004 ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0005-0607 ● ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0608- ● ● ● ● ●
119 BOLT; INDICATOR BRKT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) M6X16 		9-02040-616-0 04 1 9511-9606 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9607-9607 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9510-9510 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9511-0004 ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0005-0607 ● ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0608- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
