Isuzu WW
▶
TRUCKS
▶
NPS
▶
51409 - NPS(AUSTRALIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56 - EXHAUST BRAKE SYSTEM
▶
1-56 — EXHAUST BRAKE SYSTEM
(#39523) — 20 parça
◀

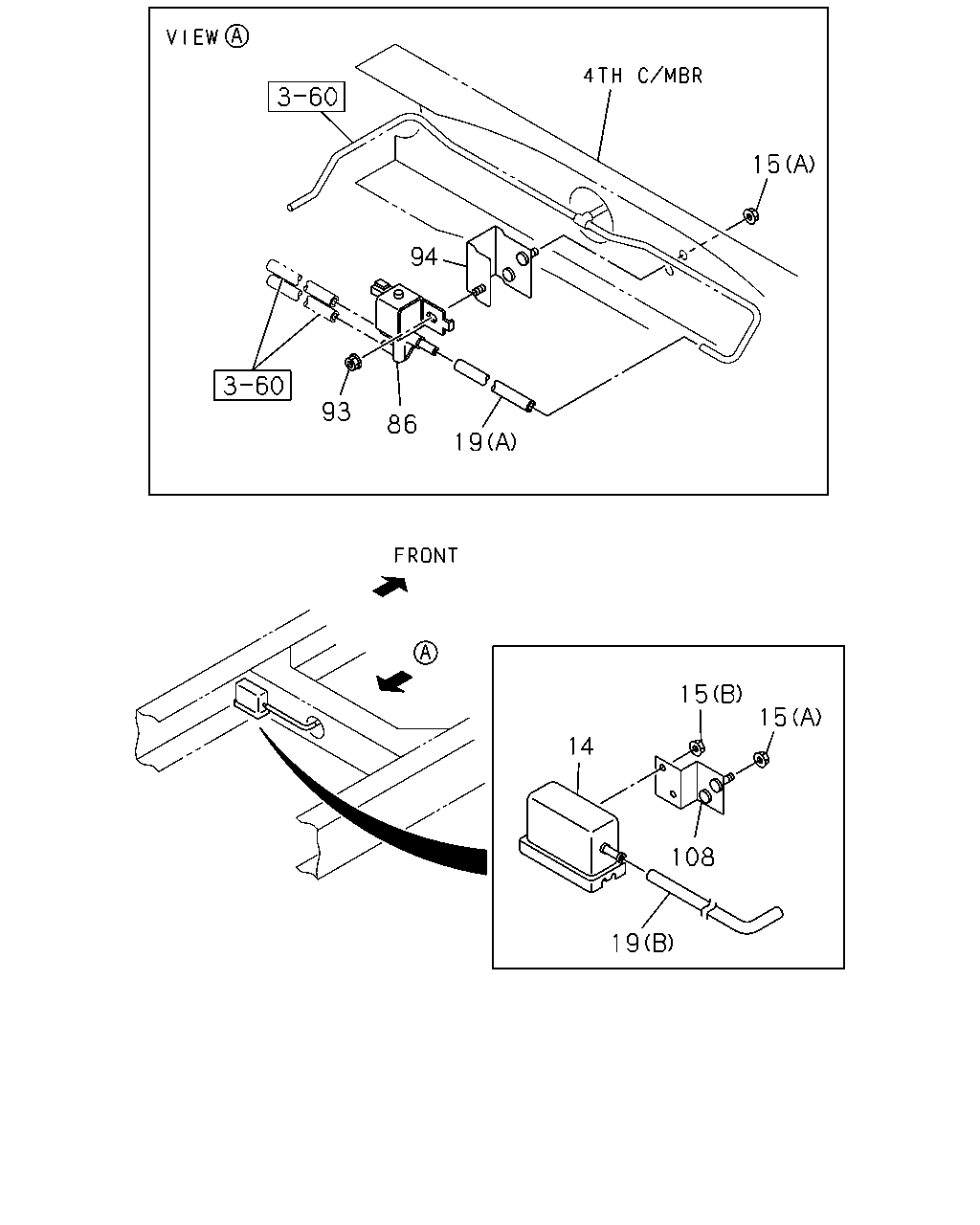

[156A] NO.2 (13 parça)
[156A] NO.1 (7 parça)
▶
15
94
93
86
19
15
15
14
108
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
03.634 FILTER; AIR,EXH BRAKE
8-97033-888-0
01
1
0301-
15
03.634 NUT; AIR FILTER
07.633 (A) M8 FLANGE
0-91150-108-0
04
1
0301-0602
15
03.634 NUT; AIR FILTER
01.062 (A) M8 FLANGE
0-91180-108-0
04
1
0603-
15
03.634 NUT; AIR FILTER
07.633 (B) M8 FLANGE
0-91150-108-0
02
1
0301-0602
15
03.634 NUT; AIR FILTER
01.062 (B) M8 FLANGE
0-91180-108-0
02
1
0603-
19
03.630 HOSE; AIR FILTER
(A) L=130 SERVICED BY L=3000
0-08258-300-0
01
1
0301-
19
03.630 HOSE; AIR FILTER
(B) L=250 SERVICED BY L=3000
0-08258-300-0
01
1
0301-
86
03.636 VALVE; MAG,EXH BRK
8-97066-716-0
01
1
0301-0405
86
03.636 VALVE; MAG,EXH BRK
8-97374-153-2
01
1
0406-
93
08.917 NUT; MAG VLV
07.633 M8 FLANGE
0-91150-108-0
03
1
0301-0602
93
08.917 NUT; MAG VLV
01.062 M8 FLANGE
0-91180-108-0
03
1
0603-
94
03.634 BRACKET; MAG VLV,EXH BRAKE
8-97350-658-1
01
1
0301-
108
03.634 BRACKET; AIR FILTER
8-97089-850-0
01
1
0301-
5
1
5
8
7
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.632 BRAKE UNIT; EXH
8-97361-928-0
01
1
0301-
5
03.634 GASKET; EXH BRAKE UNIT
ID=64
8-97037-694-0
02
1
0301-
6
03.632 BOLT; EXH BRAKE UNIT FIX
03.708 M8X70
0-10805-870-0
04
1
0301-0512
6
03.632 BOLT; EXH BRAKE UNIT FIX
M8X70
0-10855-870-0
04
1
0601-
7
03.632 WASHER; EXH BRAKE UNIT FIX
T=1.9
5-09500-012-0
04
1
0301-
8
03.632 NUT; EXH BRAKE UNIT FIX
02.559 M8
9-09110-408-0
04
1
0301-0512
8
03.632 NUT; EXH BRAKE UNIT FIX
02.334 M8
0-91110-508-0
04
1
0601-
