Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#39521) — 251 parça

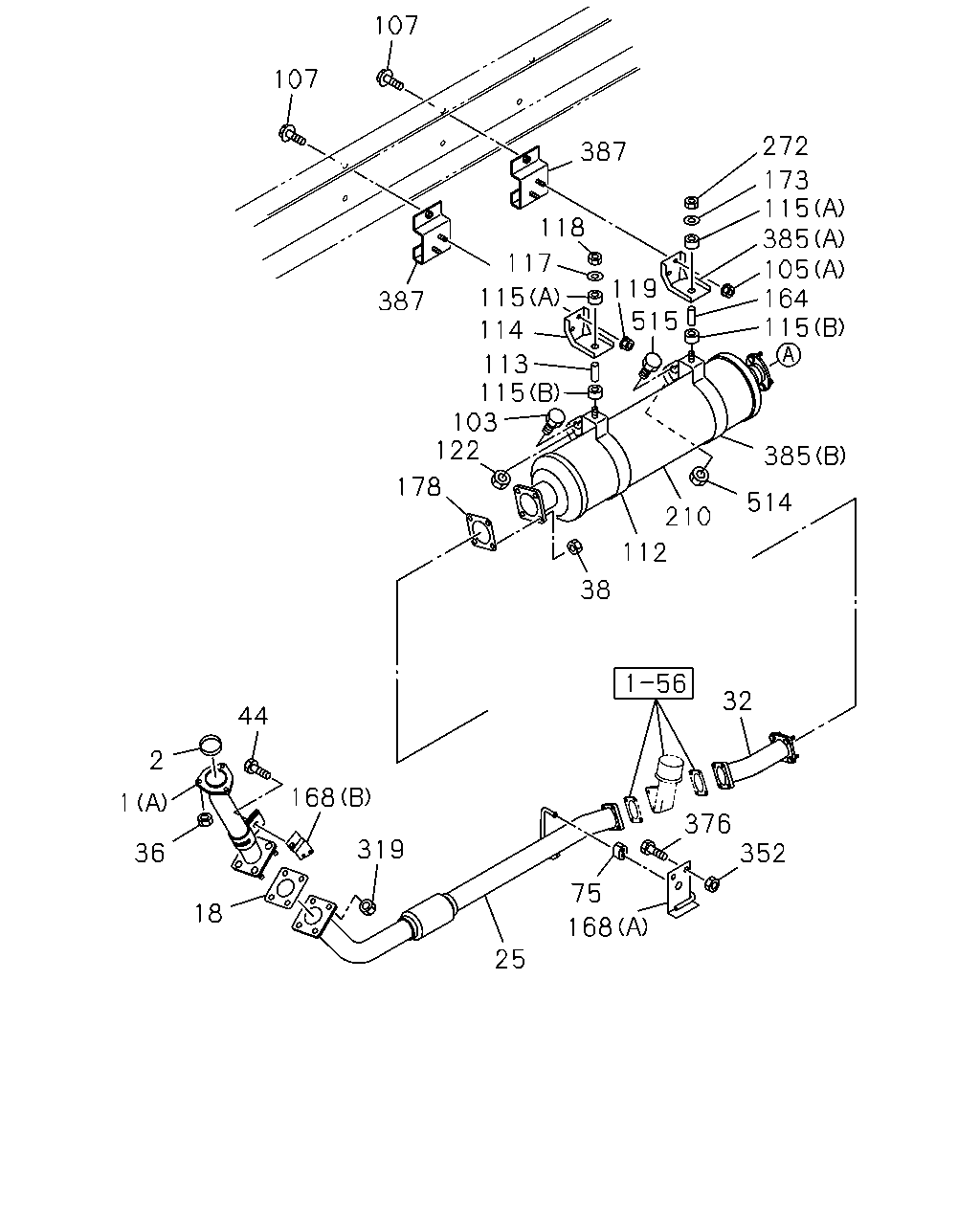

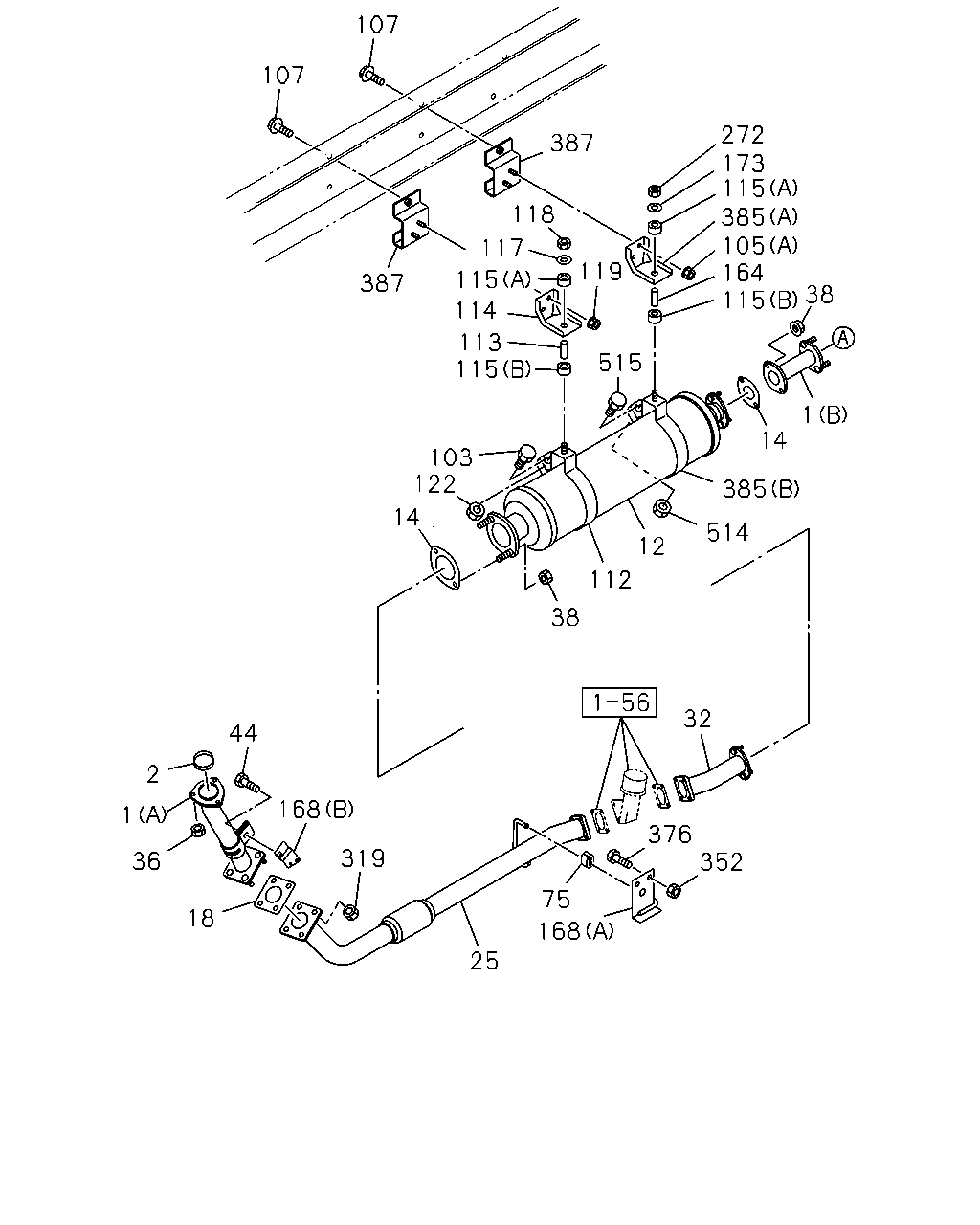

107 107 272 387 173 115 385 105 164 115 118 117 119 115 387 515 114 113 115 103 122 385 178 514 210 12 38 32 44 2 168 1 376 352 319 36 75 18 168 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH (B)	8-97210-052-0	01	1	0502-
1	03.609 PIPE; EXH (A)	8-97354-373-0	01	1	0301-
2	03.611 GASKET; PIPE TO MANIF	8-97180-749-2	01	1	0301-0408
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0409-
12	03.701 SILENCER ASM; EXH	8-94365-585-5	01	1	0502-0502
12	03.701 SILENCER ASM; EXH	8-97222-489-1	01	1	0502-
18	03.611 GASKET; EXH PIPE TO PIPE 03.634 ID=64	8-97037-694-0	01	1	0301-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-97354-374-0	01	1	0301-
32	03.609 PIPE; EXH,FRT	8-97354-375-0	01	1	0301-0501
32	03.609 PIPE; EXH,FRT	8-98000-939-0	01	1	0502-
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0301-
38	00.002 NUT; SILENCER 07.633 M8 FLANGE	0-91150-108-0	04	1	0301-0501
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
44	03.613 BOLT; BRKT M10X50 W/LK&PL WASHER	0-50151-050-0	01	1	0301-0307
44	03.613 BOLT; BRKT 00.683 M10X50 W/LK&PL WASHER	0-50141-050-0	01	1	0308-0512
44	03.613 BOLT; BRKT	0-50641-050-0	01	1	0601-
75	03.704 RUBBER; SUPPORT,BRKT 03.613	8-97166-498-1	01	1	0301-
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0301-0707
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-
105	03.704 NUT; CLAMP 09.011 (B) M10	9-09110-410-0	02	1	0301-0512
105	03.704 NUT; CLAMP 00.833 (B) M10	0-91110-510-0	02	1	0601-
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	0301-0512
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	0301-0512
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0601-
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0601-
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0301-0602
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0301-0602
105	03.704 NUT; CLAMP 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0603-
107	03.704 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0301-0512
107	03.704 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	0301-
114	03.704 BRACKET; EXH SILENCER	8-94329-996-0	01	1	0502-0504
114	03.704 BRACKET; EXH SILENCER	8-97172-313-0	01	1	0301-
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-882-0	01	1	0502-
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-927-0	01	1	0502-
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0301-0501
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0301-0501
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0502-
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0301-0501
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0301-0501
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0502-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0301-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	0301-
119	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0301-0602
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
122	03.275 NUT; HANGER BRKT 02.559 M8	9-09110-408-0	01	1	0301-0512
122	03.275 NUT; HANGER BRKT 02.334 M8	0-91110-508-0	01	1	0601-
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0301-
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-1	01	1	0301-
168	03.613 BRACKET; EXH PIPE,FRT (B)	8-97354-431-0	01	1	0301-
168	03.613 BRACKET; EXH PIPE,FRT 03.706 (C)	8-97354-438-0	01	1	0301-
173	03.685 WASHER; PL 03.704 OD=55	9-09852-169-0	01	1	0301-
178	03.611 GASKET; CONV TO MANIF 03.634 ID=64	8-97037-694-0	01	1	0307-0501
210	03.685 CONVERTER	8-97210-797-1	01	1	0301-0501
272	03.685 NUT; FLANGE 07.874 M10 FLANGE	5-09440-006-0	01	1	0301-
319	03.602 NUT; PROTECTOR 07.633 M8 FLANGE	0-91150-108-0	04	1	0301-0602
319	03.602 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-
352	03.613 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0301-0602
352	03.613 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
376	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0301-0512
376	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
385	03.704 BRACKET; SILENCER MTG (A)	8-97172-313-0	01	1	0301-
385	03.704 BRACKET; SILENCER MTG (B)	8-97207-224-0	01	1	0301-
387	03.704 SPACER; BRKT	8-97354-437-0	01	1	0301-
387	03.704 SPACER; BRKT	8-97354-437-0	01	1	0301-
514	03.704 NUT; BAND 02.559 M8	9-09110-408-0	01	1	0301-0512
514	03.704 NUT; BAND 02.334 M8	0-91110-508-0	01	1	0601-
515	03.704 BOLT; BAND 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0301-0801
515	03.704 BOLT; BAND M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
515	03.704 BOLT; BAND 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
515	03.704 BOLT; BAND M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-

368 194 199 366 367 194 366 370 105 148 105 373 359 139 369 147 201 199 366 367 138 154 193 378 420 366 193 105 94 81 104 147 126 137 168 94 143 144 124 357 88 162 125 94 88 357 125 422 14 84 194 363 420 126 361 70 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0301-0501
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0502-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0502-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0502-
70	03.706 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0301-0512
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-
81	03.704 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0301-0602
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	0301-
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0301-
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0301-
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	0301-
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	0301-
94	03.704 BOLT; CLAMP 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0301-0512
94	03.704 BOLT; CLAMP 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
95	03.708 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0301-0512
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-
104	03.704 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0301-0602
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP 09.011 (B) M10	9-09110-410-0	02	1	0301-0512
105	03.704 NUT; CLAMP 00.833 (B) M10	0-91110-510-0	02	1	0601-
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	0301-0512
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	0301-0512
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0601-
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0601-
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0301-0602
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0301-0602
105	03.704 NUT; CLAMP 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0603-
124	03.704 NUT; SUPPORT RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0602
124	03.704 NUT; SUPPORT RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
125	03.708 NUT; CLAMP 07.633 M8 FLANGE	0-91150-108-0	02	1	0301-0602
125	03.708 NUT; CLAMP 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
126	03.705 PIPE; EXH,RR (B)	8-97254-253-0	01	1	0301-
126	03.705 PIPE; EXH,RR (A)	8-97354-376-0	01	1	0301-0501
126	03.705 PIPE; EXH,RR (A)	8-97379-245-0	01	1	0502-
137	03.706 BRACKET; TAIL PIPE	8-97354-438-0	01	1	0301-
138	03.704 STAY; EXH PIPE	8-94139-804-0	01	1	0301-
139	03.704 NUT; STAY 04.785 M10 FLANGE	0-91150-110-0	01	1	0301-0602
139	03.704 NUT; STAY 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
143	03.704 RUBBER; SUPPORT	8-97229-586-0	01	1	0301-0308
143	03.704 RUBBER; SUPPORT	8-97371-655-1	01	1	0309-
144	03.613 NUT; MTG RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0602
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
147	03.704 BRACKET; VERTICAL PIPE (B)	5-22151-070-3	01	1	0301-0504
147	03.704 BRACKET; VERTICAL PIPE (B)	8-97019-513-2	01	1	0505-
147	03.704 BRACKET; VERTICAL PIPE (A)	8-97354-439-1	01	1	0301-
148	03.708 WASHER; LK,CLAMP 00.002 ID=10.2	9-09150-510-0	02	1	0301-0603
148	03.708 WASHER; LK,CLAMP 06.606 ID=10.2	0-91510-510-0	02	1	0604-
154	03.613 CUSHION; HEAT PROTECTOR 07.629 125X50X10	8-94341-284-0	06	1	0301-0301
154	03.613 CUSHION; HEAT PROTECTOR 07.629 125X50X10	8-94341-284-0	05	1	0302-
162	03.706 RUBBER; SUPPORT,TAIL PIPE 03.704	8-97229-586-0	01	1	0301-0308
162	03.706 RUBBER; SUPPORT,TAIL PIPE 03.704	8-97371-655-1	01	1	0309-
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-1	01	1	0301-
168	03.613 BRACKET; EXH PIPE,FRT (B)	8-97354-431-0	01	1	0301-
168	03.613 BRACKET; EXH PIPE,FRT 03.706 (C)	8-97354-438-0	01	1	0301-
193	03.704 NUT; BRKT,VERTICAL PIPE 04.785 M10 FLANGE	0-91150-110-0	02	1	0301-0602
193	03.704 NUT; BRKT,VERTICAL PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
193	03.704 NUT; BRKT,VERTICAL PIPE 04.785 M10 FLANGE	0-91150-110-0	04	1	0301-0602
193	03.704 NUT; BRKT,VERTICAL PIPE 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-
194	03.708 CLAMP; TAIL PIPE (A)	1-22133-052-0	01	1	0301-
194	03.708 CLAMP; TAIL PIPE (B)	1-22133-065-0	01	1	0301-
194	03.708 CLAMP; TAIL PIPE (C) ID=61.6	8-97010-307-0	01	1	0301-
199	03.708 BOLT; TAIL PIPE 00.685 M10X50 FLANGE	0-28081-050-0	04	1	0301-0512
199	03.708 BOLT; TAIL PIPE 09.173 M10X50 FLANGE	0-28051-050-0	04	1	0601-
201	03.704 BOLT; STAY 03.613 M10X40 FLANGE	0-28681-040-0	02	1	0301-0512
201	03.704 BOLT; STAY 03.613 M10X40 FLANGE	0-28651-040-0	02	1	0601-
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0301-0605
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0301-0605
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-
359	03.069 PIPE; EXH,VERTICAL	8-97128-546-1	01	1	0301-
361	03.704 BOLT; EXH PIPE TO PIPE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0301-0801
361	03.704 BOLT; EXH PIPE TO PIPE M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
361	03.704 BOLT; EXH PIPE TO PIPE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
361	03.704 BOLT; EXH PIPE TO PIPE M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-
363	03.704 NUT; EXH PIPE TO PIPE 02.559 M8	9-09110-408-0	01	1	0301-0512
363	03.704 NUT; EXH PIPE TO PIPE 02.334 M8	0-91110-508-0	01	1	0601-
366	03.706 RUBBER; SUPPORT,EXH PIPE OD=40	1-22159-193-0	08	1	0301-
367	03.704 COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	04	1	0301-
368	03.704 BOLT; CLAMP 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	0301-0512
368	03.704 BOLT; CLAMP 04.439 M10X30 W/LK WASHER	0-50541-030-0	02	1	0601-
369	03.704 NET; EXH PIPE	8-97321-334-0	01	1	0301-
370	03.704 BOLT; NET TO BRKT 03.670 M6X20 FLANGE	0-28080-620-0	14	1	0301-0512
370	03.704 BOLT; NET TO BRKT 00.386 M6X20 FLANGE	0-28050-620-0	14	1	0601-
373	03.704 NUT; NET TO BRKT 07.829 M6 FLANGE	5-09440-004-0	10	1	0301-
378	03.704 BOLT; BRKT,TAIL PIPE 00.685 M10X30 FLANGE	0-28081-030-0	04	1	0301-0512
378	03.704 BOLT; BRKT,TAIL PIPE 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0601-
420	03.704 BOLT; BRKT,VERTICAL PIPE 03.417 M10X25 FLANGE	0-28081-025-0	03	1	0301-0512
420	03.704 BOLT; BRKT,VERTICAL PIPE 09.171 M10X25 FLANGE	0-28051-025-0	03	1	0601-
422	03.704 NUT; PIPE 04.785 M10 FLANGE	0-91150-110-0	02	1	0301-0602
422	03.704 NUT; PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-

107 107 272 173 115 385 105 164 38 115 387 118 117 119 115 387 114 113 115 515 1 14 103 122 385 14 514 12 112 38 32 44 2 168 1 376 352 319 36 75 18 168 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH (B)	8-97210-052-0	01	1	0502-
1	03.609 PIPE; EXH (A)	8-97354-373-0	01	1	0301-
2	03.611 GASKET; PIPE TO MANIF	8-97180-749-2	01	1	0301-0408
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0409-
12	03.701 SILENCER ASM; EXH	8-94365-585-5	01	1	0502-0502
12	03.701 SILENCER ASM; EXH	8-97222-489-1	01	1	0502-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0301-0501
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0502-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0502-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0502-
18	03.611 GASKET; EXH PIPE TO PIPE 03.634 ID=64	8-97037-694-0	01	1	0301-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-97354-374-0	01	1	0301-
32	03.609 PIPE; EXH,FRT	8-97354-375-0	01	1	0301-0501
32	03.609 PIPE; EXH,FRT	8-98000-939-0	01	1	0502-
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0301-
38	00.002 NUT; SILENCER 07.633 M8 FLANGE	0-91150-108-0	04	1	0301-0501
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
44	03.613 BOLT; BRKT M10X50 W/LK&PL WASHER	0-50151-050-0	01	1	0301-0307
44	03.613 BOLT; BRKT 00.683 M10X50 W/LK&PL WASHER	0-50141-050-0	01	1	0308-0512
44	03.613 BOLT; BRKT	0-50641-050-0	01	1	0601-
75	03.704 RUBBER; SUPPORT,BRKT 03.613	8-97166-498-1	01	1	0301-
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0301-0707
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-
105	03.704 NUT; CLAMP 09.011 (B) M10	9-09110-410-0	02	1	0301-0512
105	03.704 NUT; CLAMP 00.833 (B) M10	0-91110-510-0	02	1	0601-
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	0301-0512
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	0301-0512
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0601-
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0601-
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0301-0602
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0301-0602
105	03.704 NUT; CLAMP 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0603-
107	03.704 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0301-0512
107	03.704 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-
112	03.706 BRACKET; HANGER 03.704	8-97207-224-0	01	1	0301-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	0301-
114	03.704 BRACKET; EXH SILENCER	8-94329-996-0	01	1	0502-0504
114	03.704 BRACKET; EXH SILENCER	8-97172-313-0	01	1	0301-
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-882-0	01	1	0502-
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-927-0	01	1	0502-
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0301-0501
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0301-0501
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0502-
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0301-0501
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0301-0501
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0502-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0301-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	0301-
119	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0301-0602
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
122	03.275 NUT; HANGER BRKT 02.559 M8	9-09110-408-0	01	1	0301-0512
122	03.275 NUT; HANGER BRKT 02.334 M8	0-91110-508-0	01	1	0601-
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0301-
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-1	01	1	0301-
168	03.613 BRACKET; EXH PIPE,FRT (B)	8-97354-431-0	01	1	0301-
168	03.613 BRACKET; EXH PIPE,FRT 03.706 (C)	8-97354-438-0	01	1	0301-
173	03.685 WASHER; PL 03.704 OD=55	9-09852-169-0	01	1	0301-
272	03.685 NUT; FLANGE 07.874 M10 FLANGE	5-09440-006-0	01	1	0301-
319	03.602 NUT; PROTECTOR 07.633 M8 FLANGE	0-91150-108-0	04	1	0301-0602
319	03.602 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-
352	03.613 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0301-0602
352	03.613 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
376	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0301-0512
376	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
385	03.704 BRACKET; SILENCER MTG (A)	8-97172-313-0	01	1	0301-
385	03.704 BRACKET; SILENCER MTG (B)	8-97207-224-0	01	1	0301-
387	03.704 SPACER; BRKT	8-97354-437-0	01	1	0301-
387	03.704 SPACER; BRKT	8-97354-437-0	01	1	0301-
514	03.704 NUT; BAND 02.559 M8	9-09110-408-0	01	1	0301-0512
514	03.704 NUT; BAND 02.334 M8	0-91110-508-0	01	1	0601-
515	03.704 BOLT; BAND 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0301-0801
515	03.704 BOLT; BAND M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
515	03.704 BOLT; BAND 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
515	03.704 BOLT; BAND M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
