1 |

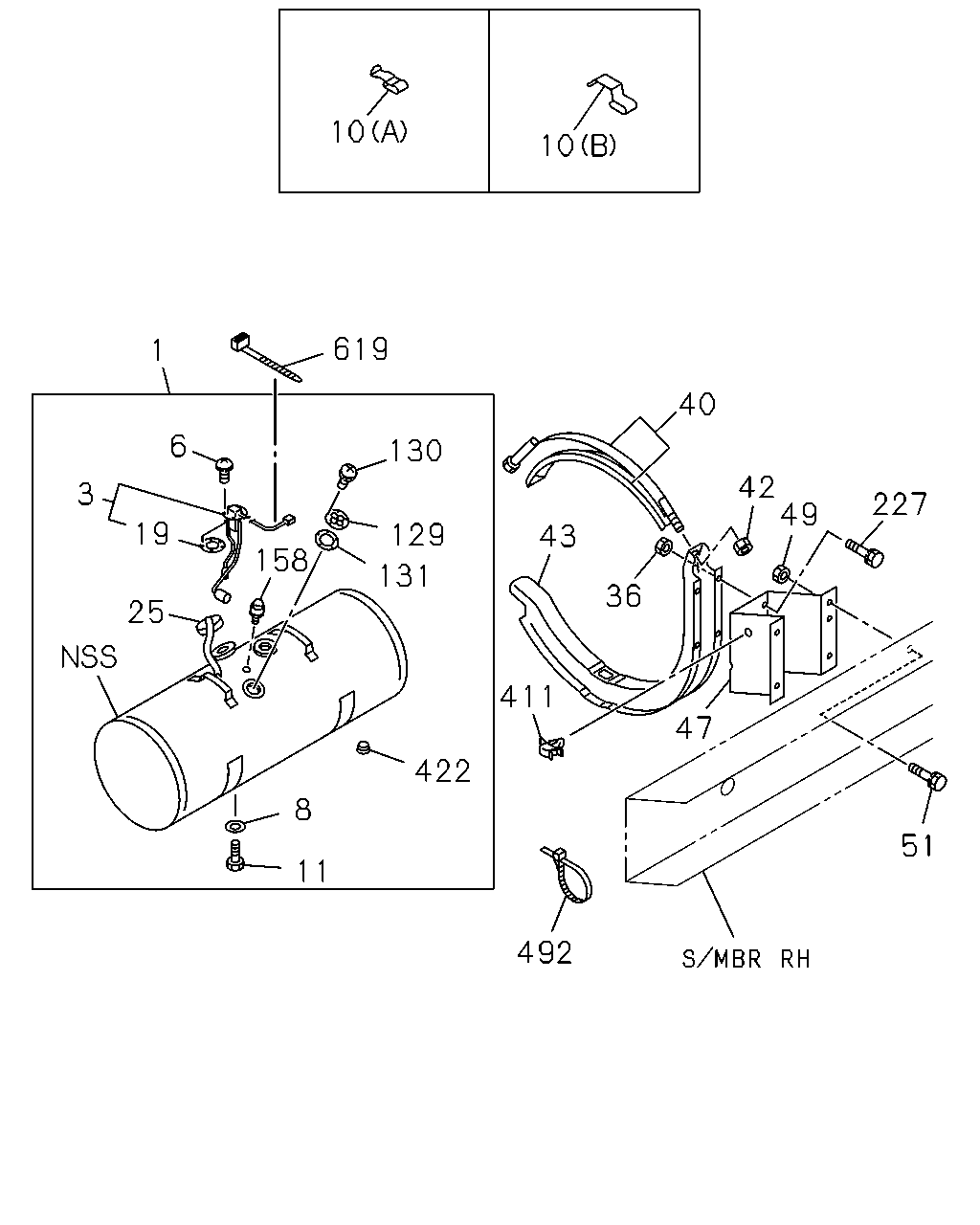

03.001 TANK; FUEL
OD=400 L=1130 124.5L
|
8-97047-401-3 |
01 |
1 |
0301-0501 |
| |
1 |
03.001 TANK; FUEL
OD=400 L=1130 124.5L
|
8-97371-035-0 |
01 |
1 |
0502-0810 |
| |
1 |
03.001 TANK; FUEL
OD=400 L=1130 124.5L
|
8-98133-451-2 |
01 |
1 |
0811- |
| |
3 |
03.107 UNIT; FUEL TANK,SUB
|
8-97314-827-0 |
01 |
1 |
0301- |
| |
6 |
03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
0301-0604 |
| |
6 |
03.115 SCREW; TANK UNIT TO SUB FUEL TAN
02.361
M5X10 W/LK WASHER
|
0-36220-510-0 |
05 |
1 |
0605- |
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
03.001
ID=20
|
9-09720-558-0 |
01 |
1 |
0301- |
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.483
(A)
T=10.5
|
5-09709-014-0 |
AR |
1 |
0301- |
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.559
(B)
T=6.0
|
5-09709-024-0 |
AR |
1 |
0301- |
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
(B)
T=9 & 10.5
|
8-97041-091-0 |
AR |
1 |
0301- |
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
03.001
M20X1.5
|
9-09662-002-0 |
01 |
1 |
0301-0501 |
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
01.453
M14X14
|
9-09862-156-0 |
01 |
1 |
0502- |
| |
19 |
03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
0301- |
| |
25 |
03.028 CAP; FILLER,FUEL TANK
|
8-97233-810-0 |
01 |
1 |
0301- |
| |
36 |
03.015 NUT; SPACER,FUEL TANK
04.785
M10 FLANGE
|
0-91150-110-0 |
08 |
1 |
0301-0602 |
| |
36 |
03.015 NUT; SPACER,FUEL TANK
03.162
M10 FLANGE
|
0-91180-110-0 |
08 |
1 |
0603- |
| |
40 |
03.022 BELT; SUPPORT,FUEL TANK
03.023
|
8-94418-159-0 |
02 |
1 |
0301- |
| |
42 |
03.023 NUT; SUPPORT BELT
09.011
M10
|
9-09110-410-0 |
04 |
1 |
0301-0512 |
| |
42 |
03.023 NUT; SUPPORT BELT
00.833
M10
|
0-91110-510-0 |
04 |
1 |
0601- |
| |
43 |
03.015 BRACKET; FUEL TANK
|
5-53461-044-2 |
02 |
1 |
0301- |
| |
47 |
03.023 SPACER; FUEL TANK
|
8-97063-749-1 |
02 |
1 |
0301- |
| |
49 |
03.023 NUT; BRKT
08.917
M10 FLANGE
|
0-91150-210-0 |
08 |
1 |
0301-0602 |
| |
49 |
03.023 NUT; BRKT
04.085
M10 FLANGE
|
0-91180-210-0 |
08 |
1 |
0603- |
| |
51 |
03.023 BOLT; BRKT TO FRAME
M10X30 FLANGE
|
0-28691-030-0 |
07 |
1 |
0301-0512 |
| |
51 |
03.023 BOLT; BRKT TO FRAME
07.068
M10X30 FLANGE
|
0-28661-030-0 |
07 |
1 |
0601- |
| |
129 |
03.164 VENTILATOR; SAFETY,FUEL TANK
|
1-22451-012-0 |
01 |
1 |
0301-0810 |
| |
129 |
03.164 VENTILATOR; SAFETY,FUEL TANK
|
8-98106-041-1 |
01 |
1 |
0811- |
| |
130 |
03.164 SCREW; SAFETY VENT
06.512
M5X14 W/LK WASHER
|
9-03910-514-0 |
05 |
1 |
0301-0604 |
| |
130 |
03.164 SCREW; SAFETY VENT
M5X14 W/LK WASHER
|
0-36220-514-0 |
05 |
1 |
0605- |
| |
131 |
03.164 GASKET; SAFETY VENT
|
1-22459-001-1 |
01 |
1 |
0301- |
| |
158 |
03.164 VALVE; ROLL OVER & FLOAT
|
1-22453-003-0 |
01 |
1 |
0301-0810 |
| |
158 |
03.164 VALVE; ROLL OVER & FLOAT
|
8-98103-512-0 |
01 |
1 |
0811- |
| |
227 |
03.015 BOLT; SPACER,FUEL TANK
03.162
M10X35 FLANGE
|
0-28681-035-0 |
08 |
1 |
0301-0512 |
| |
227 |
03.015 BOLT; SPACER,FUEL TANK
02.277
M10X35 FLANGE
|
0-28651-035-0 |
08 |
1 |
0601- |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
ID=6.5
|
8-94257-639-0 |
01 |
1 |
0301- |
| |
422 |
03.023 PLUG; FUEL TANK
03.162
|
8-94421-626-0 |
01 |
1 |
0301- |
| |
492 |
03.028 CLIP; HARNESS TO VAC HOSE
02.559
L=250
|
5-09707-030-1 |
01 |
1 |
0502- |
| |
619 |
03.028 CLIP; FUEL TANK UNIT CABLE
02.559
L=250
|
5-09707-030-1 |
01 |
1 |
0301-0501 |
| |
619 |
03.028 CLIP; FUEL TANK UNIT CABLE
02.559
L=250
|
5-09707-030-1 |
02 |
1 |
0502-0506 |
| |
619 |
03.028 CLIP; FUEL TANK UNIT CABLE
03.162
L=140
|
5-09707-031-1 |
02 |
1 |
0507- |
