Isuzu WW
▶
TRUCKS
▶
NPS
▶
51409 - NPS(AUSTRALIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#39516) — 27 parça
◀

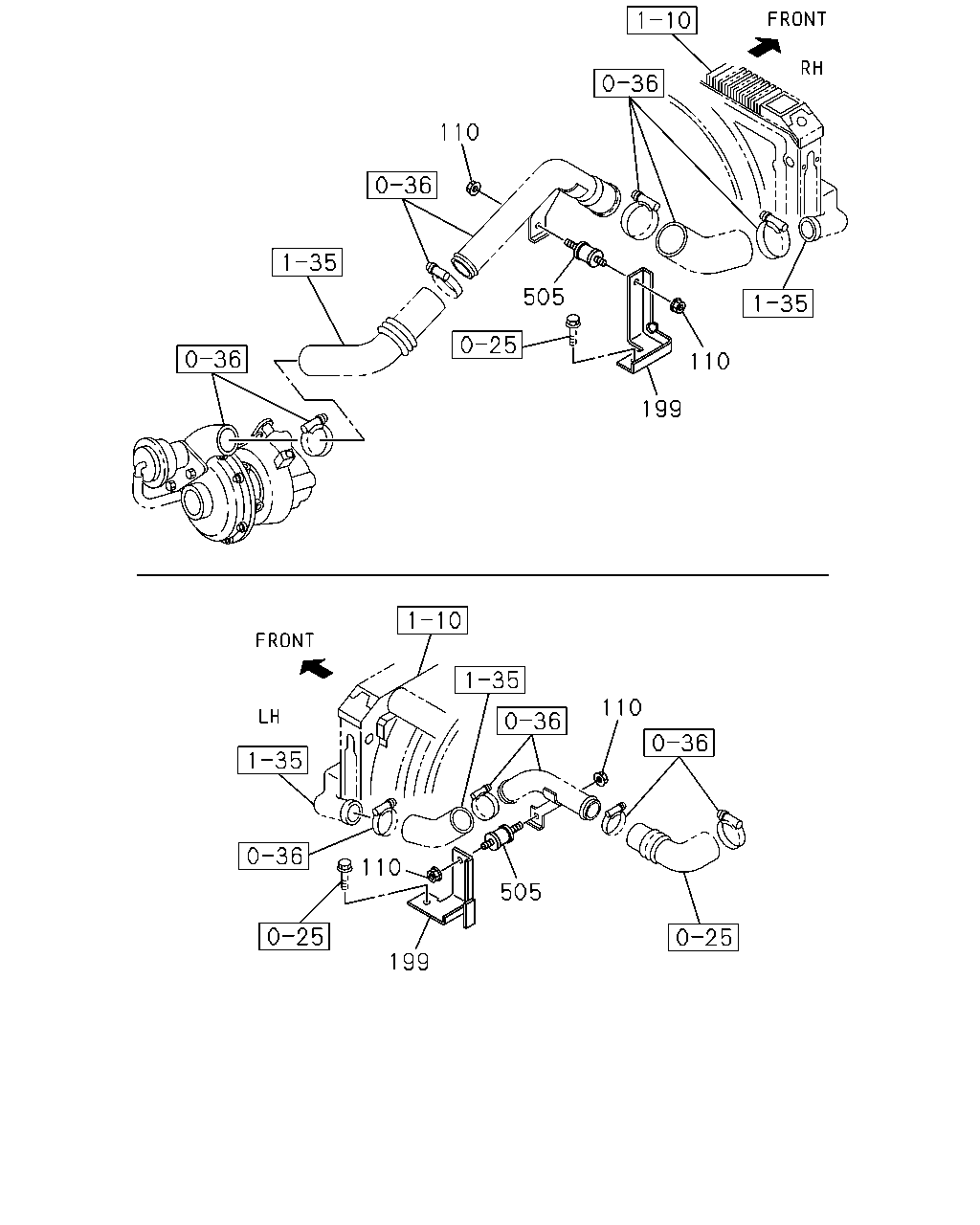

[131A] NO.2 (6 parça)
[131A] NO.1 (21 parça)
▶
110
505
110
199
110
110
505
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
110
03.403 NUT; RUBBER MTG
07.633 M8 FLANGE
0-91150-108-0
04
1
0301-0602
110
03.403 NUT; RUBBER MTG
01.062 M8 FLANGE
0-91180-108-0
04
1
0603-
199
03.417 BRACKET; PIPE
8-97350-402-0
01
1
0301-
199
03.417 BRACKET; PIPE
8-97350-403-0
01
1
0301-
505
03.406 RUBBER; MTG
03.405
8-94158-155-1
02
1
0301-0611
505
03.406 RUBBER; MTG
03.417
8-98036-826-0
02
1
0612-
281
13
409
288
146
320
10
10
5
345
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=70-90
8-98122-372-0
01
1
1002-
5
03.407 CLIP; AIR DUCT
ID=58-79
1-09707-136-0
01
1
0301-0501
5
03.407 CLIP; AIR DUCT
ID=68-85
1-09707-202-0
01
1
0502-0810
5
03.407 CLIP; AIR DUCT
ID=65-85
8-98133-350-0
01
1
0811-1001
5
03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> ID=65-85
8-98133-350-0
01
1
1002-
10
03.417 BOLT; BRKT FIX
02.559 (A) M8X25 FLANGE
0-28680-825-0
02
1
0301-0512
10
03.417 BOLT; BRKT FIX
06.216 (A) M8X25 FLANGE
0-28650-825-0
02
1
0601-
10
03.417 BOLT; BRKT FIX
02.183 (B) M8X35 FLANGE
0-28680-835-0
01
1
0301-0512
10
03.417 BOLT; BRKT FIX
01.060 (B) M8X35 FLANGE
0-28650-835-0
01
1
0601-
13
03.417 NUT; BRKT FIX
07.633 M8 FLANGE
0-91150-108-0
01
1
0301-0602
13
03.417 NUT; BRKT FIX
01.062 M8 FLANGE
0-91180-108-0
01
1
0603-
146
03.417 CLIP; HOSE,ACL
03.407 ID=112
9-09915-074-1
01
1
0301-
281
03.417 DUCT; AIR,VERTICAL INT
8-97180-995-0
01
1
0301-
288
03.417 BRACKET; DUCT
8-97183-041-2
01
1
0301-
320
03.417 HOSE; CONN,ACL
8-97209-707-0
01
1
0301-0501
320
03.417 HOSE; CONN,ACL
8-98000-873-1
01
1
0502-
345
03.417 CLIP; PCV HOSE
8-97066-710-1
01
1
0301-0307
345
03.417 CLIP; PCV HOSE
8-97369-959-0
01
1
0308-0504
345
03.417 CLIP; PCV HOSE
8-98020-040-0
01
1
0505-
409
03.417 WASHER; PL,BRKT
06.760 ID=8.4 OD=22
9-09160-708-0
01
1
0301-0605
409
03.417 WASHER; PL,BRKT
04.595 ID=8.4 OD=22
0-91610-708-0
01
1
0606-
