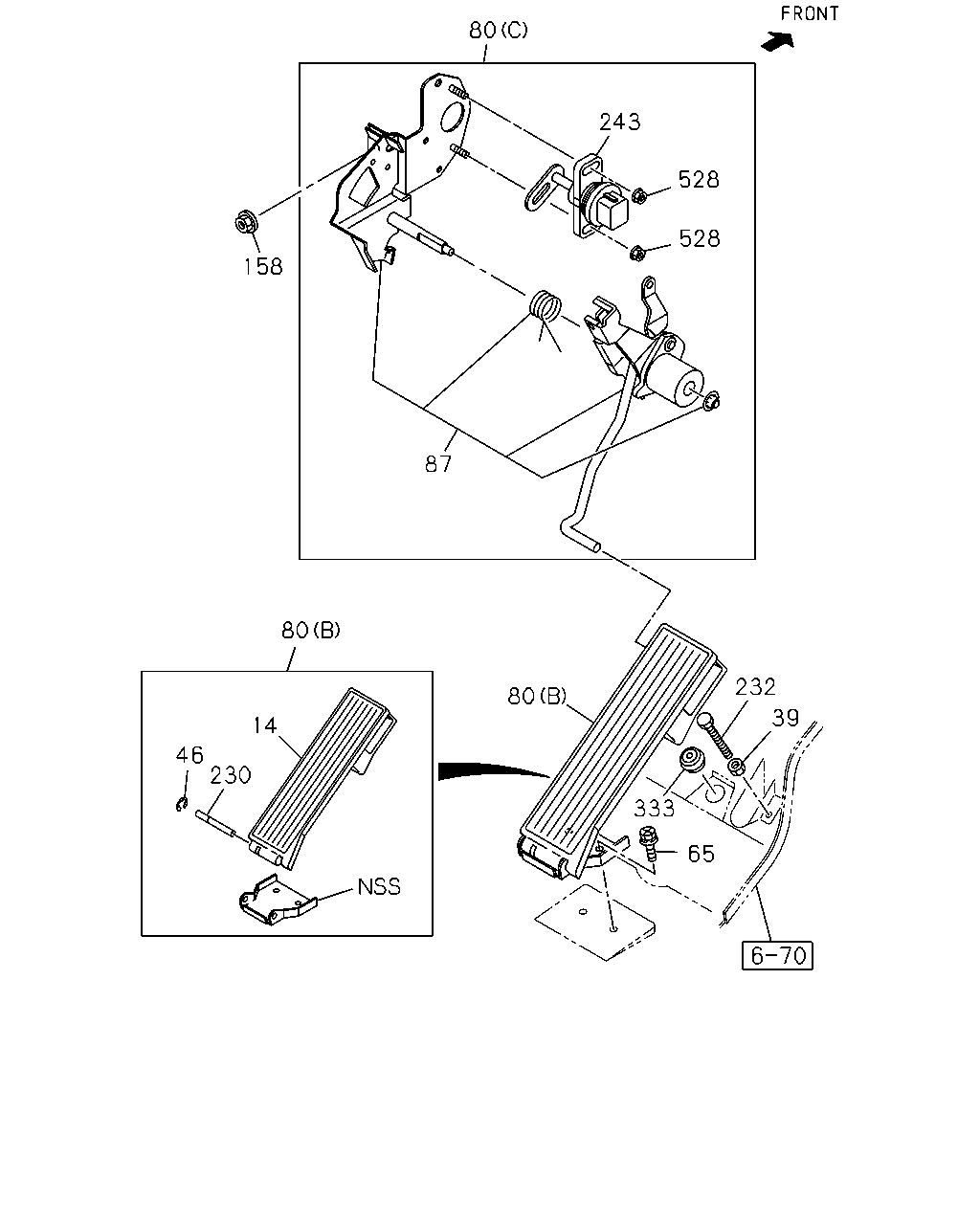

1-01 — ACCELERATOR PEDAL AND CONTROL (#39512) — 69 parça

80 243 528 528 158 87 80 232 80 39 14 46 230 333 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0301-
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0301-0512
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0601-
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0301-0604
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0301-
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	0301-0501
80	03.452 LINK ASM; ENG CONT (C)	8-97997-556-6	01	1	0502-
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0301-
87	03.454 LINK; ENG CONT	8-97853-204-1	01	1	0301-0501
87	03.454 LINK; ENG CONT	8-97581-415-5	01	1	0502-
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0301-
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0301-
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	0301-0404
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0405-
243	03.425 SENSOR; ACCEL	8-97602-416-0	01	1	0502-
333	03.671 GROMMET; HOLE,CABLE 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0502-
333	03.671 GROMMET; HOLE,CABLE 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0502-
528	03.463 NUT; ACCEL SENSOR 12.183 M5	8-94169-022-0	02	1	0502-

54 99 54 114 99 108 729 101 101 100 104 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	03.430 CABLE; ENG CONT (B) L=384	8-97168-299-1	01	1	0301-0501
54	03.430 CABLE; ENG CONT (A) L=2840	8-97350-446-2	01	1	0301-0501
99	03.463 BRACKET ASM; ENG CONT,INL MANIF	8-97167-871-3	01	1	0301-0501
100	03.463 SHAFT ASM; ENG CONT	8-97167-870-2	01	1	0301-0501
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	0301-0501
104	03.463 NUT; ENG CONT 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0501
108	03.463 BUSHING; ENG CONT	8-97120-004-0	01	1	0301-0501
110	03.463 BOLT; BRKT TO HANGER 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0301-0501
114	03.483 CLIP; HARNESS CONNECTOR 02.559 ID=7-10	8-94472-578-0	01	1	0301-0501
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	0301-0501

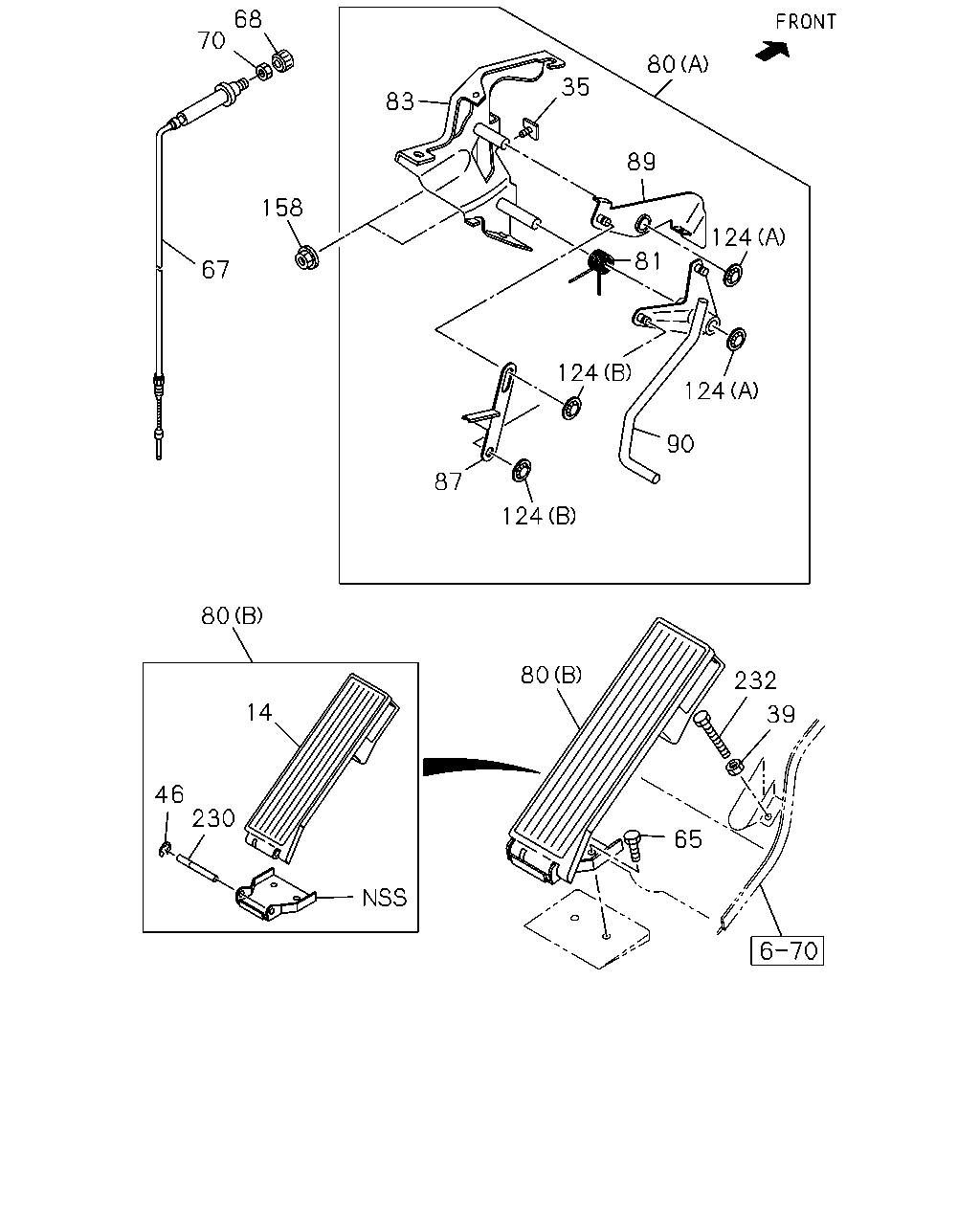

68 70 80 35 83 89 158 124 81 67 124 124 90 87 124 80 80 232 14 39 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0301-
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	01	1	0301-0501
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0301-0512
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0601-
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0301-0604
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0301-
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	0301-0501
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	0301-0501
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	0301-0501
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	0301-0501
80	03.452 LINK ASM; ENG CONT (C)	8-97997-556-6	01	1	0502-
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0301-
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0301-0501
83	03.452 BRACKET; CONT LINK	8-97853-201-4	01	1	0301-0501
87	03.454 LINK; ENG CONT	8-97853-204-1	01	1	0301-0501
87	03.454 LINK; ENG CONT	8-97581-415-5	01	1	0502-
89	03.454 LEVER; RELAY	8-97868-042-0	01	1	0301-0501
90	03.454 LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	0301-0501
124	03.463 NUT; LEVER (B) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0301-0501
124	03.463 NUT; LEVER 09.011 (A) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0301-0501
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0301-
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0301-
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	0301-0404
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0405-

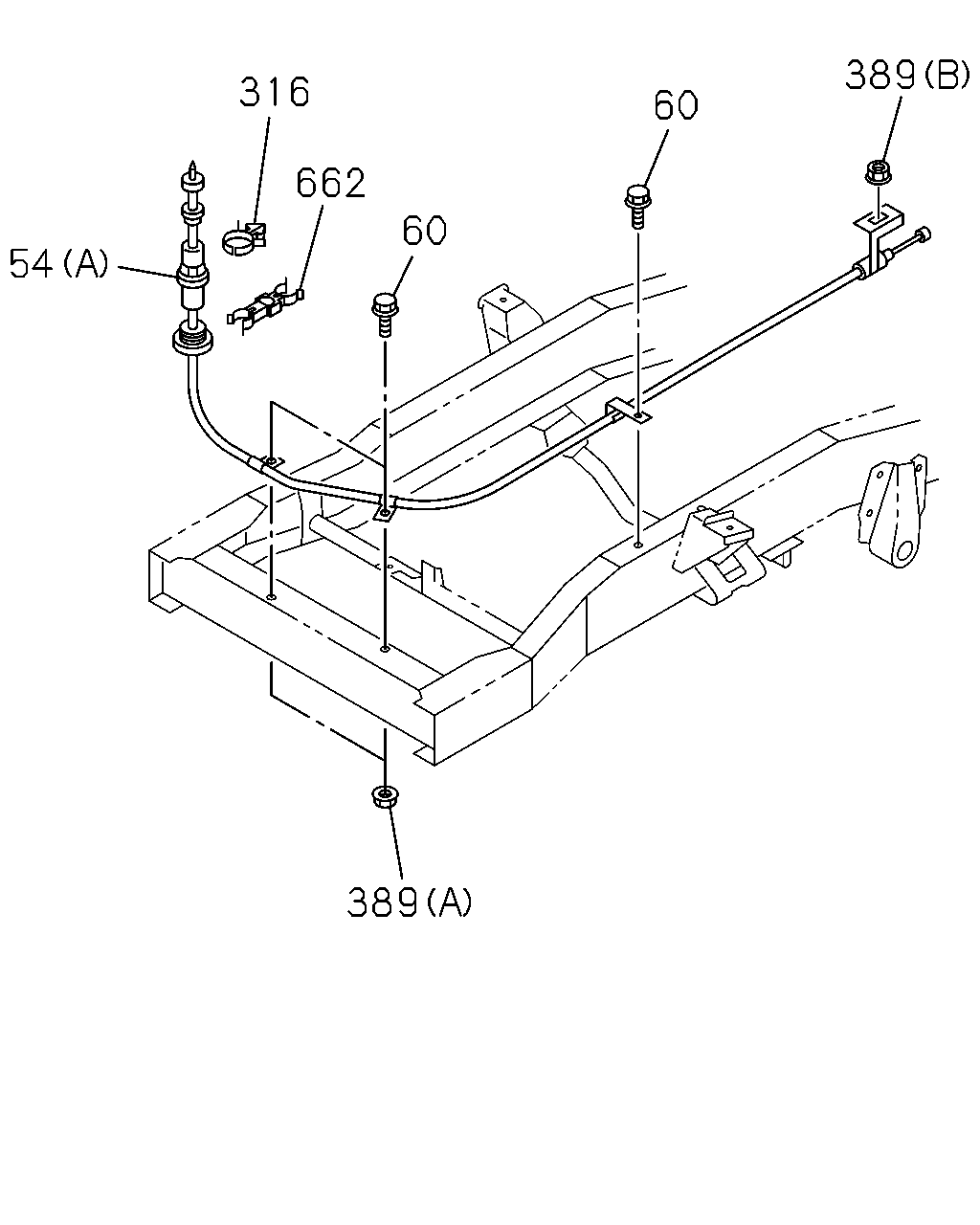

389 316 60 662 60 54 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	03.430 CABLE; ENG CONT (B) L=384	8-97168-299-1	01	1	0301-0501
54	03.430 CABLE; ENG CONT (A) L=2840	8-97350-446-2	01	1	0301-0501
60	08.155 BOLT; CABLE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0301-0501
60	08.155 BOLT; CABLE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0301-0501
316	03.425 CLIP; LAMP BRKT 16.065 ID=9	5-09707-027-0	01	1	0301-0501
389	03.483 NUT; ACCEL CONT CABLE FIX 07.833 (A) M8 W/LK WASHER	8-94327-073-0	02	1	0301-0301
389	03.483 NUT; ACCEL CONT CABLE FIX 07.833 (A) M8 W/LK WASHER	8-94327-073-0	02	1	0301-0301
389	03.483 NUT; ACCEL CONT CABLE FIX 07.833 (A) M8 W/LK WASHER	8-94327-073-0	01	1	0301-0501
389	03.483 NUT; ACCEL CONT CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0301-0501
389	03.483 NUT; ACCEL CONT CABLE FIX 07.833 (A) M8 W/LK WASHER	8-94327-073-0	02	1	0301-0501
662	03.430 CLIP; ACCEL CONT CABLE 03.634 ID=6 & 6	1-09709-217-0	01	1	0301-0501

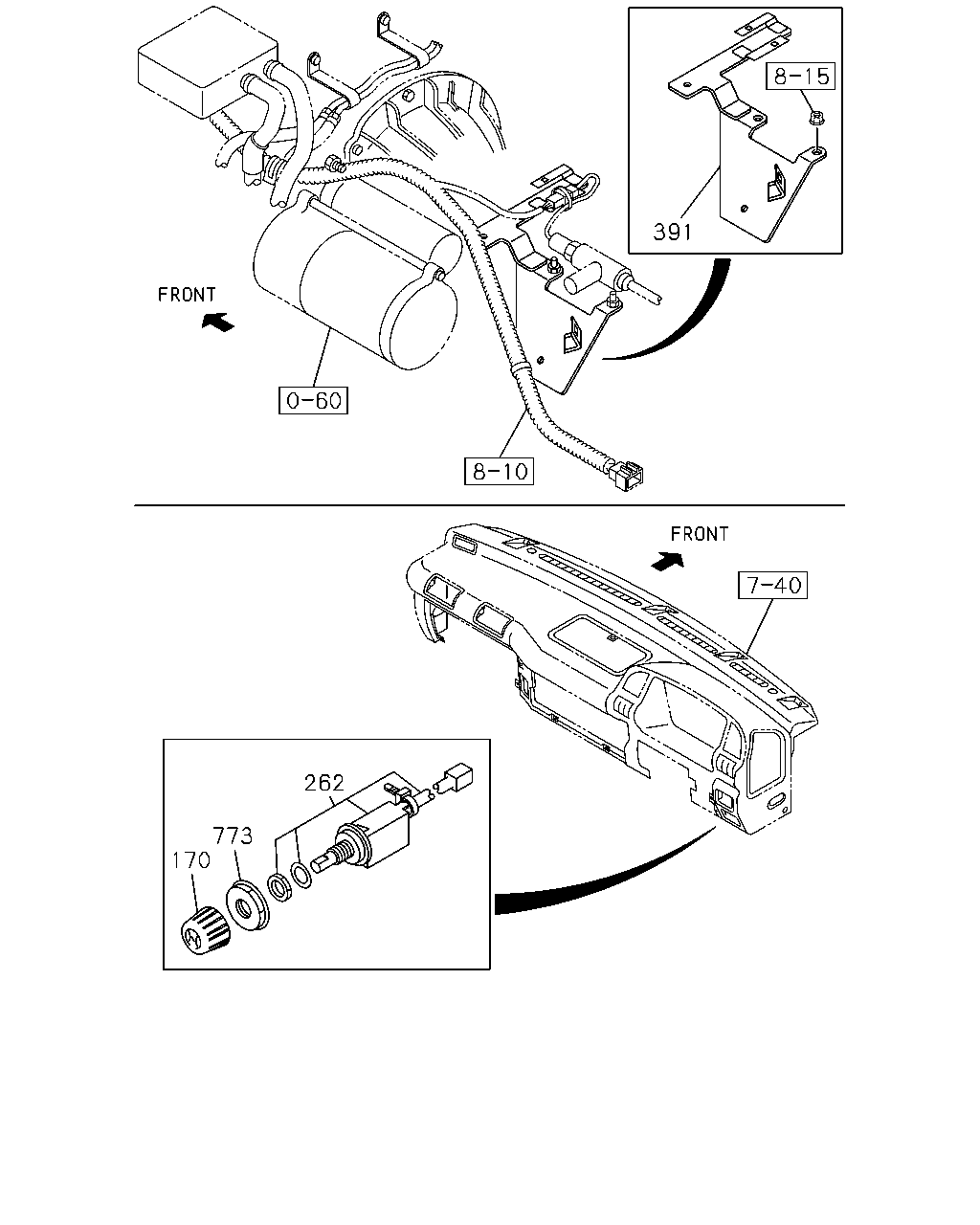

391 262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
170	03.480 KNOB	8-97310-165-0	01	1	0502-
262	03.452 SWITCH; ACCEL,IDLE	8-97215-119-1	01	1	0502-
391	03.452 BRACKET; ENG CONT	8-97360-271-0	01	1	0301-
773	03.452 HOLDER; ACCEL PEDAL	8-97352-127-0	01	1	0502-
