◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51409 - NPS(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#39502) — 119 parça

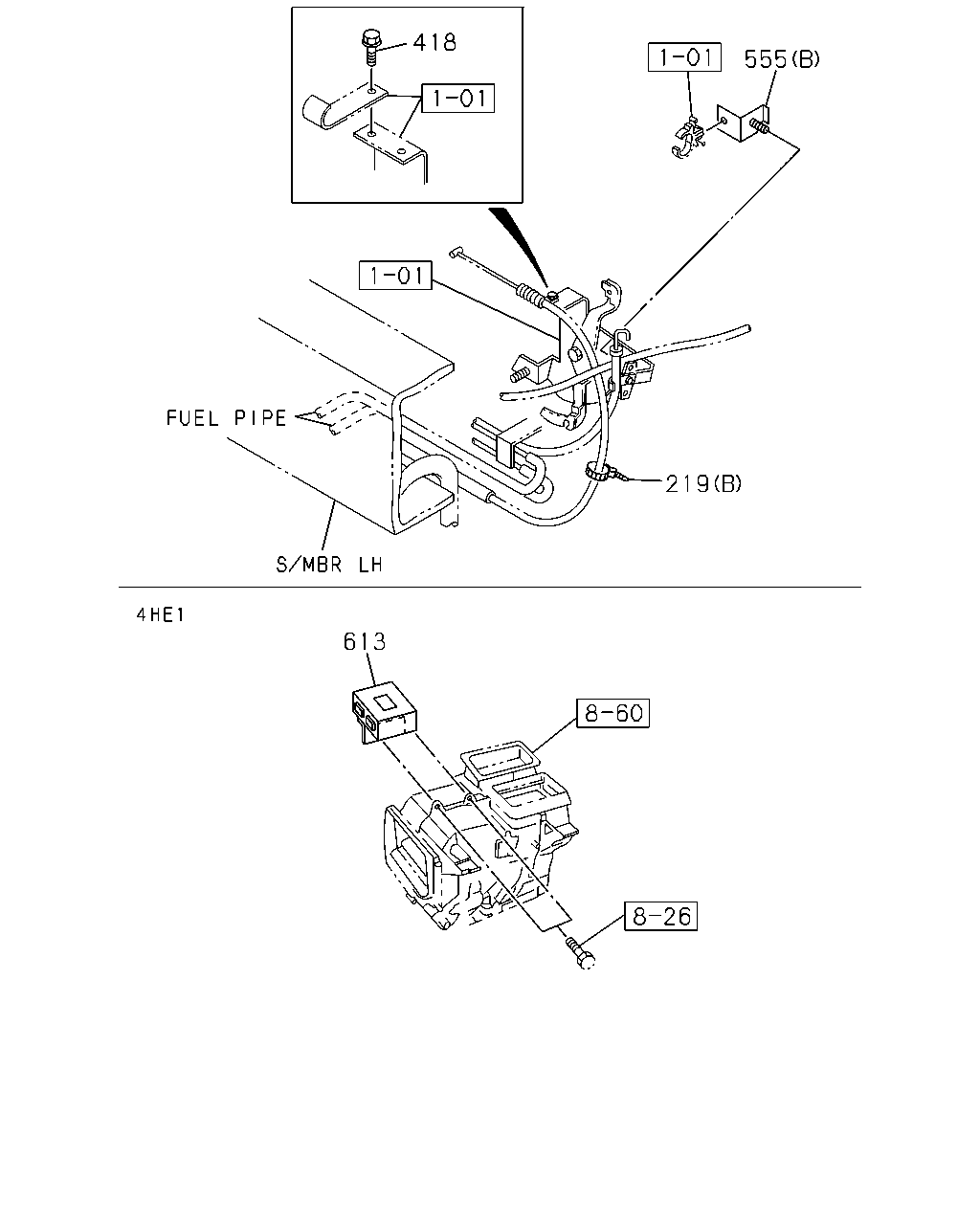

çizim 35944
418 555 219 613
BalonParca AdiParca NoAdetTipApplied Date A B
219 03.483 CLIP; ENG STOP CABLE
02.559 (B) L=250 		5-09707-030-1 01 1 0301-0501 ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 0301-0501 ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 0301-0501 ●
418 02.559 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0310-0501 ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 0301-0501 ●
555 03.485 BRACKET; ENG STOP
(B) 		8-97188-280-0 01 1 0310-0501 ●
613 03.670 CONTROL UNIT; ENG 8-97223-183-1 01 1 0301-0501 ●
613 03.670 CONTROL UNIT; ENG 8-98000-589-5 01 1 0502- ●

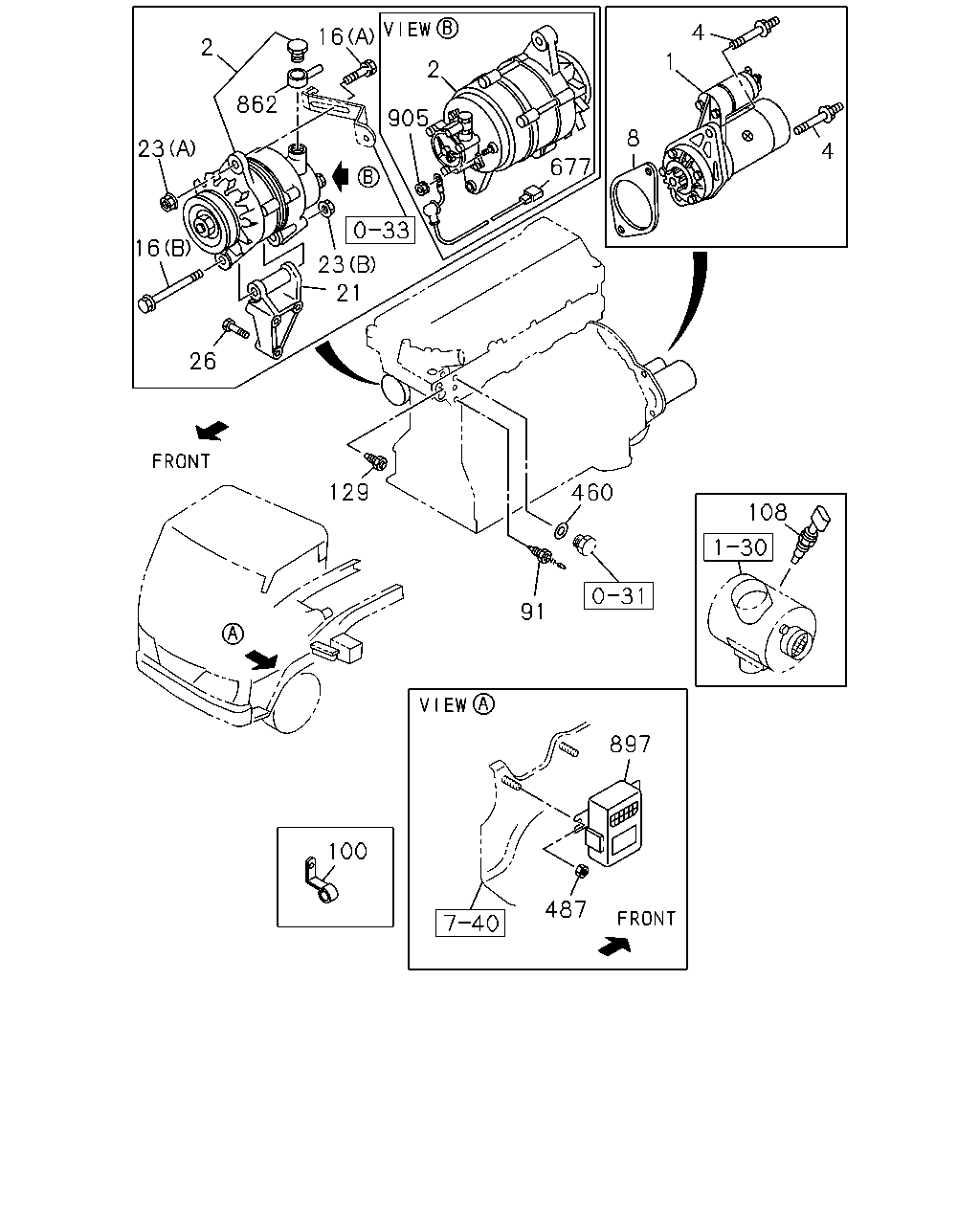

çizim 35969
4 16 2 1 2 862 905 8 23 4 677 16 23 21 26 460 129 108 91 897 100 487
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0301-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0502- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97250-258-2 01 1 0301-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97250-258-2 01 1 0502-0503 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI 		8-97351-573-0 01 1 0504- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A 		8-97170-163-2 01 1 0301-0304 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0305-0305 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2), IDENTIFICATIONLABEL FOR KD<6UT> 24V 50A HITACHI 		8-97351-572-0 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0309-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-1 01 1 0502- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> EXC. GENERATOR 24V60A(KG2) 24V 50A 		8-97170-163-2 01 1 0306-0308 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0301-0501 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0502- ●
8 02.042 SPACER; STARTER 8-97350-947-0 01 1 0502- ●
16 02.277 BOLT; GEN
(B) M10X133 		8-97146-998-0 01 1 0301-0501 ●
16 02.277 BOLT; GEN
(B) M10X133 		8-97146-998-0 01 1 0502- ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (A) M8X40 W/WASHER 		8-97011-792-4 01 1 0301-0501 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (A) M8X40 W/WASHER 		8-97011-792-4 01 1 0502- ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0301-0501 ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0502- ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0301-0501 ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
23 02.277 NUT; GEN
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0301-0501 ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0502-0602 ●
23 02.277 NUT; GEN
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 0603- ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 0301-0501 ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 0502-0512 ●
26 02.277 BOLT; GEN BRKT
02.042 M10X50 FLANGE 		0-28151-050-0 01 1 0601- ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 0301-0501 ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 0502-0512 ●
26 02.277 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0601- ●
91 01.150 SWITCH; THERMO HTR
03.883 		8-97038-625-0 01 1 0301-0402 ●
100 02.559 CLIP; HARNESS
ID=11 L=20 		9-09525-035-0 01 1 0502-0606 ●
100 02.559 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 01 1 0607- ●
108 01.150 SWITCH; THERMO 8-97189-295-0 01 1 0301-0501 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0301-0501 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0502- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0301-0501 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0502-1007 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1008- ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 0301-0501 ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 0502- ●
487 02.343 NUT
04.594 M6 FLANGE 		0-91150-106-0 02 1 0504-0602 ●
487 02.343 NUT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ●
677 02.277 HARNESS; GEN
EXC. GENERATOR 24V60A(KG2) 		8-97367-772-0 01 1 0305-0305 ●
677 02.277 HARNESS; GEN
EXC. GENERATOR 24V60A(KG2), IDENTIFICATIONLABEL FOR KD<6UT> 		8-97367-772-0 01 1 0306-0308 ●
677 02.277 HARNESS; GEN
EXC. GENERATOR 24V60A(KG2) 		8-97367-772-0 01 1 0309-0501 ●
677 02.277 HARNESS; GEN
EXC. GENERATOR 24V60A(KG2) 		8-97367-772-0 01 1 0502-0503 ●
677 02.277 HARNESS; GEN 8-97367-772-0 01 1 0504- ●
862 02.313 CONNECTOR; GEN
EXC. GENERATOR 24V60A(KG2) 		8-97351-626-0 01 1 0305-0305 ●
862 02.313 CONNECTOR; GEN
EXC. GENERATOR 24V60A(KG2), IDENTIFICATIONLABEL FOR KD<6UT> 		8-97351-626-0 01 1 0306-0308 ●
862 02.313 CONNECTOR; GEN
EXC. GENERATOR 24V60A(KG2) 		8-97351-626-0 01 1 0309-0501 ●
862 02.313 CONNECTOR; GEN
EXC. GENERATOR 24V60A(KG2) 		8-97351-626-0 01 1 0502-0503 ●
862 02.313 CONNECTOR; GEN 8-97351-627-0 01 1 0504- ●
897 02.510 DRM 8-98013-144-7 01 1 0504- ●
905 02.559 NUT; HARNESS
EXC. GENERATOR 24V60A(KG2) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0305-0305 ●
905 02.559 NUT; HARNESS
EXC. GENERATOR 24V60A(KG2), IDENTIFICATIONLABEL FOR KD<6UT> 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0306-0308 ●
905 02.559 NUT; HARNESS
EXC. GENERATOR 24V60A(KG2) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0309-0501 ●
905 02.559 NUT; HARNESS
EXC. GENERATOR 24V60A(KG2) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0502-0503 ●
905 02.559 NUT; HARNESS
02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0504- ●

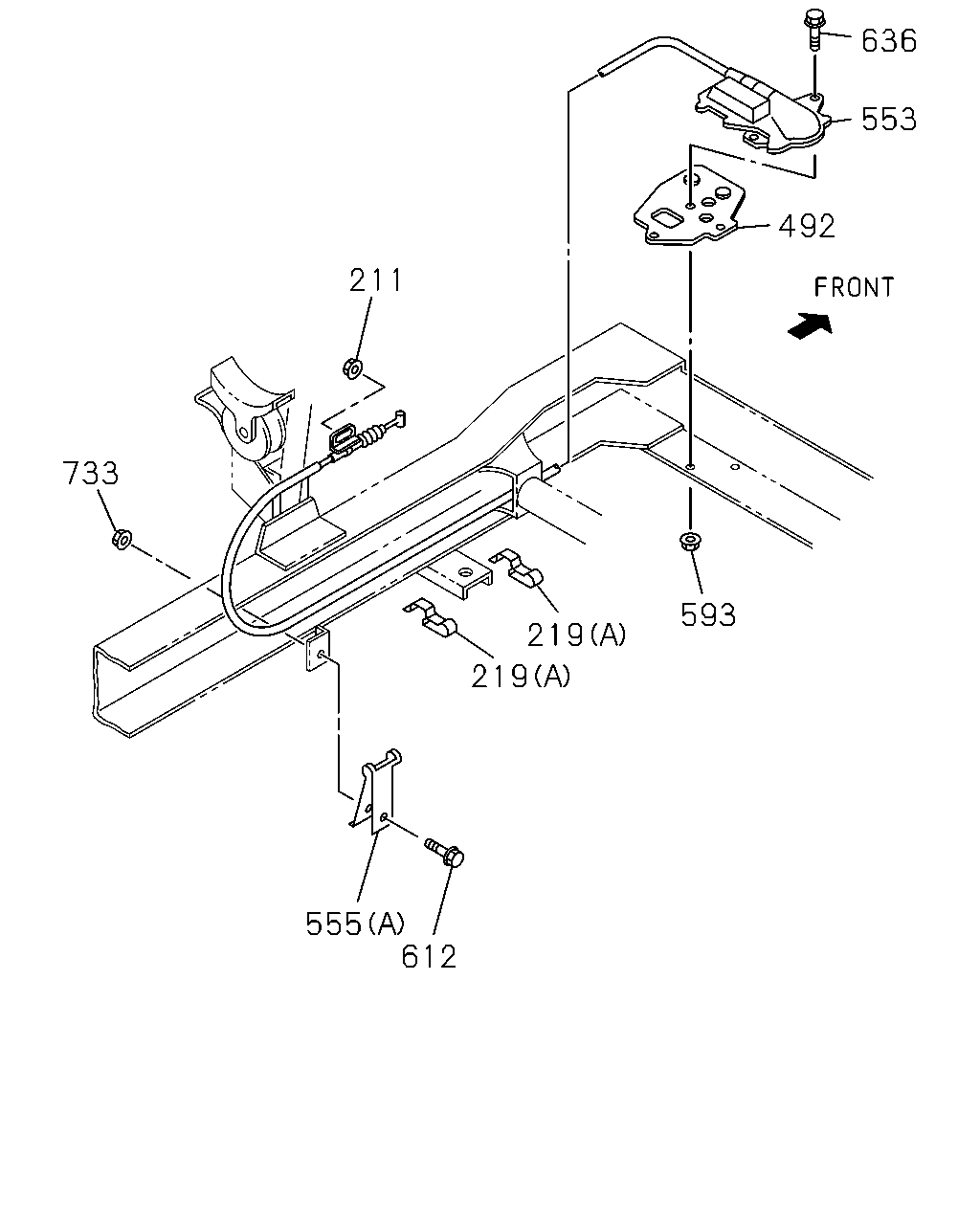

çizim 35970
636 553 492 211 733 593 219 219 555 612
BalonParca AdiParca NoAdetTipApplied Date A B
211 02.343 NUT; CABLE FIX
04.594 M6 FLANGE 		0-91150-106-0 01 1 0301-0501 ●
211 02.343 NUT; CABLE FIX
07.633 M8 FLANGE 		0-91150-108-0 01 1 0310-0501 ●
219 03.483 CLIP; ENG STOP CABLE
02.559 (B) L=250 		5-09707-030-1 01 1 0301-0501 ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 0301-0501 ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 0301-0501 ●
492 03.483 BRACKET; ENG STOPPER
03.485 		8-97113-497-1 01 1 0301-0501 ●
553 03.485 MOTOR ASM; ENG STOP 8-97255-071-0 01 1 0301-0501 ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 0301-0501 ●
555 03.485 BRACKET; ENG STOP
(B) 		8-97188-280-0 01 1 0310-0501 ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 0301-0501 ●
612 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0502-0502 ●
612 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 03 1 0502-0512 ●
612 02.510 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0601- ●
612 02.510 BOLT; BRKT
16.585 M8X20 		1-09981-468-0 01 1 0301-0501 ●
612 02.510 BOLT; BRKT
03.417 M10X25 FLANGE 		0-28081-025-0 01 1 0502-0512 ●
612 02.510 BOLT; BRKT
09.171 M10X25 FLANGE 		0-28051-025-0 01 1 0601- ●
636 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0301-0501 ●
733 02.343 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0301-0501 ●

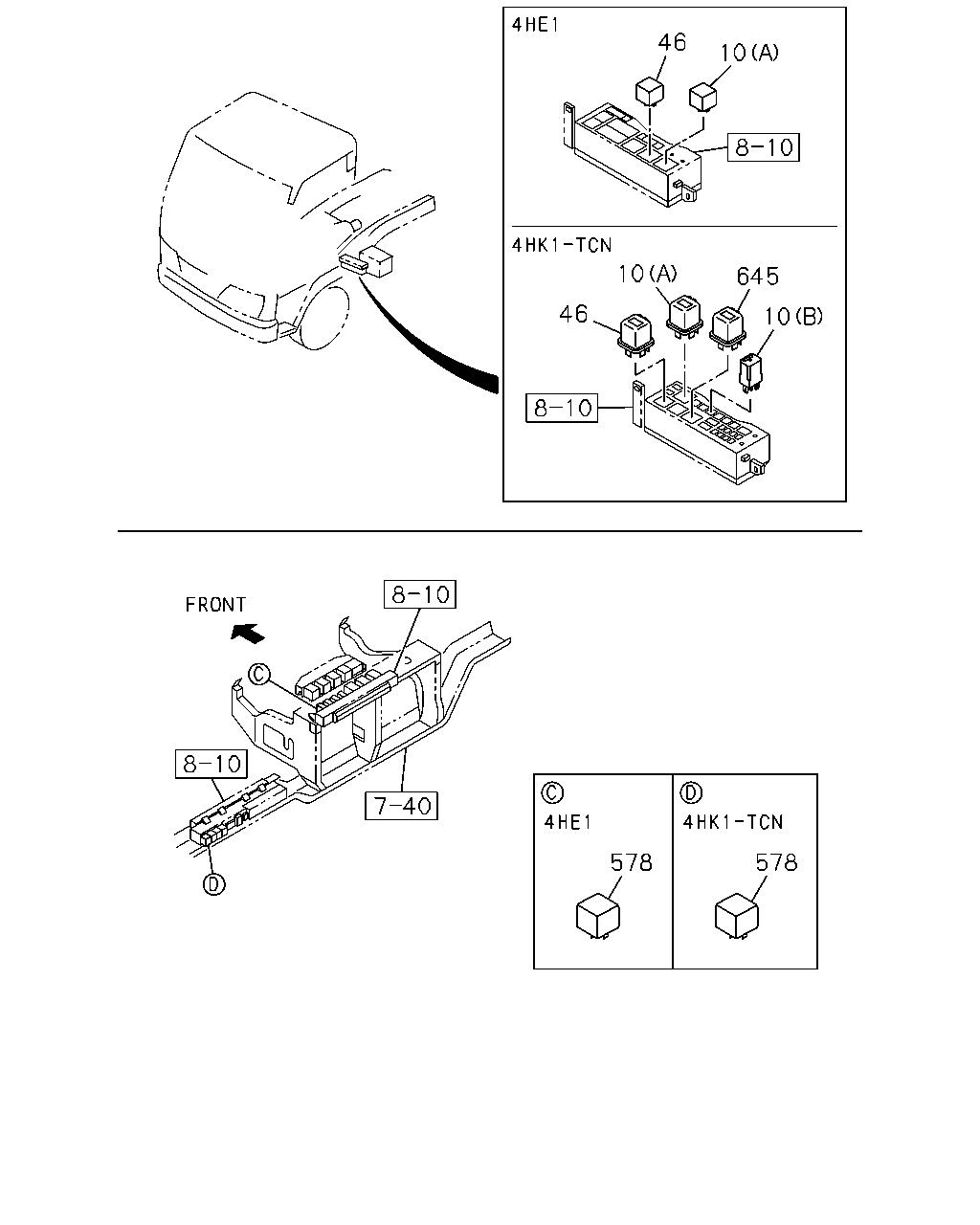

çizim 35971
46 10 10 645 46 10 578 578
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
08.852 (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
10 02.100 RELAY; STARTER
(A) 24V 50A 		8-97264-947-0 01 1 0301-0501 ●
10 02.100 RELAY; STARTER
(A) 24V 50A 		8-97264-947-0 01 1 0502- ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0301-0501 ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0502- ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-2 01 1 0301-0501 ●
578 02.510 RELAY; CHARGE WARNING
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
645 02.510 RELAY; ENG CONT
24V 30A MITUBA 		8-97238-540-0 01 1 0502- ●

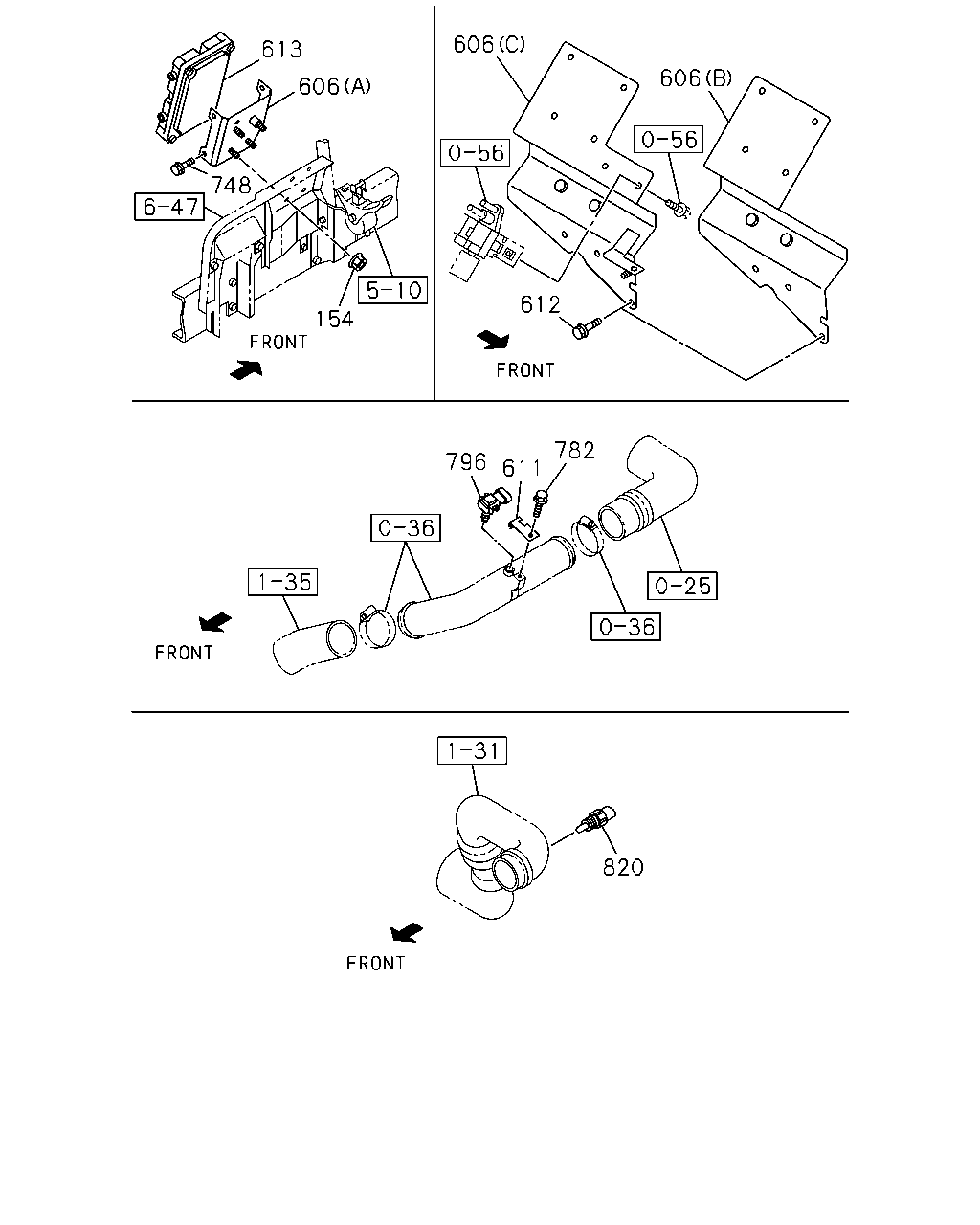

çizim 35972
606 613 606 606 748 612 154 782 796 611 820
BalonParca AdiParca NoAdetTipApplied Date A B
154 02.510 NUT; BRKT FIX
04.785 M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ●
154 02.510 NUT; BRKT FIX
03.162 M10 FLANGE 		0-91180-110-0 01 1 0603- ●
154 02.510 NUT; BRKT FIX
10.147 M6 W/DISHED WASHER 		8-94423-325-0 04 1 0502-0611 ●
154 02.510 NUT; BRKT FIX
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 0612- ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-98000-703-0 01 1 0502- ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-98000-704-0 01 1 0502-0502 ●
606 03.680 BRACKET; CONT UNIT
(C) 		8-98013-406-1 01 1 0502- ●
611 01.150 BRACKET; SENSOR 8-97368-621-0 01 1 0502- ●
612 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0502-0502 ●
612 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 03 1 0502-0512 ●
612 02.510 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0601- ●
612 02.510 BOLT; BRKT
16.585 M8X20 		1-09981-468-0 01 1 0301-0501 ●
612 02.510 BOLT; BRKT
03.417 M10X25 FLANGE 		0-28081-025-0 01 1 0502-0512 ●
612 02.510 BOLT; BRKT
09.171 M10X25 FLANGE 		0-28051-025-0 01 1 0601- ●
613 03.670 CONTROL UNIT; ENG 8-97223-183-1 01 1 0301-0501 ●
613 03.670 CONTROL UNIT; ENG 8-98000-589-5 01 1 0502- ●
748 02.500 BOLT; CONT UNIT
09.190 M6X30 FLANGE 		0-28680-630-0 06 1 0502-0508 ●
748 02.500 BOLT; CONT UNIT
10.450 M6X10 		9-03800-610-0 03 1 0502-0604 ●
748 02.500 BOLT; CONT UNIT
M6X10 		0-35050-610-0 03 1 0605- ●
782 02.510 BOLT; SENSOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0502-0512 ●
782 02.510 BOLT; SENSOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601- ●
796 01.150 SENSOR; MAP 8-09373-269-1 01 1 0502-0810 ●
796 01.150 SENSOR; MAP 8-28139-775-0 01 1 0811- ●
820 01.150 SENSOR; INTAKE AIR TEMP 8-12146-830-0 01 1 0502- ●
