Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#3950) — 389 parça

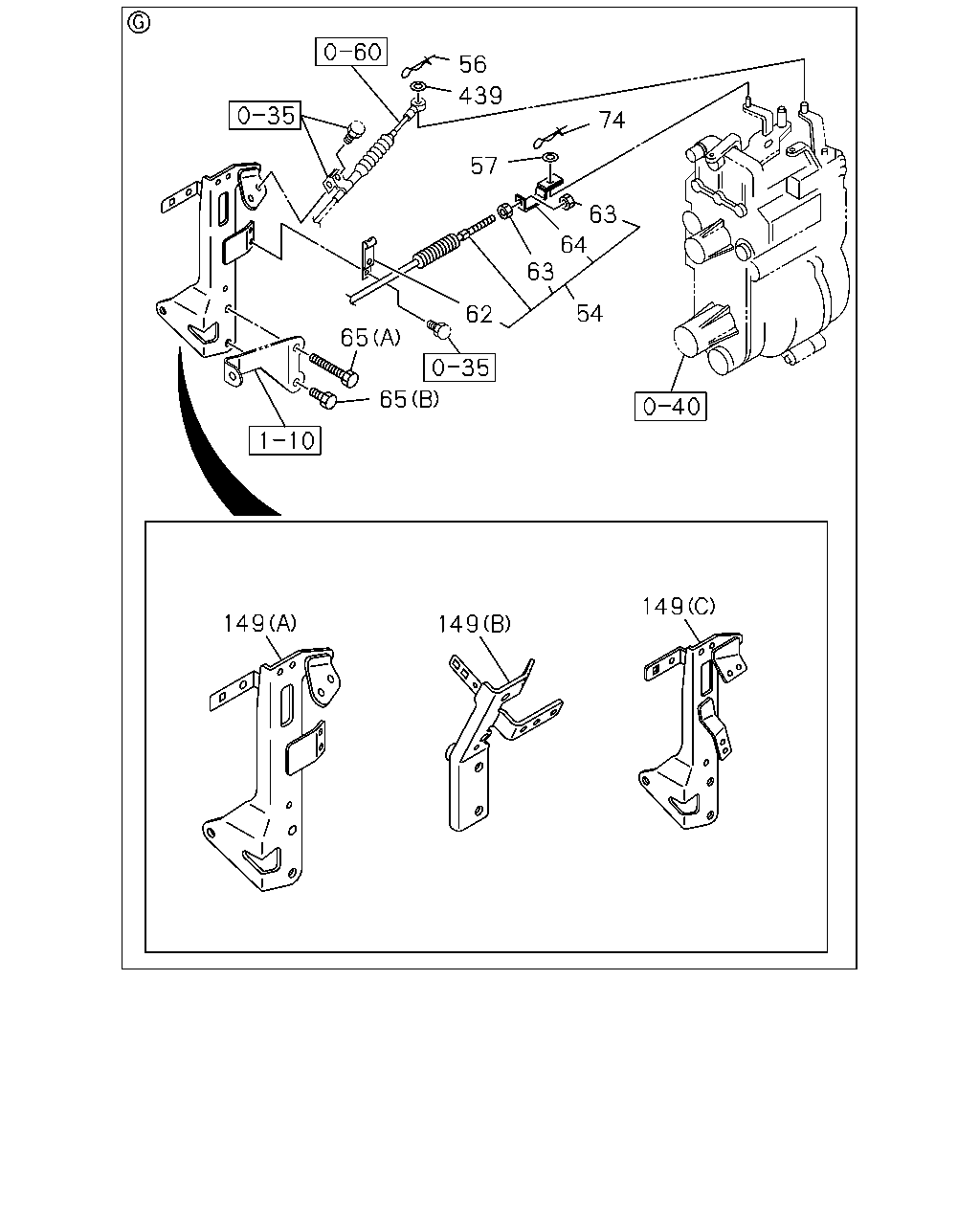

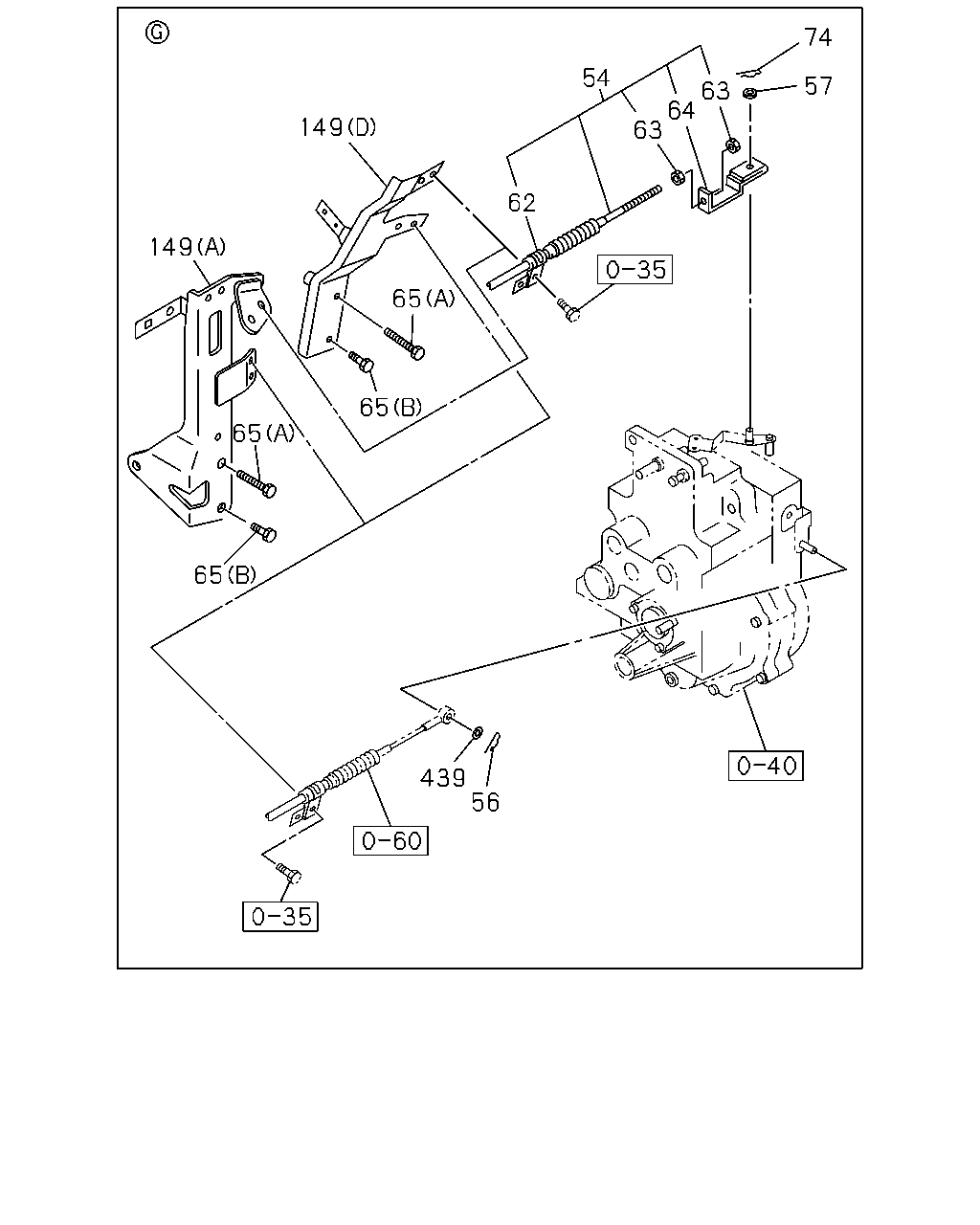

74 54 57 63 64 63 149 62 149 65 65 65 6 439 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9510-9510	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9511-9709	●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9710-0004	●	●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	0005-0601	●	●	●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	0602-0604	●	●	●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	0-91805-504-0	02	1	0605-0607	●	●	●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	0-91805-504-0	02	1	0608-	●	●	●	●	●
6	RING; SNAP,LINK TO LINK (B) ID=6	9-09185-406-0	01	1	9510-9510	●
6	RING; SNAP,LINK TO LINK (B) ID=6	9-09185-406-0	01	1	9511-9709	●	●
6	RING; SNAP,LINK TO LINK (B) ID=6	9-09185-406-0	01	1	9710-9802	●	●	●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> L=1588	1-73996-482-1	01	1	0303-				●
54	CABLE; ENG CONT L=1624	1-73996-240-9	01	1	9510-	●
54	CABLE; ENG CONT L=1659	1-73996-294-8	01	1	9511-0006		●
54	CABLE; ENG CONT SHORT CHASSIS(FT***C) L=1659	1-73996-294-9	01	1	0007-0012		●
54	CABLE; ENG CONT MIDDLE CHASSIS(FT***F) EXC. EURO2 SPECIFICATION<THN> L=1659	1-73996-294-9	01	1	0007-0012		●
54	CABLE; ENG CONT SHORT CHASSIS(FT***C) L=1659	1-73996-483-0	01	1	0101-		●
54	CABLE; ENG CONT MIDDLE CHASSIS(FT***F) EXC. EURO2 SPECIFICATION<THN> L=1659	1-73996-483-0	01	1	0101-		●
54	CABLE; ENG CONT MIDDLE CHASSIS(FT***F) EURO2 SPECIFICATION<THN> L=2246.5	1-73996-297-6	01	1	0007-0008		●
54	CABLE; ENG CONT L=1706.5	1-73908-297-4	01	1	9710-0008			●
54	CABLE; ENG CONT MIDDLE CHASSIS(FT***F) EURO2 SPECIFICATION<THN> L=1706.5	1-73908-297-5	01	1	0009-		●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> L=1706.5	1-73908-297-5	01	1	0009-			●
54	CABLE; ENG CONT L=1609	1-73996-285-9	01	1	0005-0302				●
54	CABLE; ENG CONT EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1609	1-73996-285-9	01	1	0303-				●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9510-0004	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	0005-	●	●	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9510-0004	●	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	0005-0605	●	●	●	●
57	WASHER; ENG CONT CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●	●	●	●
62	CLIP; ENG CONT CABLE MIDDLE CHASSIS(FT***F) EURO2 SPECIFICATION<THN> L=30	1-09700-326-0	01	1	0007-0008		●
62	CLIP; ENG CONT CABLE L=30	1-09701-104-0	01	1	0005-0006				●
62	CLIP; ENG CONT CABLE SHORT CHASSIS(FT***C) L=30	1-09701-104-0	01	1	0007-0012		●
62	CLIP; ENG CONT CABLE MIDDLE CHASSIS(FT***F) EXC. EURO2 SPECIFICATION<THN> L=30	1-09701-104-0	01	1	0007-0012		●
62	CLIP; ENG CONT CABLE L=30	1-09701-104-0	01	1	0007-0012				●
62	CLIP; ENG CONT CABLE L=30	1-09701-104-0	01	1	0101-0302	●			●
62	CLIP; ENG CONT CABLE SHORT CHASSIS(FT***C) L=30	1-09701-104-0	01	1	0101-0302		●
62	CLIP; ENG CONT CABLE MIDDLE CHASSIS(FT***F) EXC. EURO2 SPECIFICATION<THN> L=30	1-09701-104-0	01	1	0101-0302		●
62	CLIP; ENG CONT CABLE L=30	1-09701-104-0	01	1	0303-	●
62	CLIP; ENG CONT CABLE SHORT CHASSIS(FT***C) L=30	1-09701-104-0	01	1	0303-		●
62	CLIP; ENG CONT CABLE MIDDLE CHASSIS(FT***F) EXC. EURO2 SPECIFICATION<THN> L=30	1-09701-104-0	01	1	0303-		●
62	CLIP; ENG CONT CABLE EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> L=30	1-09701-104-0	01	1	0303-				●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9510-9510	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9511-9709	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9710-0004	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0005-0008	●	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0009-0302	●	●		●
63	NUT; LOCK,BRKT EURO2 SPECIFICATION<THN> M8	9-09111-408-0	02	1	0009-0302			●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0303-	●	●
63	NUT; LOCK,BRKT EURO2 SPECIFICATION<THN> M8	9-09111-408-0	02	1	0303-			●
63	NUT; LOCK,BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M8	9-09111-408-0	02	1	0303-				●
64	BRACKET; ENG CONT CABLE EURO2 SPECIFICATION<THN>	1-23219-110-0	01	1	0303-				●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9510-9510	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9511-9709	●	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9710-0004	●	●	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0005-0008	●	●	●	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0009-0302	●	●		●
64	BRACKET; ENG CONT CABLE EURO2 SPECIFICATION<THN>	1-23219-105-1	01	1	0009-0302			●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0303-	●	●
64	BRACKET; ENG CONT CABLE EURO2 SPECIFICATION<THN>	1-23219-105-1	01	1	0303-			●
64	BRACKET; ENG CONT CABLE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-23219-105-1	01	1	0303-				●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9510-0004	●	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0005-0106	●	●	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0107-0512	●	●	●
65	BOLT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M10X60	0-16811-060-0	01	1	0107-0512				●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-0607	●	●	●
65	BOLT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M10X60	0-16861-060-0	01	1	0601-0607				●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0608-	●	●	●		●
65	BOLT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M10X60	0-16861-060-0	01	1	0608-				●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	9510-0004	●	●	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0005-0106	●	●	●	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0107-0512	●	●	●
65	BOLT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M10X20 FLANGE	0-28181-020-0	01	1	0107-0512				●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-0607	●	●	●
65	BOLT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-0607				●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0608-	●	●	●		●
65	BOLT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M10X20 FLANGE	0-28151-020-0	01	1	0608-				●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0004	●	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0607	●	●	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0608-	●	●	●	●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	9510-0004	●	●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	0005-1509	●	●	●	●
74	PIN; SNAP,CABLE END L=27.7	1-09987-141-0	01	1	1510-	●	●	●	●
149	BRACKET; ENG CONT (B)	8-97600-017-0	01	1	0608-					●
149	BRACKET; ENG CONT (A)	8-94390-006-2	01	1	9510-0004	●	●
149	BRACKET; ENG CONT (A)	8-94390-006-2	01	1	0005-	●
149	BRACKET; ENG CONT EXC. EURO2 SPECIFICATION<THN> (A)	8-94390-006-2	01	1	0005-		●
149	BRACKET; ENG CONT EURO2 SPECIFICATION<THN> (D)	8-94394-532-1	01	1	9710-		●
149	BRACKET; ENG CONT (D)	8-94394-532-1	01	1	9710-			●
149	BRACKET; ENG CONT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-97601-164-0	01	1	0005-				●
149	BRACKET; ENG CONT EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B)	8-97600-861-1	01	1	0005-0302				●
149	BRACKET; ENG CONT EURO2 SPECIFICATION<THN> (B)	8-97600-861-1	01	1	0303-				●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9510-0004	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0005-0605	●	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●	●	●	●

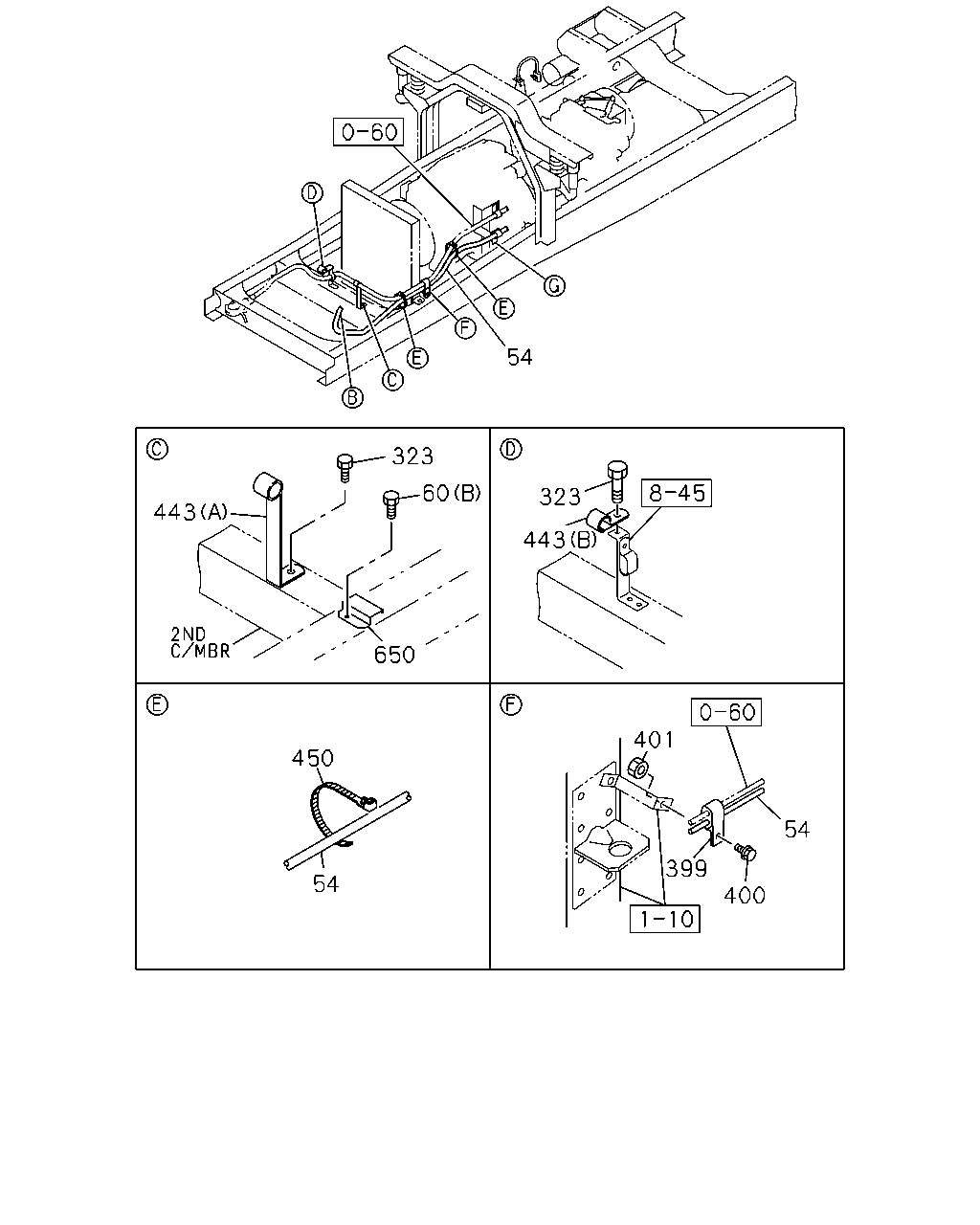

54 323 60 323 443 443 650 401 450 54 399 54 400

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> L=1588	1-73996-482-1	01	1	0303-				●
54	CABLE; ENG CONT L=1624	1-73996-240-9	01	1	9510-	●
54	CABLE; ENG CONT L=1659	1-73996-294-8	01	1	9511-0006		●
54	CABLE; ENG CONT SHORT CHASSIS(FT***C) L=1659	1-73996-294-9	01	1	0007-0012		●
54	CABLE; ENG CONT MIDDLE CHASSIS(FT***F) EXC. EURO2 SPECIFICATION<THN> L=1659	1-73996-294-9	01	1	0007-0012		●
54	CABLE; ENG CONT SHORT CHASSIS(FT***C) L=1659	1-73996-483-0	01	1	0101-		●
54	CABLE; ENG CONT MIDDLE CHASSIS(FT***F) EXC. EURO2 SPECIFICATION<THN> L=1659	1-73996-483-0	01	1	0101-		●
54	CABLE; ENG CONT MIDDLE CHASSIS(FT***F) EURO2 SPECIFICATION<THN> L=2246.5	1-73996-297-6	01	1	0007-0008		●
54	CABLE; ENG CONT L=1706.5	1-73908-297-4	01	1	9710-0008			●
54	CABLE; ENG CONT MIDDLE CHASSIS(FT***F) EURO2 SPECIFICATION<THN> L=1706.5	1-73908-297-5	01	1	0009-		●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> L=1706.5	1-73908-297-5	01	1	0009-			●
54	CABLE; ENG CONT L=1609	1-73996-285-9	01	1	0005-0302				●
54	CABLE; ENG CONT EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1609	1-73996-285-9	01	1	0303-				●
60	BOLT; CABLE (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-0004	●	●	●
60	BOLT; CABLE (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0005-0904	●	●	●	●
60	BOLT; CABLE (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●	●	●	●
60	BOLT; CABLE (B) M8X20 FLANGE	0-28080-820-0	01	1	0005-0512	●	●	●	●
60	BOLT; CABLE (B) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9510-0004	●	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9510-0004	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●	●	●	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●	●	●	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-0607	●	●	●	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-0607	●	●	●	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0608-	●	●	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0608-	●	●	●	●
399	CLIP; CABLE,RAD SIDE ID=9X2 L=20	9-09534-835-0	01	1	9510-9704	●	●
399	CLIP; CABLE,RAD SIDE	1-09701-260-0	01	1	9705-0004	●	●	●
399	CLIP; CABLE,RAD SIDE	1-09701-260-0	01	1	0005-	●	●	●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	9510-0004	●	●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●	●	●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●	●
401	NUT; CLIP,RAD SIDE M8	9-09110-408-0	01	1	9510-9606	●	●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91150-108-0	01	1	9607-0004	●	●	●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●	●	●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
443	CLIP; CABLE (A)	8-94107-647-0	01	1	9510-0004	●	●	●
443	CLIP; CABLE (A)	8-94107-647-0	01	1	0005-	●	●	●	●
443	CLIP; CABLE (B) ID=7 L=20	9-09524-635-0	01	1	9510-0004	●	●	●
443	CLIP; CABLE (B) ID=7 L=20	9-09524-635-0	01	1	0005-0606	●	●	●	●
443	CLIP; CABLE (B) ID=7 L=20	0-95234-635-0	01	1	0607-	●	●	●	●
450	CLIP; BAND L=140	5-09707-031-1	02	1	9510-0004	●	●	●
450	CLIP; BAND L=140	5-09707-031-1	02	1	0005-	●	●	●	●
650	PROTECTOR; ACCEL CABLE	1-47478-691-0	01	1	0005-	●	●	●	●

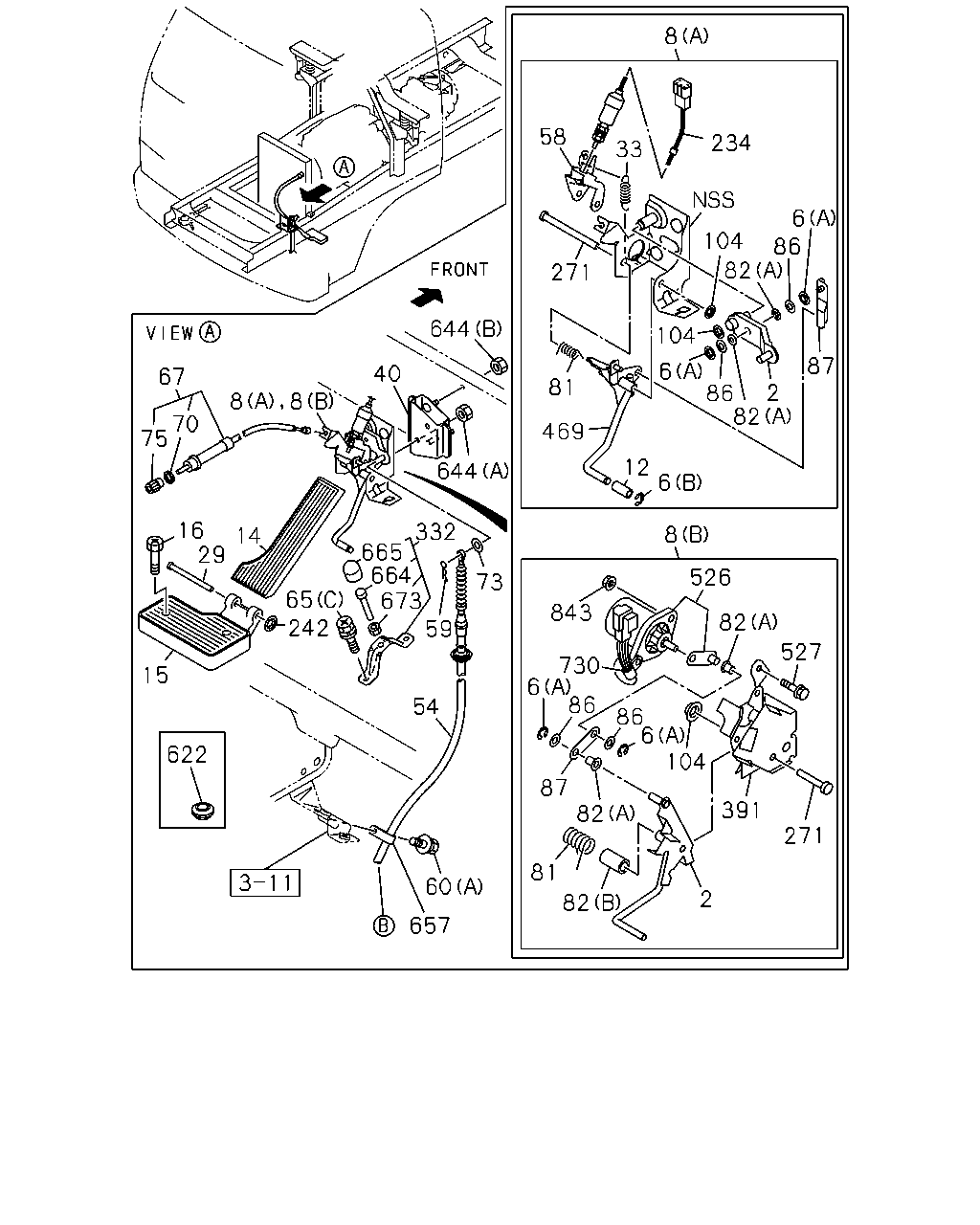

8 58 234 33 6 86 104 82 271 104 82 644 87 6 40 67 81 8 8 70 75 469 12 644 6 332 16 29 8 14 665 664 673 59 526 73 65 242 843 82 527 730 6 86 15 86 6 104 54 622 87 82 391 271 81 60 2 82 657

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	LEVER; ENG CONT	1-71907-535-1	01	1	0608-					●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9510-9510	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9511-9709	●	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9710-0004	●	●	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	0005-	●	●	●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9510-9510	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9511-9709	●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9710-0004	●	●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	0005-0601	●	●	●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	0602-0604	●	●	●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	0-91805-504-0	02	1	0605-0607	●	●	●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	0-91805-504-0	02	1	0608-	●	●	●	●	●
6	RING; SNAP,LINK TO LINK (B) ID=6	9-09185-406-0	01	1	9510-9510	●
6	RING; SNAP,LINK TO LINK (B) ID=6	9-09185-406-0	01	1	9511-9709	●	●
6	RING; SNAP,LINK TO LINK (B) ID=6	9-09185-406-0	01	1	9710-9802	●	●	●
8	LINK ASM; ENG CONT (B)	8-97865-105-4	01	1	0608-					●
8	LINK ASM; ENG CONT (A)	1-73996-206-5	01	1	9510-9510	●
8	LINK ASM; ENG CONT (A)	1-73996-206-5	01	1	9511-9709	●	●
8	LINK ASM; ENG CONT (A)	1-73996-206-6	01	1	9710-0004	●	●	●
8	LINK ASM; ENG CONT (A)	1-73996-206-6	01	1	0005-	●	●	●	●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9510-9510	●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9511-9709	●	●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9710-9802	●	●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9510-9708	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9709-0004	●	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0005-0607	●	●	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0608-	●	●	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9510-0004	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0005-0607	●	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0608-	●	●	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9510-9902	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9903-0004	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0005-0607	●	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0608-	●	●	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9510-0004	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0005-0607	●	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0608-	●	●	●	●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9510-9510	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9511-9709	●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9710-0004	●	●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	0005-	●	●	●	●
40	BRACKET; ENG CONT CABLE	1-71907-269-0	01	1	9510-0004	●	●	●
40	BRACKET; ENG CONT CABLE	1-71907-269-0	01	1	0005-	●	●	●	●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> L=1588	1-73996-482-1	01	1	0303-				●
54	CABLE; ENG CONT L=1624	1-73996-240-9	01	1	9510-	●
54	CABLE; ENG CONT L=1659	1-73996-294-8	01	1	9511-0006		●
54	CABLE; ENG CONT SHORT CHASSIS(FT***C) L=1659	1-73996-294-9	01	1	0007-0012		●
54	CABLE; ENG CONT MIDDLE CHASSIS(FT***F) EXC. EURO2 SPECIFICATION<THN> L=1659	1-73996-294-9	01	1	0007-0012		●
54	CABLE; ENG CONT SHORT CHASSIS(FT***C) L=1659	1-73996-483-0	01	1	0101-		●
54	CABLE; ENG CONT MIDDLE CHASSIS(FT***F) EXC. EURO2 SPECIFICATION<THN> L=1659	1-73996-483-0	01	1	0101-		●
54	CABLE; ENG CONT MIDDLE CHASSIS(FT***F) EURO2 SPECIFICATION<THN> L=2246.5	1-73996-297-6	01	1	0007-0008		●
54	CABLE; ENG CONT L=1706.5	1-73908-297-4	01	1	9710-0008			●
54	CABLE; ENG CONT MIDDLE CHASSIS(FT***F) EURO2 SPECIFICATION<THN> L=1706.5	1-73908-297-5	01	1	0009-		●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> L=1706.5	1-73908-297-5	01	1	0009-			●
54	CABLE; ENG CONT L=1609	1-73996-285-9	01	1	0005-0302				●
54	CABLE; ENG CONT EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1609	1-73996-285-9	01	1	0303-				●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9510-9510	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9511-9709	●	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9710-0004	●	●	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	0005-	●	●	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9510-0004	●	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	0005-	●	●	●	●
60	BOLT; CABLE (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-0004	●	●	●
60	BOLT; CABLE (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0005-0904	●	●	●	●
60	BOLT; CABLE (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●	●	●	●
60	BOLT; CABLE (B) M8X20 FLANGE	0-28080-820-0	01	1	0005-0512	●	●	●	●
60	BOLT; CABLE (B) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9510-0004	●	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0005-0106	●	●	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0107-0512	●	●	●
65	BOLT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M10X60	0-16811-060-0	01	1	0107-0512				●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-0607	●	●	●
65	BOLT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M10X60	0-16861-060-0	01	1	0601-0607				●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0608-	●	●	●		●
65	BOLT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M10X60	0-16861-060-0	01	1	0608-				●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	9510-0004	●	●	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0005-0106	●	●	●	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0107-0512	●	●	●
65	BOLT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M10X20 FLANGE	0-28181-020-0	01	1	0107-0512				●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-0607	●	●	●
65	BOLT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-0607				●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0608-	●	●	●		●
65	BOLT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M10X20 FLANGE	0-28151-020-0	01	1	0608-				●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0004	●	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0607	●	●	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0608-	●	●	●	●	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	9510-0004	●	●	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	0005-0204	●	●	●	●
67	CABLE ASM; IDLE CONT L=315	1-73908-423-1	01	1	0205-	●	●	●	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	9510-0004	●	●	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	0005-	●	●	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9510-0004	●	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	0005-0605	●	●	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●	●	●	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9510-0004	●	●	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	0005-0109	●	●	●	●
75	KNOB ASM; IDLING CONT	8-97137-504-0	01	1	0110-0204	●	●	●	●
75	KNOB ASM; IDLING CONT	1-73908-409-0	01	1	0205-	●	●	●	●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9510-9510	●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9511-9709	●	●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9710-0004	●	●	●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0005-0607	●	●	●	●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0608-	●	●	●	●	●
82	BUSHING; ENG CONT LVR (B) L=31.5	1-53459-627-0	01	1	0608-					●
82	BUSHING; ENG CONT LVR (A)	1-71907-244-1	02	1	9510-9510	●
82	BUSHING; ENG CONT LVR (A)	1-71907-244-1	02	1	9511-9709	●	●
82	BUSHING; ENG CONT LVR (A)	1-71907-244-1	02	1	9710-0004	●	●	●
82	BUSHING; ENG CONT LVR (A)	1-71907-244-1	02	1	0005-0607	●	●	●	●
82	BUSHING; ENG CONT LVR (A)	1-71907-244-1	02	1	0608-	●	●	●	●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9510-9510	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9511-9709	●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9710-0004	●	●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	0005-0607	●	●	●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	0608-	●	●	●	●	●
87	LINK; ENG CONT	8-97865-545-0	01	1	0608-					●
87	LINK; ENG CONT	1-71907-211-1	01	1	9510-9510	●
87	LINK; ENG CONT	1-71907-211-1	01	1	9511-9709	●	●
87	LINK; ENG CONT	1-71907-211-1	01	1	9710-0004	●	●	●
87	LINK; ENG CONT	1-71907-211-1	01	1	0005-	●	●	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	0608-					●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9510-9510	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9511-9709	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9710-0004	●	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	0005-	●	●	●	●
234	SWITCH; ACCEL	1-82380-114-1	01	1	9510-9510	●
234	SWITCH; ACCEL	1-82380-114-1	01	1	9511-9709	●	●
234	SWITCH; ACCEL	1-82380-114-2	01	1	9710-0004	●	●	●
234	SWITCH; ACCEL	1-82380-114-3	01	1	0005-	●	●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9510-0004	●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0005-0607	●	●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0608-	●	●	●	●	●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	9510-9510	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9511-9709	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9710-0004	●	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0005-0607	●	●	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0608-	●	●	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9510-0004	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0005-0212	●	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73908-428-0	01	1	0301-0607	●	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73908-428-0	01	1	0608-	●	●	●	●	●
391	BRACKET; ENG CONT	8-97865-118-2	01	1	0608-					●
469	LEVER ASM	1-71907-209-4	01	1	9510-9510	●
469	LEVER ASM	1-71907-209-4	01	1	9511-9709	●	●
469	LEVER ASM	1-71907-209-5	01	1	9710-0004	●	●	●
469	LEVER ASM	1-71907-209-5	01	1	0005-	●	●	●	●
526	SENSOR; ACCEL	8-94390-280-0	01	1	0608-					●
527	BOLT; ACCEL SENSOR M6X25 FLANGE	0-28650-625-0	02	1	0608-					●
622	GROMMET; ACCEL CONT CABLE OD=30	8-94107-655-0	01	1	0608-					●
644	NUT; LINK,ENG CONT (B) M8 FLANGE W/RUBBER	1-09984-176-0	04	1	0608-					●
644	NUT; LINK,ENG CONT (A) M8 FLANGE	0-91150-108-0	02	1	9510-0004	●	●	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●	●	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
644	NUT; LINK,ENG CONT (B) M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9510-0004	●	●	●
644	NUT; LINK,ENG CONT (B) M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0005-	●	●	●	●
657	CLIP; ENG CONT CABLE ID=16 L=20	9-09525-535-0	01	1	9705-9707	●	●
657	CLIP; ENG CONT CABLE ID=7 L=20	9-09524-635-0	01	1	9708-9712	●	●	●
657	CLIP; ENG CONT CABLE D=18 H=30	1-09701-028-0	01	1	9801-0004	●	●	●
657	CLIP; ENG CONT CABLE D=18 H=30	1-09701-028-0	01	1	0005-	●	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9510-0004	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0005-0607	●	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0608-	●	●	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9510-0004	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0005-0212	●	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9510-0004	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0005-0512	●	●	●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-0607	●	●	●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0608-	●	●	●	●	●
730	CLIP ID=11 L=20	0-95235-032-0	01	1	0608-					●
843	NUT M6 FLANGE	0-91180-106-0	02	1	0608-					●

56 439 74 57 63 64 63 54 62 65 65 149 149 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> L=1588	1-73996-482-1	01	1	0303-				●
54	CABLE; ENG CONT L=1624	1-73996-240-9	01	1	9510-	●
54	CABLE; ENG CONT L=1659	1-73996-294-8	01	1	9511-0006		●
54	CABLE; ENG CONT SHORT CHASSIS(FT***C) L=1659	1-73996-294-9	01	1	0007-0012		●
54	CABLE; ENG CONT MIDDLE CHASSIS(FT***F) EXC. EURO2 SPECIFICATION<THN> L=1659	1-73996-294-9	01	1	0007-0012		●
54	CABLE; ENG CONT SHORT CHASSIS(FT***C) L=1659	1-73996-483-0	01	1	0101-		●
54	CABLE; ENG CONT MIDDLE CHASSIS(FT***F) EXC. EURO2 SPECIFICATION<THN> L=1659	1-73996-483-0	01	1	0101-		●
54	CABLE; ENG CONT MIDDLE CHASSIS(FT***F) EURO2 SPECIFICATION<THN> L=2246.5	1-73996-297-6	01	1	0007-0008		●
54	CABLE; ENG CONT L=1706.5	1-73908-297-4	01	1	9710-0008			●
54	CABLE; ENG CONT MIDDLE CHASSIS(FT***F) EURO2 SPECIFICATION<THN> L=1706.5	1-73908-297-5	01	1	0009-		●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> L=1706.5	1-73908-297-5	01	1	0009-			●
54	CABLE; ENG CONT L=1609	1-73996-285-9	01	1	0005-0302				●
54	CABLE; ENG CONT EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1609	1-73996-285-9	01	1	0303-				●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9510-0004	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	0005-	●	●	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9510-0004	●	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	0005-0605	●	●	●	●
57	WASHER; ENG CONT CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●	●	●	●
62	CLIP; ENG CONT CABLE MIDDLE CHASSIS(FT***F) EURO2 SPECIFICATION<THN> L=30	1-09700-326-0	01	1	0007-0008		●
62	CLIP; ENG CONT CABLE L=30	1-09701-104-0	01	1	0005-0006				●
62	CLIP; ENG CONT CABLE SHORT CHASSIS(FT***C) L=30	1-09701-104-0	01	1	0007-0012		●
62	CLIP; ENG CONT CABLE MIDDLE CHASSIS(FT***F) EXC. EURO2 SPECIFICATION<THN> L=30	1-09701-104-0	01	1	0007-0012		●
62	CLIP; ENG CONT CABLE L=30	1-09701-104-0	01	1	0007-0012				●
62	CLIP; ENG CONT CABLE L=30	1-09701-104-0	01	1	0101-0302	●			●
62	CLIP; ENG CONT CABLE SHORT CHASSIS(FT***C) L=30	1-09701-104-0	01	1	0101-0302		●
62	CLIP; ENG CONT CABLE MIDDLE CHASSIS(FT***F) EXC. EURO2 SPECIFICATION<THN> L=30	1-09701-104-0	01	1	0101-0302		●
62	CLIP; ENG CONT CABLE L=30	1-09701-104-0	01	1	0303-	●
62	CLIP; ENG CONT CABLE SHORT CHASSIS(FT***C) L=30	1-09701-104-0	01	1	0303-		●
62	CLIP; ENG CONT CABLE MIDDLE CHASSIS(FT***F) EXC. EURO2 SPECIFICATION<THN> L=30	1-09701-104-0	01	1	0303-		●
62	CLIP; ENG CONT CABLE EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> L=30	1-09701-104-0	01	1	0303-				●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9510-9510	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9511-9709	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9710-0004	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0005-0008	●	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0009-0302	●	●		●
63	NUT; LOCK,BRKT EURO2 SPECIFICATION<THN> M8	9-09111-408-0	02	1	0009-0302			●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0303-	●	●
63	NUT; LOCK,BRKT EURO2 SPECIFICATION<THN> M8	9-09111-408-0	02	1	0303-			●
63	NUT; LOCK,BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M8	9-09111-408-0	02	1	0303-				●
64	BRACKET; ENG CONT CABLE EURO2 SPECIFICATION<THN>	1-23219-110-0	01	1	0303-				●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9510-9510	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9511-9709	●	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9710-0004	●	●	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0005-0008	●	●	●	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0009-0302	●	●		●
64	BRACKET; ENG CONT CABLE EURO2 SPECIFICATION<THN>	1-23219-105-1	01	1	0009-0302			●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0303-	●	●
64	BRACKET; ENG CONT CABLE EURO2 SPECIFICATION<THN>	1-23219-105-1	01	1	0303-			●
64	BRACKET; ENG CONT CABLE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-23219-105-1	01	1	0303-				●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9510-0004	●	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0005-0106	●	●	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0107-0512	●	●	●
65	BOLT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M10X60	0-16811-060-0	01	1	0107-0512				●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-0607	●	●	●
65	BOLT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M10X60	0-16861-060-0	01	1	0601-0607				●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0608-	●	●	●		●
65	BOLT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M10X60	0-16861-060-0	01	1	0608-				●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	9510-0004	●	●	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0005-0106	●	●	●	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0107-0512	●	●	●
65	BOLT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M10X20 FLANGE	0-28181-020-0	01	1	0107-0512				●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-0607	●	●	●
65	BOLT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-0607				●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0608-	●	●	●		●
65	BOLT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M10X20 FLANGE	0-28151-020-0	01	1	0608-				●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0004	●	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0607	●	●	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0608-	●	●	●	●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	9510-0004	●	●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	0005-1509	●	●	●	●
74	PIN; SNAP,CABLE END L=27.7	1-09987-141-0	01	1	1510-	●	●	●	●
149	BRACKET; ENG CONT (B)	8-97600-017-0	01	1	0608-					●
149	BRACKET; ENG CONT (A)	8-94390-006-2	01	1	9510-0004	●	●
149	BRACKET; ENG CONT (A)	8-94390-006-2	01	1	0005-	●
149	BRACKET; ENG CONT EXC. EURO2 SPECIFICATION<THN> (A)	8-94390-006-2	01	1	0005-		●
149	BRACKET; ENG CONT EURO2 SPECIFICATION<THN> (D)	8-94394-532-1	01	1	9710-		●
149	BRACKET; ENG CONT (D)	8-94394-532-1	01	1	9710-			●
149	BRACKET; ENG CONT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-97601-164-0	01	1	0005-				●
149	BRACKET; ENG CONT EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B)	8-97600-861-1	01	1	0005-0302				●
149	BRACKET; ENG CONT EURO2 SPECIFICATION<THN> (B)	8-97600-861-1	01	1	0303-				●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9510-0004	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0005-0605	●	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
