5-10 — CAB MOUNTING; FRAME SIDE (#395) — 122 parça

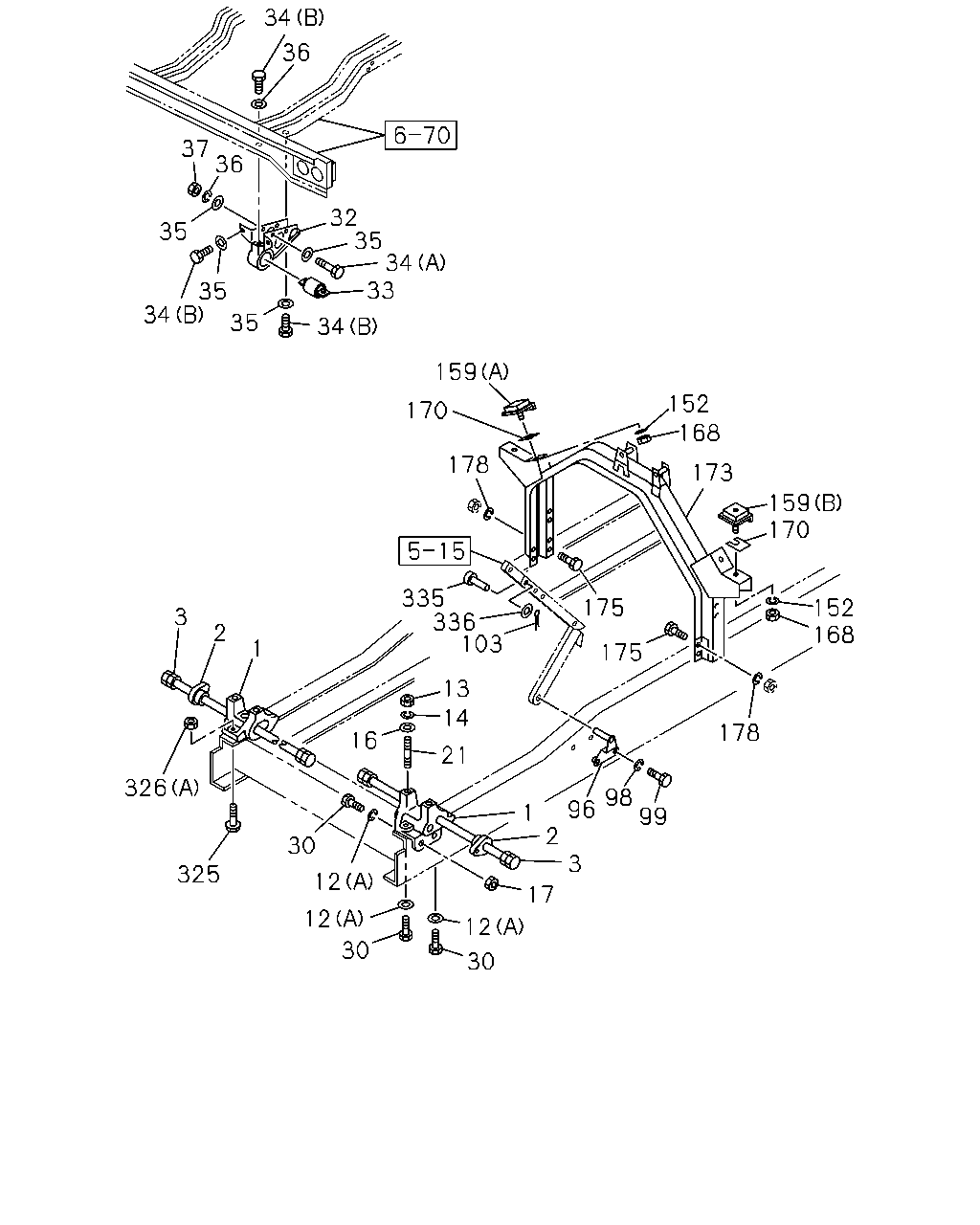

34 36 37 36 32 35 34 33 35 35 34 35 34 159 152 168 170 178 173 159 170 335 336 103 175 152 168 3 2 1 175 13 14 16 178 21 326 98 99 96 2 3 1 30 325 12 17 12 12 30 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLORTING<SDK>	1-53453-164-2	01	1	9202-	●	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLORTING<SDK>	1-53453-163-2	01	1	9202-	●	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLORTING<SDK>	1-53453-119-3	01	1	9202-	●	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLORTING<SDK>	1-53453-118-3	01	1	9202-	●	●
2	BUSHING; TORSION BAR	1-53459-783-0	02	1	9202-	●	●
3	TORSION BAR	1-09585-119-0	01	1	9202-	●	●
3	TORSION BAR	1-09585-118-0	01	1	9202-	●	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	12	1	9202-	●	●
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLORTING<SDK> (B)	1-53459-929-0	04	1	9202-9506	●	●
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLORTING<SDK> (B) ID=23	1-53458-693-0	04	1	9507-	●	●
13	NUT; BUSHING TO STUD EXC. CAB SUSPENSION SEMI FLORTING<SDK> M12	9-99110-512-0	04	1	9202-	●	●
14	WASHER; LK,STUD EXC. CAB SUSPENSION SEMI FLORTING<SDK> ID=12.2	9-09150-612-0	04	1	9202-	●	●
16	WASHER; PL,STUD EXC. CAB SUSPENSION SEMI FLORTING<SDK> ID=12.5	1-09503-171-0	04	1	9202-	●	●
17	NUT; BRKT,CAB TILT M14	9-99110-514-0	02	1	9202-	●	●
21	STUD; BRKT,CAB TILT EXC. CAB SUSPENSION SEMI FLORTING<SDK>	1-09302-101-0	04	1	9202-	●	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLORTING<SDK> M14X45	1-09000-573-0	08	1	9202-	●	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLORTING<SDK> M16X115	5-51361-002-1	02	1	9202-	●	●
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLORTING<SDK> M14X45	9-92061-445-0	06	1	9202-	●	●
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLORTING<SDK> M14X65	9-92061-465-0	02	1	9202-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLORTING<SDK>	1-62580-208-4	01	1	9202-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLORTING<SDK>	1-62580-207-4	01	1	9202-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLORTING<SDK>	1-62580-185-5	01	1	9202-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLORTING<SDK>	1-62580-184-5	01	1	9202-	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLORTING<SDK>	1-53459-836-0	02	1	9202-	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLORTING<SDK>	1-53459-635-3	02	1	9202-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X30	1-09980-546-0	08	1	9202-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X100	1-09980-547-0	04	1	9202-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 T=2.0	1-09985-183-0	02	1	9202-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 T=2.6	1-09985-184-0	14	1	9202-	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9202-	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9202-	●	●
96	BRACKET; CAB STAY	1-62500-586-0	01	1	9202-	●	●
98	WASHER; LK,BRKT ID=10.2	9-09150-610-0	02	1	9202-9307	●	●
99	BOLT; BRKT M10X35	9-02061-035-0	02	1	9202-9307	●	●
99	BOLT; BRKT M10X30 FLANGE	0-28091-030-0	02	1	9308-	●	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9202-	●	●
152	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	04	1	9202-9503	●	●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	9202-	●	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	9202-	●	●
168	NUT; CUSHION RUBBER,BODY MTG M12	9-99110-512-0	04	1	9202-9503	●	●
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE	0-91150-112-0	04	1	9504-	●	●
170	SHIM; CUSHION RUBBER T=1.6	1-53459-621-0	AR	1	9202-	●	●
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLORTING<SDK>	1-53454-455-5	01	1	9202-	●	●
173	MEMBER; CAB MTG RR EXC. CAB SUSPENSION SEMI FLORTING<SDK>	1-53454-458-6	01	1	9202-	●	●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9202-	●	●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9202-	●	●
325	BOLT; GUIDE NUT CAB SUSPENSION SEMI FLORTING<SDK> M12X35 W/LK&PL WASHER	0-50141-235-0	02	1	9202-9302	●	●
325	BOLT; GUIDE NUT M12X35 W/LK&PL WASHER	0-50141-235-0	02	1	9303-	●	●
326	NUT; GUIDE NUT CAB SUSPENSION SEMI FLORTING<SDK> (B) M12	1-53459-803-0	02	1	9202-	●	●
326	NUT; GUIDE NUT CAB SUSPENSION SEMI FLORTING<SDK> (A) M12	9-99110-412-0	02	1	9202-9302	●	●
326	NUT; GUIDE NUT (A) M12	9-99110-412-0	02	1	9303-9304	●	●
326	NUT; GUIDE NUT (A) M12	9-99110-512-0	02	1	9305-	●	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9202-	●	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9202-	●	●

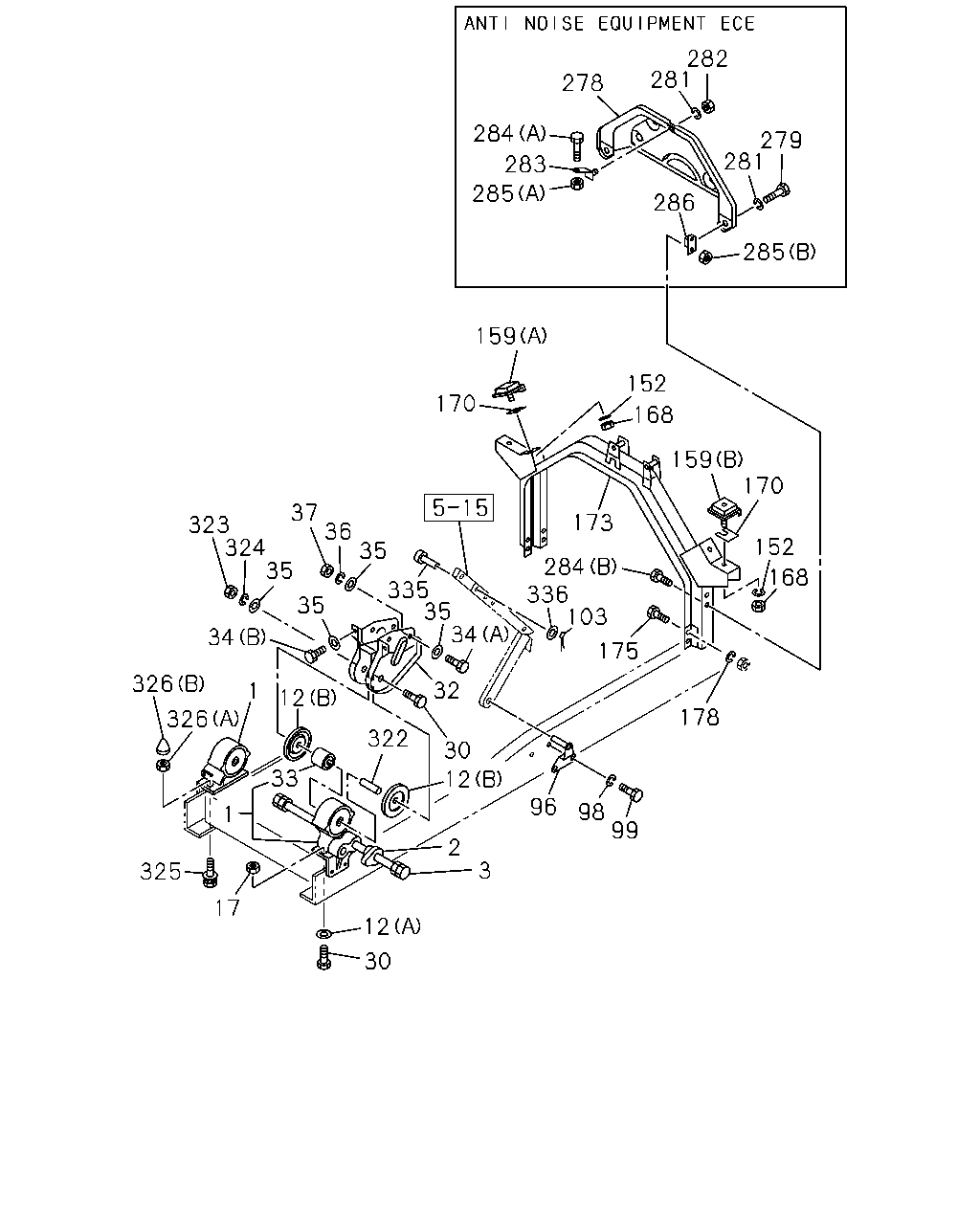

282 281 278 284 279 281 283 285 286 285 159 152 170 168 159 170 37 36 35 173 323 324 35 152 284 336 103 168 335 35 34 35 34 175 326 32 1 12 178 326 322 30 33 12 1 96 98 99 2 3 325 17 12 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLORTING<SDK>	1-53453-164-2	01	1	9202-	●	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLORTING<SDK>	1-53453-163-2	01	1	9202-	●	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLORTING<SDK>	1-53453-119-3	01	1	9202-	●	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLORTING<SDK>	1-53453-118-3	01	1	9202-	●	●
2	BUSHING; TORSION BAR	1-53459-783-0	02	1	9202-	●	●
3	TORSION BAR	1-09585-119-0	01	1	9202-	●	●
3	TORSION BAR	1-09585-118-0	01	1	9202-	●	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	12	1	9202-	●	●
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLORTING<SDK> (B)	1-53459-929-0	04	1	9202-9506	●	●
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLORTING<SDK> (B) ID=23	1-53458-693-0	04	1	9507-	●	●
17	NUT; BRKT,CAB TILT M14	9-99110-514-0	02	1	9202-	●	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLORTING<SDK> M14X45	1-09000-573-0	08	1	9202-	●	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLORTING<SDK> M16X115	5-51361-002-1	02	1	9202-	●	●
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLORTING<SDK> M14X45	9-92061-445-0	06	1	9202-	●	●
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLORTING<SDK> M14X65	9-92061-465-0	02	1	9202-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLORTING<SDK>	1-62580-208-4	01	1	9202-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLORTING<SDK>	1-62580-207-4	01	1	9202-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLORTING<SDK>	1-62580-185-5	01	1	9202-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLORTING<SDK>	1-62580-184-5	01	1	9202-	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLORTING<SDK>	1-53459-836-0	02	1	9202-	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLORTING<SDK>	1-53459-635-3	02	1	9202-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X30	1-09980-546-0	08	1	9202-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X100	1-09980-547-0	04	1	9202-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 T=2.0	1-09985-183-0	02	1	9202-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 T=2.6	1-09985-184-0	14	1	9202-	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9202-	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9202-	●	●
96	BRACKET; CAB STAY	1-62500-586-0	01	1	9202-	●	●
98	WASHER; LK,BRKT ID=10.2	9-09150-610-0	02	1	9202-9307	●	●
99	BOLT; BRKT M10X35	9-02061-035-0	02	1	9202-9307	●	●
99	BOLT; BRKT M10X30 FLANGE	0-28091-030-0	02	1	9308-	●	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9202-	●	●
152	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	04	1	9202-9503	●	●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	9202-	●	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	9202-	●	●
168	NUT; CUSHION RUBBER,BODY MTG M12	9-99110-512-0	04	1	9202-9503	●	●
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE	0-91150-112-0	04	1	9504-	●	●
170	SHIM; CUSHION RUBBER T=1.6	1-53459-621-0	AR	1	9202-	●	●
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLORTING<SDK>	1-53454-455-5	01	1	9202-	●	●
173	MEMBER; CAB MTG RR EXC. CAB SUSPENSION SEMI FLORTING<SDK>	1-53454-458-6	01	1	9202-	●	●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9202-	●	●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9202-	●	●
278	COVER ANTI NOISE EQUIPMENT ECE<SLK>	1-53191-957-1	01	1	9202-9404		●
279	BOLT ANTI NOISE EQUIPMENT ECE<SLK> M8X25	0-28210-825-0	02	1	9202-9204		●
279	BOLT ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE	0-28280-825-0	02	1	9205-9404		●
281	WASHER; PL,BACK COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=26	9-09164-808-0	03	1	9202-9404		●
282	NUT; BACK COVER ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	5-09440-005-0	01	1	9202-9312		●
282	NUT; BACK COVER ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	0-91150-108-0	01	1	9401-9404		●
283	BRACKET; UPR ANTI NOISE EQUIPMENT ECE<SLK>	1-53459-630-2	01	1	9202-9404		●
284	BOLT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X20 FLANGE	0-28010-820-0	02	1	9202-9204		●
284	BOLT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X20 FLANGE	0-28080-820-0	02	1	9205-9404		●
284	BOLT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X20 FLANGE	0-28010-820-0	04	1	9202-9204		●
284	BOLT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X20 FLANGE	0-28080-820-0	04	1	9205-9404		●
285	NUT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> (A) M8	9-09110-408-0	02	1	9202-9404		●
285	NUT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> (B) M8	9-09110-408-0	04	1	9202-9404		●
286	BRACKET; LOW ANTI NOISE EQUIPMENT ECE<SLK>	1-53459-631-3	01	1	9202-9404		●
286	BRACKET; LOW ANTI NOISE EQUIPMENT ECE<SLK>	1-53459-632-3	01	1	9202-9404		●
322	COLLAR; CAB FRT FOOT CAB SUSPENSION SEMI FLORTING<SDK>	1-53459-941-0	02	1	9202-	●	●
323	NUT; CAB FRT FOOT CAB SUSPENSION SEMI FLORTING<SDK> M16	9-99110-516-0	02	1	9202-	●	●
324	WASHER; LK CAB SUSPENSION SEMI FLORTING<SDK> ID=16.2	9-09150-816-0	02	1	9202-	●	●
325	BOLT; GUIDE NUT CAB SUSPENSION SEMI FLORTING<SDK> M12X35 W/LK&PL WASHER	0-50141-235-0	02	1	9202-9302	●	●
325	BOLT; GUIDE NUT M12X35 W/LK&PL WASHER	0-50141-235-0	02	1	9303-	●	●
326	NUT; GUIDE NUT CAB SUSPENSION SEMI FLORTING<SDK> (B) M12	1-53459-803-0	02	1	9202-	●	●
326	NUT; GUIDE NUT CAB SUSPENSION SEMI FLORTING<SDK> (A) M12	9-99110-412-0	02	1	9202-9302	●	●
326	NUT; GUIDE NUT (A) M12	9-99110-412-0	02	1	9303-9304	●	●
326	NUT; GUIDE NUT (A) M12	9-99110-512-0	02	1	9305-	●	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9202-	●	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9202-	●	●
