Isuzu WW
▶
TRUCKS
▶
NPS
▶
51409 - NPS(AUSTRALIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶

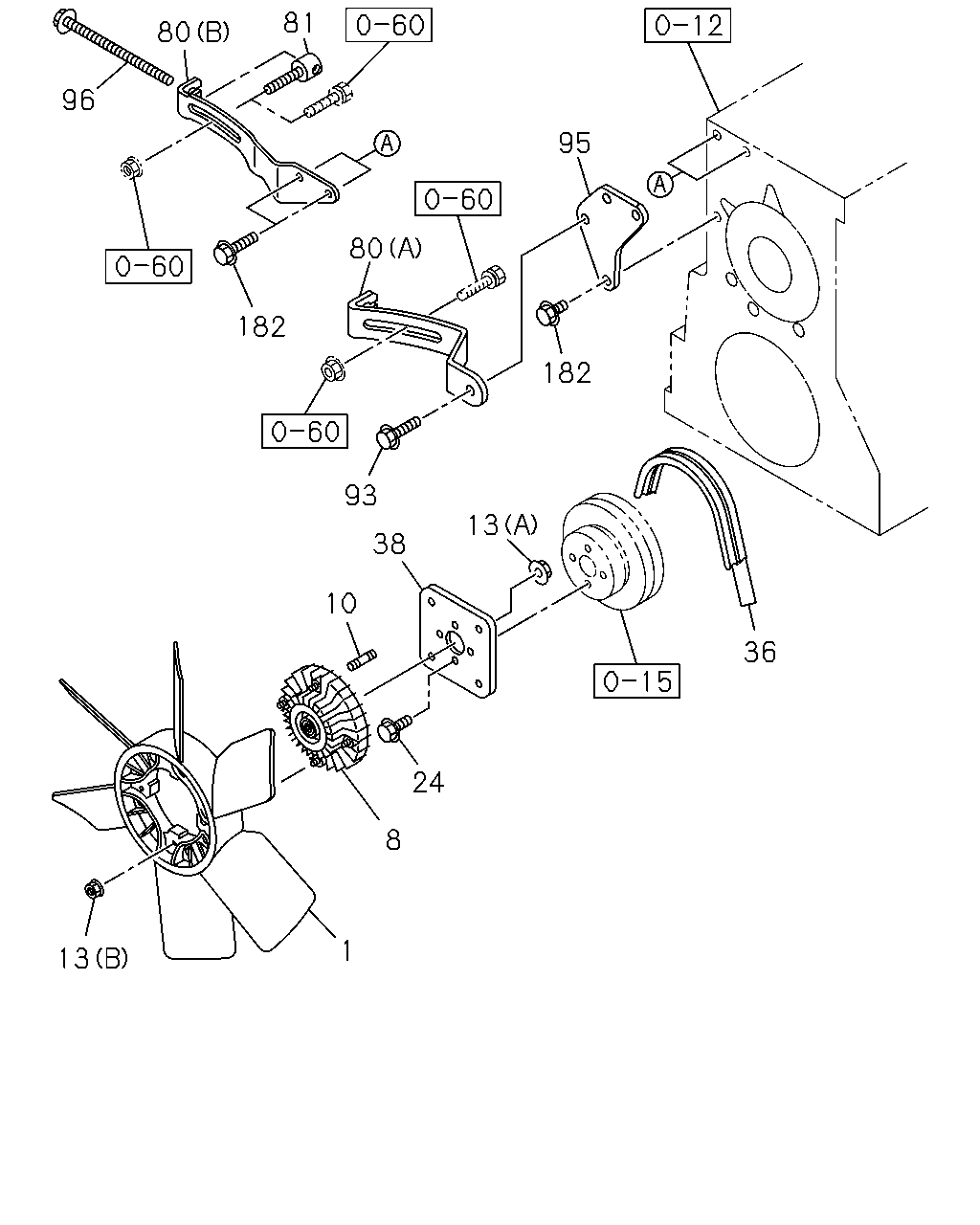

0-33 — FAN AND FAN BELT
(#39490) — 31 parça
Tümü
A - 4HE1 ENG
B - 4HK1-TCN ENG
81
80
96
95
80
182
182
93
13
38
10
36
24
8
1
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
01.064 FAN; COOLING
5-13662-012-1
01
1
0301-0501
●
1
01.064 FAN; COOLING
5-13662-012-1
01
1
0502-
●
8
01.064 CLUTCH; COOLING FAN
8-97148-797-0
01
1
0301-0501
●
8
01.064 CLUTCH; COOLING FAN
8-97148-797-0
01
1
0502-
●
10
01.062 STUD; FAN CLU TO PLATE
01.428 M8X20 L=32
9-04110-820-0
04
1
0301-0501
●
10
01.062 STUD; FAN CLU TO PLATE
01.428 M8X20 L=32
9-04110-820-0
04
1
0502-0604
●
10
01.062 STUD; FAN CLU TO PLATE
02.510 M8X20 L=32
0-41010-820-0
04
1
0605-
●
13
01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE
5-09440-004-0
04
1
0301-0501
●
13
01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE
5-09440-004-0
04
1
0502-
●
13
01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE
0-91150-108-0
04
1
0301-0501
●
13
01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE
0-91150-108-0
04
1
0502-0602
●
13
01.062 NUT; COOLING FAN
(A) M8 FLANGE
0-91180-108-0
04
1
0603-
●
24
01.062 BOLT; FAN
08.900 M8X18 FLANGE
0-28080-818-0
04
1
0301-0501
●
24
01.062 BOLT; FAN
08.900 M8X18 FLANGE
0-28080-818-0
04
1
0502-
●
36
01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810)
8-97180-199-1
01
1
0301-0501
●
36
01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810)
8-97180-199-1
01
1
0502-
●
38
01.062 SPACER; FAN
8-97108-643-0
01
1
0301-0501
●
38
01.062 SPACER; FAN
8-97108-643-0
01
1
0502-
●
80
02.317 PLATE; ADJ
(A)
8-97172-415-0
01
1
0301-0305
●
80
02.317 PLATE; ADJ
(B)
8-97164-089-2
01
1
0306-0501
●
80
02.317 PLATE; ADJ
(B)
8-97164-089-2
01
1
0502-
●
81
02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60)
8-97257-223-0
01
1
0301-0501
●
81
02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60)
8-97257-223-0
01
1
0502-
●
93
02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE
0-28681-025-0
01
1
0301-0305
●
95
02.317 BRACKET; ADJ PLATE
8-97037-510-0
01
1
0301-0305
●
96
02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE
8-97172-720-1
01
1
0301-0501
●
96
02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE
8-97172-720-1
01
1
0502-
●
182
01.062 BOLT; BRKT
02.183 M8X35 FLANGE
0-28680-835-0
03
1
0301-0305
●
182
01.062 BOLT; BRKT
02.183 M8X35 FLANGE
0-28680-835-0
02
1
0306-0501
●
182
01.062 BOLT; BRKT
02.183 M8X35 FLANGE
0-28680-835-0
02
1
0502-0512
●
182
01.062 BOLT; BRKT
01.060 M8X35 FLANGE
0-28650-835-0
02
1
0601-
●
