Sayfa 0-87 - Isuzu EPC

0-87 — COUPLING; INJECTION PUMP (#3949) — 294 parça

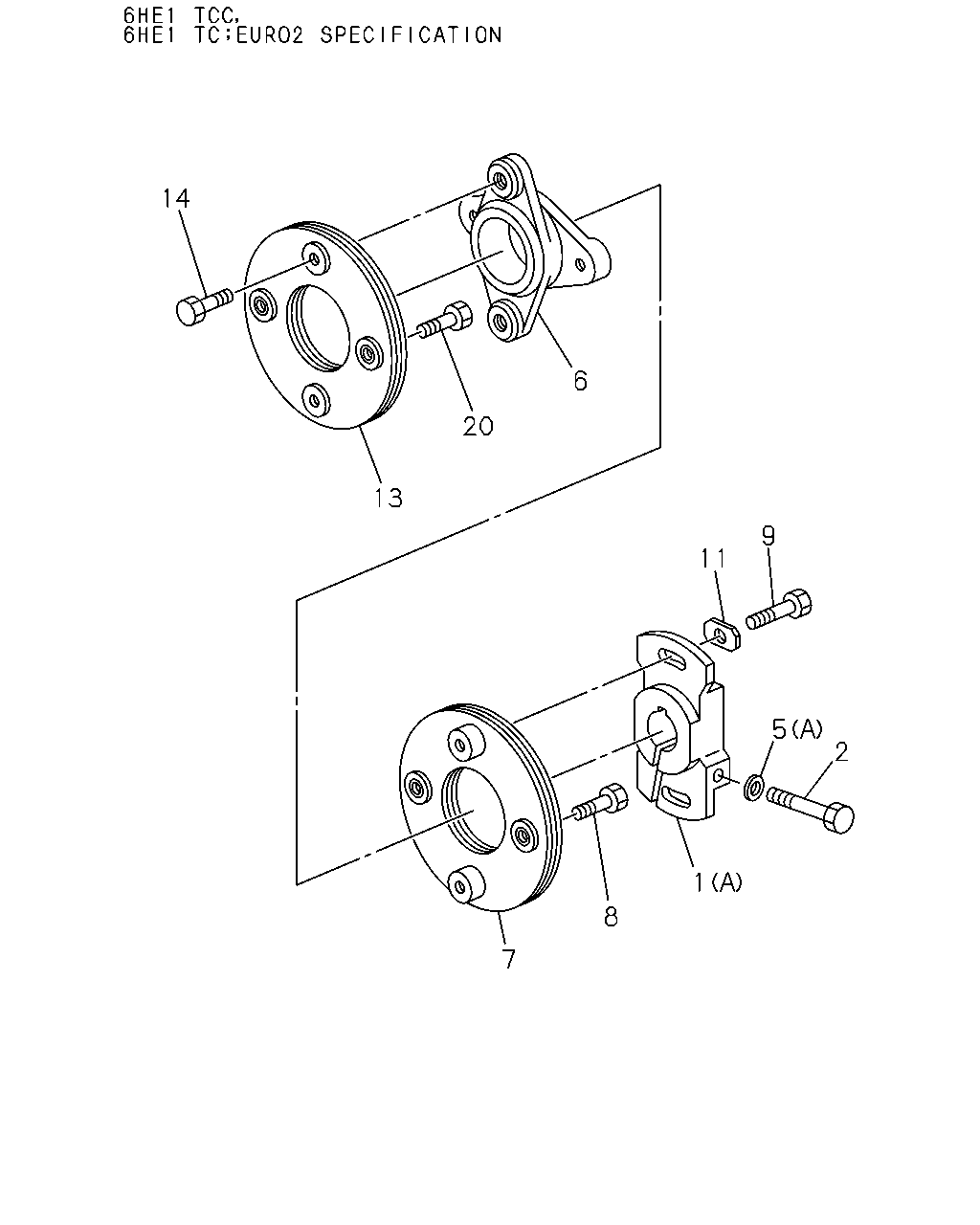

14 6 20 13 9 11 5 2 1 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COUPLING; INJ PUMP DRIVE (C)	1-15782-014-0	01	1	9510-9901	●
1	COUPLING; INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15782-014-0	01	1	9902-	●
1	COUPLING; INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15782-019-0	01	1	0005-	●	●
1	COUPLING; INJ PUMP DRIVE EXC. EURO2 SPECIFICATION<THN> (C)	1-15782-019-0	01	1	0005-			●
1	COUPLING; INJ PUMP DRIVE (C)	1-15782-019-0	01	1	9511-9709			●
1	COUPLING; INJ PUMP DRIVE EXC. EURO2 SPECIFICATION<THN> (C)	1-15782-019-0	01	1	9710-9901			●
1	COUPLING; INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15782-019-0	01	1	9902-0004	●
1	COUPLING; INJ PUMP DRIVE (C)	1-15782-019-0	01	1	9902-0004			●
1	COUPLING; INJ PUMP DRIVE EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	1-15780-193-0	01	1	0005-0010		●
1	COUPLING; INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15780-193-0	01	1	0011-		●
1	COUPLING; INJ PUMP DRIVE EURO2 SPECIFICATION<THN> (B)	1-15781-031-0	01	1	9710-0004			●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-031-0	01	1	9710-0004				●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-031-0	01	1	0005-0005				●
1	COUPLING; INJ PUMP DRIVE EURO2 SPECIFICATION<THN> (B)	1-15781-031-0	01	1	0006-			●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-031-0	01	1	0006-				●
1	COUPLING; INJ PUMP DRIVE EURO2 SPECIFICATION<THN> (A)	1-15781-041-0	01	1	9710-			●
1	COUPLING; INJ PUMP DRIVE (A)	1-15781-041-0	01	1	9710-				●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-010-0	01	1	9510-9901	●
2	BOLT; COUPLING FIX,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-010-0	01	1	9902-	●
2	BOLT; COUPLING FIX,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-170-0	01	1	0005-	●	●
2	BOLT; COUPLING FIX,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-170-0	01	1	0005-			●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-170-0	01	1	9511-9709			●
2	BOLT; COUPLING FIX,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-170-0	01	1	9710-9901			●
2	BOLT; COUPLING FIX,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-170-0	01	1	9902-0004	●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-170-0	01	1	9902-0004			●
2	BOLT; COUPLING FIX,INJ PUMP EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15789-079-0	01	1	0005-0010		●
2	BOLT; COUPLING FIX,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-079-0	01	1	0011-		●
2	BOLT; COUPLING FIX,INJ PUMP EURO2 SPECIFICATION<THN>	1-15789-162-0	01	1	9710-			●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-162-0	01	1	9710-				●
5	WASHER; COUPLING FIX,INJ PUMP EURO2 SPECIFICATION<THN> (B)	1-15619-131-0	01	1	9710-0004			●
5	WASHER; COUPLING FIX,INJ PUMP (B)	1-15619-131-0	01	1	9710-0004				●
5	WASHER; COUPLING FIX,INJ PUMP (B)	1-15619-131-0	01	1	0005-0005				●
5	WASHER; COUPLING FIX,INJ PUMP EURO2 SPECIFICATION<THN> (B)	1-15619-131-0	01	1	0006-			●
5	WASHER; COUPLING FIX,INJ PUMP (B)	1-15619-131-0	01	1	0006-				●
5	WASHER; COUPLING FIX,INJ PUMP EURO2 SPECIFICATION<THN> (A)	1-15789-021-0	01	1	9710-			●
5	WASHER; COUPLING FIX,INJ PUMP (A)	1-15789-021-0	01	1	9710-				●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-155-0	01	1	9510-9901	●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-155-0	01	1	9902-	●
6	COUPLING; CROSS,INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-184-0	01	1	0005-	●	●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. EURO2 SPECIFICATION<THN>	1-15789-184-0	01	1	0005-			●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-184-0	01	1	9511-9709			●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. EURO2 SPECIFICATION<THN>	1-15789-184-0	01	1	9710-9901			●
6	COUPLING; CROSS,INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-184-0	01	1	9902-0004	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-184-0	01	1	9902-0004			●
6	COUPLING; CROSS,INJ PUMP DRIVE EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15789-099-0	01	1	0005-0010		●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-099-0	01	1	0011-		●
6	COUPLING; CROSS,INJ PUMP DRIVE EURO2 SPECIFICATION<THN>	1-15789-161-0	01	1	9710-			●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-161-0	01	1	9710-				●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-194-0	01	1	9510-9901	●
7	PLATE; COUPLING,COUPLING SIDE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-194-0	01	1	9902-	●
7	PLATE; COUPLING,COUPLING SIDE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-199-0	01	1	0005-	●	●
7	PLATE; COUPLING,COUPLING SIDE EXC. EURO2 SPECIFICATION<THN>	1-15789-199-0	01	1	0005-			●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-199-0	01	1	9511-9709			●
7	PLATE; COUPLING,COUPLING SIDE EXC. EURO2 SPECIFICATION<THN>	1-15789-199-0	01	1	9710-9901			●
7	PLATE; COUPLING,COUPLING SIDE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-199-0	01	1	9902-0004	●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-199-0	01	1	9902-0004			●
7	PLATE; COUPLING,COUPLING SIDE EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15789-204-0	01	1	0005-0010		●
7	PLATE; COUPLING,COUPLING SIDE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-204-0	01	1	0011-		●
7	PLATE; COUPLING,COUPLING SIDE EURO2 SPECIFICATION<THN>	1-15789-189-1	01	1	9710-			●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-189-1	01	1	9710-				●
8	BOLT; PLATE TO CROSS COUPLING	1-15749-501-0	02	1	9510-9901	●
8	BOLT; PLATE TO CROSS COUPLING EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15749-501-0	02	1	9902-	●
8	BOLT; PLATE TO CROSS COUPLING EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	0005-	●	●
8	BOLT; PLATE TO CROSS COUPLING EXC. EURO2 SPECIFICATION<THN>	1-15789-183-0	02	1	0005-			●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-183-0	02	1	9511-9709			●
8	BOLT; PLATE TO CROSS COUPLING EXC. EURO2 SPECIFICATION<THN>	1-15789-183-0	02	1	9710-9901			●
8	BOLT; PLATE TO CROSS COUPLING EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	9902-0004	●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-183-0	02	1	9902-0004			●
8	BOLT; PLATE TO CROSS COUPLING EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15789-098-0	02	1	0005-0010		●
8	BOLT; PLATE TO CROSS COUPLING EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-098-0	02	1	0011-		●
8	BOLT; PLATE TO CROSS COUPLING EURO2 SPECIFICATION<THN>	1-15619-183-0	02	1	9710-			●
8	BOLT; PLATE TO CROSS COUPLING	1-15619-183-0	02	1	9710-				●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-122-0	02	1	9510-9901	●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-122-0	02	1	9902-	●
9	BOLT; PLATE TO COUPLING,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-182-0	02	1	0005-	●	●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-182-0	02	1	0005-			●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-182-0	02	1	9511-9709			●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-182-0	02	1	9710-9901			●
9	BOLT; PLATE TO COUPLING,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-182-0	02	1	9902-0004	●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-182-0	02	1	9902-0004			●
9	BOLT; PLATE TO COUPLING,INJ PUMP EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15789-016-0	02	1	0005-0010		●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-016-0	02	1	0011-		●
9	BOLT; PLATE TO COUPLING,INJ PUMP EURO2 SPECIFICATION<THN>	1-15789-163-0	02	1	9710-			●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-163-0	02	1	9710-				●
11	WASHER; PLATE TO COUPLING,INJ PUMP EURO2 SPECIFICATION<THN>	1-15789-188-0	02	1	9710-			●
11	WASHER; PLATE TO COUPLING,INJ PUMP	1-15789-188-0	02	1	9710-				●
11	WASHER; PLATE TO COUPLING,INJ PUMP EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15789-076-0	02	1	0005-0010		●
11	WASHER; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-076-0	02	1	0011-		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-194-0	01	1	9510-9901	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-194-0	01	1	9902-	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-199-0	01	1	0005-	●	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-199-0	01	1	0005-			●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-199-0	01	1	9511-9709			●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-199-0	01	1	9710-9901			●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-199-0	01	1	9902-0004	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-199-0	01	1	9902-0004			●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15789-204-0	01	1	0005-0010		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-204-0	01	1	0011-		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EURO2 SPECIFICATION<THN>	1-15619-181-0	01	1	9710-			●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15619-181-0	01	1	9710-				●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-120-0	02	1	9510-9901	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-120-0	02	1	9902-	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	0005-	●	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. EURO2 SPECIFICATION<THN>	1-15789-183-0	02	1	0005-			●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-183-0	02	1	9511-9709			●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. EURO2 SPECIFICATION<THN>	1-15789-183-0	02	1	9710-9901			●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	9902-0004	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-183-0	02	1	9902-0004			●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15789-098-0	02	1	0005-0010		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-098-0	02	1	0011-		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EURO2 SPECIFICATION<THN>	1-15619-183-0	02	1	9710-			●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15619-183-0	02	1	9710-				●
20	BOLT; COUPLING TO INJ PUMP	1-15789-119-0	02	1	9510-9901	●
20	BOLT; COUPLING TO INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-119-0	02	1	9902-	●
20	BOLT; COUPLING TO INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	0005-	●	●
20	BOLT; COUPLING TO INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-183-0	02	1	0005-			●
20	BOLT; COUPLING TO INJ PUMP	1-15789-183-0	02	1	9511-9709			●
20	BOLT; COUPLING TO INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-183-0	02	1	9710-9901			●
20	BOLT; COUPLING TO INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	9902-0004	●
20	BOLT; COUPLING TO INJ PUMP	1-15789-183-0	02	1	9902-0004			●
20	BOLT; COUPLING TO INJ PUMP EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15789-205-0	02	1	0005-0010		●
20	BOLT; COUPLING TO INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-205-0	02	1	0011-		●
20	BOLT; COUPLING TO INJ PUMP EURO2 SPECIFICATION<THN>	1-15619-183-0	02	1	9710-			●
20	BOLT; COUPLING TO INJ PUMP	1-15619-183-0	02	1	9710-				●

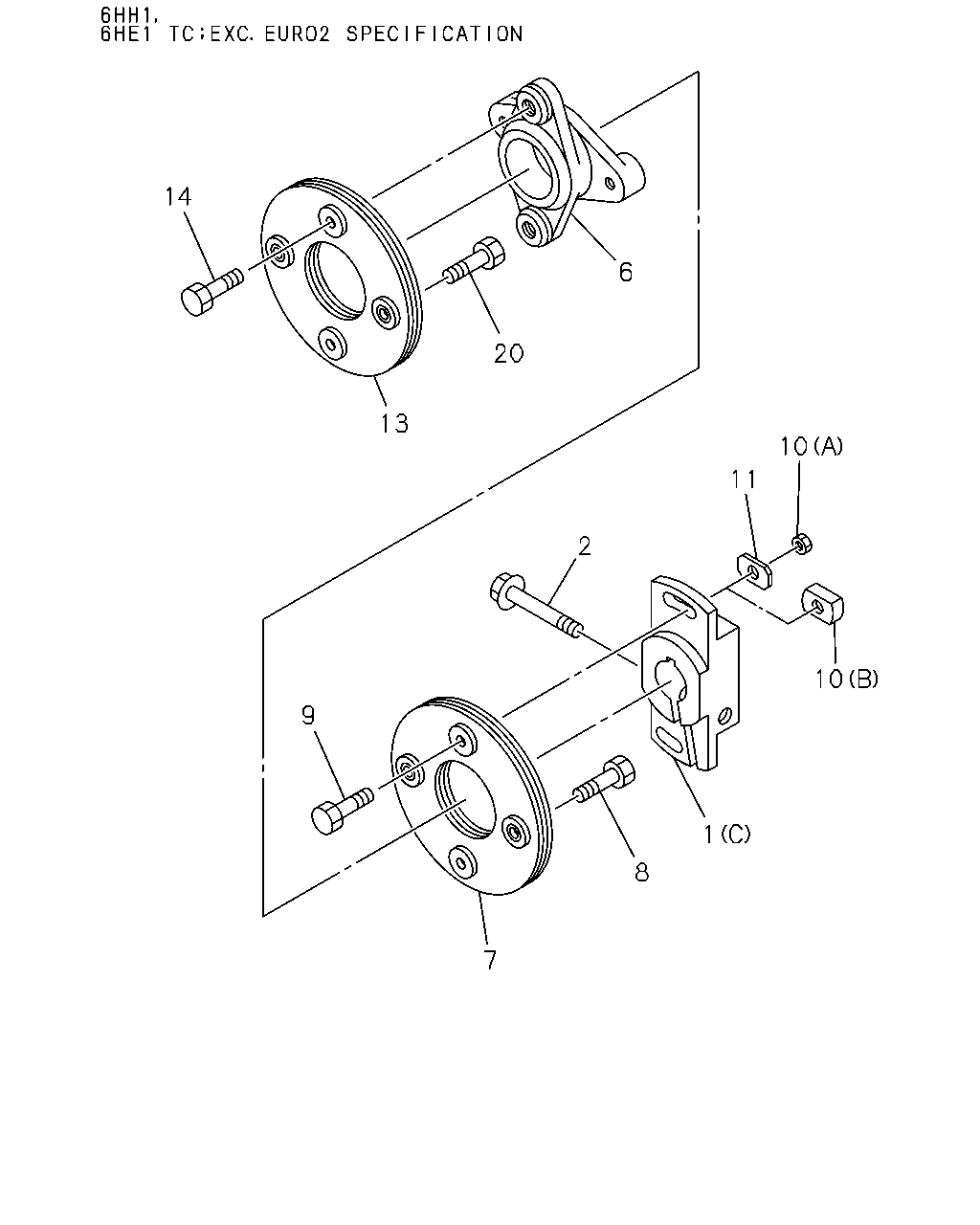

14 6 20 13 10 11 2 10 9 1 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COUPLING; INJ PUMP DRIVE (C)	1-15782-014-0	01	1	9510-9901	●
1	COUPLING; INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15782-014-0	01	1	9902-	●
1	COUPLING; INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15782-019-0	01	1	0005-	●	●
1	COUPLING; INJ PUMP DRIVE EXC. EURO2 SPECIFICATION<THN> (C)	1-15782-019-0	01	1	0005-			●
1	COUPLING; INJ PUMP DRIVE (C)	1-15782-019-0	01	1	9511-9709			●
1	COUPLING; INJ PUMP DRIVE EXC. EURO2 SPECIFICATION<THN> (C)	1-15782-019-0	01	1	9710-9901			●
1	COUPLING; INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15782-019-0	01	1	9902-0004	●
1	COUPLING; INJ PUMP DRIVE (C)	1-15782-019-0	01	1	9902-0004			●
1	COUPLING; INJ PUMP DRIVE EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	1-15780-193-0	01	1	0005-0010		●
1	COUPLING; INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15780-193-0	01	1	0011-		●
1	COUPLING; INJ PUMP DRIVE EURO2 SPECIFICATION<THN> (B)	1-15781-031-0	01	1	9710-0004			●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-031-0	01	1	9710-0004				●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-031-0	01	1	0005-0005				●
1	COUPLING; INJ PUMP DRIVE EURO2 SPECIFICATION<THN> (B)	1-15781-031-0	01	1	0006-			●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-031-0	01	1	0006-				●
1	COUPLING; INJ PUMP DRIVE EURO2 SPECIFICATION<THN> (A)	1-15781-041-0	01	1	9710-			●
1	COUPLING; INJ PUMP DRIVE (A)	1-15781-041-0	01	1	9710-				●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-010-0	01	1	9510-9901	●
2	BOLT; COUPLING FIX,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-010-0	01	1	9902-	●
2	BOLT; COUPLING FIX,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-170-0	01	1	0005-	●	●
2	BOLT; COUPLING FIX,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-170-0	01	1	0005-			●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-170-0	01	1	9511-9709			●
2	BOLT; COUPLING FIX,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-170-0	01	1	9710-9901			●
2	BOLT; COUPLING FIX,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-170-0	01	1	9902-0004	●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-170-0	01	1	9902-0004			●
2	BOLT; COUPLING FIX,INJ PUMP EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15789-079-0	01	1	0005-0010		●
2	BOLT; COUPLING FIX,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-079-0	01	1	0011-		●
2	BOLT; COUPLING FIX,INJ PUMP EURO2 SPECIFICATION<THN>	1-15789-162-0	01	1	9710-			●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-162-0	01	1	9710-				●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-155-0	01	1	9510-9901	●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-155-0	01	1	9902-	●
6	COUPLING; CROSS,INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-184-0	01	1	0005-	●	●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. EURO2 SPECIFICATION<THN>	1-15789-184-0	01	1	0005-			●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-184-0	01	1	9511-9709			●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. EURO2 SPECIFICATION<THN>	1-15789-184-0	01	1	9710-9901			●
6	COUPLING; CROSS,INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-184-0	01	1	9902-0004	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-184-0	01	1	9902-0004			●
6	COUPLING; CROSS,INJ PUMP DRIVE EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15789-099-0	01	1	0005-0010		●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-099-0	01	1	0011-		●
6	COUPLING; CROSS,INJ PUMP DRIVE EURO2 SPECIFICATION<THN>	1-15789-161-0	01	1	9710-			●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-161-0	01	1	9710-				●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-194-0	01	1	9510-9901	●
7	PLATE; COUPLING,COUPLING SIDE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-194-0	01	1	9902-	●
7	PLATE; COUPLING,COUPLING SIDE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-199-0	01	1	0005-	●	●
7	PLATE; COUPLING,COUPLING SIDE EXC. EURO2 SPECIFICATION<THN>	1-15789-199-0	01	1	0005-			●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-199-0	01	1	9511-9709			●
7	PLATE; COUPLING,COUPLING SIDE EXC. EURO2 SPECIFICATION<THN>	1-15789-199-0	01	1	9710-9901			●
7	PLATE; COUPLING,COUPLING SIDE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-199-0	01	1	9902-0004	●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-199-0	01	1	9902-0004			●
7	PLATE; COUPLING,COUPLING SIDE EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15789-204-0	01	1	0005-0010		●
7	PLATE; COUPLING,COUPLING SIDE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-204-0	01	1	0011-		●
7	PLATE; COUPLING,COUPLING SIDE EURO2 SPECIFICATION<THN>	1-15789-189-1	01	1	9710-			●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-189-1	01	1	9710-				●
8	BOLT; PLATE TO CROSS COUPLING	1-15749-501-0	02	1	9510-9901	●
8	BOLT; PLATE TO CROSS COUPLING EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15749-501-0	02	1	9902-	●
8	BOLT; PLATE TO CROSS COUPLING EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	0005-	●	●
8	BOLT; PLATE TO CROSS COUPLING EXC. EURO2 SPECIFICATION<THN>	1-15789-183-0	02	1	0005-			●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-183-0	02	1	9511-9709			●
8	BOLT; PLATE TO CROSS COUPLING EXC. EURO2 SPECIFICATION<THN>	1-15789-183-0	02	1	9710-9901			●
8	BOLT; PLATE TO CROSS COUPLING EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	9902-0004	●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-183-0	02	1	9902-0004			●
8	BOLT; PLATE TO CROSS COUPLING EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15789-098-0	02	1	0005-0010		●
8	BOLT; PLATE TO CROSS COUPLING EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-098-0	02	1	0011-		●
8	BOLT; PLATE TO CROSS COUPLING EURO2 SPECIFICATION<THN>	1-15619-183-0	02	1	9710-			●
8	BOLT; PLATE TO CROSS COUPLING	1-15619-183-0	02	1	9710-				●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-122-0	02	1	9510-9901	●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-122-0	02	1	9902-	●
9	BOLT; PLATE TO COUPLING,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-182-0	02	1	0005-	●	●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-182-0	02	1	0005-			●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-182-0	02	1	9511-9709			●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-182-0	02	1	9710-9901			●
9	BOLT; PLATE TO COUPLING,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-182-0	02	1	9902-0004	●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-182-0	02	1	9902-0004			●
9	BOLT; PLATE TO COUPLING,INJ PUMP EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15789-016-0	02	1	0005-0010		●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-016-0	02	1	0011-		●
9	BOLT; PLATE TO COUPLING,INJ PUMP EURO2 SPECIFICATION<THN>	1-15789-163-0	02	1	9710-			●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-163-0	02	1	9710-				●
10	NUT; PLATE TO COUPLING,INJ PUMP (B)	1-15789-066-0	02	1	9510-9901	●
10	NUT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	1-15789-066-0	02	1	9902-	●
10	NUT; PLATE TO COUPLING,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	1-15789-167-0	02	1	0005-	●	●
10	NUT; PLATE TO COUPLING,INJ PUMP EXC. EURO2 SPECIFICATION<THN> (B)	1-15789-167-0	02	1	0005-			●
10	NUT; PLATE TO COUPLING,INJ PUMP (B)	1-15789-167-0	02	1	9511-9709			●
10	NUT; PLATE TO COUPLING,INJ PUMP EXC. EURO2 SPECIFICATION<THN> (B)	1-15789-167-0	02	1	9710-9901			●
10	NUT; PLATE TO COUPLING,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	1-15789-167-0	02	1	9902-0004	●
10	NUT; PLATE TO COUPLING,INJ PUMP (B)	1-15789-167-0	02	1	9902-0004			●
10	NUT; PLATE TO COUPLING,INJ PUMP EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-15789-073-0	02	1	0005-0010		●
10	NUT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	1-15789-073-0	02	1	0011-		●
11	WASHER; PLATE TO COUPLING,INJ PUMP EURO2 SPECIFICATION<THN>	1-15789-188-0	02	1	9710-			●
11	WASHER; PLATE TO COUPLING,INJ PUMP	1-15789-188-0	02	1	9710-				●
11	WASHER; PLATE TO COUPLING,INJ PUMP EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15789-076-0	02	1	0005-0010		●
11	WASHER; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-076-0	02	1	0011-		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-194-0	01	1	9510-9901	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-194-0	01	1	9902-	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-199-0	01	1	0005-	●	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-199-0	01	1	0005-			●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-199-0	01	1	9511-9709			●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-199-0	01	1	9710-9901			●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-199-0	01	1	9902-0004	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-199-0	01	1	9902-0004			●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15789-204-0	01	1	0005-0010		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-204-0	01	1	0011-		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EURO2 SPECIFICATION<THN>	1-15619-181-0	01	1	9710-			●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15619-181-0	01	1	9710-				●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-120-0	02	1	9510-9901	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-120-0	02	1	9902-	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	0005-	●	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. EURO2 SPECIFICATION<THN>	1-15789-183-0	02	1	0005-			●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-183-0	02	1	9511-9709			●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. EURO2 SPECIFICATION<THN>	1-15789-183-0	02	1	9710-9901			●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	9902-0004	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-183-0	02	1	9902-0004			●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15789-098-0	02	1	0005-0010		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-098-0	02	1	0011-		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EURO2 SPECIFICATION<THN>	1-15619-183-0	02	1	9710-			●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15619-183-0	02	1	9710-				●
20	BOLT; COUPLING TO INJ PUMP	1-15789-119-0	02	1	9510-9901	●
20	BOLT; COUPLING TO INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-119-0	02	1	9902-	●
20	BOLT; COUPLING TO INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	0005-	●	●
20	BOLT; COUPLING TO INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-183-0	02	1	0005-			●
20	BOLT; COUPLING TO INJ PUMP	1-15789-183-0	02	1	9511-9709			●
20	BOLT; COUPLING TO INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-183-0	02	1	9710-9901			●
20	BOLT; COUPLING TO INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	9902-0004	●
20	BOLT; COUPLING TO INJ PUMP	1-15789-183-0	02	1	9902-0004			●
20	BOLT; COUPLING TO INJ PUMP EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15789-205-0	02	1	0005-0010		●
20	BOLT; COUPLING TO INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-205-0	02	1	0011-		●
20	BOLT; COUPLING TO INJ PUMP EURO2 SPECIFICATION<THN>	1-15619-183-0	02	1	9710-			●
20	BOLT; COUPLING TO INJ PUMP	1-15619-183-0	02	1	9710-				●

5 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COUPLING; INJ PUMP DRIVE (C)	1-15782-014-0	01	1	9510-9901	●
1	COUPLING; INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15782-014-0	01	1	9902-	●
1	COUPLING; INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15782-019-0	01	1	0005-	●	●
1	COUPLING; INJ PUMP DRIVE EXC. EURO2 SPECIFICATION<THN> (C)	1-15782-019-0	01	1	0005-			●
1	COUPLING; INJ PUMP DRIVE (C)	1-15782-019-0	01	1	9511-9709			●
1	COUPLING; INJ PUMP DRIVE EXC. EURO2 SPECIFICATION<THN> (C)	1-15782-019-0	01	1	9710-9901			●
1	COUPLING; INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15782-019-0	01	1	9902-0004	●
1	COUPLING; INJ PUMP DRIVE (C)	1-15782-019-0	01	1	9902-0004			●
1	COUPLING; INJ PUMP DRIVE EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	1-15780-193-0	01	1	0005-0010		●
1	COUPLING; INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15780-193-0	01	1	0011-		●
1	COUPLING; INJ PUMP DRIVE EURO2 SPECIFICATION<THN> (B)	1-15781-031-0	01	1	9710-0004			●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-031-0	01	1	9710-0004				●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-031-0	01	1	0005-0005				●
1	COUPLING; INJ PUMP DRIVE EURO2 SPECIFICATION<THN> (B)	1-15781-031-0	01	1	0006-			●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-031-0	01	1	0006-				●
1	COUPLING; INJ PUMP DRIVE EURO2 SPECIFICATION<THN> (A)	1-15781-041-0	01	1	9710-			●
1	COUPLING; INJ PUMP DRIVE (A)	1-15781-041-0	01	1	9710-				●
3	NUT; COUPLING FIX,INJ PUMP EURO2 SPECIFICATION<THN>	1-15619-132-0	01	1	9710-0004			●
3	NUT; COUPLING FIX,INJ PUMP	1-15619-132-0	01	1	9710-0004				●
3	NUT; COUPLING FIX,INJ PUMP	1-15619-132-0	01	1	0005-0005				●
3	NUT; COUPLING FIX,INJ PUMP EURO2 SPECIFICATION<THN>	1-15619-132-0	01	1	0006-			●
3	NUT; COUPLING FIX,INJ PUMP	1-15619-132-0	01	1	0006-				●
5	WASHER; COUPLING FIX,INJ PUMP EURO2 SPECIFICATION<THN> (B)	1-15619-131-0	01	1	9710-0004			●
5	WASHER; COUPLING FIX,INJ PUMP (B)	1-15619-131-0	01	1	9710-0004				●
5	WASHER; COUPLING FIX,INJ PUMP (B)	1-15619-131-0	01	1	0005-0005				●
5	WASHER; COUPLING FIX,INJ PUMP EURO2 SPECIFICATION<THN> (B)	1-15619-131-0	01	1	0006-			●
5	WASHER; COUPLING FIX,INJ PUMP (B)	1-15619-131-0	01	1	0006-				●
5	WASHER; COUPLING FIX,INJ PUMP EURO2 SPECIFICATION<THN> (A)	1-15789-021-0	01	1	9710-			●
5	WASHER; COUPLING FIX,INJ PUMP (A)	1-15789-021-0	01	1	9710-				●

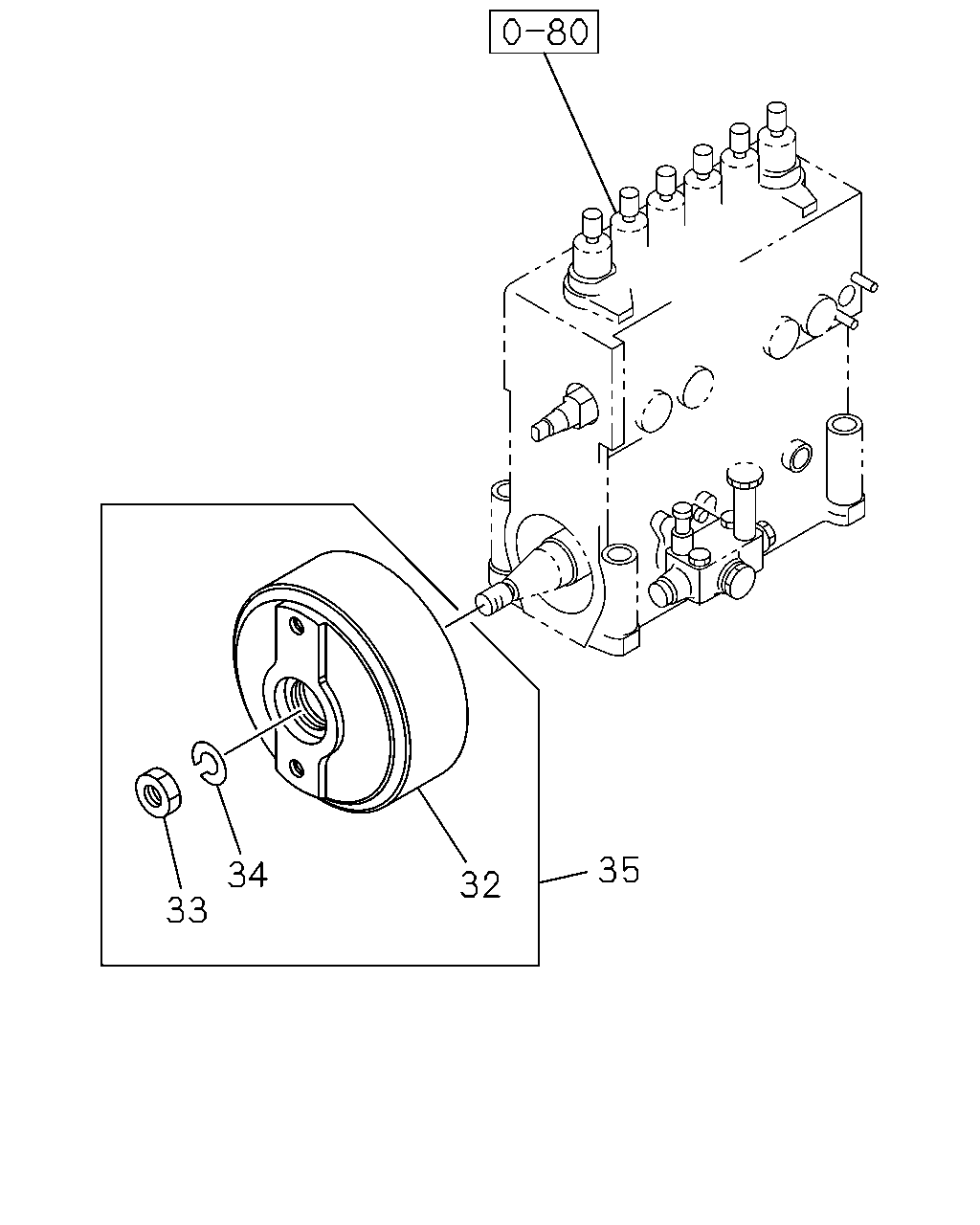

35 34 32 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
32	DAMPER; INJ PUMP EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94390-807-0	01	1	0005-0010	●
32	DAMPER; INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94390-807-0	01	1	0011-	●
33	NUT; DAMPER EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15619-132-0	01	1	0005-0010	●
33	NUT; DAMPER EURO2 SPECIFICATION<THN>	1-15619-132-0	01	1	0011-0302	●
33	NUT; DAMPER HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>	1-15619-132-0	01	1	0011-0302	●
33	NUT; DAMPER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15619-132-0	01	1	0303-	●
34	WASHER; DAMPER EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15619-131-0	01	1	0005-0010	●
34	WASHER; DAMPER EURO2 SPECIFICATION<THN>	1-15619-131-0	01	1	0011-0302	●
34	WASHER; DAMPER HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>	1-15619-131-0	01	1	0011-0302	●
34	WASHER; DAMPER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15619-131-0	01	1	0303-	●
35	DAMPER ASM; INJ PUMP EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-15744-016-0	01	1	0005-0010	●
35	DAMPER ASM; INJ PUMP EURO2 SPECIFICATION<THN>	1-15744-016-0	01	1	0011-0302	●
35	DAMPER ASM; INJ PUMP HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>	1-15744-016-0	01	1	0011-0302	●
35	DAMPER ASM; INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15744-016-0	01	1	0303-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
