0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#39482) — 70 parça

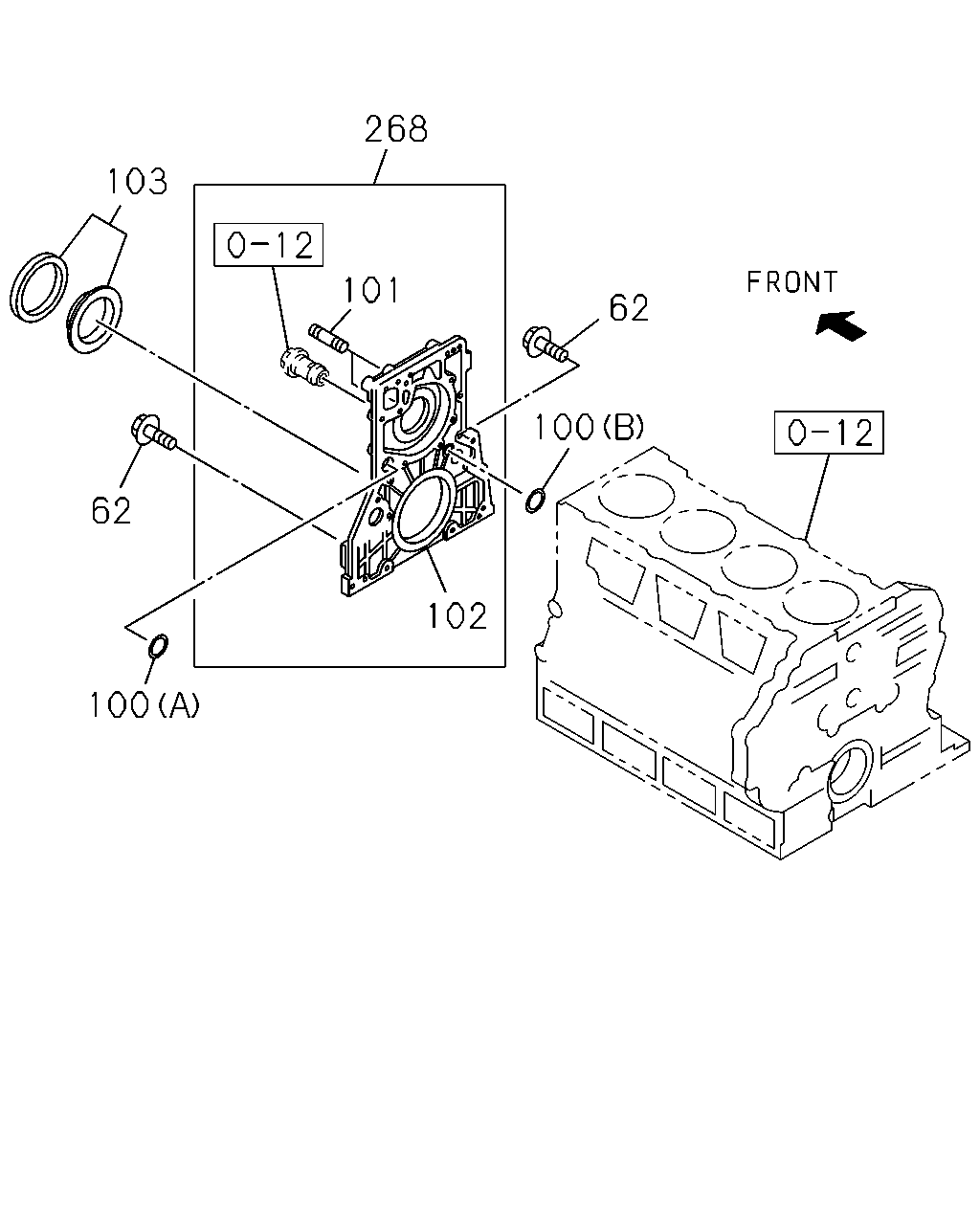

268 103 101 62 100 62 102 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0301-0501	●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0502-0512		●
62	00.206 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	06	1	0601-		●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	0301-0501	●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	0502-0512		●
62	00.206 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	05	1	0601-0706		●
62	00.206 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	06	1	0707-		●
62	00.206 BOLT; COVER 04.686 M8X30 FLANGE	0-28680-830-0	01	1	0306-0501	●
62	00.206 BOLT; COVER 04.686 M8X30 FLANGE	0-28680-830-0	01	1	0502-0512		●
62	00.206 BOLT; COVER 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0601-		●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0301-0501	●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0502-0706		●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	02	1	0707-		●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0301-0501	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0502-		●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0301-0501	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0502-		●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	0301-0501	●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	0502-		●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	0301-0501	●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	0502-0604		●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	0-41010-818-0	01	1	0605-		●
102	00.137 RETAINER; FRT	8-97148-938-1	01	1	0301-0501	●
102	00.137 RETAINER; FRT	8-97148-938-1	01	1	0502-0706		●
102	00.137 RETAINER; FRT	8-98039-932-2	01	1	0707-		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0301-0501	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0502-		●
268	00.206 COVER; FRT	8-97148-937-1	01	1	0301-0501	●
268	00.206 COVER; FRT	8-97148-937-3	01	1	0502-		●

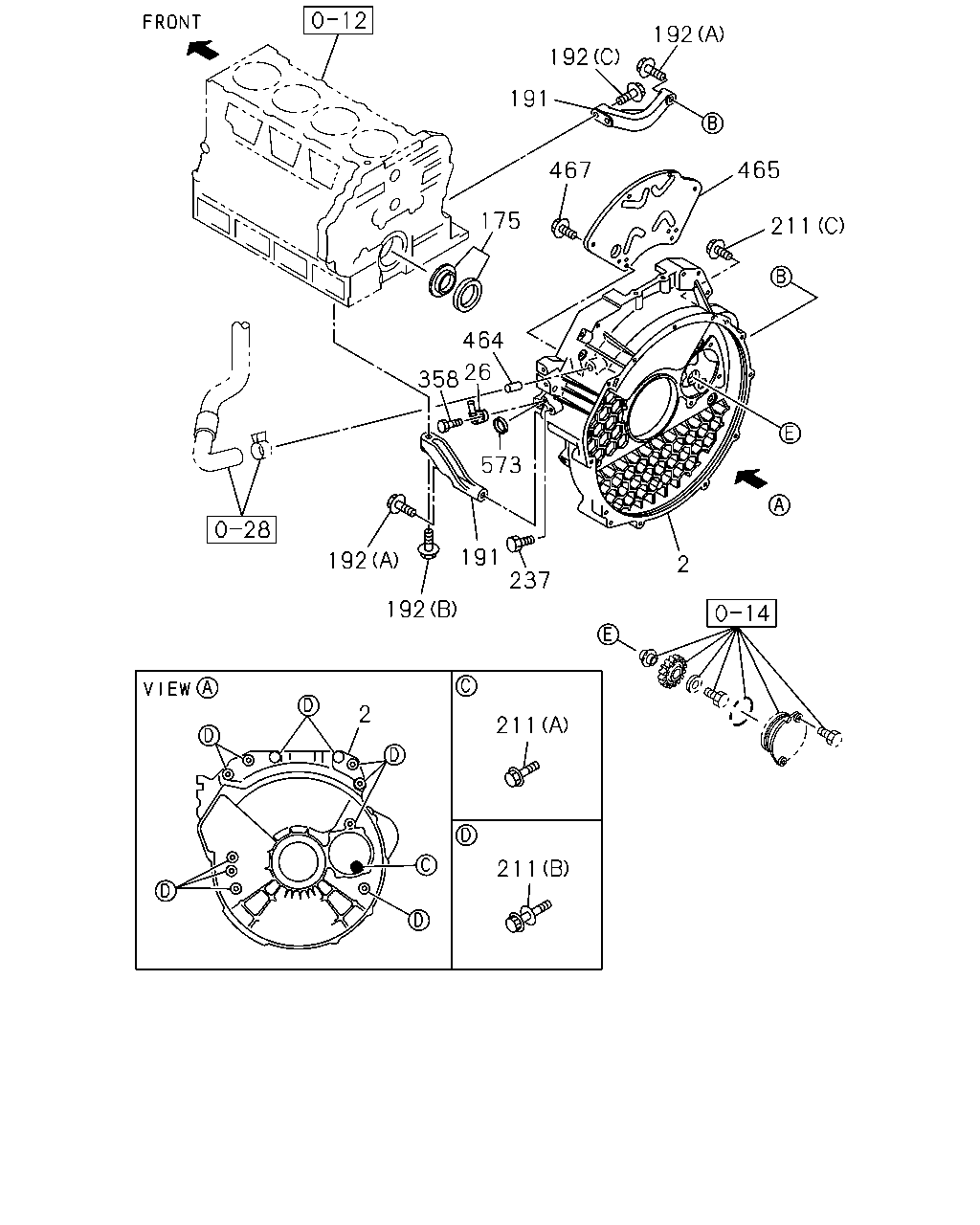

192 192 191 465 467 175 211 464 26 358 573 191 192 2 237 192 2 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	00.683 HOUSING; FLYWHEEL	8-97209-886-3	01	1	0301-0308	●
2	00.683 HOUSING; FLYWHEEL	8-97364-901-0	01	1	0309-0501	●
2	00.683 HOUSING; FLYWHEEL	8-97364-901-4	01	1	0502-		●
26	03.306 ADAPTER	8-97354-819-0	01	1	0502-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0301-0501	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0502-		●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	0301-0501	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	0502-		●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	0301-0501	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	0502-		●
192	00.206 BOLT; STAY TO HSG 04.510 (C) M10X40 FLANGE	0-28181-040-0	02	1	0301-0501	●
192	00.206 BOLT; STAY TO HSG 09.171 (C) M10X45 FLANGE	0-28181-045-0	02	1	0502-0512		●
192	00.206 BOLT; STAY TO HSG 09.181 (C) M10X45 FLANGE	0-28151-045-0	02	1	0601-		●
192	00.206 BOLT; STAY TO HSG (B) M12X100 FLANGE	0-28181-200-0	01	1	0301-0501	●
192	00.206 BOLT; STAY TO HSG (B) M12X100 FLANGE	0-28181-200-0	01	1	0502-0512		●
192	00.206 BOLT; STAY TO HSG 02.510 (B) M12X100 FLANGE	0-28151-200-0	01	1	0601-		●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28181-250-0	02	1	0301-0501	●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28181-250-0	02	1	0502-0512		●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	0601-		●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	01	1	0301-0501	●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	01	1	0502-		●
211	00.669 BOLT; HSG (C) M10X40 FLANGE	0-28781-040-0	01	1	0301-0501	●
211	00.669 BOLT; HSG (C) M10X40 FLANGE	0-28781-040-0	01	1	0502-0512		●
211	00.669 BOLT; HSG 00.029 (C) M10X40 FLANGE	0-28751-040-0	01	1	0601-		●
211	00.669 BOLT; HSG (B) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0301-0501	●
211	00.669 BOLT; HSG (B) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0502-1102		●
211	00.669 BOLT; HSG (B) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1103-		●
237	00.686 PLUG; FLYWHEEL HSG 04.640 M10X12 FLANGE	0-28081-012-0	01	1	0502-0512		●
237	00.686 PLUG; FLYWHEEL HSG 06.225 M10X12 FLANGE	0-28051-012-0	01	1	0601-		●
358	00.206 BOLT; ADAPTER 00.738 M6X16 FLANGE	0-28080-616-0	01	1	0502-0512		●
358	00.206 BOLT; ADAPTER 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0601-		●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0301-0501	●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0502-		●
465	00.686 PLATE; FLYWHEEL HSG	8-97212-490-0	01	1	0301-0308	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-823-0	01	1	0309-0501	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-823-0	01	1	0502-		●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0301-0501	●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0502-0507		●
467	00.686 BOLT; PLATE 05.815 M6X10	0-20800-610-0	06	1	0508-0805		●
467	00.686 BOLT; PLATE 06.321 M6X10	8-98030-649-0	06	1	0806-		●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0301-0501	●
