9-01 — TOOLS (#39480) — 84 parça

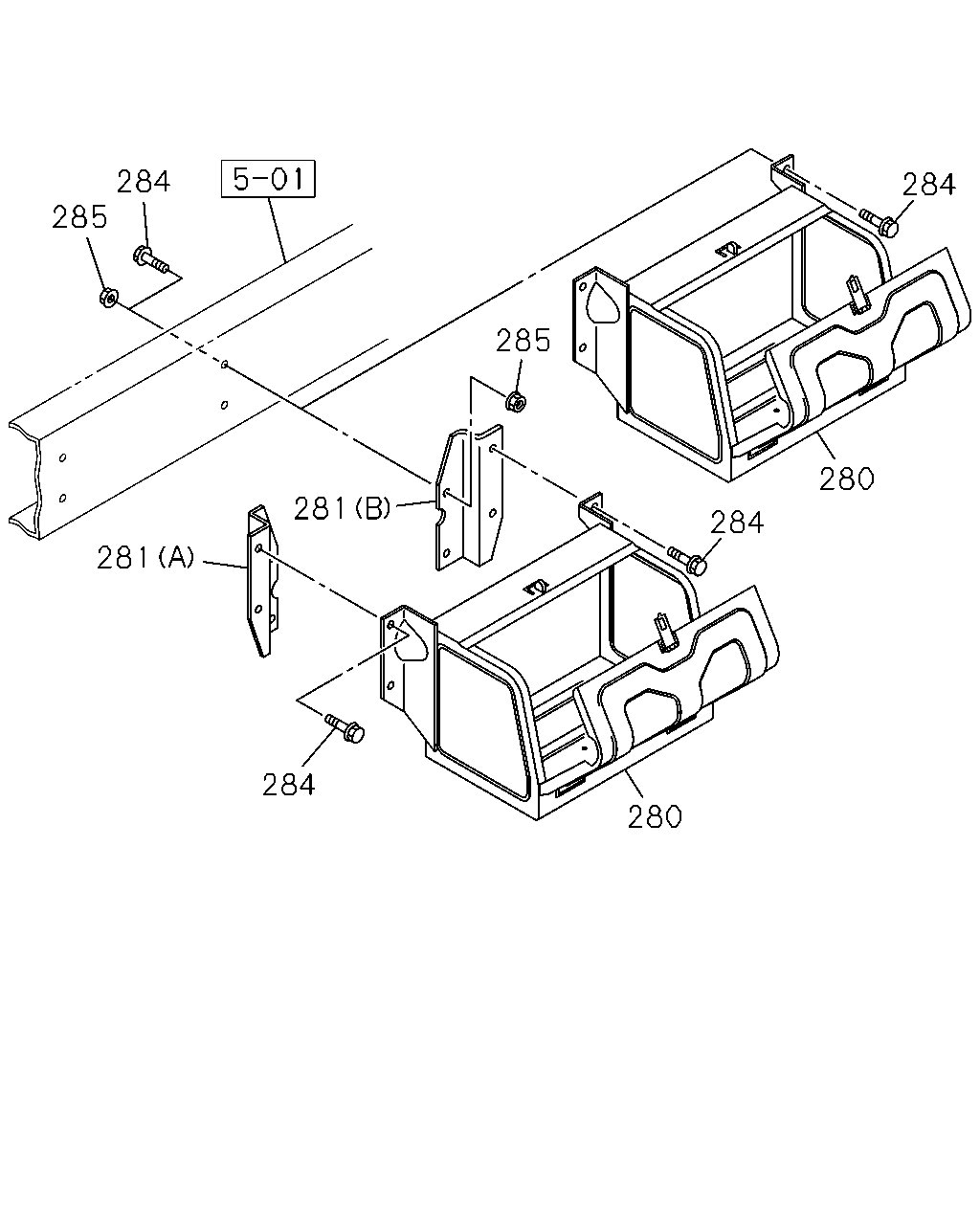

çizim 35142
284 285 284 285 280 281 284 281 284 280
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 0710-0711 ● ● ● ● ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 0712- ● ● ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 0710- ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 0710- ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A) 		8-98046-374-1 01 1 0710-0901 ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (A) 		8-98046-374-1 01 1 0710-0901 ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 0902- ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 0902- ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0710-0711 ● ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0710-0711 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0710-0711 ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0712- ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0712- ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0712- ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0710-0711 ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0710-0711 ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0710-0711 ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0710-0711 ● ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0712- ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0712- ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0712- ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0712- ● ●

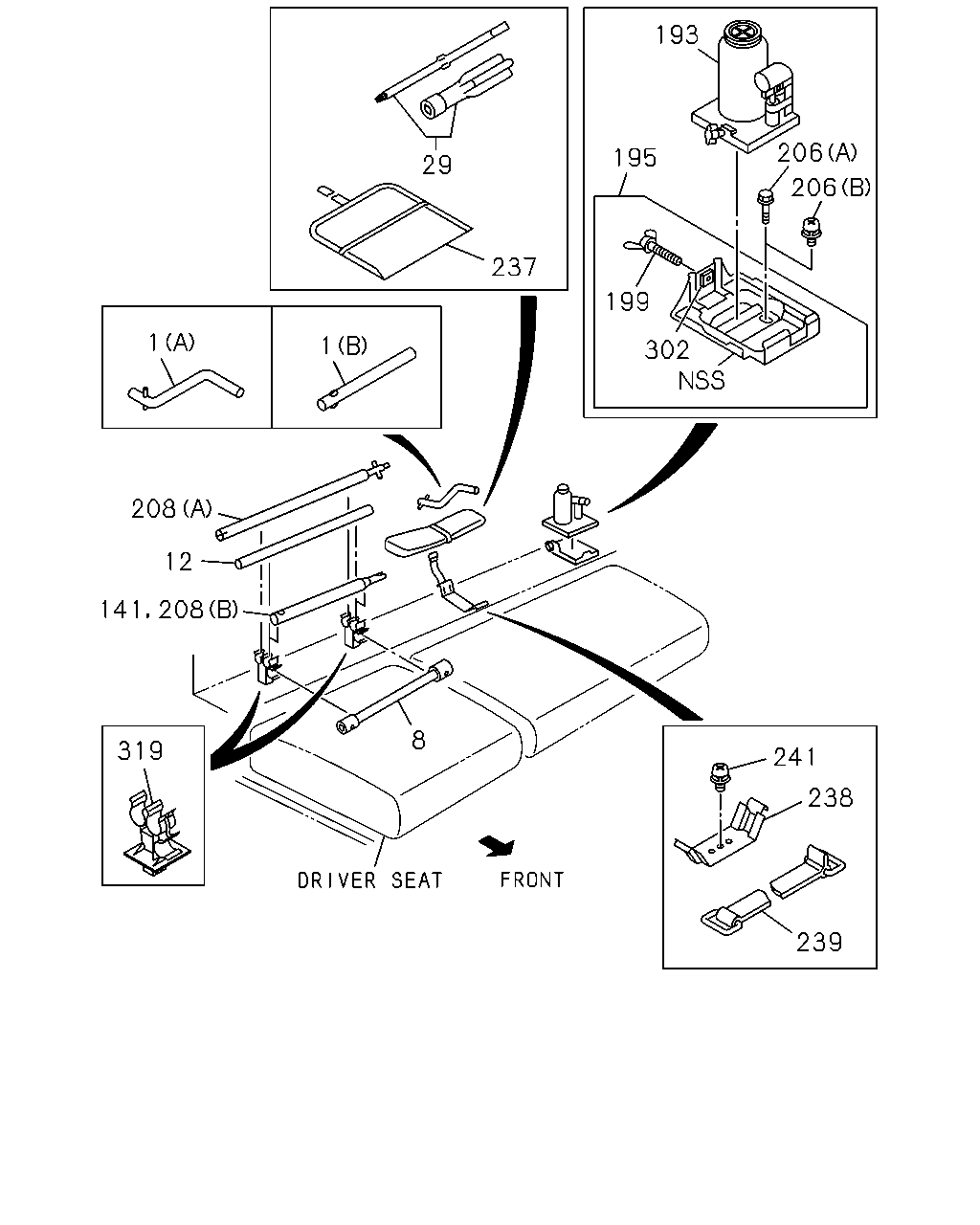

çizim 35177
193 206 195 29 206 237 199 1 1 302 208 12 8 319 241 238 239 141 208
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) (A) 		8-97218-985-0 01 1 0710- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W) (A) 		8-97218-985-0 01 1 0710- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4400MM(44W) (A) 		8-97218-985-0 01 1 0710- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 0710- ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) 08.821 (B) L=280 		1-85515-007-0 01 1 0710-1108 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 08.821 (B) L=280 		1-85515-007-0 01 1 0710-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.821 (B) L=280 		1-85515-007-0 01 1 0710-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) (B) L=280 		8-98181-251-0 01 1 1109- ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) L=280 		8-98181-251-0 01 1 1109- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(B) L=280 		8-98181-251-0 01 1 1109- ●
8 08.821 WRENCH; WHEEL
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE215-75R17.5 DISC 17.5-6-127SILVER(CTV) B=41X21 L=440 		1-85113-015-1 01 1 0710- ● ●
8 08.821 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 0710- ● ●
8 08.821 WRENCH; WHEEL
B=41X19 L=330 		8-94386-490-1 01 1 0710-0908 ● ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) B=41X19 L=330 		8-94386-490-1 01 1 0710-0908 ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) B=41X19 L=330 		8-94386-490-1 01 1 0909-0909 ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) B=41X19 L=330 		8-94386-490-1 01 1 0909-0910 ● ● ●
8 08.821 WRENCH; WHEEL
B=41X19 L=330 		8-94386-490-1 01 1 0911- ● ●
8 08.821 WRENCH; WHEEL
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS) B=41X19 L=330 		8-94386-490-1 01 1 0911- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) OD=25 L=590 		8-97332-988-0 01 1 0710-1001 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) OD=25 L=590 		8-97332-988-0 01 1 0710-1001 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4400MM(44W) OD=25 L=590 		8-97332-988-0 01 1 0710-1001 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0710-1001 ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1002- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1002- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4400MM(44W) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1002- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480 		1-85116-011-0 01 1 1002- ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0710- ● ● ● ● ● ●
141 08.821 HANDLE; WRENCH
08.820 L=580 		1-85515-005-1 01 1 0712-1108 ●
141 08.821 HANDLE; WRENCH
08.820 L=580 		8-98181-249-0 01 1 1109- ●
193 08.820 JACK ASM
5TON 		8-94438-021-2 01 1 0710- ● ●
193 08.820 JACK ASM
4TON 		8-94438-019-2 01 1 0710- ● ● ● ●
195 08.820 BRACKET; JACK 8-98034-917-0 01 1 0710- ● ● ●
195 08.820 BRACKET; JACK 8-94273-769-5 01 1 0710- ● ● ●
199 08.820 BOLT; JACK
M8X30 WING 		8-98005-536-0 01 1 0710- ● ● ●
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 0710- ● ● ●
206 08.820 SCREW; OIL JACK BRKT
06.216 (A)BOLT M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.570 (B)BOLT M6X16 		0-38050-616-0 01 1 0710- ● ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) (B) L=580 		1-85515-005-1 01 1 0710-0711 ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) L=580 		1-85515-005-1 01 1 0710-0711 ●
208 08.820 HANDLE; JACK
(B) L=580 		1-85515-005-1 01 1 0710-0711 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) (B) L=580 		1-85515-005-1 01 1 0712-1108 ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) L=580 		1-85515-005-1 01 1 0712-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) (B) L=580 		8-98181-249-0 01 1 1109- ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) (A) L=642 		8-97217-800-0 01 1 0710-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W) (A) L=642 		8-97217-800-0 01 1 0710-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 4400MM(44W) (A) L=642 		8-97217-800-0 01 1 0710-1108 ●
208 08.820 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 0710-1108 ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) (A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W) (A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 4400MM(44W) (A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
(A) L=642 		8-98181-477-0 01 1 1109- ● ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 0710- ● ● ● ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0710- ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0710- ● ● ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 0710- ● ● ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 0710- ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 0710- ● ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 0710- ● ● ● ● ● ●

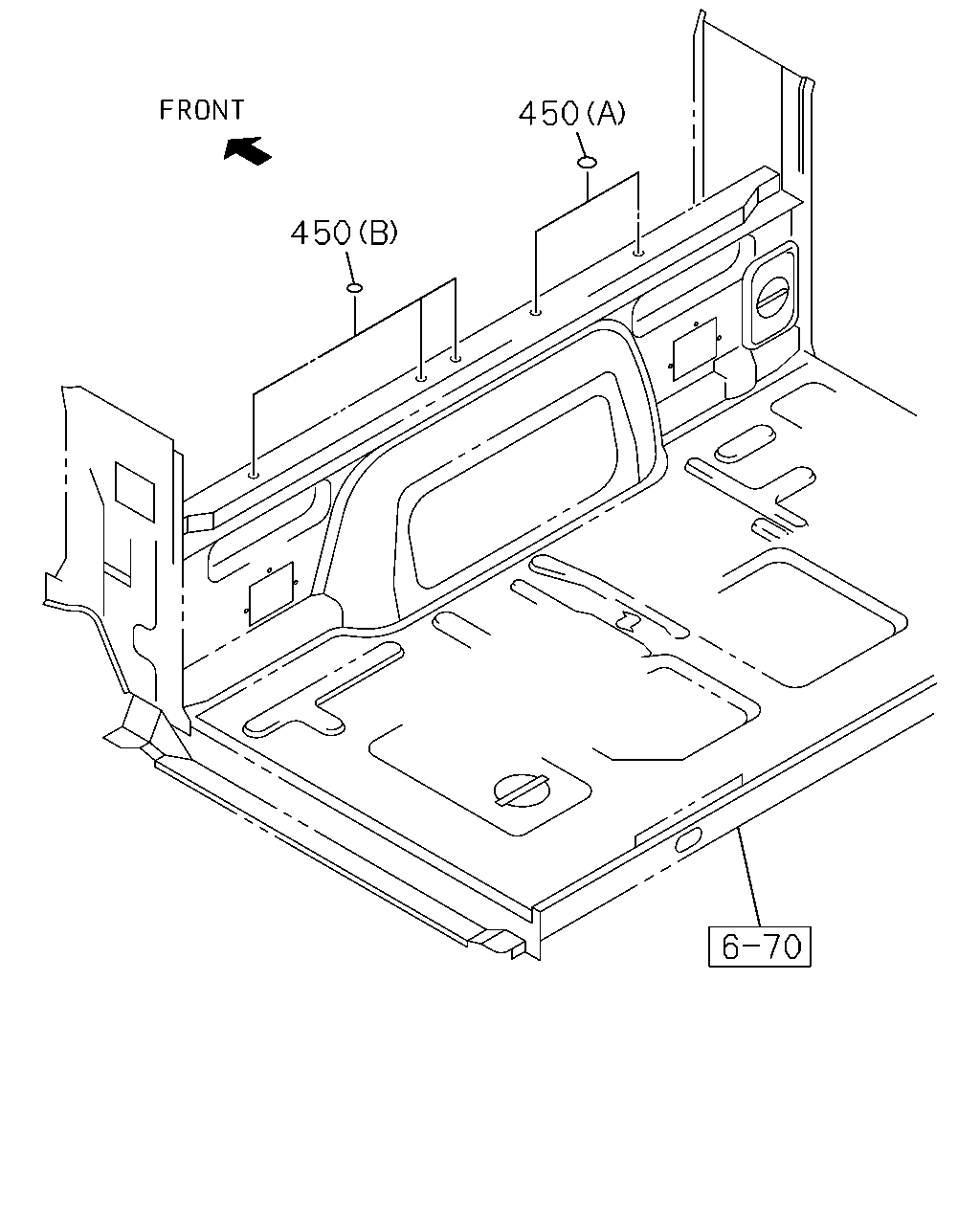

çizim 100553
450 450
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
450 16.064 SEAL; HOLE
02.580 (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0710- ● ● ●
450 16.064 SEAL; HOLE
02.580 (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0710- ● ● ●
450 16.064 SEAL; HOLE
16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 0710- ● ● ●
