Sayfa 0-85 - Isuzu EPC

0-85 — AUTO TIMER; INJECTION PUMP (#3948) — 224 parça

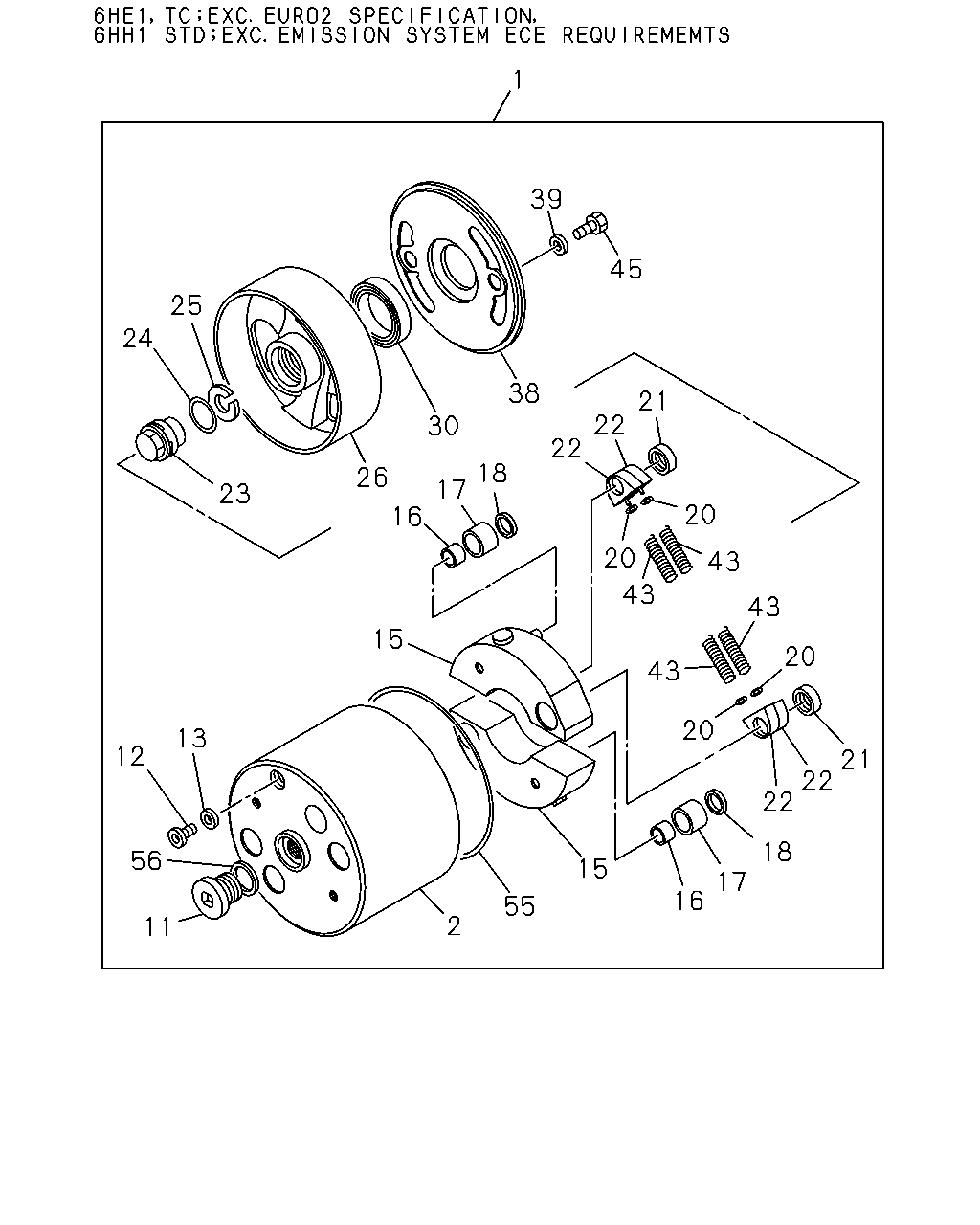

1 39 45 25 24 38 21 22 30 22 18 26 17 23 20 16 20 43 43 43 15 20 43 20 13 12 21 22 22 56 18 15 17 16 55 2 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: H = 8-94395-921-2	1-15740-416-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15740-478-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: G = 8-94395-903-1	1-15740-479-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15740-483-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 8-94390-929-0	1-15740-492-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: C = 8-94391-170-1	1-15740-512-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: D = 8-94392-219-3	1-15740-527-1	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: B = 8-94390-929-0, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1	1-15741-032-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: C = 8-94391-170-1, H = 8-94395-921-2	1-15741-050-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15741-077-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15741-082-1	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-454-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-594-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-031-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-452-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-935-1	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15719-093-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: C = 8-94391-170-1	1-15743-044-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15743-101-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 8-94390-929-0	1-15743-122-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15743-146-0	02	1	-
16	BUSHING; ROLLER,TIMER FLYWEIGHT,INJ PU ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	5-15749-042-0	02	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.00 ASM PART: C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, H = 8-94395-921-2	5-15749-043-0	AR	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.00 ASM PART: B = 8-94390-929-0, G = 8-94395-903-1	5-15749-043-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=17.90 ASM PART: B = 8-94390-929-0, G = 8-94395-903-1	5-15749-044-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=17.90 ASM PART: C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, H = 8-94395-921-2	5-15749-044-0	AR	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.10 ASM PART: B = 8-94390-929-0, G = 8-94395-903-1	5-15749-045-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.10 ASM PART: C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, H = 8-94395-921-2	5-15749-045-0	AR	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.20 ASM PART: B = 8-94390-929-0, G = 8-94395-903-1	5-15749-046-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.20 ASM PART: C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, H = 8-94395-921-2	5-15749-046-0	AR	1	-
18	WASHER; ROLLER,TIMER FLYWEIGHT,INJ PUM ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	5-15749-047-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-097-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-098-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-099-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-100-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-101-1	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-102-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-103-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-290-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-291-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-394-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-395-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-396-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-397-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-495-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-496-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	9-81325-379-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	9-81325-380-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.25 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	9-81325-381-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	9-81325-382-0	AR	1	-
21	RETAINER; SPRING SEAT,TIMER,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	5-15749-048-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	5-15749-040-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	8-97085-026-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 8-94390-081-1, D = 8-94392-219-3, I = 8-97600-180-0	1-15749-318-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	5-15749-051-1	01	1	-
24	GASKET; FLANGE,TIMER,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-455-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-219-3, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-593-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: H = 8-94395-921-2	1-15742-124-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1	1-15742-149-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15742-151-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 8-94390-929-0	1-15742-156-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: C = 8-94391-170-1	1-15742-160-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15742-162-2	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-451-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-592-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-072-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-591-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-930-2	01	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1	1-09630-082-0	02	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15339-010-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1	1-15749-621-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: H = 8-94395-921-2	1-15749-705-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP D=2.2 L=46 ASM PART: B = 8-94390-929-0	1-15749-887-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP D=2.1 L=46 ASM PART: B = 8-94390-929-0	1-15749-888-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: C = 8-94391-170-1	1-15749-917-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-928-0	04	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-029-0	02	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-305-0	06	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-449-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	9-81345-138-0	01	1	-
56	GASKET; CAP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2, I = 8-97600-180-0	1-15749-453-0	01	1	-

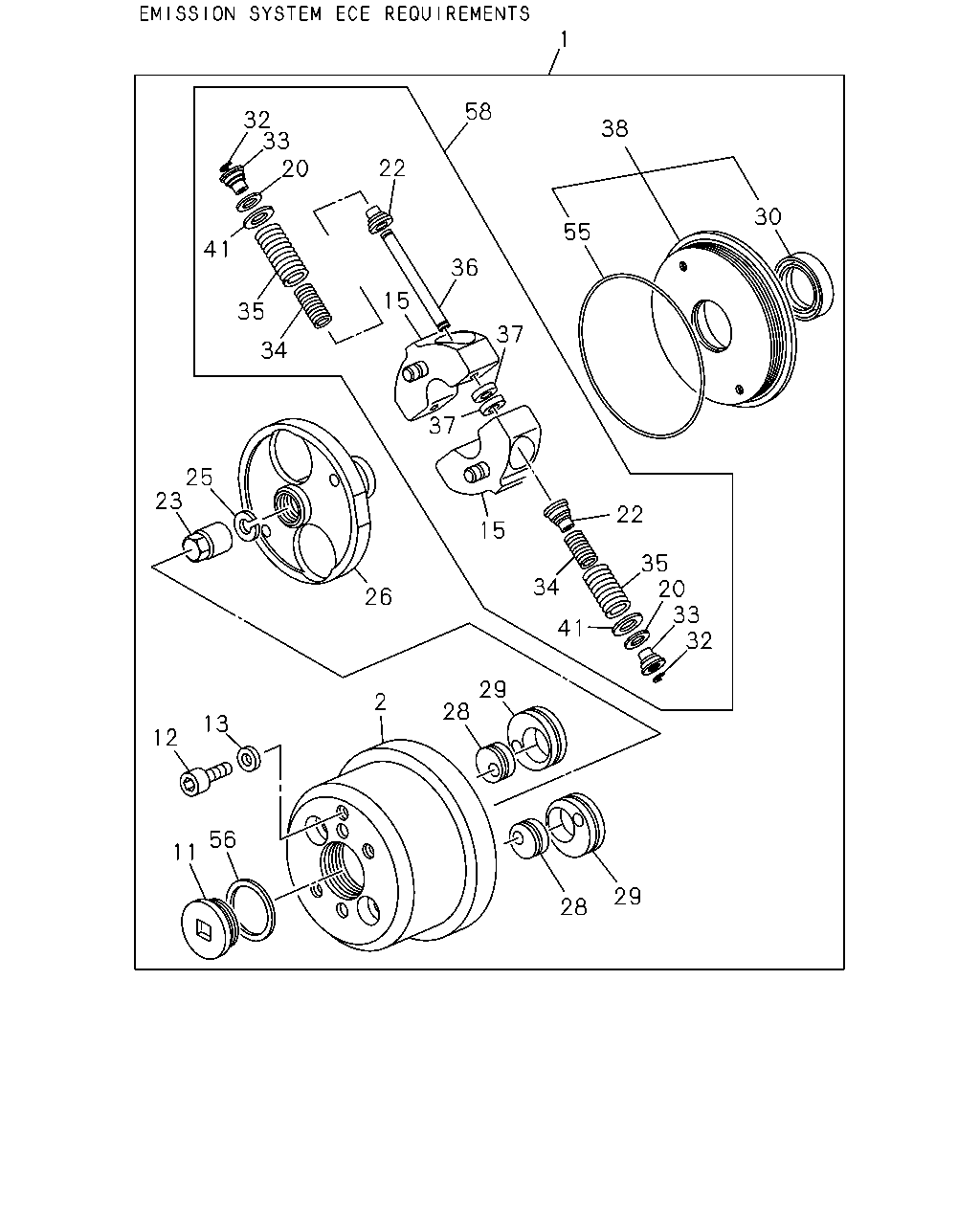

1 58 32 33 20 38 22 30 55 41 36 15 35 37 34 37 25 23 22 15 35 20 33 32 34 26 41 29 28 2 13 12 56 11 29 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: H = 8-94395-921-2	1-15740-416-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15740-478-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: G = 8-94395-903-1	1-15740-479-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15740-483-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 8-94390-929-0	1-15740-492-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: C = 8-94391-170-1	1-15740-512-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: D = 8-94392-219-3	1-15740-527-1	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: B = 8-94390-929-0, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1	1-15741-032-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: C = 8-94391-170-1, H = 8-94395-921-2	1-15741-050-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15741-077-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15741-082-1	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-454-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-594-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-031-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-452-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-935-1	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15719-093-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: C = 8-94391-170-1	1-15743-044-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15743-101-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 8-94390-929-0	1-15743-122-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15743-146-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-097-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-098-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-099-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-100-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-101-1	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-102-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-103-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-290-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-291-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-394-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-395-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-396-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-397-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-495-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-496-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	9-81325-379-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	9-81325-380-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.25 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	9-81325-381-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	9-81325-382-0	AR	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	5-15749-040-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	8-97085-026-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 8-94390-081-1, D = 8-94392-219-3, I = 8-97600-180-0	1-15749-318-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	5-15749-051-1	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-219-3, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-593-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: H = 8-94395-921-2	1-15742-124-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1	1-15742-149-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15742-151-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 8-94390-929-0	1-15742-156-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: C = 8-94391-170-1	1-15742-160-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15742-162-2	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-152-0	02	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-295-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-151-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-294-0	02	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-451-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-592-0	01	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-159-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	8-97085-026-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-860-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP D=1.9 L=37.0 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-859-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP D=1.7 L=39.5 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-861-0	01	1	-
35	SPRING; TIMER,OUTER,INJ PUMP D=1.8 L=38.0 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-862-0	01	1	-
35	SPRING; TIMER,OUTER,INJ PUMP D=2.0 L=36.0 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-863-0	01	1	-
35	SPRING; TIMER,OUTER,INJ PUMP D=2.1 L=36.0 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-864-0	01	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-868-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-418-0	04	1	-
38	COVER; TIMER,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-072-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-591-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-930-2	01	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-390-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-391-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-392-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-393-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-493-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-494-0	AR	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-449-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	9-81345-138-0	01	1	-
56	GASKET; CAP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2, I = 8-97600-180-0	1-15749-453-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15743-144-0	01	1	-

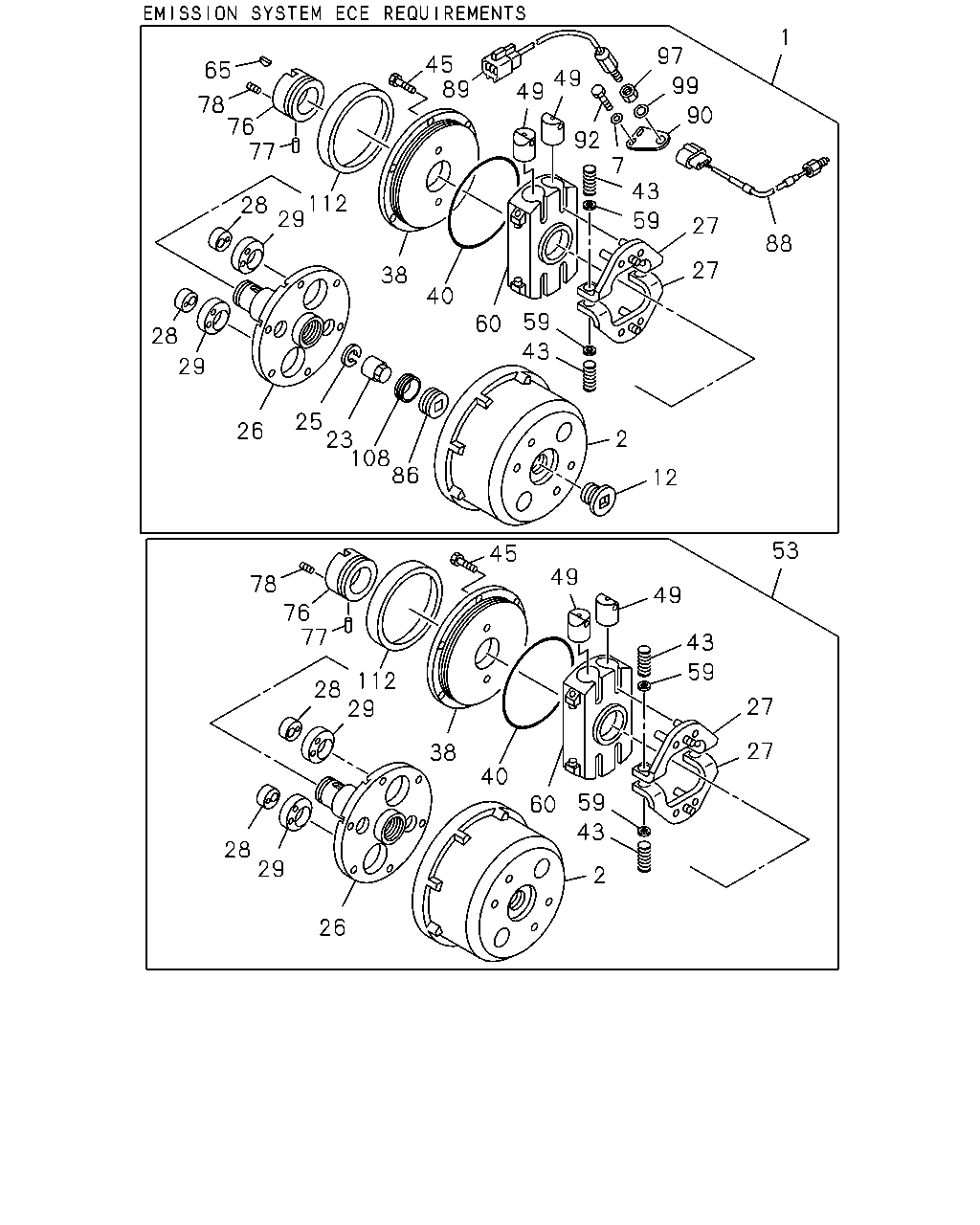

1 97 45 89 65 49 49 99 78 76 77 90 7 43 92 112 29 28 59 27 88 27 38 40 59 60 28 43 29 25 23 108 86 26 2 12 53 45 49 78 49 76 77 43 59 112 28 29 27 27 38 40 59 60 43 28 29 2 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: H = 8-94395-921-2	1-15740-416-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15740-478-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: G = 8-94395-903-1	1-15740-479-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15740-483-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 8-94390-929-0	1-15740-492-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: C = 8-94391-170-1	1-15740-512-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: D = 8-94392-219-3	1-15740-527-1	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: B = 8-94390-929-0, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1	1-15741-032-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: C = 8-94391-170-1, H = 8-94395-921-2	1-15741-050-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15741-077-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15741-082-1	01	1	-
7	WASHER; SENSOR PLATE,INJ PUMP ID=8.4 ASM PART: D = 8-94392-219-3	9-09164-508-0	02	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-031-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-452-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-935-1	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 8-94390-081-1, D = 8-94392-219-3, I = 8-97600-180-0	1-15749-318-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	5-15749-051-1	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-219-3, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-593-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: H = 8-94395-921-2	1-15742-124-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1	1-15742-149-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15742-151-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 8-94390-929-0	1-15742-156-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: C = 8-94391-170-1	1-15742-160-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15742-162-2	01	1	-
27	PLATE; CAM,TIMER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-926-1	02	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-152-0	02	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-295-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-151-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-294-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-072-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 8-94390-081-1, I = 8-97600-180-0	1-15749-591-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-930-2	01	1	-
40	GASKET; TIMER COVER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-304-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1	1-15749-621-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: H = 8-94395-921-2	1-15749-705-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP D=2.2 L=46 ASM PART: B = 8-94390-929-0	1-15749-887-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP D=2.1 L=46 ASM PART: B = 8-94390-929-0	1-15749-888-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: C = 8-94391-170-1	1-15749-917-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-928-0	04	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: B = 8-94390-929-0, C = 8-94391-170-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-94395-903-1, H = 8-94395-921-2	1-15749-029-0	02	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-305-0	06	1	-
49	PISTON; TIMER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-302-1	04	1	-
53	TIMER SUB ASM; INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-945-1	01	1	-
59	SHIM; SPR,TIMER ASM PART: D = 8-94392-219-3	1-15749-370-0	04	1	-
60	CYLINDER; TIMER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-929-1	01	1	-
65	KEY; TIMER FLANGE,INJ PUMP ASM PART: D = 8-94392-219-3	5-83539-024-0	01	1	-
76	RING; TIMING ASM PART: D = 8-94392-219-3	1-15749-306-0	01	1	-
77	PIN; TIMING RING ASM PART: D = 8-94392-219-3	1-15749-307-0	01	1	-
78	SCREW; TIMING RING ASM PART: D = 8-94392-219-3	1-15749-308-0	01	1	-
86	PLUG; TIMER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-949-0	01	1	-
88	SENSOR; TIMING,INJ PUMP GOV CONT ASM PART: D = 8-94392-219-3	1-15749-947-1	01	1	-
89	SENSOR; TDC,INJ PUMP GOV CONT ASM PART: D = 8-94392-219-3	1-15749-946-1	01	1	-
90	PLATE; SENSOR,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-927-0	01	1	-
92	BOLT; SENSOR PLATE,INJ PUMP M8X20 W/LK WASHER ASM PART: D = 8-94392-219-3	9-01910-820-0	02	1	-
97	NUT; SENSOR LOCK,INJ PUMP ASM PART: D = 8-94392-219-3	5-15729-072-0	01	1	-
99	WASHER; SENSOR LOCK NUT,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-147-0	01	1	-
108	STOPPER; TIMER,INJ PUMP ASM PART: D = 8-94392-219-3	1-15749-950-0	01	1	-
112	RING; COVER,TIMER ASM PART: D = 8-94392-219-3	1-15749-932-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
