8-75 — CONDENSER (#39477) — 11 parça

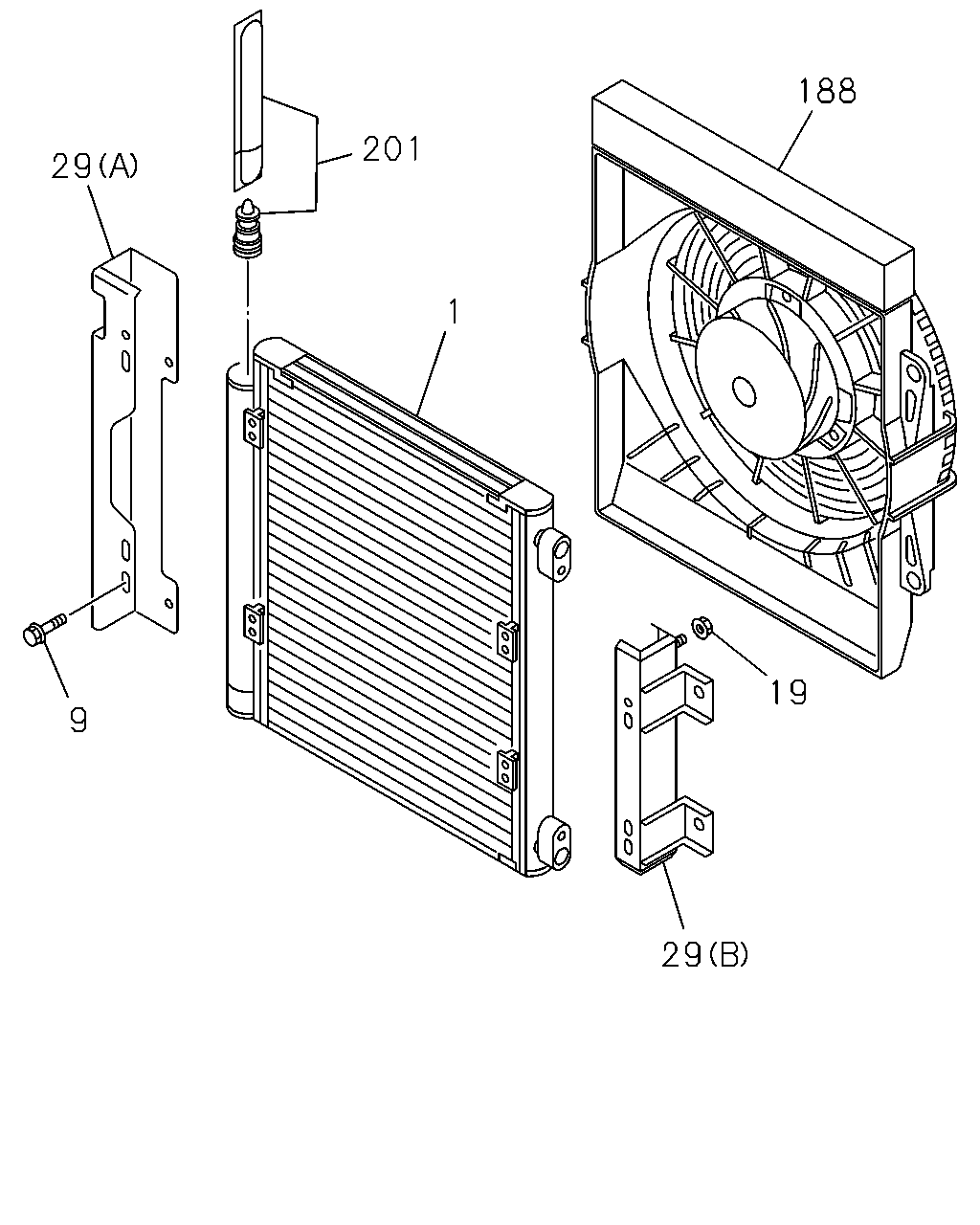

çizim 35351
188 201 29 1 19 9 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98042-456-0 01 1 0710- ● ● ● ● ● ●
9 09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M6X14 		1-83539-382-0 08 1 0710- ● ● ● ● ● ●
19 09.190 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M6 		1-83539-354-0 04 1 0710- ● ● ● ● ● ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) 		8-98042-466-0 01 1 0710- ● ● ● ● ● ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) 		8-98042-467-0 01 1 0710- ● ● ● ● ● ●
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98042-461-0 01 1 0710- ● ● ● ● ● ●
201 09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		1-83535-097-0 01 1 0710- ● ● ● ● ● ●

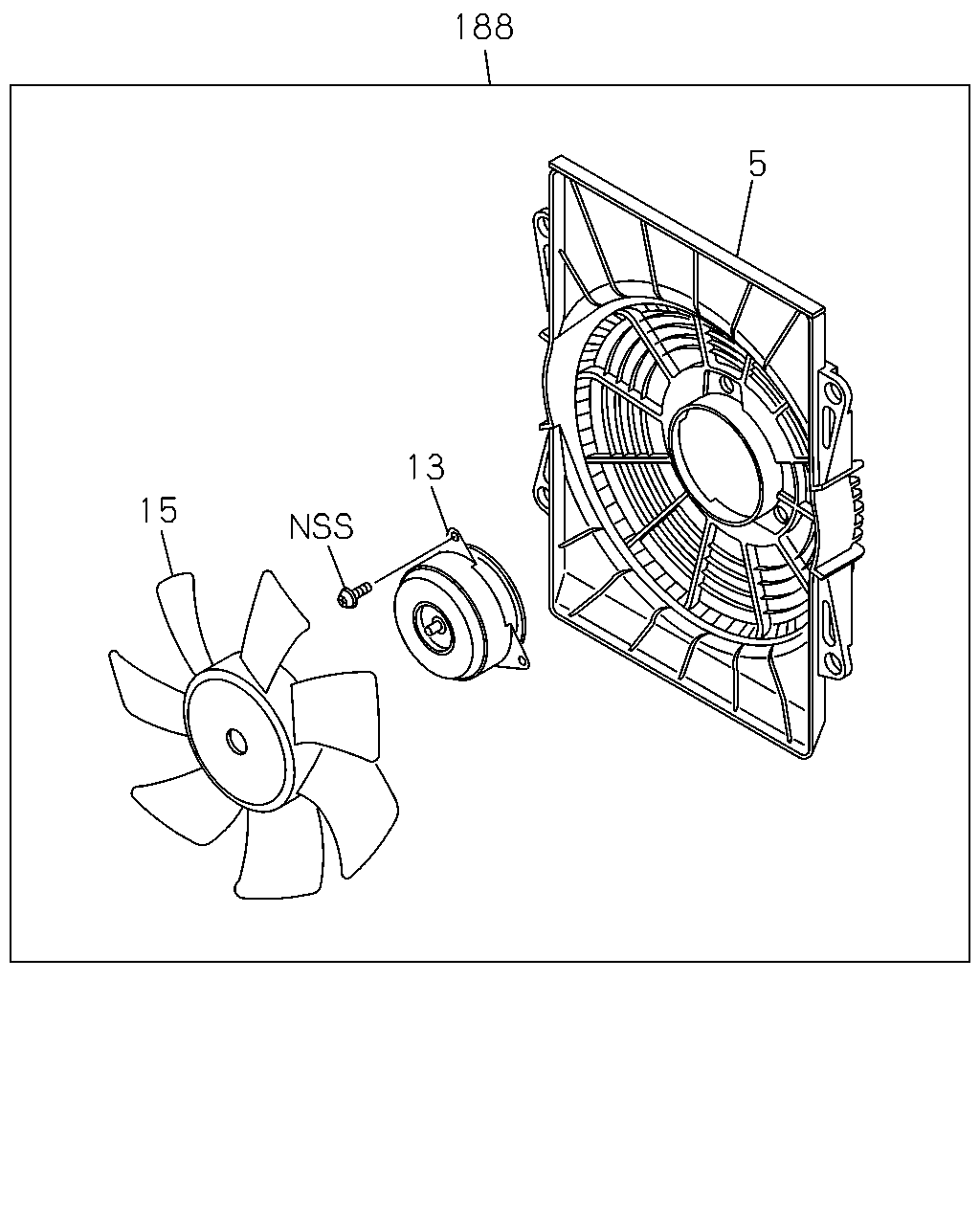

çizim 100552
188 5 13 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 09.216 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98152-866-0 01 1 0710- ● ● ● ● ● ●
13 09.215 MOTOR; FAN
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98157-045-0 01 1 0710- ● ● ● ● ● ●
15 09.216 FAN; MOTOR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98152-861-0 01 1 0710- ● ● ● ● ● ●
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98042-461-0 01 1 0710- ● ● ● ● ● ●
