8-73 — BLOWER UNIT (#39476) — 55 parça

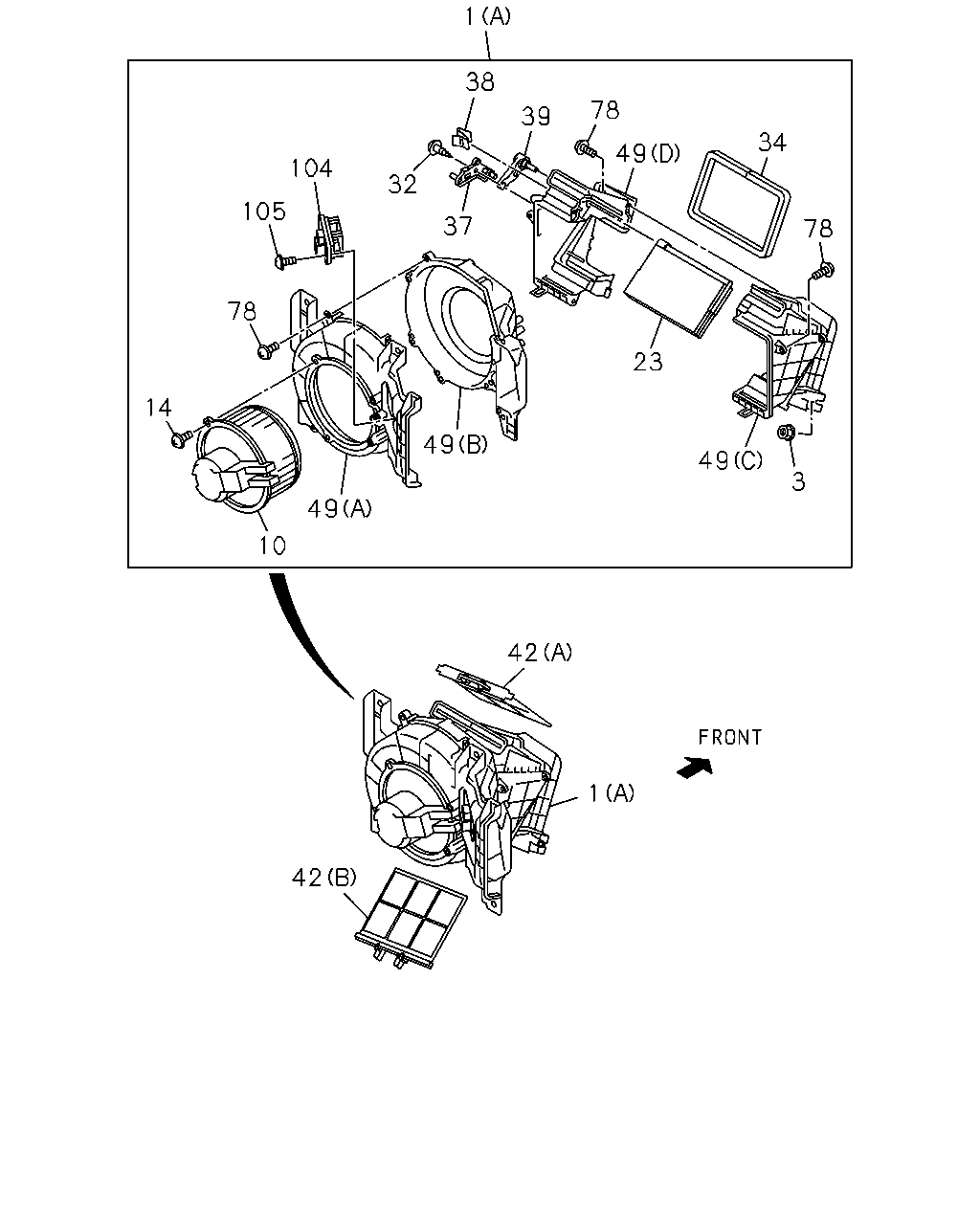

1 38 78 39 34 49 104 32 105 37 78 78 23 14 49 49 3 49 10 42 1 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.855 BLOWER ASM AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-976-3	01	1	0710-1012	●	●	●	●	●	●
1	08.855 BLOWER ASM AIR CONDITIONER MANUAL CONT(C60) (A)	8-98183-589-0	01	1	1101-	●	●	●	●	●	●
1	08.855 BLOWER ASM FULLAUTO AIR CONDITIONER(C68) (B)	8-98021-977-3	01	1	0710-1012	●	●	●	●	●	●
1	08.855 BLOWER ASM FULLAUTO AIR CONDITIONER(C68) (B)	8-98183-591-0	01	1	1101-	●	●	●	●	●	●
3	08.855 NUT; CASE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M6	8-98047-419-0	02	1	0710-1012	●	●	●	●	●	●
3	08.855 NUT; CASE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.190 M6	1-83539-354-0	02	1	1101-	●	●	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-767-0	01	1	0710-1012	●	●	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98183-924-0	01	1	1101-	●	●	●	●	●	●
14	08.857 SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M5X16	8-98047-448-0	03	1	0710-	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-437-0	01	1	0710-	●	●	●	●	●	●
32	08.856 SCREW; LEVER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16	8-98047-416-0	01	1	0710-	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-430-0	01	1	0710-	●	●	●	●	●	●
37	09.786 LEVER; MODE LEVER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-436-0	01	1	0710-	●	●	●	●	●	●
38	09.787 CLIP; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-432-0	01	1	0710-1012	●	●	●	●	●	●
38	09.787 CLIP; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60) 08.854	8-98047-417-0	01	1	1101-	●	●	●	●	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-435-0	01	1	0710-	●	●	●	●	●	●
42	08.857 FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-97387-096-1	01	1	0710-	●	●	●	●	●	●
42	08.857 FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98025-006-1	01	1	0710-	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-440-0	01	1	0710-	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-441-0	01	1	0710-	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C)	8-98047-442-0	01	1	0710-	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D)	8-98047-443-0	01	1	0710-	●	●	●	●	●	●
78	08.857 SCREW; CASE TO CASE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 08.845 M4X16	8-98047-418-0	15	1	0710-1012	●	●	●	●	●	●
78	08.857 SCREW; CASE TO CASE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING	8-97957-708-0	15	1	1101-	●	●	●	●	●	●
104	08.855 RESISTOR; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-113-0	01	1	0710-	●	●	●	●	●	●
105	08.855 SCREW; RESISTOR AIR CONDITIONER MANUAL CONT(C60) 08.845 M4X16	8-98047-418-0	02	1	0710-1012	●	●	●	●	●	●
105	08.855 SCREW; RESISTOR AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	02	1	1101-	●	●	●	●	●	●

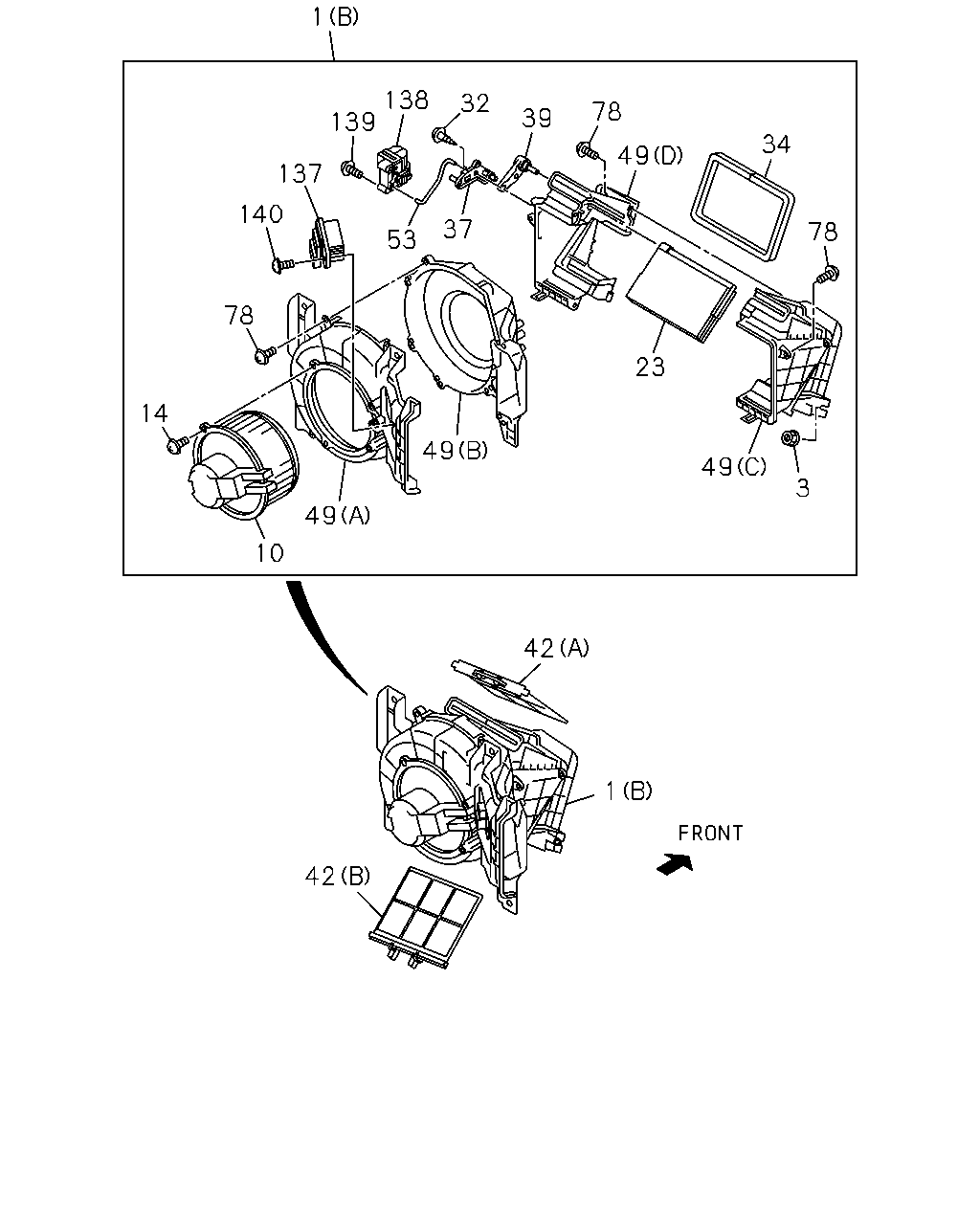

1 138 32 78 39 139 34 49 137 140 37 78 53 78 23 14 49 49 3 49 10 42 1 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.855 BLOWER ASM AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-976-3	01	1	0710-1012	●	●	●	●	●	●
1	08.855 BLOWER ASM AIR CONDITIONER MANUAL CONT(C60) (A)	8-98183-589-0	01	1	1101-	●	●	●	●	●	●
1	08.855 BLOWER ASM FULLAUTO AIR CONDITIONER(C68) (B)	8-98021-977-3	01	1	0710-1012	●	●	●	●	●	●
1	08.855 BLOWER ASM FULLAUTO AIR CONDITIONER(C68) (B)	8-98183-591-0	01	1	1101-	●	●	●	●	●	●
3	08.855 NUT; CASE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M6	8-98047-419-0	02	1	0710-1012	●	●	●	●	●	●
3	08.855 NUT; CASE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.190 M6	1-83539-354-0	02	1	1101-	●	●	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-767-0	01	1	0710-1012	●	●	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98183-924-0	01	1	1101-	●	●	●	●	●	●
14	08.857 SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M5X16	8-98047-448-0	03	1	0710-	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-437-0	01	1	0710-	●	●	●	●	●	●
32	08.856 SCREW; LEVER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16	8-98047-416-0	01	1	0710-	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-430-0	01	1	0710-	●	●	●	●	●	●
37	09.786 LEVER; MODE LEVER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-436-0	01	1	0710-	●	●	●	●	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-435-0	01	1	0710-	●	●	●	●	●	●
42	08.857 FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-97387-096-1	01	1	0710-	●	●	●	●	●	●
42	08.857 FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98025-006-1	01	1	0710-	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-440-0	01	1	0710-	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-441-0	01	1	0710-	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C)	8-98047-442-0	01	1	0710-	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D)	8-98047-443-0	01	1	0710-	●	●	●	●	●	●
53	08.856 ROD; ACTUATOR,BLOWER UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-456-0	01	1	0710-	●	●	●	●	●	●
78	08.857 SCREW; CASE TO CASE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 08.845 M4X16	8-98047-418-0	15	1	0710-1012	●	●	●	●	●	●
78	08.857 SCREW; CASE TO CASE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING	8-97957-708-0	15	1	1101-	●	●	●	●	●	●
137	08.855 MODULE ASM; BLOWER FULLAUTO AIR CONDITIONER(C68)	8-98047-458-0	01	1	0710-	●	●	●	●	●	●
138	08.855 SERVO ASM; BLOWER FULLAUTO AIR CONDITIONER(C68)	8-98045-383-0	01	1	0710-	●	●	●	●	●	●
139	09.782 SCREW; SERVO FULLAUTO AIR CONDITIONER(C68) M4X35	8-98047-455-0	03	1	0710-	●	●	●	●	●	●
140	08.857 SCREW; MODULE FULLAUTO AIR CONDITIONER(C68) 08.845 M4X16	8-98047-418-0	02	1	0710-1012	●	●	●	●	●	●
140	08.857 SCREW; MODULE FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING	8-97957-708-0	02	1	1101-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
