Isuzu WW
▶
TRUCKS
▶
NNR
▶
51398 - NNR/NPR/NQR(AUST)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

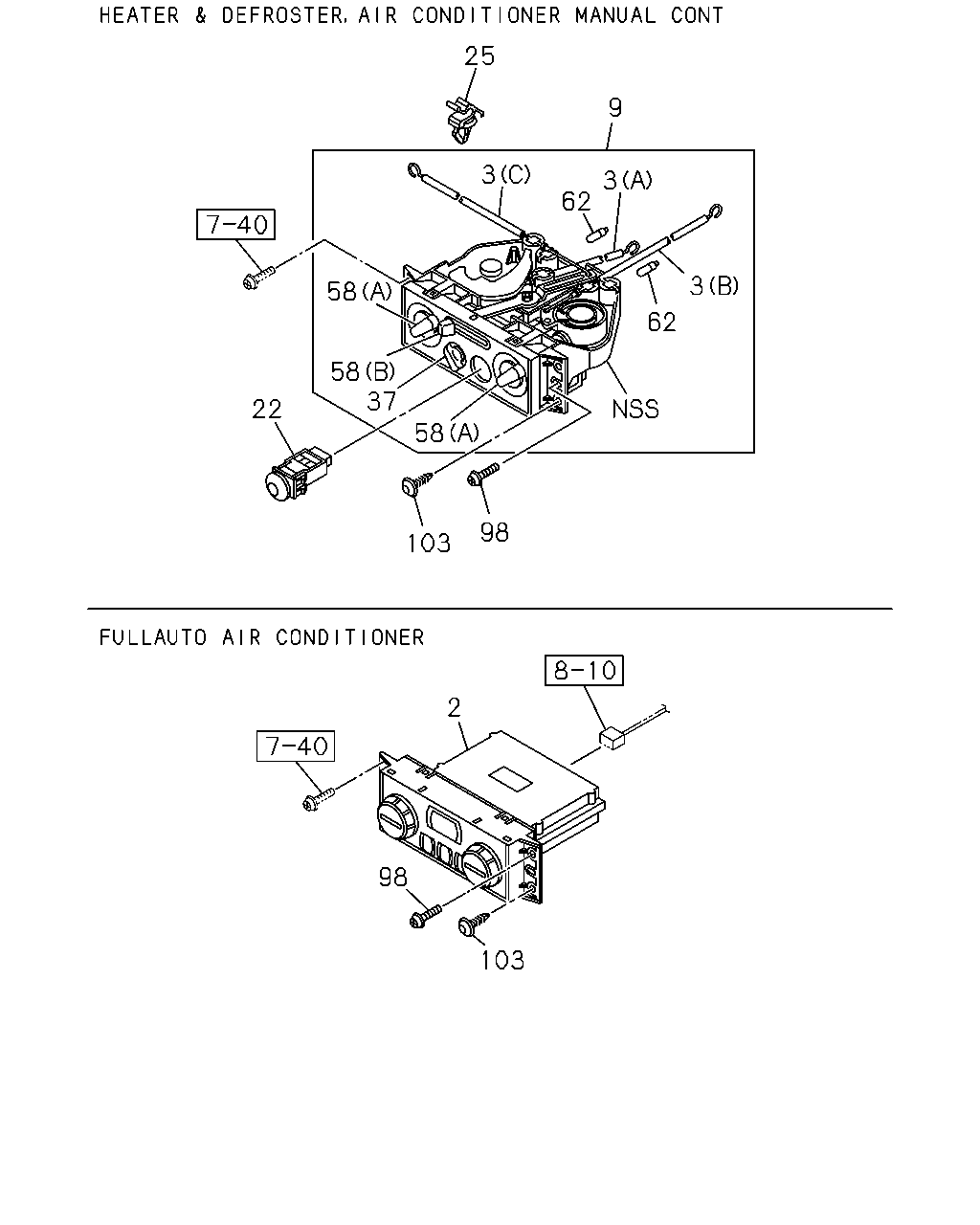

8-65 - CONTROL LEVER; HEATER AND AIR CON
▶
8-65 — CONTROL LEVER; HEATER AND AIR CON
(#39474) — 14 parça
Tümü
A - NPR5SE
B - NPR5SN
C - NPR5SS
D - NPR5WE
E - NPR5WN
F - NPR5WS
25
9
3
3
62
3
58
62
58
37
58
22
98
103
2
98
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
2
08.852 PANEL ASM; CONT,ILLUMINATION
FULLAUTO AIR CONDITIONER(C68)
8-98021-984-0
01
1
0710-
●
●
●
●
●
●
3
09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (A) MODE
8-98039-250-0
01
1
0710-
●
●
●
●
●
●
3
09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (B) MIX
8-98039-251-0
01
1
0710-
●
●
●
●
●
●
3
09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (C) FRESH
8-98039-253-2
01
1
0710-
●
●
●
●
●
●
9
08.852 LEVER ASM; HTR & A/C CONT
AIR CONDITIONER MANUAL CONT(C60)
8-98037-363-2
01
1
0710-
●
●
●
●
●
●
22
08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60)
8-98021-982-0
01
1
0710-
●
●
●
●
●
●
25
08.854 CLIP; CABLE,CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8
8-94128-483-0
01
1
0710-
●
●
●
●
●
●
37
08.852 KNOB; SW,HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60)
8-98037-368-0
01
1
0710-
●
●
●
●
●
●
58
09.787 KNOB; LVR,HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (A)
8-98037-369-0
02
1
0710-
●
●
●
●
●
●
58
09.787 KNOB; LVR,HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (B)
8-98037-370-0
01
1
0710-
●
●
●
●
●
●
62
08.991 BULB; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W
8-98037-371-0
02
1
0710-
●
●
●
●
●
●
98
08.852 SCREW; CONT PANEL
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.647 T25 M5X20 TAPPING HEXALOBULAR
0-72180-520-0
01
1
0710-1101
●
●
●
●
●
●
98
08.852 SCREW; CONT PANEL
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.100 M5X20 HEXALOBULAR SOCKET
8-98177-743-0
01
1
1102-
●
●
●
●
●
●
103
08.854 CLIP
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.742 DARK GRAY
8-97098-326-0
01
1
0710-
●
●
●
●
●
●
