◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-84 - FEED PUMP; INJECTION PUMP ▶
0-84 — FEED PUMP; INJECTION PUMP (#3947) — 194 parça

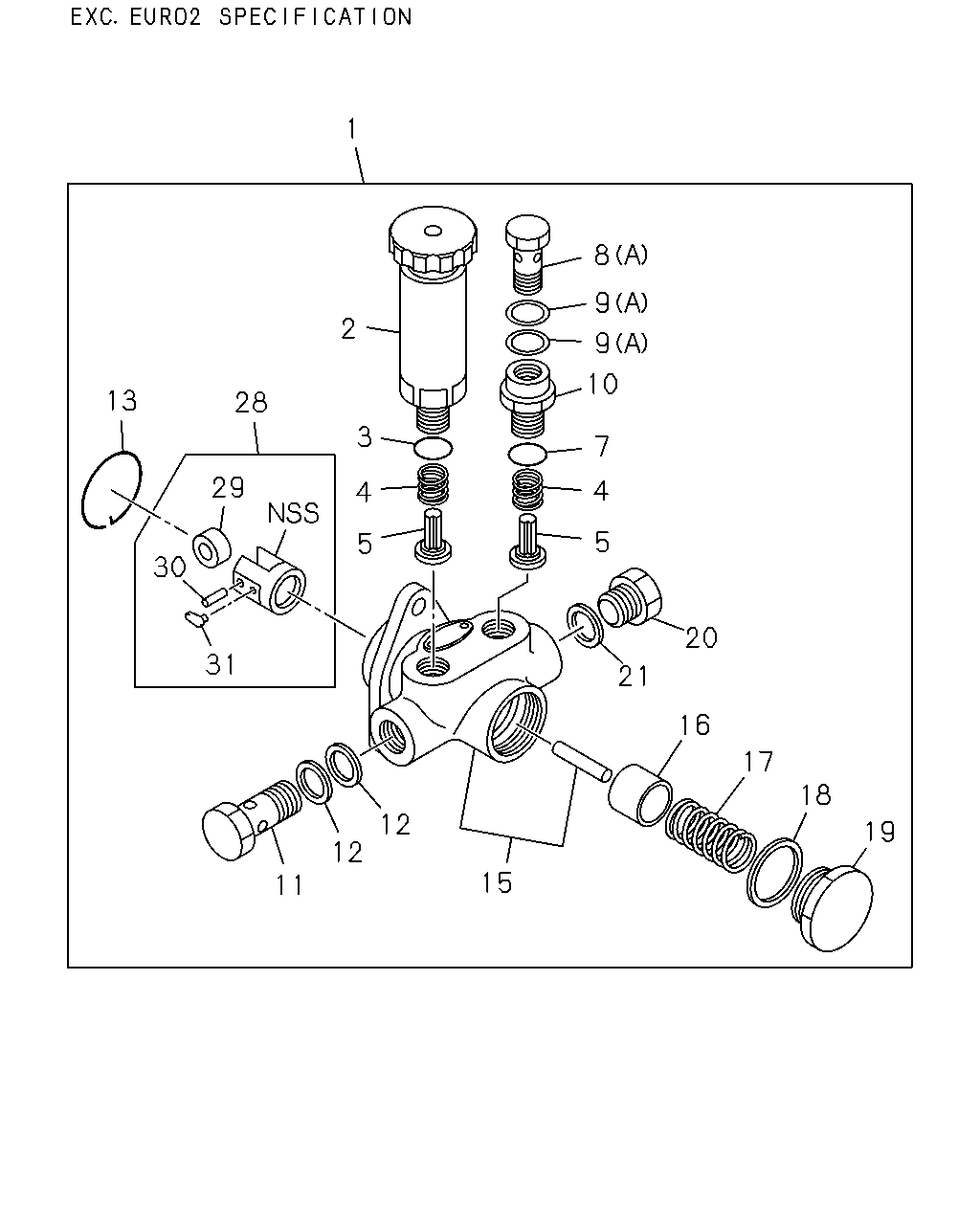

çizim 115928
1 8 9 2 9 10 13 28 3 7 29 4 4 30 5 5 20 31 21 16 17 18 12 19 12 15 11
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: C = 8-94391-170-1, K = 8-94395-921-2 		1-15750-113-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15750-140-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, J = 8-94395-903-1, L = 8-97600-180-0 		1-15750-148-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: H = 8-94395-813-1, I = 8-94395-901-1 		1-15750-155-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: F = 8-94392-219-3 		1-15750-178-0 01 1 -
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-15761-006-0 01 1 -
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-19623-016-0 01 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		9-81351-702-0 04 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		9-81351-702-0 02 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0 		1-15755-002-0 02 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15755-002-0 04 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, K = 8-94395-921-2 		9-81351-602-0 02 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		1-19623-016-0 01 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-19623-016-0 03 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
(A) ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-011-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
(B) ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-051-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
(C), M14X30 ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		8-97203-957-0 01 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(A) ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, F = 8-94392-219-3, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0 		1-09630-085-0 02 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(A) ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-09630-085-0 04 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(A) ASM PART: C = 8-94391-170-1, K = 8-94395-921-2 		1-15759-012-0 02 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(B) ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		9-81215-182-1 02 1 -
10 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		1-15759-003-0 01 1 -
10 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-067-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		1-15759-029-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
M14X30 ASM PART: F = 8-94392-219-3 		8-97203-957-0 01 1 -
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, F = 8-94392-219-3, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0 		1-09630-085-0 02 1 -
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, K = 8-94395-921-2 		1-15759-012-0 02 1 -
13 RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, F = 8-94392-219-3, K = 8-94395-921-2 		9-81355-025-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, K = 8-94395-921-2 		1-15751-027-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: G = 8-94392-231-8 		1-15751-036-0 01 1 -0503
15 HOUSING; FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, M = 8-97600-576-1, N = 8-97602-131-0 		1-15751-036-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: F = 8-94392-219-3 		1-15751-043-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: G = 8-94392-231-8 		1-15751-049-0 01 1 0504-
15 HOUSING; FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0 		8-97115-989-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-15752-001-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, F = 8-94392-219-3, K = 8-94395-921-2 		9-81351-205-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15753-005-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		9-81351-302-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: F = 8-94392-219-3 		9-81351-503-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-042-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, F = 8-94392-219-3, K = 8-94395-921-2 		9-81355-035-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		8-94171-185-0 01 1 -
20 PLUG; HSG,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-008-1, E = 8-94392-009-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-004-0 01 1 -
20 PLUG; HSG,FUEL FEED PUMP
ASM PART: G = 8-94392-231-8 		1-15759-004-0 01 1 -0503
21 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		1-15759-007-0 01 1 -
21 GASKET; PLUG,FUEL FEED PUMP
ASM PART: G = 8-94392-231-8 		9-81215-182-1 01 1 -0503
21 GASKET; PLUG,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, M = 8-97600-576-1, N = 8-97602-131-0 		9-81215-182-1 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, F = 8-94392-219-3, K = 8-94395-921-2 		1-15754-002-0 01 1 -
29 ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, F = 8-94392-219-3, K = 8-94395-921-2 		1-15759-043-0 01 1 -
30 PIN; TAPPET ROLLER,FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, F = 8-94392-219-3, K = 8-94395-921-2 		9-81351-406-0 01 1 -
31 GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, F = 8-94392-219-3, K = 8-94395-921-2 		9-81351-416-0 02 1 -

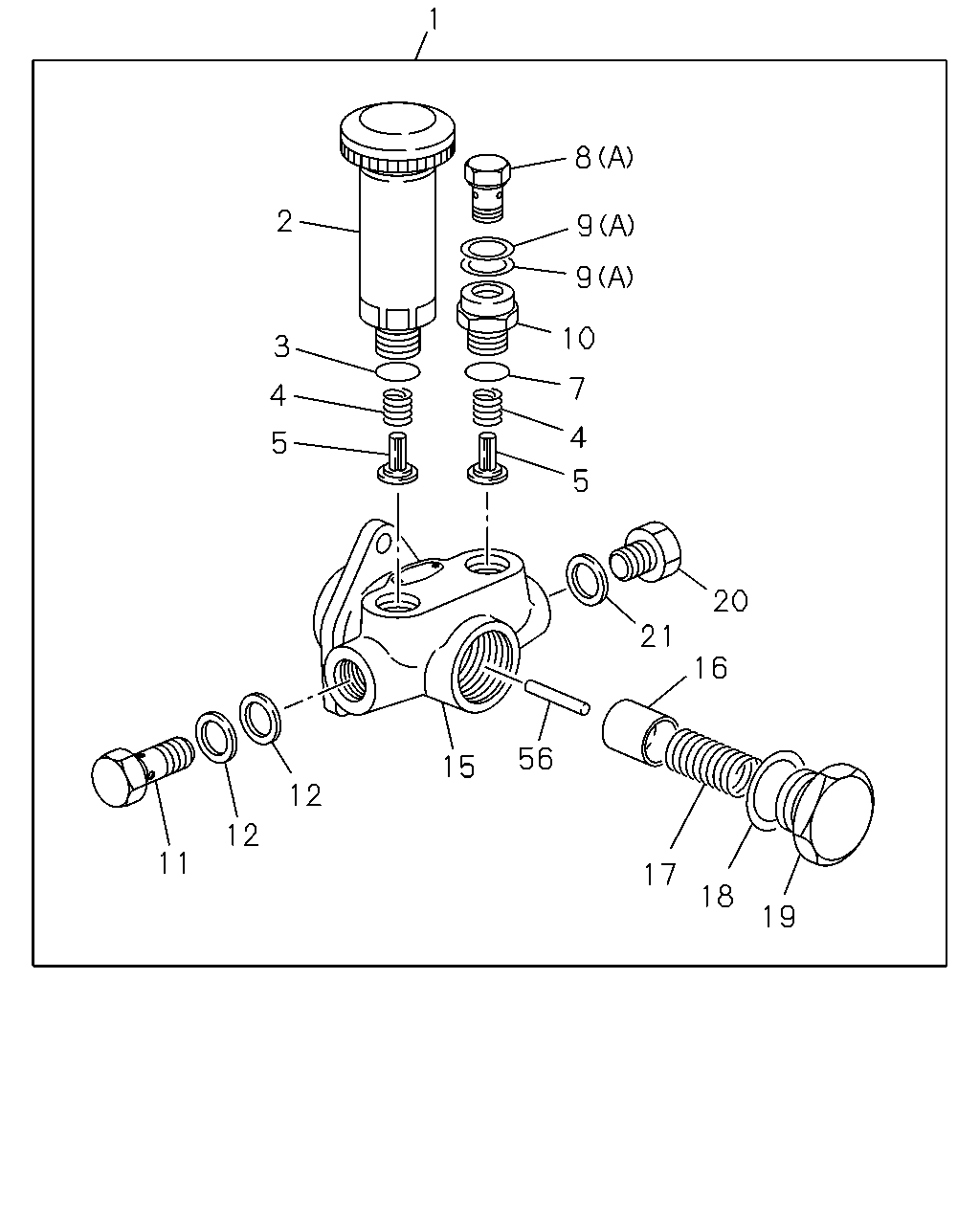

çizim 115931
1 8 2 9 9 10 3 7 4 4 5 5 20 21 16 56 15 12 12 11 17 18 19
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: C = 8-94391-170-1, K = 8-94395-921-2 		1-15750-113-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15750-140-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, J = 8-94395-903-1, L = 8-97600-180-0 		1-15750-148-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: H = 8-94395-813-1, I = 8-94395-901-1 		1-15750-155-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: F = 8-94392-219-3 		1-15750-178-0 01 1 -
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-15761-006-0 01 1 -
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-19623-016-0 01 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		9-81351-702-0 04 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		9-81351-702-0 02 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0 		1-15755-002-0 02 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15755-002-0 04 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, K = 8-94395-921-2 		9-81351-602-0 02 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		1-19623-016-0 01 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-19623-016-0 03 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
(A) ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-011-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
(B) ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-051-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
(C), M14X30 ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		8-97203-957-0 01 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(A) ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, F = 8-94392-219-3, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0 		1-09630-085-0 02 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(A) ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-09630-085-0 04 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(A) ASM PART: C = 8-94391-170-1, K = 8-94395-921-2 		1-15759-012-0 02 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(B) ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		9-81215-182-1 02 1 -
10 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		1-15759-003-0 01 1 -
10 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-067-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		1-15759-029-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
M14X30 ASM PART: F = 8-94392-219-3 		8-97203-957-0 01 1 -
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, F = 8-94392-219-3, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0 		1-09630-085-0 02 1 -
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, K = 8-94395-921-2 		1-15759-012-0 02 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, K = 8-94395-921-2 		1-15751-027-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: G = 8-94392-231-8 		1-15751-036-0 01 1 -0503
15 HOUSING; FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, M = 8-97600-576-1, N = 8-97602-131-0 		1-15751-036-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: F = 8-94392-219-3 		1-15751-043-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: G = 8-94392-231-8 		1-15751-049-0 01 1 0504-
15 HOUSING; FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0 		8-97115-989-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-15752-001-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, F = 8-94392-219-3, K = 8-94395-921-2 		9-81351-205-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15753-005-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		9-81351-302-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: F = 8-94392-219-3 		9-81351-503-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-042-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, F = 8-94392-219-3, K = 8-94395-921-2 		9-81355-035-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		8-94171-185-0 01 1 -
20 PLUG; HSG,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-008-1, E = 8-94392-009-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-004-0 01 1 -
20 PLUG; HSG,FUEL FEED PUMP
ASM PART: G = 8-94392-231-8 		1-15759-004-0 01 1 -0503
21 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		1-15759-007-0 01 1 -
21 GASKET; PLUG,FUEL FEED PUMP
ASM PART: G = 8-94392-231-8 		9-81215-182-1 01 1 -0503
21 GASKET; PLUG,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, M = 8-97600-576-1, N = 8-97602-131-0 		9-81215-182-1 01 1 -
56 PUSH ROD
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-074-0 01 1 -
56 PUSH ROD
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, J = 8-94395-903-1, L = 8-97600-180-0 		8-97115-990-0 01 1 -
56 PUSH ROD
ASM PART: H = 8-94395-813-1, I = 8-94395-901-1 		8-97115-991-0 01 1 -

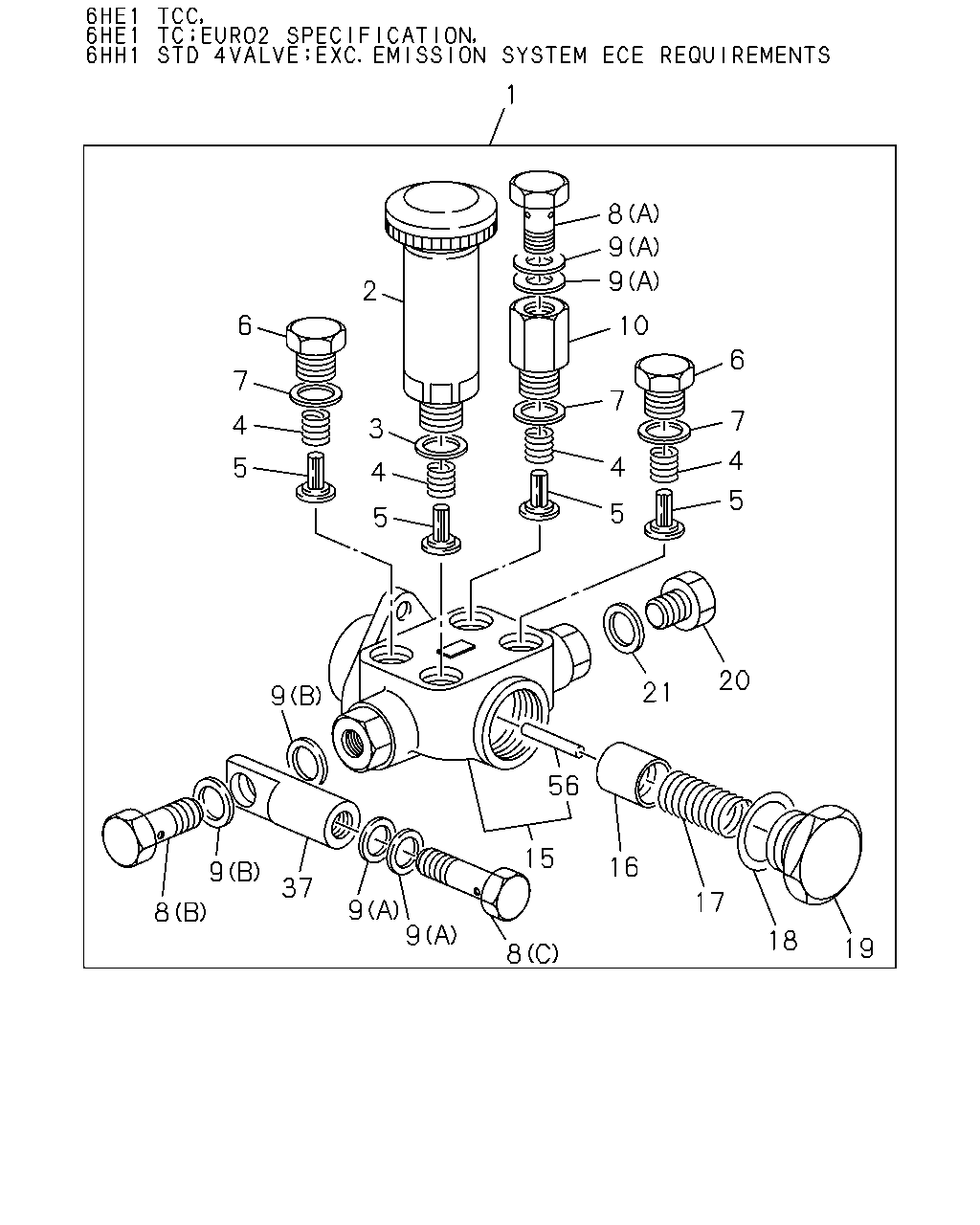

çizim 115933
1 8 9 9 10 6 7 4 5 5 4 7 2 6 7 4 5 3 4 5 21 20 56 16 17 18 19 15 9 8 9 37 9 9 8
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: C = 8-94391-170-1, K = 8-94395-921-2 		1-15750-113-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15750-140-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, J = 8-94395-903-1, L = 8-97600-180-0 		1-15750-148-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: H = 8-94395-813-1, I = 8-94395-901-1 		1-15750-155-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: F = 8-94392-219-3 		1-15750-178-0 01 1 -
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-15761-006-0 01 1 -
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-19623-016-0 01 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		9-81351-702-0 04 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		9-81351-702-0 02 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0 		1-15755-002-0 02 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15755-002-0 04 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, K = 8-94395-921-2 		9-81351-602-0 02 1 -
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-066-0 02 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		1-19623-016-0 01 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-19623-016-0 03 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
(A) ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-011-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
(B) ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-051-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
(C), M14X30 ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		8-97203-957-0 01 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(A) ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, F = 8-94392-219-3, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0 		1-09630-085-0 02 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(A) ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-09630-085-0 04 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(A) ASM PART: C = 8-94391-170-1, K = 8-94395-921-2 		1-15759-012-0 02 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(B) ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		9-81215-182-1 02 1 -
10 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		1-15759-003-0 01 1 -
10 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-067-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, K = 8-94395-921-2 		1-15751-027-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: G = 8-94392-231-8 		1-15751-036-0 01 1 -0503
15 HOUSING; FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, M = 8-97600-576-1, N = 8-97602-131-0 		1-15751-036-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: F = 8-94392-219-3 		1-15751-043-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: G = 8-94392-231-8 		1-15751-049-0 01 1 0504-
15 HOUSING; FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0 		8-97115-989-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-15752-001-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, F = 8-94392-219-3, K = 8-94395-921-2 		9-81351-205-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15753-005-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		9-81351-302-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: F = 8-94392-219-3 		9-81351-503-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-042-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, F = 8-94392-219-3, K = 8-94395-921-2 		9-81355-035-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		8-94171-185-0 01 1 -
20 PLUG; HSG,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-008-1, E = 8-94392-009-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-004-0 01 1 -
20 PLUG; HSG,FUEL FEED PUMP
ASM PART: G = 8-94392-231-8 		1-15759-004-0 01 1 -0503
21 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		1-15759-007-0 01 1 -
21 GASKET; PLUG,FUEL FEED PUMP
ASM PART: G = 8-94392-231-8 		9-81215-182-1 01 1 -0503
21 GASKET; PLUG,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, M = 8-97600-576-1, N = 8-97602-131-0 		9-81215-182-1 01 1 -
37 EYE; FUEL OUTLET,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-050-0 01 1 -
56 PUSH ROD
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-074-0 01 1 -
56 PUSH ROD
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, J = 8-94395-903-1, L = 8-97600-180-0 		8-97115-990-0 01 1 -
56 PUSH ROD
ASM PART: H = 8-94395-813-1, I = 8-94395-901-1 		8-97115-991-0 01 1 -

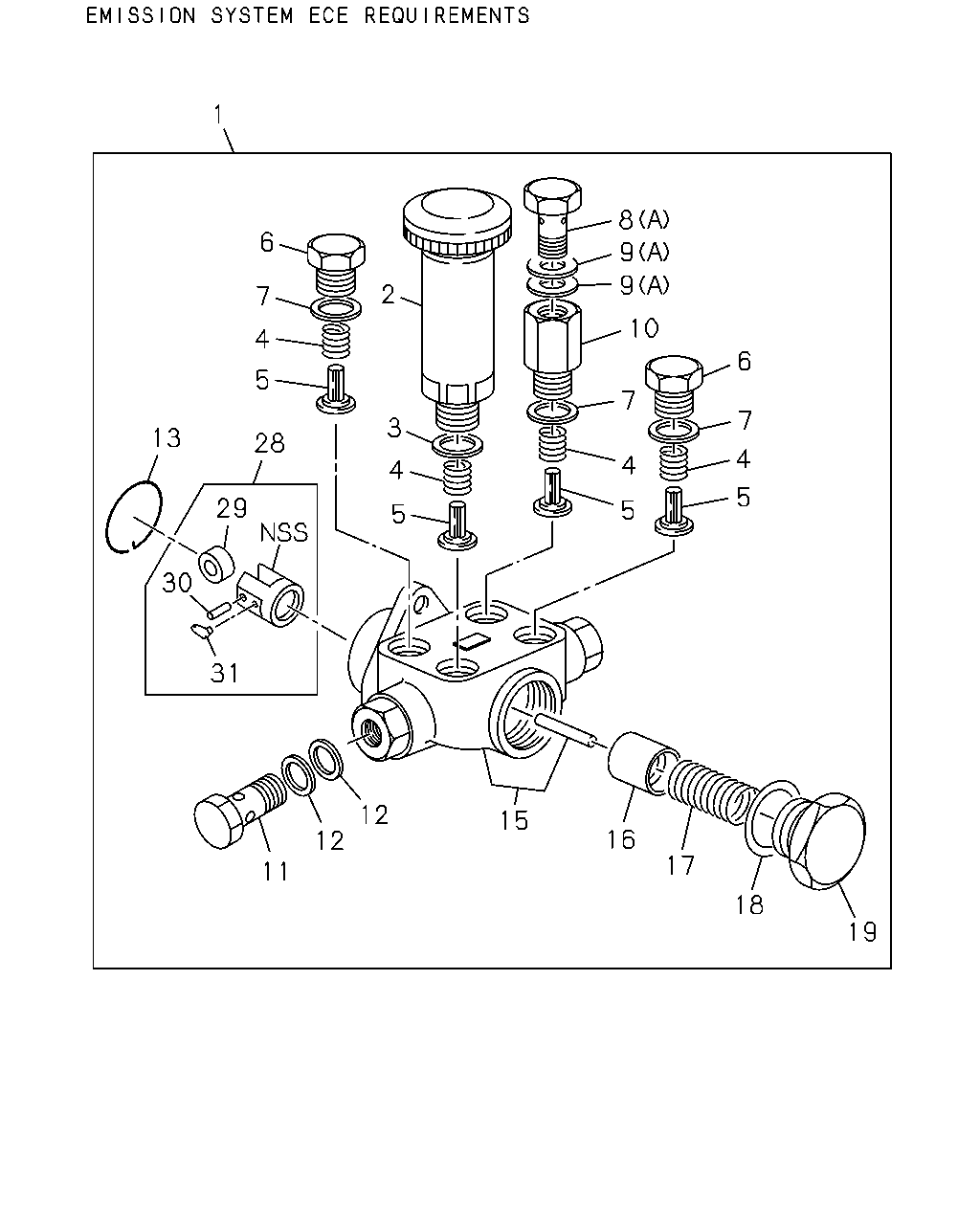

çizim 115934
1 8 9 6 9 2 7 10 4 6 5 7 7 3 13 28 4 4 4 5 29 5 5 30 31 12 15 16 12 17 11 18 19
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: C = 8-94391-170-1, K = 8-94395-921-2 		1-15750-113-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15750-140-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, J = 8-94395-903-1, L = 8-97600-180-0 		1-15750-148-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: H = 8-94395-813-1, I = 8-94395-901-1 		1-15750-155-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: F = 8-94392-219-3 		1-15750-178-0 01 1 -
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-15761-006-0 01 1 -
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-19623-016-0 01 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		9-81351-702-0 04 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		9-81351-702-0 02 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0 		1-15755-002-0 02 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15755-002-0 04 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, K = 8-94395-921-2 		9-81351-602-0 02 1 -
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-066-0 02 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		1-19623-016-0 01 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-19623-016-0 03 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
(A) ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-011-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
(B) ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-051-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
(C), M14X30 ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		8-97203-957-0 01 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(A) ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, F = 8-94392-219-3, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0 		1-09630-085-0 02 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(A) ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-09630-085-0 04 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(A) ASM PART: C = 8-94391-170-1, K = 8-94395-921-2 		1-15759-012-0 02 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(B) ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		9-81215-182-1 02 1 -
10 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		1-15759-003-0 01 1 -
10 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-067-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		1-15759-029-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
M14X30 ASM PART: F = 8-94392-219-3 		8-97203-957-0 01 1 -
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, F = 8-94392-219-3, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0 		1-09630-085-0 02 1 -
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, K = 8-94395-921-2 		1-15759-012-0 02 1 -
13 RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, F = 8-94392-219-3, K = 8-94395-921-2 		9-81355-025-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, K = 8-94395-921-2 		1-15751-027-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: G = 8-94392-231-8 		1-15751-036-0 01 1 -0503
15 HOUSING; FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, M = 8-97600-576-1, N = 8-97602-131-0 		1-15751-036-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: F = 8-94392-219-3 		1-15751-043-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: G = 8-94392-231-8 		1-15751-049-0 01 1 0504-
15 HOUSING; FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0 		8-97115-989-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-15752-001-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, F = 8-94392-219-3, K = 8-94395-921-2 		9-81351-205-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, M = 8-97600-576-1, N = 8-97602-131-0 		1-15753-005-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0 		9-81351-302-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: F = 8-94392-219-3 		9-81351-503-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94392-008-1, E = 8-94392-009-1, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		1-15759-042-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, F = 8-94392-219-3, K = 8-94395-921-2 		9-81355-035-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-170-1, D = 8-94392-008-1, E = 8-94392-009-1, F = 8-94392-219-3, G = 8-94392-231-8, H = 8-94395-813-1, I = 8-94395-901-1, J = 8-94395-903-1, K = 8-94395-921-2, L = 8-97600-180-0, M = 8-97600-576-1, N = 8-97602-131-0 		8-94171-185-0 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, F = 8-94392-219-3, K = 8-94395-921-2 		1-15754-002-0 01 1 -
29 ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, F = 8-94392-219-3, K = 8-94395-921-2 		1-15759-043-0 01 1 -
30 PIN; TAPPET ROLLER,FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, F = 8-94392-219-3, K = 8-94395-921-2 		9-81351-406-0 01 1 -
31 GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: C = 8-94391-170-1, F = 8-94392-219-3, K = 8-94395-921-2 		9-81351-416-0 02 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
