◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51398 - NNR/NPR/NQR(AUST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#39468) — 77 parça

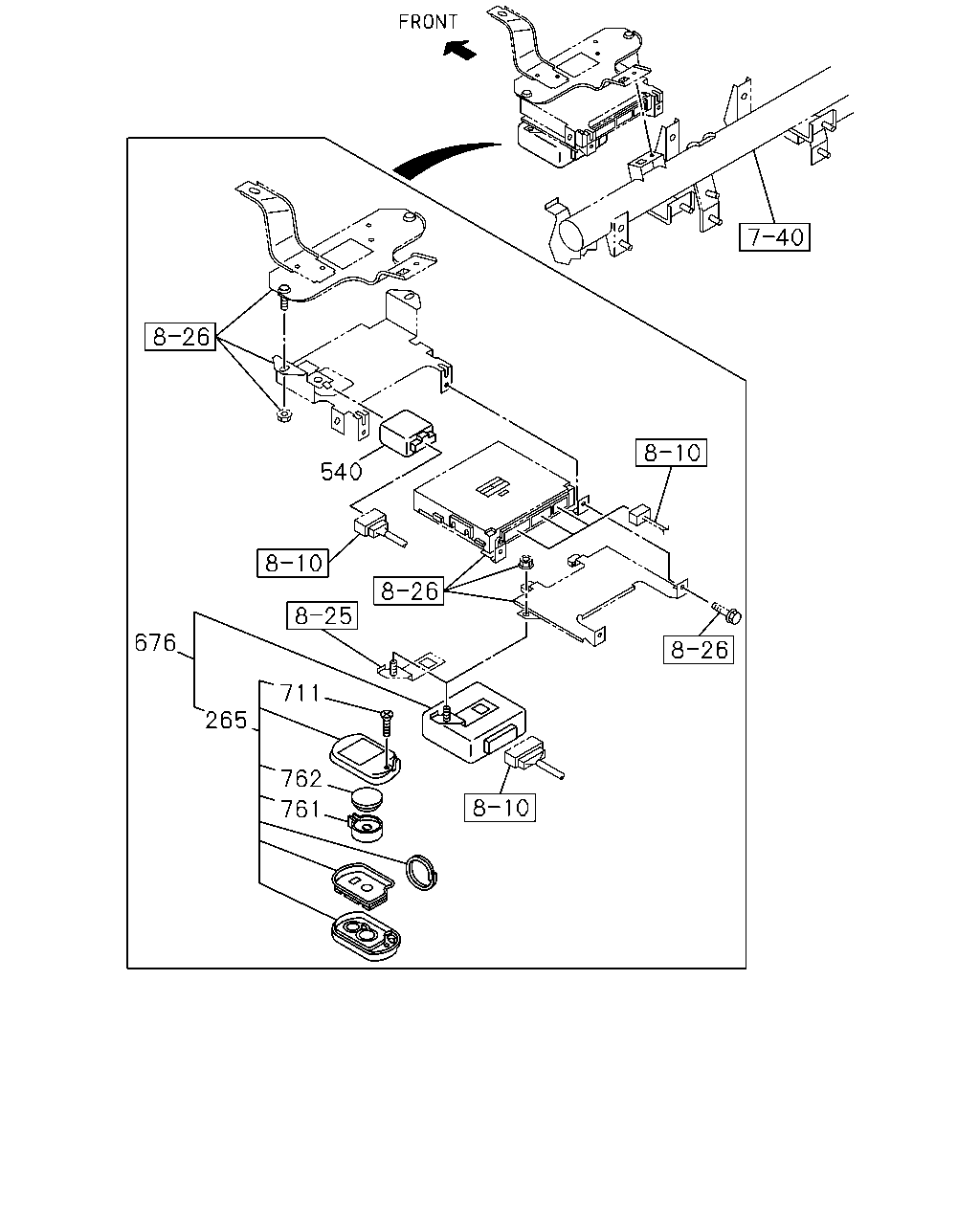

çizim 35191
540 676 711 265 762 761
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 0710-0805 ● ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 0806-0806 ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> 		8-98048-459-1 02 1 0806-0806 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 0806-1012 ● ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98180-751-0 02 1 1101- ● ● ● ● ● ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98060-388-0 01 1 0710- ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98044-504-1 01 1 0710-0805 ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98044-504-1 01 1 0806-0806 ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<6NF> 		8-98044-504-1 01 1 0806-0806 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98044-504-1 01 1 0806-1012 ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98181-810-0 01 1 1101- ● ● ● ● ● ●
711 02.510 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 0710-0805 ● ● ● ● ● ●
711 02.510 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 0806-0806 ● ● ● ● ●
711 02.510 SCREW; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> M2X5 		8-98078-067-0 02 1 0806-0806 ●
711 02.510 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 0806- ● ● ● ● ● ●
761 04.439 HOLDER; BATTERY 8-98078-063-0 02 1 0710-0805 ● ● ● ● ● ●
761 04.439 HOLDER; BATTERY 8-98078-063-0 02 1 0806-0806 ● ● ● ● ●
761 04.439 HOLDER; BATTERY
REMOTE CONT DOOR LOCK<6NF> 		8-98078-063-0 02 1 0806-0806 ●
761 04.439 HOLDER; BATTERY 8-98078-063-0 02 1 0806-1012 ● ● ● ● ● ●
762 02.559 BATTERY 8-98078-061-0 02 1 0710-0805 ● ● ● ● ● ●
762 02.559 BATTERY 8-98078-061-0 02 1 0806-0806 ● ● ● ● ●
762 02.559 BATTERY
REMOTE CONT DOOR LOCK<6NF> 		8-98078-061-0 02 1 0806-0806 ●
762 02.559 BATTERY 8-98078-061-0 02 1 0806- ● ● ● ● ● ●

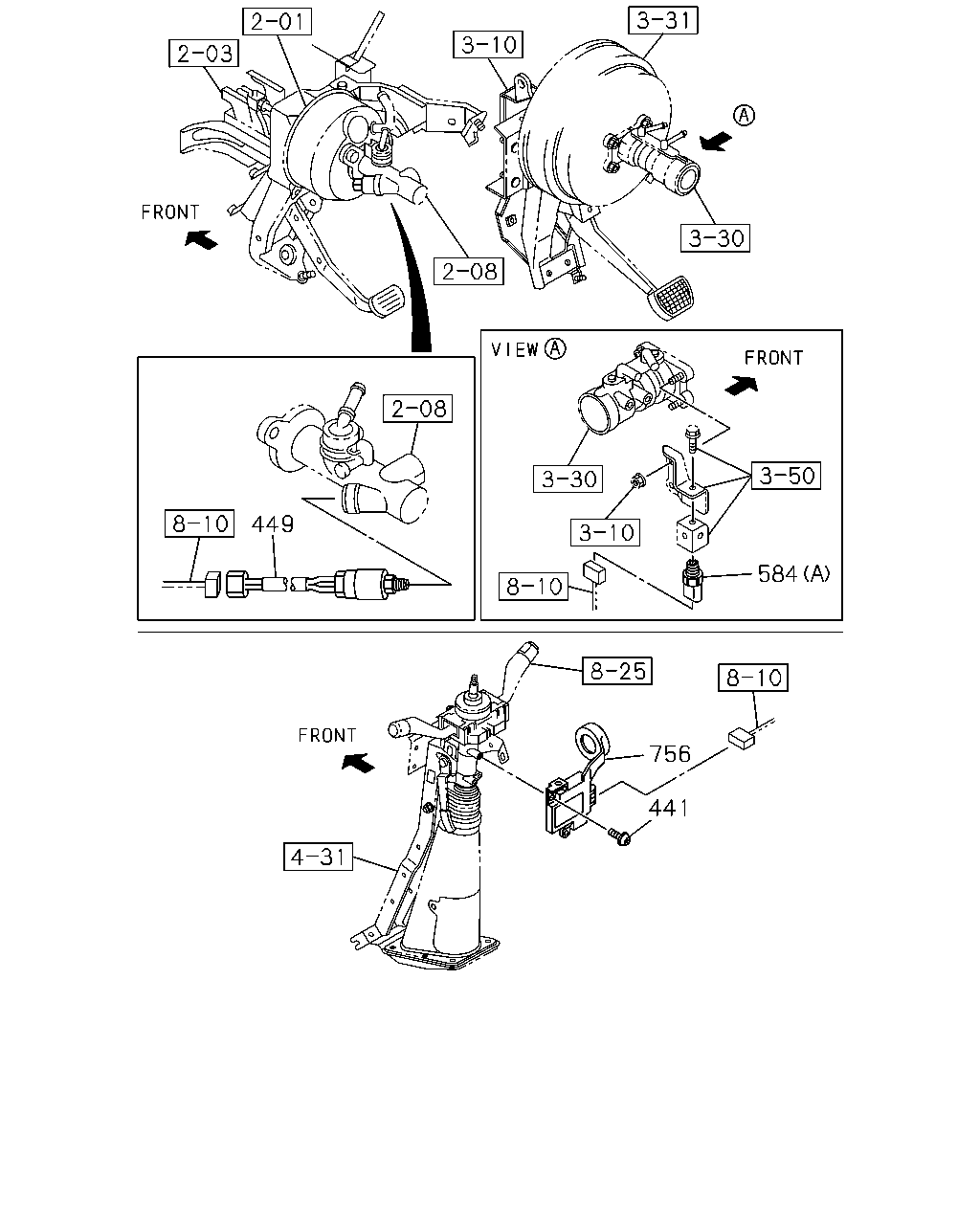

çizim 35224
449 584 756 441
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
441 02.575 SCREW; CONT UNIT
09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 0710-0805 ● ● ● ● ● ●
441 02.575 SCREW; CONT UNIT
09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 0806-0806 ● ● ● ● ●
441 02.575 SCREW; CONT UNIT
IMMOBILIZER SYSTEM(7KC) 09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 0806-0806 ●
441 02.575 SCREW; CONT UNIT
09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 0806- ● ● ● ● ● ●
449 08.083 SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98072-042-1 01 1 0710- ● ● ● ● ● ●
584 02.440 SENSOR; PRESSURE
03.331 (B) 		8-98020-514-0 01 1 0710- ● ● ● ● ● ●
584 02.440 SENSOR; PRESSURE
(A) 		8-97387-682-0 01 1 0710- ● ● ● ● ● ●
756 16.263 CONTROL UNIT; IMMOBILIZER 8-98073-883-0 01 1 0710-0711 ● ● ● ● ● ●
756 16.263 CONTROL UNIT; IMMOBILIZER 8-98097-554-0 01 1 0712-0805 ● ● ● ● ● ●
756 16.263 CONTROL UNIT; IMMOBILIZER 8-98097-554-0 01 1 0806-0806 ● ● ● ● ●
756 16.263 CONTROL UNIT; IMMOBILIZER
IMMOBILIZER SYSTEM(7KC) 		8-98097-554-0 01 1 0806-0806 ●
756 16.263 CONTROL UNIT; IMMOBILIZER 8-98097-554-0 01 1 0806-1005 ● ● ● ● ● ●
756 16.263 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1006- ● ● ● ● ● ●

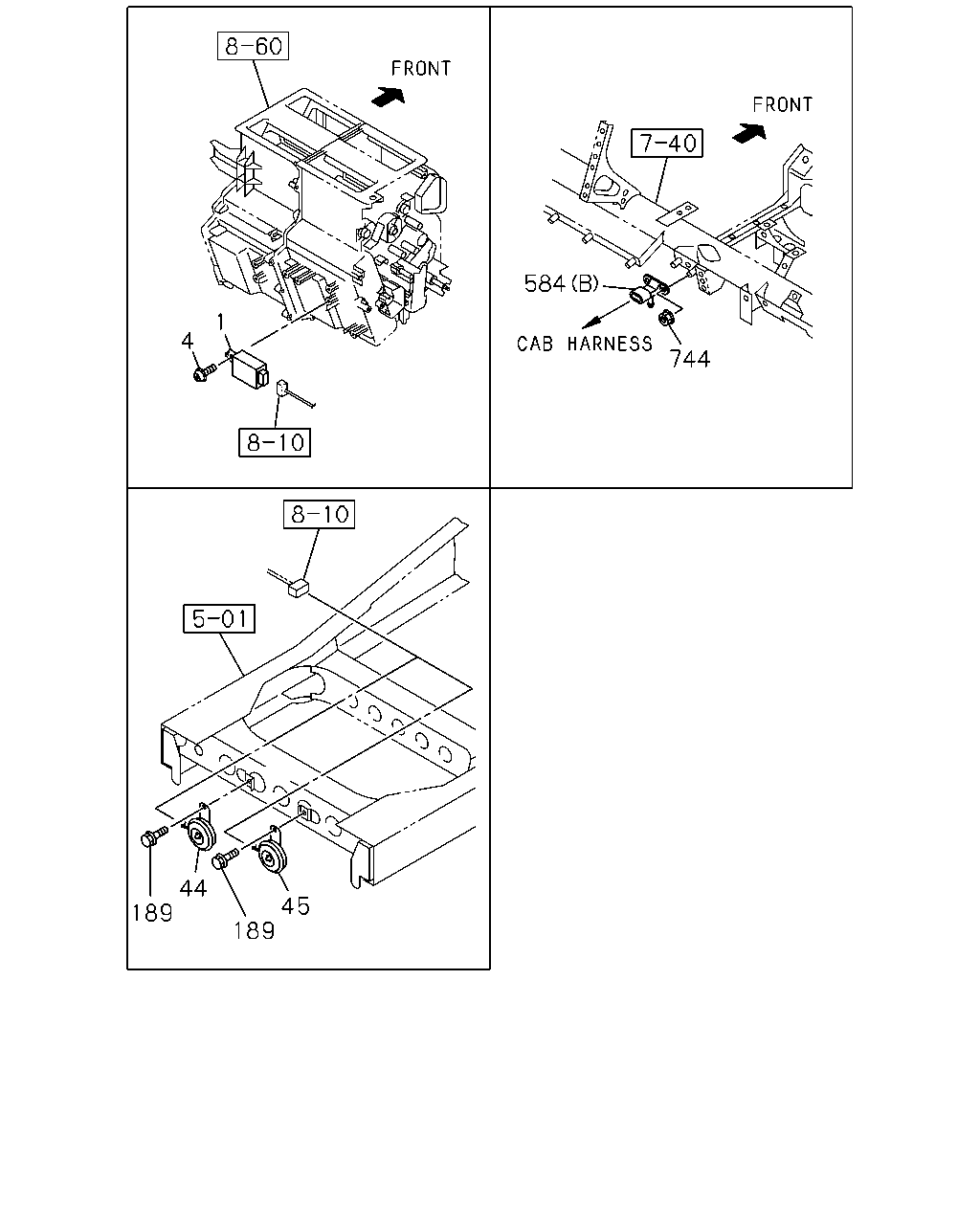

çizim 35225
584 1 4 744 44 189 45 189
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.575 UNIT; FLASHER 8-98025-533-1 01 1 0710- ● ● ● ● ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0710-1101 ● ● ● ● ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102- ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> 		8-98070-080-0 01 1 0710- ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 0710- ● ● ● ● ● ●
189 02.812 BOLT; HORN
02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0710-1004 ● ● ● ● ● ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0710-1004 ● ● ● ● ● ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ● ● ● ● ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN<6KK> 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ● ● ● ● ●
584 02.440 SENSOR; PRESSURE
03.331 (B) 		8-98020-514-0 01 1 0710- ● ● ● ● ● ●
584 02.440 SENSOR; PRESSURE
(A) 		8-97387-682-0 01 1 0710- ● ● ● ● ● ●
744 09.277 NUT; SENSOR
01.062 M6 FLANGE 		0-91180-106-0 02 1 0710-0908 ● ● ● ● ● ●
744 09.277 NUT; SENSOR
01.062 M6 FLANGE 		0-91180-106-0 02 1 0909- ● ● ● ● ● ●
çizim 100485
531 666
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
531 02.769 RELAY; MAIN
02.510 24V 30A MITUBA 		8-97238-540-0 01 1 0710- ● ● ● ● ● ●
666 02.173 RELAY; STARTER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-1005 ● ● ● ● ● ●
666 02.173 RELAY; STARTER
24V 10A 		8-98167-173-0 01 1 1006- ● ● ● ● ● ●

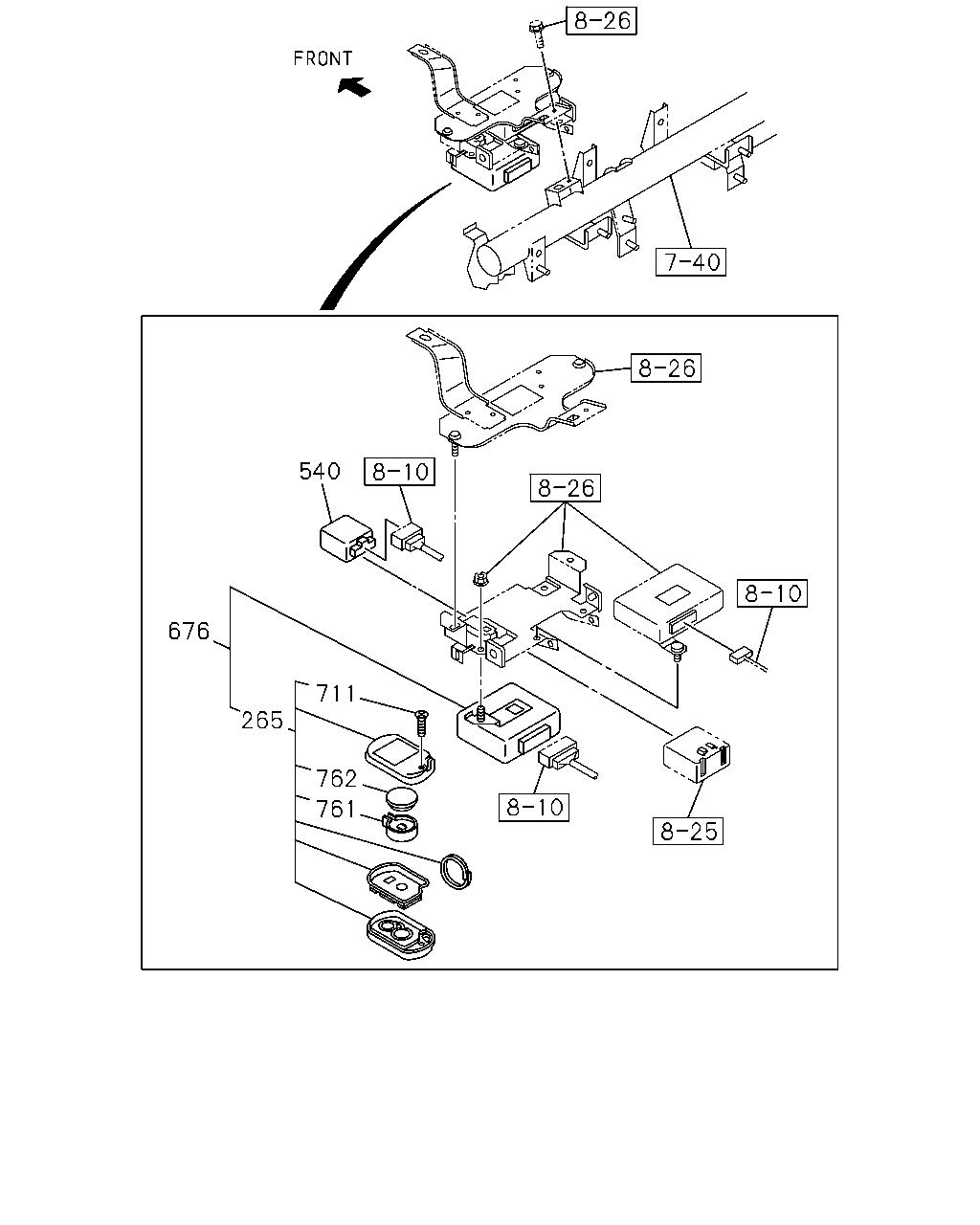

çizim 100487
540 676 711 265 762 761
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 0710-0805 ● ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 0806-0806 ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> 		8-98048-459-1 02 1 0806-0806 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 0806-1012 ● ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98180-751-0 02 1 1101- ● ● ● ● ● ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98060-388-0 01 1 0710- ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98044-504-1 01 1 0710-0805 ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98044-504-1 01 1 0806-0806 ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<6NF> 		8-98044-504-1 01 1 0806-0806 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98044-504-1 01 1 0806-1012 ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98181-810-0 01 1 1101- ● ● ● ● ● ●
711 02.510 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 0710-0805 ● ● ● ● ● ●
711 02.510 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 0806-0806 ● ● ● ● ●
711 02.510 SCREW; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> M2X5 		8-98078-067-0 02 1 0806-0806 ●
711 02.510 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 0806- ● ● ● ● ● ●
761 04.439 HOLDER; BATTERY 8-98078-063-0 02 1 0710-0805 ● ● ● ● ● ●
761 04.439 HOLDER; BATTERY 8-98078-063-0 02 1 0806-0806 ● ● ● ● ●
761 04.439 HOLDER; BATTERY
REMOTE CONT DOOR LOCK<6NF> 		8-98078-063-0 02 1 0806-0806 ●
761 04.439 HOLDER; BATTERY 8-98078-063-0 02 1 0806-1012 ● ● ● ● ● ●
762 02.559 BATTERY 8-98078-061-0 02 1 0710-0805 ● ● ● ● ● ●
762 02.559 BATTERY 8-98078-061-0 02 1 0806-0806 ● ● ● ● ●
762 02.559 BATTERY
REMOTE CONT DOOR LOCK<6NF> 		8-98078-061-0 02 1 0806-0806 ●
762 02.559 BATTERY 8-98078-061-0 02 1 0806- ● ● ● ● ● ●

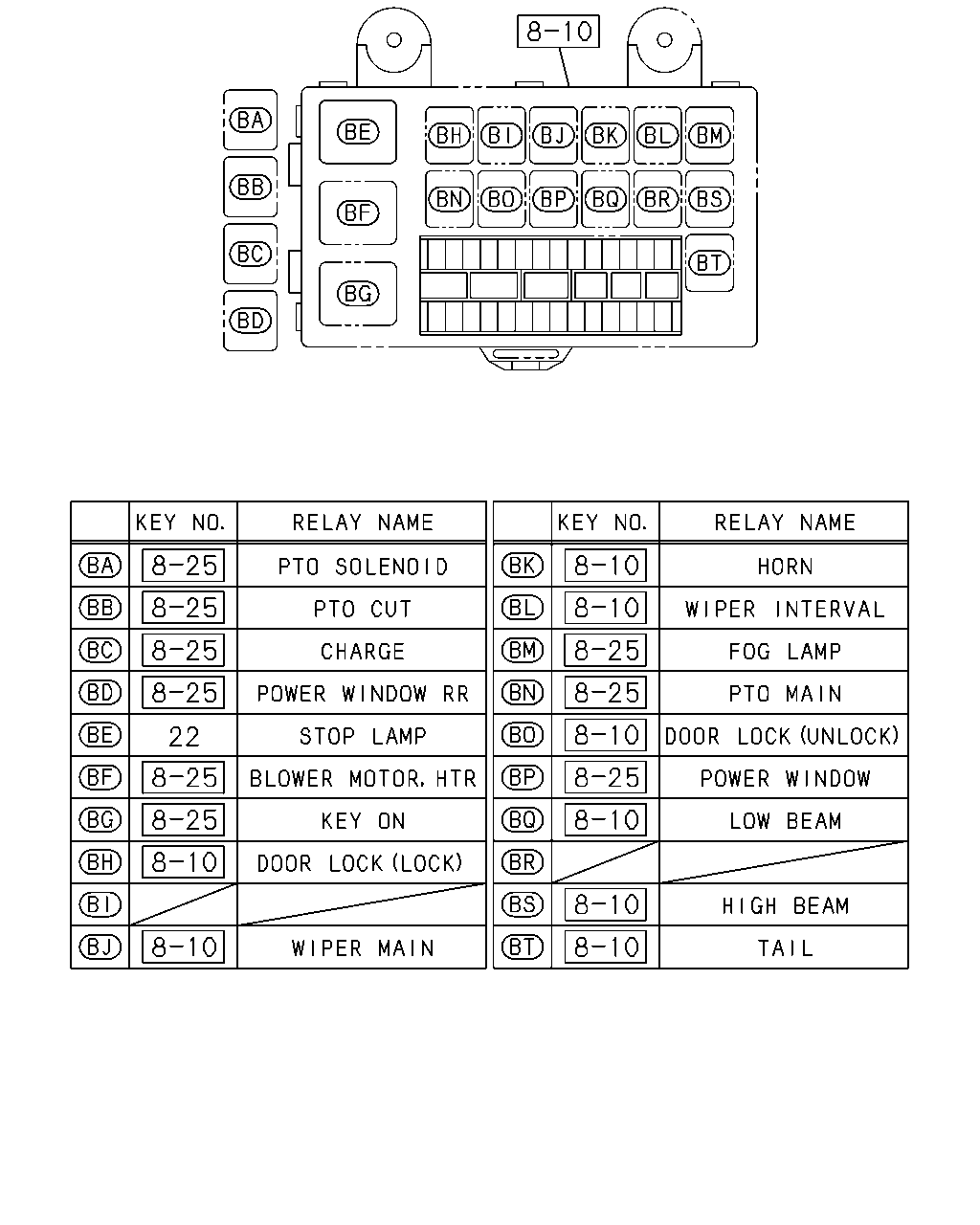

çizim 100488
22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710- ● ● ● ● ● ●

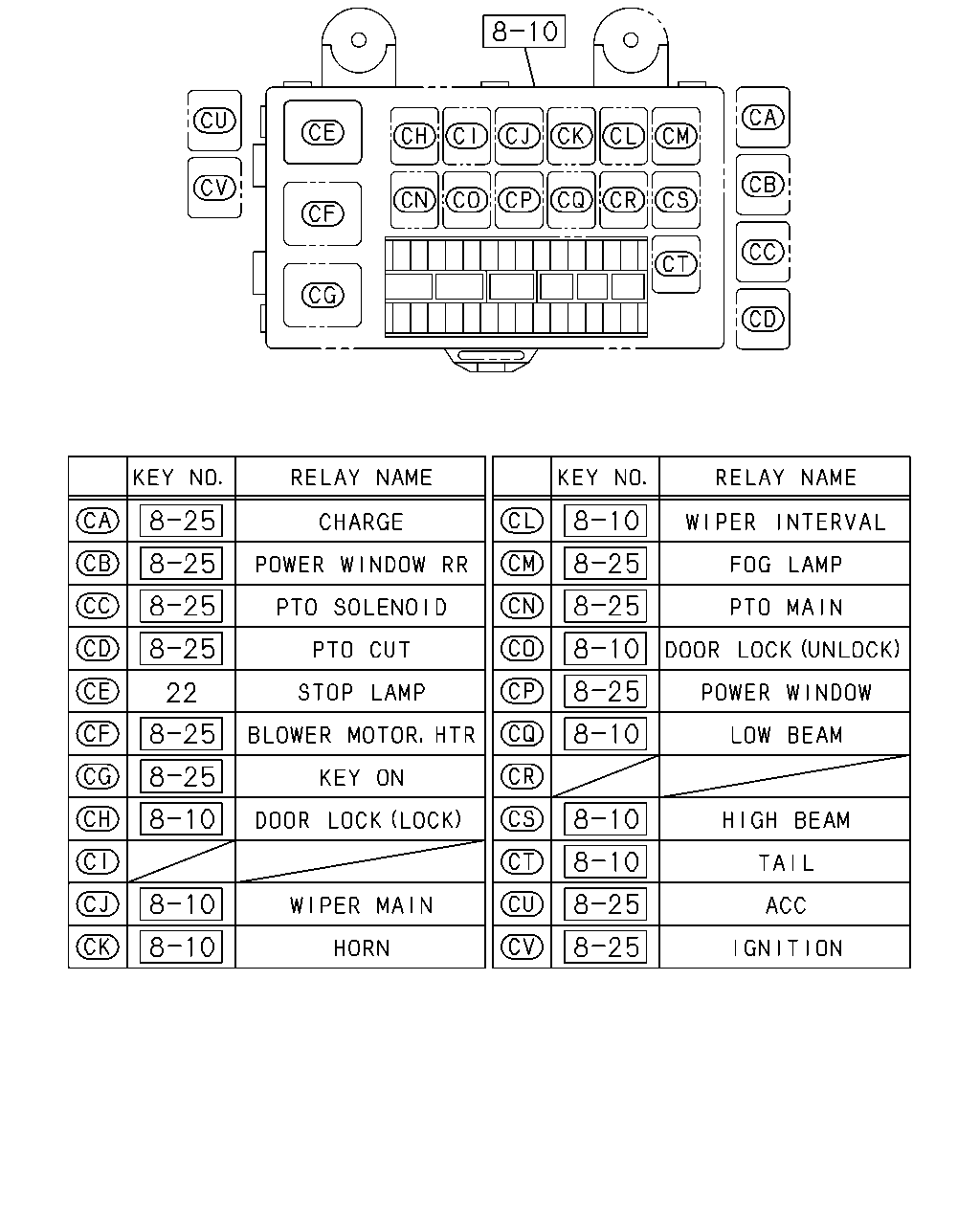

çizim 283398
22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710- ● ● ● ● ● ●
