◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51398 - NNR/NPR/NQR(AUST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#39466) — 109 parça

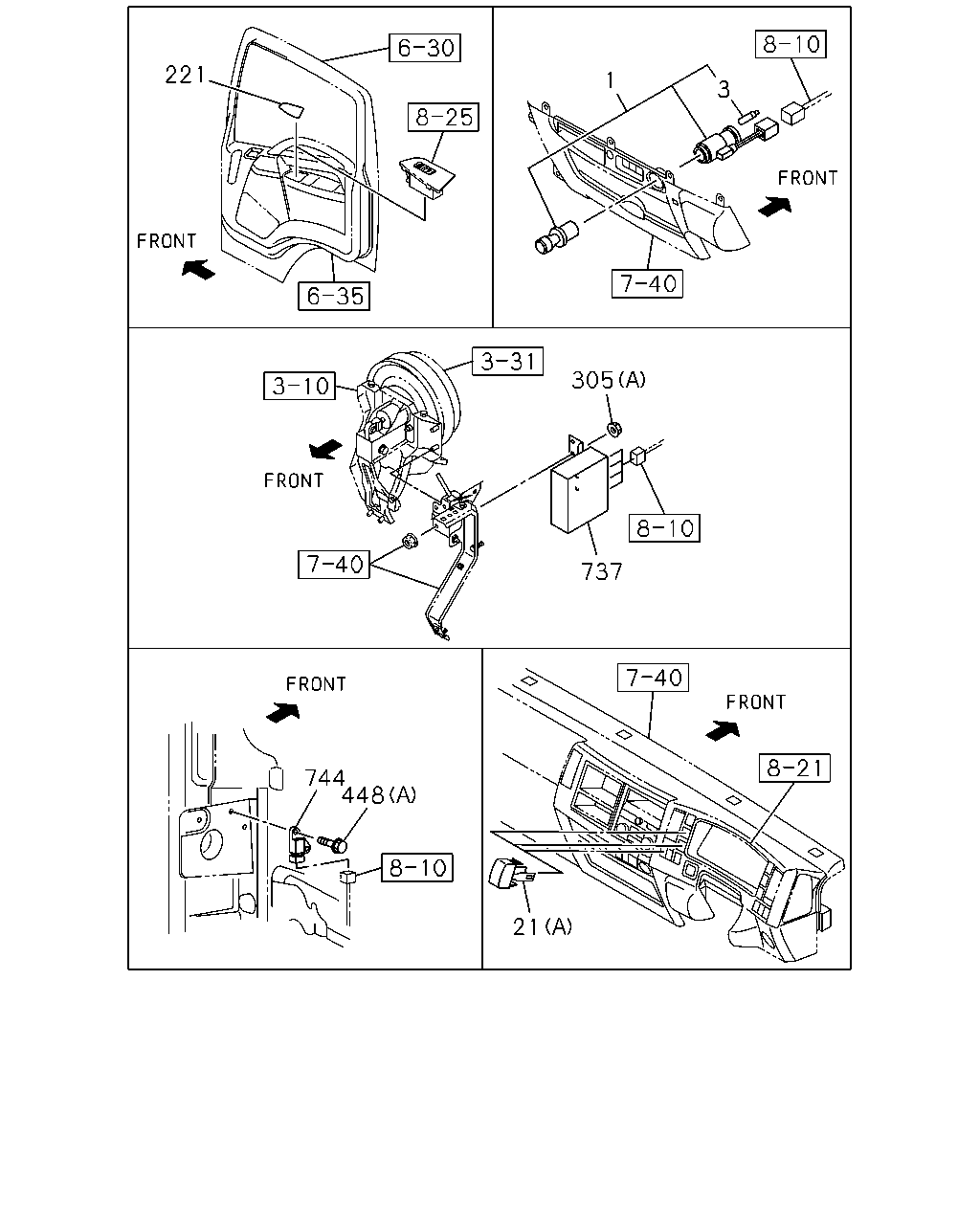

çizim 35175
221 1 3 305 737 744 448 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0710-0906 ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 0907- ● ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0710-0906 ● ● ● ● ● ●
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.748 (B) 		8-97101-974-0 01 1 0710- ● ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0710-1106 ● ● ● ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0710-1106 ● ● ● ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0710-1106 ● ●
21 09.744 COVER; HOLE
EXC. MULTI INFORMATION DISPLAY<7NY> 16.081 (A) 		8-98025-954-1 01 1 0710-1106 ● ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1107- ● ● ● ● ● ●
21 09.744 COVER; HOLE
4JJ1-TCS ENG(LFB) 16.081 (A) 		8-98025-954-1 01 1 1107- ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1107- ● ●
21 09.744 COVER; HOLE
EXC. MULTI INFORMATION DISPLAY<7NY> 16.081 (A) 		8-98025-954-1 01 1 1107- ● ● ● ●
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ) 16.081 (A) 		8-98025-954-1 01 1 1107- ● ●
21 09.744 COVER; HOLE
4HK1-TCS ENG(RJS) 16.081 (A) 		8-98025-954-1 01 1 1107- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0806-0806 ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0806-0806 ●
305 08.915 NUT; CONT UNIT
H.S.A SYSTEM<6EP> 01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 0710- ● ● ● ● ● ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 0710- ● ● ● ● ● ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0710-0805 ● ● ● ● ● ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0806-0806 ● ● ● ● ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0806-0806 ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0806- ● ● ● ● ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0710- ● ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 0710- ● ● ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98067-710-5 01 1 0710- ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98067-713-3 01 1 0710- ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98067-715-3 01 1 0710- ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 0710- ● ● ● ● ● ●

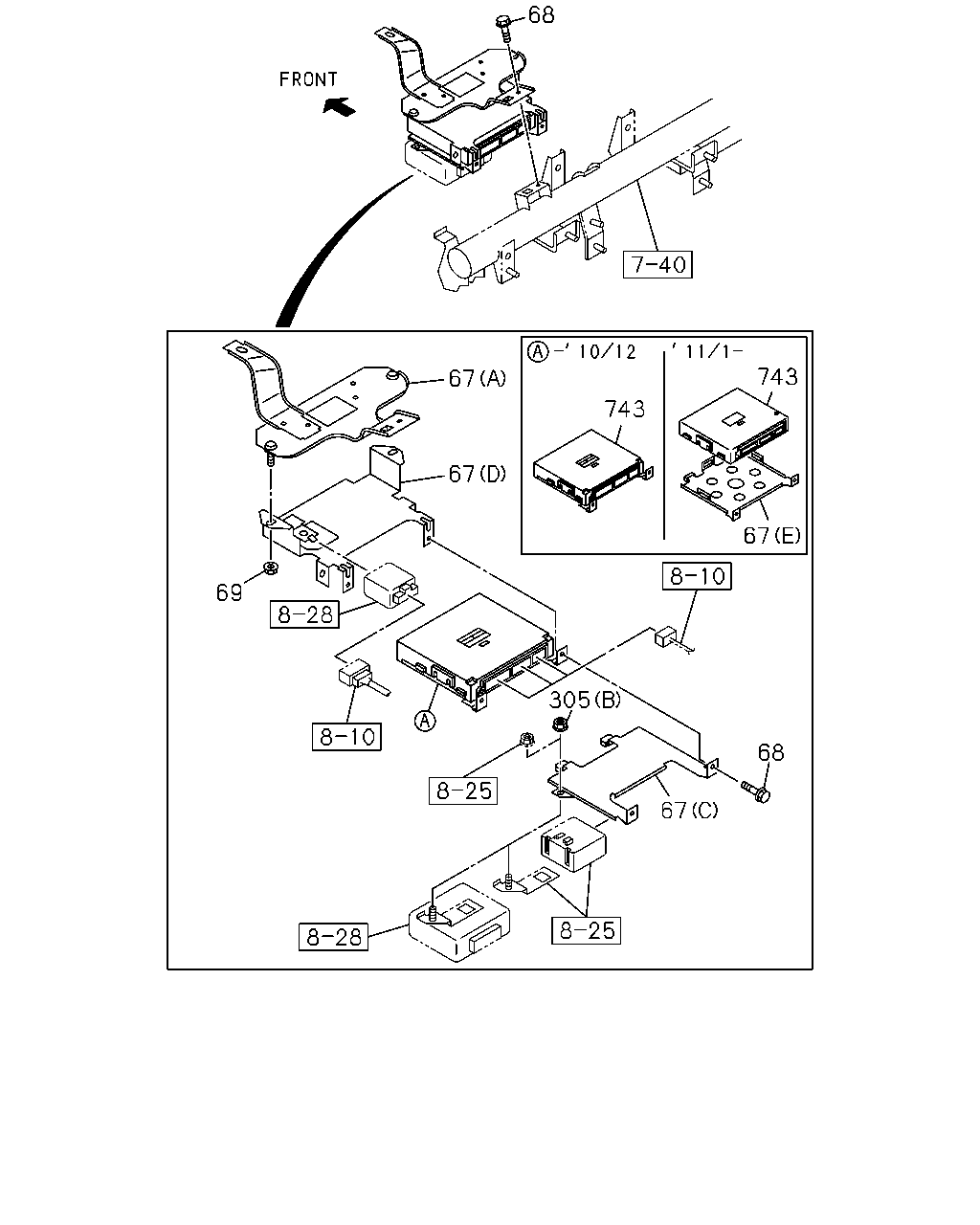

çizim 35190
68 743 67 743 67 67 69 305 68 67
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
67 03.887 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 0710- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-1 01 1 0710-0906 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) 		8-98022-206-1 01 1 0710-0906 ● ● ● ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB) (B) 		8-98022-206-2 01 1 0907-1111 ● ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) EXC. MULTI INFORMATION DISPLAY<7NY> (B) 		8-98022-206-2 01 1 0907-1111 ● ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (B) 		8-98022-206-2 01 1 0907-1111 ● ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB) (F) 		8-98203-057-0 01 1 1112- ● ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) EXC. MULTI INFORMATION DISPLAY<7NY> (F) 		8-98203-057-0 01 1 1112- ● ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (F) 		8-98203-057-0 01 1 1112- ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (C) 		8-98083-834-0 01 1 0710-0906 ● ● ● ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (C) 		8-98083-834-0 01 1 0907-0907 ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (C) 		8-98083-834-0 01 1 0908- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (D) 		8-98091-662-0 01 1 0710-0906 ● ● ● ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (D) 		8-98091-662-0 01 1 0907-0907 ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (D) 		8-98091-662-0 01 1 0908- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (E) 		8-98111-836-1 01 1 1101- ● ● ● ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 0710- ● ● ● ● ● ●
68 02.500 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> 00.206 M6X12 FLANGE 		0-28450-612-0 02 1 0710- ● ● ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0710- ● ● ● ● ● ●
305 08.915 NUT; CONT UNIT
H.S.A SYSTEM<6EP> 01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 0710- ● ● ● ● ● ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 0710- ● ● ● ● ● ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0710-0805 ● ● ● ● ● ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0806-0806 ● ● ● ● ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0806-0806 ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0806- ● ● ● ● ● ●
743 02.510 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98089-297-0 01 1 0710-0802 ● ● ● ●
743 02.510 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98102-484-0 01 1 0803-0901 ● ● ● ●
743 02.510 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98125-904-0 01 1 0902-1006 ● ● ● ●
743 02.510 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98155-169-1 01 1 1007-1007 ● ● ● ●
743 02.510 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98176-213-0 01 1 1008-1012 ● ● ● ●
743 02.510 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-0 01 1 1101- ● ● ● ●

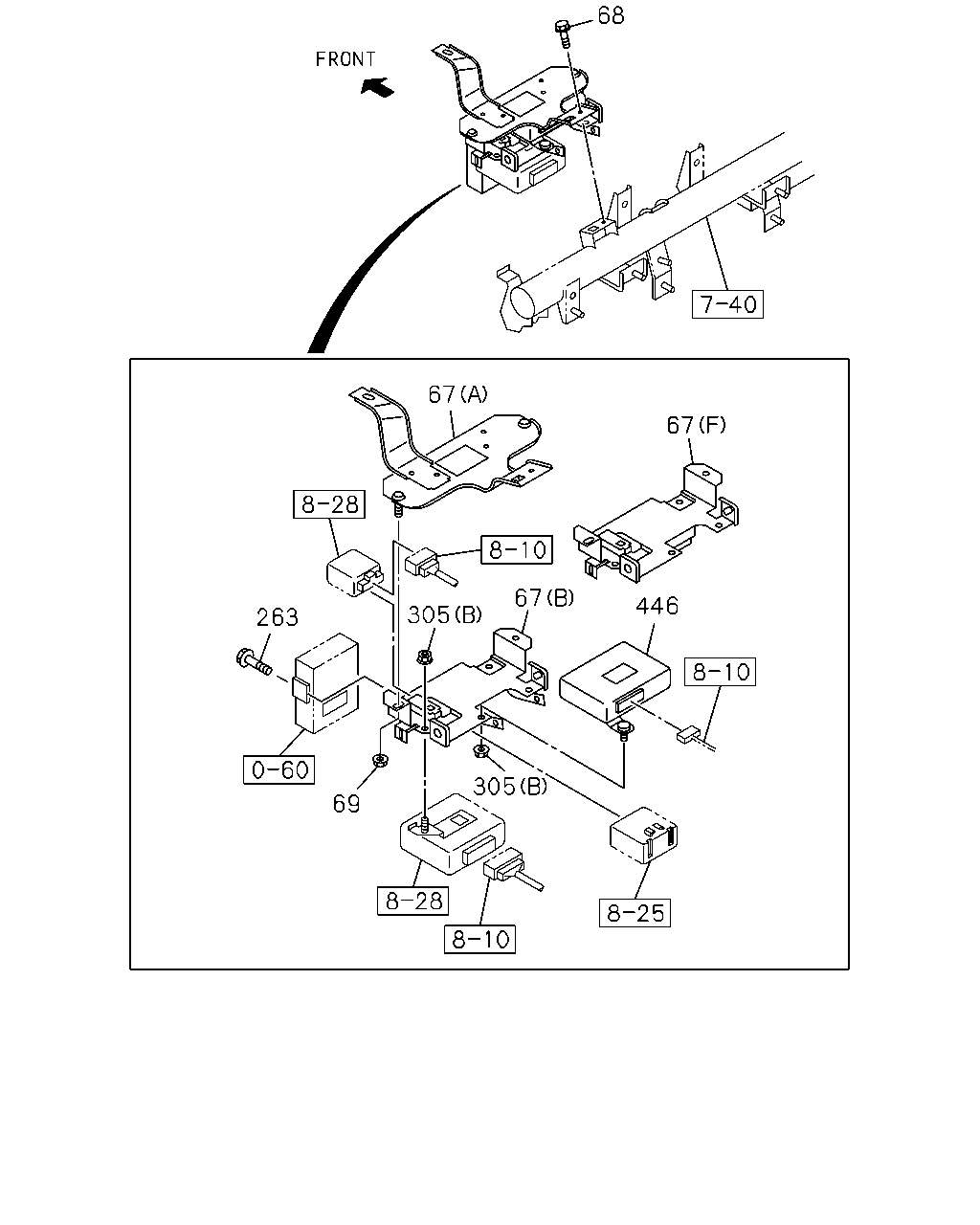

çizim 35222
68 67 67 67 446 305 263 305 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
67 03.887 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 0710- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-1 01 1 0710-0906 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) 		8-98022-206-1 01 1 0710-0906 ● ● ● ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB) (B) 		8-98022-206-2 01 1 0907-1111 ● ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) EXC. MULTI INFORMATION DISPLAY<7NY> (B) 		8-98022-206-2 01 1 0907-1111 ● ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (B) 		8-98022-206-2 01 1 0907-1111 ● ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCS ENG(LFB) (F) 		8-98203-057-0 01 1 1112- ● ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) EXC. MULTI INFORMATION DISPLAY<7NY> (F) 		8-98203-057-0 01 1 1112- ● ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (F) 		8-98203-057-0 01 1 1112- ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (C) 		8-98083-834-0 01 1 0710-0906 ● ● ● ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (C) 		8-98083-834-0 01 1 0907-0907 ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (C) 		8-98083-834-0 01 1 0908- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (D) 		8-98091-662-0 01 1 0710-0906 ● ● ● ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (D) 		8-98091-662-0 01 1 0907-0907 ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (D) 		8-98091-662-0 01 1 0908- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (E) 		8-98111-836-1 01 1 1101- ● ● ● ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 0710- ● ● ● ● ● ●
68 02.500 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> 00.206 M6X12 FLANGE 		0-28450-612-0 02 1 0710- ● ● ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0710- ● ● ● ● ● ●
263 04.115 BOLT; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0710-0809 ● ● ● ●
305 08.915 NUT; CONT UNIT
H.S.A SYSTEM<6EP> 01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 0710- ● ● ● ● ● ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 0710- ● ● ● ● ● ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0710-0805 ● ● ● ● ● ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0806-0806 ● ● ● ● ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0806-0806 ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0806- ● ● ● ● ● ●
446 02.510 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		8-98046-563-1 01 1 0710- ● ● ● ● ● ●

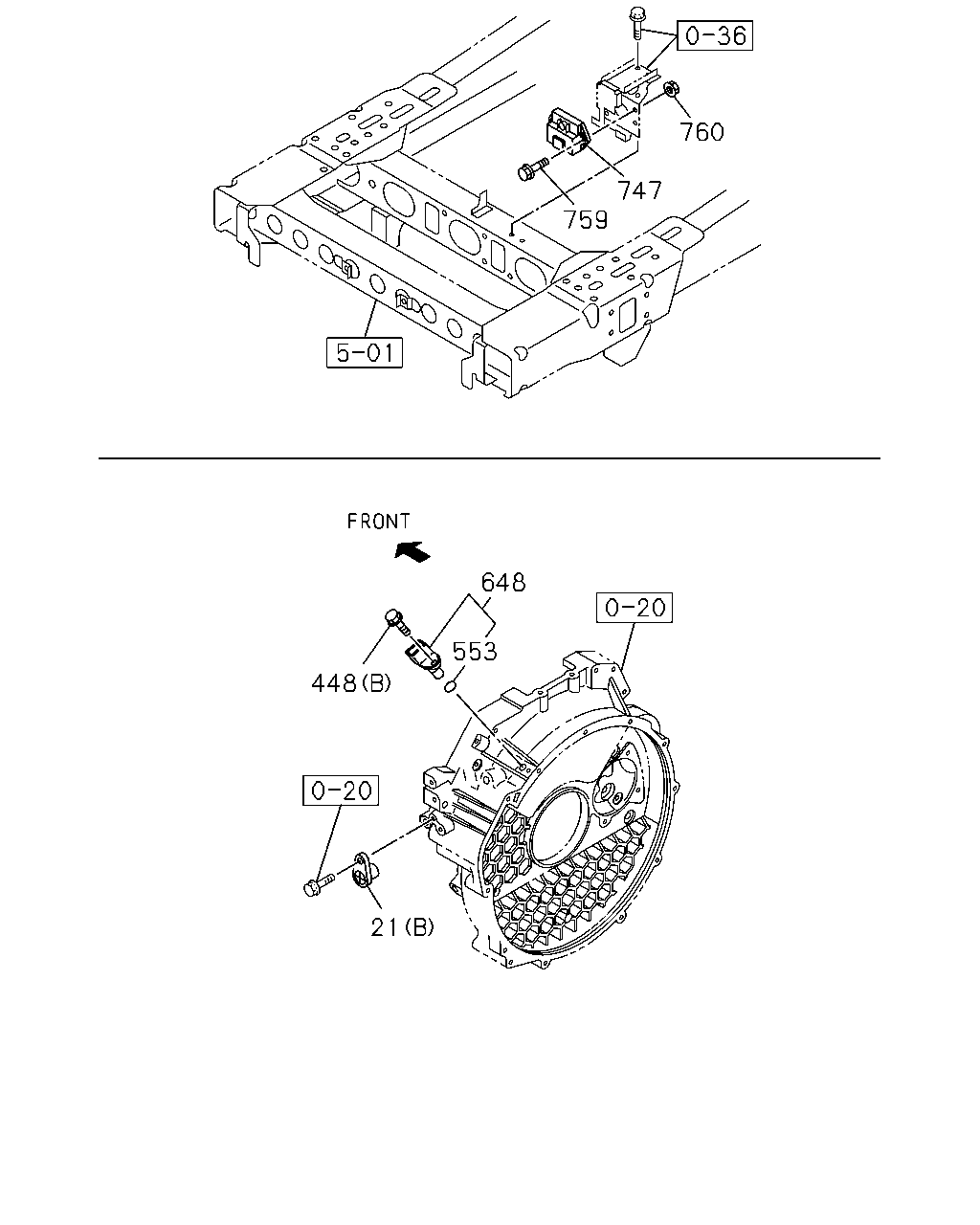

çizim 35349
760 747 759 648 553 448 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.748 (B) 		8-97101-974-0 01 1 0710- ● ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0710-1106 ● ● ● ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0710-1106 ● ● ● ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0710-1106 ● ●
21 09.744 COVER; HOLE
EXC. MULTI INFORMATION DISPLAY<7NY> 16.081 (A) 		8-98025-954-1 01 1 0710-1106 ● ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1107- ● ● ● ● ● ●
21 09.744 COVER; HOLE
4JJ1-TCS ENG(LFB) 16.081 (A) 		8-98025-954-1 01 1 1107- ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1107- ● ●
21 09.744 COVER; HOLE
EXC. MULTI INFORMATION DISPLAY<7NY> 16.081 (A) 		8-98025-954-1 01 1 1107- ● ● ● ●
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ) 16.081 (A) 		8-98025-954-1 01 1 1107- ● ●
21 09.744 COVER; HOLE
4HK1-TCS ENG(RJS) 16.081 (A) 		8-98025-954-1 01 1 1107- ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0710- ● ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 0710- ● ● ● ●
553 02.500 GASKET
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0710- ● ● ● ●
648 03.682 SENSOR; CRANK ANGLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97606-943-0 01 1 0710- ● ● ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER
4HK1-TCN ENG(RDQ) 		8-98077-118-2 01 1 0710-1012 ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER
4HK1-TCS ENG(RJS) 		8-98077-118-2 01 1 0710-1012 ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER
4HK1-TCN ENG(RDQ) 		8-98162-807-0 01 1 1101- ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER
4HK1-TCS ENG(RJS) 		8-98162-807-0 01 1 1101- ● ●
759 04.115 BOLT; CONT MODULE,TURBOCHARGER
4HK1-TCN ENG(RDQ) 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0710- ● ●
759 04.115 BOLT; CONT MODULE,TURBOCHARGER
4HK1-TCS ENG(RJS) 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0710- ● ●
760 04.115 NUT; CONT MODULE,TURBOCHARGER
4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0710- ● ●
760 04.115 NUT; CONT MODULE,TURBOCHARGER
4HK1-TCS ENG(RJS) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0710- ● ●
