Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#39463) — 455 parça

22 48 22 22 483 22 483 570 22 16 48 48 48 48 16 48 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 02.343 (D) ID=10 & 16	8-94413-325-0	02	1	0710-0710	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	0710-	●			●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0710-	●			●
16	02.559 CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	0710-				●	●	●
16	02.559 CLIP; HARNESS (H) L=60	8-97063-335-0	02	1	0710-				●	●	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (J)	8-97101-436-0	01	1	0711-		●			●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (J)	8-97101-436-0	01	1	0711-			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (I) ID=20	5-09700-321-0	01	1	0710-0711		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (I) ID=20	5-09700-321-0	01	1	0710-0711			●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 02.343 (D) L=119.5	1-09707-197-0	01	1	0710-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.594 (B) L=100	5-09707-036-1	01	1	0710-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0710-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0710-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0710-	●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 04.930 (J) ID=10 & 16.5	8-94360-745-0	01	1	0710-0710		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 04.930 (J) ID=10 & 16.5	8-94360-745-0	01	1	0710-0710			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.162 (J)	8-97037-154-0	01	1	0710-0710		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 03.162 (J)	8-97037-154-0	01	1	0710-0710			●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0710-0710	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0710-0711	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) L=170.3	1-09987-182-0	01	1	0710-0711		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) L=170.3	1-09987-182-0	01	1	0710-0711			●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0712-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0710-0710	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0710-0710	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0711-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0711-	●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0711-		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0711-			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (K) ID=14-20	8-97061-603-0	01	1	0710-0711		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) ID=14-20	8-97061-603-0	01	1	0710-0711			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (K) ID=14-20	8-97061-603-0	02	1	0712-		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) ID=14-20	8-97061-603-0	02	1	0712-			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 08.852 (L) L=350	8-94152-256-1	02	1	0801-		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 08.852 (L) L=350	8-94152-256-1	02	1	0801-			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.446 (H) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0710-0801		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (M) L=250	5-09707-030-1	01	1	0804-		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=250	5-09707-030-1	01	1	0804-			●			●
48	02.559 CLIP; FRAME HARNESS 03.115 (C) T=9 & 10.5	8-97041-091-0	01	1	0710-0710	●			●
48	02.559 CLIP; FRAME HARNESS (G) T=6.0	5-09709-012-0	01	1	0710-0804		●	●		●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	01	1	0710-0804		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0710-	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0710-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	0710-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0710-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0710-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (A) ID=20	8-94241-972-0	02	1	0710-	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	02	1	0710-				●
48	02.559 CLIP; FRAME HARNESS MULTI INFORMATION DISPLAY<7NY> 03.483 (K) L=450	1-09707-142-1	01	1	0710-		●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0710-		●	●
48	02.559 CLIP; FRAME HARNESS 03.430 (H) ID=10 & 16.5	8-94424-440-0	01	1	0710-		●	●
48	02.559 CLIP; FRAME HARNESS 08.852 (E) L=350	8-94152-256-1	01	1	0710-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	0712-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	0712-			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	0712-					●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0710-0712		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0801-0805		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0801-0805			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-			●
48	02.559 CLIP; FRAME HARNESS (I) T=6.0	5-09709-024-0	01	1	0710-0801		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (I) T=6.0	5-09709-024-0	01	1	0802-0804		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (I) T=6.0	5-09709-024-0	01	1	0802-0804			●
48	02.559 CLIP; FRAME HARNESS (I) T=6.0	5-09709-024-0	01	1	0802-0804					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (F) T=5.5	8-97371-951-0	01	1	0710-0804	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	0710-0804					●	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	0710-0804					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (F) T=5.5	8-97371-951-0	01	1	0805-	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	0805-		●	●		●	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	0805-		●	●		●	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	0805-					●	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	0805-					●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0804	●			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0804	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0804				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0805-	●		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0805-	●			●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B) T=4.5 & 9	8-97371-947-0	01	1	0805-		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0805-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0801-0805		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0801-0805			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0801-0805					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	0806-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	0806-			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	0806-					●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=12	8-97329-630-0	01	1	1111-		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0710-0801		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) ID=24 L=24	1-09701-001-1	01	1	0710-0801		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (H) ID=16.5 & 16.5	8-94468-380-0	02	1	0710-0801		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.483 (I)	8-97101-436-0	01	1	0710-0801		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=12	8-97329-630-0	01	1	0710-0801		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.602 (F) ID=15 H=24 L=20	1-09700-606-0	01	1	0710-		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	0710-		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.152 (E) L=36	8-94224-891-1	01	1	0710-		●	●		●	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0904-		●			●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	0904-		●
570	02.559 CLIP; HARNESS,PTO M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	0904-					●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	0904-0910		●
570	02.559 CLIP; HARNESS,PTO M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	0904-0910					●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	0911-		●
570	02.559 CLIP; HARNESS,PTO M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	03	1	0911-					●

14 48 570 22 22 102 570 617 22 102 488 22 16 22 22 48 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 L=150	8-97355-273-0	02	1	0710-0801		●	●		●	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 L=150	8-97355-273-0	01	1	0802-0810		●	●		●	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 L=150	8-97355-273-0	02	1	0811-0906		●	●		●	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 L=150	8-97355-273-0	01	1	0907-		●	●		●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 02.343 (D) ID=10 & 16	8-94413-325-0	02	1	0710-0710	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	0710-	●			●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0710-	●			●
16	02.559 CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	0710-				●	●	●
16	02.559 CLIP; HARNESS (H) L=60	8-97063-335-0	02	1	0710-				●	●	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (J)	8-97101-436-0	01	1	0711-		●			●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (J)	8-97101-436-0	01	1	0711-			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (I) ID=20	5-09700-321-0	01	1	0710-0711		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (I) ID=20	5-09700-321-0	01	1	0710-0711			●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 02.343 (D) L=119.5	1-09707-197-0	01	1	0710-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.594 (B) L=100	5-09707-036-1	01	1	0710-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0710-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0710-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0710-	●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 04.930 (J) ID=10 & 16.5	8-94360-745-0	01	1	0710-0710		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 04.930 (J) ID=10 & 16.5	8-94360-745-0	01	1	0710-0710			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.162 (J)	8-97037-154-0	01	1	0710-0710		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 03.162 (J)	8-97037-154-0	01	1	0710-0710			●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0710-0710	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0710-0711	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) L=170.3	1-09987-182-0	01	1	0710-0711		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) L=170.3	1-09987-182-0	01	1	0710-0711			●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0712-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0710-0710	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0710-0710	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0711-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0711-	●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0711-		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0711-			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (K) ID=14-20	8-97061-603-0	01	1	0710-0711		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) ID=14-20	8-97061-603-0	01	1	0710-0711			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (K) ID=14-20	8-97061-603-0	02	1	0712-		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) ID=14-20	8-97061-603-0	02	1	0712-			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 08.852 (L) L=350	8-94152-256-1	02	1	0801-		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 08.852 (L) L=350	8-94152-256-1	02	1	0801-			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.446 (H) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0710-0801		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (M) L=250	5-09707-030-1	01	1	0804-		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=250	5-09707-030-1	01	1	0804-			●			●
48	02.559 CLIP; FRAME HARNESS 03.115 (C) T=9 & 10.5	8-97041-091-0	01	1	0710-0710	●			●
48	02.559 CLIP; FRAME HARNESS (G) T=6.0	5-09709-012-0	01	1	0710-0804		●	●		●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	01	1	0710-0804		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0710-	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0710-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	0710-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0710-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0710-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (A) ID=20	8-94241-972-0	02	1	0710-	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	02	1	0710-				●
48	02.559 CLIP; FRAME HARNESS MULTI INFORMATION DISPLAY<7NY> 03.483 (K) L=450	1-09707-142-1	01	1	0710-		●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0710-		●	●
48	02.559 CLIP; FRAME HARNESS 03.430 (H) ID=10 & 16.5	8-94424-440-0	01	1	0710-		●	●
48	02.559 CLIP; FRAME HARNESS 08.852 (E) L=350	8-94152-256-1	01	1	0710-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	0712-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	0712-			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	0712-					●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0710-0712		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0801-0805		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0801-0805			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-			●
48	02.559 CLIP; FRAME HARNESS (I) T=6.0	5-09709-024-0	01	1	0710-0801		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (I) T=6.0	5-09709-024-0	01	1	0802-0804		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (I) T=6.0	5-09709-024-0	01	1	0802-0804			●
48	02.559 CLIP; FRAME HARNESS (I) T=6.0	5-09709-024-0	01	1	0802-0804					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (F) T=5.5	8-97371-951-0	01	1	0710-0804	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	0710-0804					●	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	0710-0804					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (F) T=5.5	8-97371-951-0	01	1	0805-	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	0805-		●	●		●	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	0805-		●	●		●	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	0805-					●	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	0805-					●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0804	●			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0804	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0804				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0805-	●		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0805-	●			●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B) T=4.5 & 9	8-97371-947-0	01	1	0805-		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0805-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0801-0805		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0801-0805			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0801-0805					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	0806-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	0806-			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	0806-					●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) L=250	5-09707-030-1	04	1	0710-0801		●	●		●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (A) L=140	5-09707-031-1	11	1	0710-0801		●	●		●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (A) L=140	5-09707-031-1	06	1	0802-1110		●	●		●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (A) L=140	5-09707-031-1	07	1	1111-		●	●		●	●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0710-	●	●	●	●	●	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0904-		●			●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	0904-		●
570	02.559 CLIP; HARNESS,PTO M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	0904-					●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	0904-0910		●
570	02.559 CLIP; HARNESS,PTO M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	0904-0910					●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	0911-		●
570	02.559 CLIP; HARNESS,PTO M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	03	1	0911-					●
617	02.559 STRAP; BAND TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140	5-09707-031-1	01	1	1012-1106	●	●	●	●	●	●
617	02.559 STRAP; BAND M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140	5-09707-031-1	01	1	1107-1108			●			●

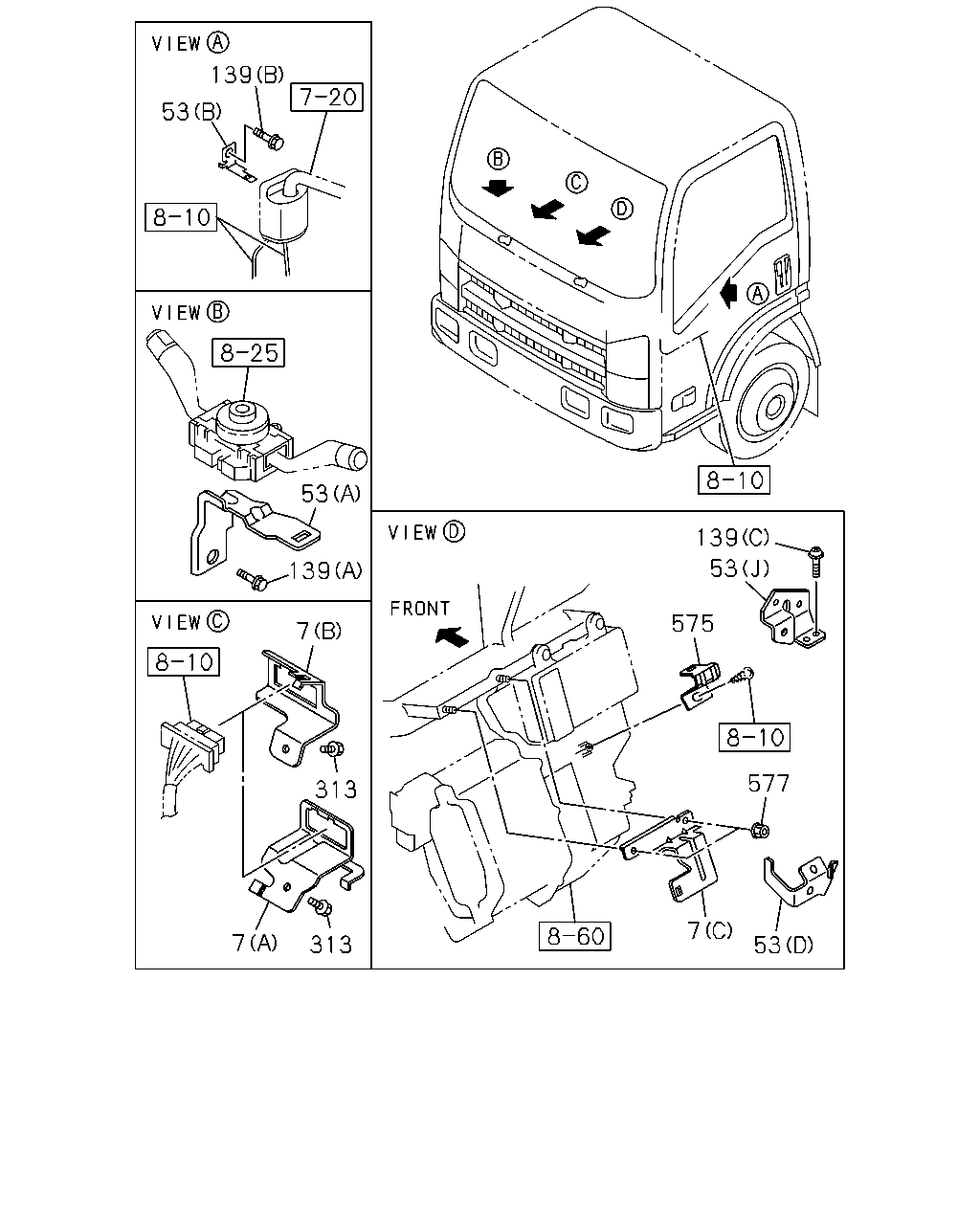

139 53 53 139 53 139 575 7 577 313 7 7 313 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98043-070-1	01	1	0710-	●	●	●	●	●	●
7	02.559 BRACKET; CONNECTOR (C)	8-98029-762-4	01	1	0710-	●	●	●	●	●	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-069-1	01	1	0710-0803	●	●	●	●	●	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98114-514-0	01	1	0804-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (I)	8-98083-225-1	01	1	0710-	●			●
53	02.483 BRACKET; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (J)	8-98084-590-0	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	0710-		●	●		●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	0710-		●	●		●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0710-		●	●		●	●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	0710-		●	●		●	●
53	02.483 BRACKET; HARNESS (L)	8-98094-629-0	01	1	0710-		●	●		●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B)	8-98039-277-1	02	1	0710-0805	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B)	8-98039-277-2	02	1	0806-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (D)	8-98074-502-0	01	1	0806-0806			●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-	●	●	●	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0805	●	●	●	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-	●	●	●	●	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0710-1101	●	●	●	●	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-	●	●	●	●	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0710-	●	●	●	●	●	●
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	0710-	●	●	●	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0710-	●	●	●	●	●	●

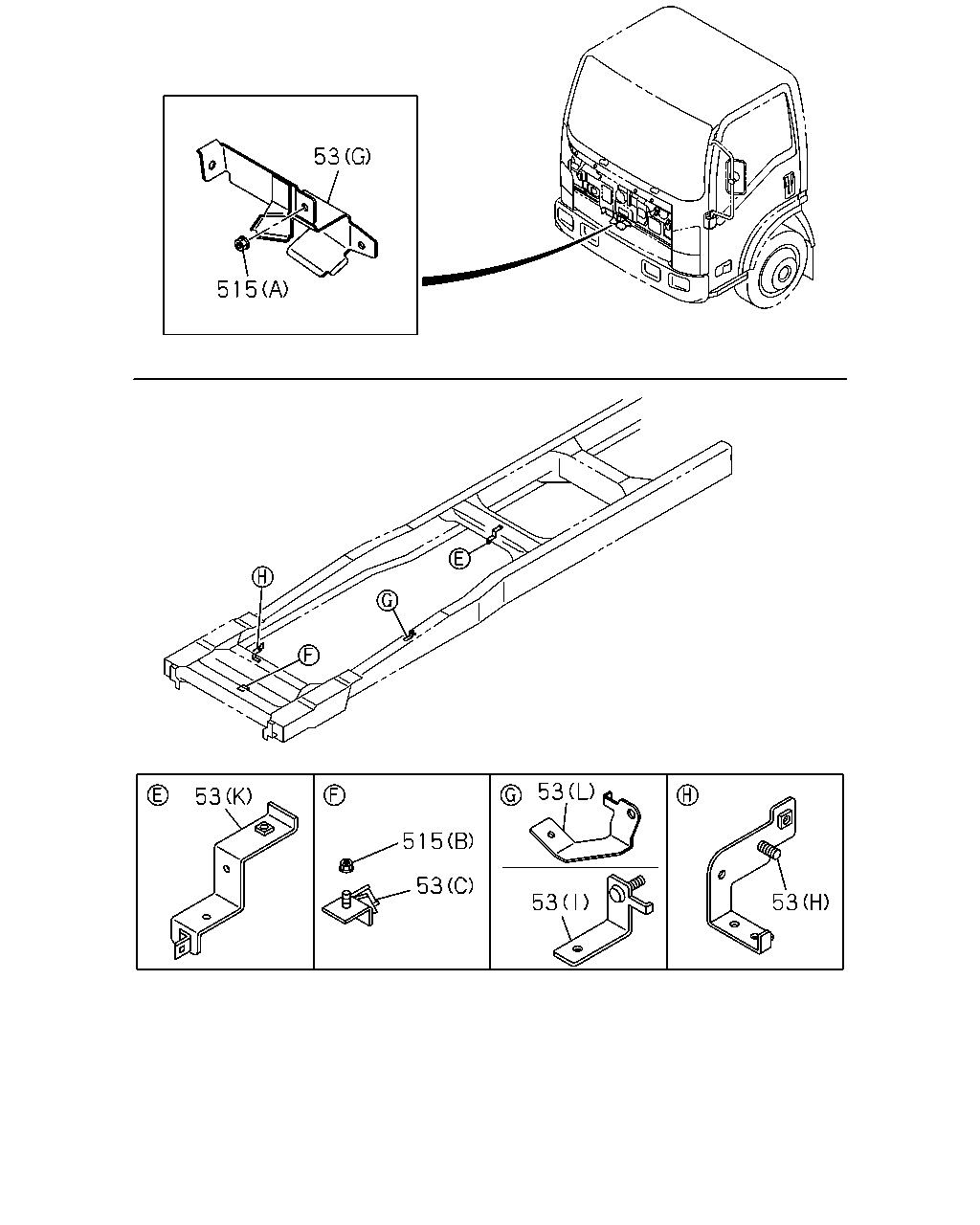

53 515 53 53 515 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (I)	8-98083-225-1	01	1	0710-	●			●
53	02.483 BRACKET; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (J)	8-98084-590-0	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	0710-		●	●		●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	0710-		●	●		●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0710-		●	●		●	●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	0710-		●	●		●	●
53	02.483 BRACKET; HARNESS (L)	8-98094-629-0	01	1	0710-		●	●		●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B)	8-98039-277-1	02	1	0710-0805	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B)	8-98039-277-2	02	1	0806-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (D)	8-98074-502-0	01	1	0806-0806			●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●	●	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0710-	●	●	●	●	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0710-0909	●	●	●	●	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0710-0909		●	●		●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-	●	●	●	●	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-		●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-			●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-					●	●

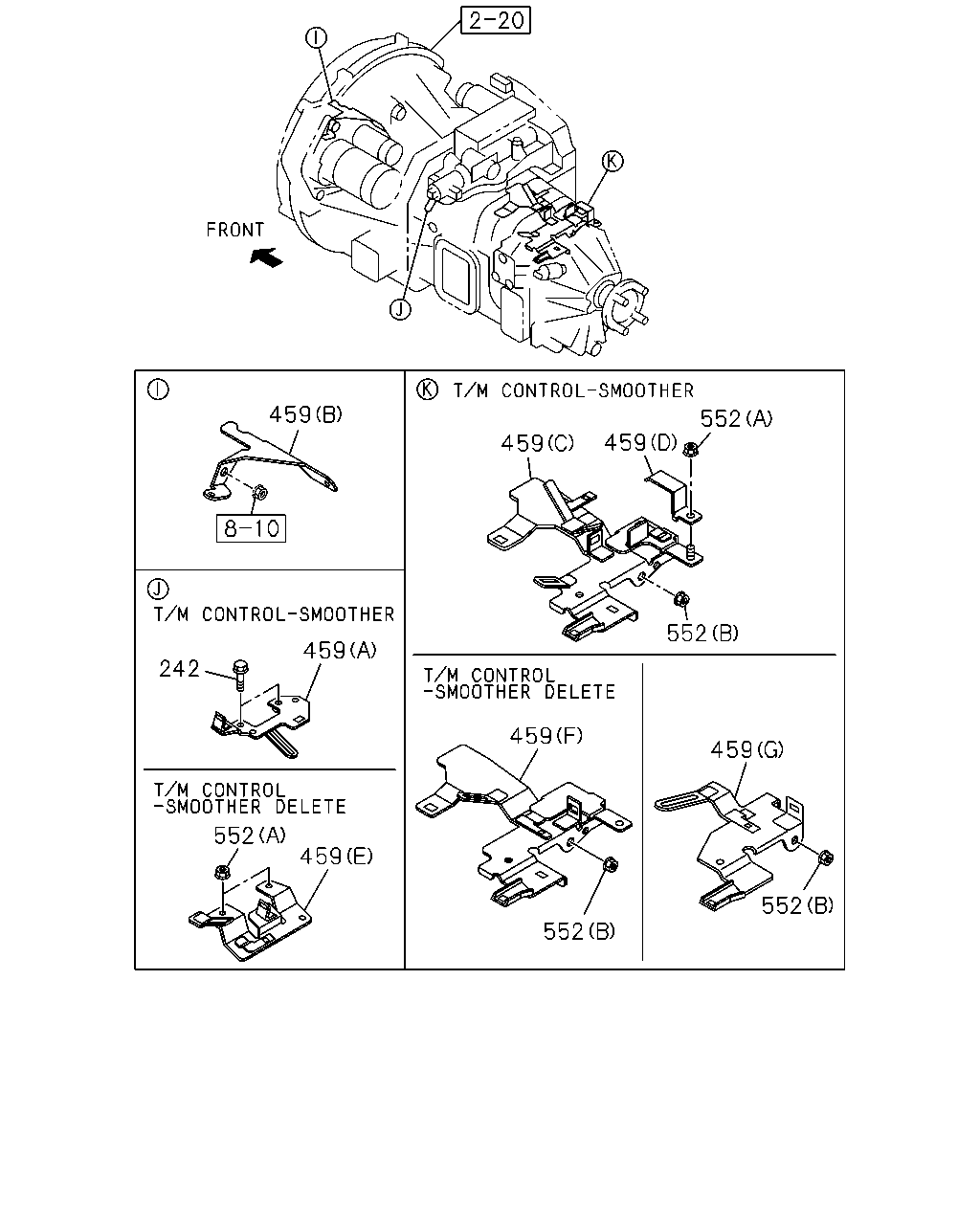

459 552 459 459 552 459 242 459 459 552 459 552 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0710-	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	0710-	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	0710-	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	0710-	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	0710-	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	0710-0907	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	0908-	●			●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98030-990-2	01	1	0710-1109	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98196-974-0	01	1	1110-	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0710-0907	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0908-	●			●

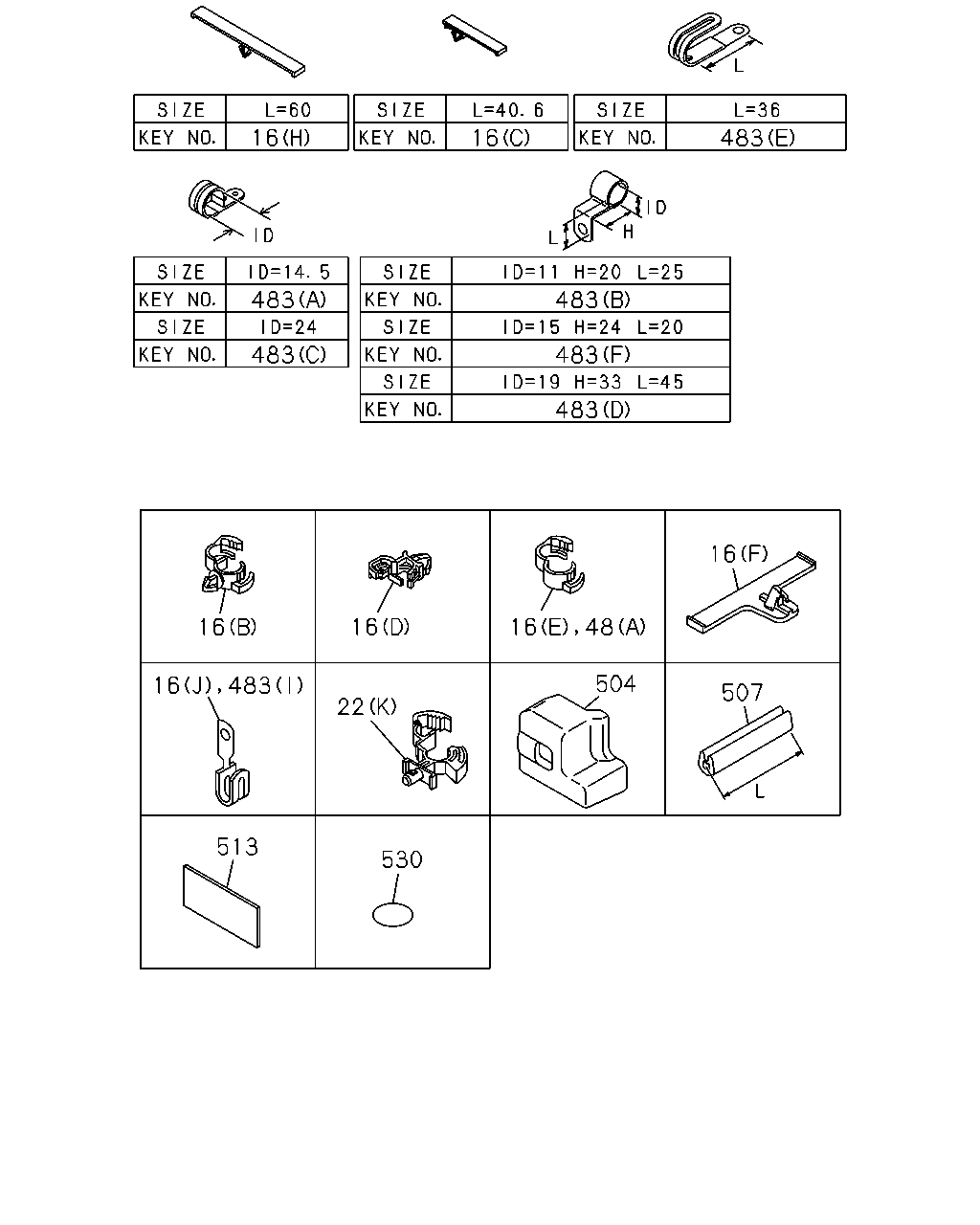

483 16 16 483 483 483 483 483 16 16 16 504 507 22 513 530 16 48 16 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 02.343 (D) ID=10 & 16	8-94413-325-0	02	1	0710-0710	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	0710-	●			●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0710-	●			●
16	02.559 CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	0710-				●	●	●
16	02.559 CLIP; HARNESS (H) L=60	8-97063-335-0	02	1	0710-				●	●	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (J)	8-97101-436-0	01	1	0711-		●			●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (J)	8-97101-436-0	01	1	0711-			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (I) ID=20	5-09700-321-0	01	1	0710-0711		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (I) ID=20	5-09700-321-0	01	1	0710-0711			●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 02.343 (D) L=119.5	1-09707-197-0	01	1	0710-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.594 (B) L=100	5-09707-036-1	01	1	0710-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0710-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0710-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0710-	●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 04.930 (J) ID=10 & 16.5	8-94360-745-0	01	1	0710-0710		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 04.930 (J) ID=10 & 16.5	8-94360-745-0	01	1	0710-0710			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.162 (J)	8-97037-154-0	01	1	0710-0710		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 03.162 (J)	8-97037-154-0	01	1	0710-0710			●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0710-0710	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0710-0711	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) L=170.3	1-09987-182-0	01	1	0710-0711		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) L=170.3	1-09987-182-0	01	1	0710-0711			●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0712-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0710-0710	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0710-0710	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0711-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0711-	●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0711-		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0711-			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (K) ID=14-20	8-97061-603-0	01	1	0710-0711		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) ID=14-20	8-97061-603-0	01	1	0710-0711			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (K) ID=14-20	8-97061-603-0	02	1	0712-		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) ID=14-20	8-97061-603-0	02	1	0712-			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 08.852 (L) L=350	8-94152-256-1	02	1	0801-		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 08.852 (L) L=350	8-94152-256-1	02	1	0801-			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.446 (H) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0710-0801		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (M) L=250	5-09707-030-1	01	1	0804-		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=250	5-09707-030-1	01	1	0804-			●			●
48	02.559 CLIP; FRAME HARNESS 03.115 (C) T=9 & 10.5	8-97041-091-0	01	1	0710-0710	●			●
48	02.559 CLIP; FRAME HARNESS (G) T=6.0	5-09709-012-0	01	1	0710-0804		●	●		●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	01	1	0710-0804		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0710-	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0710-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	0710-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0710-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0710-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (A) ID=20	8-94241-972-0	02	1	0710-	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	02	1	0710-				●
48	02.559 CLIP; FRAME HARNESS MULTI INFORMATION DISPLAY<7NY> 03.483 (K) L=450	1-09707-142-1	01	1	0710-		●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0710-		●	●
48	02.559 CLIP; FRAME HARNESS 03.430 (H) ID=10 & 16.5	8-94424-440-0	01	1	0710-		●	●
48	02.559 CLIP; FRAME HARNESS 08.852 (E) L=350	8-94152-256-1	01	1	0710-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	0712-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	0712-			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	0712-					●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0710-0712		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0801-0805		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0801-0805			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-			●
48	02.559 CLIP; FRAME HARNESS (I) T=6.0	5-09709-024-0	01	1	0710-0801		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (I) T=6.0	5-09709-024-0	01	1	0802-0804		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (I) T=6.0	5-09709-024-0	01	1	0802-0804			●
48	02.559 CLIP; FRAME HARNESS (I) T=6.0	5-09709-024-0	01	1	0802-0804					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (F) T=5.5	8-97371-951-0	01	1	0710-0804	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	0710-0804					●	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	0710-0804					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (F) T=5.5	8-97371-951-0	01	1	0805-	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	0805-		●	●		●	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	0805-		●	●		●	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	0805-					●	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	01	1	0805-					●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0804	●			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0804	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0804				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0805-	●		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0805-	●			●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B) T=4.5 & 9	8-97371-947-0	01	1	0805-		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0805-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0801-0805		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0801-0805			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0801-0805					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	0806-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	0806-			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	0806-					●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=12	8-97329-630-0	01	1	1111-		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0710-0801		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) ID=24 L=24	1-09701-001-1	01	1	0710-0801		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (H) ID=16.5 & 16.5	8-94468-380-0	02	1	0710-0801		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.483 (I)	8-97101-436-0	01	1	0710-0801		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=12	8-97329-630-0	01	1	0710-0801		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.602 (F) ID=15 H=24 L=20	1-09700-606-0	01	1	0710-		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	0710-		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.152 (E) L=36	8-94224-891-1	01	1	0710-		●	●		●	●
504	02.559 PROTECTOR; HARNESS 4JJ1-TCS ENG(LFB)	8-98208-886-0	01	1	1201-	●			●
507	02.559 FINISHER 02.183 L=40	8-94212-660-0	01	1	0711-0902	●	●	●	●	●	●
507	02.559 FINISHER 02.183 L=40	8-94212-660-0	01	1	0903-				●	●	●
513	02.559 TAPE; SOFT,HARNESS MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 130X80	8-97304-373-0	01	1	0710-0807		●	●		●	●
513	02.559 TAPE; SOFT,HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 130X80	8-97304-373-0	01	1	0808-	●	●	●	●	●	●
513	02.559 TAPE; SOFT,HARNESS MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 130X80	8-97304-373-0	01	1	0808-		●	●		●	●
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-	●	●	●	●	●	●
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	0710-	●	●	●	●	●	●

38 139 150 516 150 150 313 481 139 150 304 481 480 242 529 304 480 377 386 377 386 386 377 386 377 24 515 577 219 294 515 524 552 24 515 552 516 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●	●	●	●	●
24	02.559 NUT; HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0801-		●			●
24	02.559 NUT; HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0801-			●			●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0710-0903	●			●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0904-	●			●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0904-		●			●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-	●	●	●	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0805	●	●	●	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-	●	●	●	●	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0710-1101	●	●	●	●	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-	●	●	●	●	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0710-0801		●	●		●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) M8X16 FLANGE	0-28050-816-0	01	1	0710-0801		●	●		●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.662 (C) M8X14 FLANGE	0-28080-814-0	01	1	0710-0801		●	●		●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) M8X12 FLANGE	0-28050-812-0	01	1	0710-		●	●		●	●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-		●	●		●	●
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0710-	●	●	●	●	●	●
294	02.559 NUT 4HK1-TCN ENG(RDQ) 04.309 M8 W/LK WASHER	8-94413-537-0	01	1	0801-0904		●			●
294	02.559 NUT 4HK1-TCS ENG(RJS) 04.309 M8 W/LK WASHER	8-94413-537-0	01	1	0801-0904			●			●
294	02.559 NUT 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0904	●			●
294	02.559 NUT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0904		●			●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	0905-	●	●	●	●	●	●
304	02.483 BOLT; ENG HARNESS CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0710-0801		●	●		●	●
304	02.483 BOLT; ENG HARNESS CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0710-		●	●		●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0710-	●	●	●	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0710-1004	●	●	●	●	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0710-1004	●	●	●	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-	●	●	●	●	●	●
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0710-1004	●	●	●	●	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-	●	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0710-1004	●	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0710-1004	●	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●	●	●	●	●
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0710-	●	●	●	●	●	●
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-		●	●		●	●
481	13.090 BOLT; CABLE HARNESS 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0903	●			●
481	13.090 BOLT; CABLE HARNESS 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0710-	●			●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●	●	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0710-	●	●	●	●	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0710-0909	●	●	●	●	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0710-0909		●	●		●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-	●	●	●	●	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-		●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-			●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-					●	●
516	02.559 BOLT; HARNESS 4JJ1-TCS ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-	●			●
516	02.559 BOLT; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) 09.650 (B) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0806-0806			●
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	0904-	●			●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0710-	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0710-0907	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0908-	●			●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0710-	●	●	●	●	●	●

53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (I)	8-98083-225-1	01	1	0710-	●			●
53	02.483 BRACKET; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (J)	8-98084-590-0	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	0710-		●	●		●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	0710-		●	●		●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0710-		●	●		●	●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	0710-		●	●		●	●
53	02.483 BRACKET; HARNESS (L)	8-98094-629-0	01	1	0710-		●	●		●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B)	8-98039-277-1	02	1	0710-0805	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B)	8-98039-277-2	02	1	0806-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (D)	8-98074-502-0	01	1	0806-0806			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
